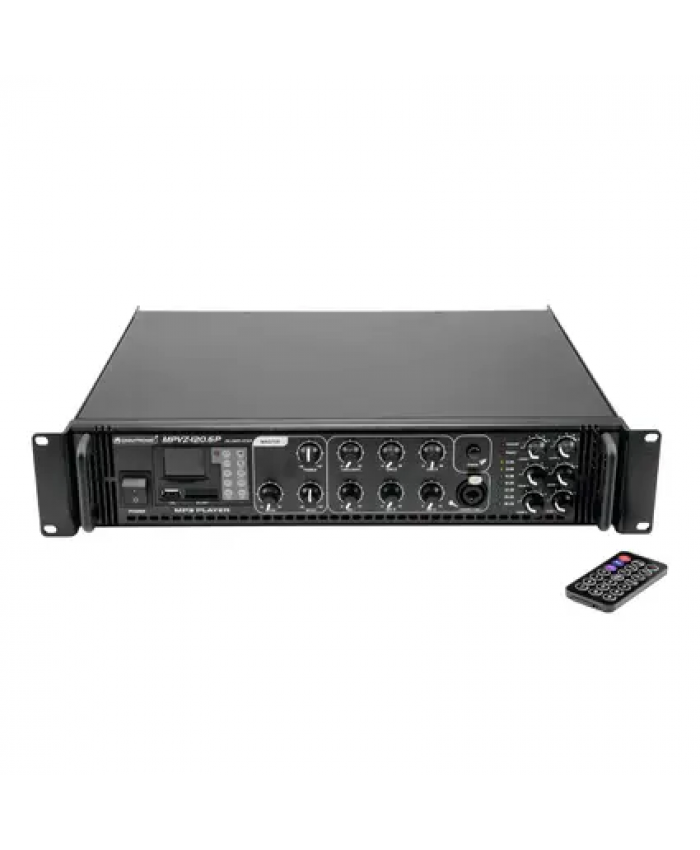

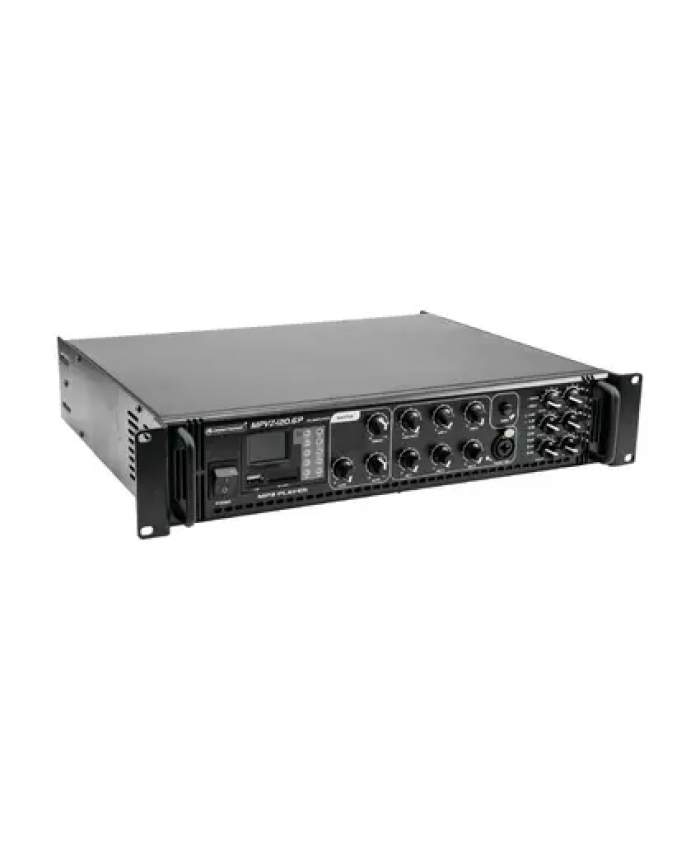

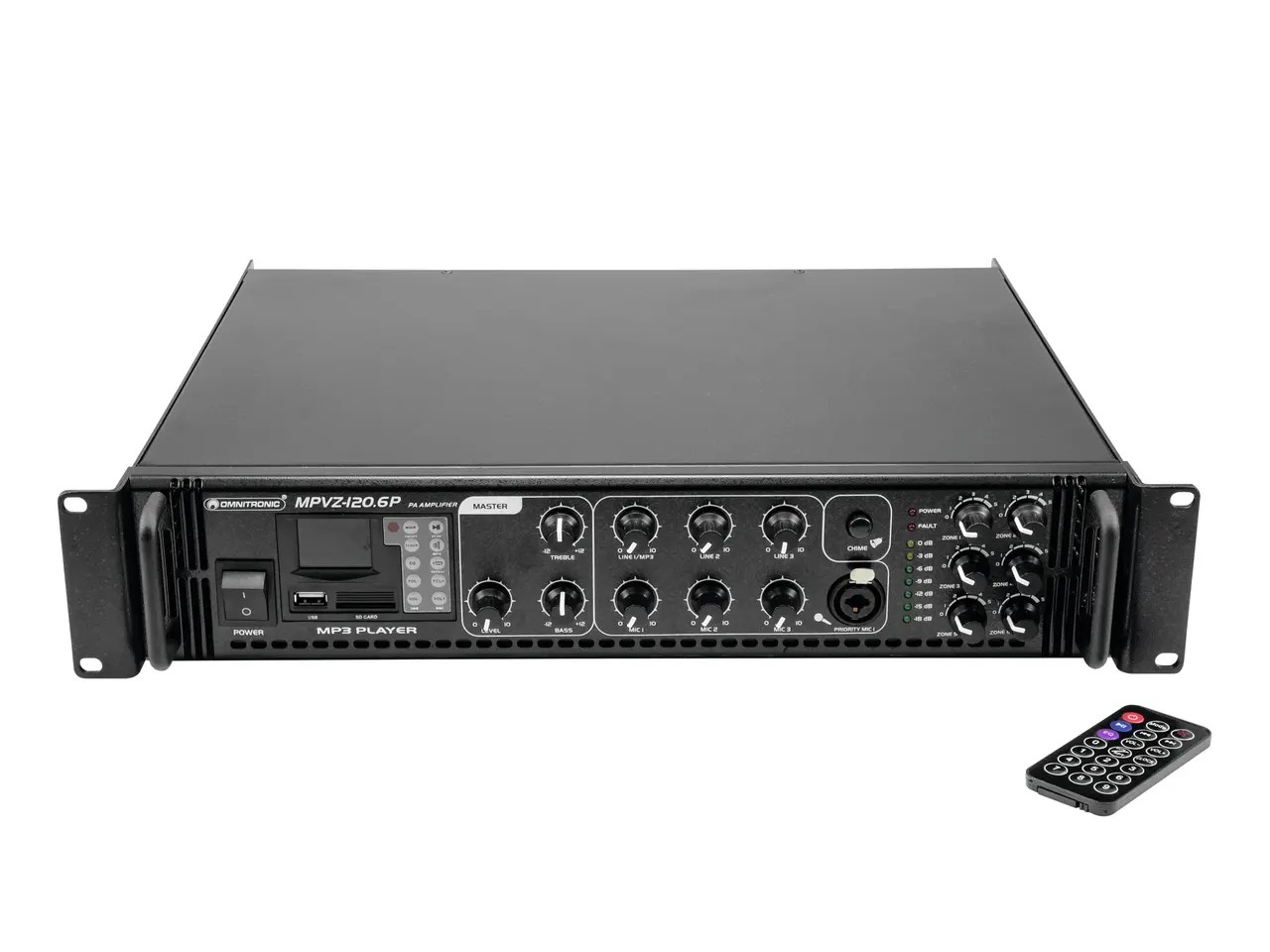

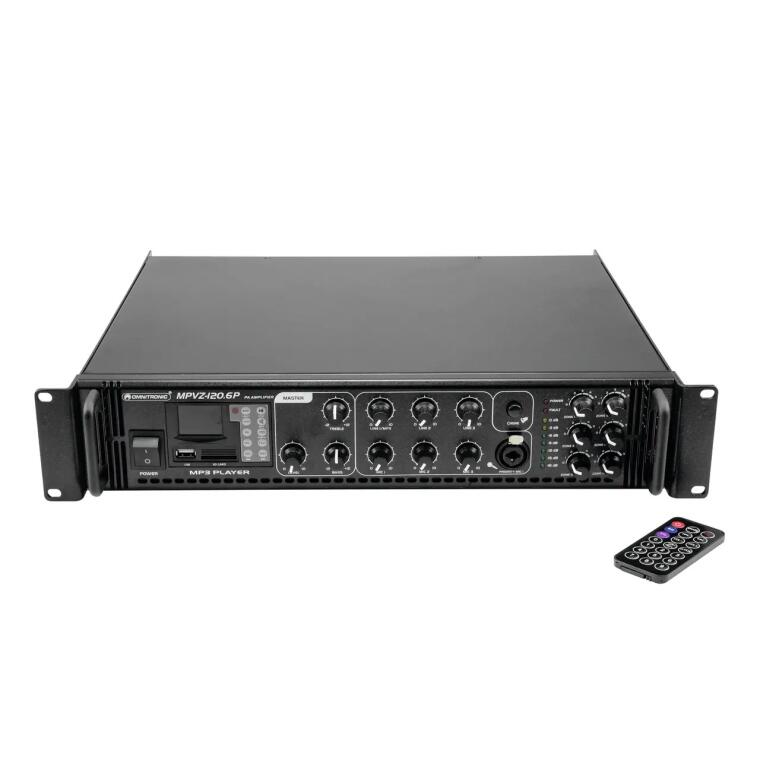

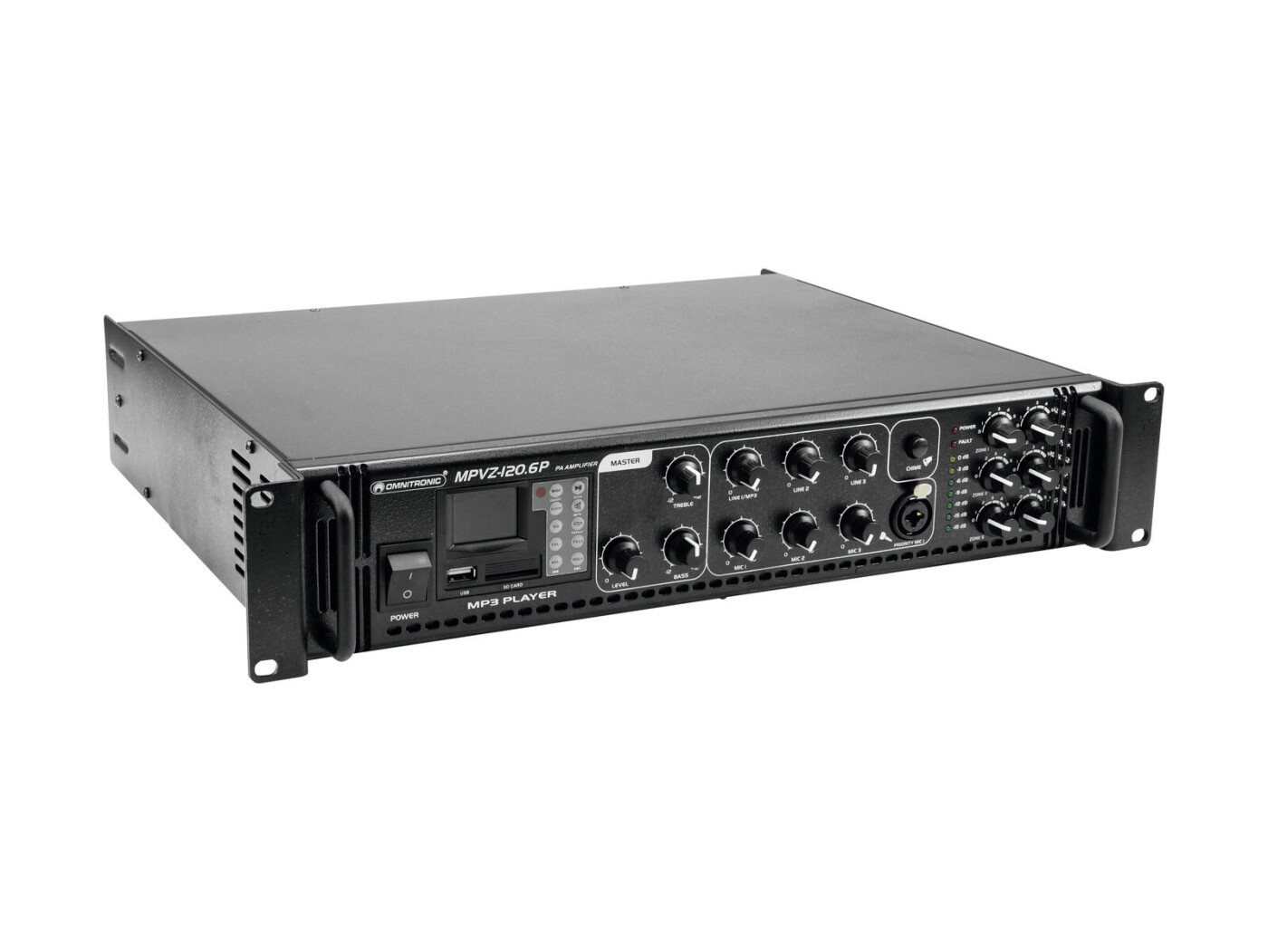

OMNITRONIC MPVZ-120.6P PA Mixing Amplifier
6-zone-PA mixing amplifier with audio player and remote control, adjustable zones, 120 W RMS
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19") 48.3 cm rack installation 2 U
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
audio player
- Control via IR remote control
- LCD display
Omnitronic MPVZ-120.6P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: 240 W
Audio Performance
-
Output Power (RMS): 120 W RMS across 6 switchable zones
-
Speaker Outputs: 6 Zone Outputs (100V Line) with individual level controls + Main low-impedance Output (4-16 Ω)
-
Amplifier Class: Class AB
-
Frequency Range: 80 - 16,000 Hz
-
S/N Ratio: >85 dB (Line), >75 dB (Mic)
-
THD: <0.5% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner
-
Supported Media Formats: MP3 (USB/SD max 32 GB, FAT32)
-
Zone Management: 6 individually switchable zone outputs with dedicated 6-step level attenuators
-
Chime Function: Switchable chime generator with dedicated trigger button
-
Remote Control: IR remote control included for media player

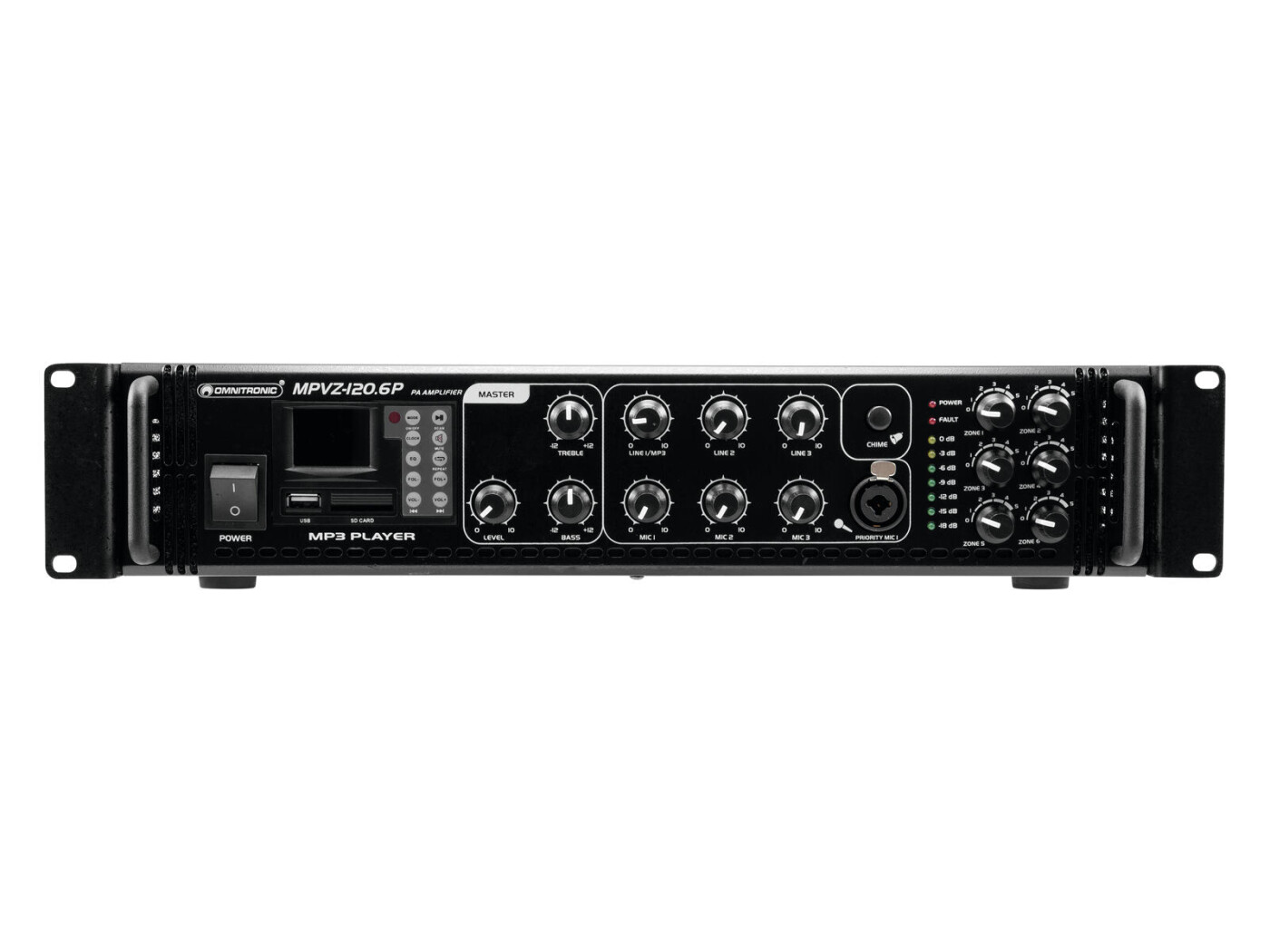

Controls & Indicators
-
Display: Blue backlit LCD display for media player status, 7-digit LED output level meter
-
Control Elements: Master volume knob, 6 Zone volume attenuators and ON/OFF switches, 2-band EQ (Bass & Treble), separate level controls for Mic 1-3 and Line 1-3, Chime switch
-
Protection Circuits: Soft start, overvoltage, short-circuit, overheat protection; temperature-controlled fan cooling

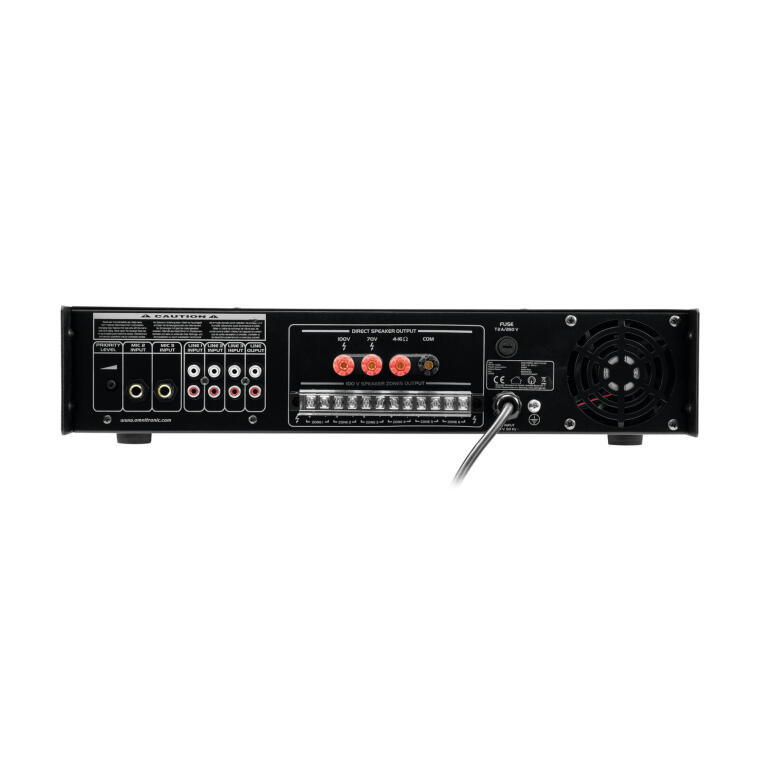

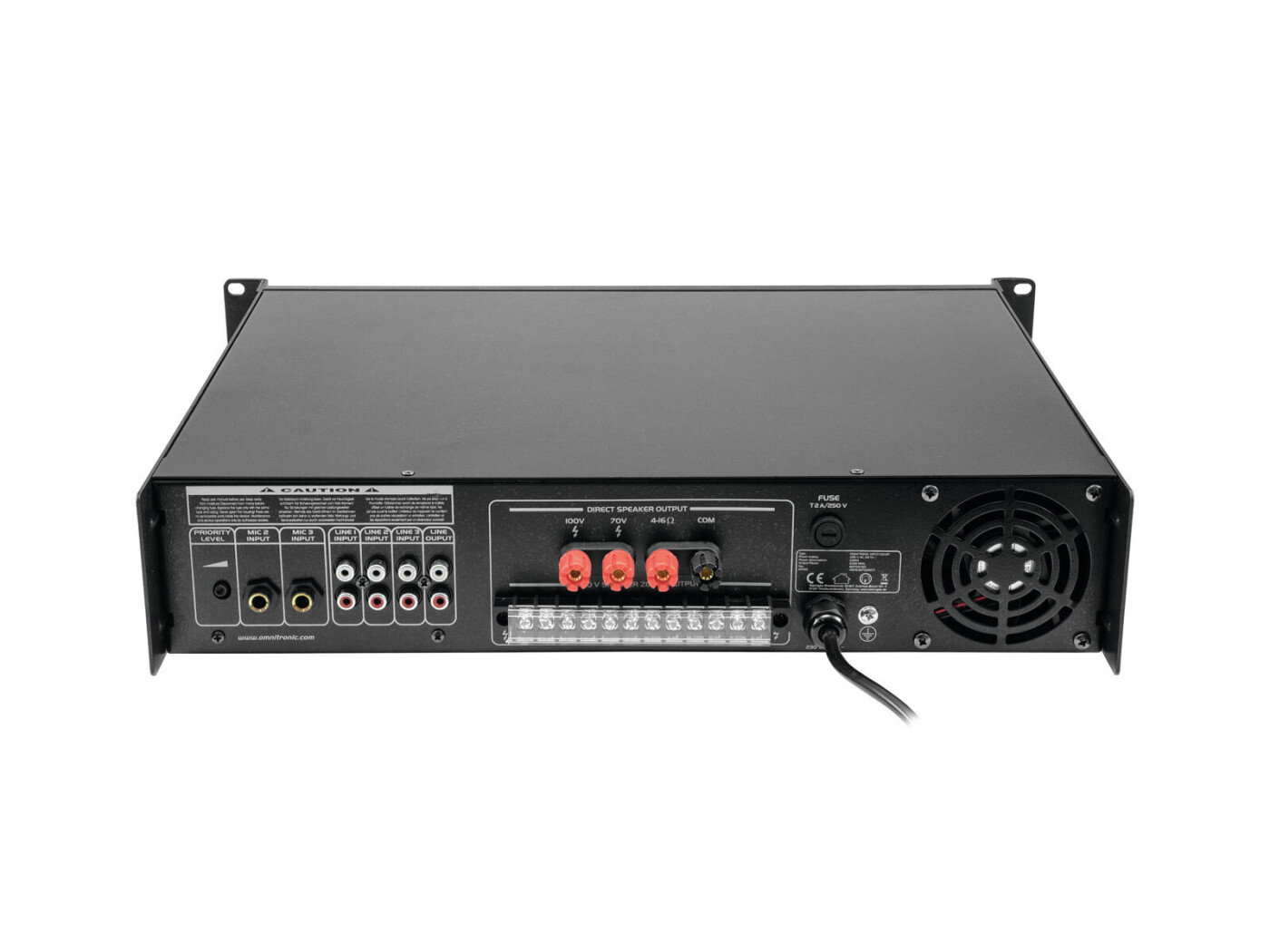

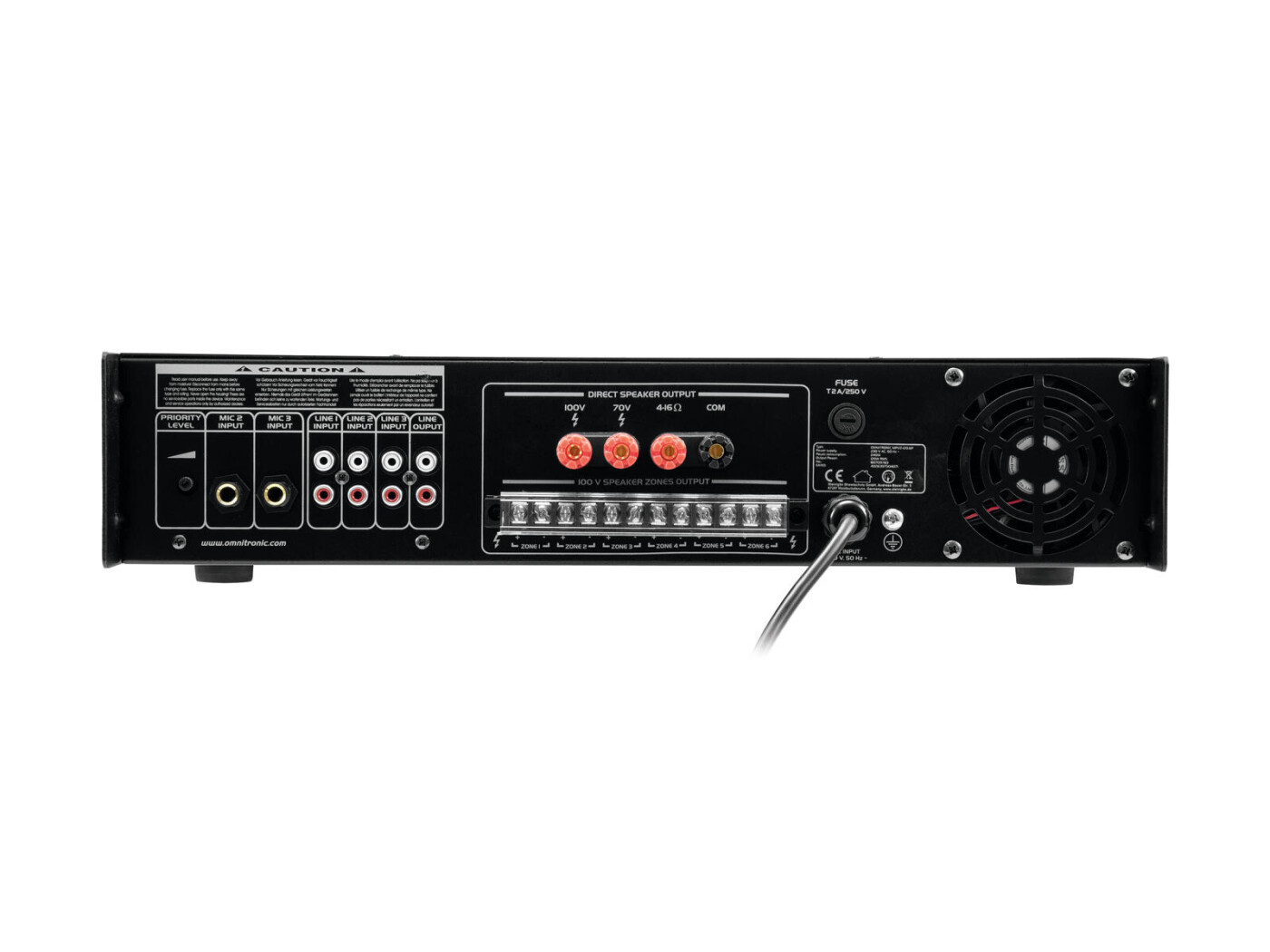

Inputs & Outputs
-
Inputs:
-
Microphone: 1 x Combo XLR / 6.35 mm jack (Mic 1 with phantom power & priority override), 2 x 6.35 mm jack (Mic 2 & 3)
-
Aux/Line: 3 x Stereo RCA (Line 1-3)
-
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-

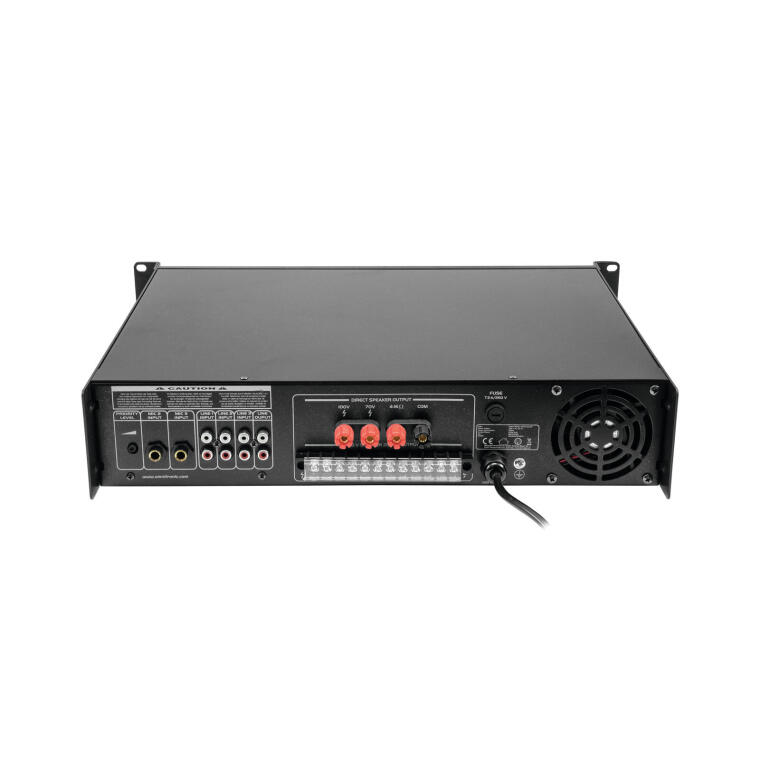

Speaker Terminals: Screw terminal block (6 x 100V Zone Outputs with attenuators, 4-16 Ω main output)
-
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height)
-
Housing Design: Heavy-duty steel chassis with aluminum front panel
-
Dimensions (W x D x H): 483 x 385 x 89 mm
-
Weight: 9.3 kg
Accessories Included
-
Fixed Power Supply Cord, IR Remote Control (CR2025 battery included), FM Antenna, User Manual
