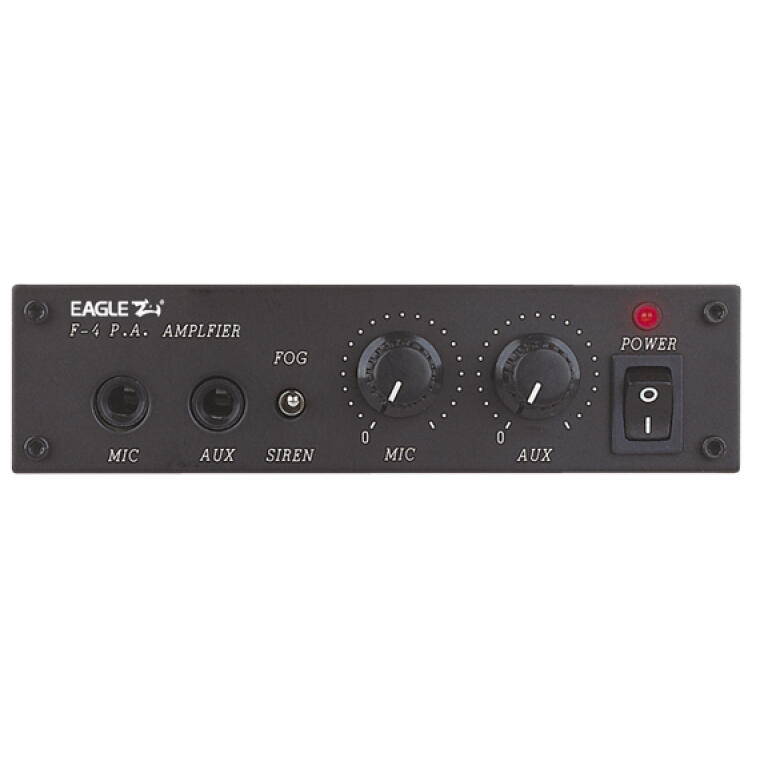

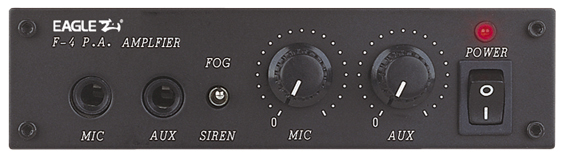

Eagle Mobile PA Amplifier 12V 12W
Eagle P101
The P101 provides low-cost amplification with a microphone input with level control, auxiliary input with level control and Fog/Siren output. The power output of 12 Watts can be fed into a combined speaker load of between 4 and 16 Ohms and the unit is supplied with mounting hardware.
Eagle P101 Mobile 12V PA Amplifier – Technical Specifications
Power Supply & Consumption
-
Power Supply: 12 V DC (Mobile / Vehicle / Marine operation)
-
Power Connection: DC power terminals / loom
Audio Performance
-
Output Power (RMS): 12 W RMS
-
Speaker Outputs: Low-impedance 4 – 16 Ω combined load
-
Frequency Range: 80 – 15,000 Hz
-
Microphone Sensitivity: 3.5 mV (200 Ω – 50 kΩ)
-
Auxiliary Sensitivity: 85 mV / 10 kΩ
Connectivity & Media Playback
-
Integrated Media Player: N/A
-
Specialized Functions: Integrated Fog / Siren signal generator
Controls & Indicators
-
Control Elements: Dedicated Microphone Volume control, Auxiliary Volume control, Fog/Siren activation switch, Power ON/OFF switch
-
Priority Function: No priority override on microphone input
Inputs & Outputs
-
Inputs:
-
Microphone: 1 x 6.35 mm (1/4") Jack (unbalanced)
-
Auxiliary/Line: 1 x 6.35 mm (1/4") Jack / RCA
-
-
Outputs:
-
Speaker Terminals: Screw terminal block / leads (4–16 Ω)
-
Physical Specifications
-
Housing Design: Ultra-compact mobile chassis (steel case, black finish)
-
Mounting: Under-dash / vehicle mounting bracket hardware included
-
Dimensions (W x D x H): 150 x 150 x 40 mm
-
Weight: 0.79 kg
Accessories Included
-
Vehicle Mounting Bracket & Hardware Set, User Instructions
