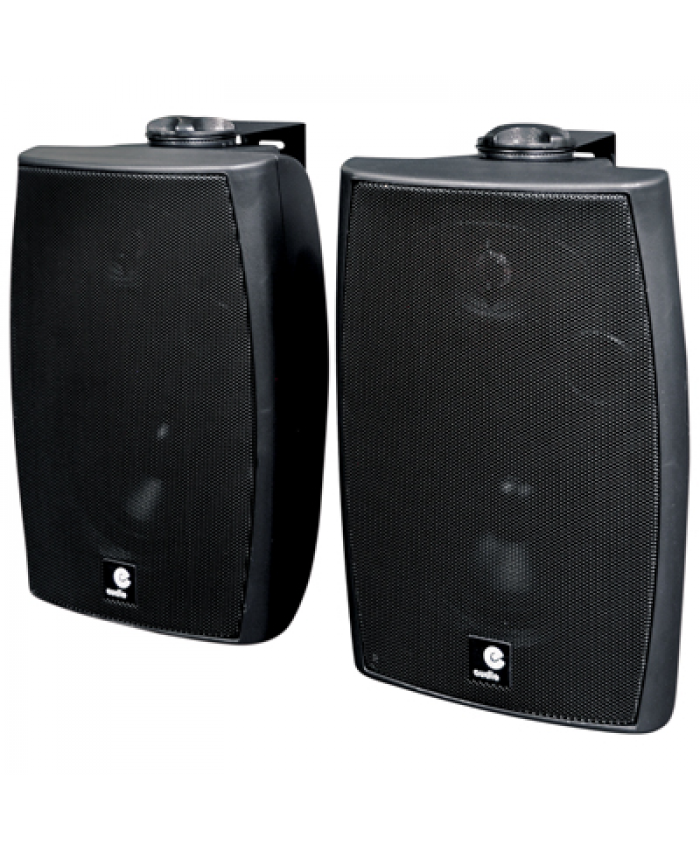

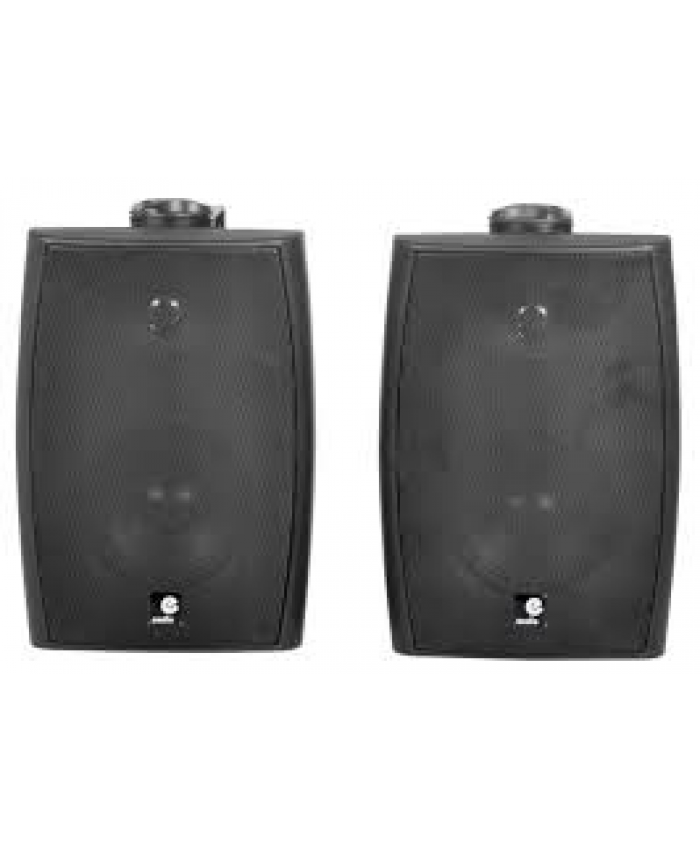

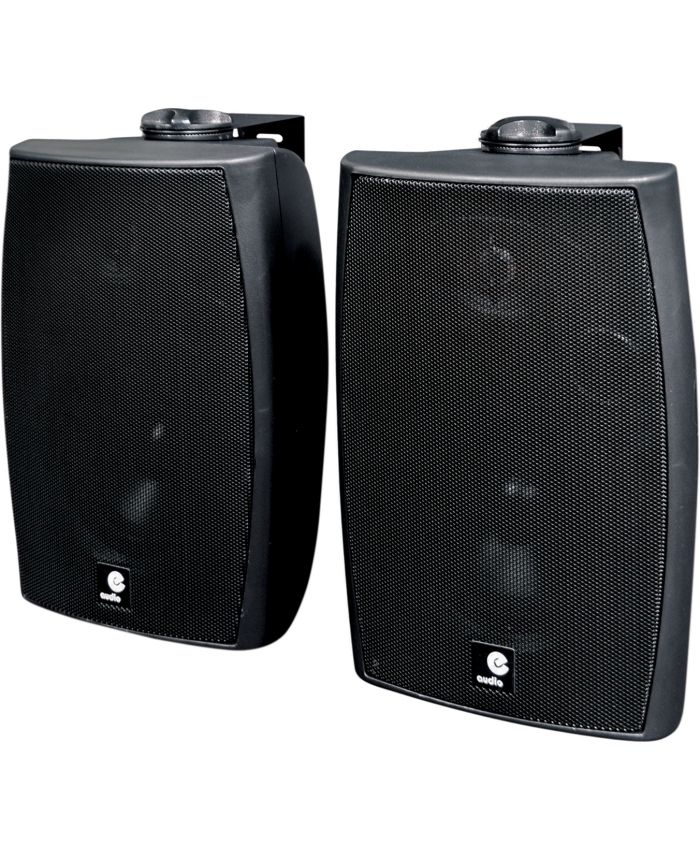

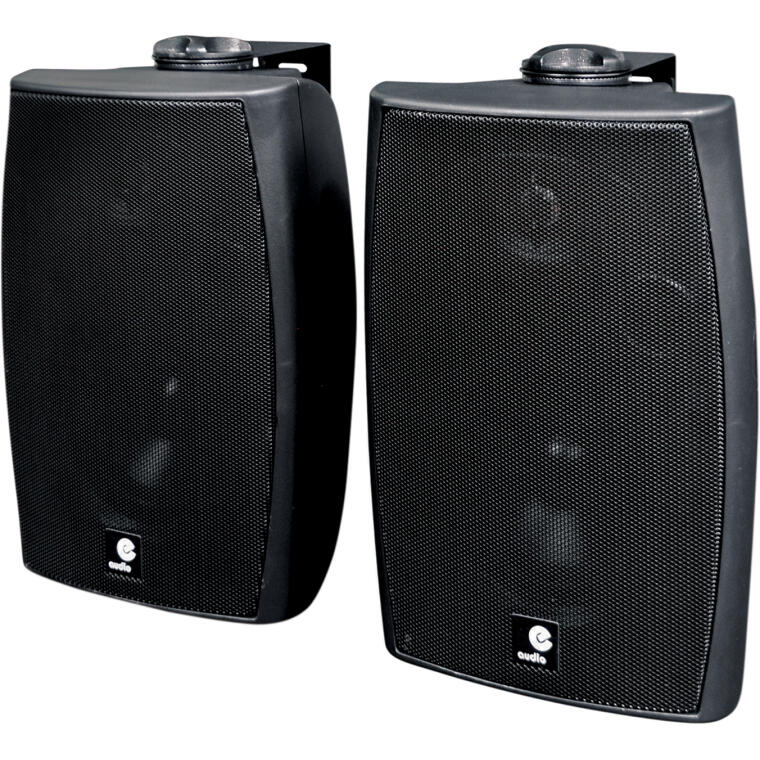

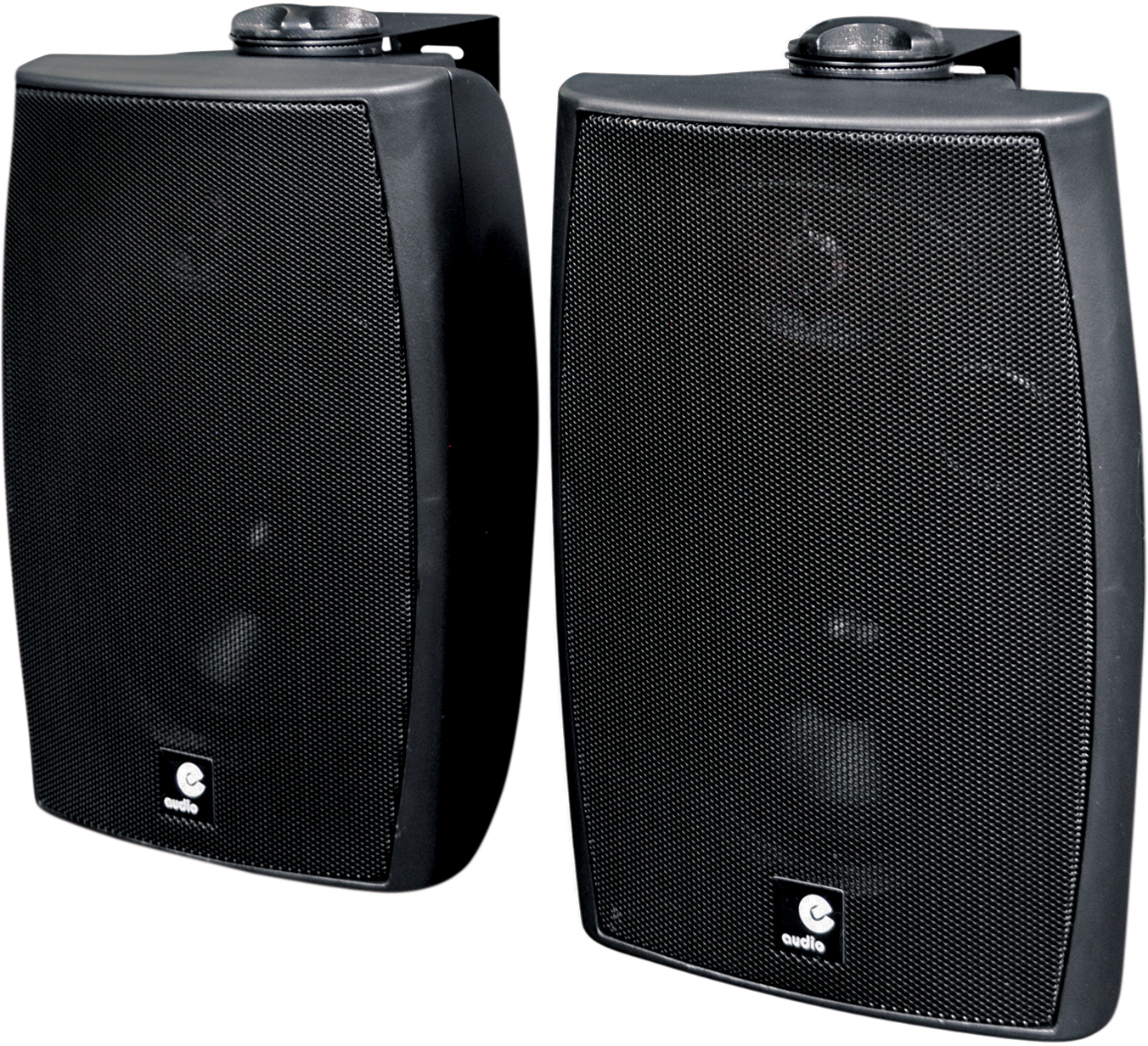

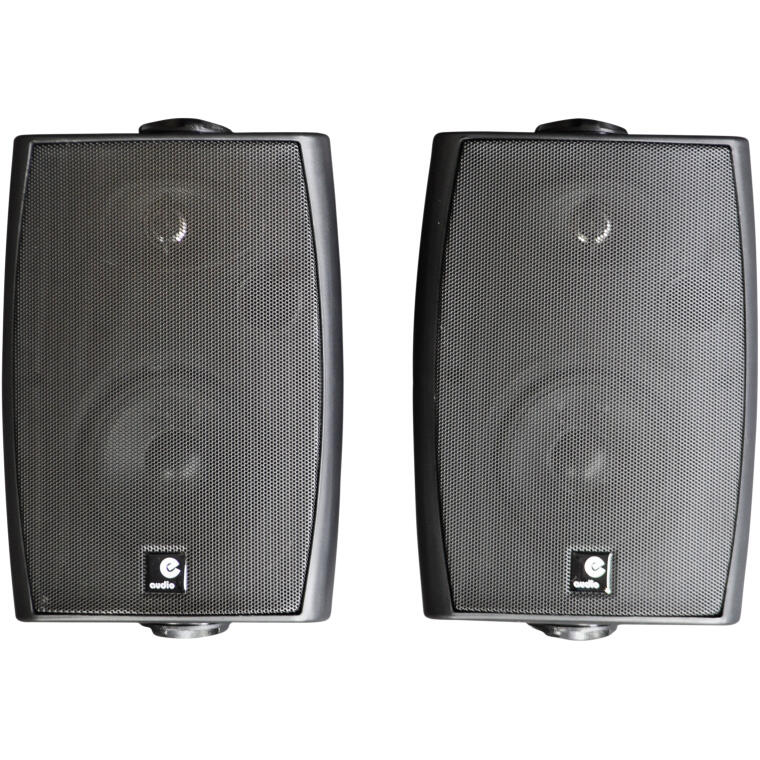

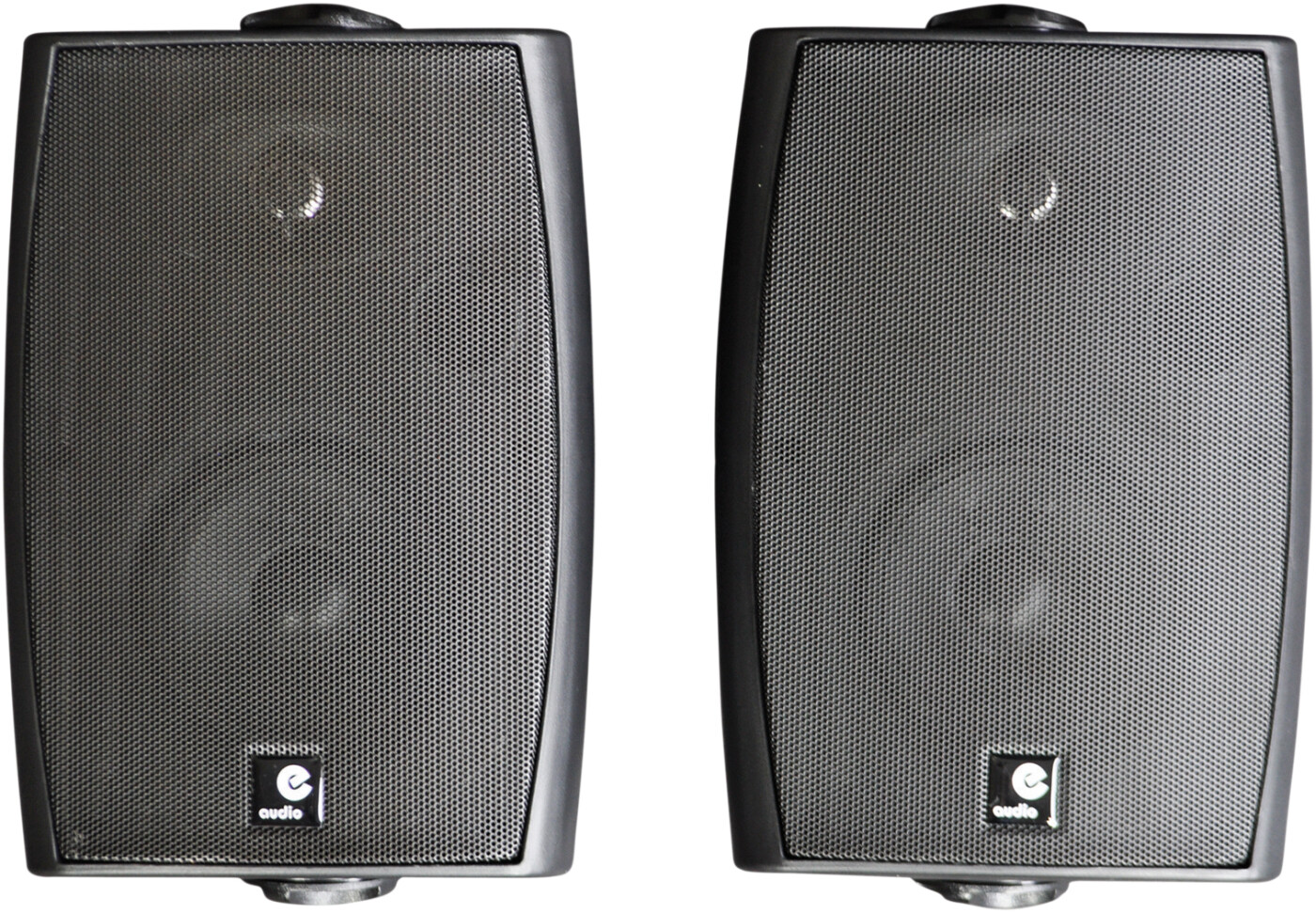

e-Audio P602YBA

e-Audio P602YBA – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Active / Passive pair 2-way stereo wall-mount speaker system (Master/Slave configuration)

• Output Power: 2 x 30 W RMS (60 W RMS total) / 2 x 60 W Peak

• Amplifier Type: Built-in Class-D stereo amplifier (located inside active master unit)

• Power Supply: 100–240 V AC, 50/60 Hz (external or direct mains power connection)

Audio Performance & Transducers

• Low Frequency Driver: 5.25" (133 mm) polypropylene cone woofer with rubber surround

• High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

• Frequency Response: 80 – 20,000 Hz

• Sensitivity: 88 dB (1W/1m)

• Nominal Impedance: 8 Ω (slave speaker)

Connectivity & Wireless Specifications

• Wireless Connection: Integrated Bluetooth audio receiver (Version 4.0 / 5.0, range up to 10 m)

• Auxiliary Input: 1 x Stereo RCA input (Line-level), 1 x 3.5 mm stereo Aux jack

• Output to Slave Speaker: Spring clip / screw terminals on Master speaker to power passive Slave speaker

Controls & Indicators

• Control Elements: Master Volume rotary control, Bass adjustment knob, Treble adjustment knob, Power switch

• Status Indicators: LED indicator for Power ON/OFF and Bluetooth pairing status

Enclosure & Hardware

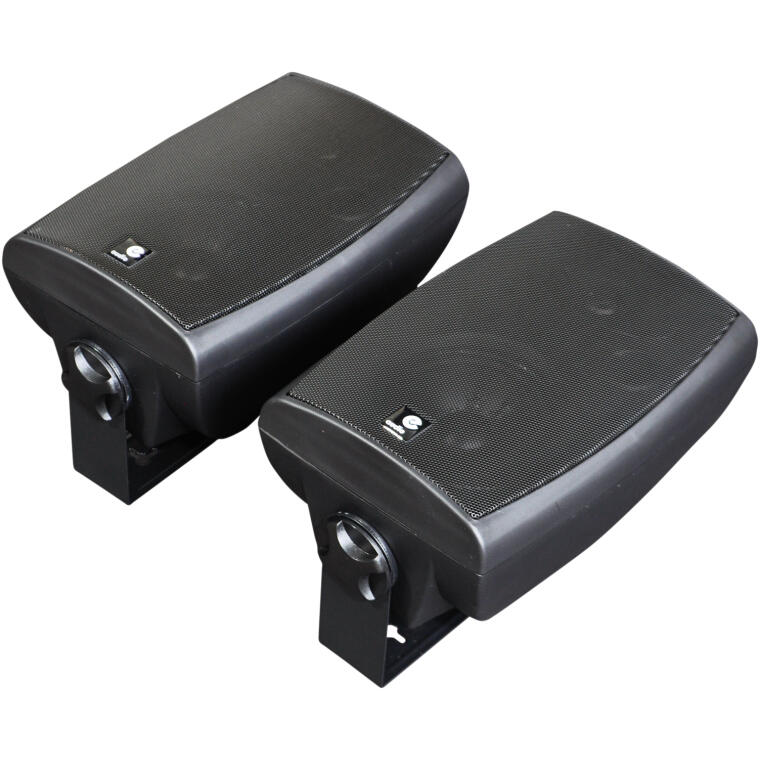

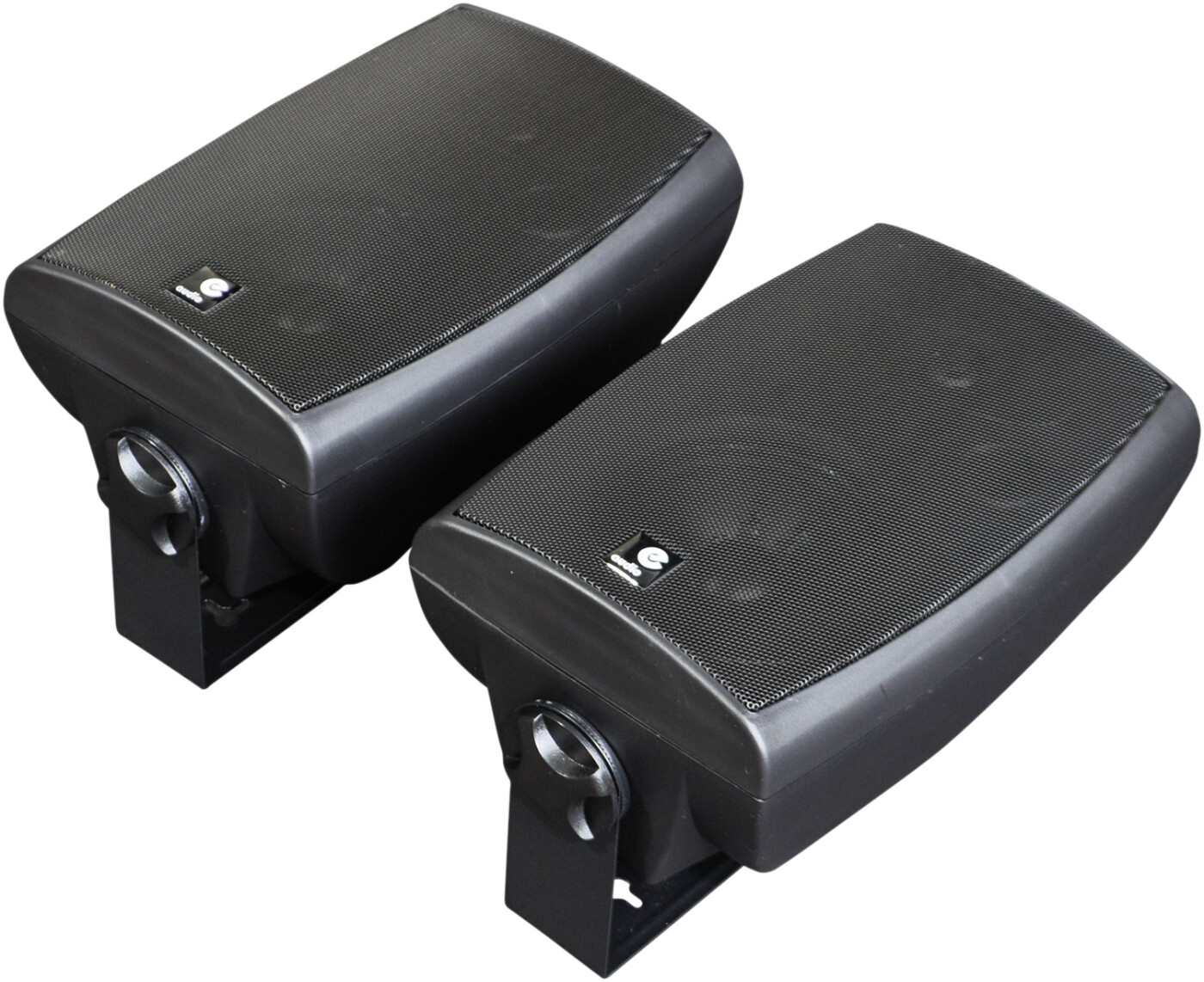

• Cabinet Material: Weather-resistant ABS plastic enclosure with protective aluminum grille

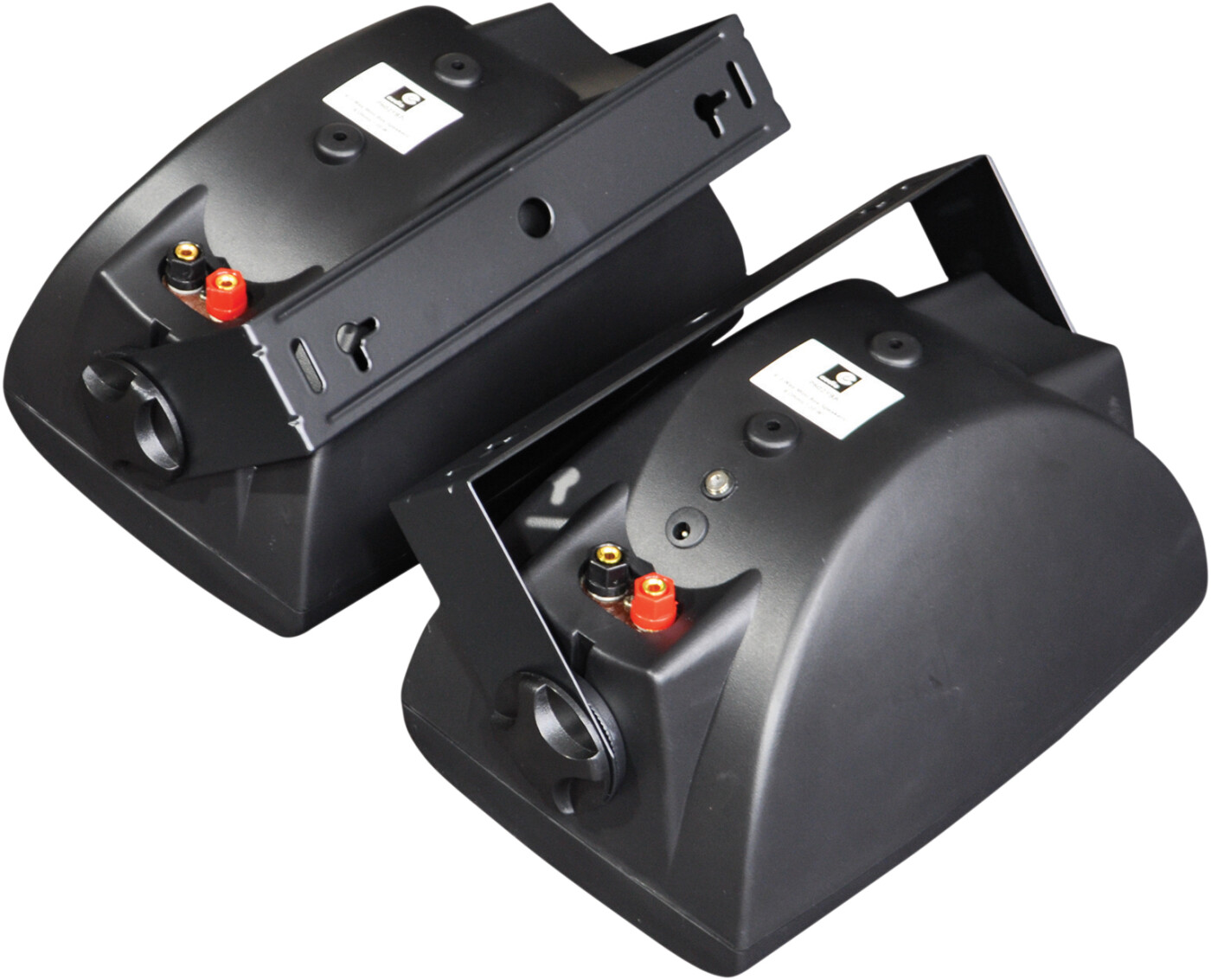

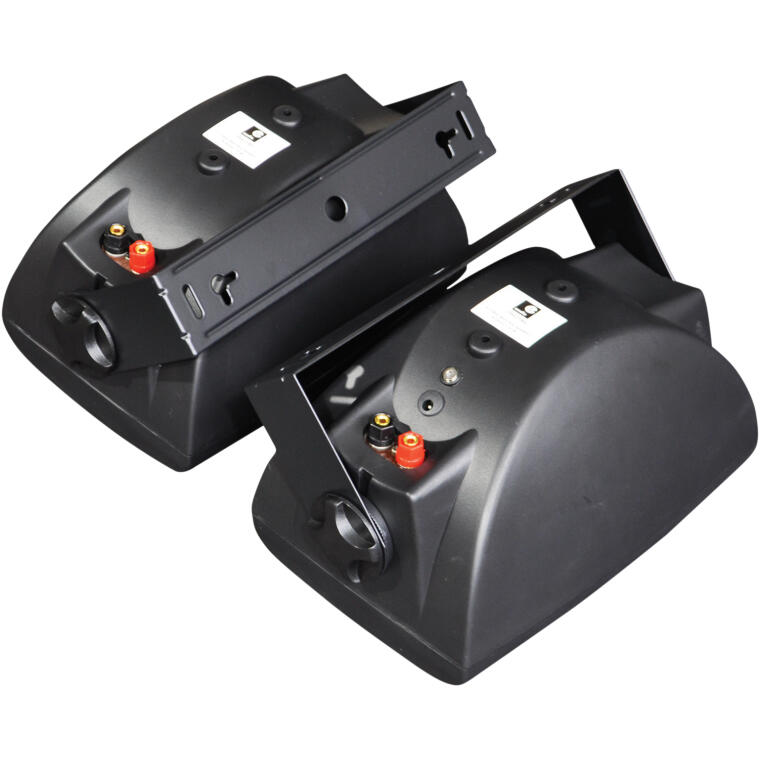

• Mounting: Includes adjustable metal U-brackets for horizontal or vertical wall/ceiling mounting

• Application: Indoor and covered outdoor installation (e.g., patios, commercial spaces, home audio)

Physical Specifications

• Dimensions (per speaker, W x D x H): 160 x 150 x 240 mm (6.3" x 5.9" x 9.4")

• Weight (Pair Total): Approx. 4.8 kg (10.6 lbs)

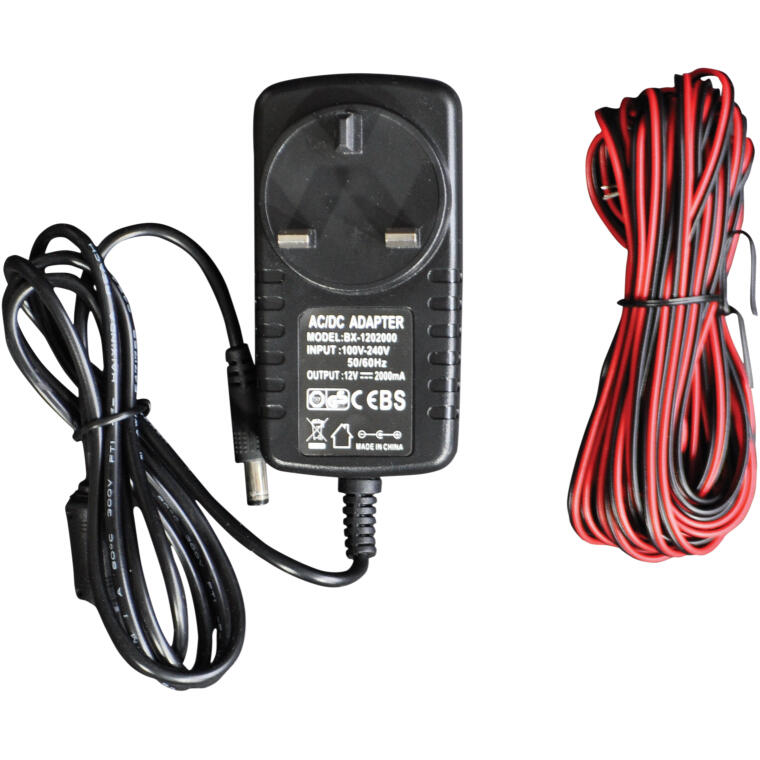

Accessories Included

• Adjustable Wall-Mounting Brackets & Screws

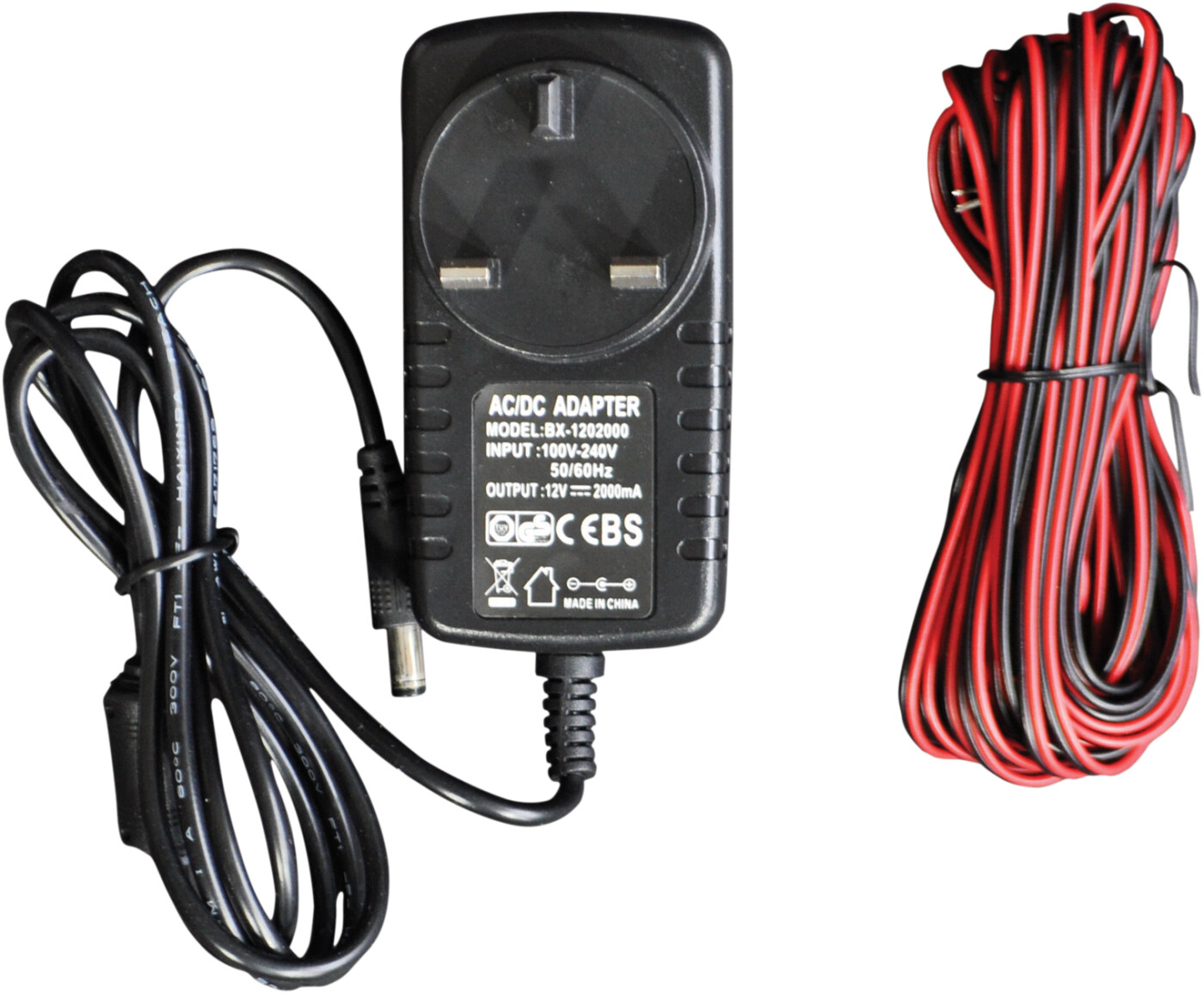

• Speaker Interconnect Cable (to connect Master to Slave speaker)

• AC Power Adapter / Cable

• Operating Instructions Manual
