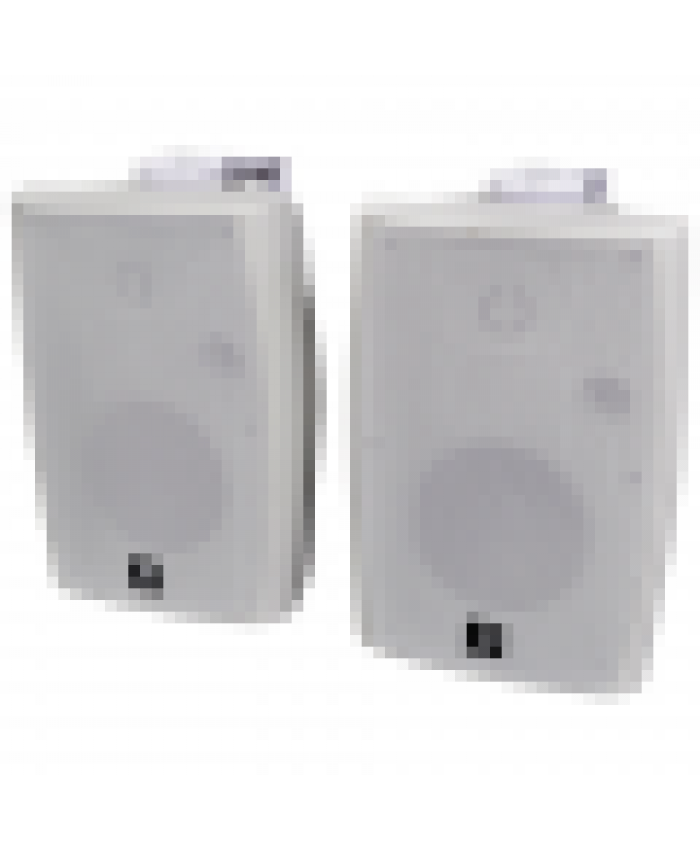

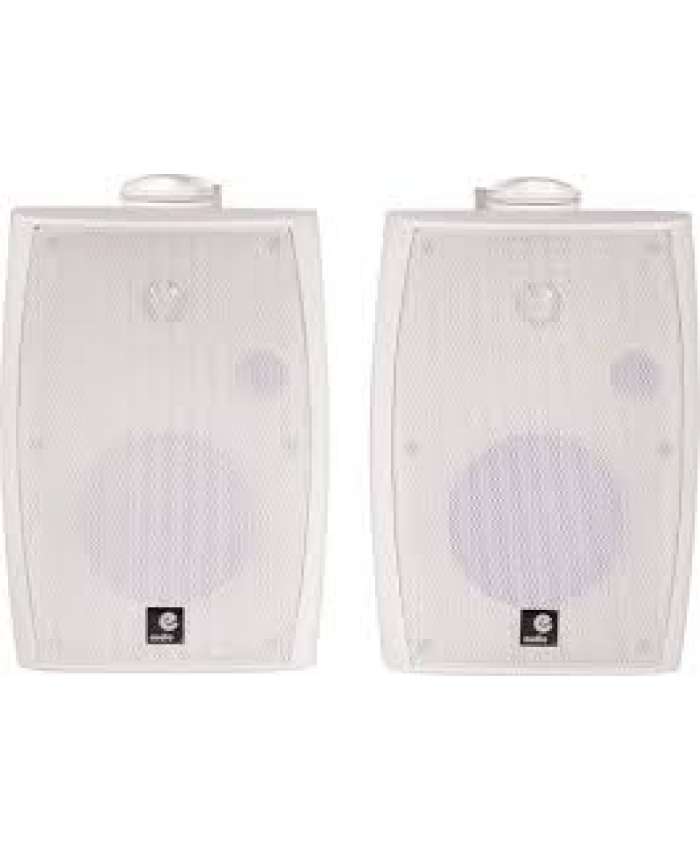

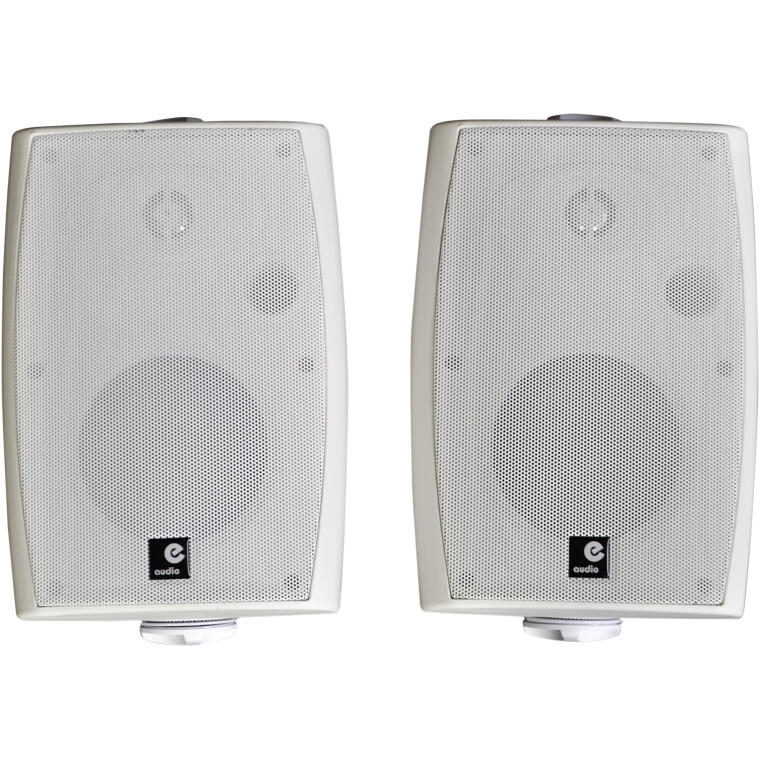

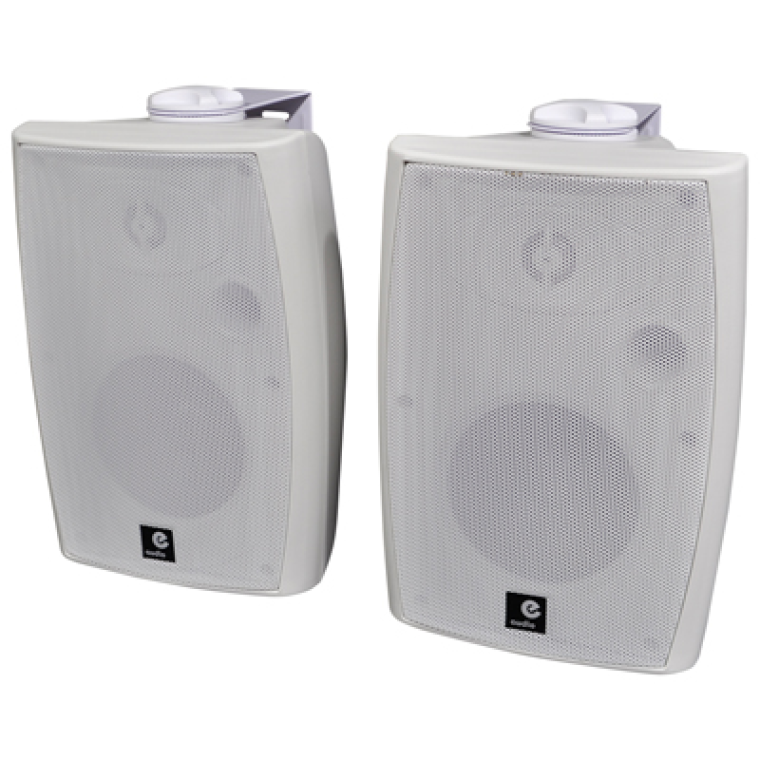

E-Audio P602YA

E-Audio P602YA – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Active / Passive pair 2-way stereo wall-mount speaker system (Master/Slave configuration)

• Output Power: 2 x 20 W RMS (40 W RMS total) / 2 x 40 W Peak

• Amplifier Type: Built-in Class-D stereo amplifier (located inside active master unit)

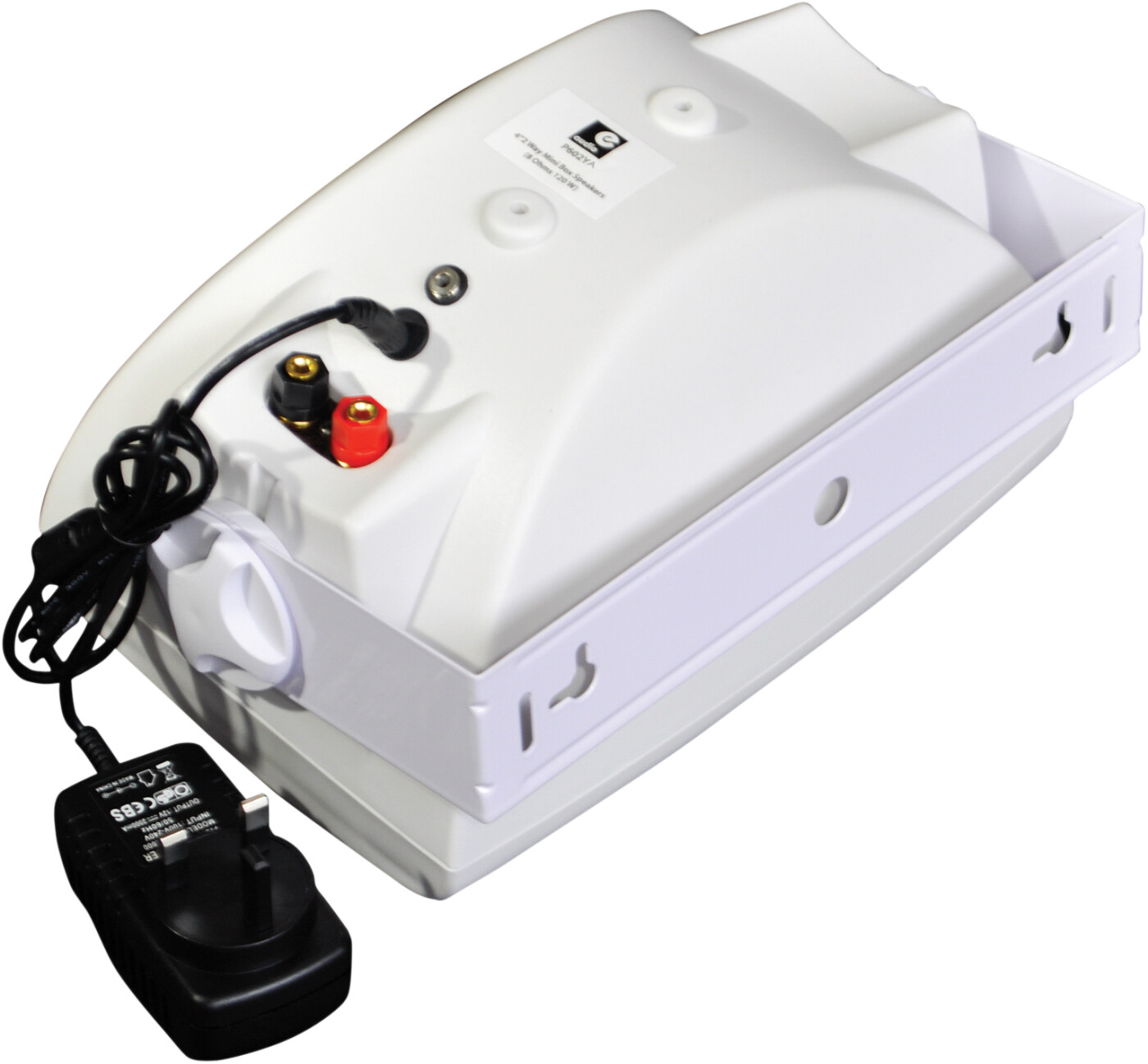

• Power Supply: 100–240 V AC, 50/60 Hz (external 12 V DC power adapter)

Audio Performance & Transducers

• Low Frequency Driver: 4" (100 mm) polypropylene cone woofer with rubber surround

• High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

• Frequency Response: 90 – 20,000 Hz

• Sensitivity: 87 dB (1W/1m)

• Nominal Impedance: 8 Ω (slave speaker)

Connectivity & Wireless Specifications

• Wireless Connection: Integrated Bluetooth audio receiver (Version 4.0 / 5.0, range up to 10 m)

• Auxiliary Input: 1 x Stereo RCA input (Line-level), 1 x 3.5 mm stereo Aux jack

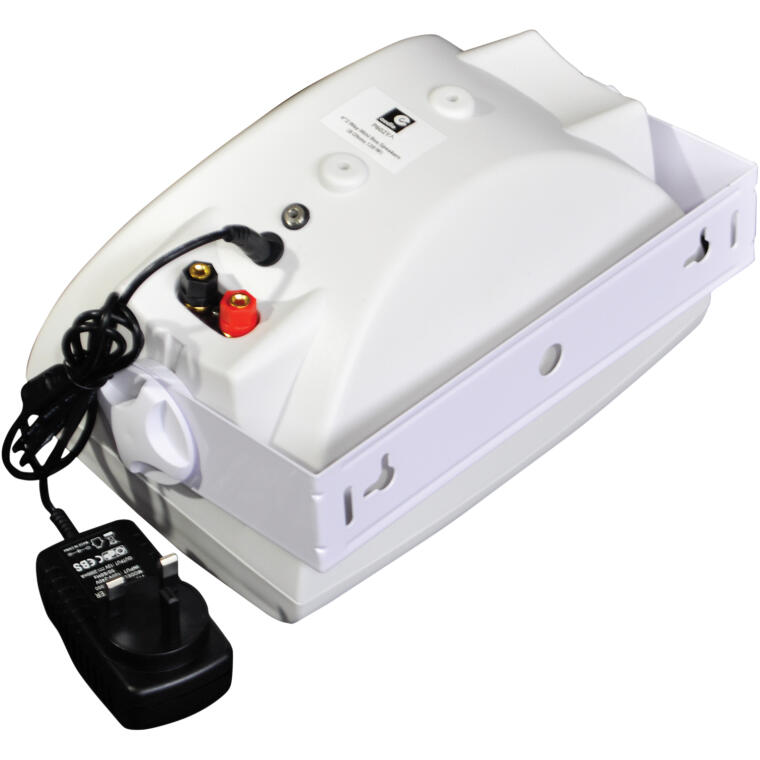

• Output to Slave Speaker: Spring clip / terminal block on Master speaker to power passive Slave speaker

Controls & Indicators

• Control Elements: Master Volume rotary control, Bass adjustment knob, Treble adjustment knob, Power switch

• Status Indicators: LED indicator for Power ON/OFF and Bluetooth pairing status

Enclosure & Hardware

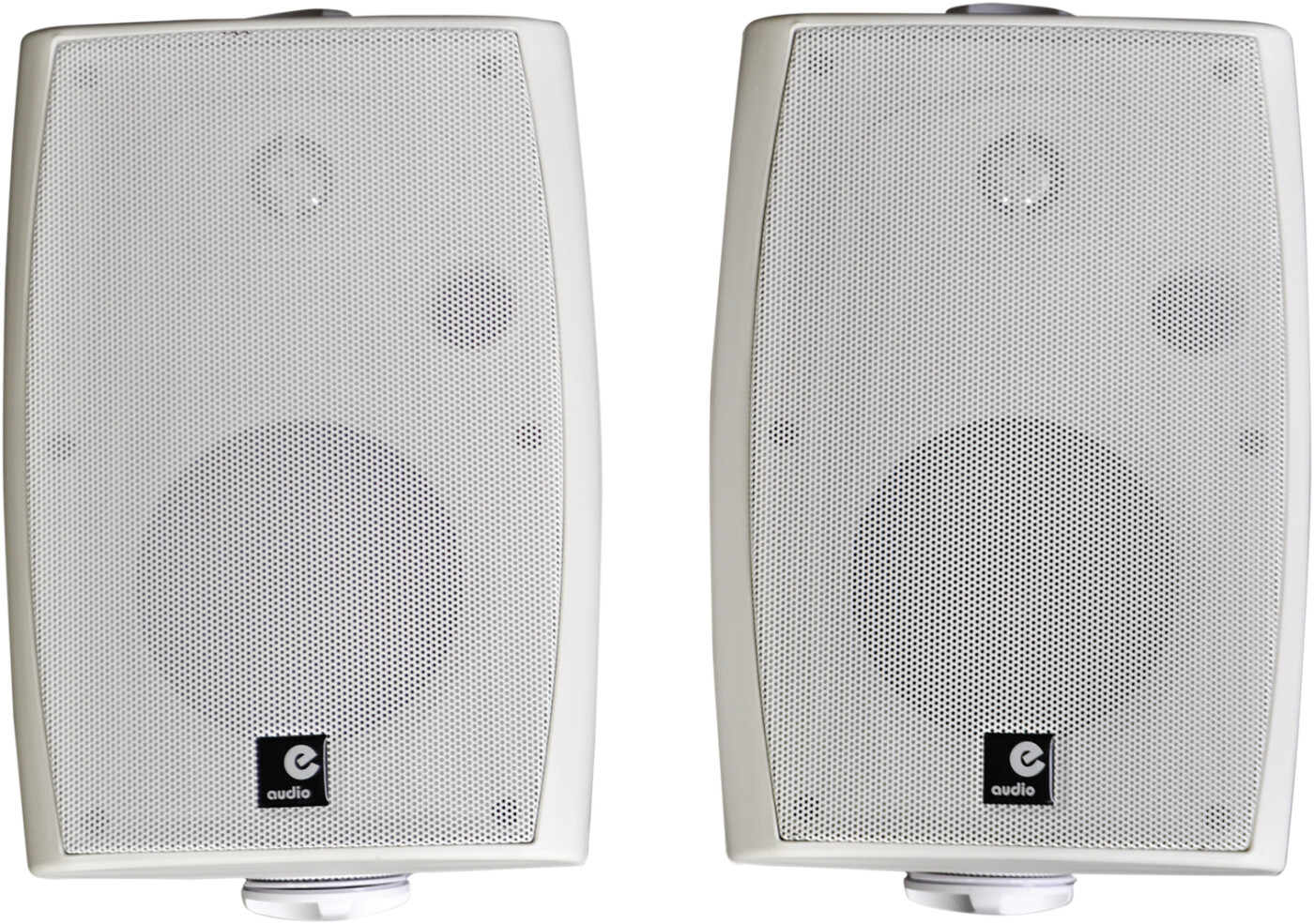

• Cabinet Material: ABS plastic enclosure with protective metal grille

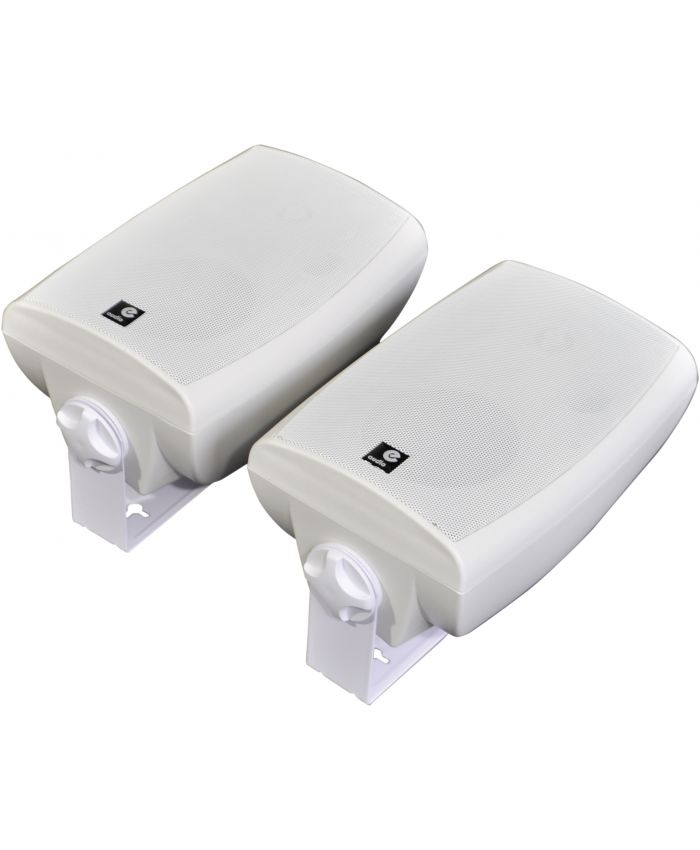

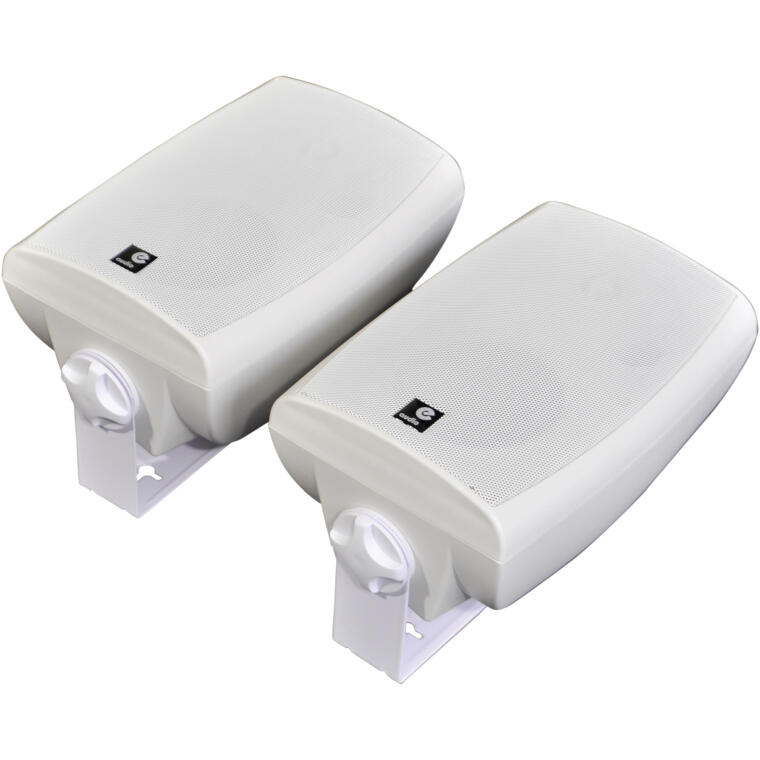

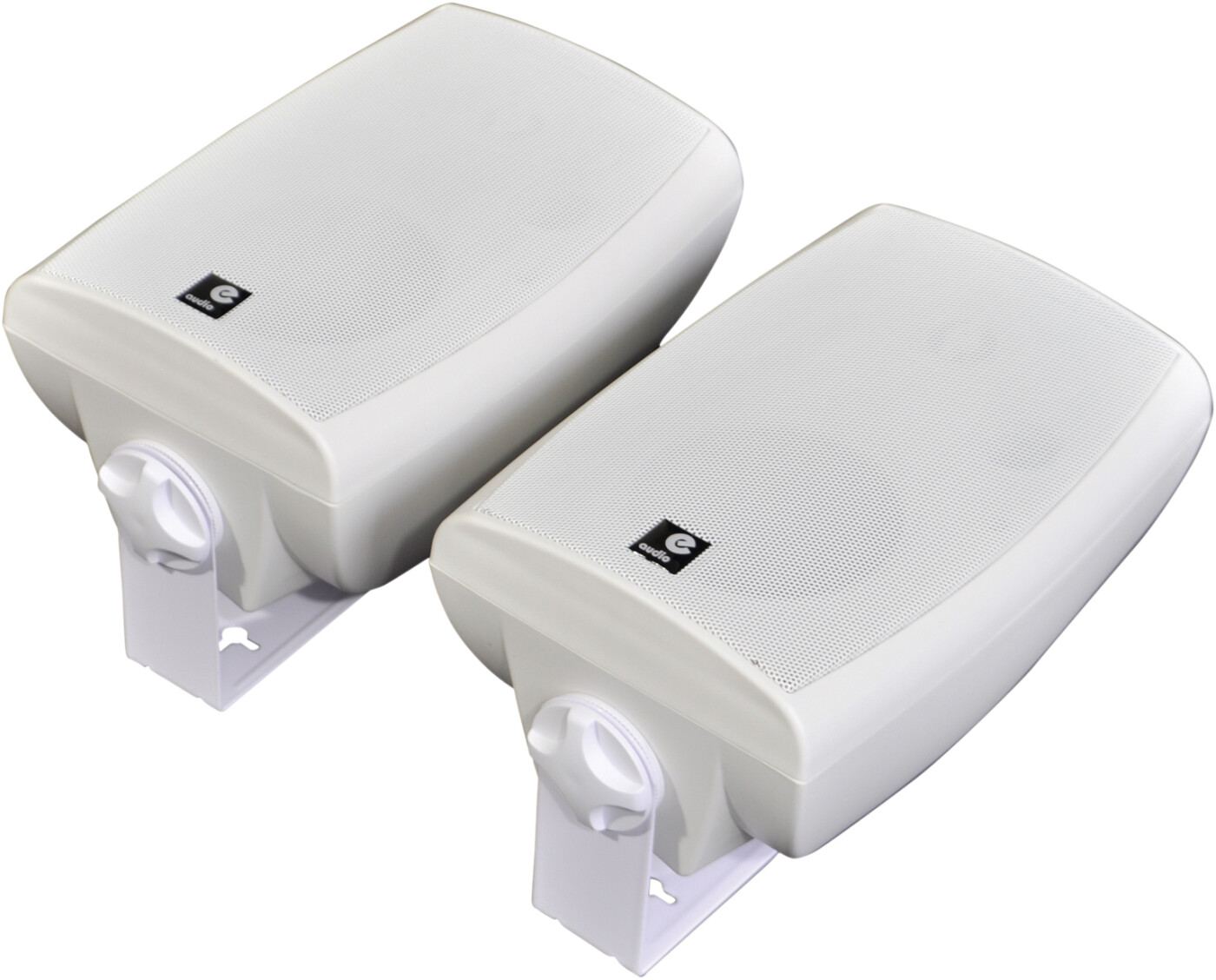

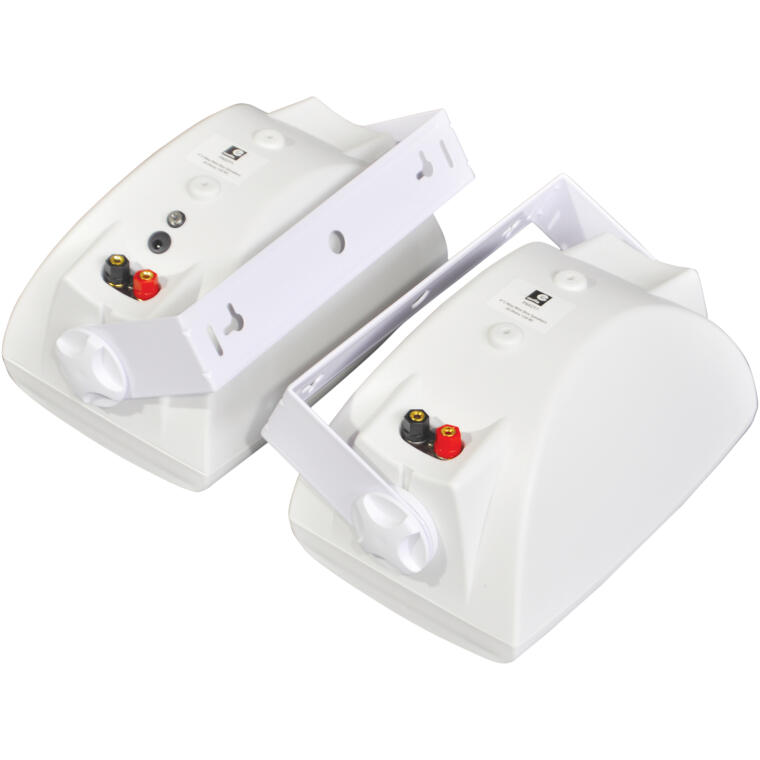

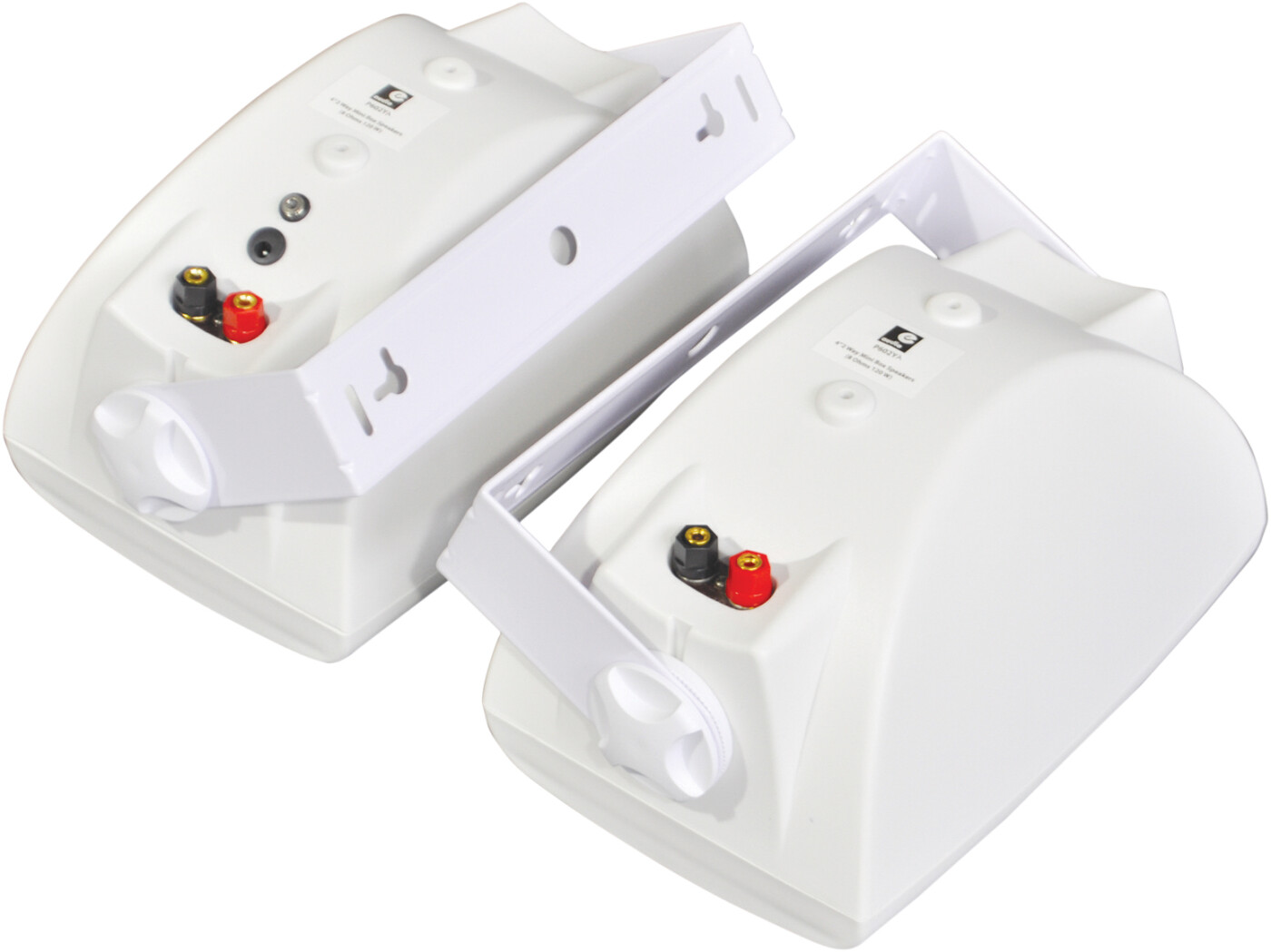

• Mounting: Includes adjustable U-brackets for horizontal or vertical wall/ceiling mounting

• Application: Indoor background music system (e.g., classrooms, retail spaces, home audio)

Physical Specifications

• Dimensions (per speaker, W x D x H): 140 x 120 x 210 mm (5.5" x 4.7" x 8.3")

• Weight (Pair Total): Approx. 3.4 kg (7.5 lbs)

Accessories Included

• Adjustable Wall-Mounting Brackets & Screws

• Speaker Interconnect Cable (to connect Master to Slave speaker)

• AC Power Adapter / Cable

• Operating Instructions Manual
