Omnitronic PEN ONE

€849.00€950.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

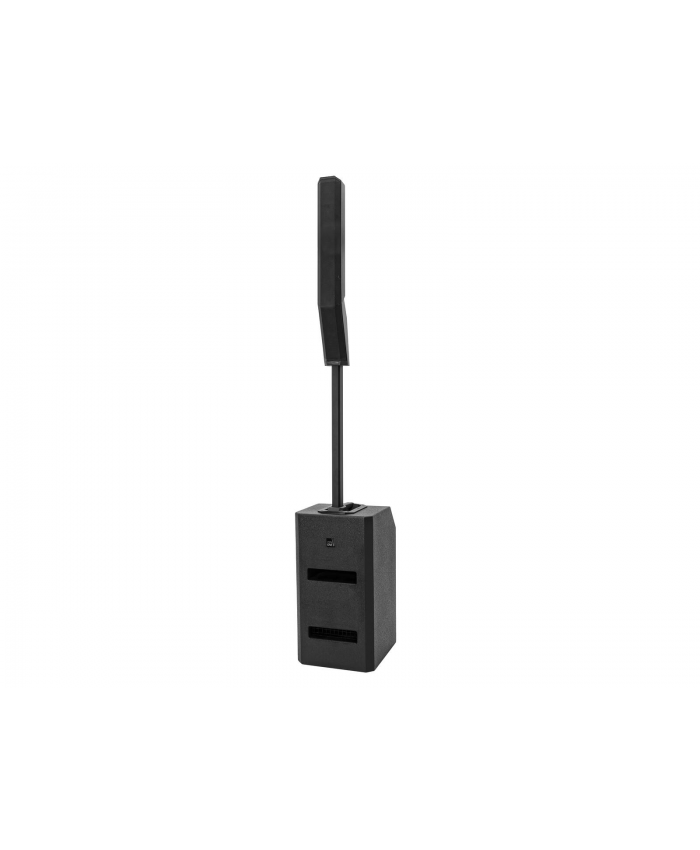

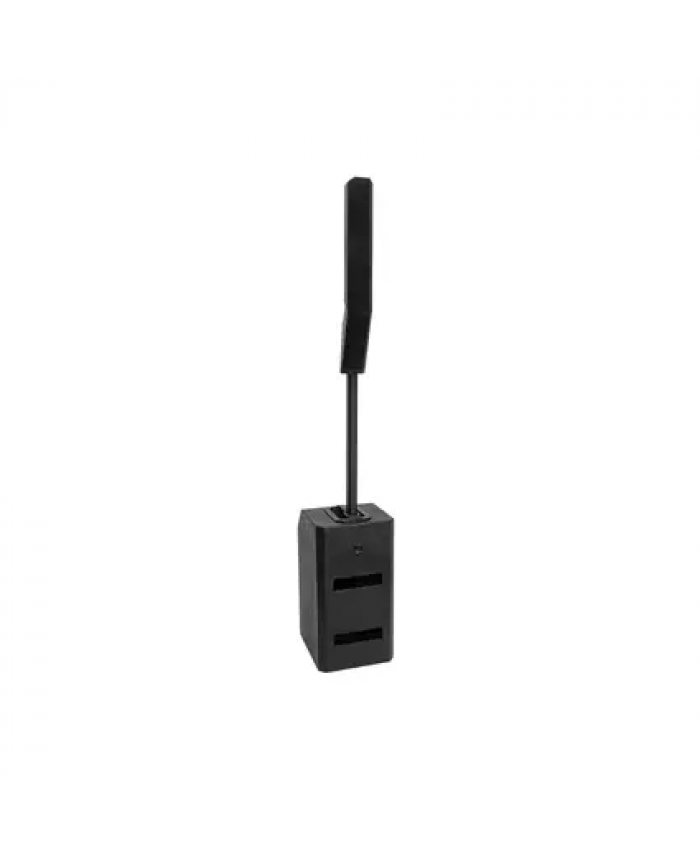

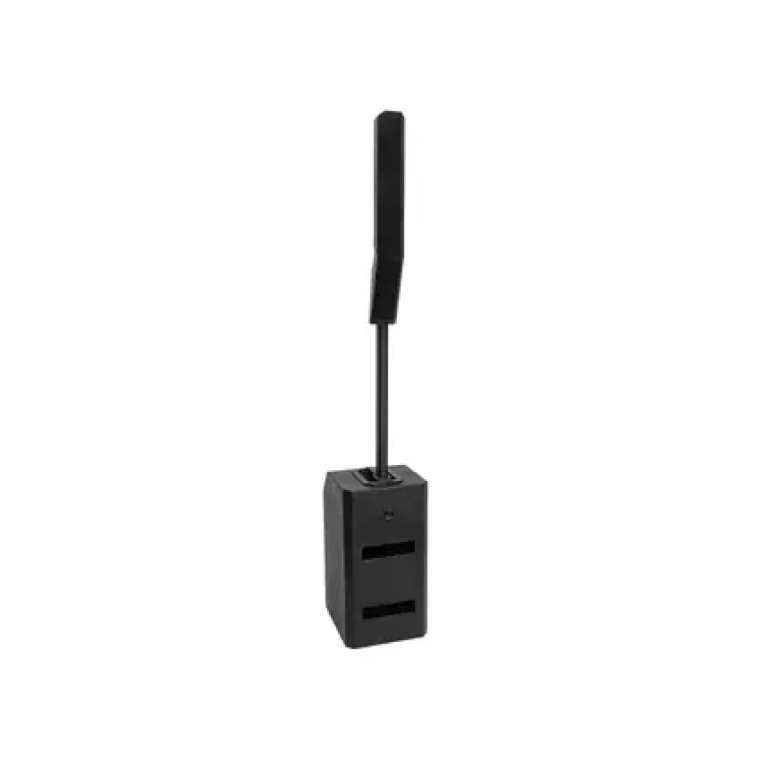

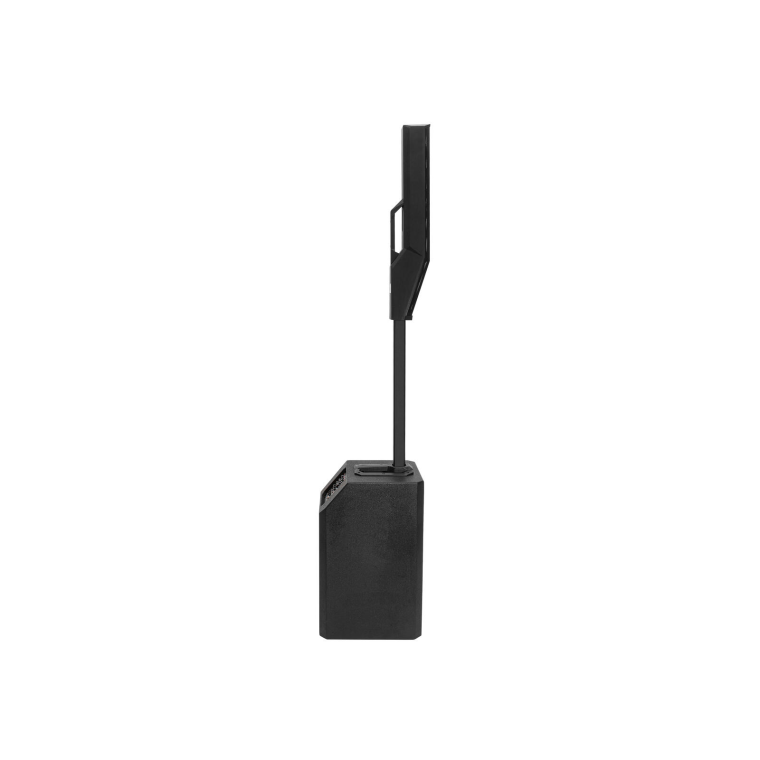

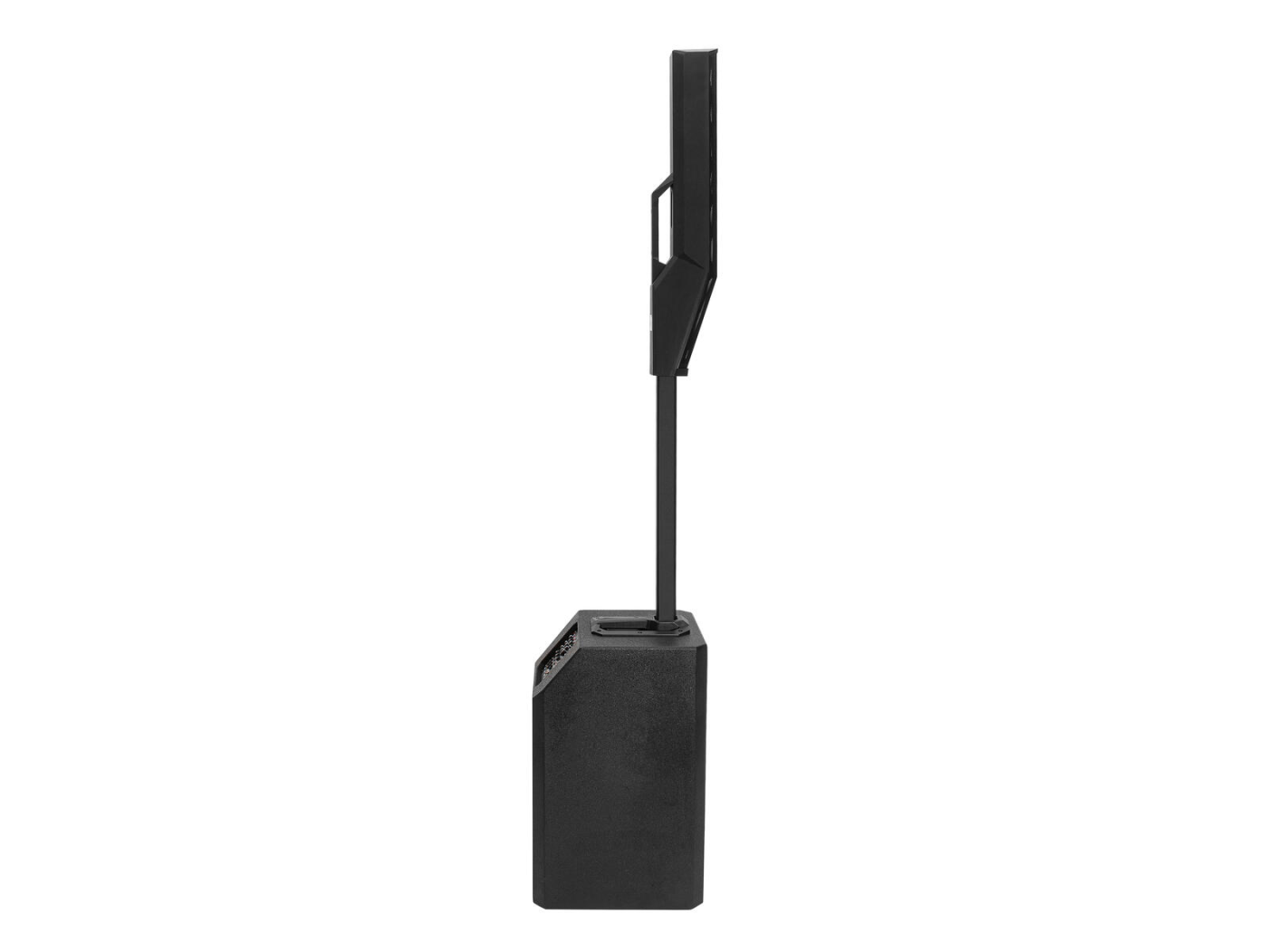

OMNITRONIC PEN ONE Active Column Speaker System
Mobile column PA system with DSP, stereo Bluetooth link, 550 W

  • Highly portable column PA system with 550 watts power
  • The article is delivered with practical transport bag
  • Excellent sound quality and high transmission range
  • Full-featured 4-channel mixer
  • Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
  • 12" bassreflex subwoofer with class D amplifiers (350 W + 200 W)
  • Column speaker with 8 x 3" drivers
  • Digital signal processor 96kHz, 24 bit
  • DSP presets: FLAT; DJ; LIVE
  • Control via Bluetooth
  • Bluetooth: operating range up to 20m
  • Black metal grille
  • For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; rental

Omnitronic PEN ONE Active Column System – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Mobile 3-piece active column PA system with integrated DSP

  • Amplifier Power: 550 W RMS Total (Subwoofer: 350 W RMS Class-D + Column Top: 200 W RMS Class-D)

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: 600 W

  • Protection Circuitry: Short-circuit, overvoltage, overheat protection, and integrated thermal/peak limiter

Audio Performance & Transducers

  • Low Frequency Driver: 12" (30 cm) bass-reflex subwoofer with ferrite magnet

  • High/Mid Frequency Array: 8 x 3" (8 cm) full-range drivers with ferrite magnets

  • Dispersion Angle: 120° x 16° (H x V)

  • Frequency Range: 45 – 20,000 Hz

  • Max SPL: 125 dB

  • Digital Signal Processing: 24-bit / 96 kHz DSP engine with 3 selectable EQ presets (FLAT, DJ, LIVE)

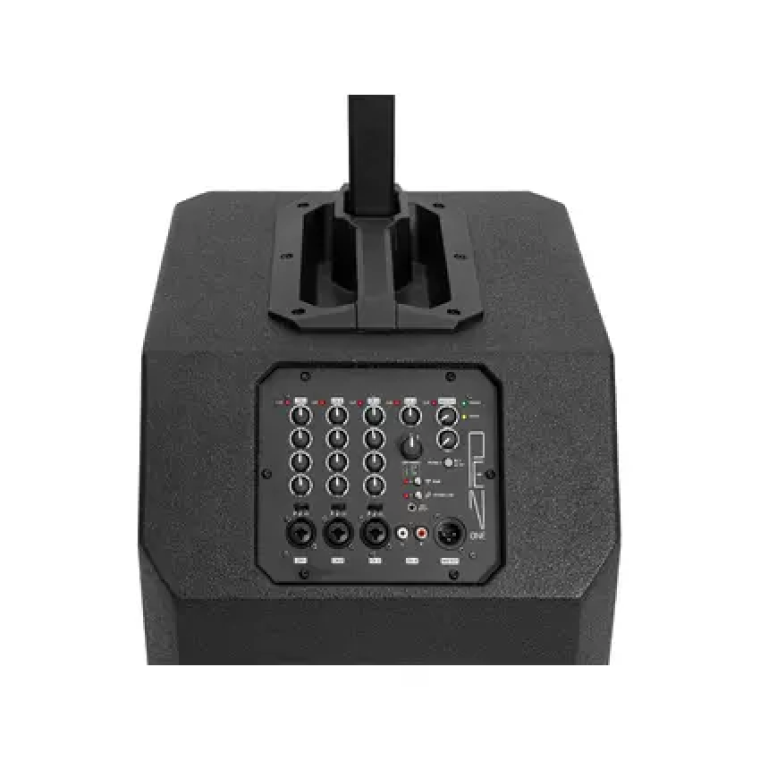

Connectivity & Digital Mixer

  • Digital Mixer: Integrated 4-channel digital mixer

  • Mono Inputs (Ch 1–3): 3 x Combo XLR / 6.3 mm Jack inputs with Mic / Line / Hi-Z instrument selector switches and 2-band EQ

  • Stereo Input (Ch 4): 1 x Stereo RCA pair / 1 x 3.5 mm Aux stereo mini-jack / Bluetooth 5.0 streaming

  • Wireless Connectivity: Bluetooth v5.0 audio receiver with TWS (True Wireless Stereo) link to pair two PEN ONE systems wirelessly

  • Line Output: 1 x XLR (M) Mix output for link connection to additional systems

Controls & Indicators

  • Hardware Controls: Channel Gain controls (Ch 1–4), 2-band EQ dials per channel, Master volume encoder, DSP preset switch, Phase reversal switch, TWS / Bluetooth pairing buttons

  • Status Indicators: LED indicators for Power, Signal, Clip, Bluetooth Pairing, and TWS Link status

Enclosure & Hardware

  • Subwoofer Cabinet: 15 mm MDF (Medium-Density Fibreboard) bass-reflex enclosure with durable black finish

  • Front Protection: Heavy-duty black metal grille

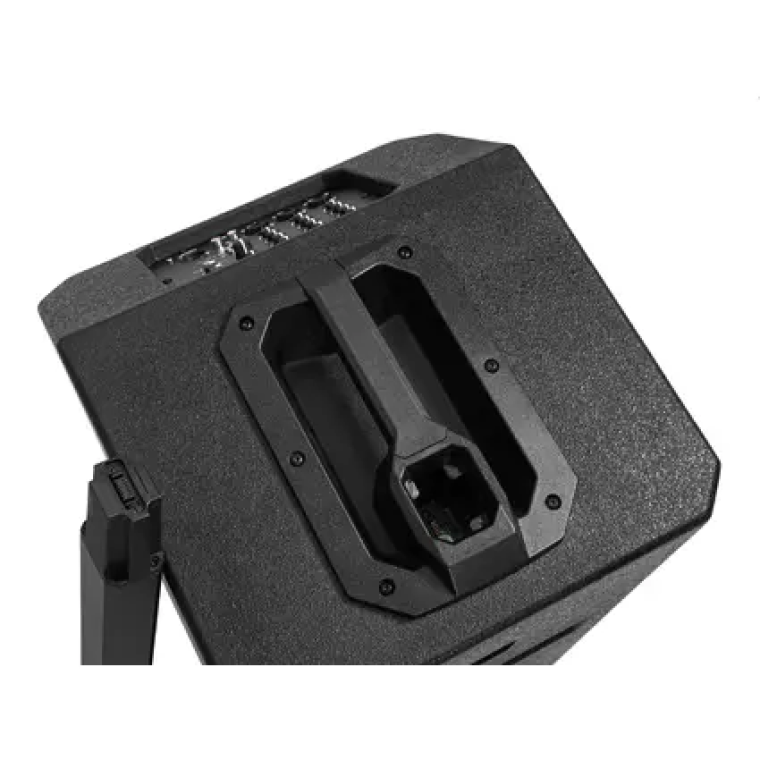

  • Interconnection: Sturdy distance pole / extension column assembly with internal signal routing (no speaker cables required)

  • Application Modes: Mobile DJ setups, corporate presentations, live acoustic performances, galas, and portable event PA

Physical Specifications

  • Subwoofer Dimensions (L x W x H): 420 x 360 x 687 mm

  • Top Column Dimensions (L x W x H): 156 x 105 x 782 mm

  • Distance Pole Dimensions (L x W x H): 49 x 38 x 800 mm

  • Total System Weight: 28.3 kg (62.4 lbs)

Accessories Included

  • Subwoofer Unit (12")

  • Column Speaker Top Array

  • Distance Extension Tube

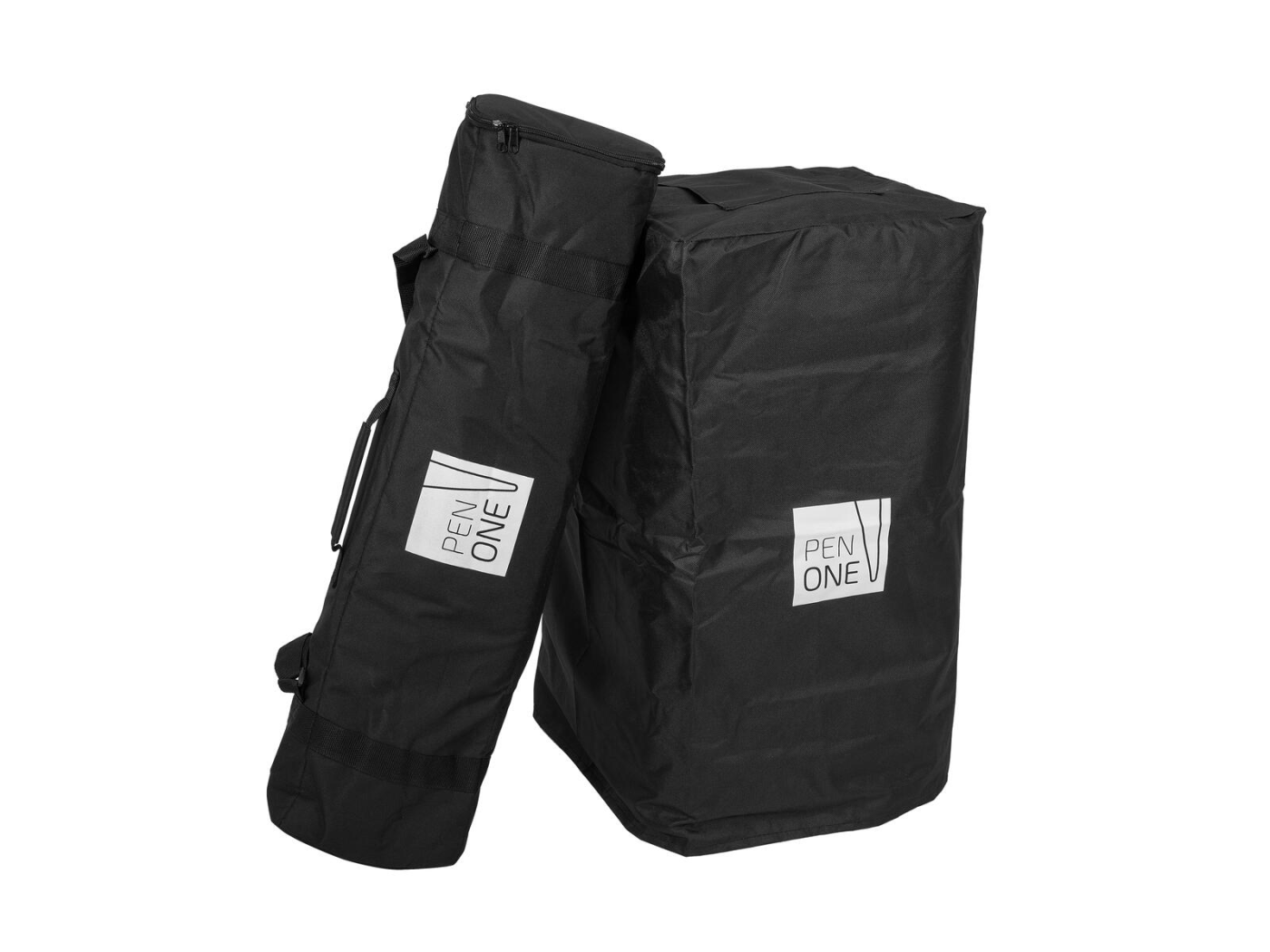

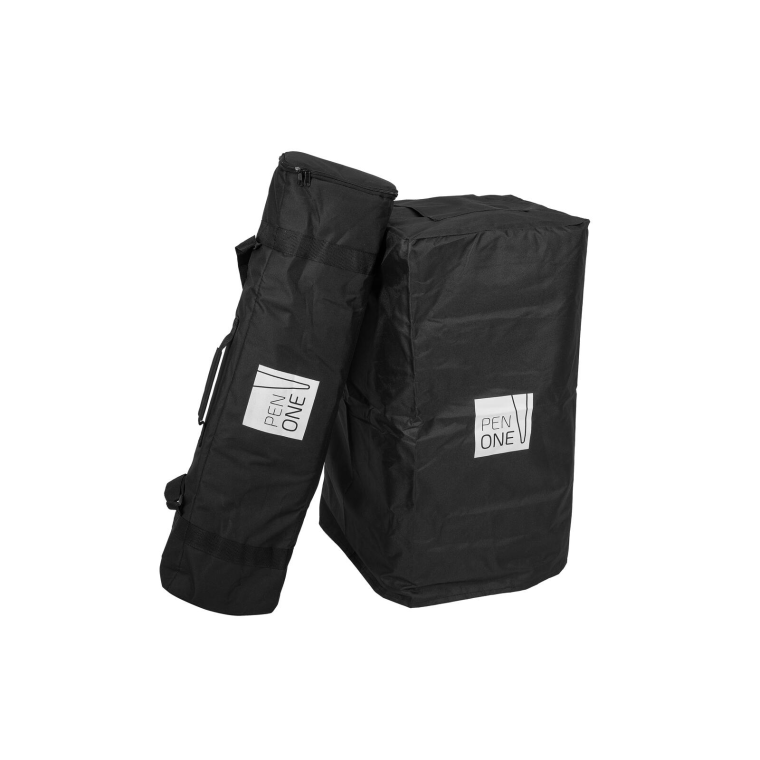

  • Custom Padded Transport Bags for Column & Pole

  • IEC Mains Power Cable

  • Operating Instructions Manual
