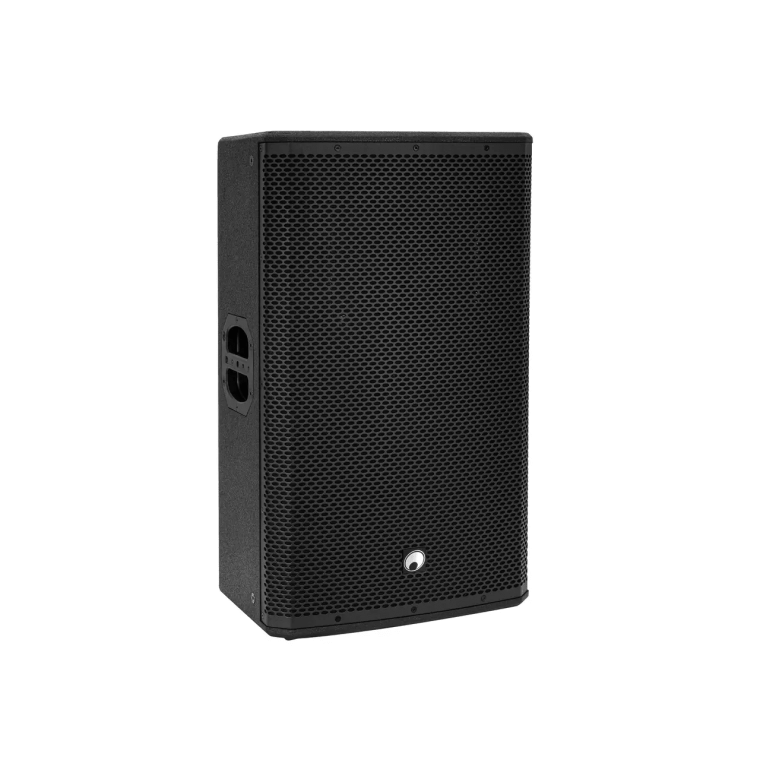

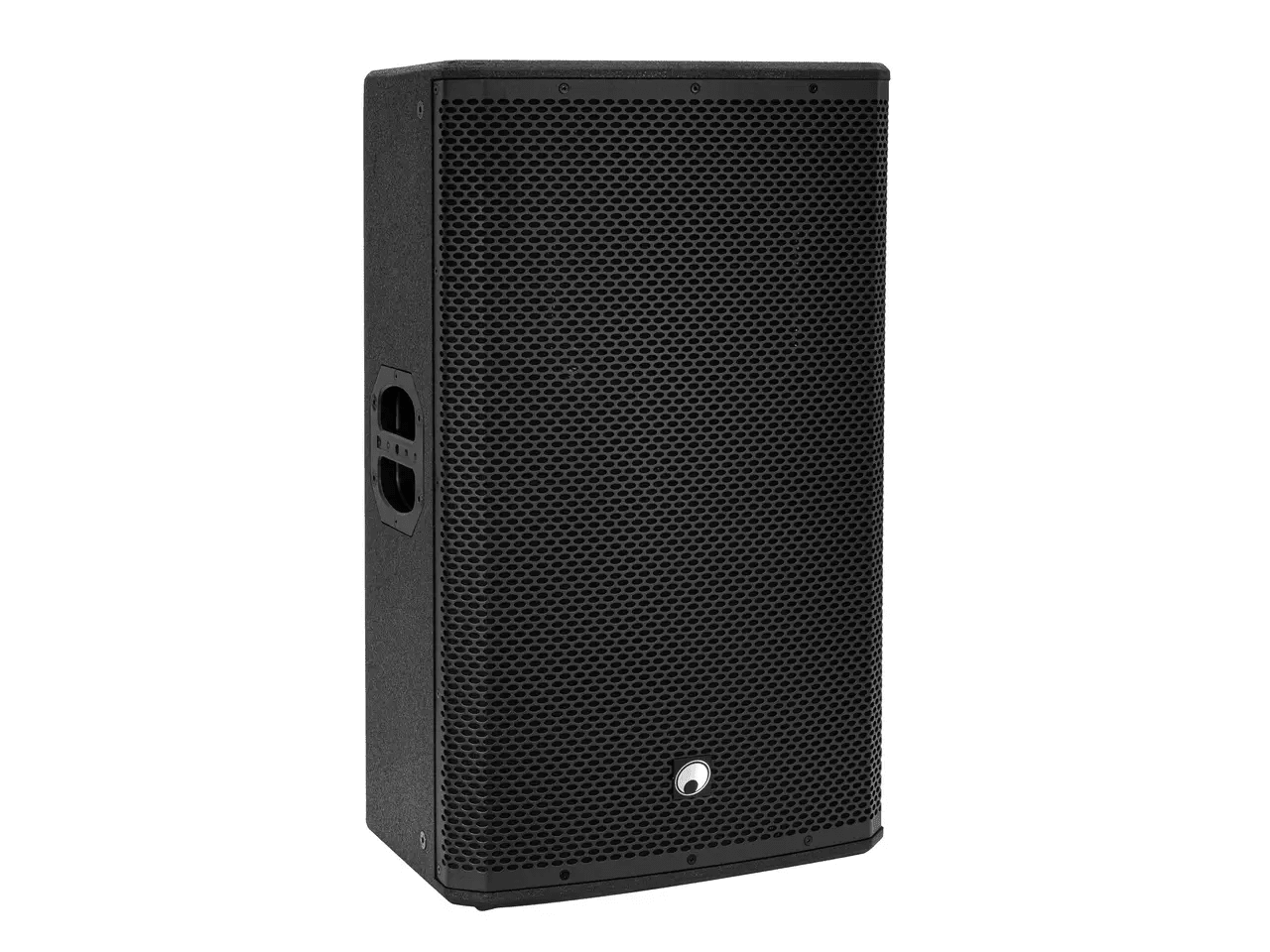

Omnitronic PAS-215A MK4

SKU: No. 11039557

Price on request

Coming soon

Interested in this product?

Call us

Overview

OMNITRONIC PAS-215A MK4 2-way Top, active, DSP, BT

Active speaker with 15" woofer, 1" driver, 400 W RMS LF, 50 W RMS HF

Active PA speaker system for touring applications and permanent installations

Optimized for combination with PAS subwoofers

DSP-controlled biamp amplifier (class D)

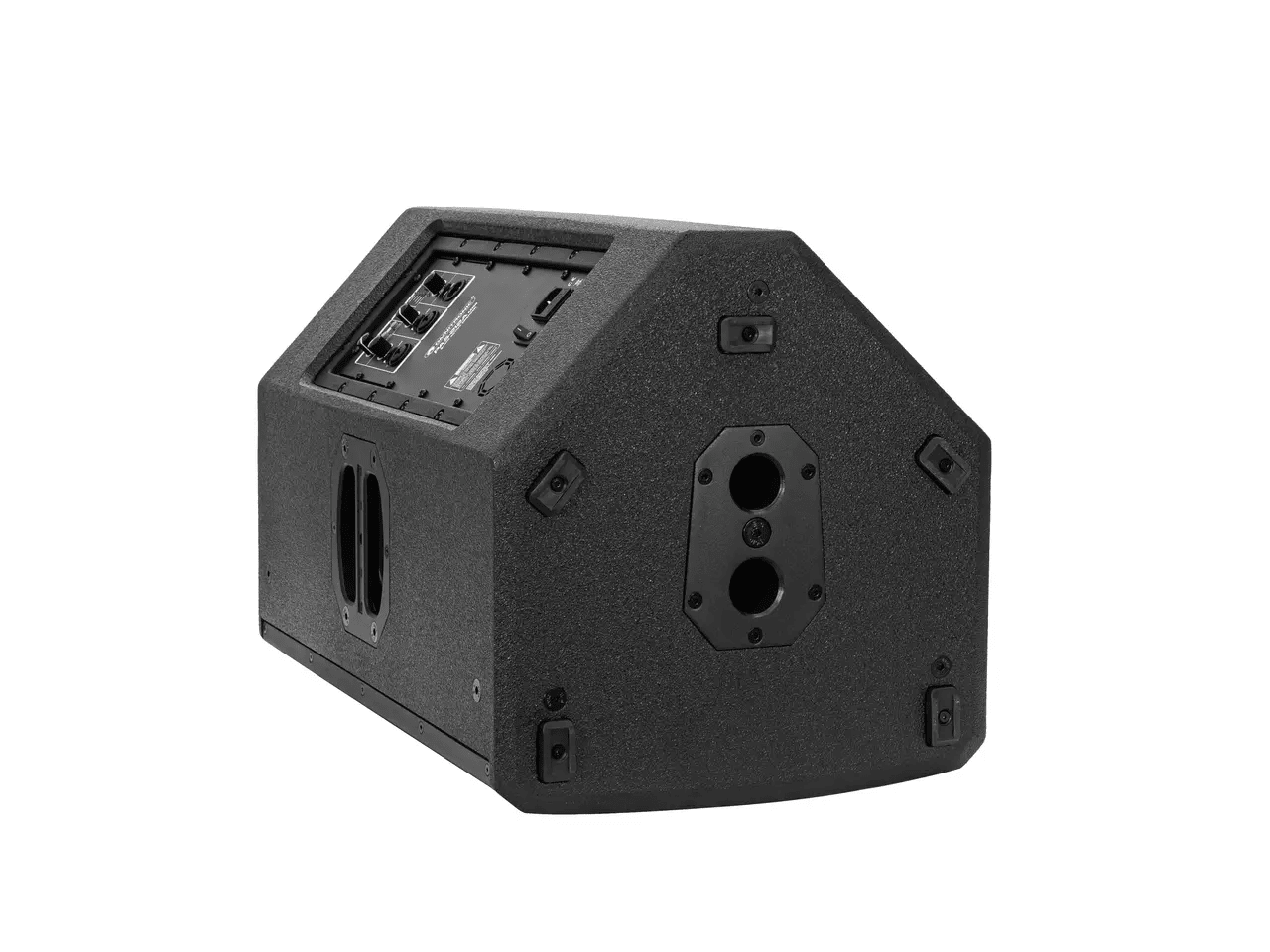

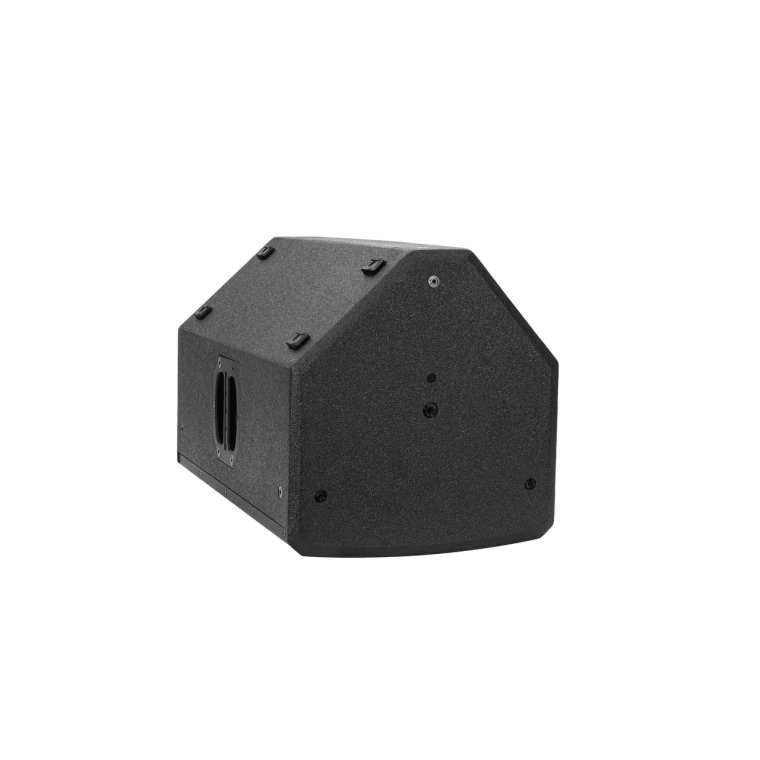

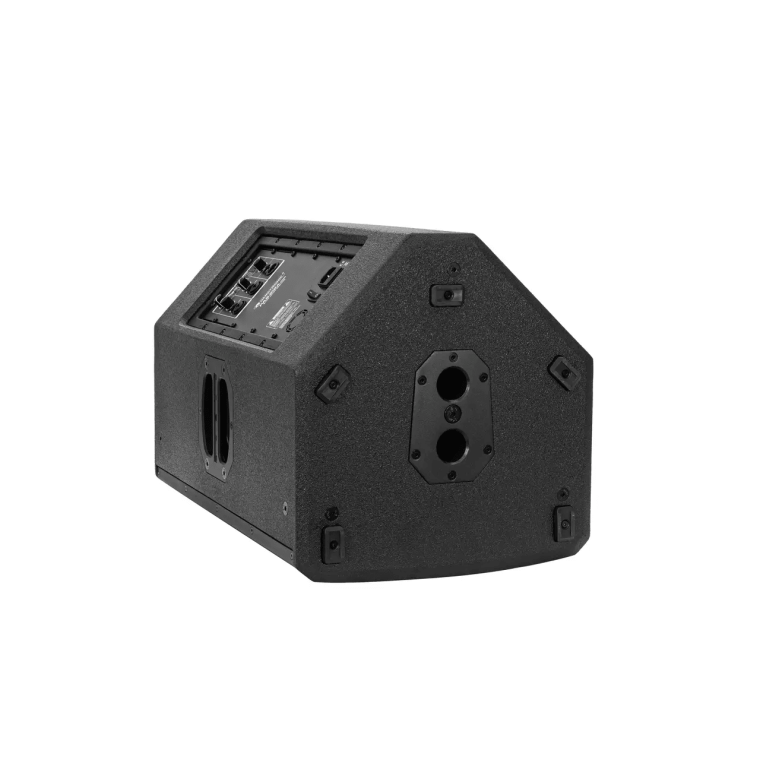

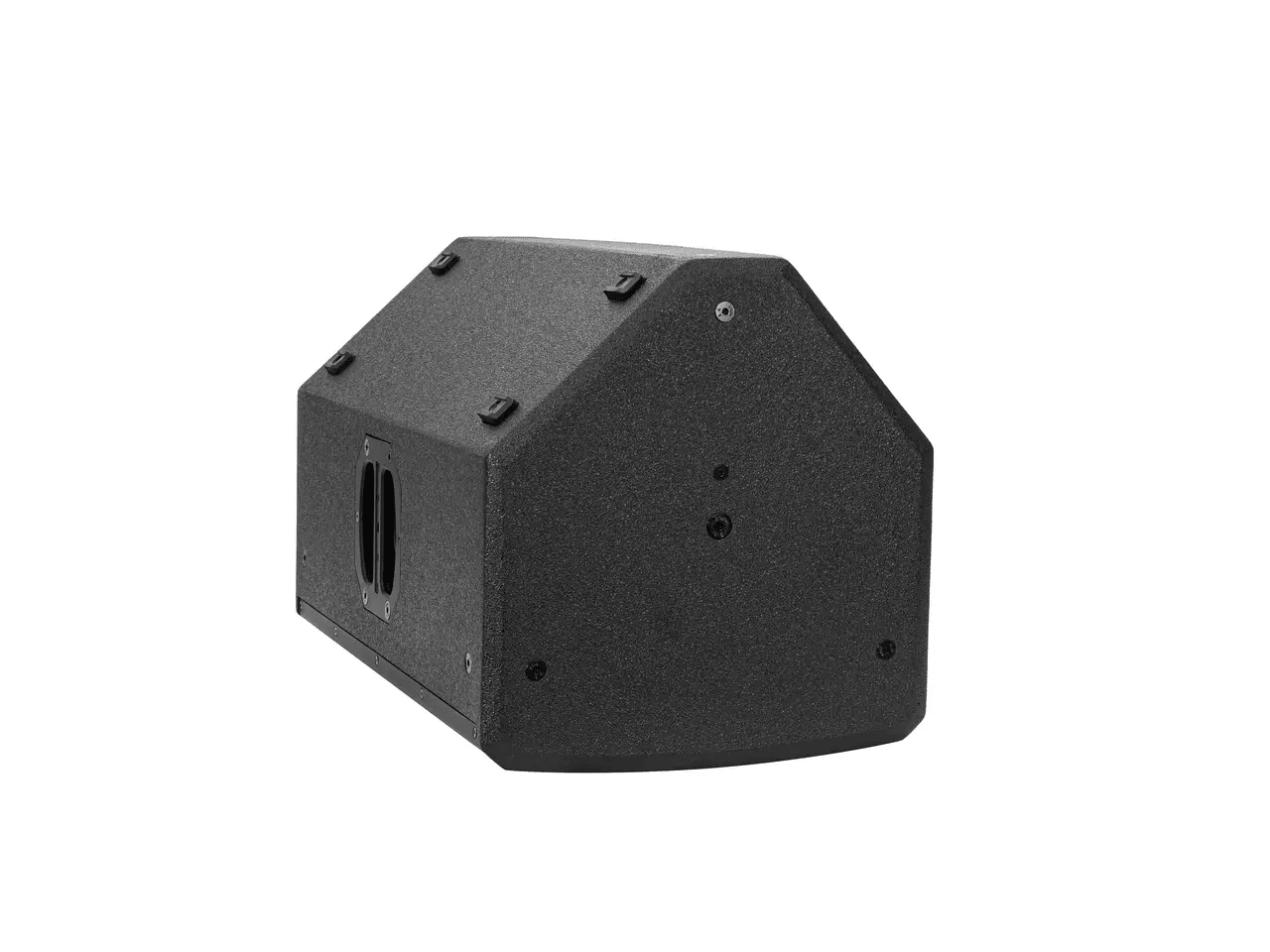

Trapezoidal, multi-functional multiplex cabinet with monitor shape

Stereo Bluetooth link for wireless stereo operation with 2 systems linked together

Digital signal processor

DSP presets: MUSIC; LIVE; CLUB; VOICE

The device is cooled by cooling fan

Control via Bluetooth

Bluetooth: operating range up to 10m

Dual flange

With rigging points

Black metal grille with acoustic foam

2 Rugged carrying handles

Omnitronic PAS-215A MK4 – Technical Specifications & Setup Guide

System & Power Handling

System Type: Active 2-way bass-reflex PA speaker system with DSP
Power Rating: 500 W RMS (LF 400 W Class-D + HF 100 W Class-AB)
Program Power: 1000 W Peak
Power Supply: 100–240 V AC, 50/60 Hz (SMPS with switch-mode auto-selection)
Power Consumption: Max. 600 W
Protection Circuitry: Dual multiband limiters, short-circuit, thermal protection, and soft start

Audio Performance & Transducers

Low Frequency Driver: 15" (38 cm) woofer with 3" (76 mm) voice coil
High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" (44 mm) voice coil
Frequency Range: 45 – 20,000 Hz (-10 dB) / 50 – 19,000 Hz (±3 dB)
Max SPL: 126 dB
Dispersion Angle: 90° x 60° (H x V), rotatable constant-directivity horn
Signal Processing: 24-bit / 48 kHz DSP engine with 4 application presets (LIVE, MUSIC, SPEECH, DJ/CLUB) and adjustable low-cut crossover filter

Connectivity & Signal Routing

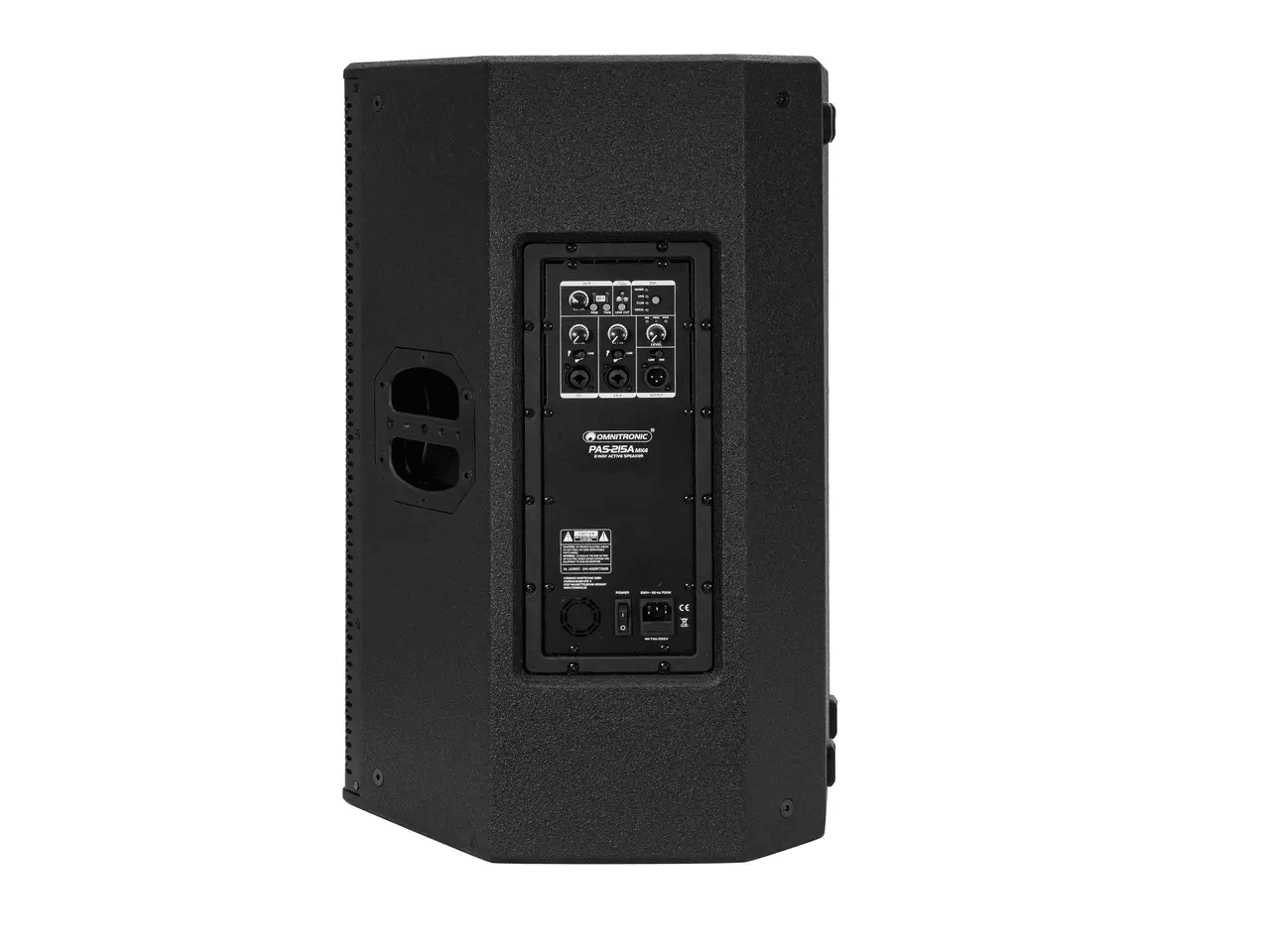

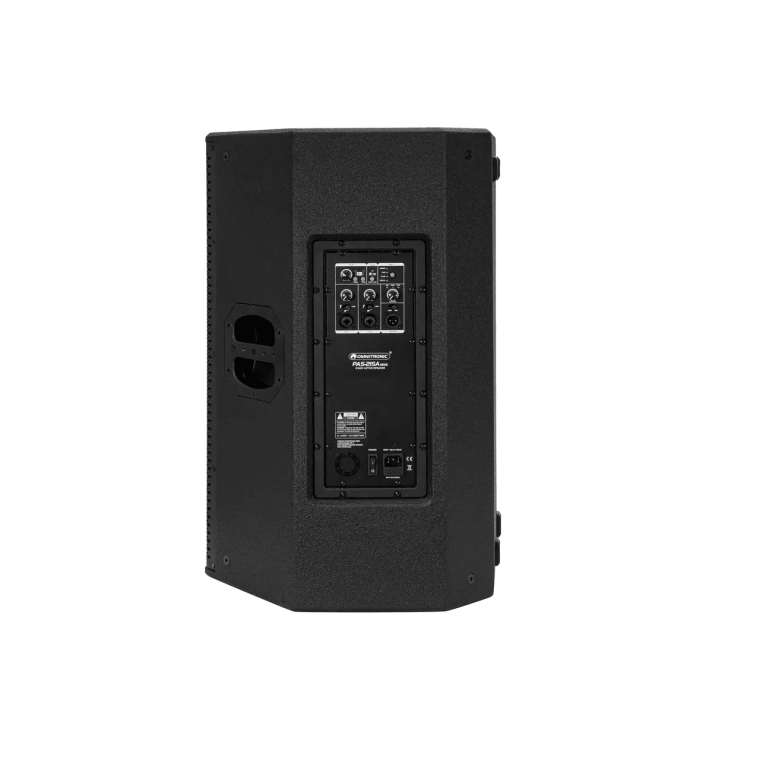

Inputs: 2 x Combo XLR / 6.3 mm (1/4") TRS Jack inputs (Line/Mic switchable)
Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack
Wireless Connectivity: Integrated Bluetooth v5.0 audio receiver for wireless music streaming
Line Output: 1 x XLR (M) balanced Mix/Link output for linking additional active speakers or subwoofers

Controls & Indicators

Control Elements: Master Volume / DSP push-to-select rotary encoder, 2 x Input Channel Gain controls, Line/Mic selector switches
Display & Indicators: Backlit LCD panel for DSP preset menu navigation, Power LED, Signal LED, Limit/Clip LED

Enclosure & Hardware

Cabinet Material: 15 mm Multiplex / MDF wooden enclosure coated with durable black polyurethane textured finish
Front Protection: Heavy-duty 1.5 mm steel front grille with acoustic foam backing
Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket (0° / 7° tilt), M10 threaded inserts for suspended installation
Carrying Handles: 2 x Ergonomic recessed metal side handles
Application Modes: Main PA speaker (upright or pole-mounted), stage floor monitor (angled cabinet side profile)

Physical Specifications

Dimensions (W x D x H): 470 x 440 x 740 mm (18.5" x 17.3" x 29.1")
Weight: 26.5 kg (58.4 lbs)

Accessories Included

IEC Mains Power Cable
Operating Instructions Manual

Omnitronic PAS-215A MK4

Overview

Active speaker with 15" woofer, 1" driver, 400 W RMS LF, 50 W RMS HF

Omnitronic PAS-215A MK4 – Technical Specifications & Setup Guide

System & Power Handling

System Type: Active 2-way bass-reflex PA speaker system with DSP

Power Rating: 500 W RMS (LF 400 W Class-D + HF 100 W Class-AB)

Program Power: 1000 W Peak

Power Supply: 100–240 V AC, 50/60 Hz (SMPS with switch-mode auto-selection)

Power Consumption: Max. 600 W

Protection Circuitry: Dual multiband limiters, short-circuit, thermal protection, and soft start

Audio Performance & Transducers

Low Frequency Driver: 15" (38 cm) woofer with 3" (76 mm) voice coil

High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" (44 mm) voice coil

Frequency Range: 45 – 20,000 Hz (-10 dB) / 50 – 19,000 Hz (±3 dB)

Max SPL: 126 dB

Dispersion Angle: 90° x 60° (H x V), rotatable constant-directivity horn

Signal Processing: 24-bit / 48 kHz DSP engine with 4 application presets (LIVE, MUSIC, SPEECH, DJ/CLUB) and adjustable low-cut crossover filter

Connectivity & Signal Routing

Inputs: 2 x Combo XLR / 6.3 mm (1/4") TRS Jack inputs (Line/Mic switchable)

Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack

Wireless Connectivity: Integrated Bluetooth v5.0 audio receiver for wireless music streaming

Line Output: 1 x XLR (M) balanced Mix/Link output for linking additional active speakers or subwoofers

Controls & Indicators

Control Elements: Master Volume / DSP push-to-select rotary encoder, 2 x Input Channel Gain controls, Line/Mic selector switches

Display & Indicators: Backlit LCD panel for DSP preset menu navigation, Power LED, Signal LED, Limit/Clip LED

Enclosure & Hardware

Cabinet Material: 15 mm Multiplex / MDF wooden enclosure coated with durable black polyurethane textured finish

Front Protection: Heavy-duty 1.5 mm steel front grille with acoustic foam backing

Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket (0° / 7° tilt), M10 threaded inserts for suspended installation

Carrying Handles: 2 x Ergonomic recessed metal side handles

Application Modes: Main PA speaker (upright or pole-mounted), stage floor monitor (angled cabinet side profile)

Physical Specifications

Dimensions (W x D x H): 470 x 440 x 740 mm (18.5" x 17.3" x 29.1")

Weight: 26.5 kg (58.4 lbs)

Accessories Included

IEC Mains Power Cable

Operating Instructions Manual
