Omnitronic KM-112A

Omnitronic KM-112A – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Active 2-way coaxial stage monitor / PA speaker system

• Power Rating: 300 W RMS (LF 250 W Class-D + HF 50 W Class-AB)

• Program Power: 600 W Peak

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: Max. 400 W

Audio Performance & Transducers

• Low Frequency Driver: 12" (30 cm) woofer with 2.5" voice coil

• High Frequency Driver: 1" (2.5 cm) compression driver (coaxially mounted)

• Coverage Angle: 80° x 80° (H x V) symmetrical directivity

• Frequency Range: 50 – 20,000 Hz

• Max SPL: 122 dB

• Signal Processing: Digital Signal Processor with 4 selectable sound presets (MONITOR, LIVE, MUSIC, SPEECH)

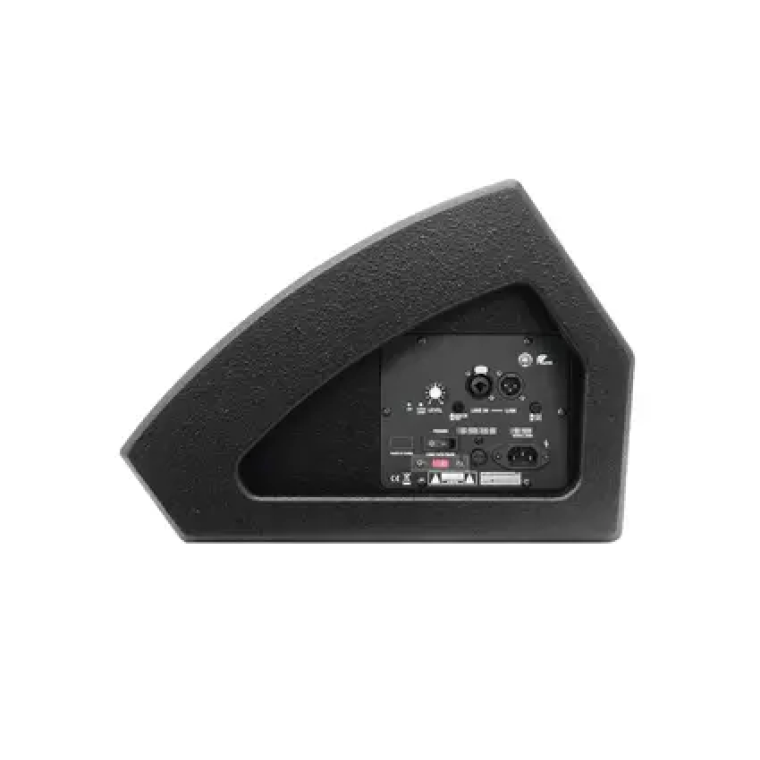

Connectivity & Signal Routing

• Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)

• Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack

• Line Output: 1 x XLR line output (Mix Out) for daisy-chaining to additional stage monitors or main systems

Controls & Indicators

• Control Elements: Master Volume / DSP rotary encoder, Channel 1 & 2 Gain controls, Line/Mic level selector switches

• Display & Indicators: LCD display screen for DSP status/preset navigation, Power status LED, Signal LED, Limit/Clip LED

Enclosure & Hardware

• Cabinet Material: High-density wooden MDF enclosure with durable black textured lacquer coating

• Front Protection: Heavy-duty black metal front grille with acoustic foam backing

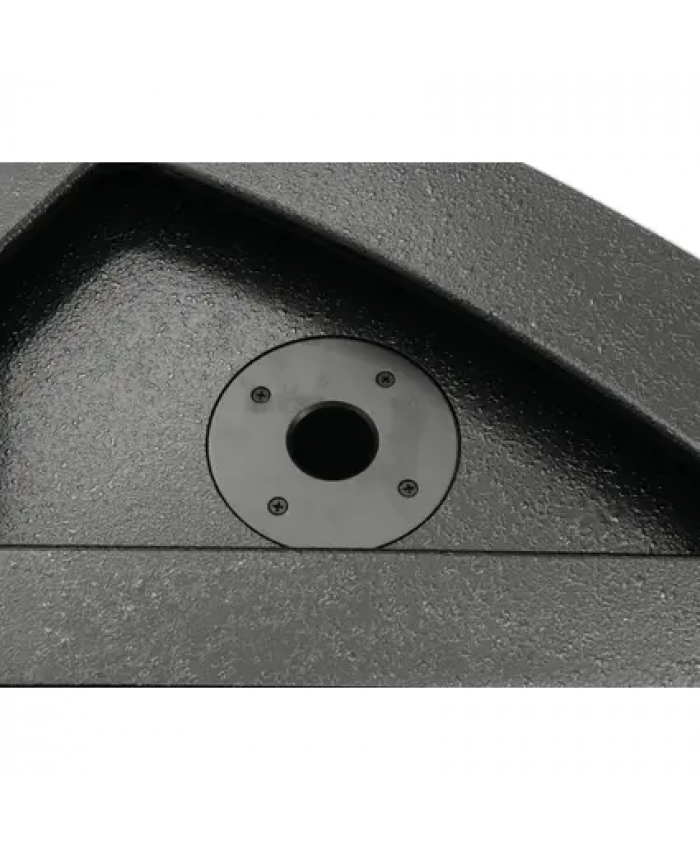

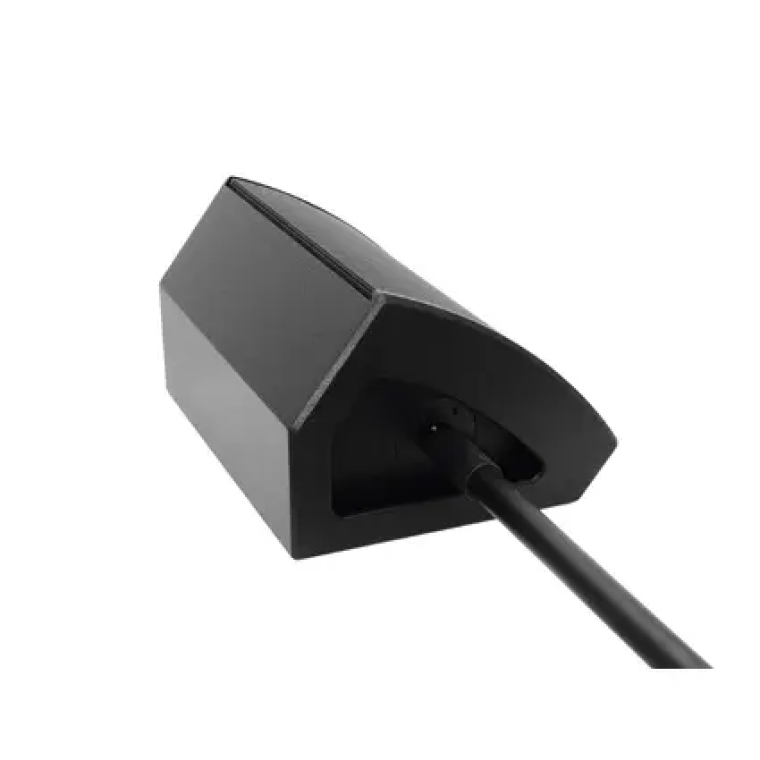

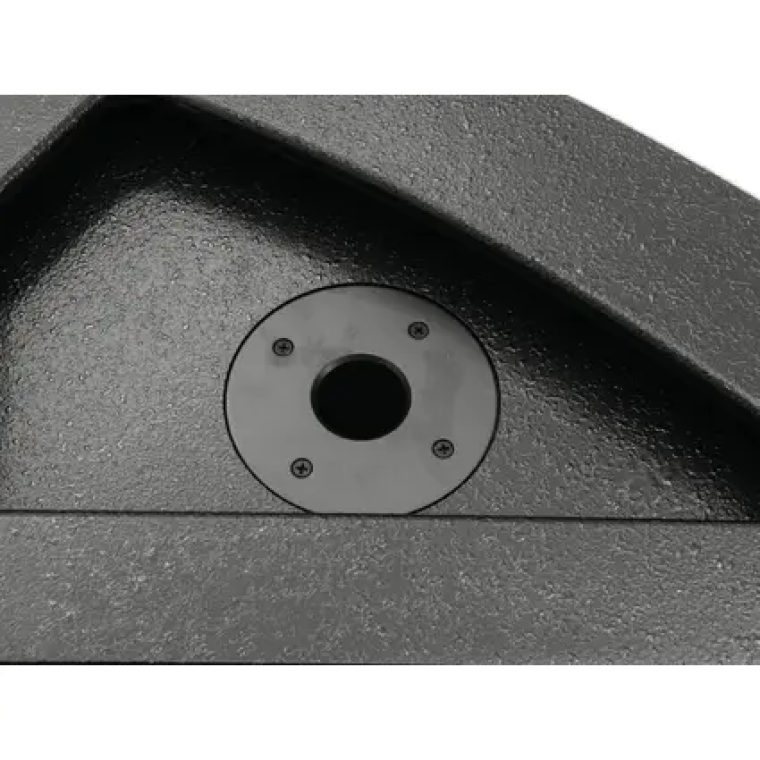

• Mounting / Suspension: Integrated Ø 35 mm stand flange for vertical PA application

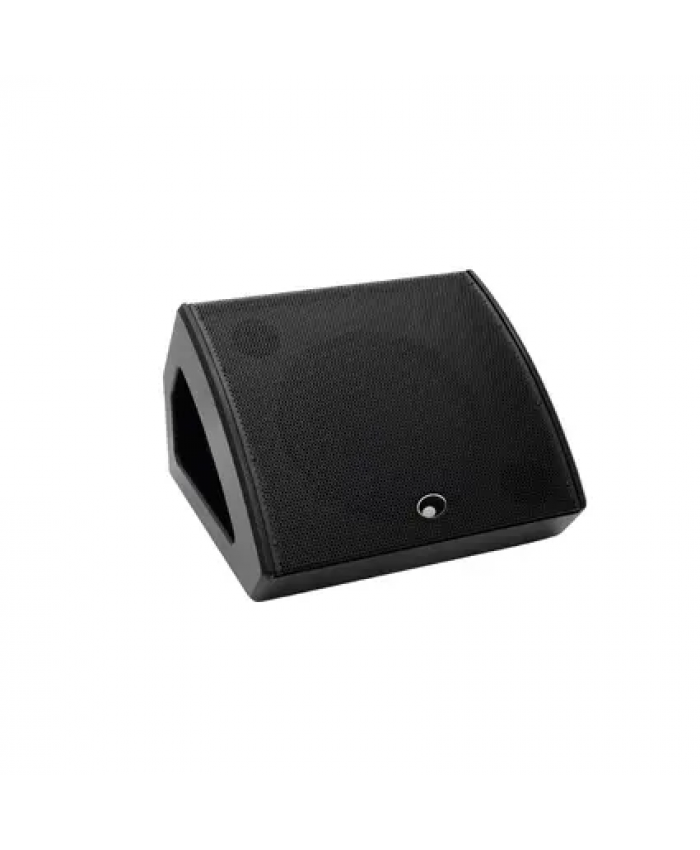

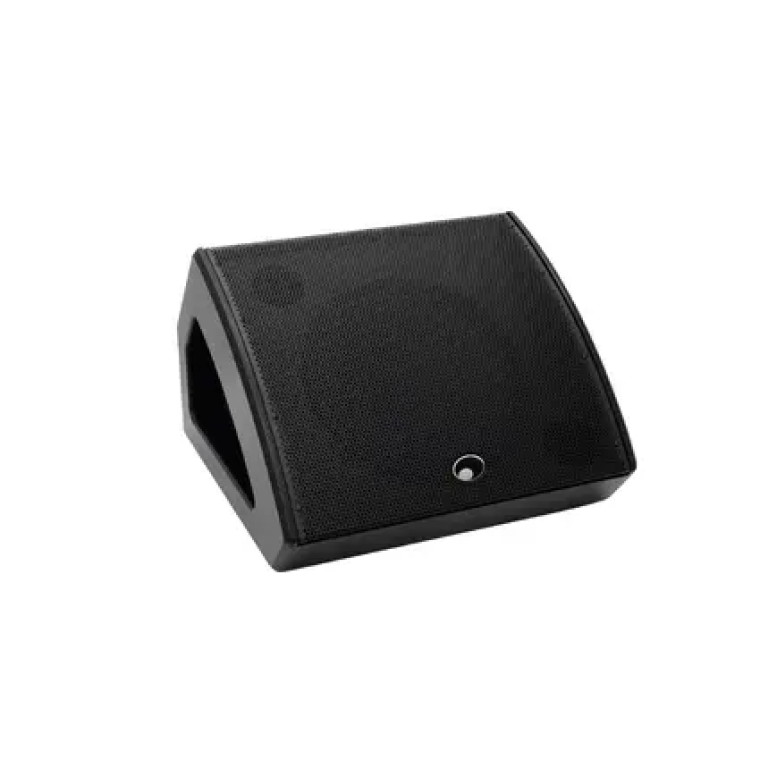

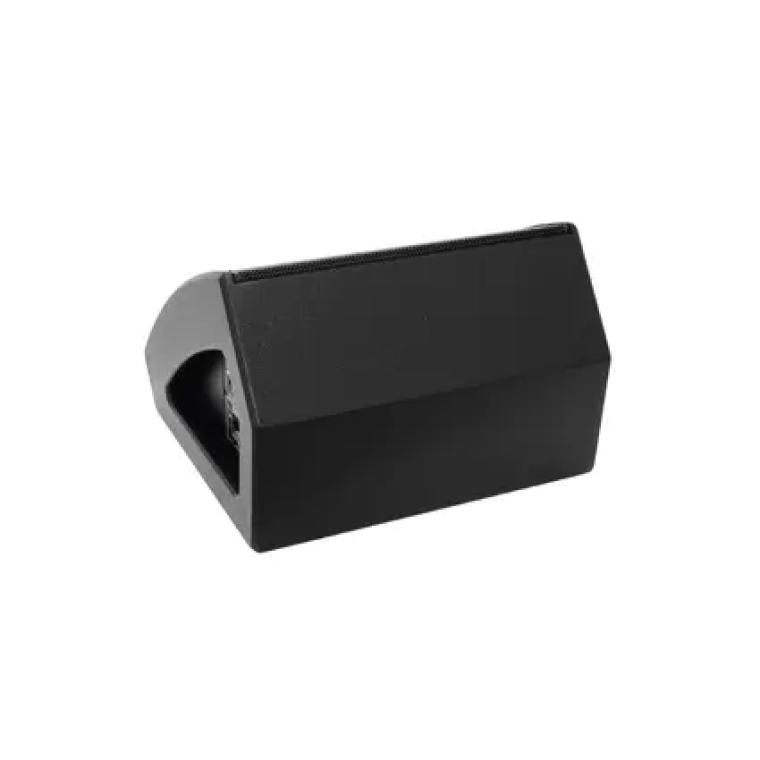

• Ergonomics & Setup: Low-profile wedge angle designed specifically for stage floor monitoring; integrated recessed carrying handle

• Application Modes: Floor wedge stage monitor, upright main PA, or stand-mounted side fill

Physical Specifications

• Dimensions (W x D x H): 485 x 430 x 315 mm (19.1" x 16.9" x 12.4")

• Weight: 14.5 kg (32.0 lbs)

Accessories Included

• Mains Power Cable (IEC)

• Operating Instructions Manual
