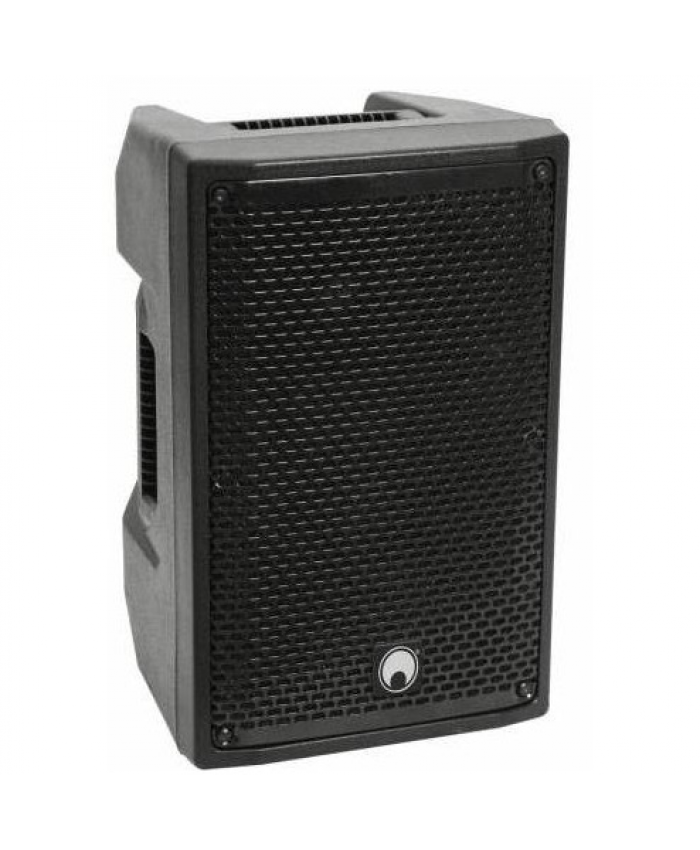

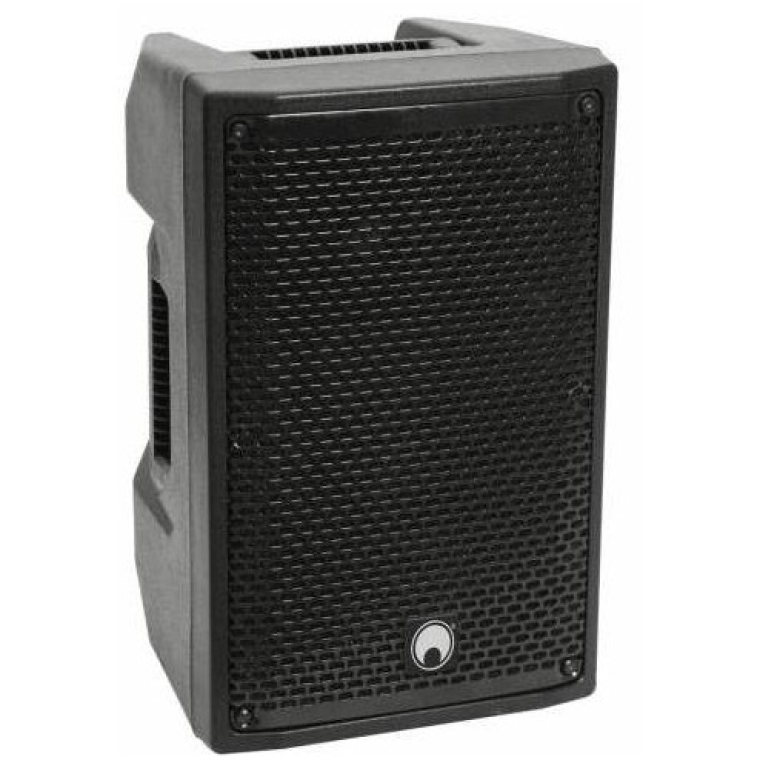

Omnitronic PAS-215A MK4
Price on request
In stock
Interested in this product?
Overview

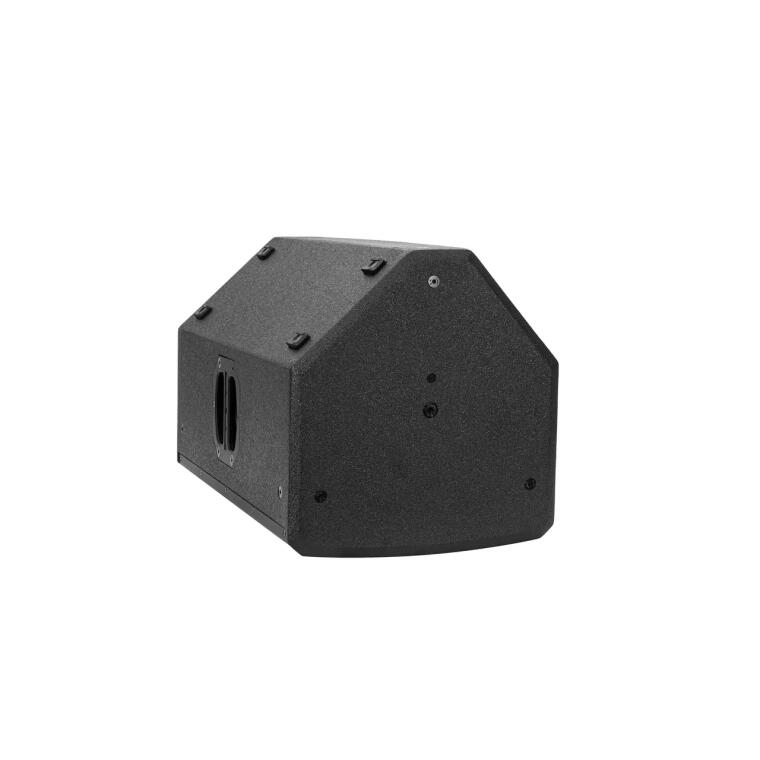

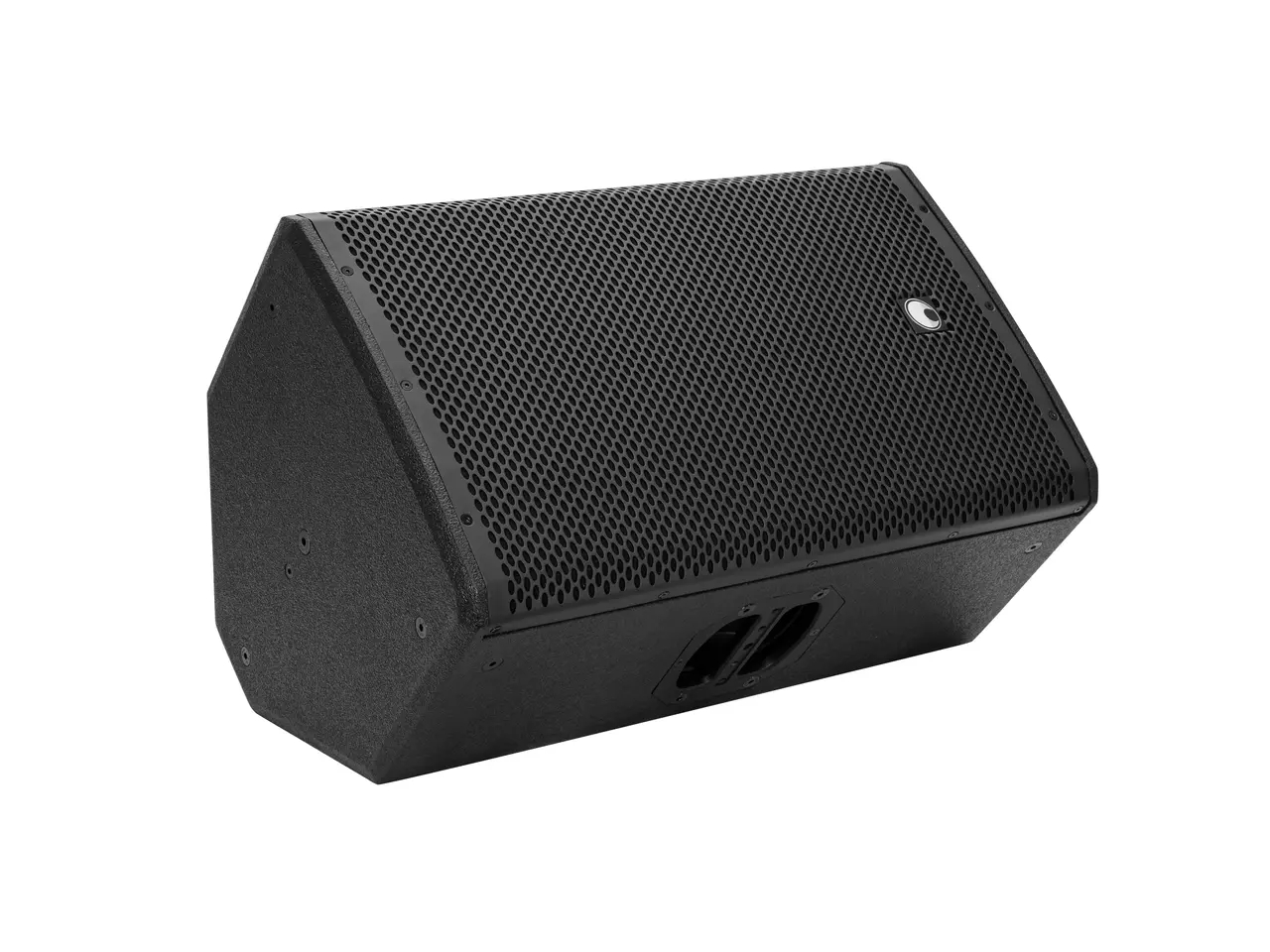

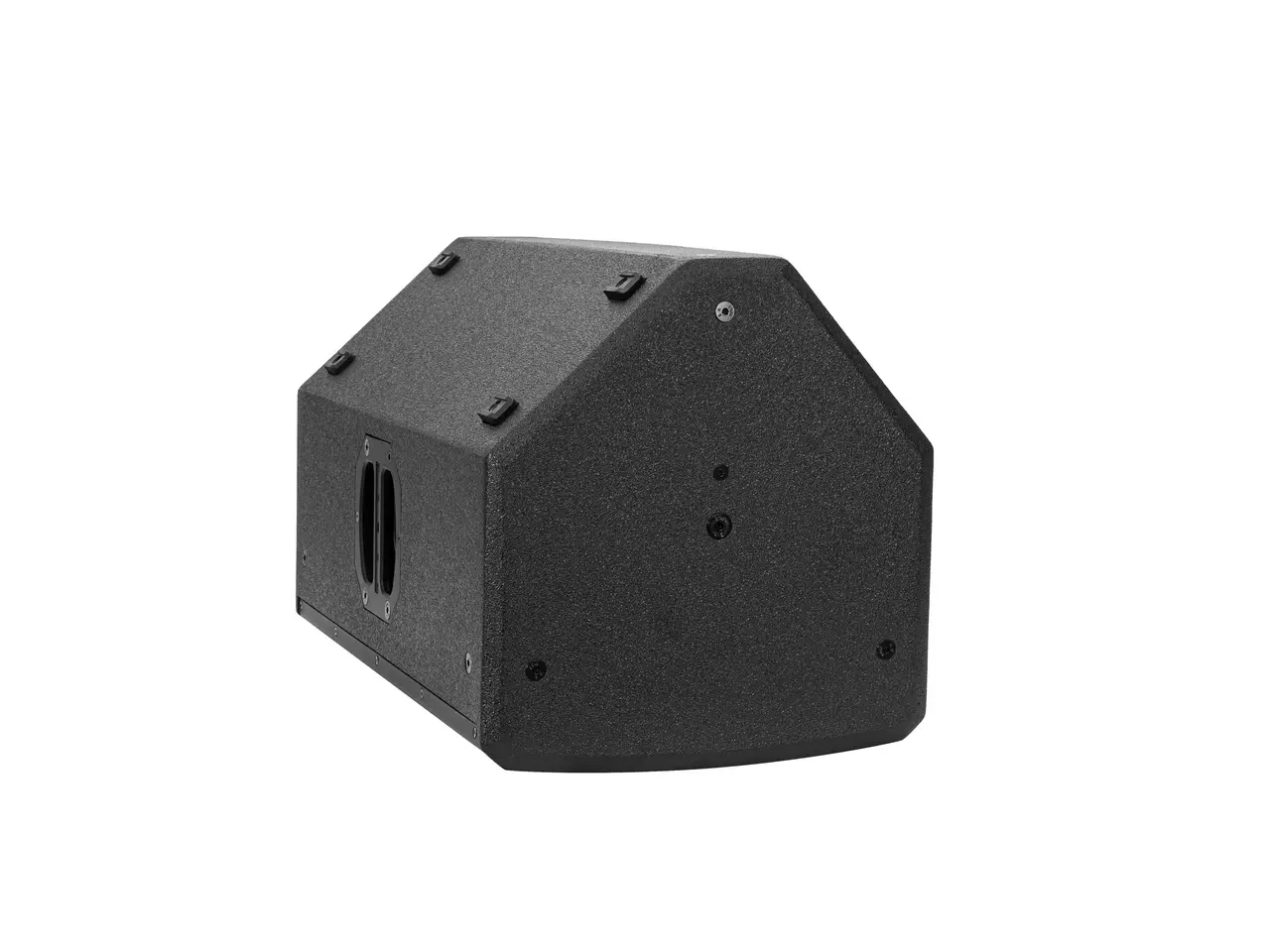

OMNITRONIC PAS-215A MK4 2-way Top, active, DSP, BT
Active speaker with 15" woofer, 1" driver, 400 W RMS LF, 50 W RMS HF
- Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)

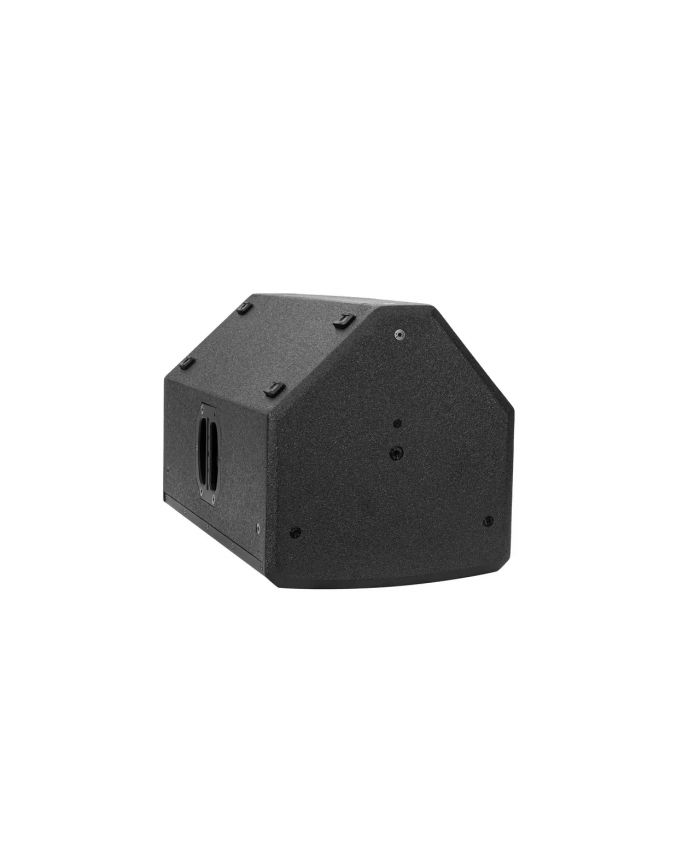

- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- The device is cooled by cooling fan
- Control via Bluetooth
- Bluetooth: operating range up to 10m
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- 2 Rugged carrying handles
Omnitronic PAS-215A MK4 – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Active 2-way bass-reflex multifunction PA speaker system with DSP
-
Amplifier Power: 500 W RMS (LF: 400 W Class-D + HF: 100 W Class-D)
-
Program Power: 1000 W Peak
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: Max. 600 W
Audio Performance & Transducers
-
Low Frequency Driver: 15" (38 cm) woofer with 3" voice coil
-
High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" voice coil
-
Horn Dispersion: 90° x 60° (H x V), rotatable constant-directivity horn
-
Frequency Range: 45 – 20,000 Hz
-
Max SPL: 125 dB
-
Signal Processing: Digital Signal Processor with 4 preset equalization profiles (LIVE, MUSIC, SPEECH, DJ/CLUB) and low-cut filter options

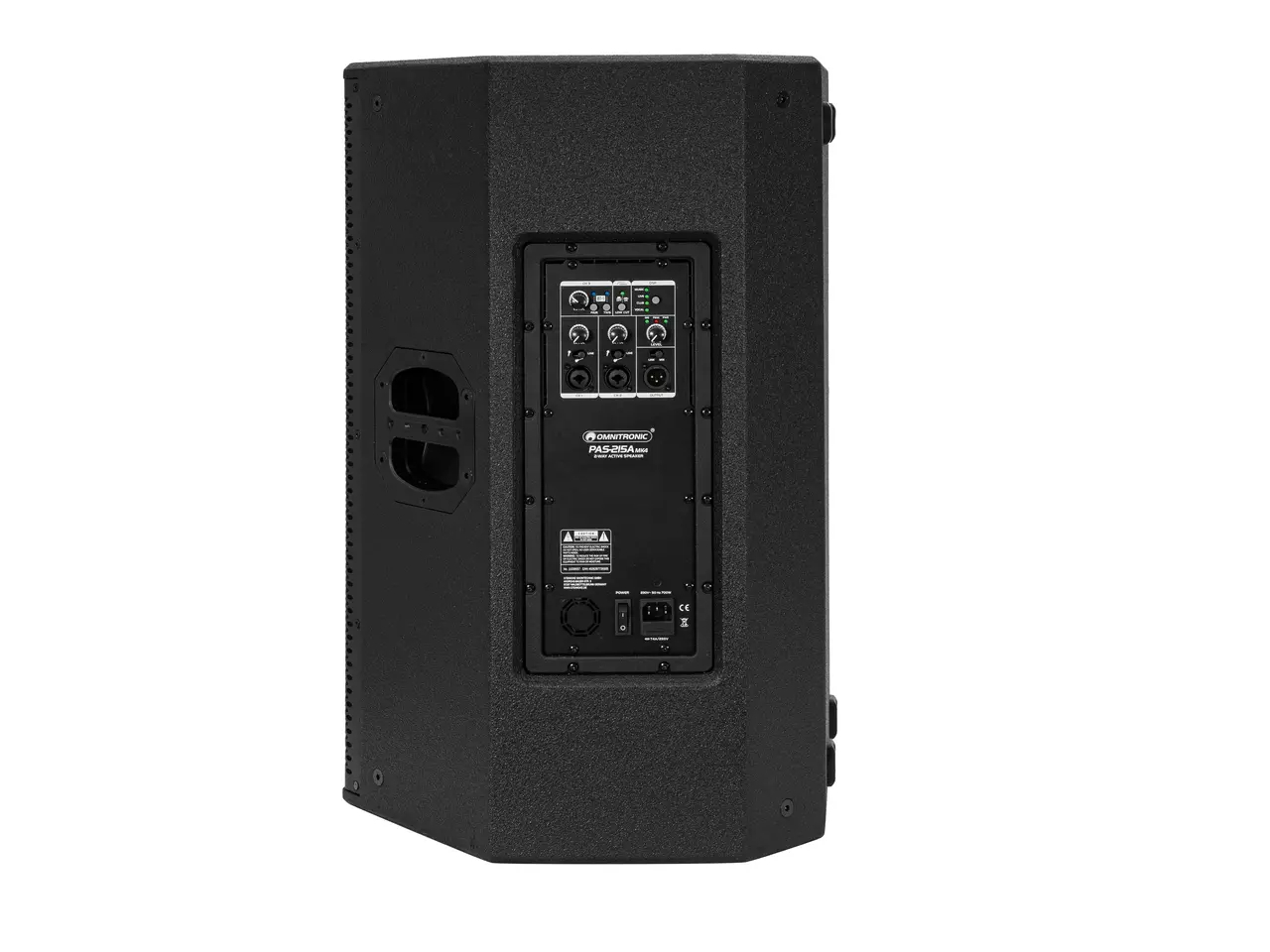

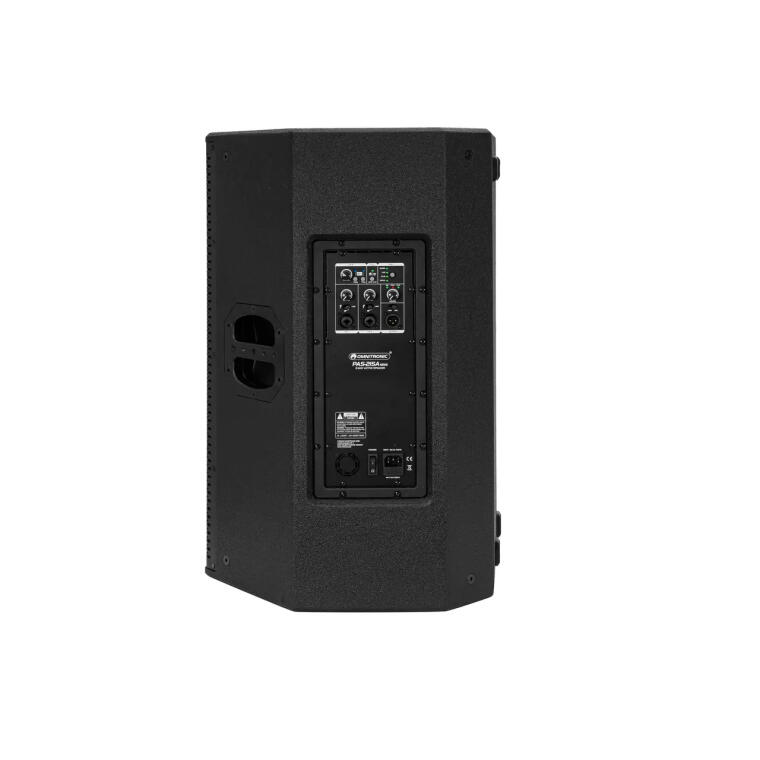

Connectivity & Signal Routing
-
Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)
-
Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack / Stereo RCA pair
-
Line Output: 1 x XLR mixed output (Mix Out) for daisy-chaining to additional active speakers or subwoofers
Controls & Indicators
-
Control Elements: Master Volume / DSP rotary selector push-button, Channel 1 & 2 Gain controls, Mic/Line input level selectors
-
Display & Indicators: LCD control screen for DSP navigation, Power LED, Signal status LED, Clip/Limit LED
Enclosure & Hardware
-
Cabinet Material: High-density MDF enclosure with durable black textured lacquer coating
-

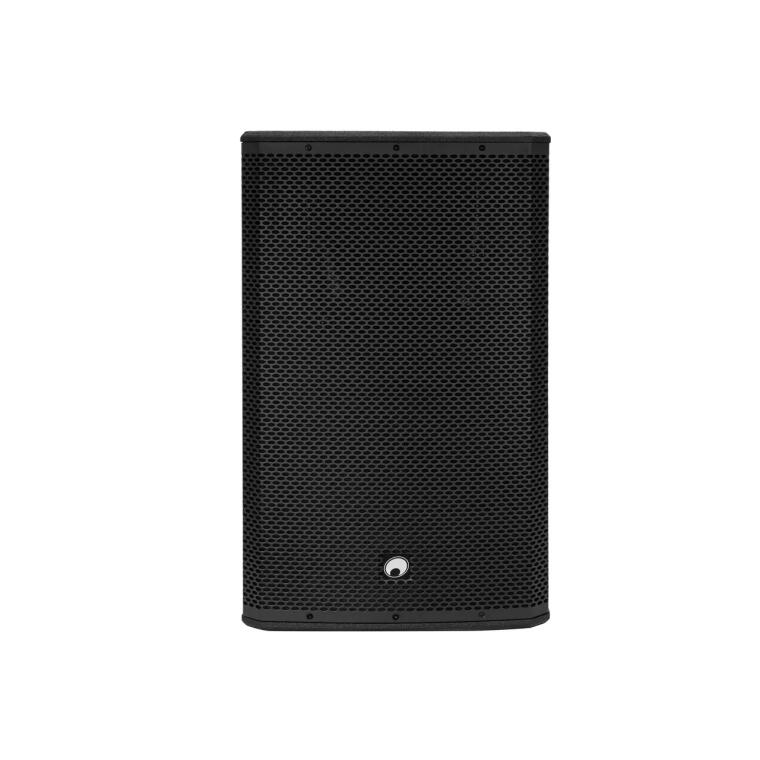

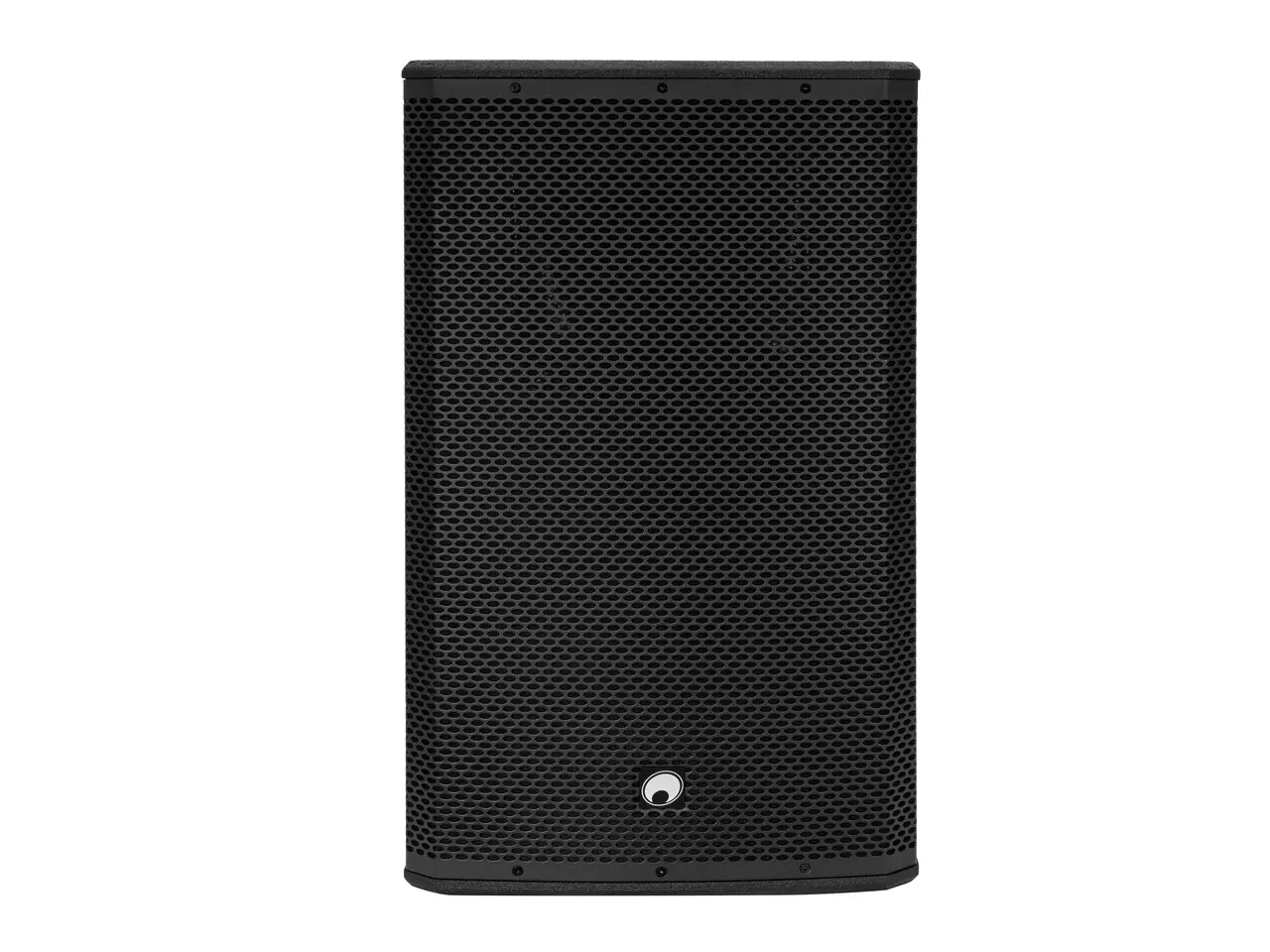

Front Protection: Heavy-duty full-face steel grille with acoustic foam backing
-
Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole mount socket (0° / 7° tilt), M10 threaded inserts for suspended rigging
-
Handles: 2 x Ergonomic recessed side carrying handles
-

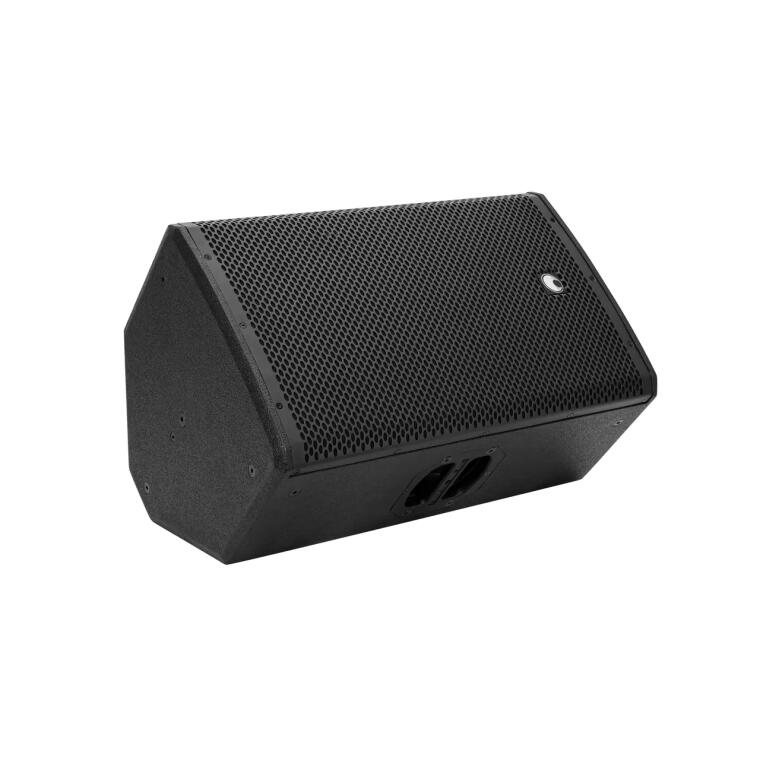

Application Modes: Main PA enclosure (upright or stand-mounted), floor monitor (angled cabinet side)
Physical Specifications
-
Dimensions (W x D x H): 445 x 440 x 740 mm (17.5" x 17.3" x 29.1")
-
Weight: 23.5 kg (51.8 lbs)
Accessories Included
-
Mains Power Cable
-
Operating Instructions Manual
