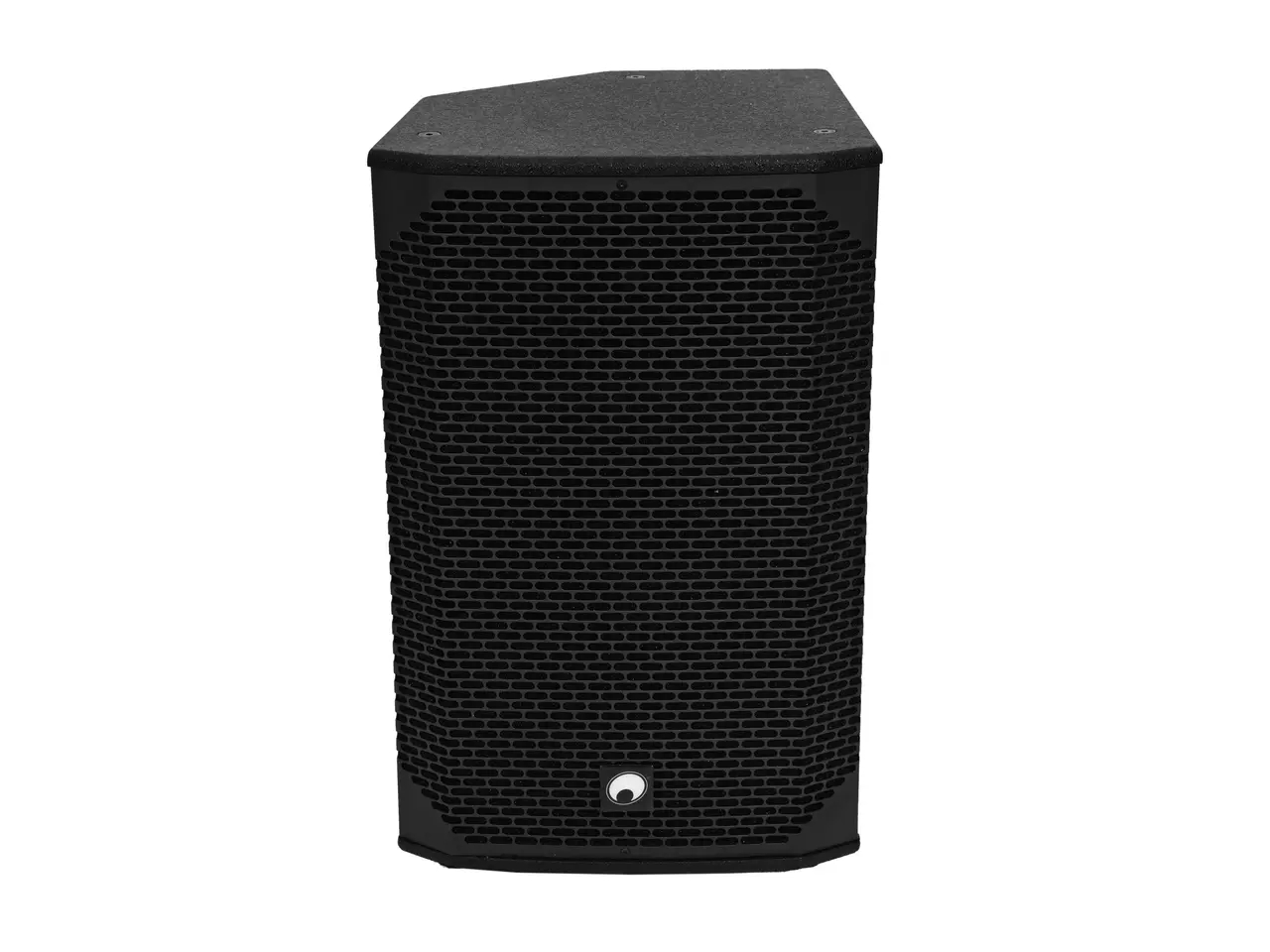

Omnitronic AZX-215A

Omnitronic AZX-215A – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Active 2-way bass-reflex PA speaker system with DSP

• Power Rating: 400 W RMS (LF 350 W Class-D + HF 50 W Class-AB)

• Program Power: 800 W Peak

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: Max. 500 W

Audio Performance & Transducers

• Low Frequency Driver: 15" (38 cm) woofer with 3" voice coil

• High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" voice coil

• Horn Dispersion: 90° x 60° (H x V)

• Frequency Range: 45 – 20,000 Hz

• Max SPL: 125 dB

• Signal Processing: DSP with 4 selectable sound presets (LIVE, MUSIC, SPEECH, DJ/CLUB) and adjustable low-cut filter

Connectivity & Signal Routing

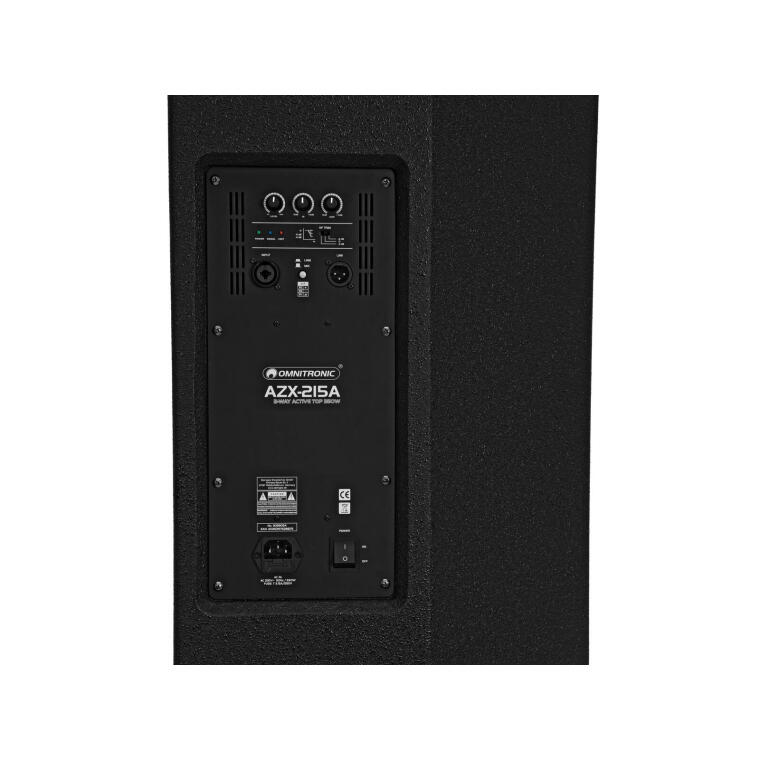

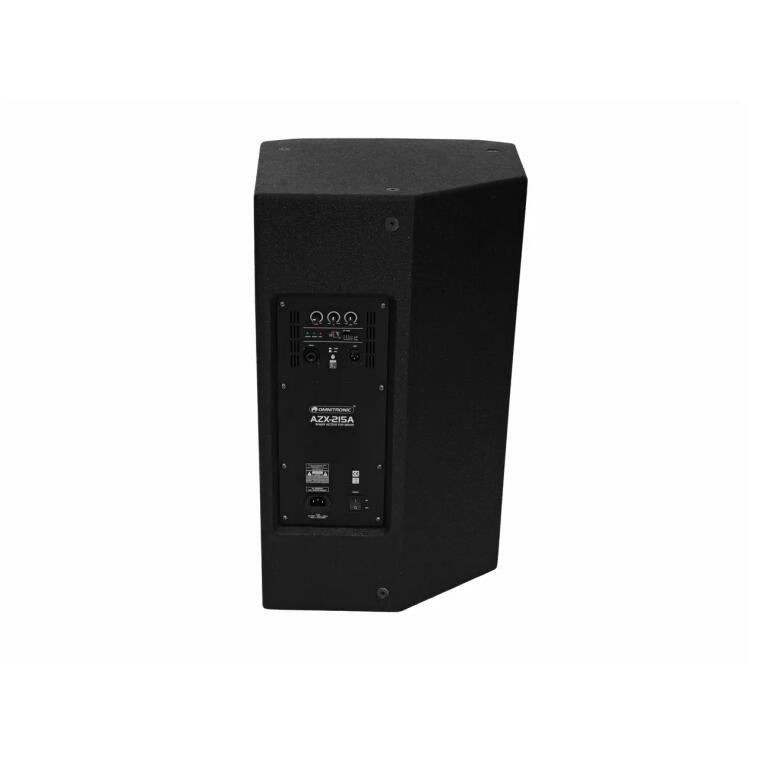

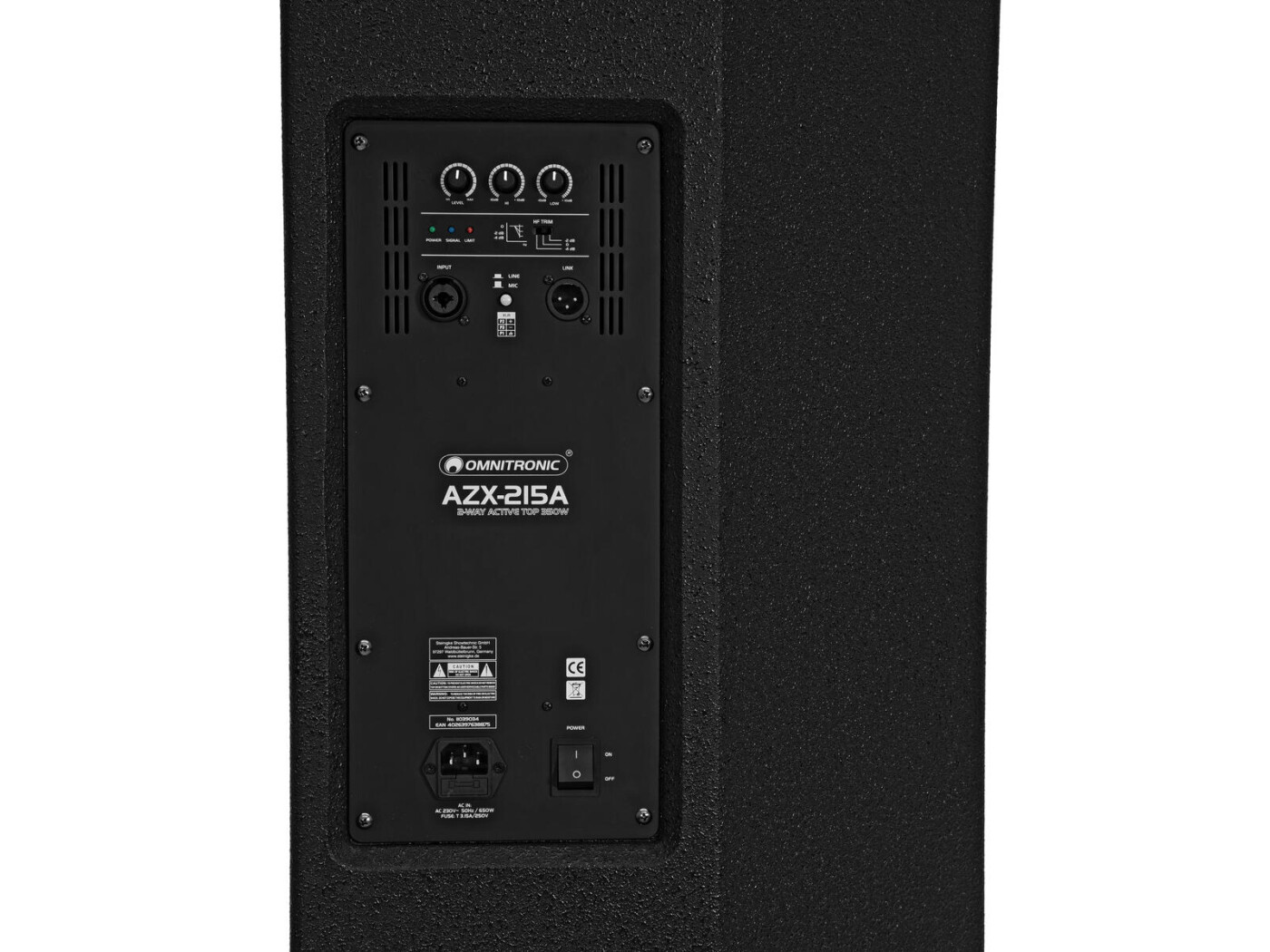

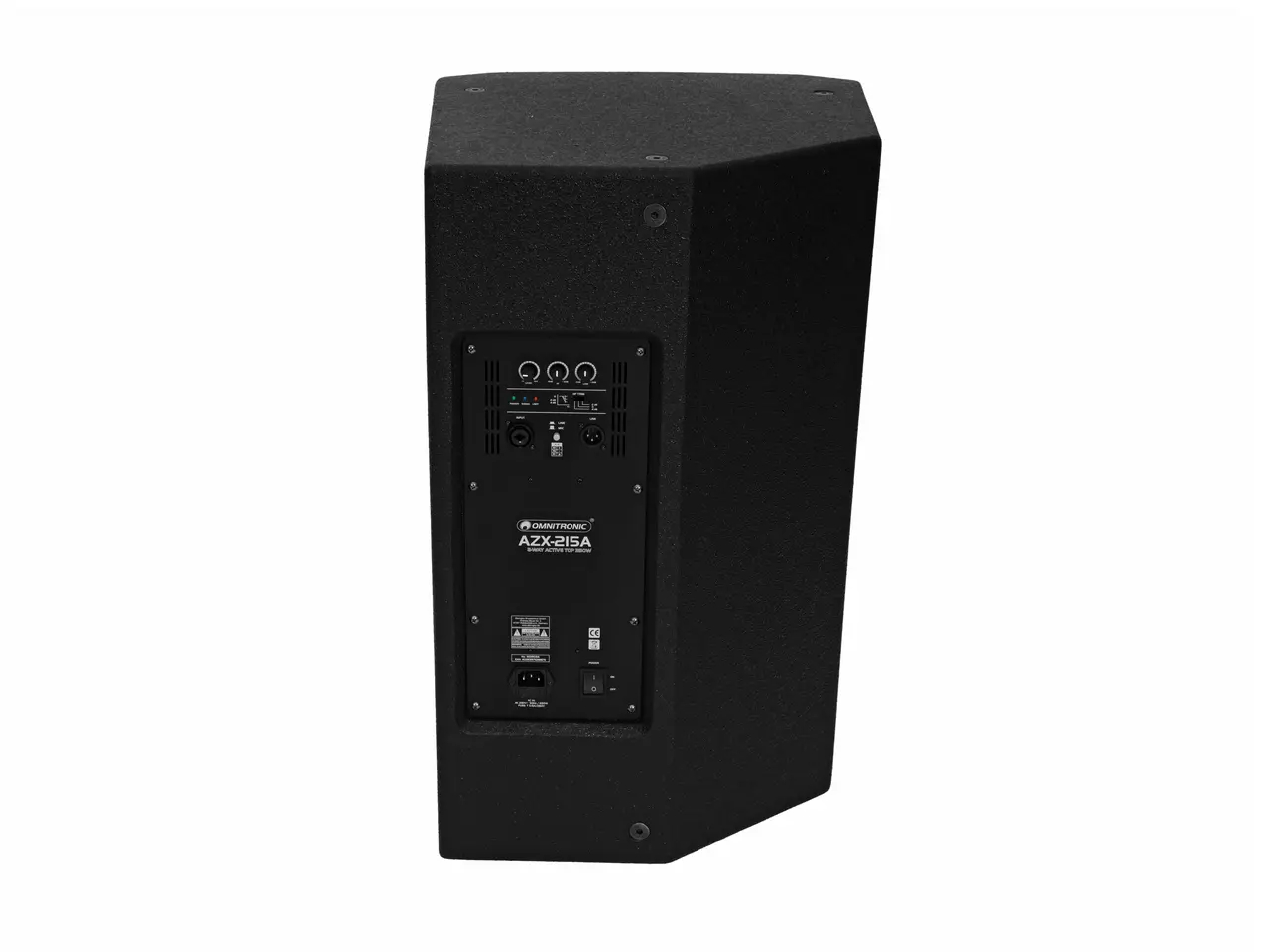

• Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)

• Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack / Stereo RCA pair

• Line Output: 1 x XLR line output (Mix Out) for daisy-chaining to additional active speakers or subwoofers

Controls & Indicators

• Control Elements: Master Volume control with DSP Push-to-Select function, Channel 1 & 2 Gain controls, Line/Mic level switches

• Display & Indicators: LCD panel for DSP menu navigation, Power status LED, Signal LED, Limit/Clip LED

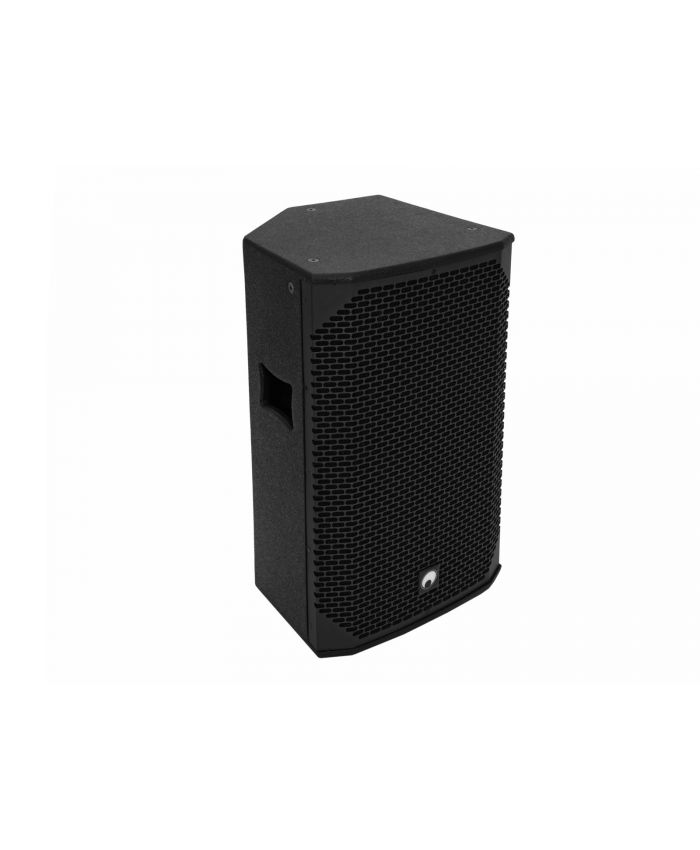

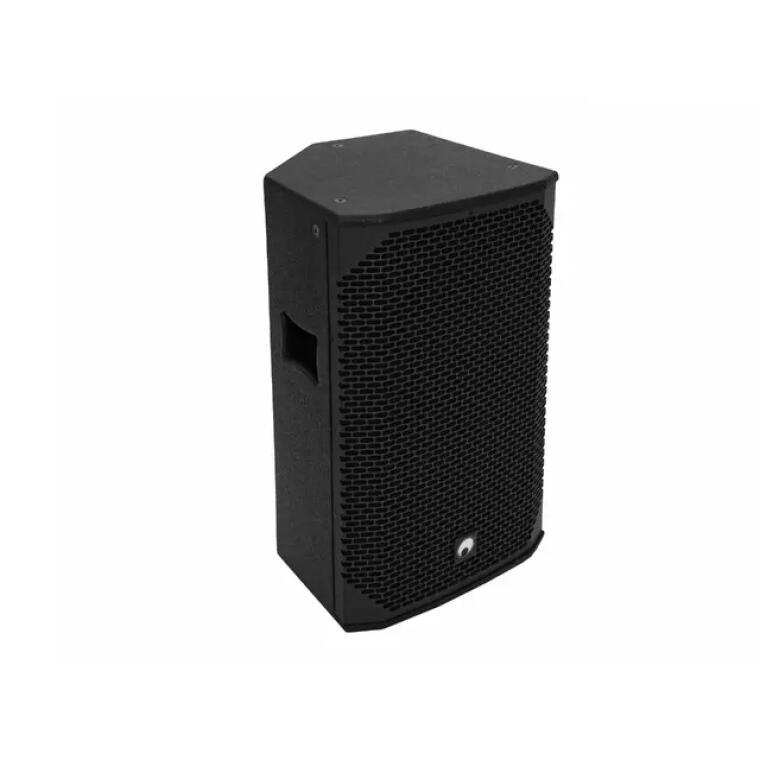

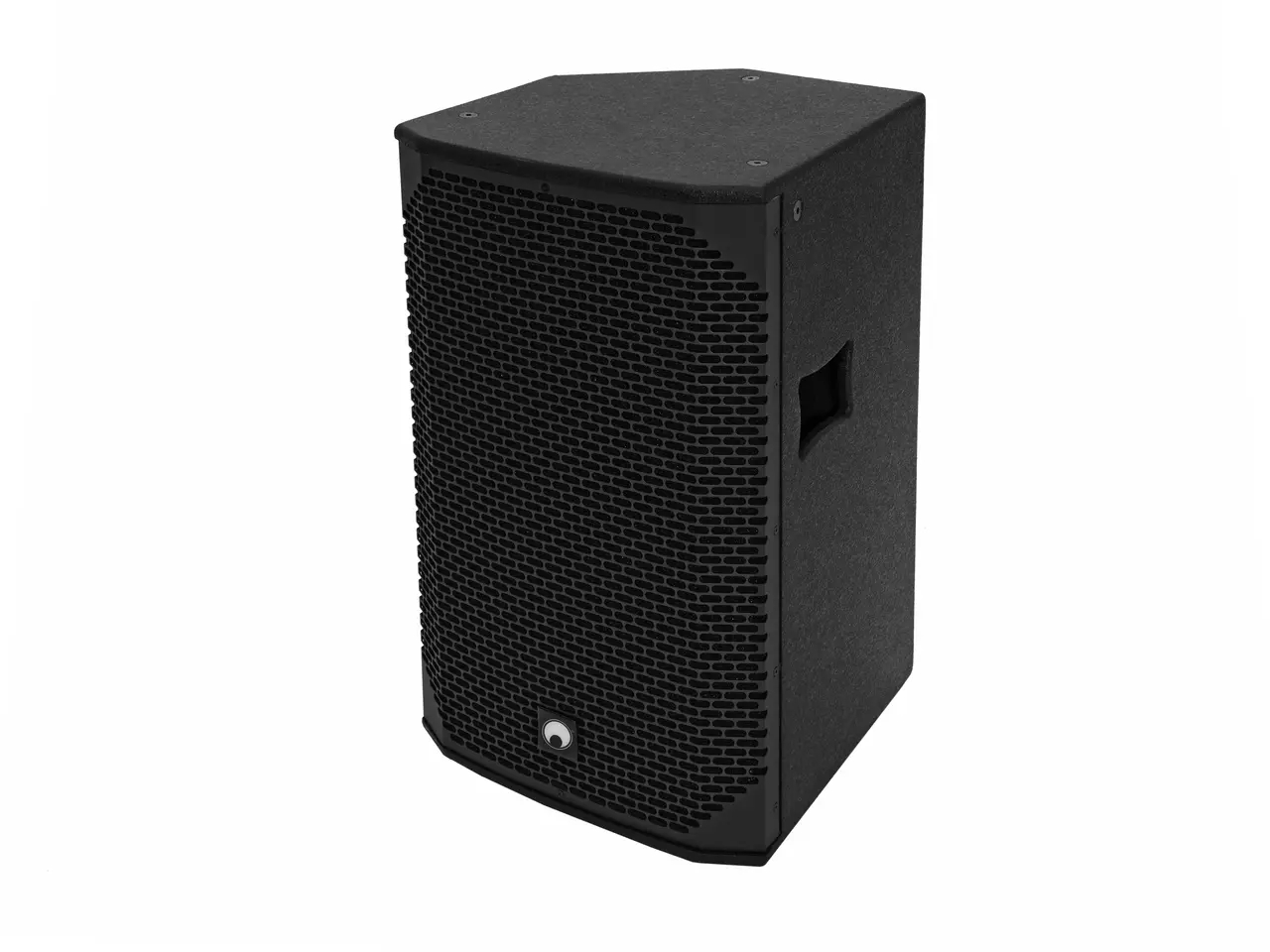

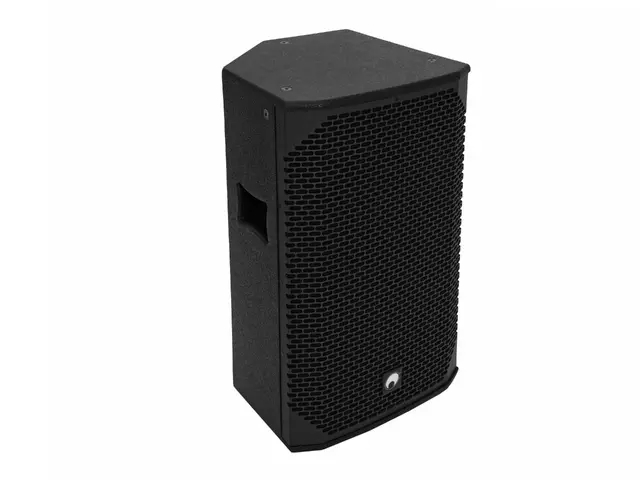

Enclosure & Hardware

• Cabinet Material: High-density MDF wooden enclosure with durable black textured lacquer finish

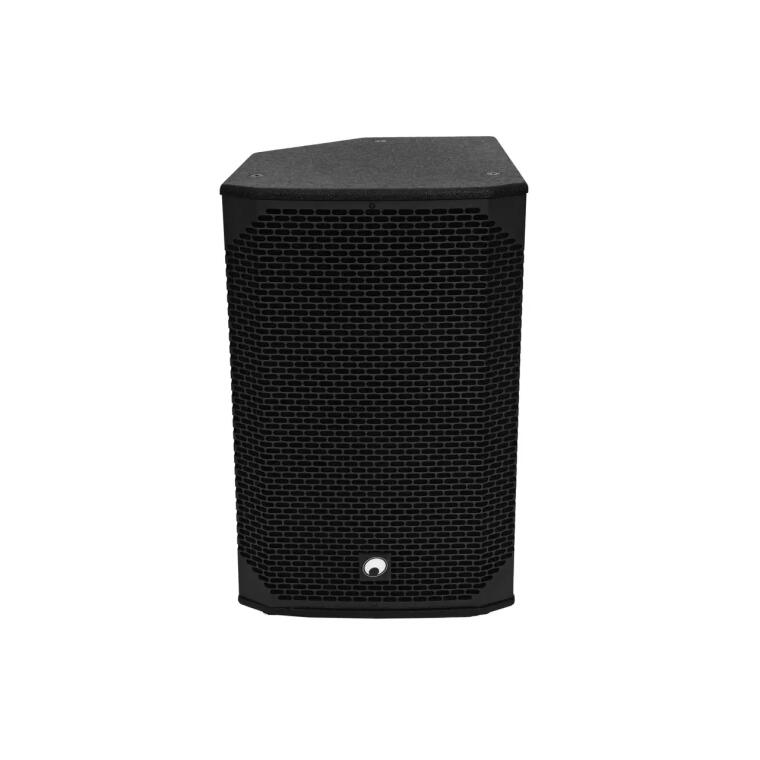

• Front Protection: Heavy-duty full-face steel grille with acoustic foam backing

• Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket (0° / 7° tilt), M10 threaded inserts for suspended rigging

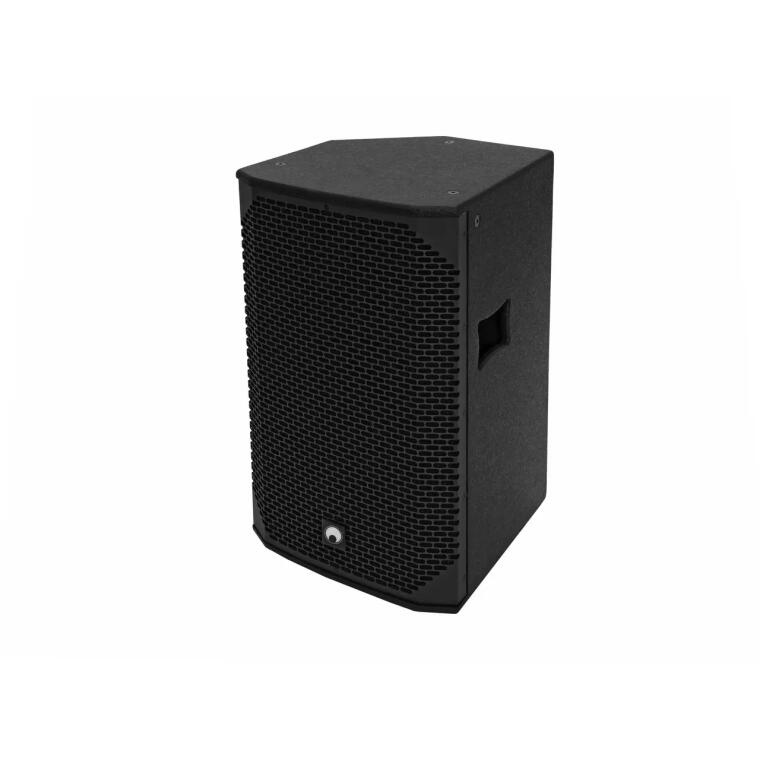

• Handles: 2 x Ergonomic recessed metal side handles

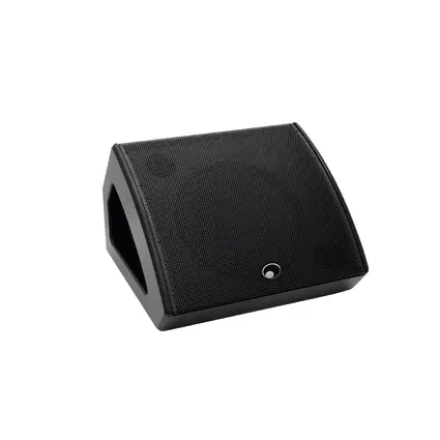

• Application Modes: Main PA enclosure (upright or stand-mounted), floor monitor (angled cabinet side)

Physical Specifications

• Dimensions (W x D x H): 445 x 440 x 740 mm (17.5" x 17.3" x 29.1")

• Weight: 22.5 kg (49.6 lbs)

Accessories Included

• Mains Power Cable

• Operating Instructions Manual
