Omnitronic ALP-6A

Omnitronic ALP-6A – Technical Specifications & Setup Guide

System & Power Handling

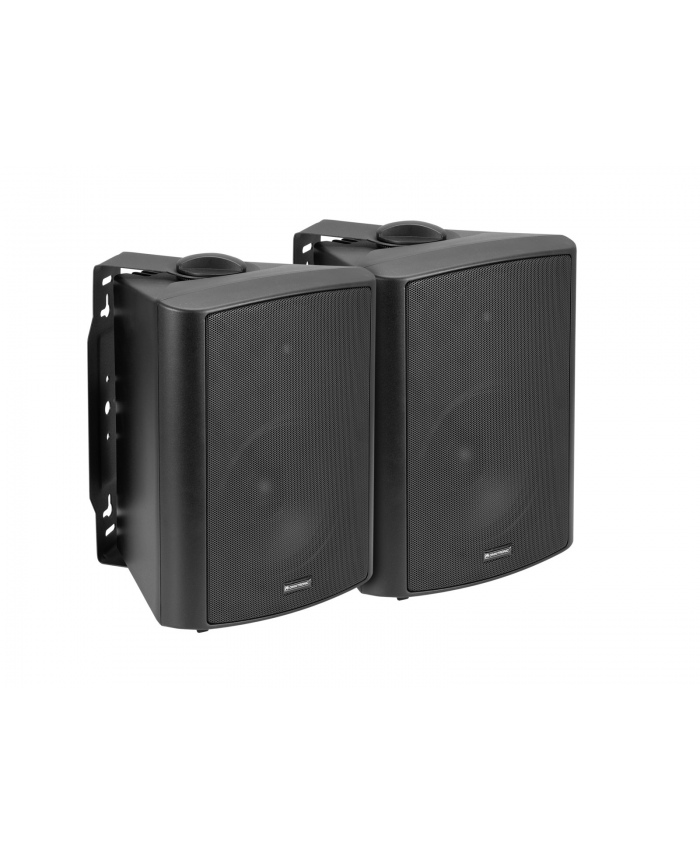

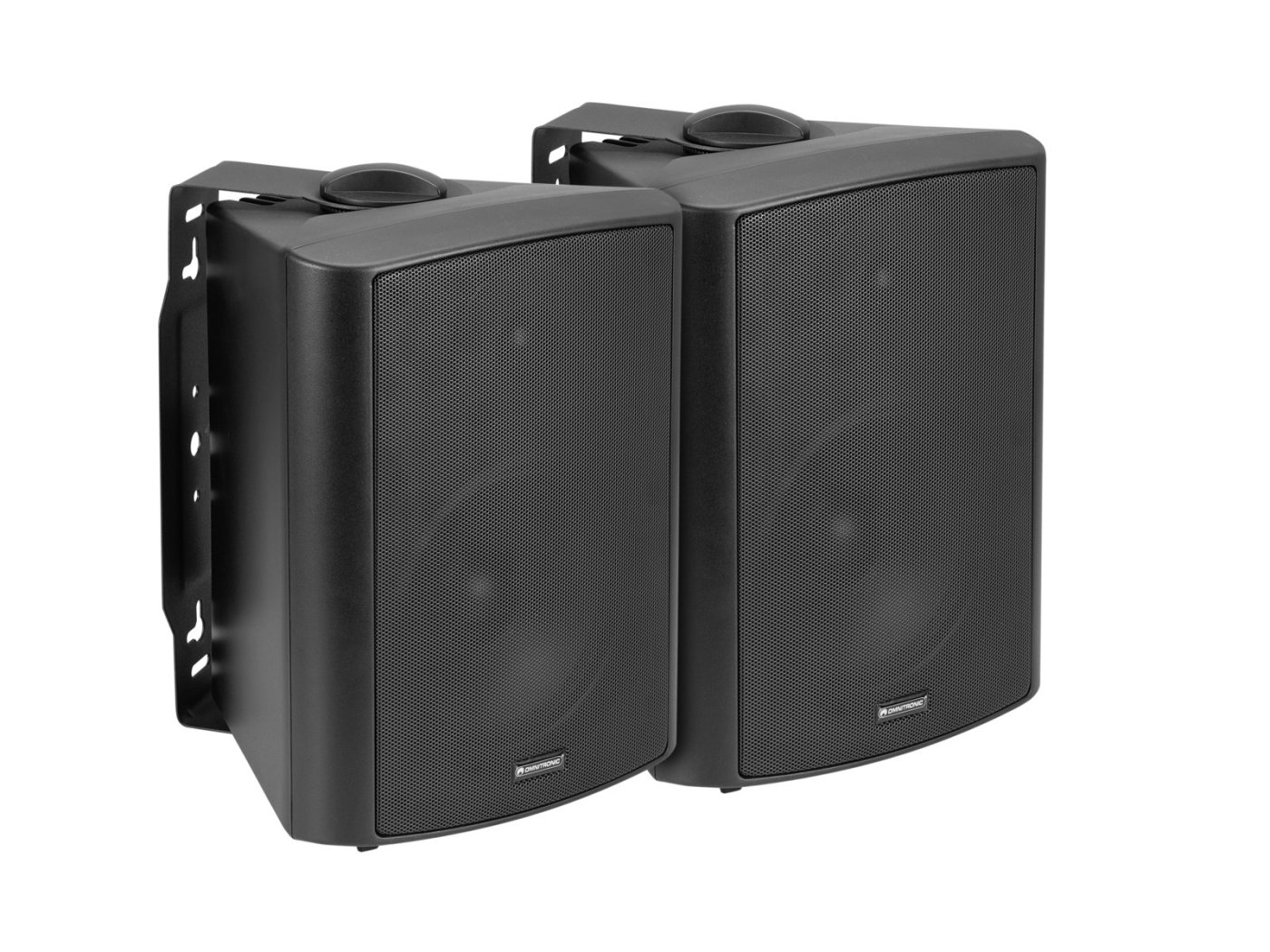

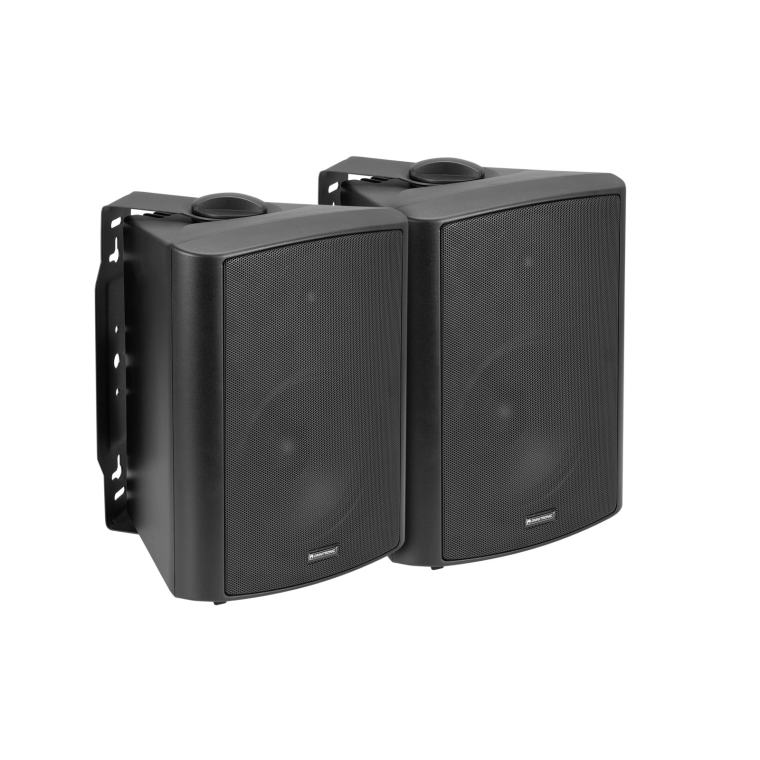

• System Type: Active / Passive pair 2-way stereo wall-mount speaker system (Master/Slave configuration)

• Output Power: 2 x 45 W RMS (90 W RMS total)

• Program Power: 2 x 90 W Peak

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: Max. 140 W

• Protection Feature: Integrated Auto-standby function

Audio Performance & Transducers

• Low Frequency Driver: 6.5" woofer

• High Frequency Driver: 1" tweeter

• Frequency Range: 80 – 20,000 Hz

• Sensitivity: 89 dB (1W/1m)

• Equalization: Master 2-band tone control (separate High and Low frequency rotary adjustment)

Connectivity & Signal Routing

• Line Inputs: 1 x Stereo RCA pair, 1 x 3.5 mm AUX jack (stereo)

• Speaker Link: Screw/terminal connection on Master active speaker to power passive Slave speaker

Controls & Indicators

• Control Elements: Power switch, Stereo/Mono selector switch, Master Level volume control, Bass & Treble tone controls

• Status Indicators: Power LED indicator

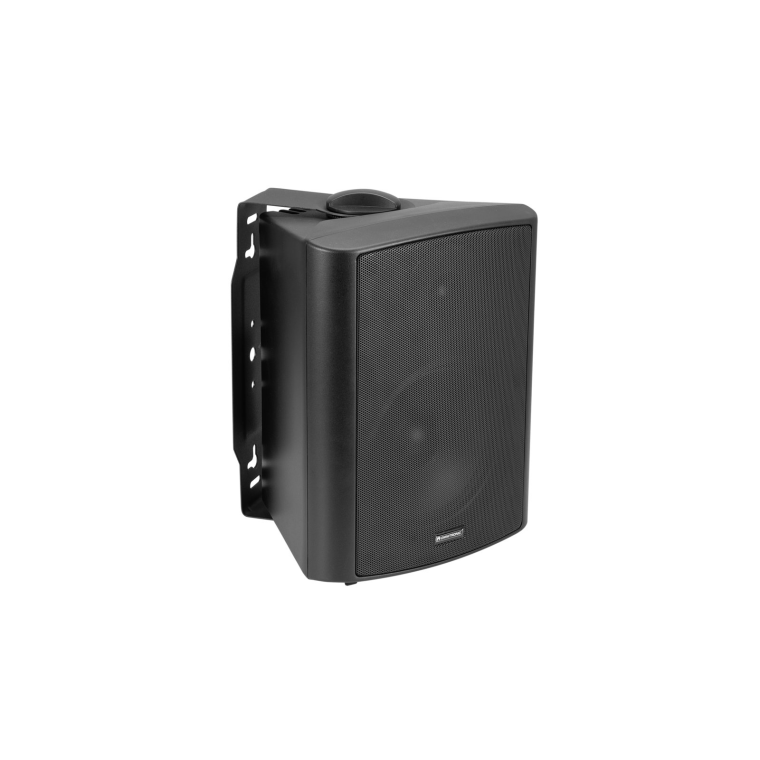

Enclosure & Hardware

• Cabinet Material: Lightweight ABS plastic enclosure

• Front Protection: Heavy-duty metal grille (available in Black or White)

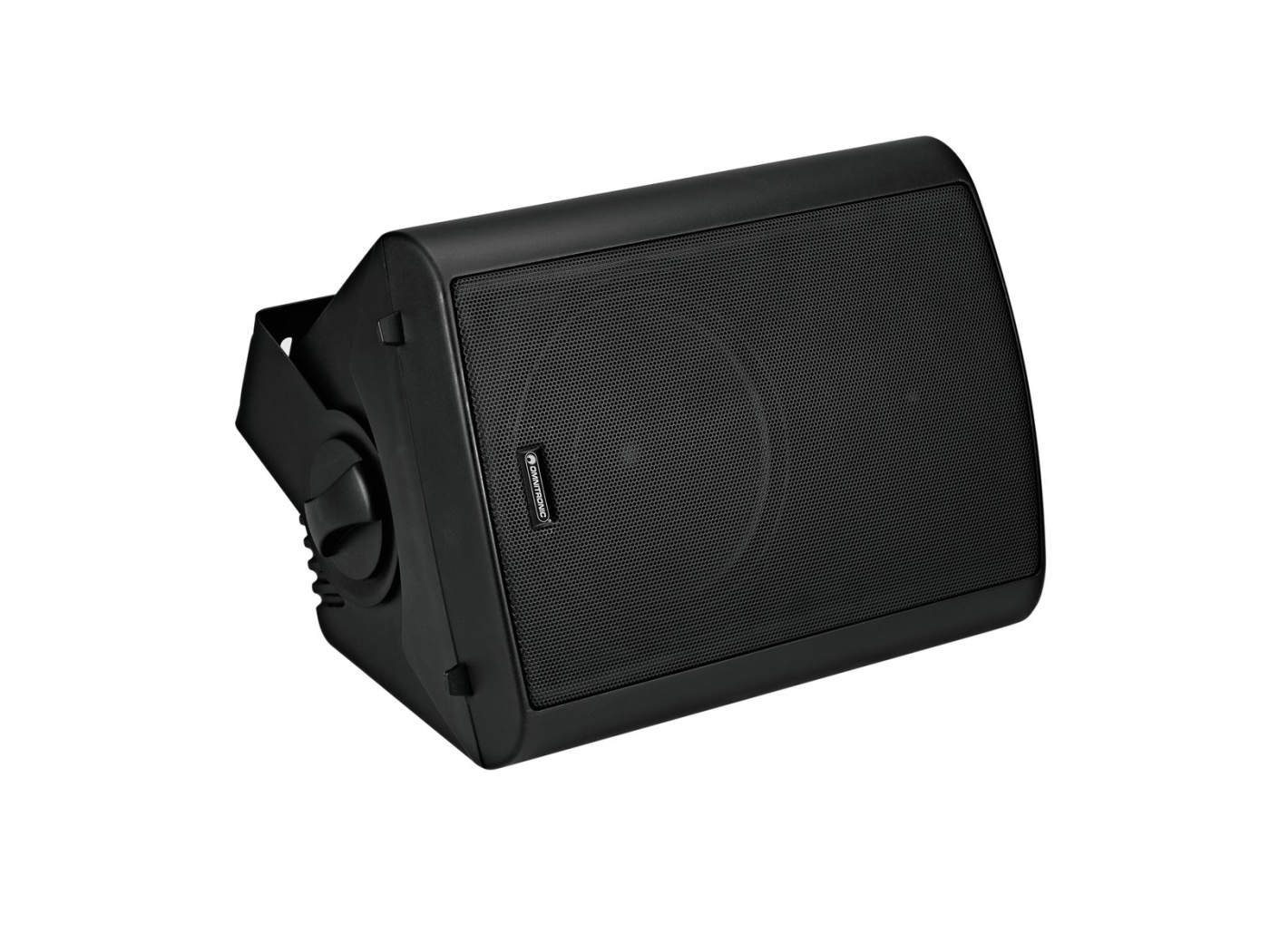

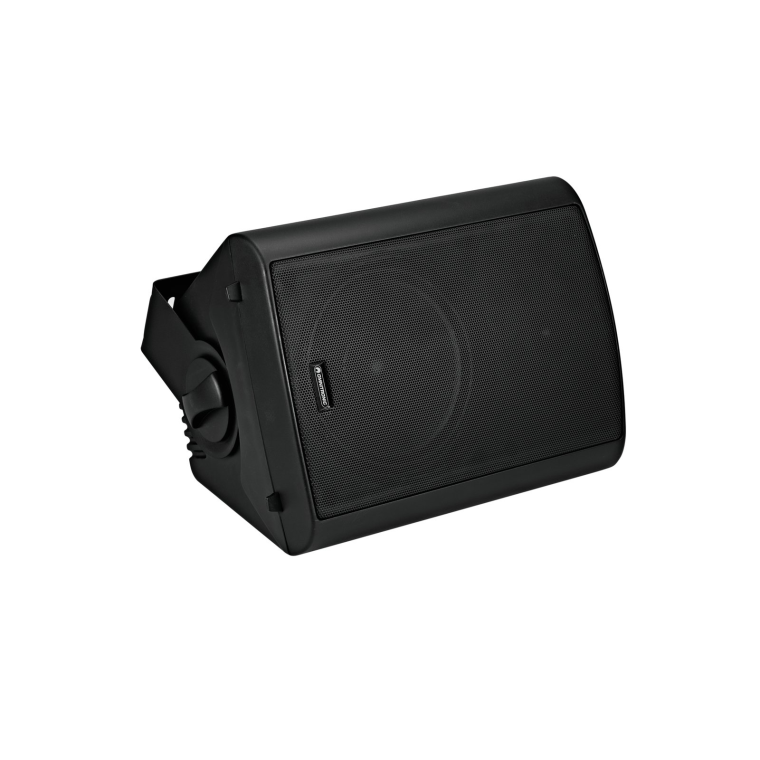

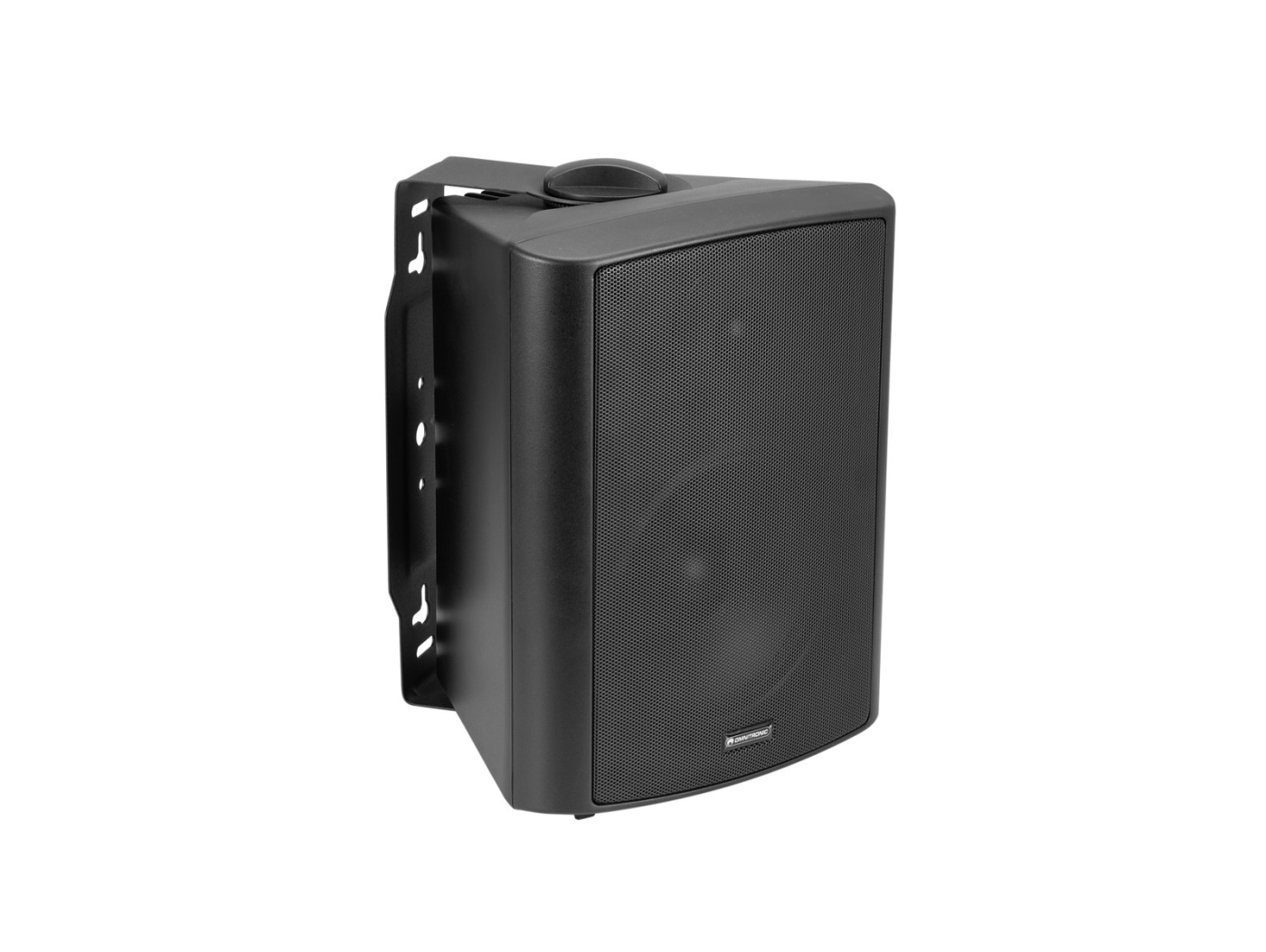

• Mounting: Includes adjustable metal mounting brackets and knurled screws for wall or ceiling installation

• Application: Commercial installations, background music systems (restaurants, bars, hotels, sports centers, retail shops)

Physical Specifications

• Dimensions (per speaker, W x D x H): 215 x 200 x 300 mm approx.

• Total Package Weight: Approx. 8.3 kg (18.3 lbs)

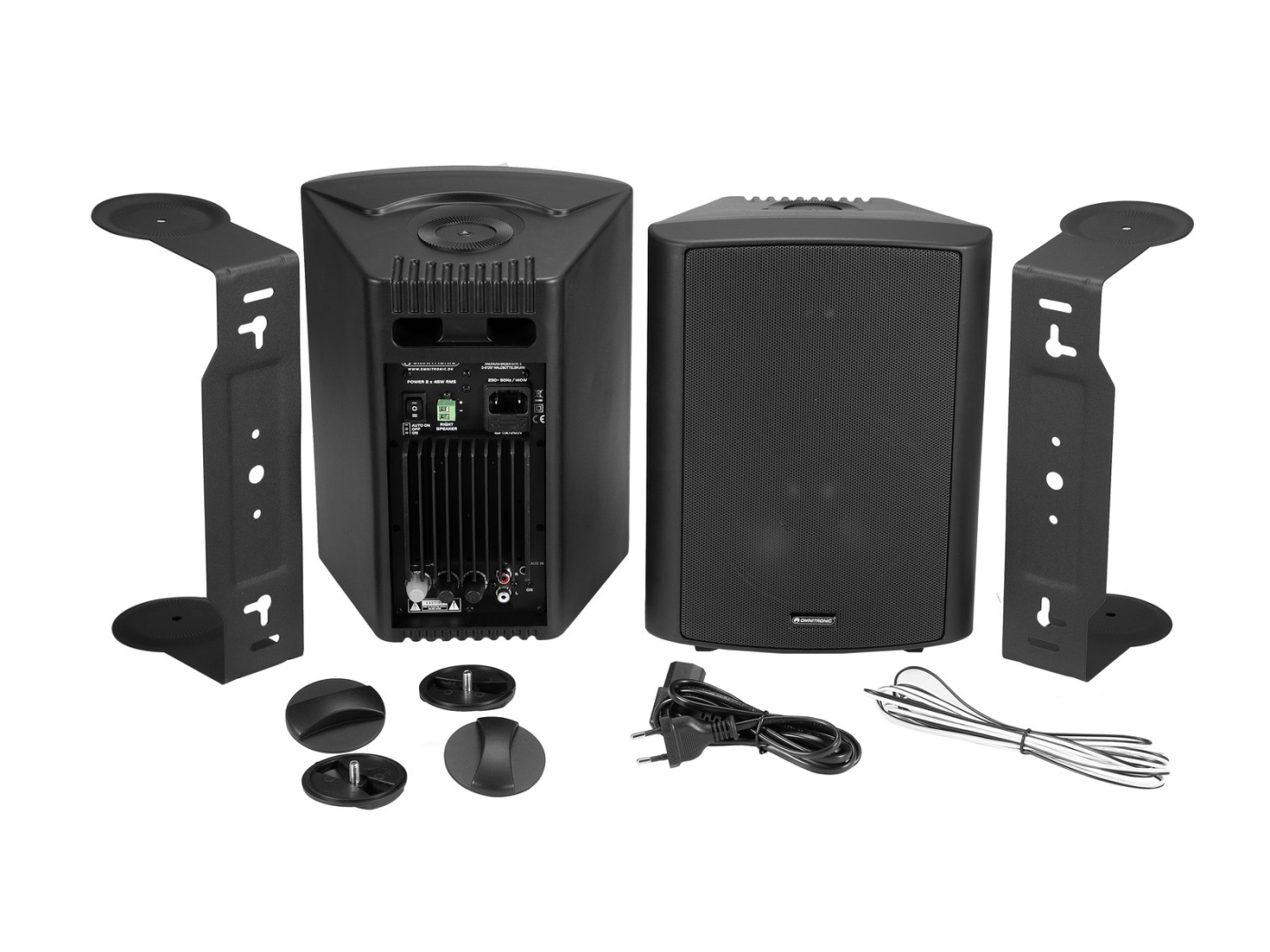

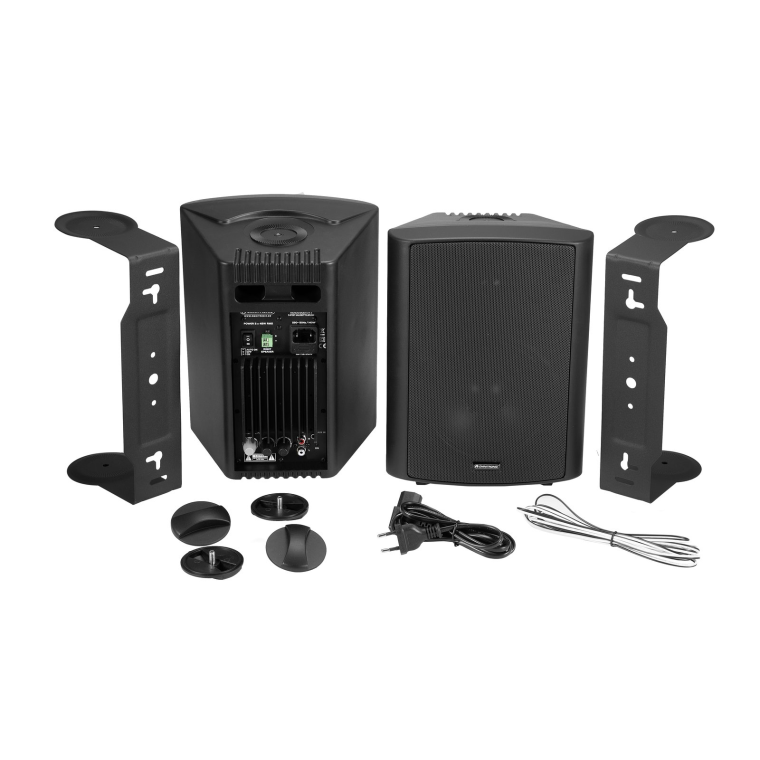

Accessories Included

• Adjustable Mounting Brackets & Knurled Screws

• Speaker Interconnect Cable (3 m)

• Mains Power Cable

• Operating Instructions Manual
