Omnitronic PAS-151A

Omnitronic PAS-151A – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Active 2-way bass-reflex PA speaker system

• Power Rating: 300 W RMS (LF 250 W Class-D + HF 50 W Class-AB)

• Program Power: 600 W Peak

• Power Supply: 115/230 V AC, 50/60 Hz (switchable)

• Power Consumption: Max. 400 W

Audio Performance & Transducers

• Low Frequency Driver: 15" (38 cm) woofer with 3" voice coil

• High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" voice coil

• Horn Dispersion: 90° x 60° (H x V), rotatable constant-directivity horn

• Frequency Range: 45 – 20,000 Hz

• Sensitivity: 97 dB (1W/1m)

• Max SPL: 124 dB

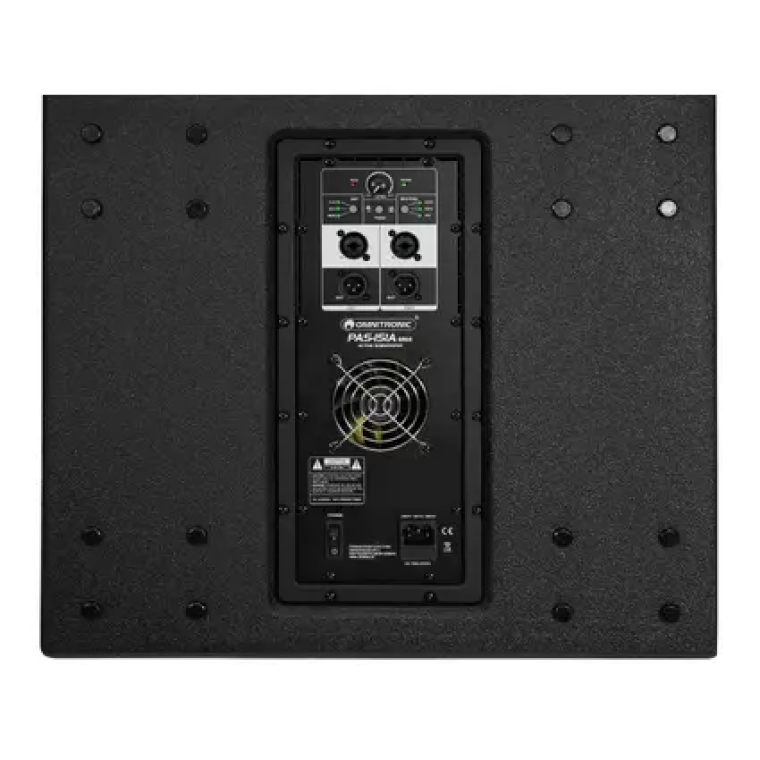

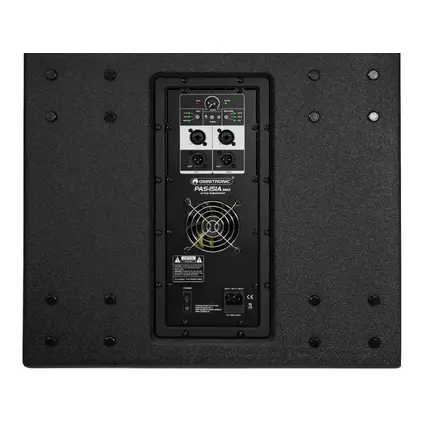

Connectivity & Signal Routing

• Microphone Input: 1 x Balanced XLR / 6.3 mm (1/4") Jack combo input with gain control

• Line Input: 1 x Balanced XLR line input / stereo RCA pair with gain control

• Line Output: 1 x Balanced XLR link output for daisy-chaining additional active units

Controls & Indicators

• Control Elements: Master Volume, Mic Input Level, Line Input Level, 2-Band Equalizer (High & Low tone controls), Ground Lift switch

• Indicators: Power status LED, Signal presence LED, Clip/Limit LED

Enclosure & Hardware

• Cabinet Material: High-density MDF wooden enclosure with durable black textured coating

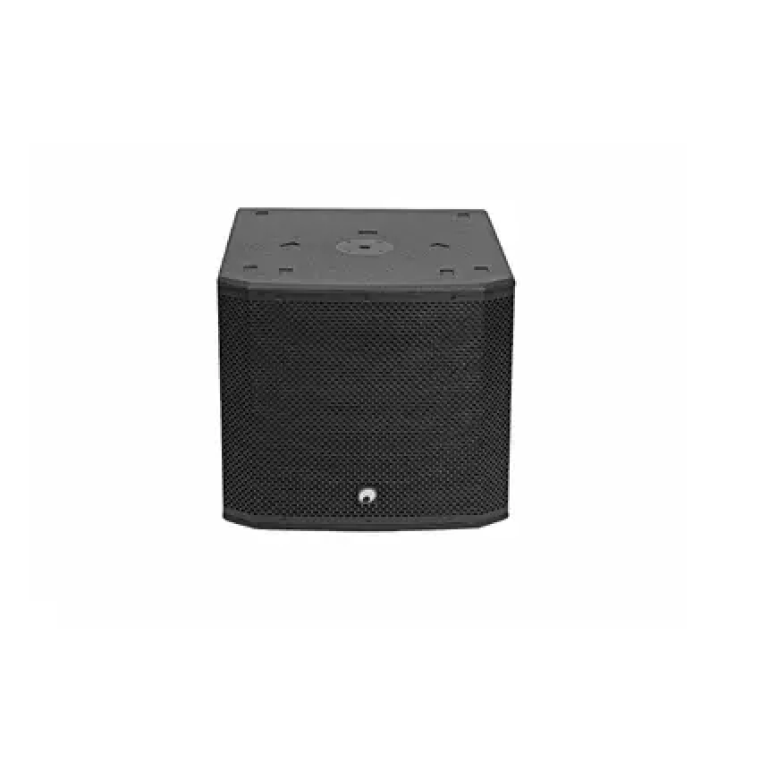

• Front Protection: Heavy-duty full-face steel grille backed with acoustic foam

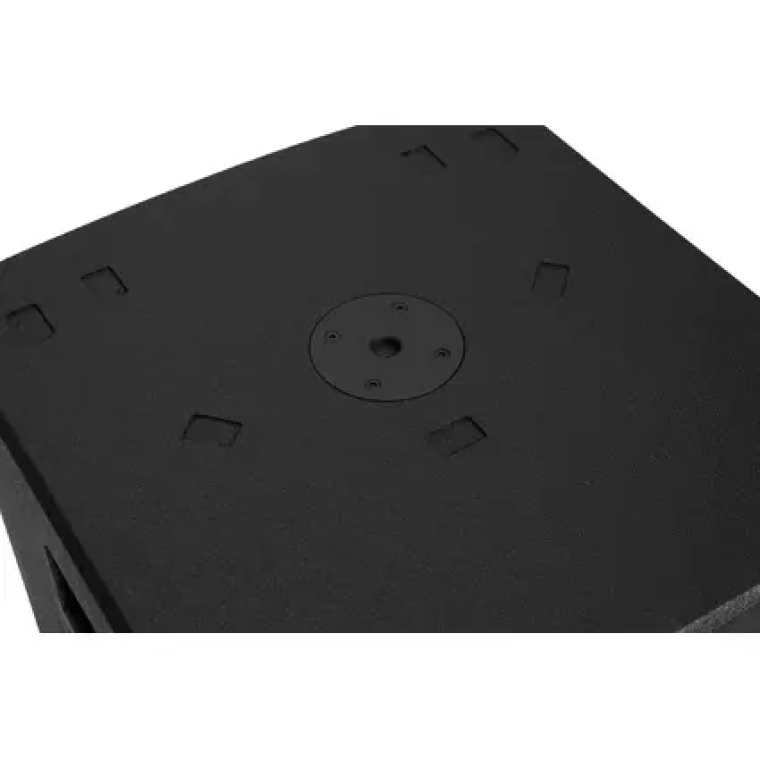

• Mounting / Suspension: Integrated Ø 35 mm pole mount socket, M10 threaded inserts for suspended rigging

• Carrying Handles: 2 x Ergonomic recessed metal side handles

• Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet side)

Physical Specifications

• Dimensions (W x D x H): 470 x 440 x 740 mm (18.5" x 17.3" x 29.1")

• Weight: 25.0 kg (55.1 lbs)

Accessories Included

• Mains Power Cable (IEC)

• Operating Instructions Manual
