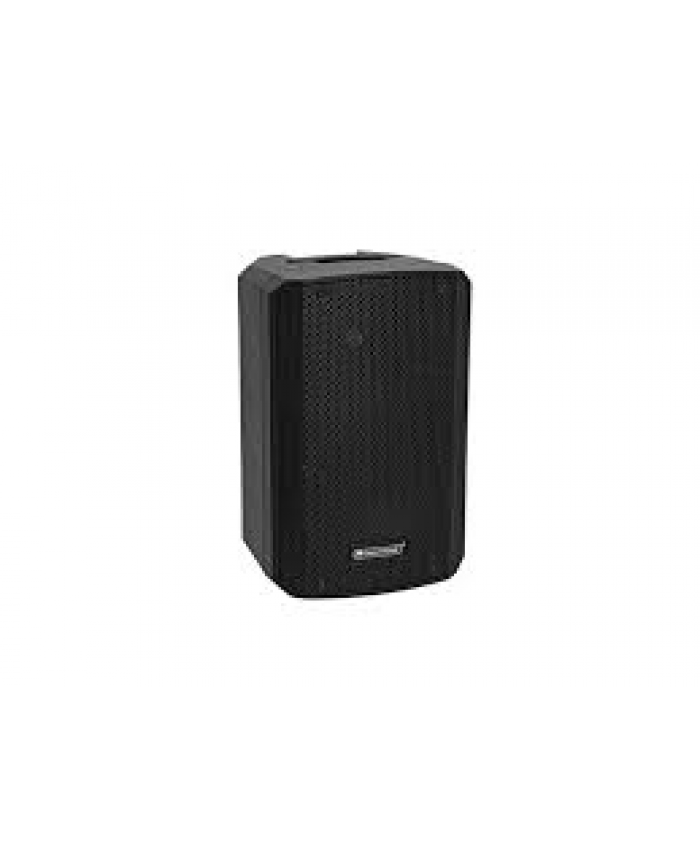

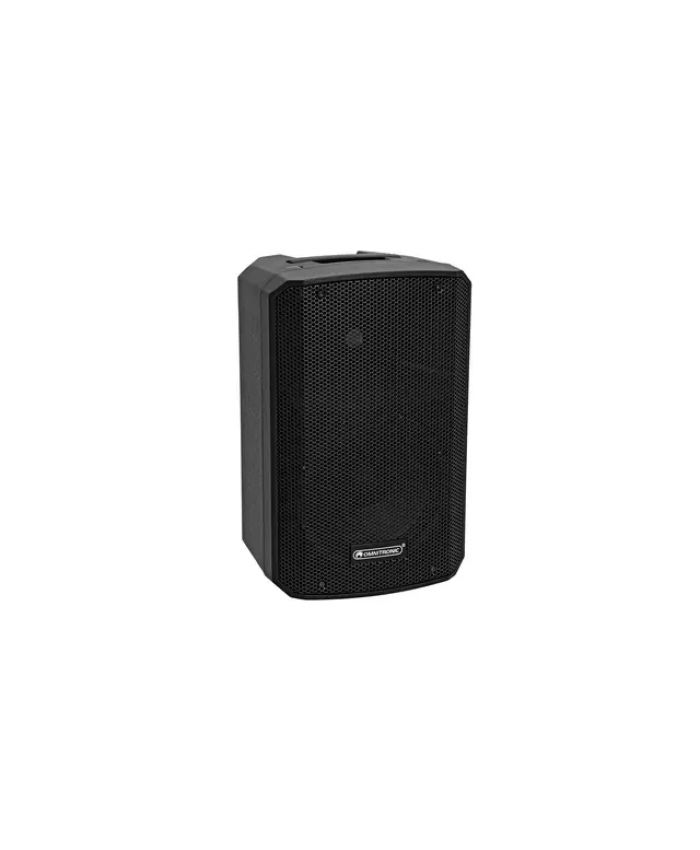

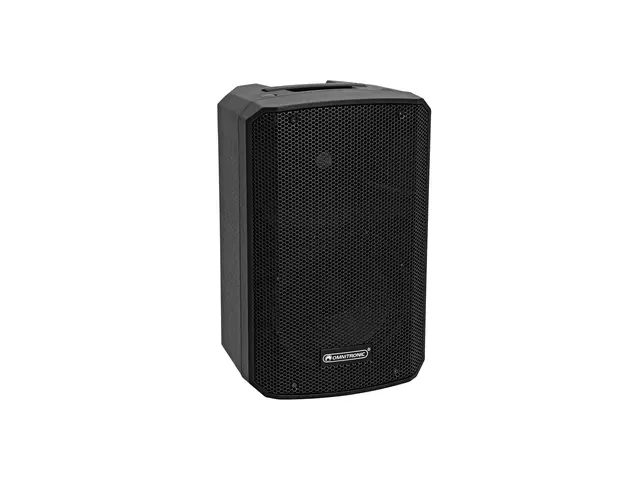

Omnitronic VFM-208AP MK2
€159.00
incl. VAT
In stock
Interested in this product?
Overview

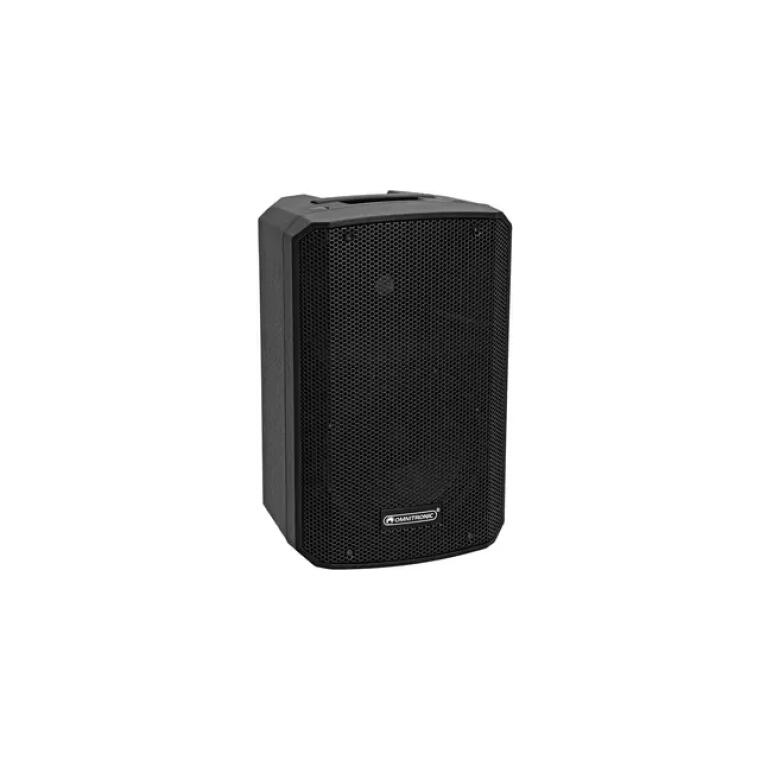

OMNITRONIC VFM-208AP MK2 2-way Speaker active TWS
- 2-way bass-reflex enclosure with 20 cm woofer and 2.5 cm driver
- Class A/B circuitry: optimum sound and power at low weight and compact dimensions
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- SD card slot and USB port
- 1 mic/line combo input (XLR/jack) with level control
- Line input, RCA
- 3.5 mm AUX input
- Mixed output for linking further active speaker systems
- Master control with 2-band EQ
- Control via Bluetooth; IR remote control
- Black metal grille
- Rugged carrying handle
- For application areas such as: Mobile djs / entertainer
- Application possibility: Standing; monitoring; on stand
Omnitronic VFM-208AP MK2 – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Active 2-way bass-reflex PA speaker system
-
Amplifier Output: 50 W RMS / 100 W Peak (Class-AB amplification)
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: Max. 80 W
Audio Performance & Transducers
-
Low Frequency Driver: 8" (20 cm) woofer with 1.5" voice coil
-
High Frequency Driver: 1" (2.5 cm) compression tweeter
-
Frequency Range: 65 – 18,000 Hz
-
Sensitivity: 92 dB (1W/1m)
-
Max SPL: 111 dB

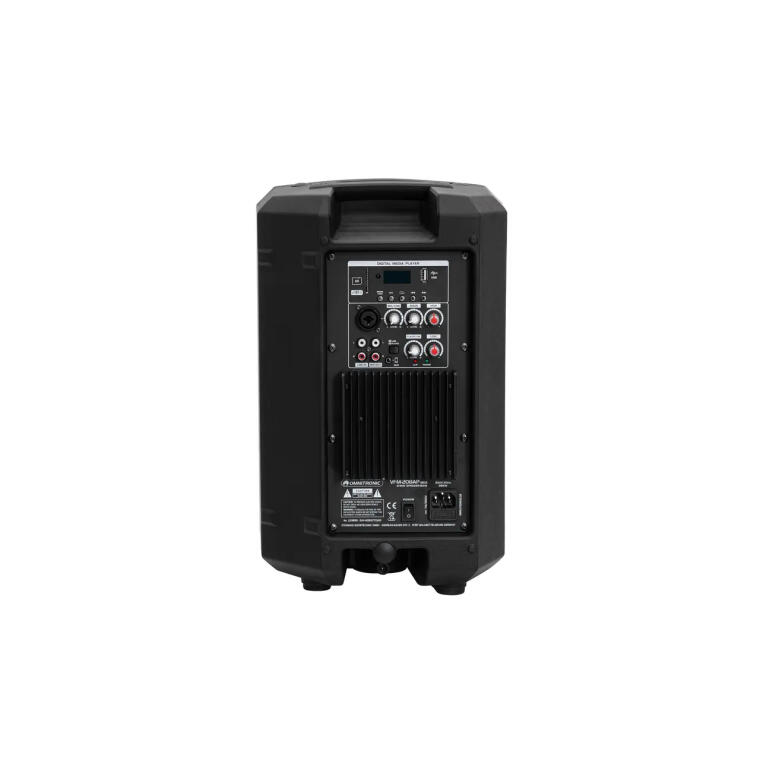

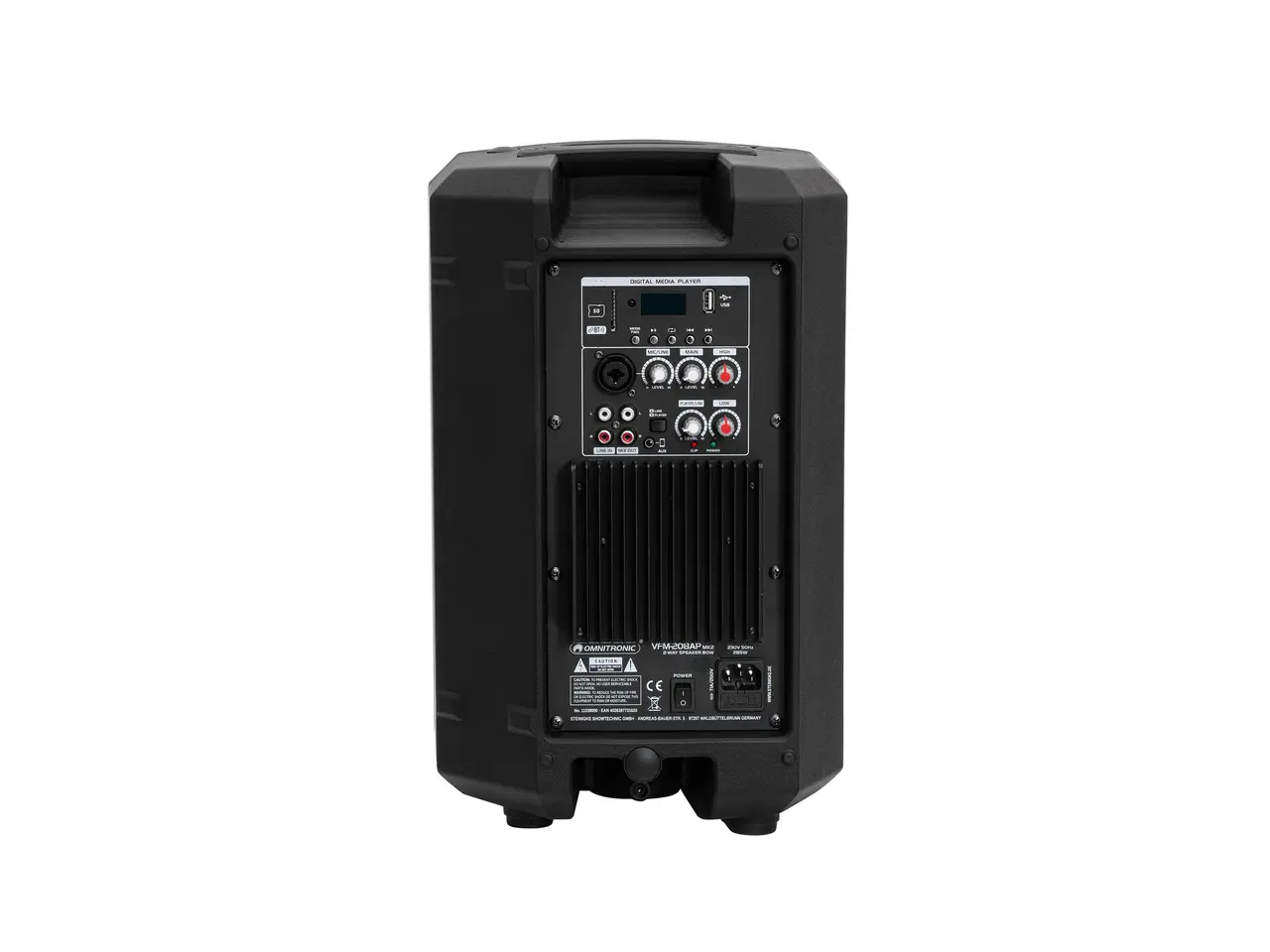

Connectivity & Media Playback
-
Bluetooth Module: Integrated Bluetooth receiver for wireless audio streaming (v4.0 / v5.0)
-
Digital Media Player: Built-in USB drive and SD card slot with backlit LCD display (MP3 / WMA playback support)
-
Microphone Input: 1 x XLR / 6.3 mm (1/4") Jack combo input with dedicated level control
-
Line Input: 1 x Stereo RCA pair / 3.5 mm stereo Aux jack with dedicated level control
-
Line Output: 1 x XLR line output for daisy-chaining additional active speakers
Controls & Indicators
-
Tone & Mixing Controls: Master Volume, Mic Volume, Line/Media Volume, 2-Band EQ (High & Low tone controls)
-
Media Controls: Play/Pause, Stop, Repeat, Mode Selector, Track Skip Forward/Back
-
Indicators: Power status LED, Limit/Clip LED
Enclosure & Hardware
-
Cabinet Material: High-impact ABS plastic chassis (black)
-

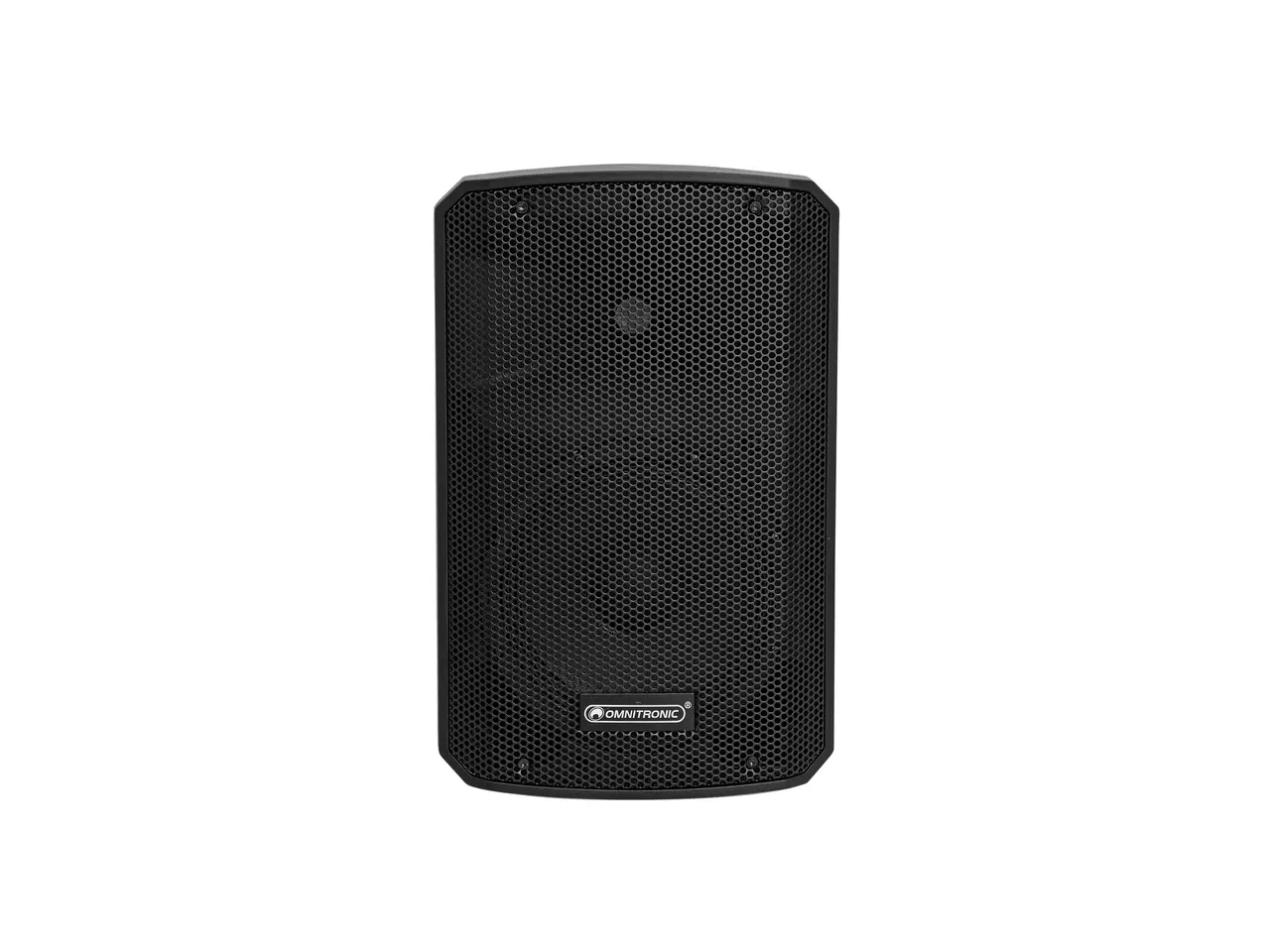

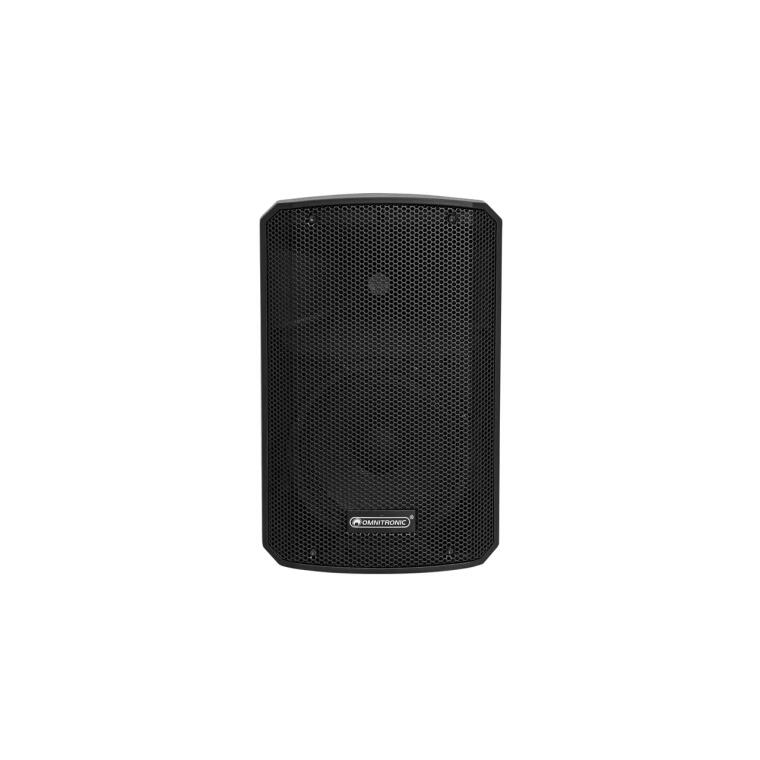

Front Protection: Heavy-duty black metal front grille
-

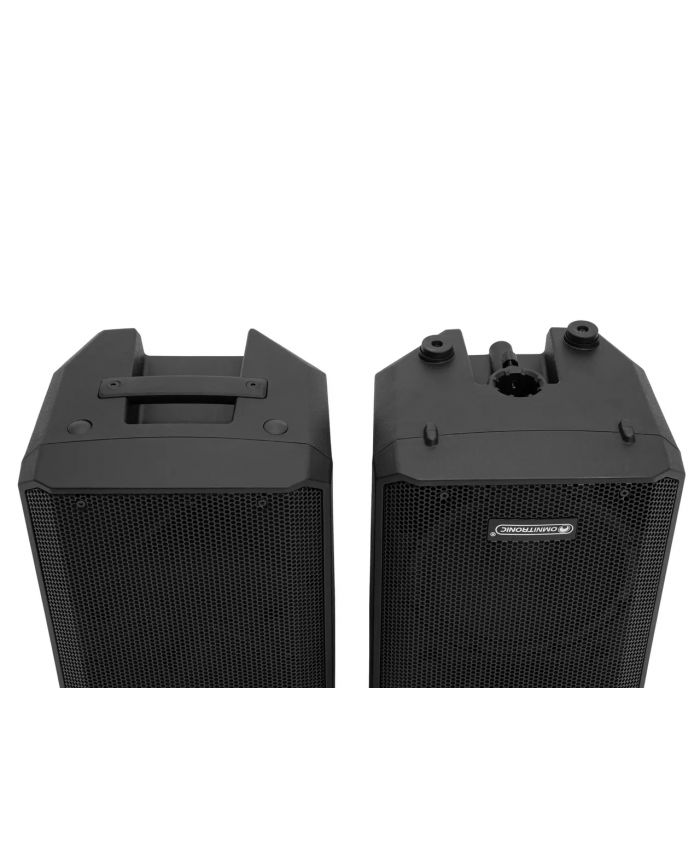

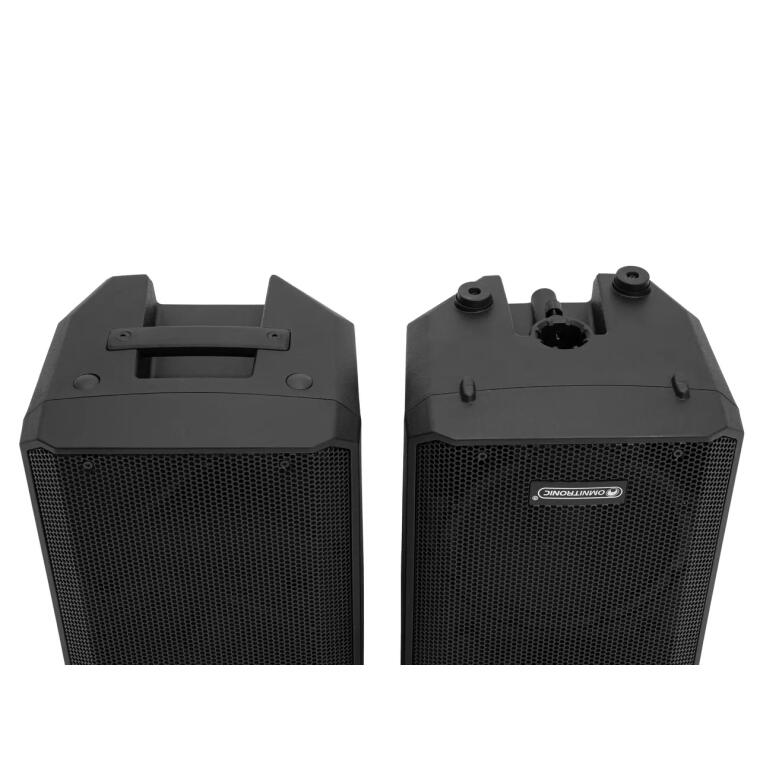

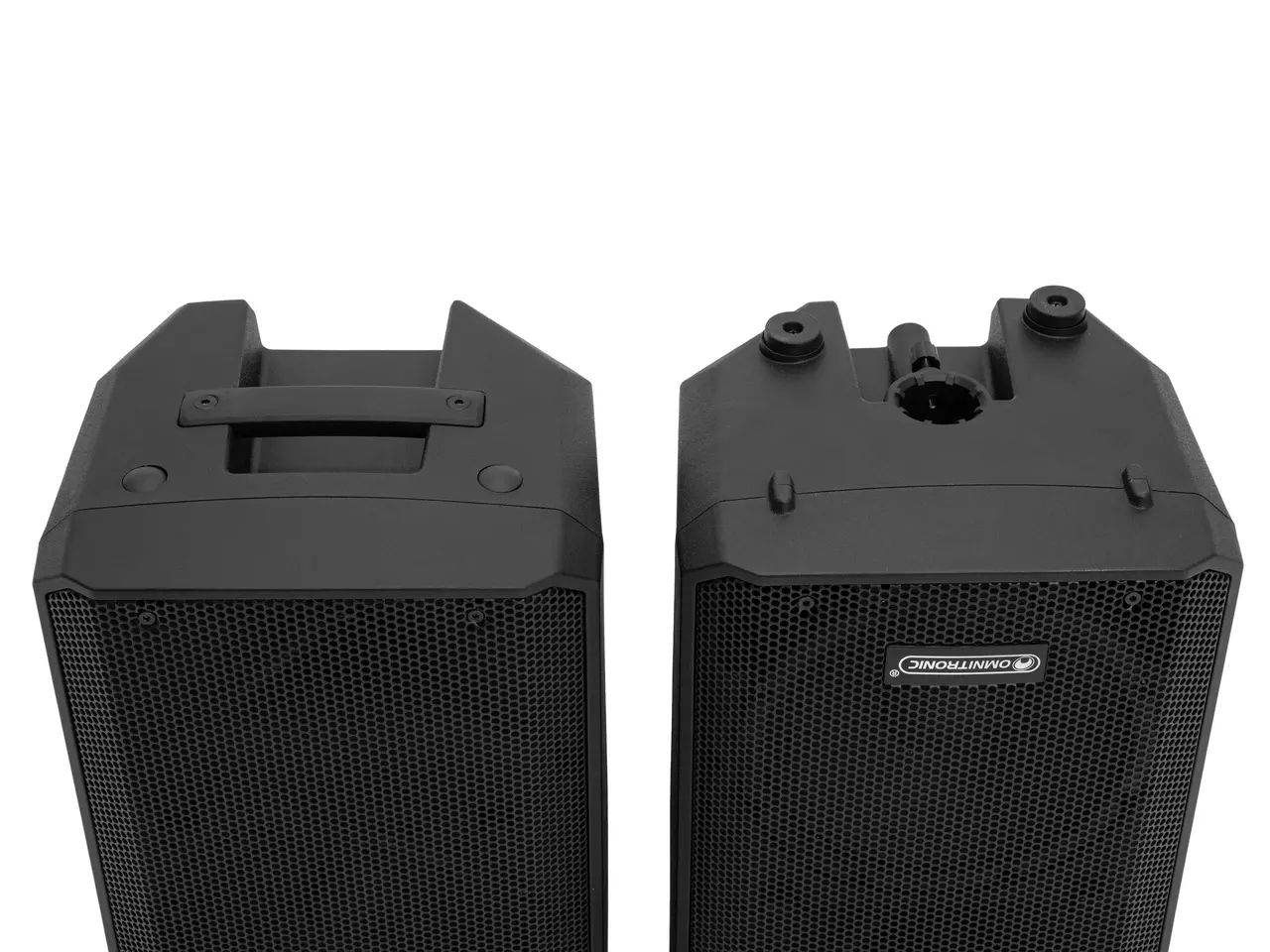

Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket
-
Carrying Handles: Integrated top carrying handle
-

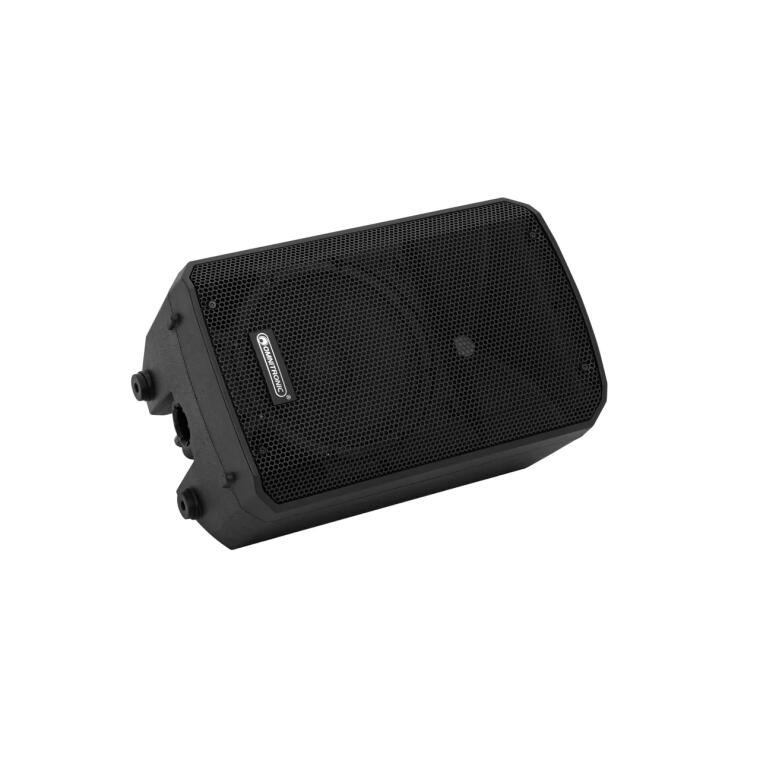

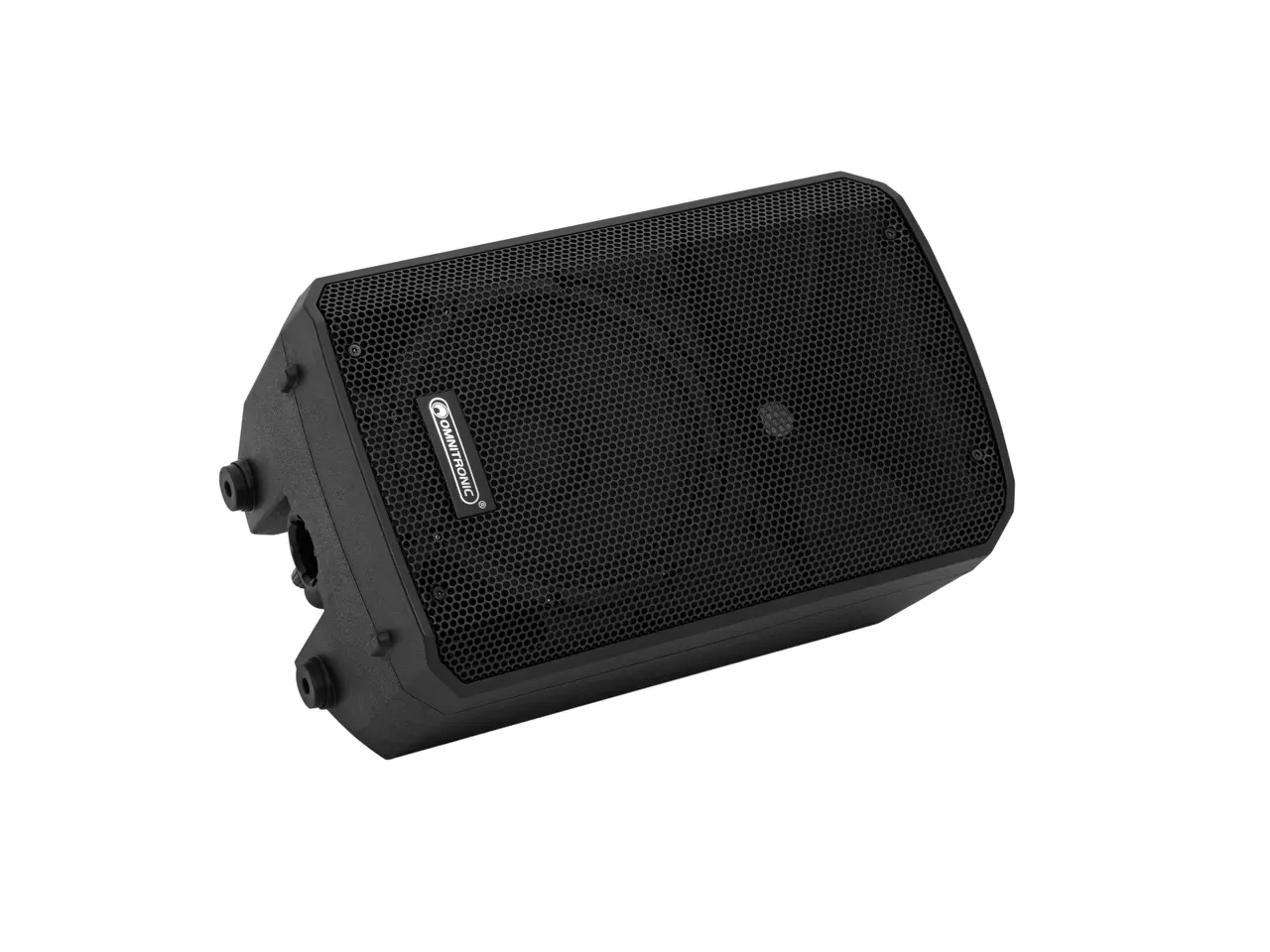

Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet side)
Physical Specifications
-
Dimensions (W x D x H): 260 x 220 x 400 mm (10.2" x 8.7" x 15.7")
-
Weight: 4.8 kg (10.6 lbs)
Accessories Included
-
Mains Power Cable
-
IR Remote Control Unit
-
Operating Instructions Manual
