Omnitronic VFM-215A

SKU: No. 11038775
€249.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

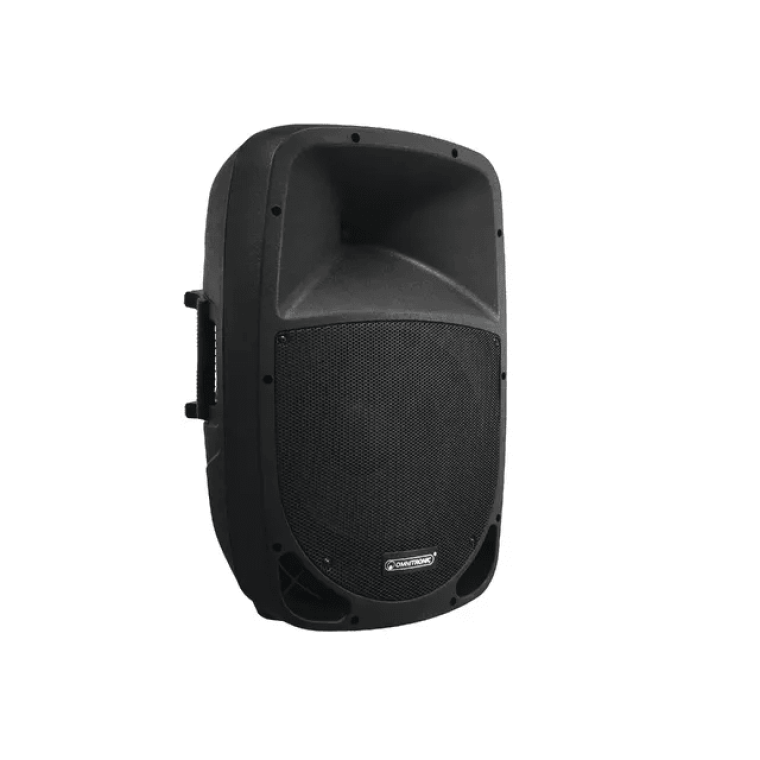

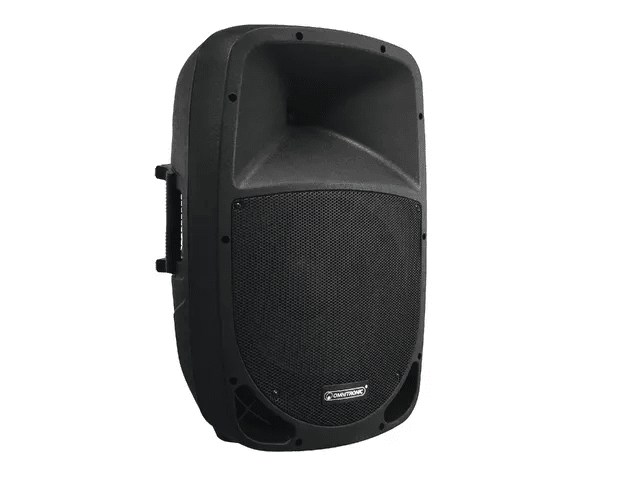

OMNITRONIC VFM-215A 2-Way Speaker, active

Active speaker with 15" woofer, 1" driver, 150 W RMS

  • Class A/B circuitry: optimum sound and power at low weight and compact dimensions
  • 2-way bass-reflex system with 38 cm woofer and 2.5 cm tweeter
  • 2 mic inputs with separate level controls
  • Line input, RCA
  • Master control with 2-band EQ
  • Black metal grille
  • 2 Rugged carrying handles

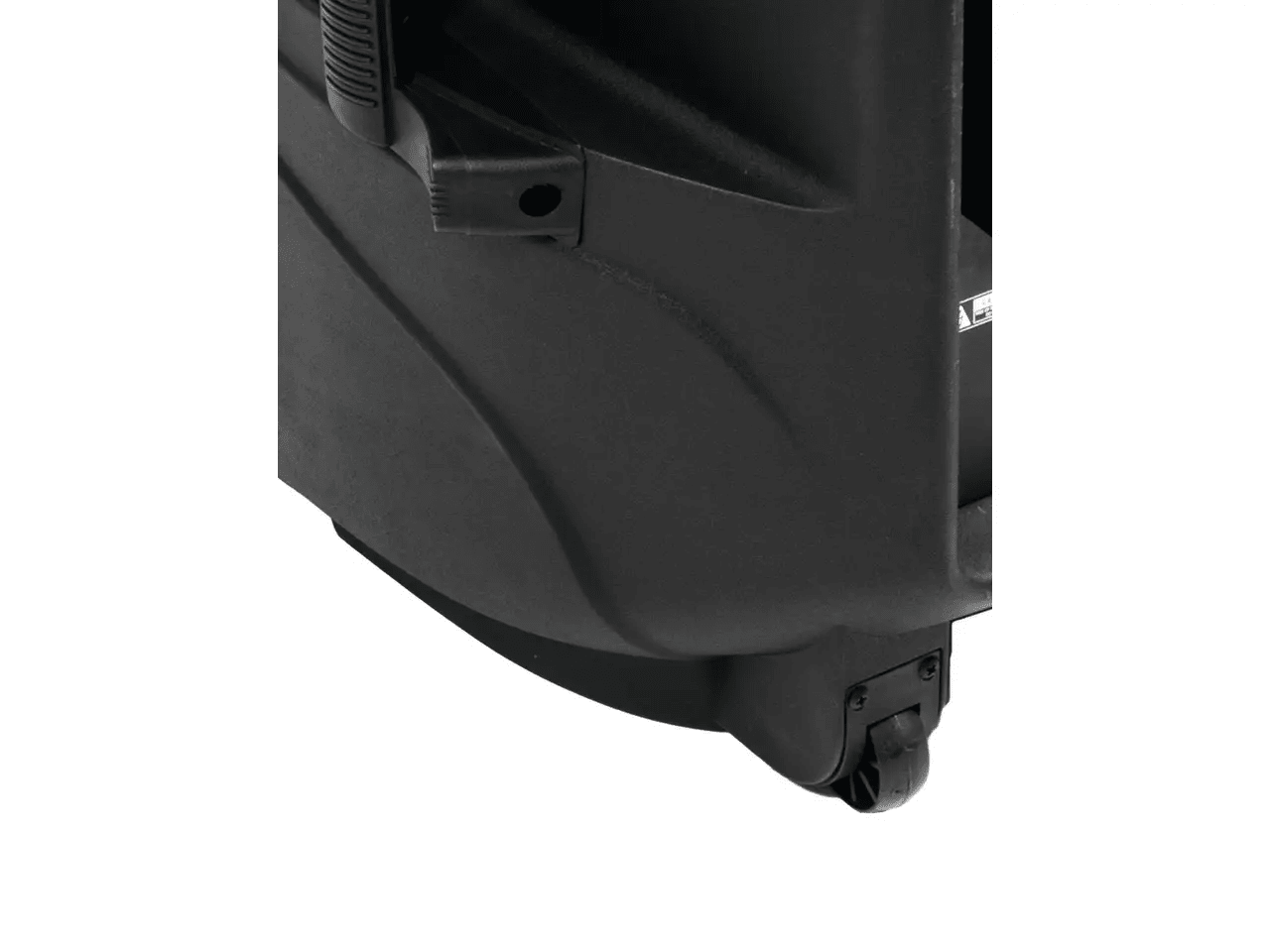

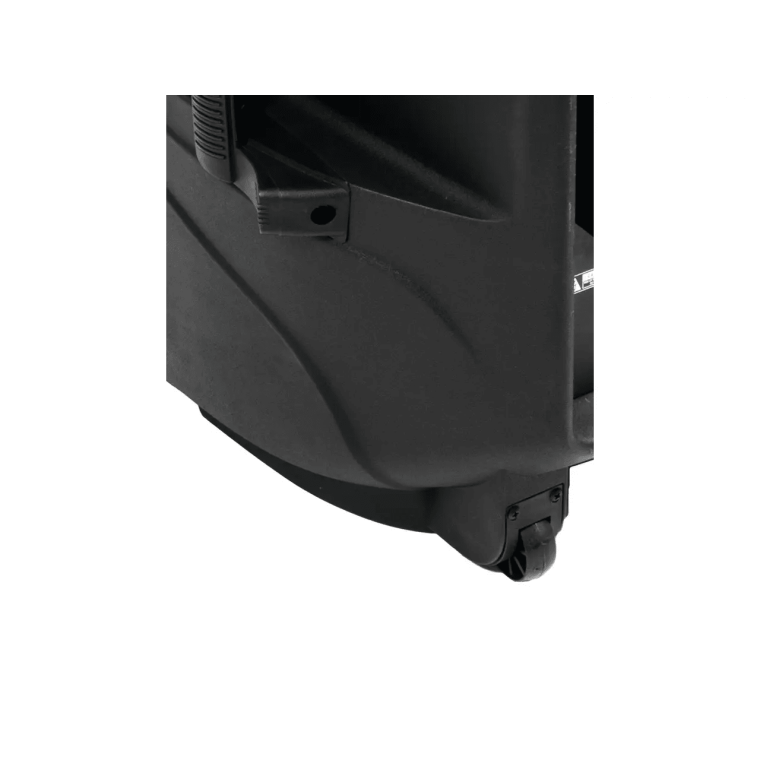

  • Trolley
  • For application areas such as: Mobile djs / entertainer; mobile use; sports centres/gyms
  • Application possibility: Standing; monitoring; on stand

Omnitronic VFM-215A – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Active 2-way bass-reflex PA speaker system

  • Amplifier Output: 150 W RMS / 300 W Peak (Class-AB amplification)

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: Max. 190 W

Audio Performance & Transducers

  • Low Frequency Driver: 15" (38 cm) woofer with 2.5" voice coil

  • High Frequency Driver: 1" (2.5 cm) compression tweeter

  • Frequency Range: 45 – 18,000 Hz

  • Sensitivity: 96 dB (1W/1m)

  • Max SPL: 116 dB

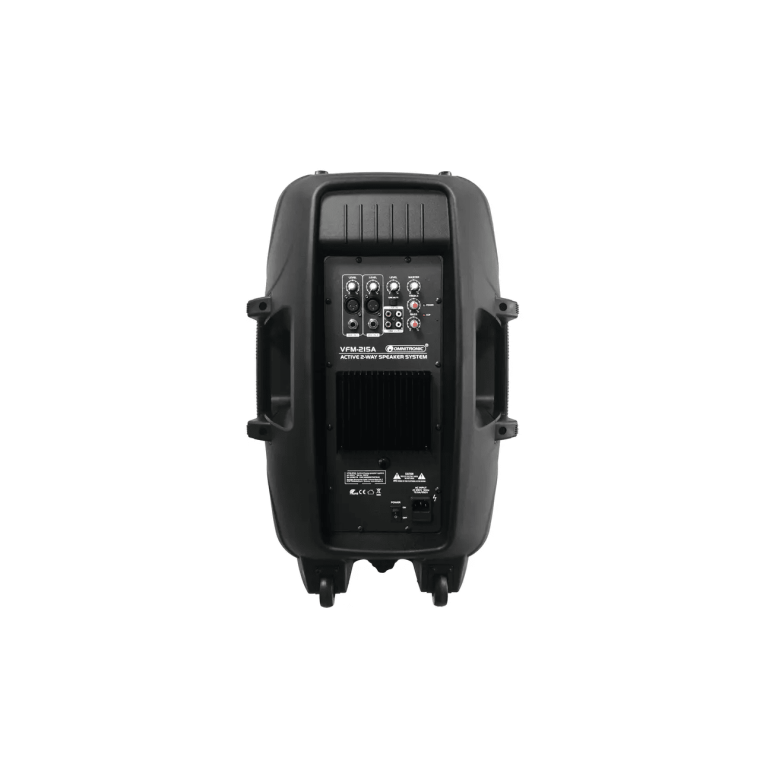

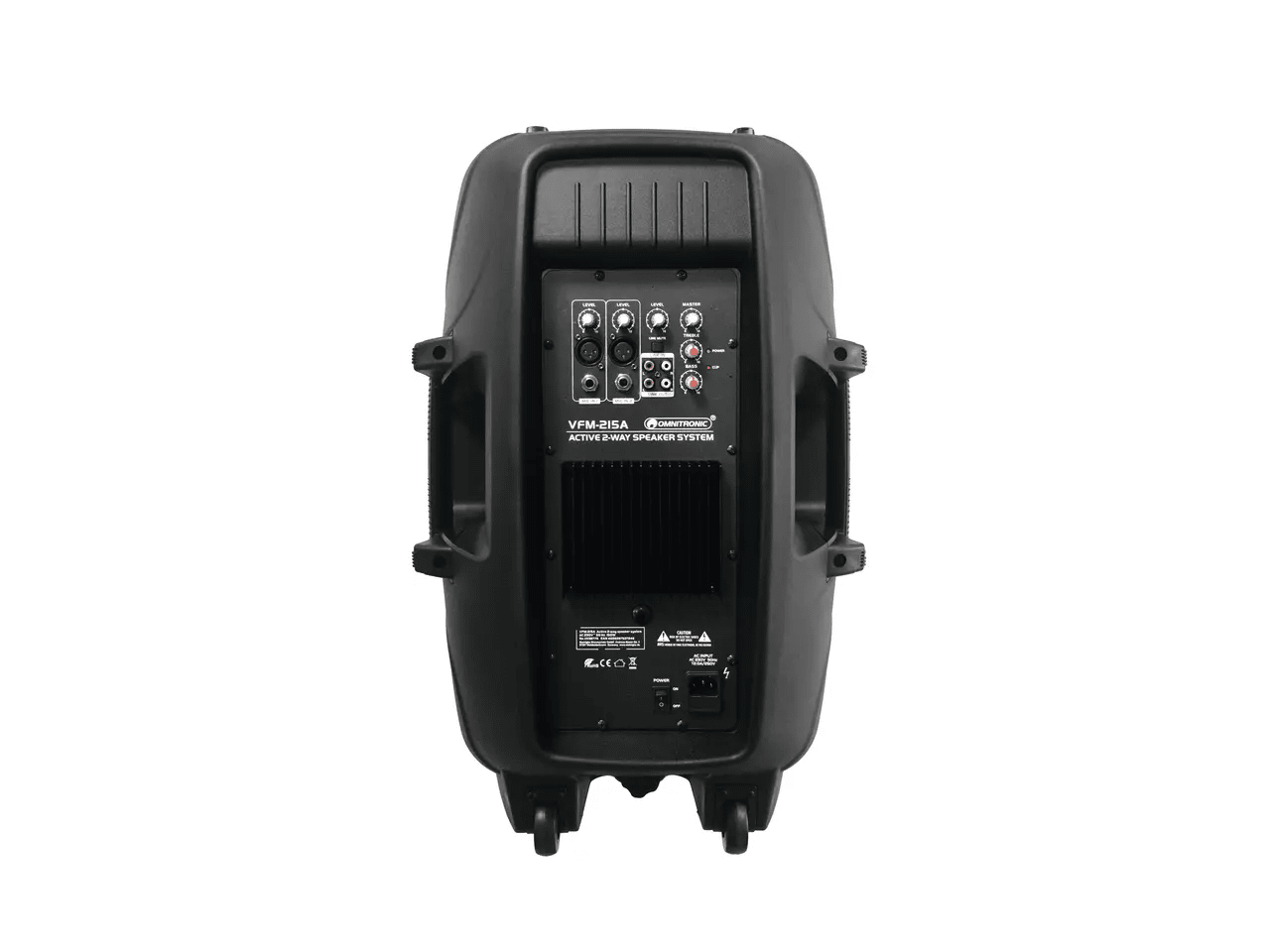

Connectivity & Signal Routing

  • Microphone Input: 1 x XLR / 6.3 mm (1/4") Jack input with dedicated level control

  • Line Input: 1 x Stereo RCA pair / XLR line input with dedicated level control

  • Line Output: 1 x XLR line output for daisy-chaining additional active speakers

Controls & Indicators

  • Tone & Mixing Controls: Master Volume, Mic Volume, Line Volume, 2-Band EQ (High & Low tone controls)

  • Indicators: Power status LED, Limit/Clip LED

Enclosure & Hardware

  • Cabinet Material: Lightweight, high-impact ABS plastic enclosure (black)

  • Front Protection: Heavy-duty steel front grille

  • Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket

  • Carrying Handles: Integrated top carrying handle and side handles

  • Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet side)

Physical Specifications

  • Dimensions (W x D x H): 480 x 395 x 740 mm (18.9" x 15.6" x 29.1")

  • Weight: 13.0 kg (28.7 lbs)

Accessories Included

  • Mains Power Cable

  • Operating Instructions Manual
