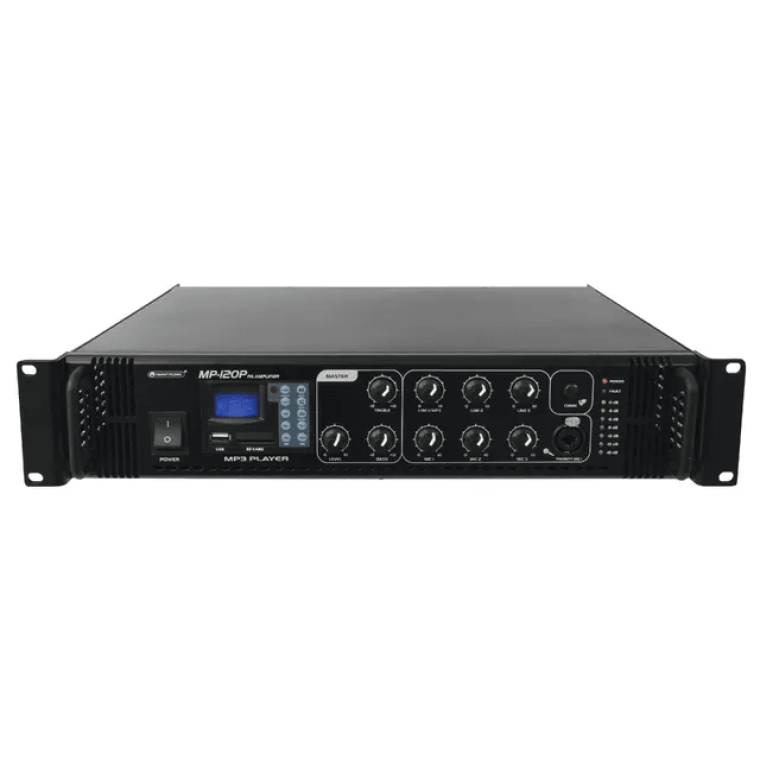

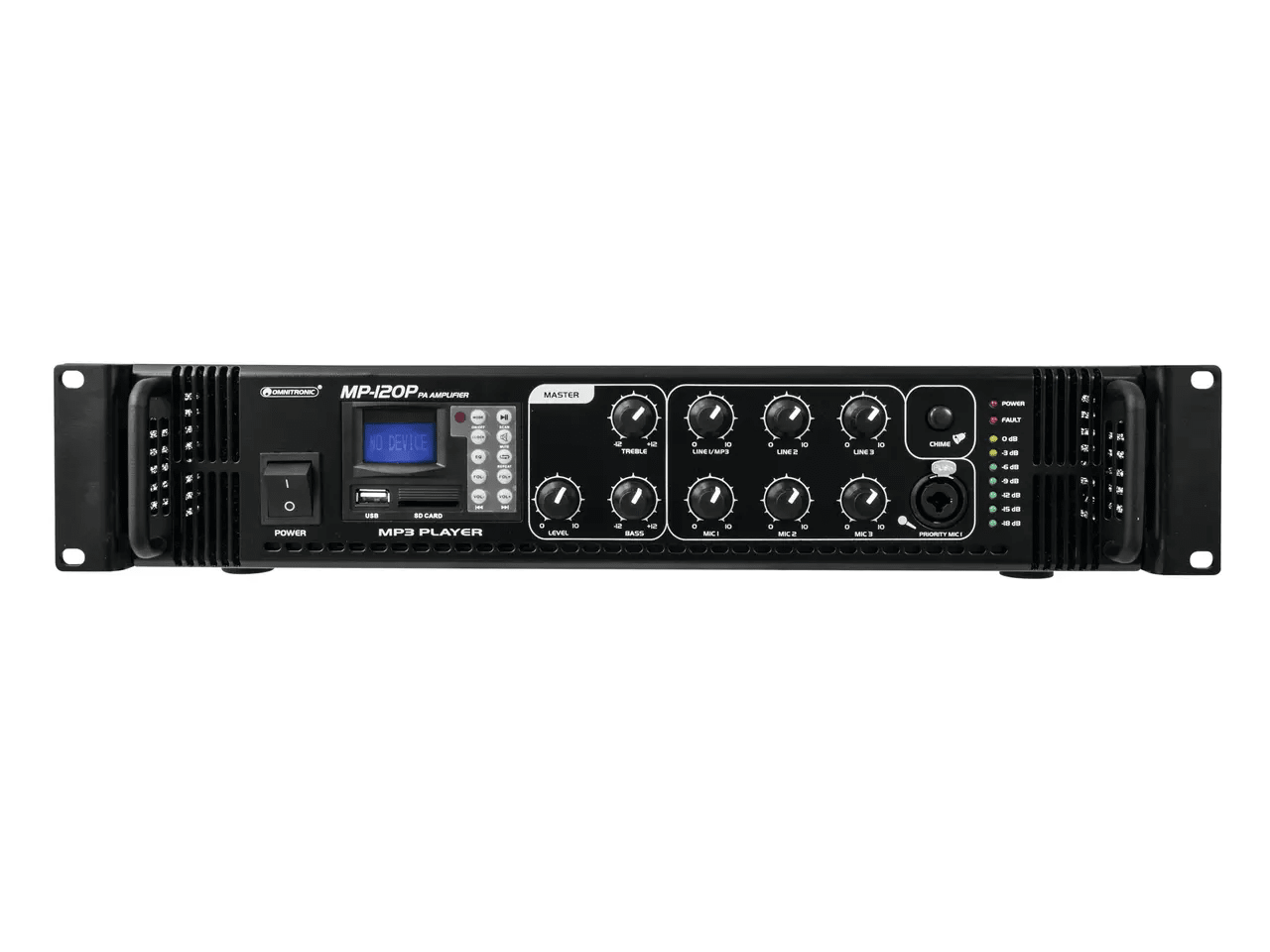

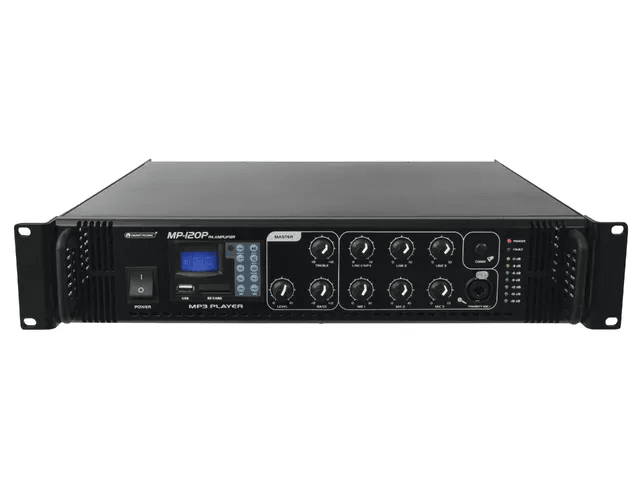

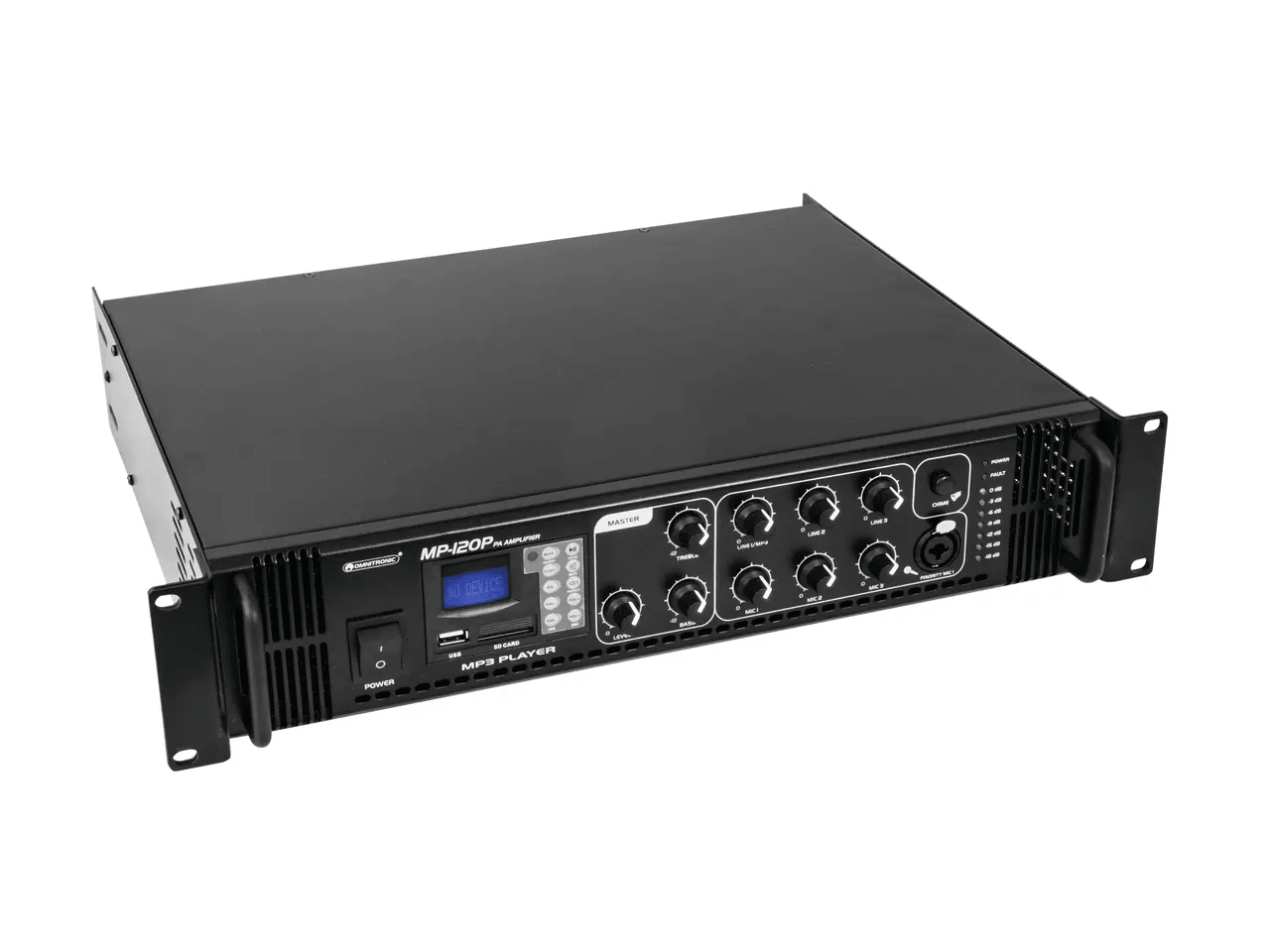

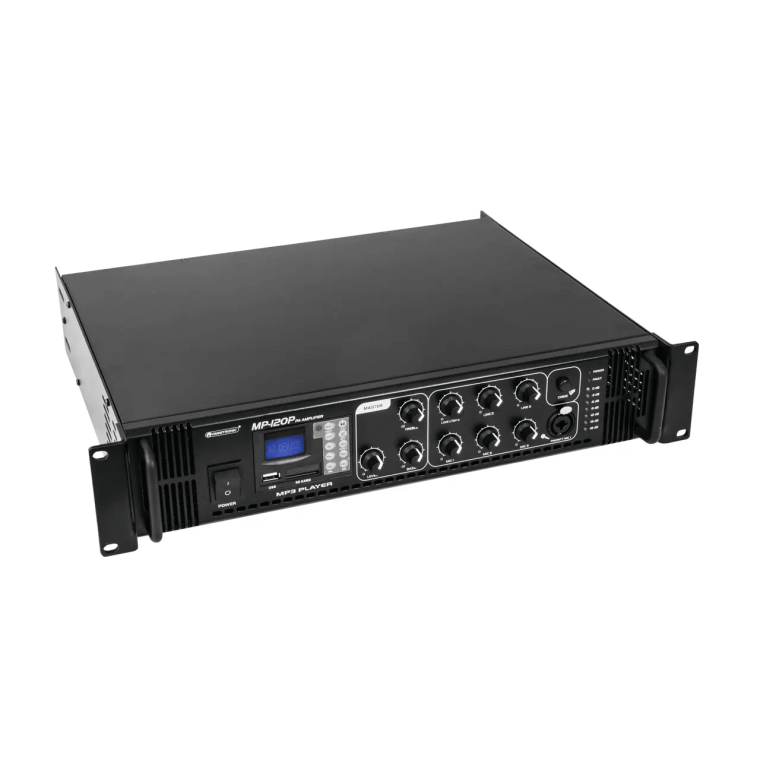

PA mixing amplifier with audio player,IR remote control, 120 W RMS
SD card slot and USB port
Folder navigation and repeat functions (1, All)
3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-digit LED level meter
Master control for the output signal
(19") 48.3 cm rack installation 2 U
The device is cooled by cooling fan
Control via IR remote control
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Omnitronic MP-120P – Technical Specifications
Power Supply & Consumption
-
Power Supply: 230 V AC, 50 Hz or 24 V DC
-
Power Consumption: ~240 W
Audio Performance
-
Output Power (RMS): 120 W RMS
-
Speaker Outputs: 70V, 100V line, or 4-16 Ω low impedance
-
Frequency Range: 50 - 16,000 Hz, ±3 dB
-
S/N Ratio: >70 dB (Line), >60 dB (Mic)
-
THD: <1% @ 1 kHz
Connectivity & Media Playback
-
Integrated Media Player: Built-in Bluetooth receiver, USB/SD card player, FM tuner
-
Chime & Siren: Integrated chime/siren generator with dedicated trigger button
-
Remote Control: IR remote control included for media player
Controls & Indicators
-
Display: Blue backlit LCD display for media player status
-
Control Elements: Master volume knob, individual volume controls for Mic 1-3 and Aux 1-2, 2-band EQ (Treble, Bass), Chime button
-
Indicators: 5-digit LED output level meter, Power LED

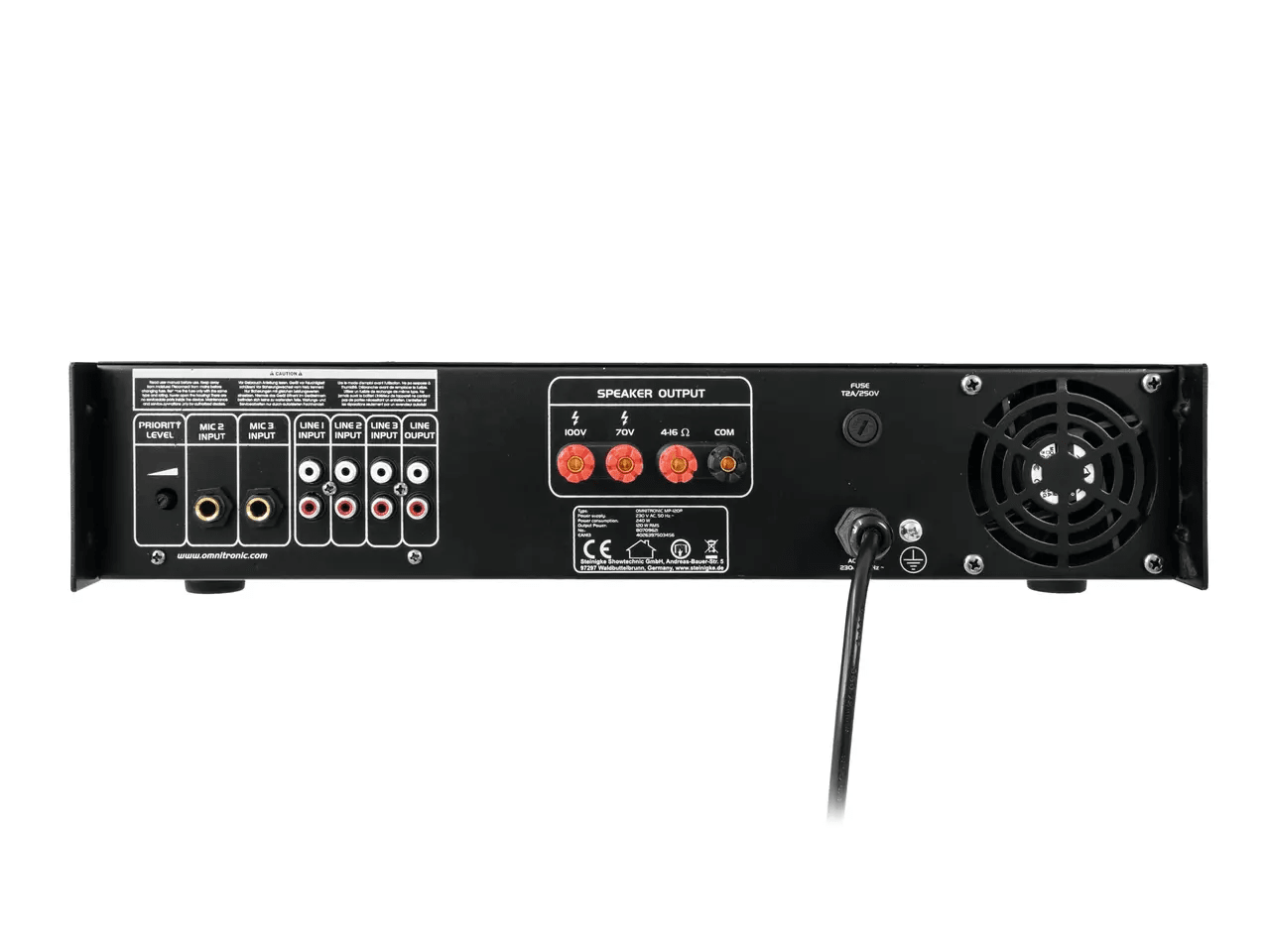

Inputs & Outputs
-
Inputs:
-
Microphone: 3 x 6.35 mm jack / XLR (Mic 1 with adjustable priority mute)
-
Aux/Line: 2 x Stereo RCA
-
Outputs:
-
Line Output: 1 x Stereo RCA (Pre-Out)
-
Speaker Terminals: Screw terminal block (4-16 Ω, 70V, 100V)
Physical Specifications
-
Rack Installation: 19" Rack format (2 U height, rack ears included)
-
Housing Design: Steel chassis with aluminum front panel
-
Dimensions (W x D x H): 483 x 385 x 89 mm
-
Weight: 8.9 kg
Accessories Included
-
AC Power Cable, IR Remote Control, FM Antenna, Rack Mounting Kit, User Manual
