Soundlab L054BD

Price on request
In stock
Interested in this product?
Call us

Overview

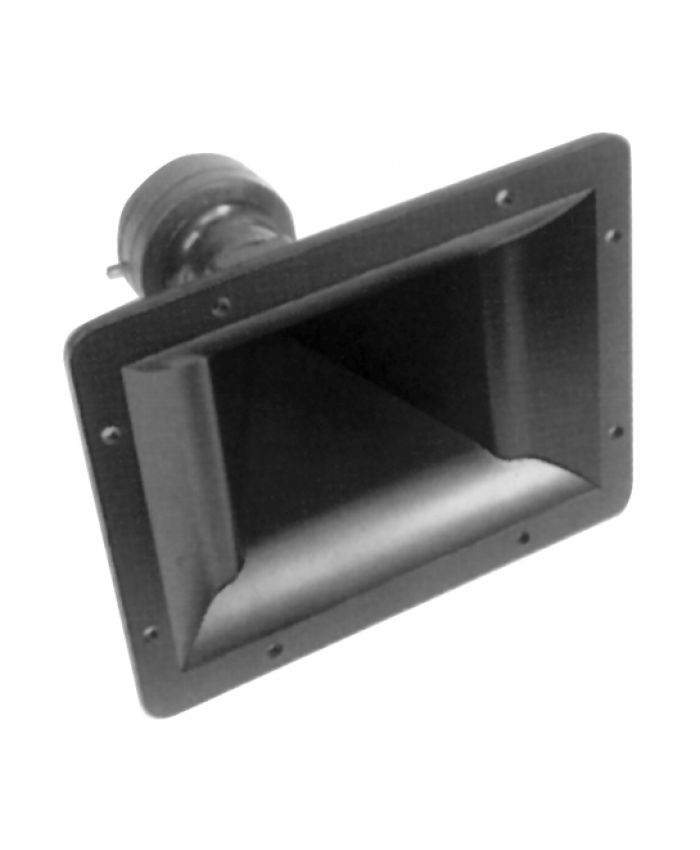

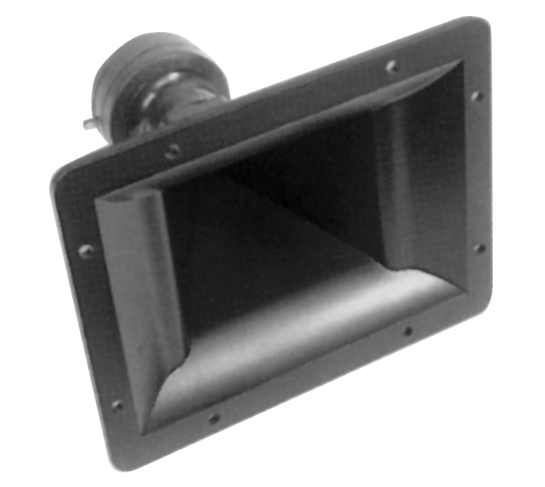

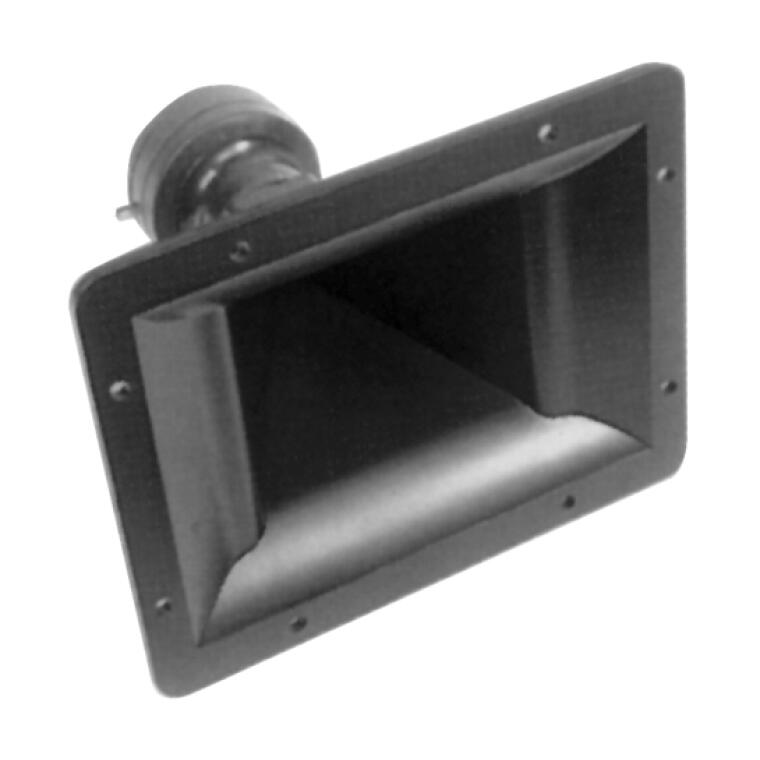

Soundlab L054BD

System & Power Handling

  • System Type: Rectangular piezo horn tweeter for sound reinforcement

  • Power Rating: 75 W RMS / 150 W Peak

  • Operating Voltage: Piezo element direct connection (capacitive load)

Audio Performance & Transducers

  • High Frequency Transducer: Piezo ceramic transducer with rectangular exponential horn flare

  • Frequency Response: 3,500 – 20,000 Hz

  • Sensitivity: 93 dB (1W/1m)

  • Dispersion Angle: 100° x 50° (H x V)

Connectivity & Impedance Matching

  • Connection Type: Push-on spade terminals / solder tabs

  • Impedance Matching: Direct parallel connection across woofer lines

Controls & Adjustment

  • Hardware Controls: None

  • Mounting Alignment: Front-mount baffle flange with 4 corner mounting holes

Enclosure & Hardware

  • Housing Material: Molded ABS plastic (black finish)

  • Environmental Protection: Standard indoor cabinet enclosure

  • Application Modes: Replacement tweeter for commercial PA speakers, stage monitors, and disco cabinets

Physical Specifications

  • Cutout Dimensions: 125 x 55 mm

  • Dimensions (H x W x D): 145 x 68 x 50 mm

  • Weight: 0.18 kg

Accessories Included

  • Instruction Leaflet
