Behringer VS1220
€199.00
incl. VAT
Out of stock
Interested in this product?
Overview

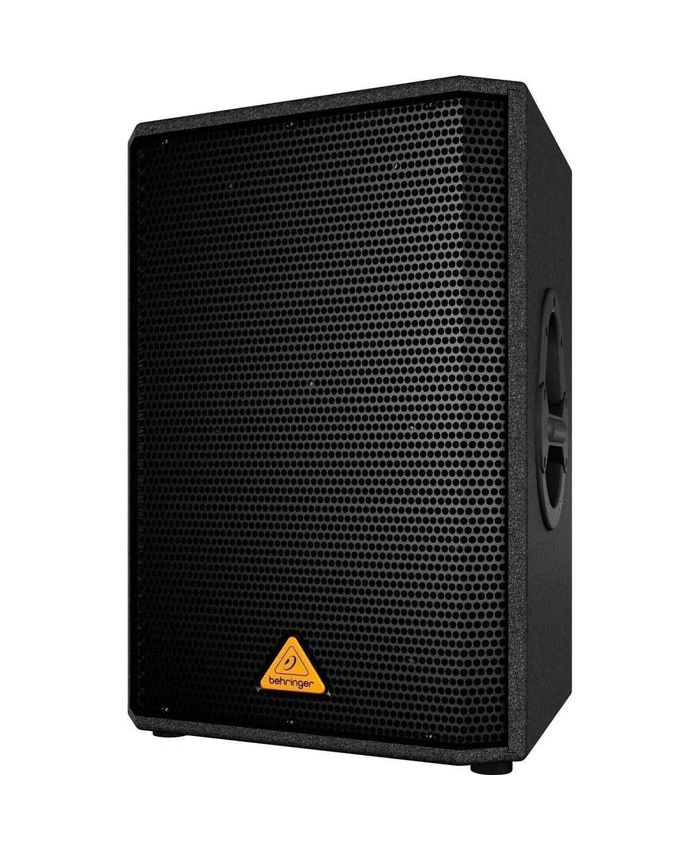

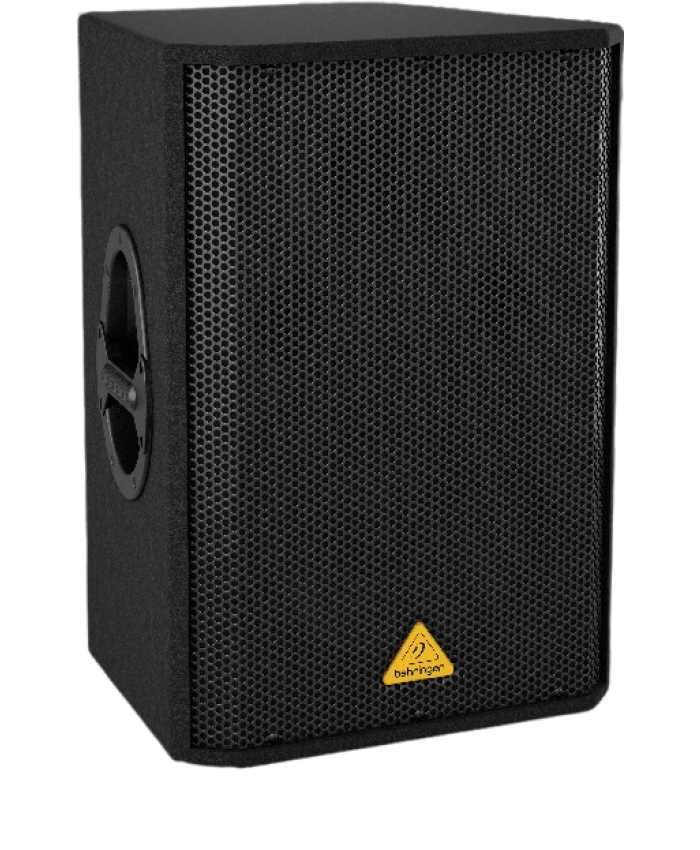

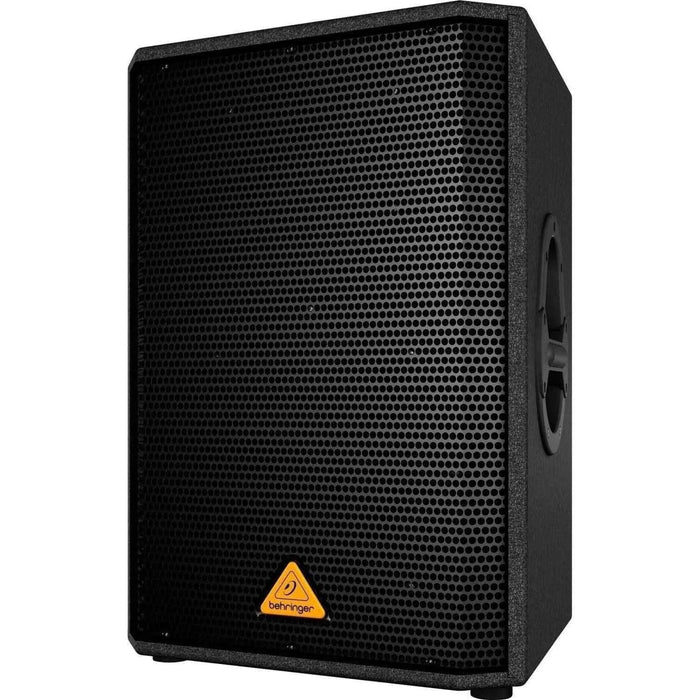

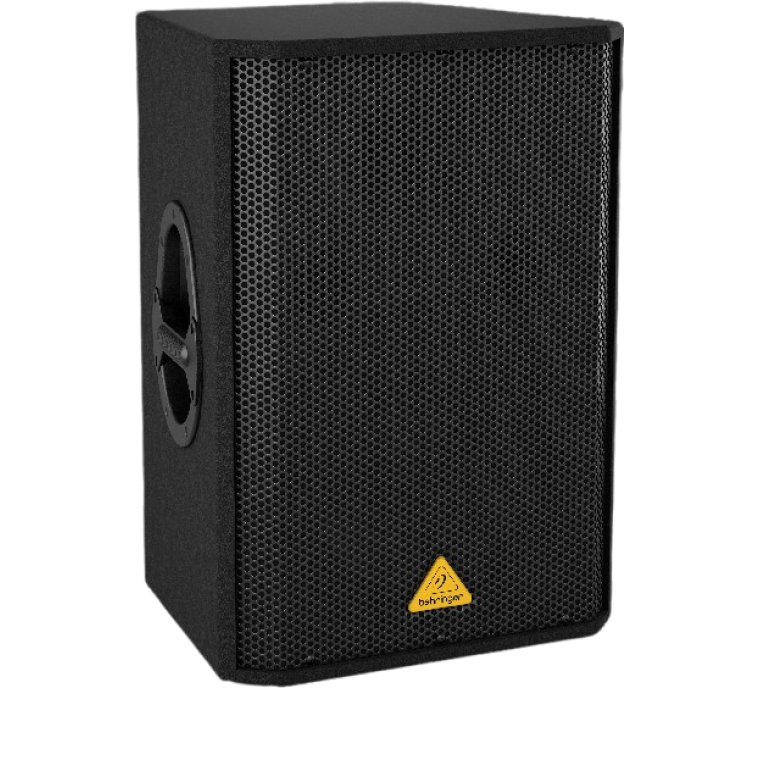

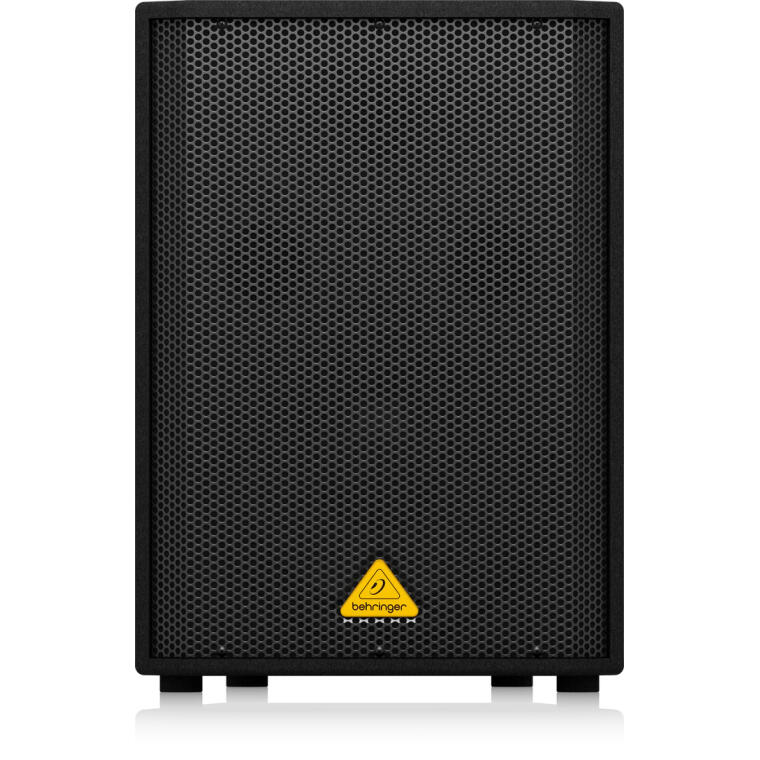

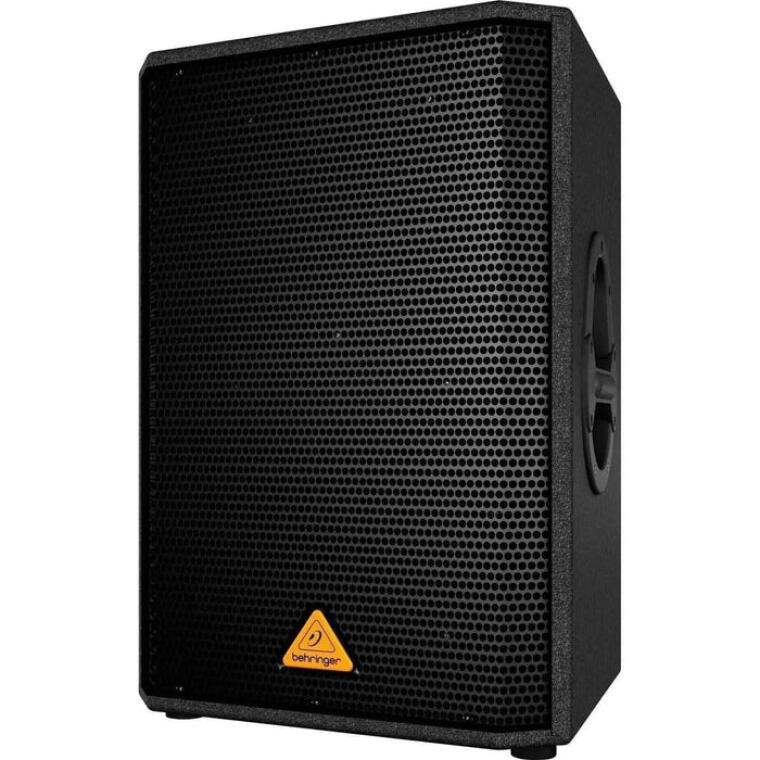

Behringer VS1220
Capable of handling input levels up to 600 W Peak (150 Watt continuous), the EUROLIVE VS1220 PA loudspeaker delivers exceptional sound quality. The powerful 12" long excursion driver cranks out big tone in the bottom end and mid-range, while the wave-guide mounted electro-dynamic HF (High Frequency) drivers output crisp and detailed highs. The VS1220's wide frequency bandwidth and extensive dynamic range make it ideal for a multitude of applications. Eurolive 12" Speaker Cabinet
Behringer VS1220 – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: 2-way passive full-range PA speaker enclosure
-
Power Rating: 150 W Continuous / 300 W Program
-
Peak Power: 600 W Peak
-
Nominal Impedance: 8 Ω
Audio Performance & Transducers
-
Low Frequency Driver: 12" (305 mm) long-excursion low-frequency driver
-
High Frequency Driver: Dual electro-dynamic drivers mounted on an elliptical wave guide
-
Frequency Response: 60 – 20,000 Hz
-
Sound Pressure Level (SPL): 93 dB (1 W @ 1 m)
-
Overload Protection: Internal overload-protection circuitry for HF driver
Connectivity & Signal Routing
-

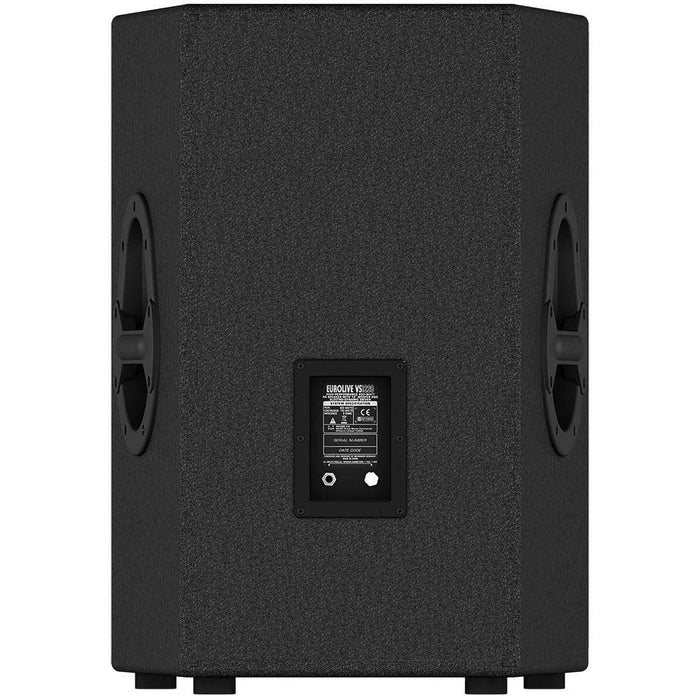

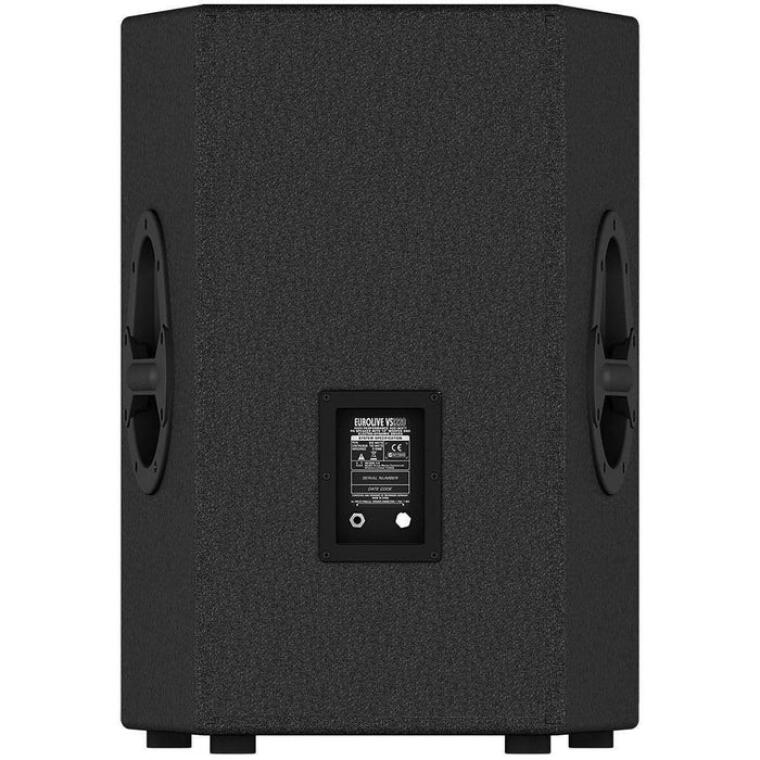

Speaker Inputs: 2 x 1/4" (6.3 mm) TS jack sockets wired in parallel
-
Signal Link: Parallel loop-through connectors for daisy-chaining multiple passive speakers
Enclosure & Hardware
-
Cabinet Material: Rugged wooden enclosure covered with black acoustic carpet
-

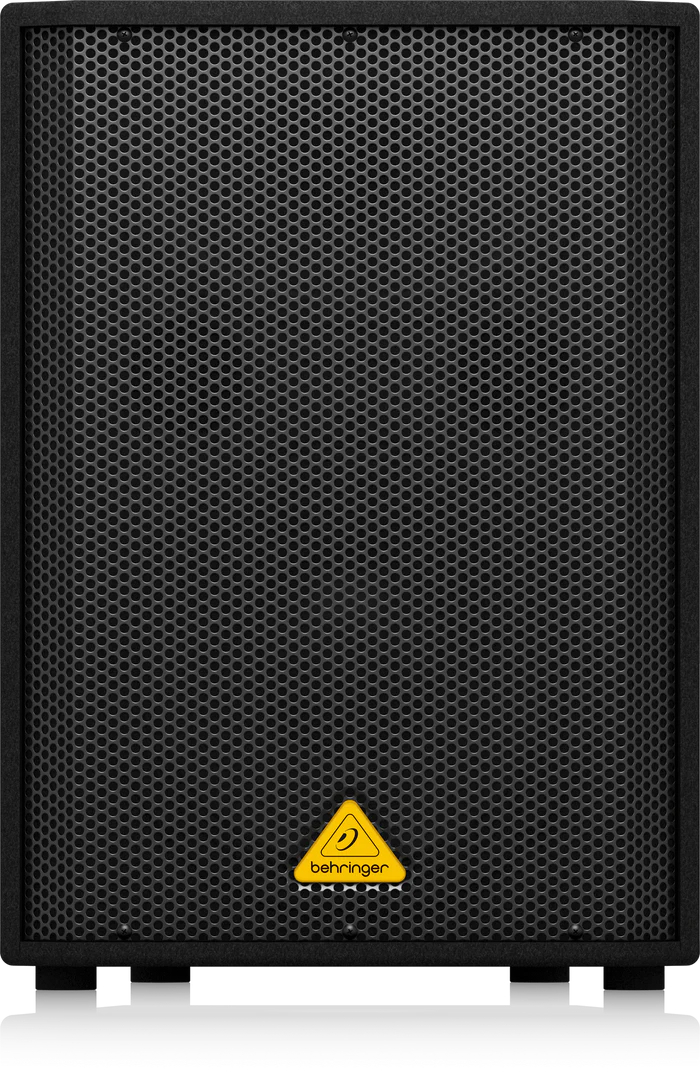

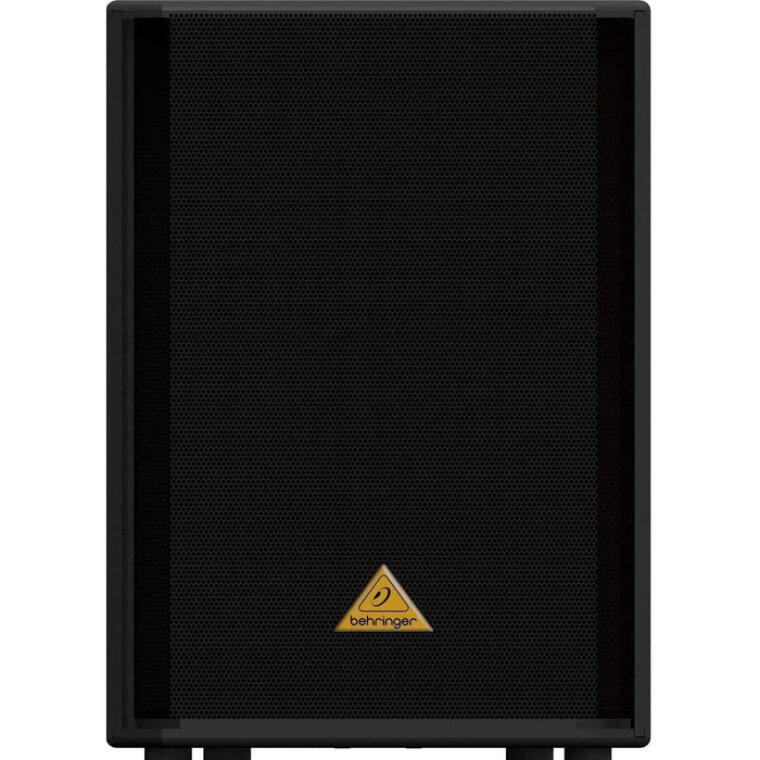

Front Protection: Heavy-duty steel grille for driver protection
-
Mounting / Suspension: Integrated 35 mm pole socket for tripod/subwoofer mounting
-

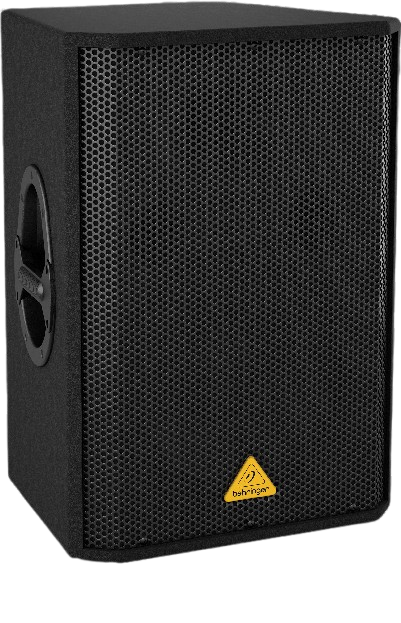

Handles: Ergonomically shaped recessed carrying handles
-
Corner Protection: Protective steel corner guards
Physical Specifications
-
Dimensions (W x D x H): 370 x 430 x 600 mm (14.6" x 16.9" x 23.6")
-
Weight: 17.1 kg (37.7 lbs)
Accessories Included
-
Operating Instructions Manual
