Omnitronic VFM-215 MK2

Omnitronic VFM-215 MK2 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: 2-way passive bass-reflex speaker enclosure

• Power Rating: 200 W RMS

• Program Power: 400 W Peak

• Nominal Impedance: 8 Ω

Audio Performance & Transducers

• Low Frequency Driver: 15" (38 cm) woofer with 2" voice coil

• High Frequency Driver: 1" (2.5 cm) compression tweeter

• Frequency Range: 45 – 20,000 Hz

• Sensitivity / Max SPL: 118 dB

• Crossover Frequency: Passive 2-way internal crossover

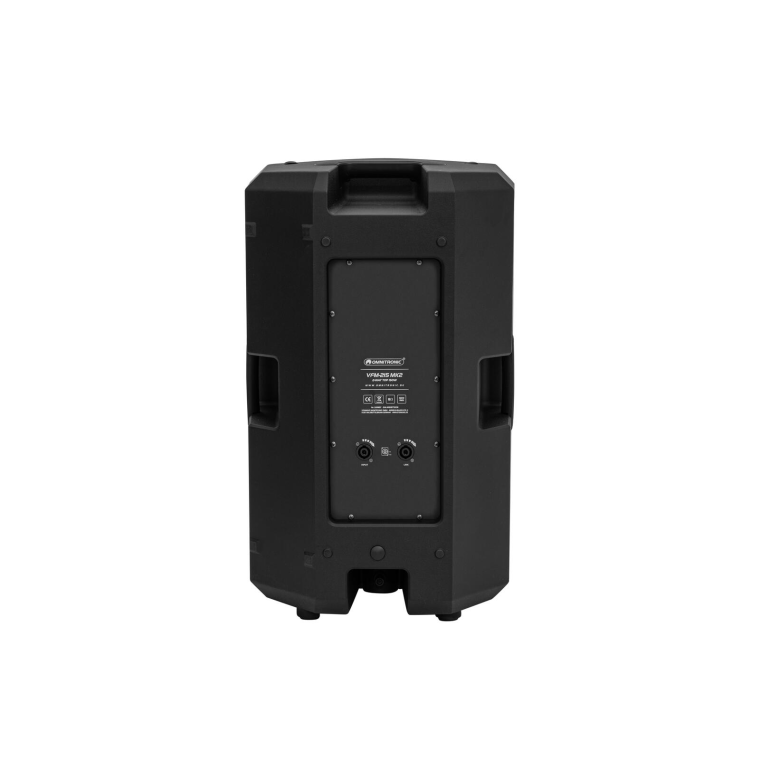

Connectivity & Signal Routing

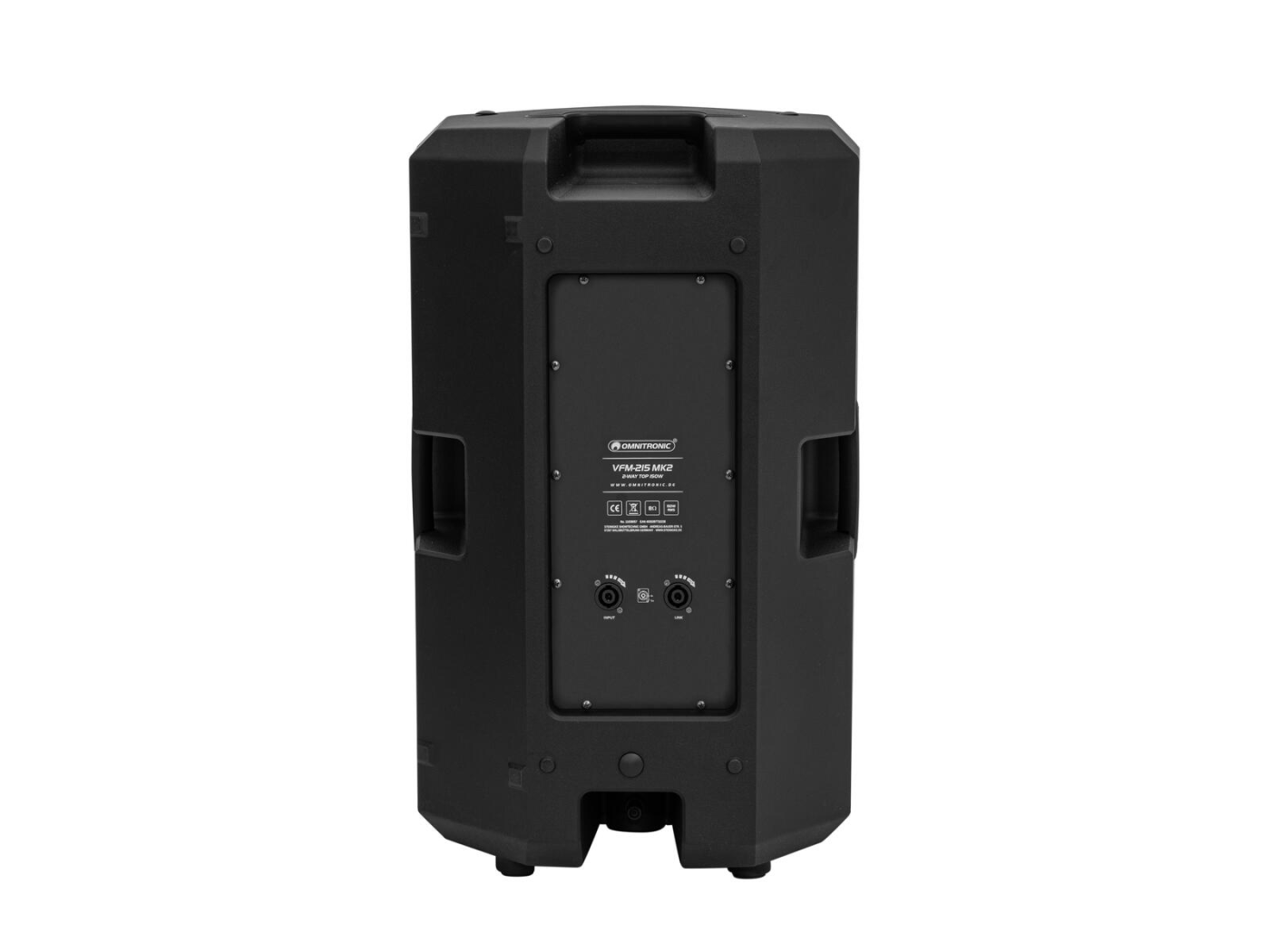

• Speaker Inputs: 1 x Speaker socket (Speaker-compatible built-in connector)

• Signal Link: Parallel output for daisy-chaining additional passive speakers

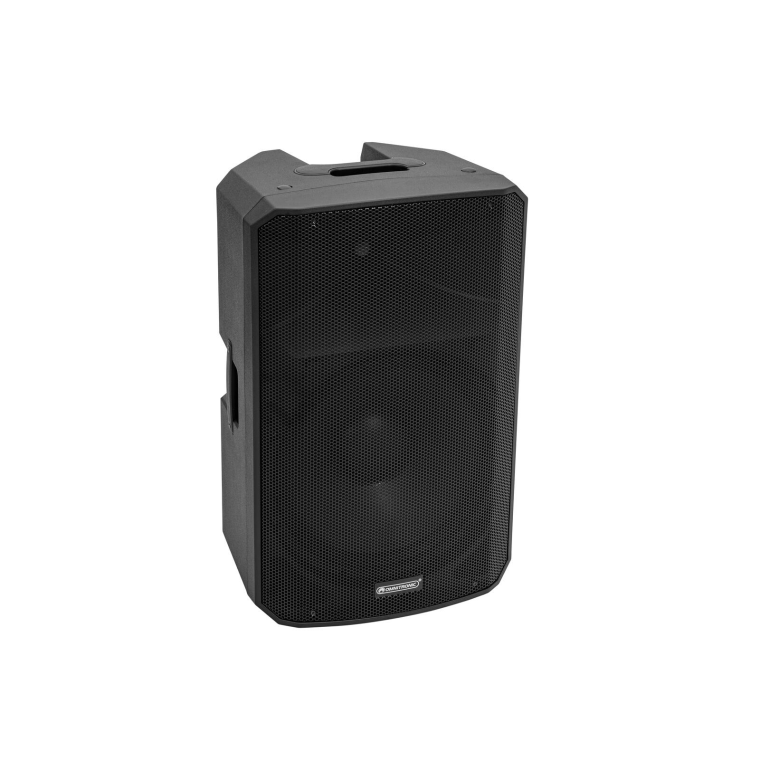

Enclosure & Hardware

• Cabinet Material: High-impact plastic chassis (black)

• Front Protection: Heavy-duty black metal grille

• Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket

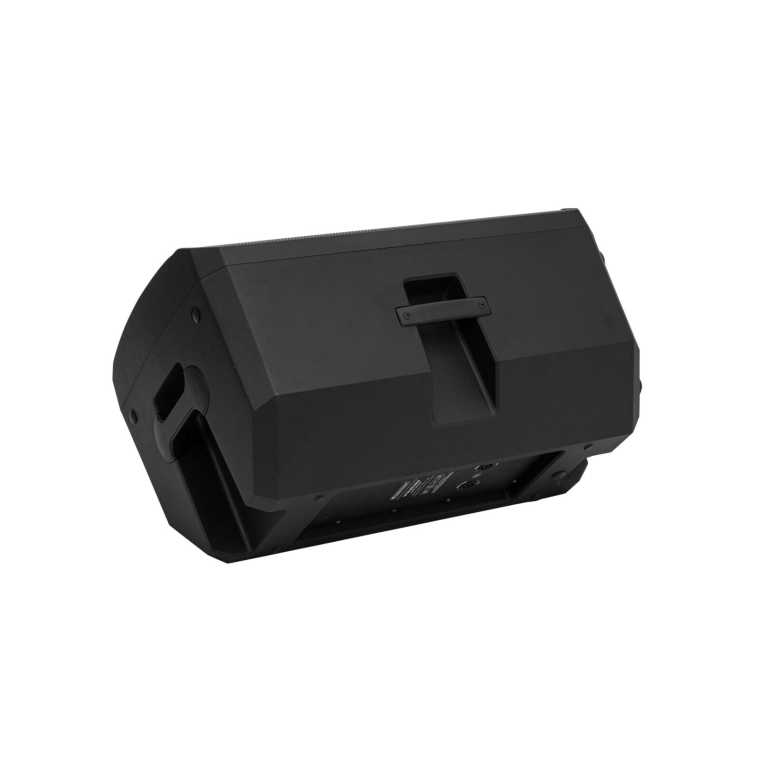

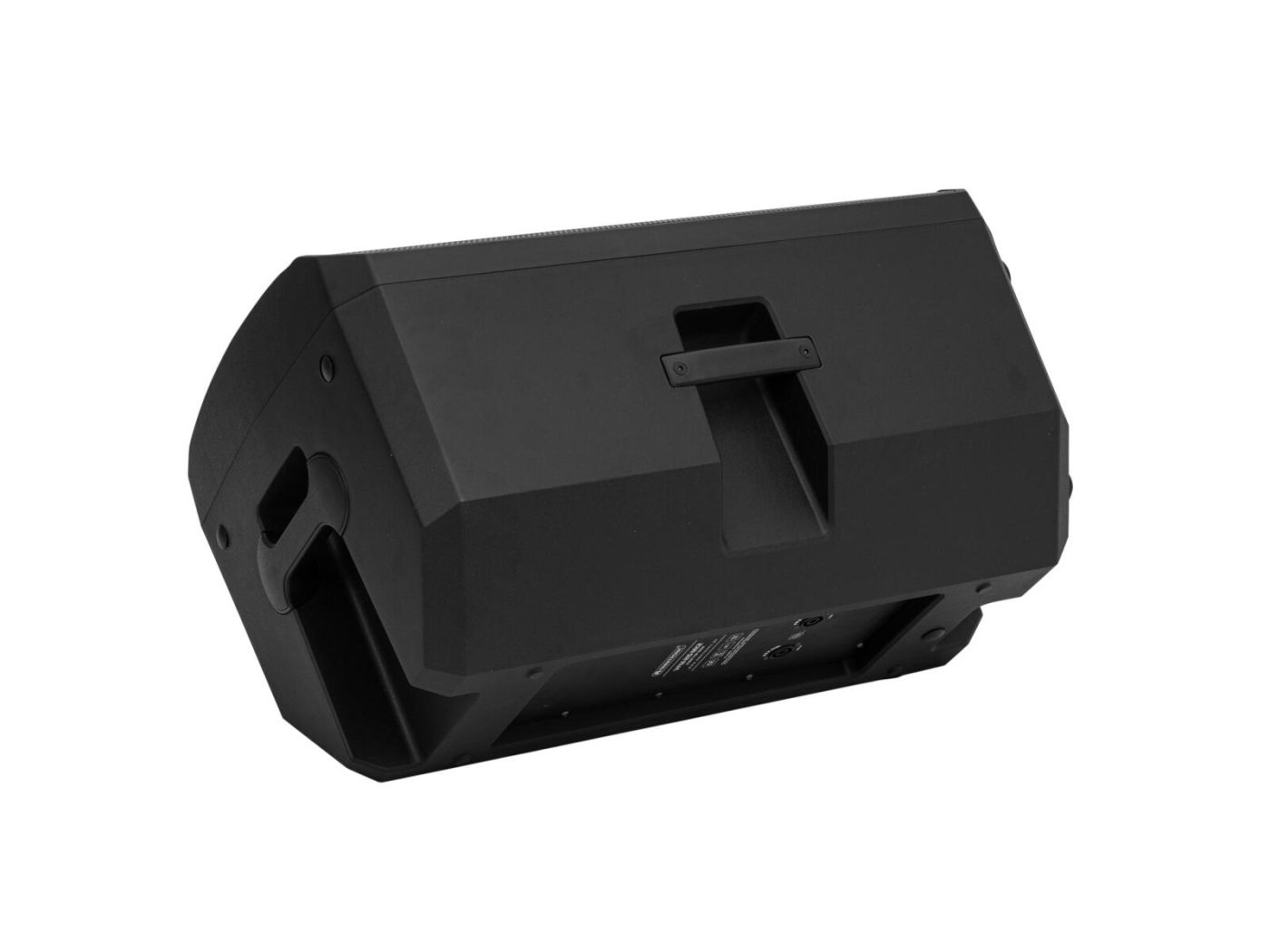

• Handles: 2 x Ergonomic side carrying handles

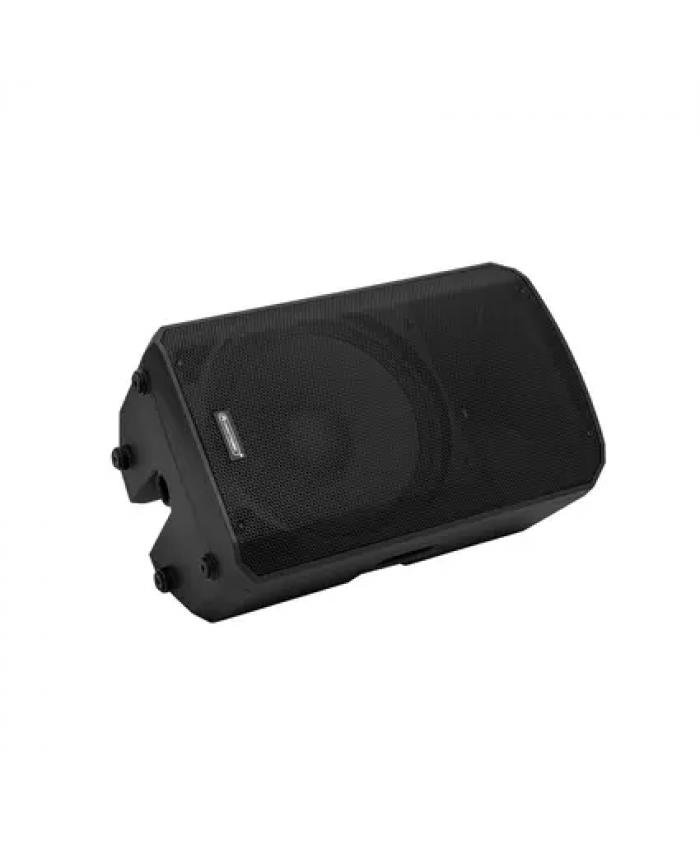

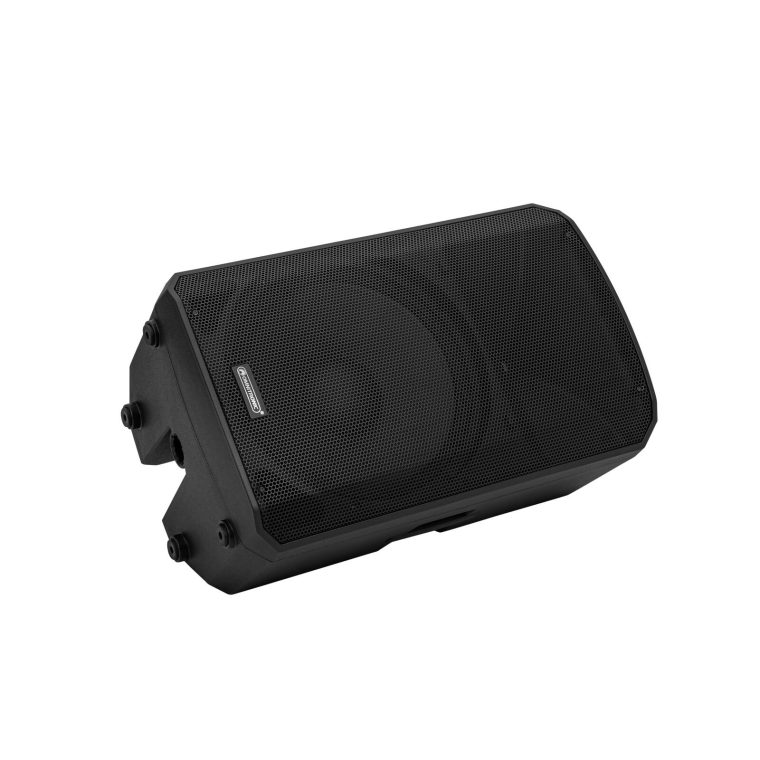

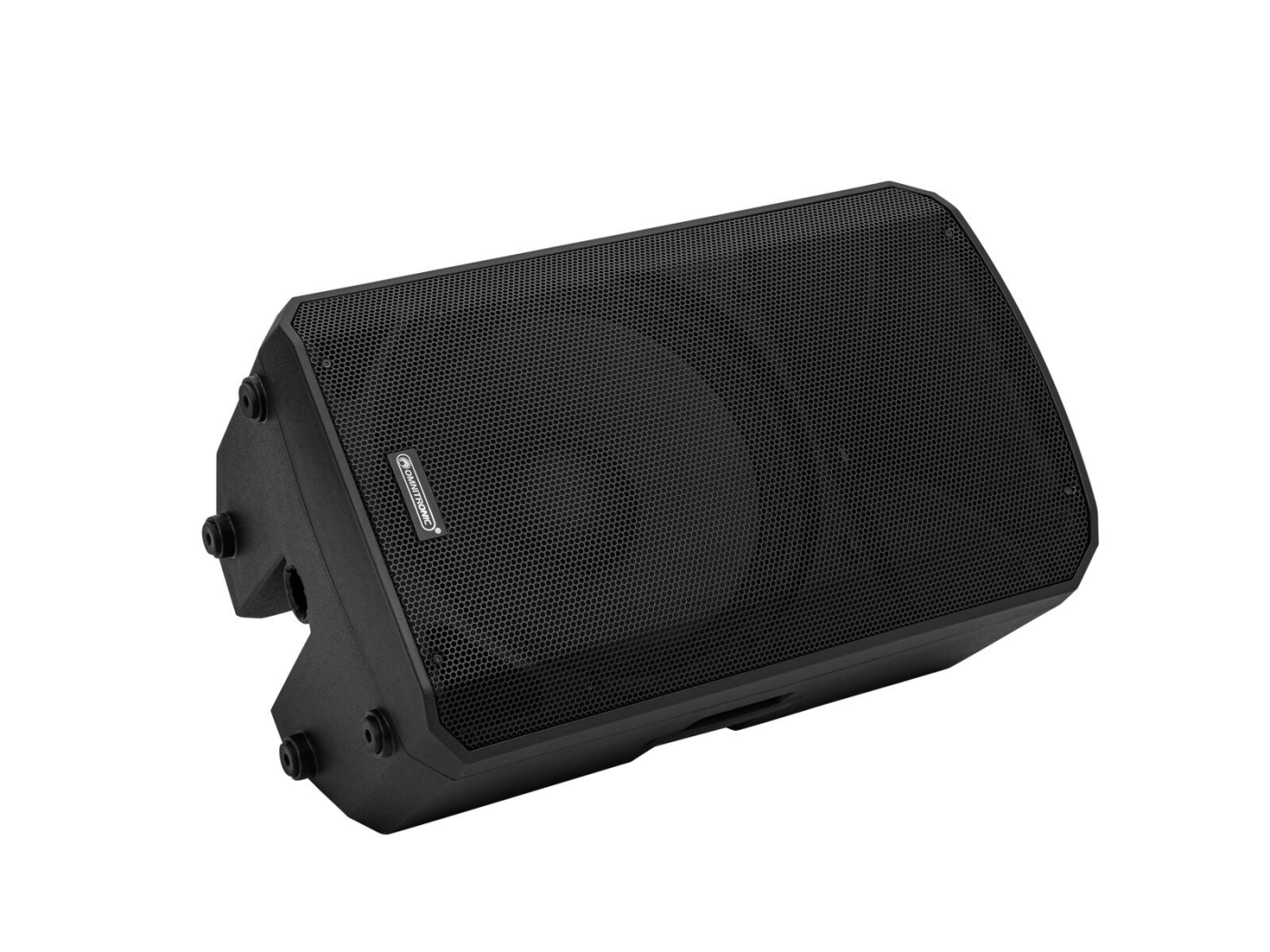

• Application Modes: Main PA speaker (upright on stand), floor monitor (angled side)

Physical Specifications

• Dimensions (W x D x H): 480 x 395 x 710 mm (18.9" x 15.6" x 28.0")

• Weight: Approx. 13.5 kg (29.8 lbs)

Accessories Included

• Operating Instructions Manual
