Omnitronic XKB-208

Omnitronic XKB-208 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: 2-way passive bass-reflex speaker system

• Power Rating: 80 W RMS

• Program Power: 160 W Peak

• Nominal Impedance: 8 Ω

Audio Performance & Transducers

• Low Frequency Driver: 8" (20 cm) woofer with 1.5" voice coil

• High Frequency Driver: 1" (2.5 cm) compression driver with 1.35" voice coil

• Frequency Range: 65 – 20,000 Hz

• Sensitivity: 93 dB (1W/1m)

• Max SPL: 114 dB

• Dispersion Angle: 90° x 60° (H x V)

• Crossover Frequency: 2.5 kHz

Connectivity & Signal Routing

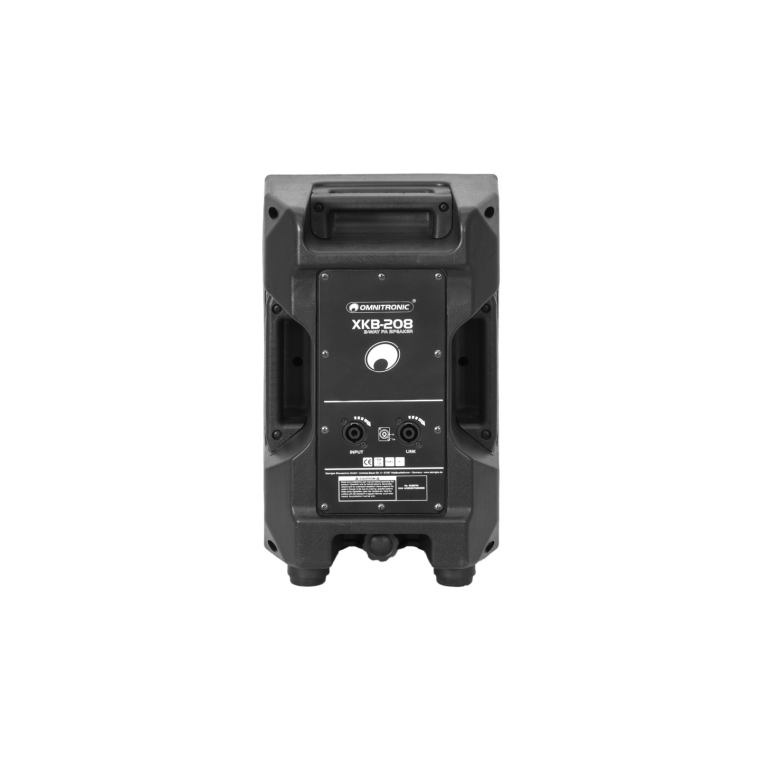

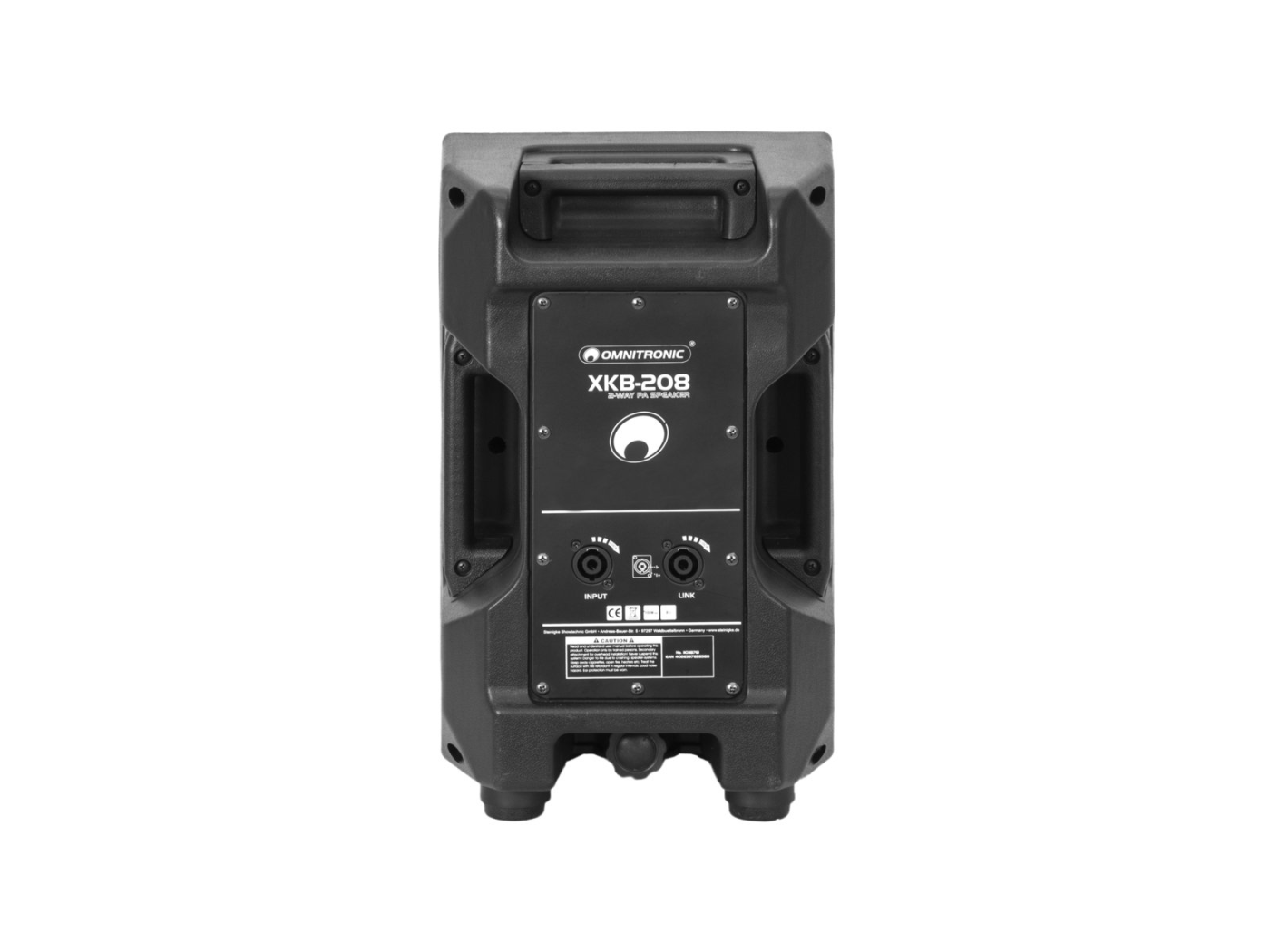

• Inputs: 2 x Speaker sockets (Speaker-compatible / 2-pole XLR/Jack combination parallel wiring)

• Signal Link: Parallel loop-through connection for daisy-chaining multiple passive speakers

Enclosure & Hardware

• Cabinet Material: High-grade lightweight plastic chassis (black)

• Front Protection: Heavy-duty powder-coated steel grille with acoustic foam backing

• Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket, M8 rigging points for flown installation

• Handles: Ergonomic top carrying handle

• Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (45° angled cabinet sides)

Physical Specifications

• Dimensions (W x D x H): 250 x 240 x 415 mm (9.8" x 9.4" x 16.3")

• Weight: 5.6 kg (12.3 lbs)

Accessories Included

• Operating Instructions Manual
