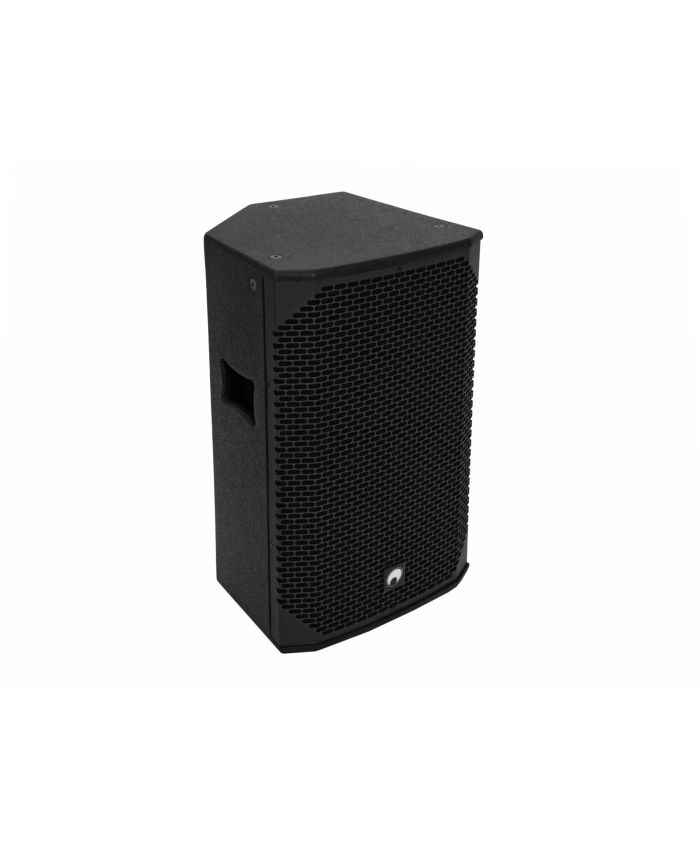

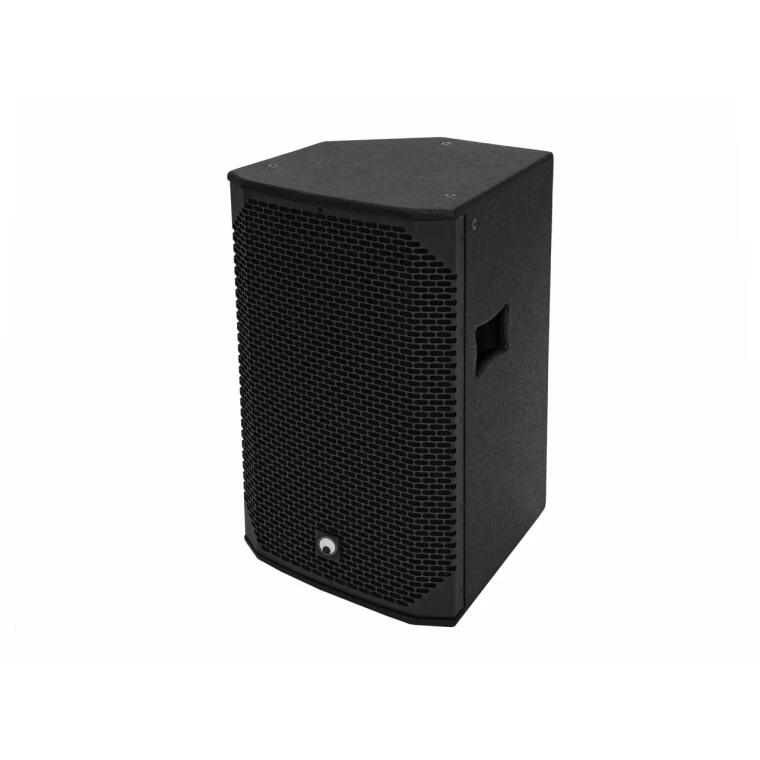

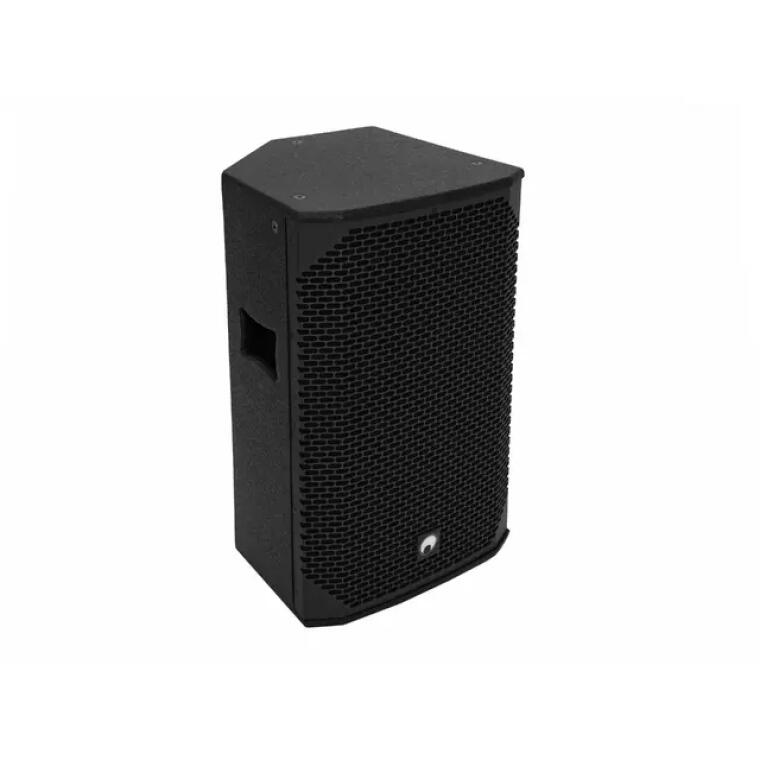

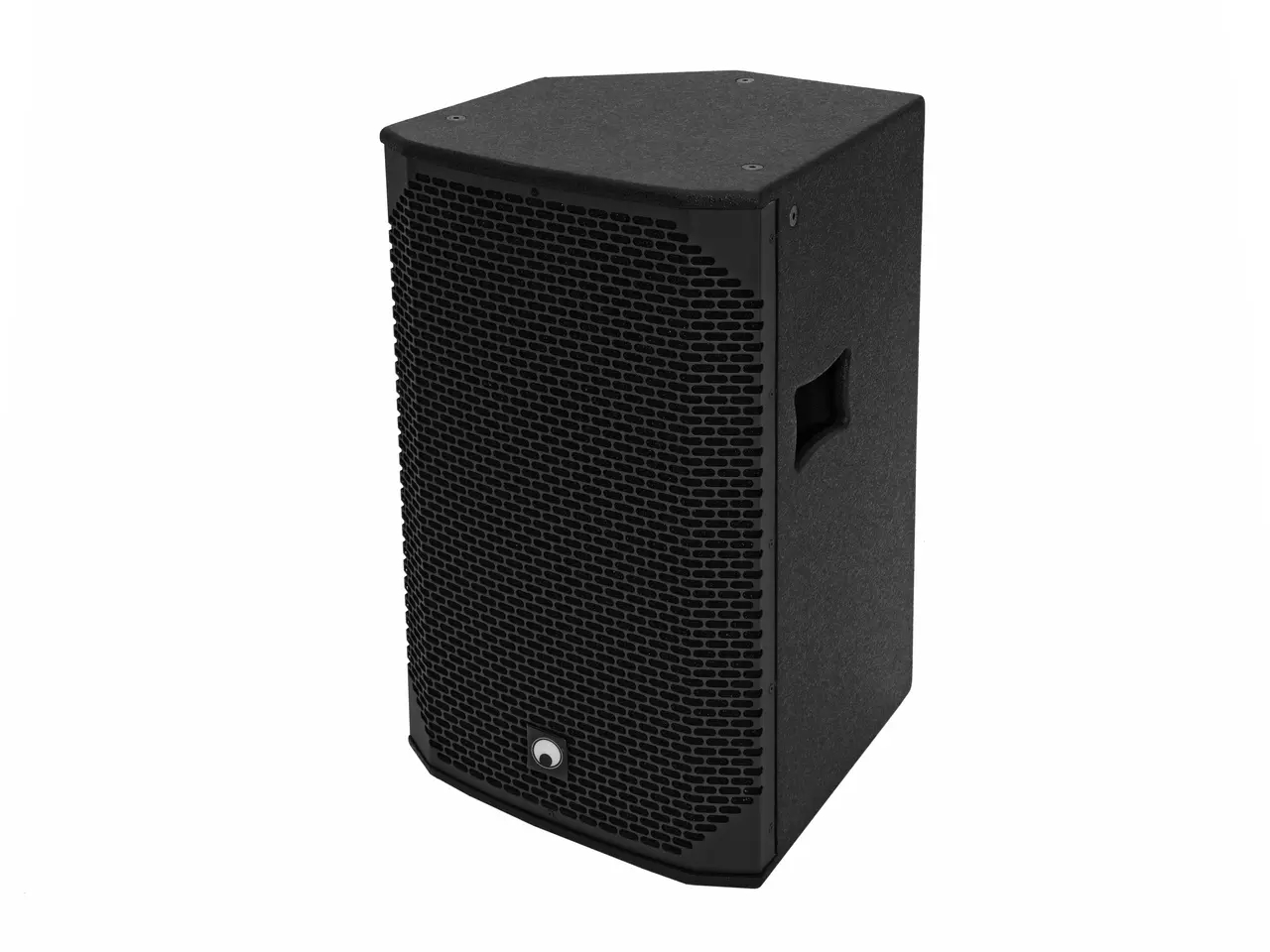

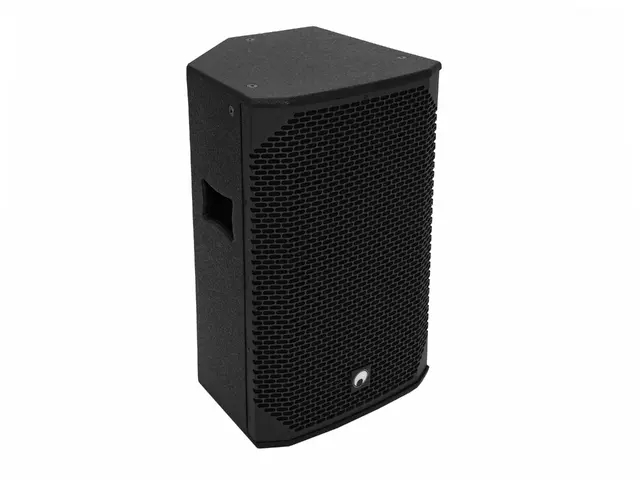

Omnitronic AZX-215

Omnitronic AZX-215 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: 2-way passive bass-reflex speaker system

• Power Rating: 450 W RMS

• Program Power: 900 W Peak

• Nominal Impedance: 8 Ω

Audio Performance & Transducers

• Low Frequency Driver: 15" (38 cm) woofer with 3" voice coil

• High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" voice coil

• Frequency Range: 45 – 20,000 Hz

• Sensitivity: 97 dB (1W/1m)

• Max SPL: 125 dB

• Dispersion Angle: 90° x 60° (H x V)

• Crossover Frequency: 2.0 kHz

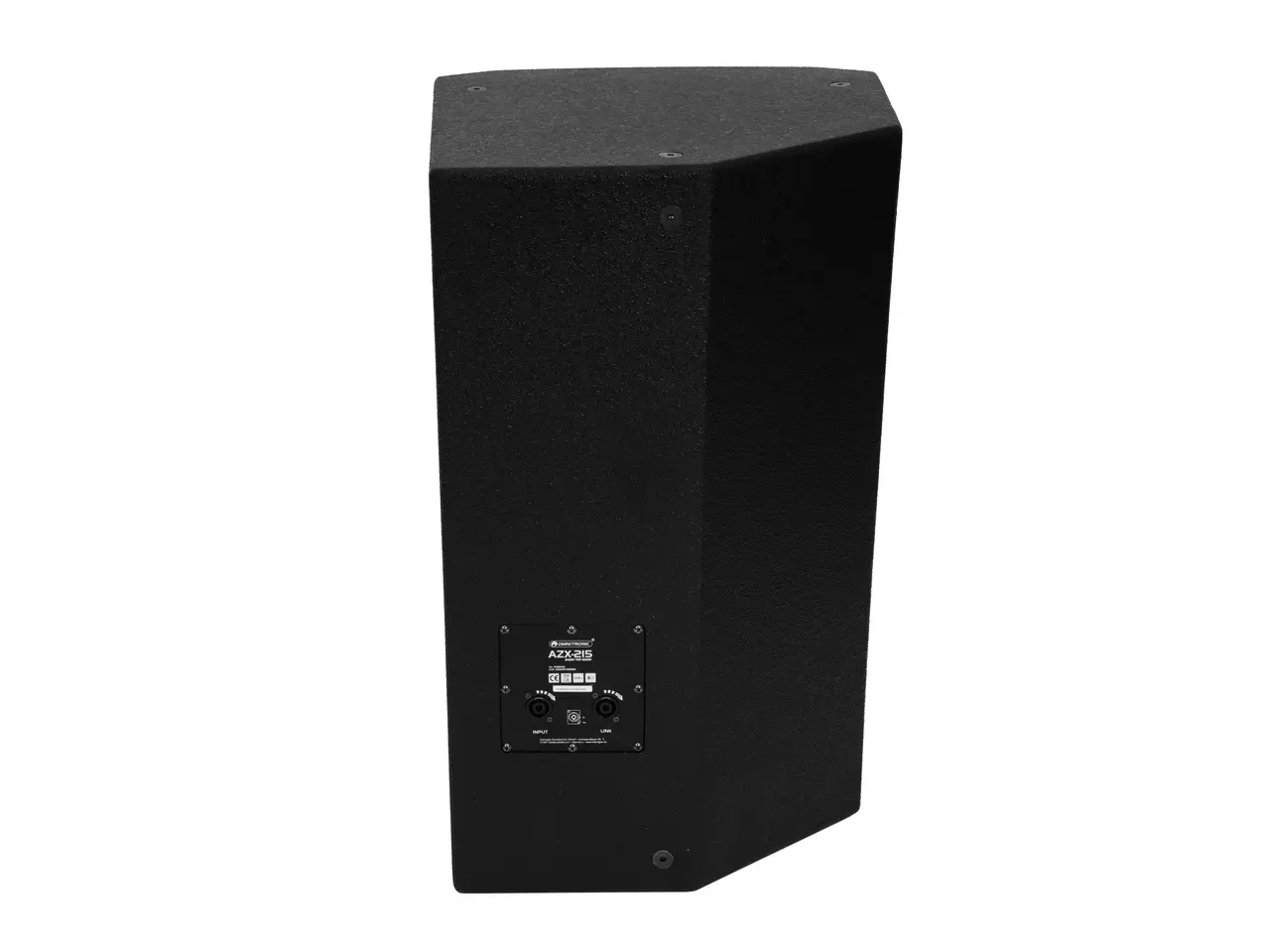

Connectivity & Signal Routing

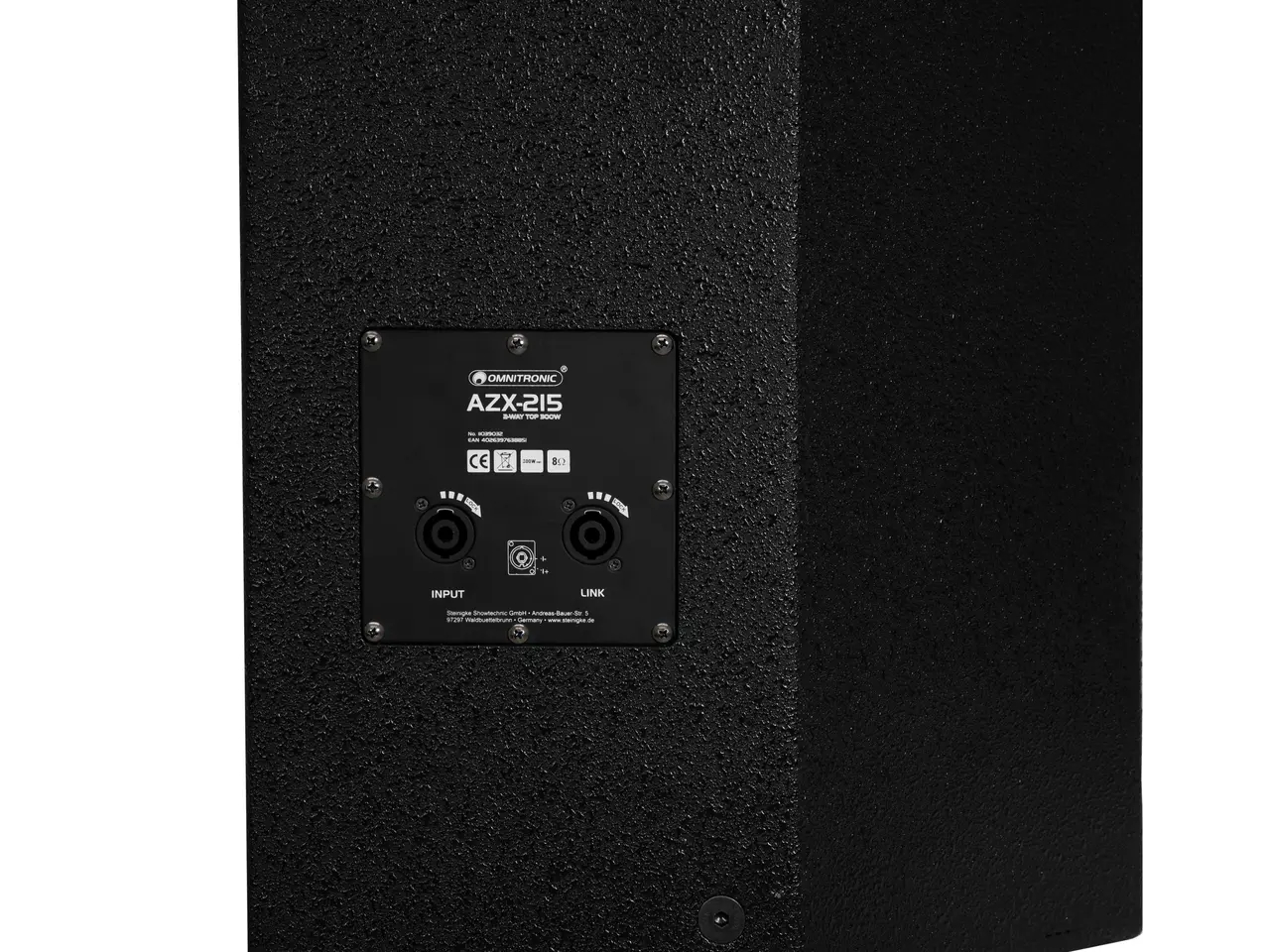

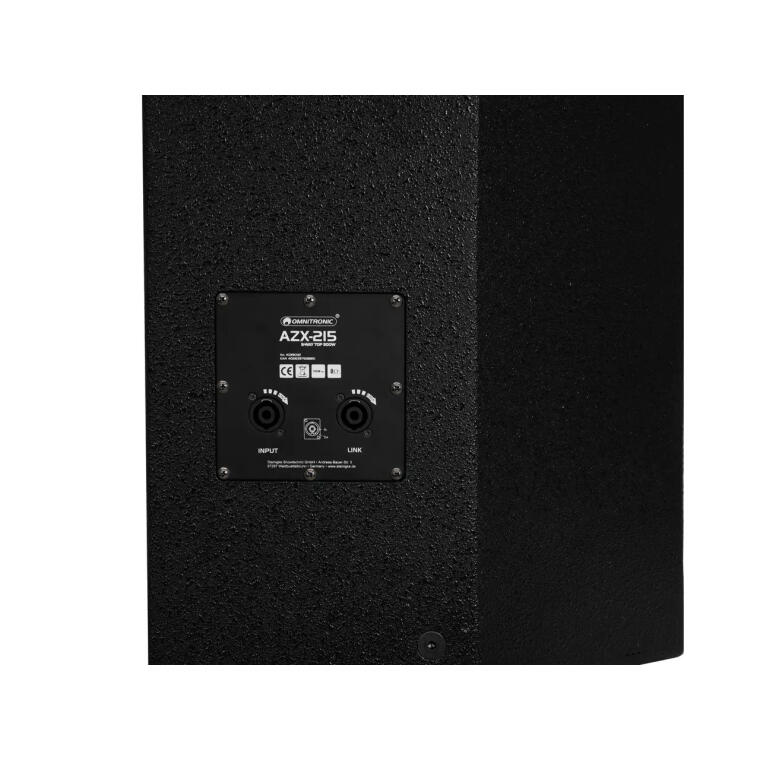

• Inputs: 2 x Speaker sockets (Speaker-compatible 4-pole connectors, parallel wiring)

• Signal Link: Parallel loop-through connection for daisy-chaining multiple passive speakers

Enclosure & Hardware

• Cabinet Material: High-density MDF wooden enclosure with durable black textured lacquer finish

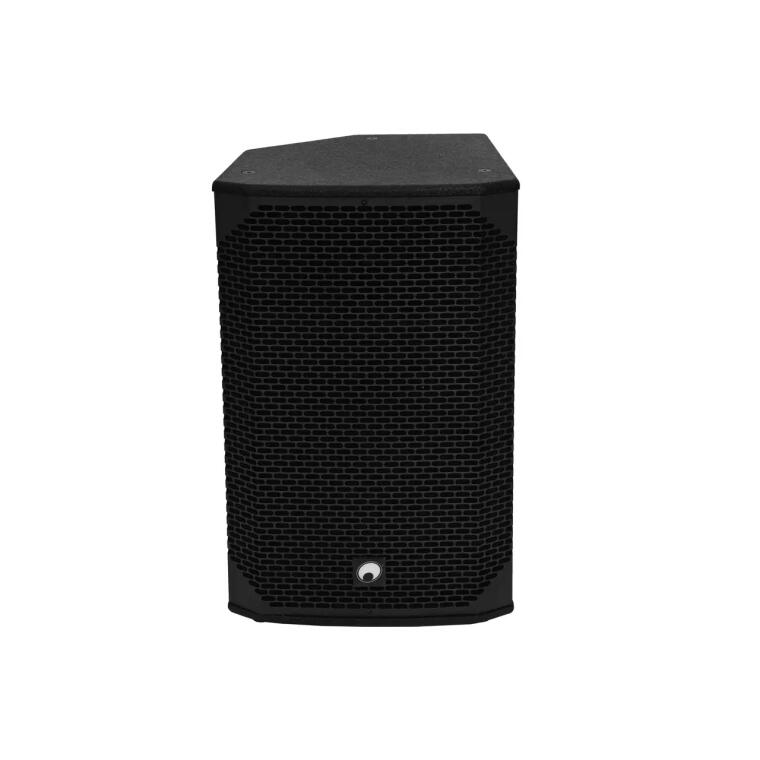

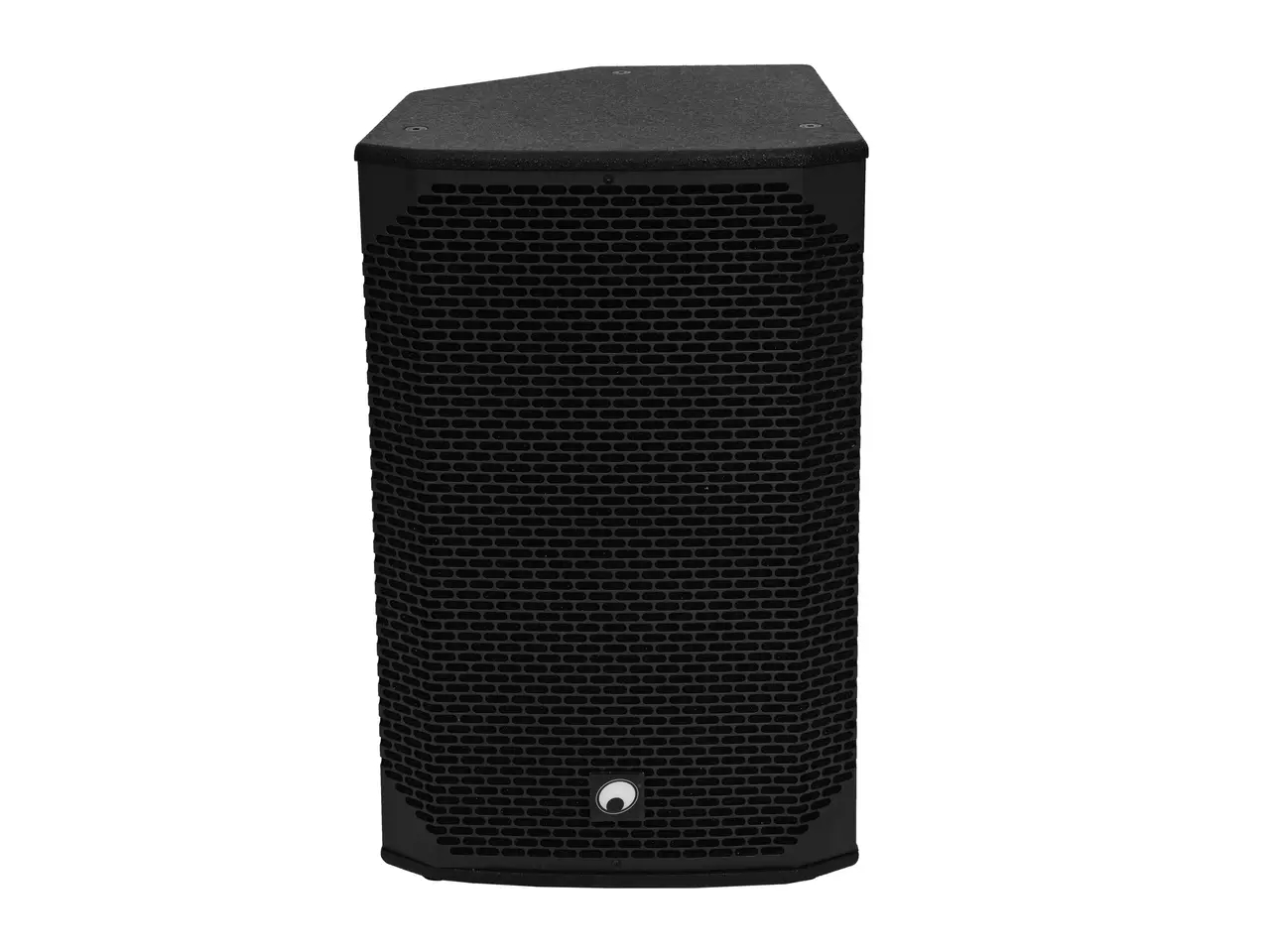

• Front Protection: Heavy-duty powder-coated steel grille with acoustic foam backing

• Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket, M10 rigging points for flown installation

• Handles: 2 x Ergonomic steel carrying handles

• Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet sides)

Physical Specifications

• Dimensions (W x D x H): 470 x 440 x 740 mm (18.5" x 17.3" x 29.1")

• Weight: 24.5 kg (54.0 lbs)

Accessories Included

• Operating Instructions Manual
