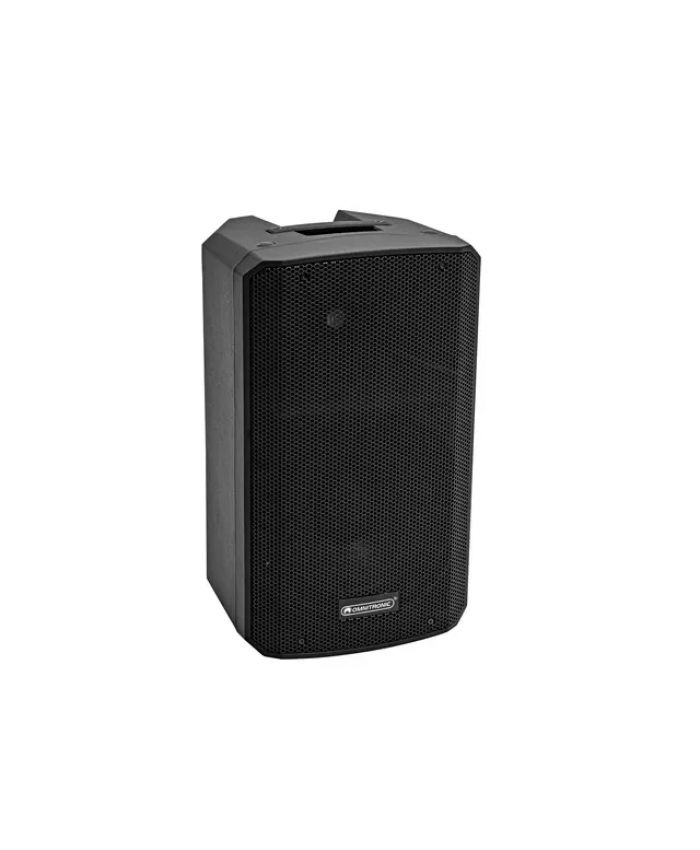

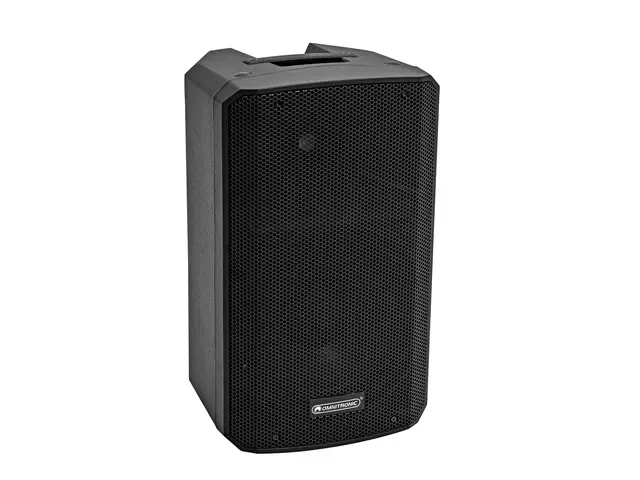

Omnitronic VFM-210 MK2

Omnitronic VFM-210 MK2 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: 2-way passive bass-reflex speaker enclosure

• Power Rating: 100 W RMS

• Program Power: 200 W Peak

• Nominal Impedance: 8 Ω

Audio Performance & Transducers

• Low Frequency Driver: 10" (25 cm) woofer with 1.5" voice coil

• High Frequency Driver: 1" (2.5 cm) compression tweeter

• Frequency Range: 55 – 20,000 Hz

• Sensitivity / Max SPL: 115 dB

• Crossover Frequency: Passive 2-way internal crossover

Connectivity & Signal Routing

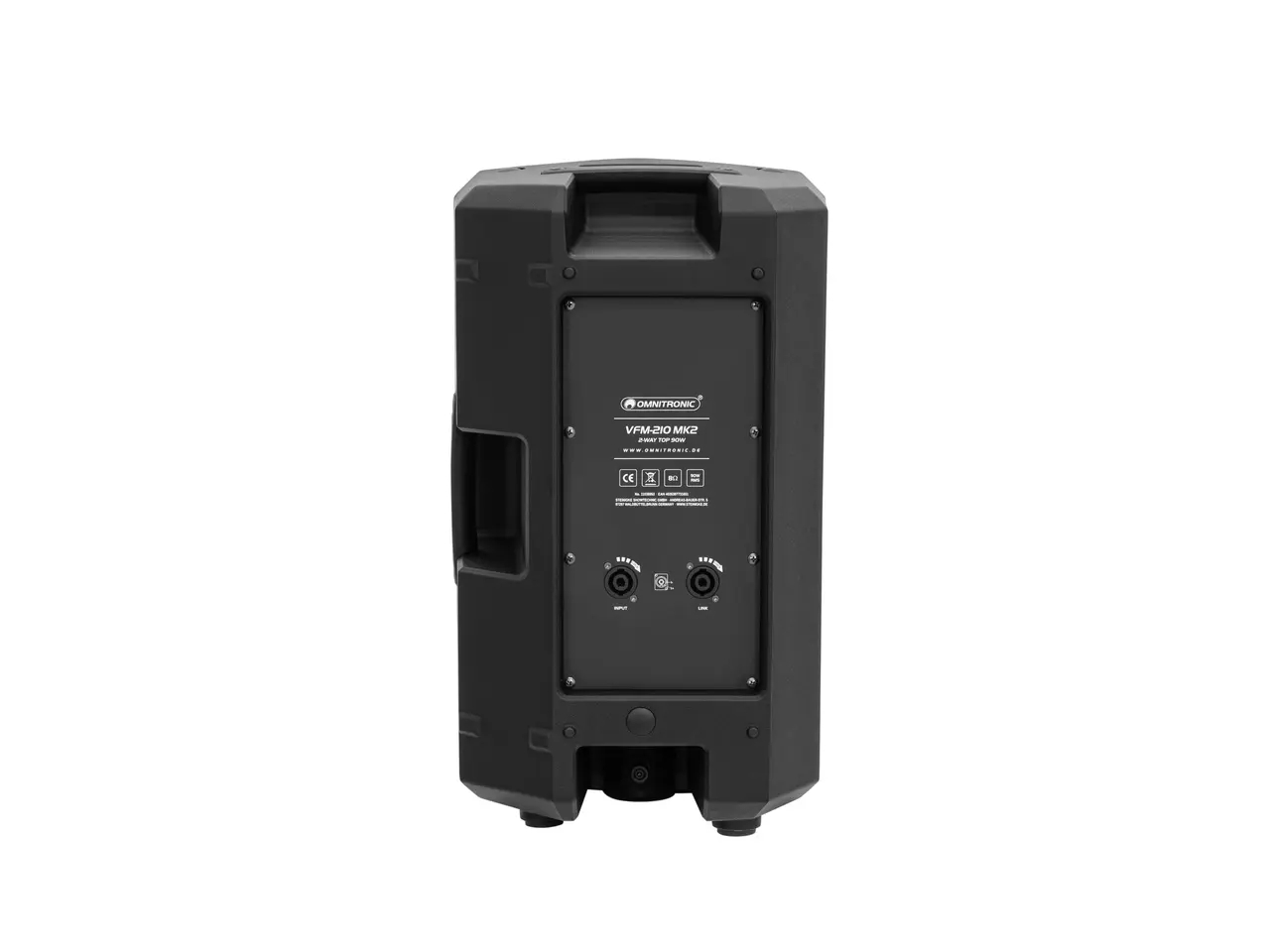

• Speaker Inputs: 1 x Speaker socket (Speaker-compatible built-in connector)

• Signal Link: Parallel output for daisy-chaining additional passive speakers

Enclosure & Hardware

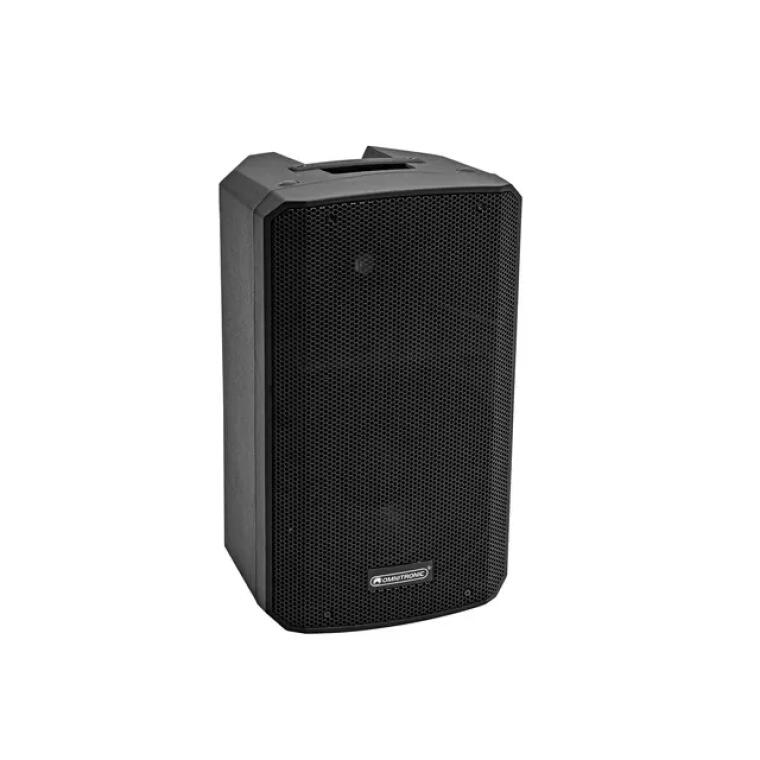

• Cabinet Material: High-impact plastic chassis (black)

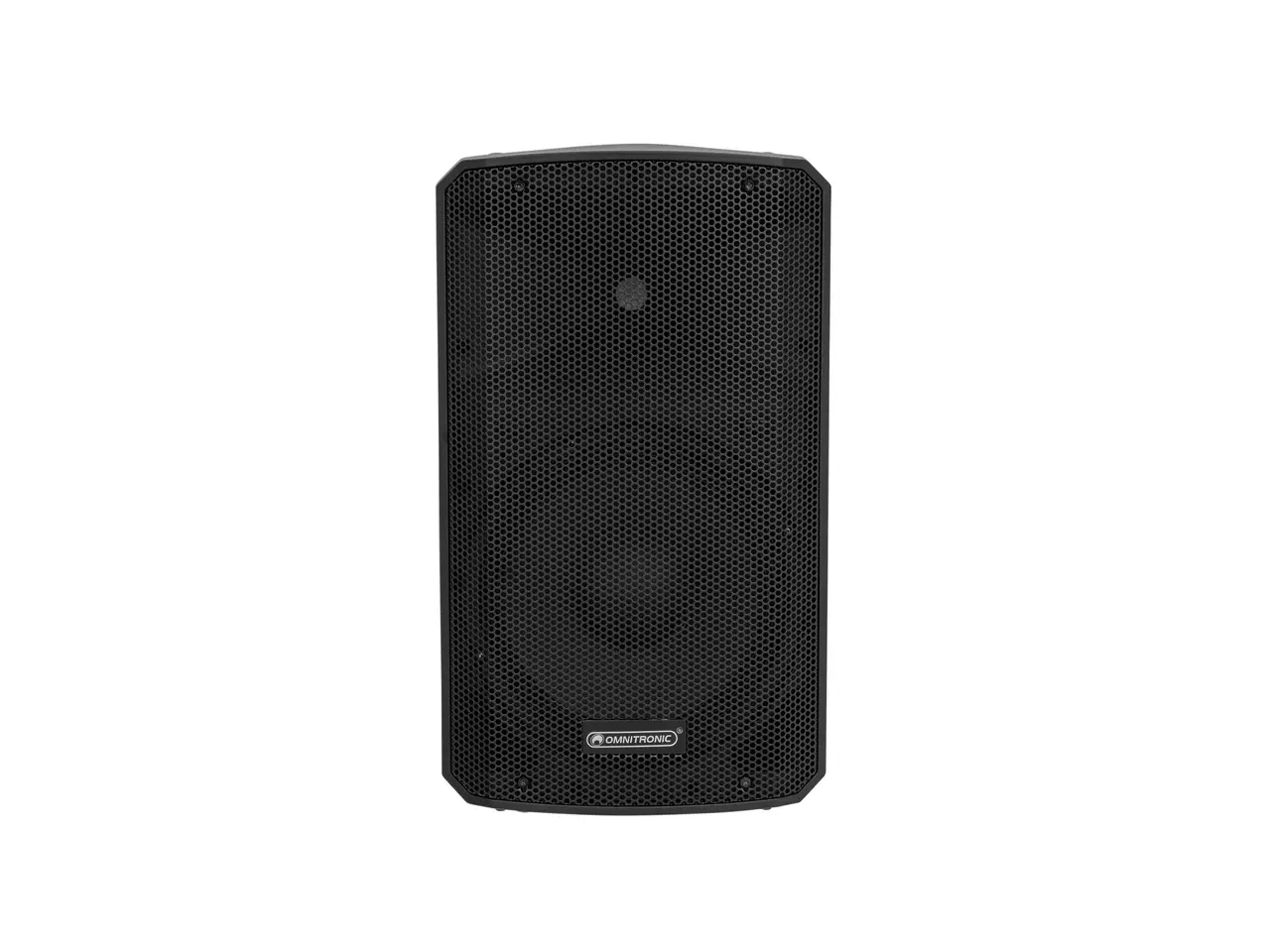

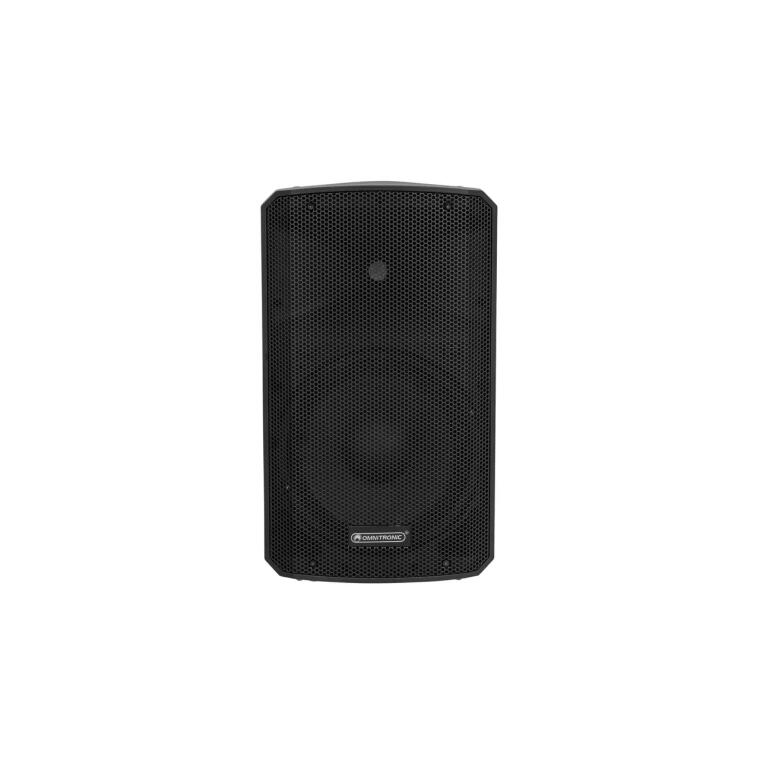

• Front Protection: Heavy-duty black metal grille

• Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket

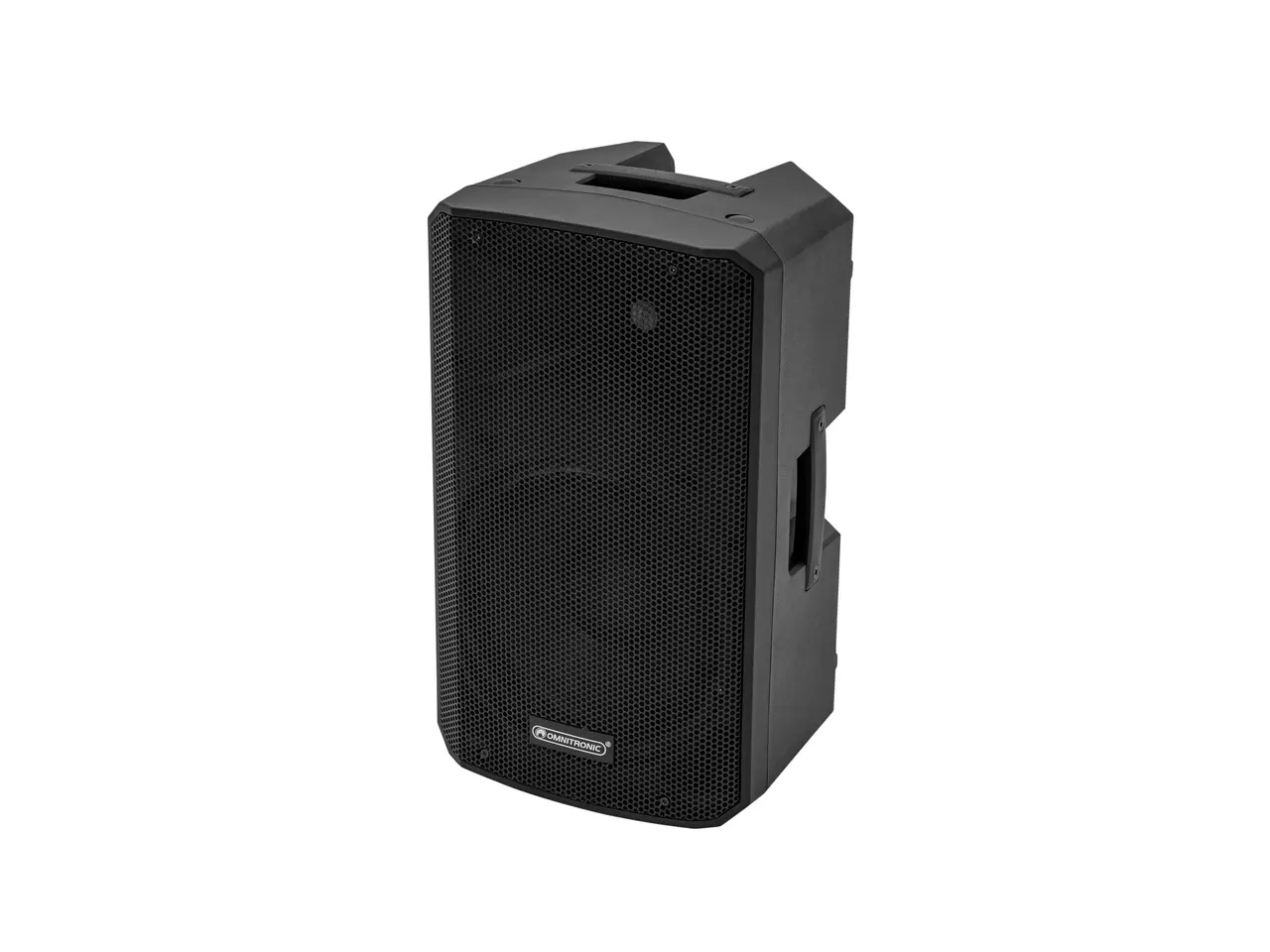

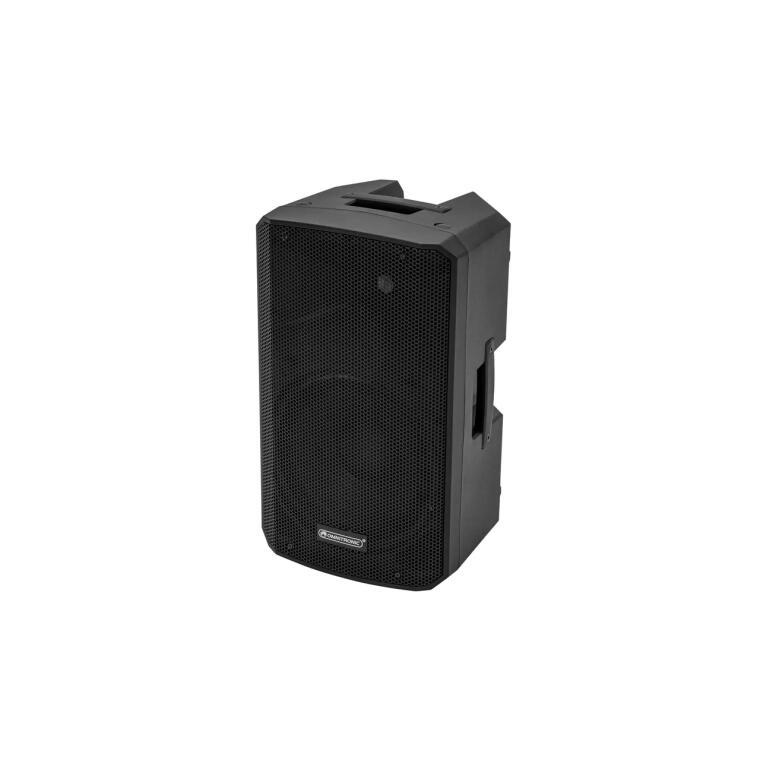

• Handles: 2 x Ergonomic side carrying handles

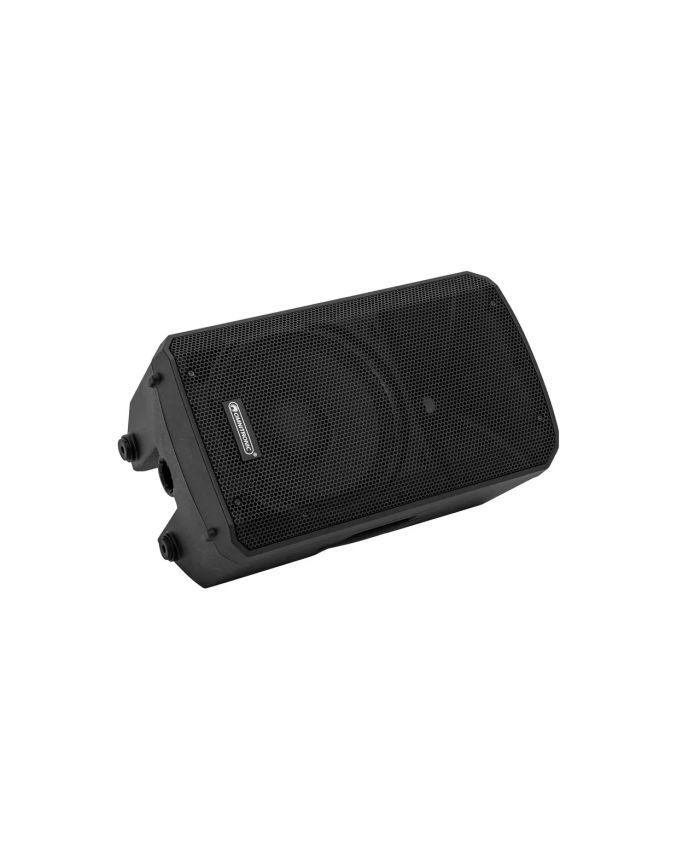

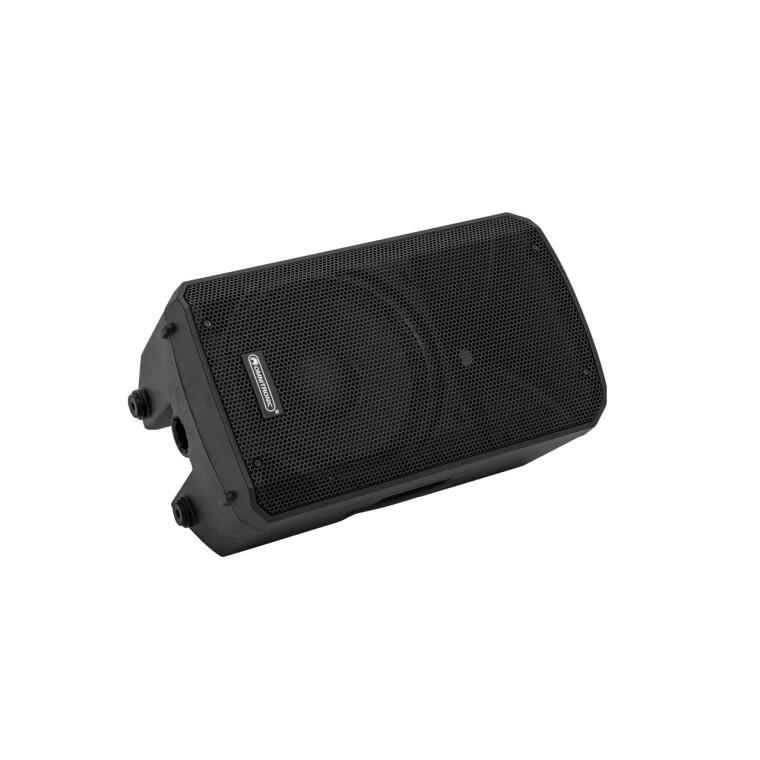

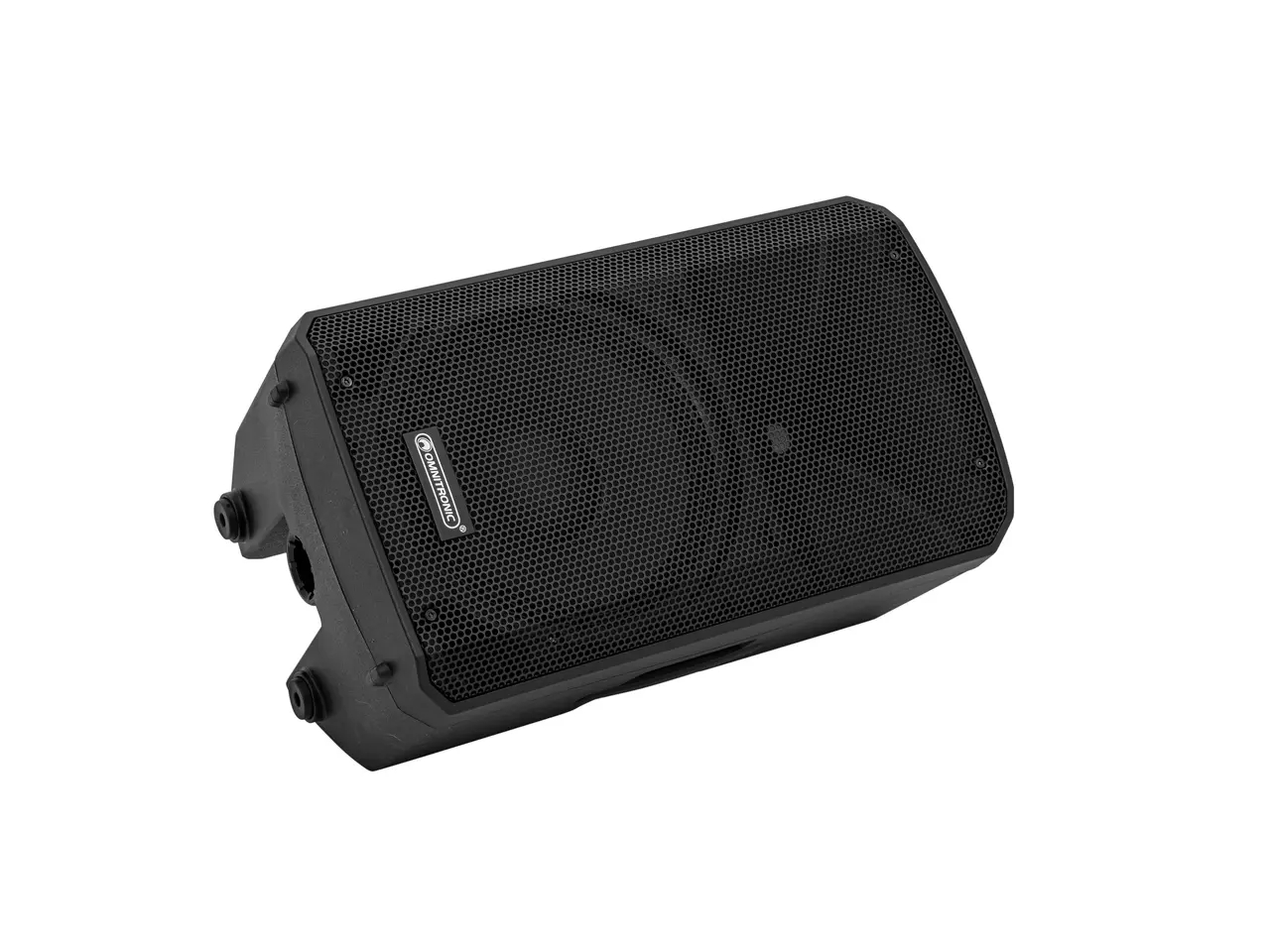

• Application Modes: Main PA speaker (upright on stand), floor monitor (angled side)

Physical Specifications

• Dimensions (W x D x H): 320 x 280 x 480 mm (12.6" x 11.0" x 18.9")

• Weight: Approx. 6.8 kg (15.0 lbs)

Accessories Included

• Operating Instructions Manual
