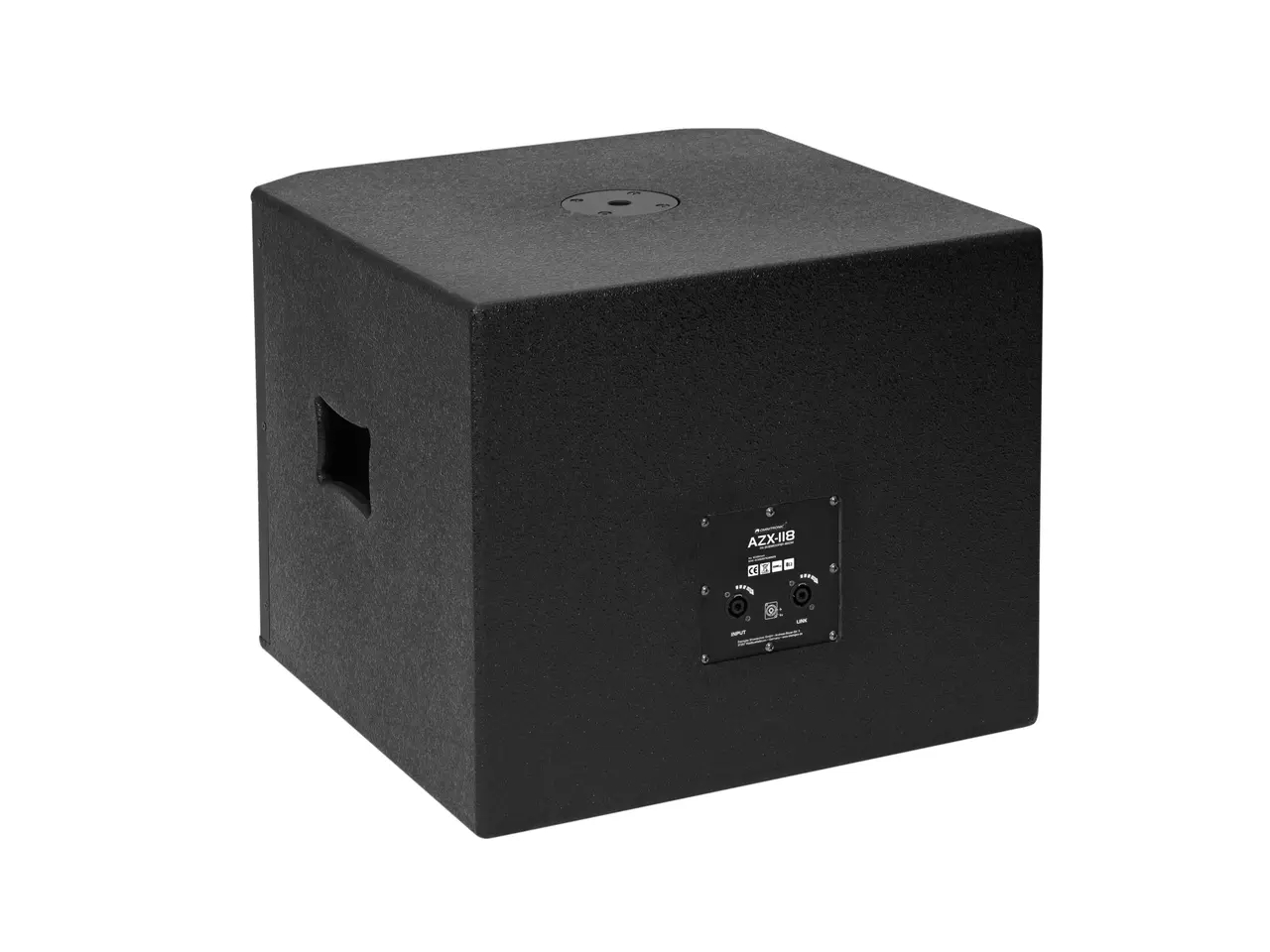

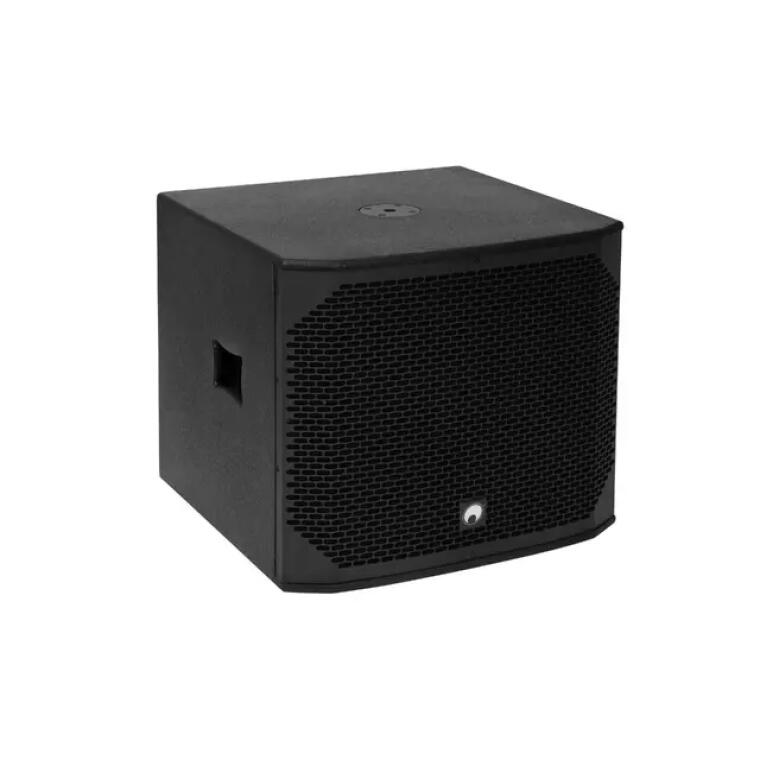

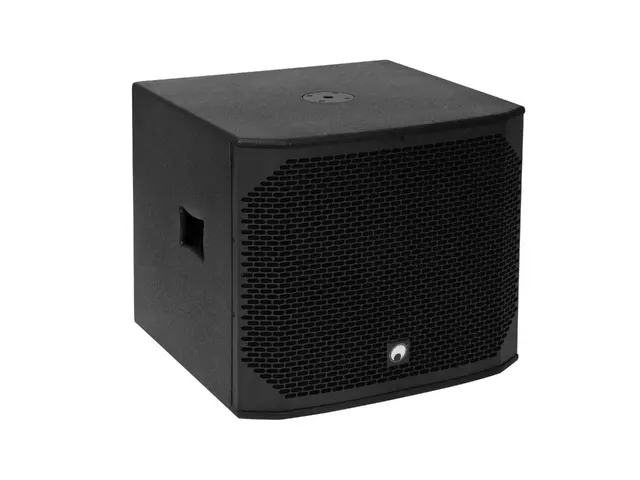

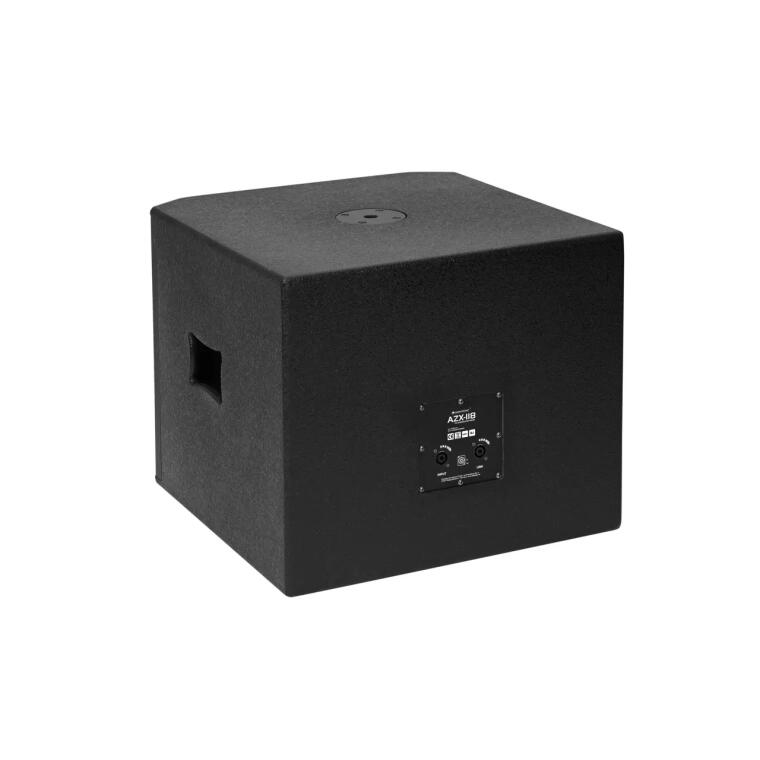

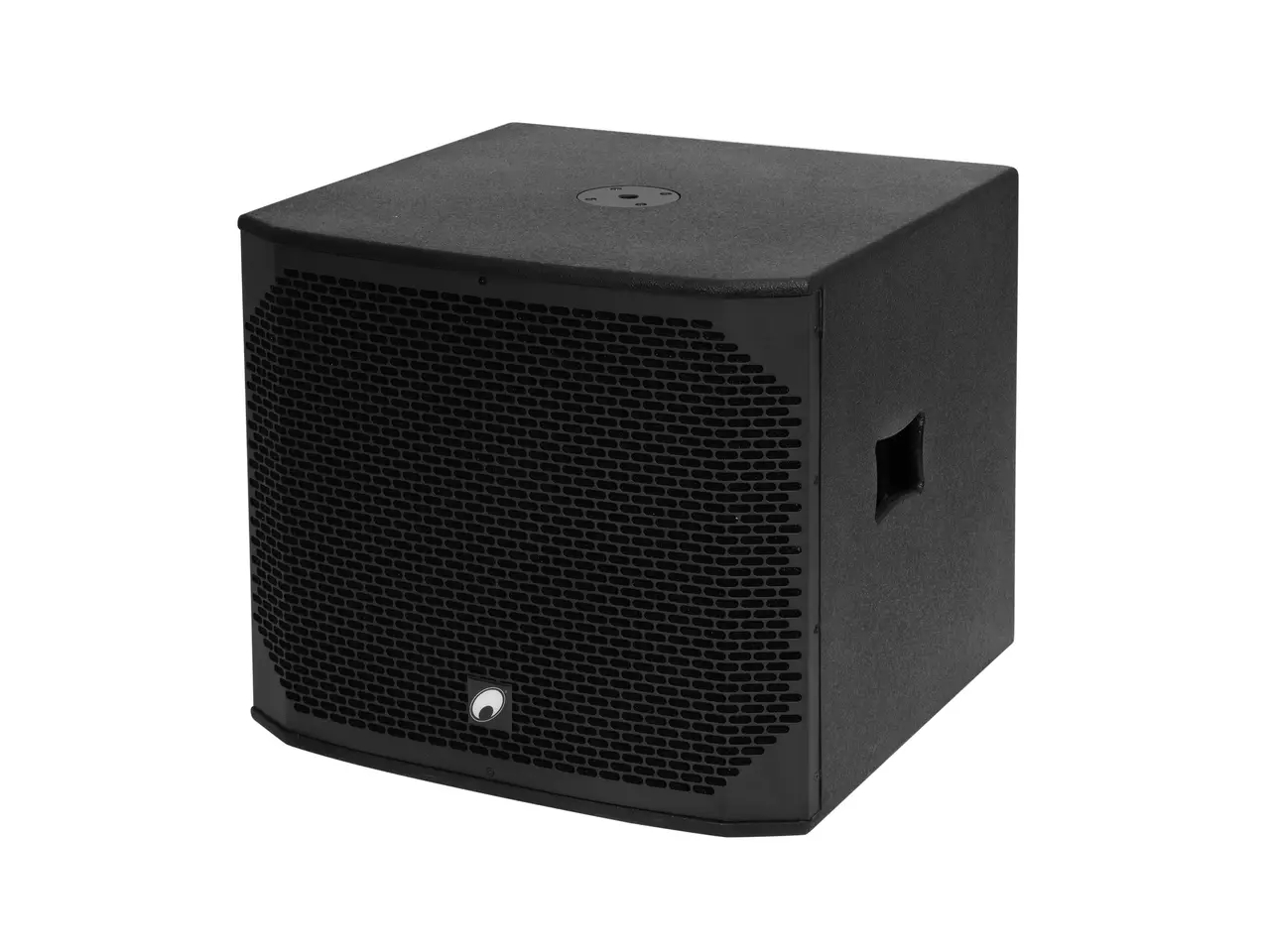

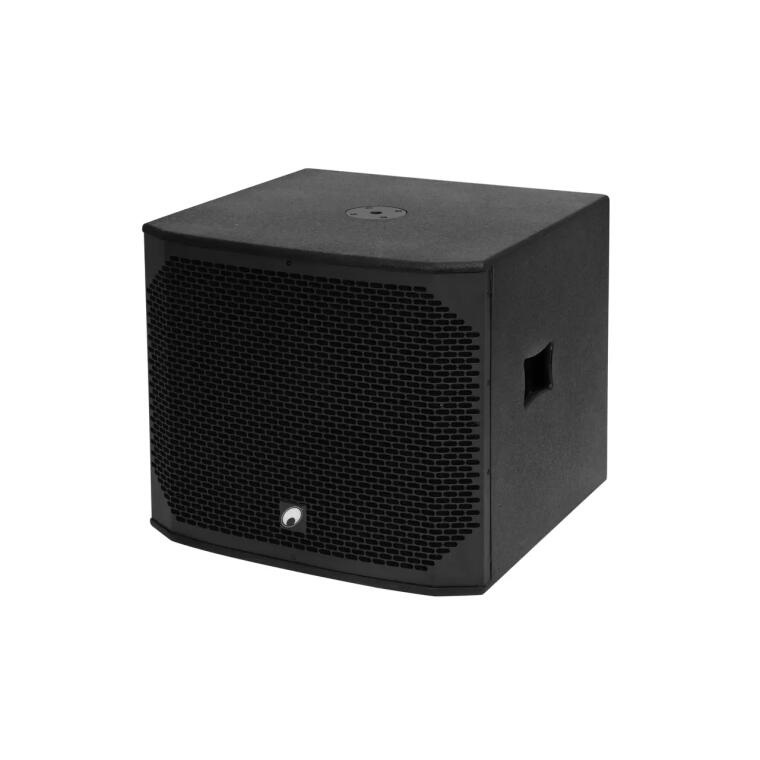

Omnitronic AZX-118

Omnitronic AZX-118 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Passive bass-reflex subwoofer

• Power Rating: 500 W RMS

• Program Power: 1000 W Peak

• Nominal Impedance: 8 Ω

Audio Performance & Transducers

• Low Frequency Driver: 18" (45 cm) woofer with 3" voice coil

• Frequency Range: 35 – 250 Hz

• Sensitivity: 98 dB (1W/1m)

• Max SPL: 127 dB

Connectivity & Signal Routing

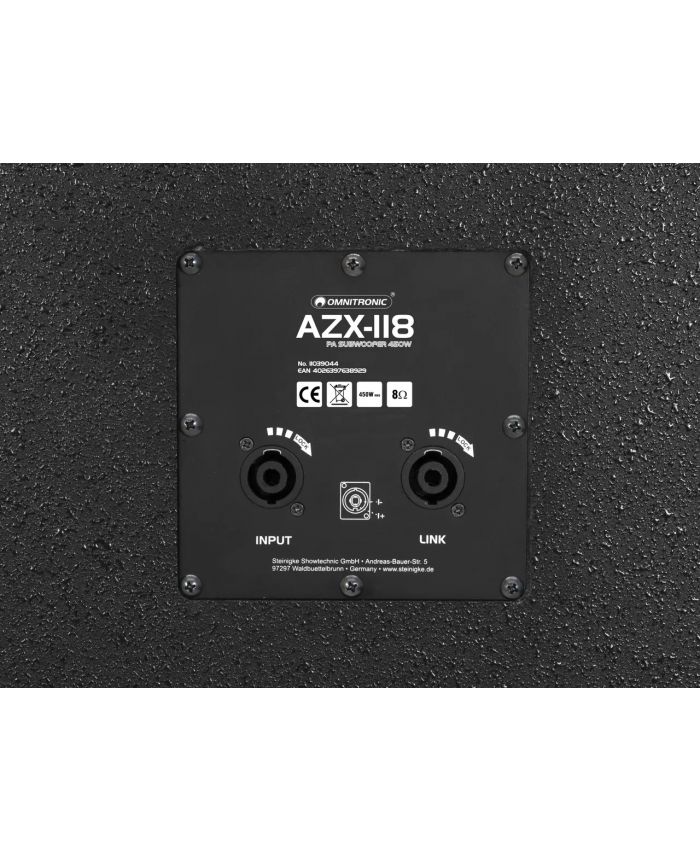

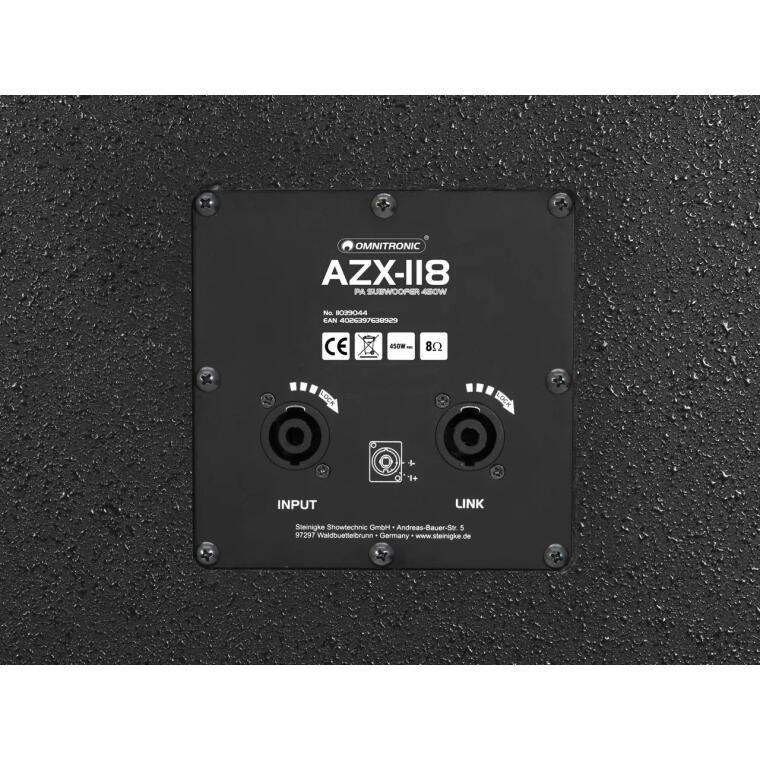

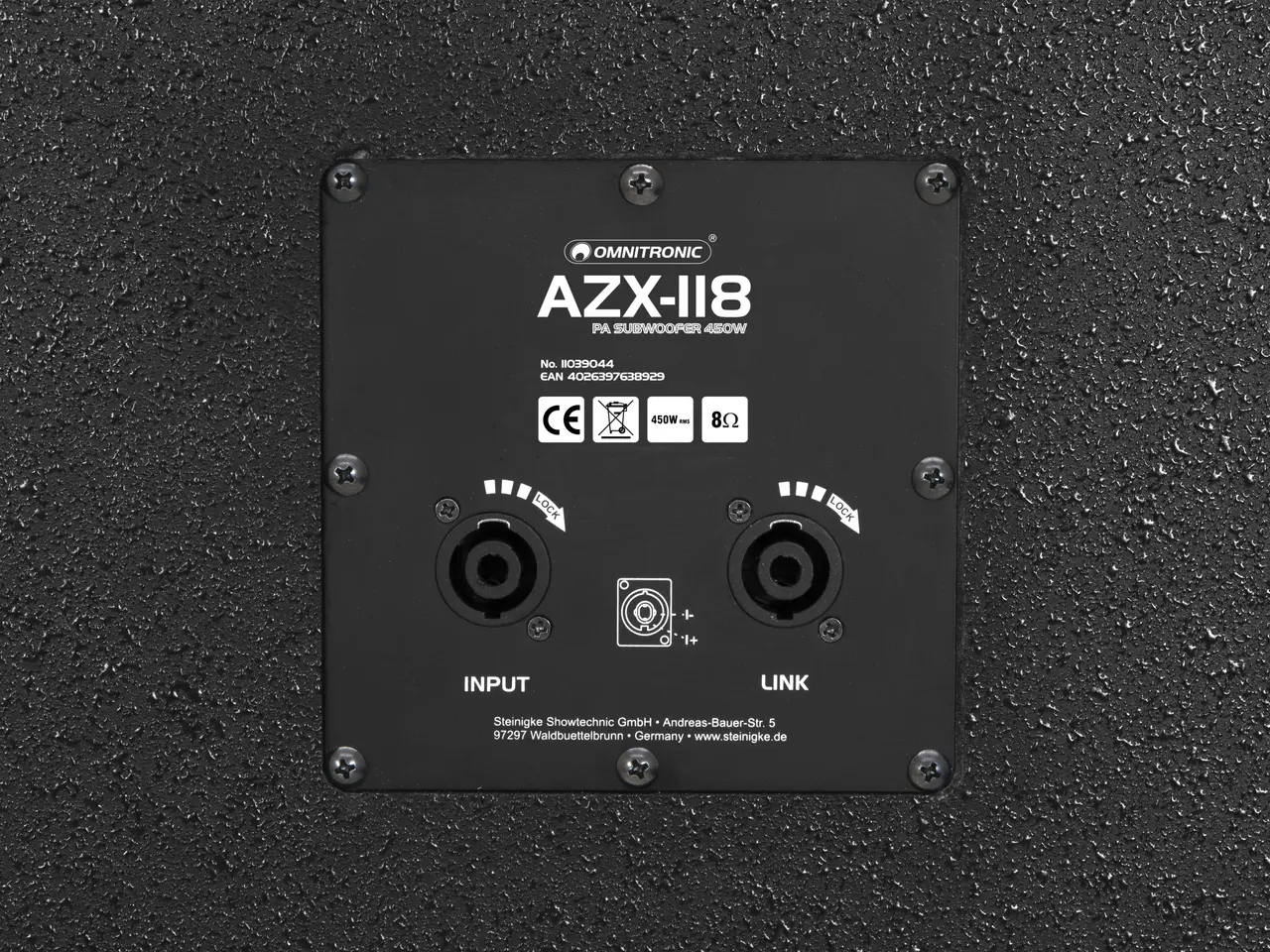

• Inputs: 2 x Speaker sockets (Speaker-compatible 4-pole connectors, parallel wiring)

• Signal Link: Parallel loop-through connection for sending full-range signal to satellite tops or additional subwoofers

Enclosure & Hardware

• Cabinet Material: High-density MDF wooden enclosure with durable black textured lacquer finish

• Front Protection: Heavy-duty powder-coated steel grille with acoustic foam backing

• Mounting / Suspension: Integrated M20 threaded pole mount flange for satellite speaker distance rods

• Handles: 2 x Ergonomic steel carrying handles

• Feet: Protective rubber feet on bottom panel

Physical Specifications

• Dimensions (W x D x H): 530 x 620 x 600 mm (20.9" x 24.4" x 23.6")

• Weight: 35.0 kg (77.2 lbs)

Accessories Included

• Operating Instructions Manual
