Eagle A180G

Price on request
In stock
Interested in this product?
Call us

Overview

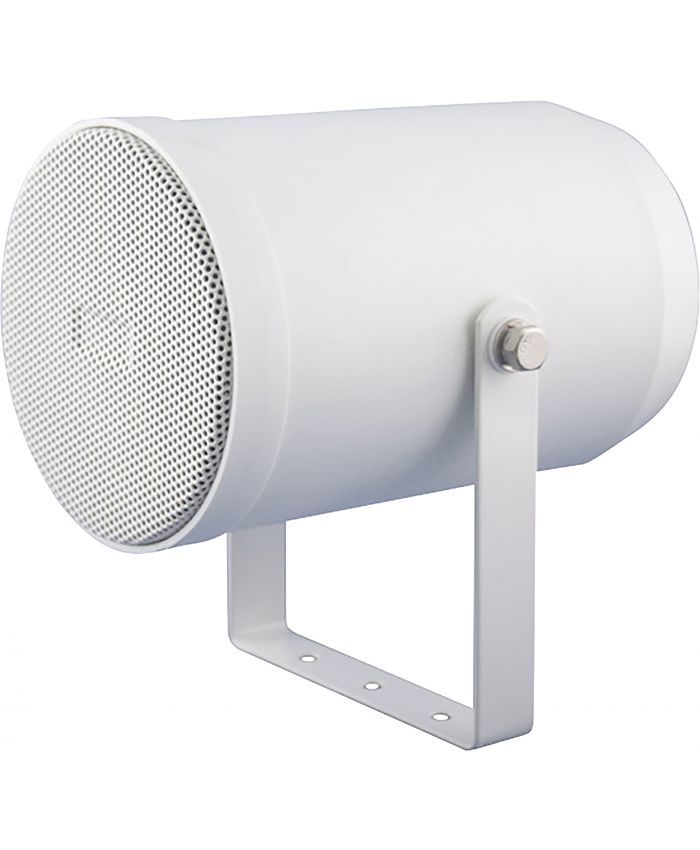

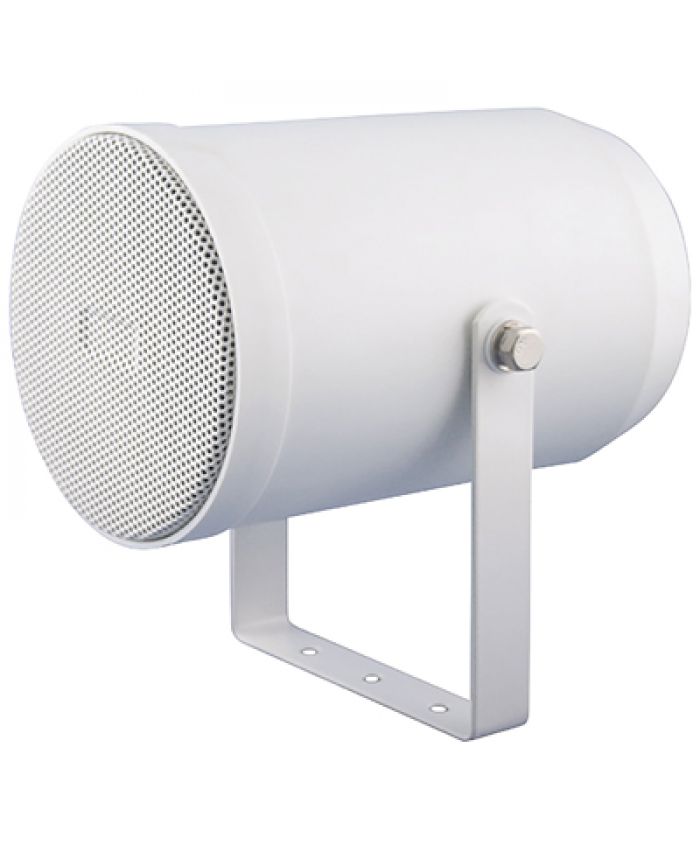

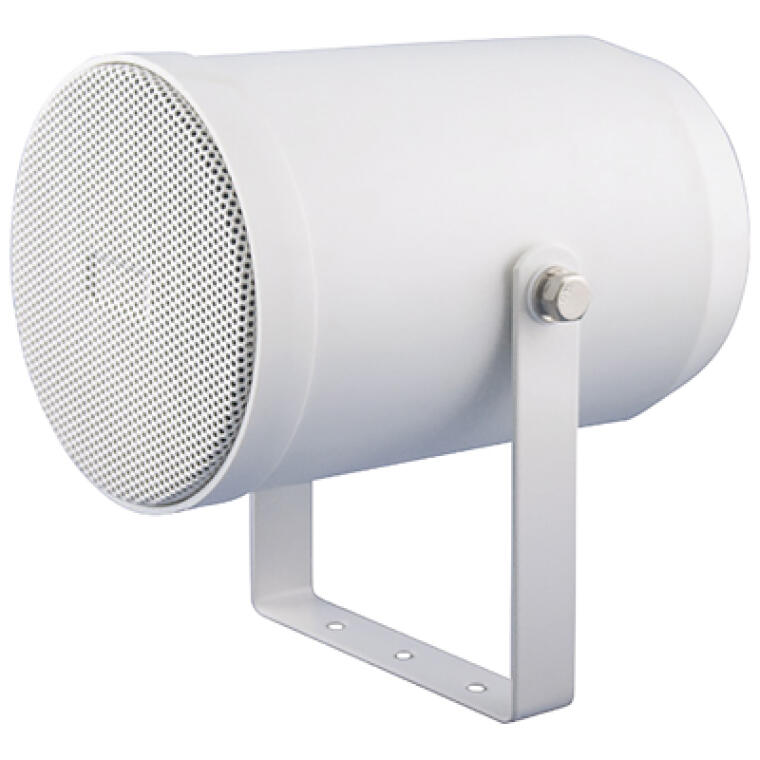

100V Line Outdoor Sound Projector Speaker

Eagle A180G

Eagle 100v Line sound projectors are made from strong UV stabilised weatherproof ABS with a perforated metal grille and adjustable mounting bracket and a wide range twin-cone speaker. Its wide dynamic range, facilitates use with both paging and background music in industrial and commercial applications eg: sports stadiums, train station platforms, shopping centres, aquatic Car Parks, factory and warehouses.Perfect for sound coverage in large areas whether indoor or outdoor spaces in fact anywhere you would normally specify horn speakers but want a better quality sound, these Eagle sound projectors provide an improved frequency response and better sound reproduction.

Eagle A180G 100V Line Outdoor Sound Projector Speaker – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Weatherproof 100V line bidirectional/directional sound projector speaker

  • Power Rating: 10 W RMS

  • 100V Power Tappings: 10 W, 5 W, 2.5 W (selectable via internal transformer wiring / cable leads)

  • Low Impedance Mode: 8 Ω direct bypass option

  • Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

  • Transducer Type: 5" (130 mm) full-range twin-cone driver

  • Frequency Response: 130 – 17,000 Hz

  • Sensitivity / SPL: 90 dB (1W/1m)

  • Dispersion: Directional audio projection with wide-angle coverage

Connectivity & Impedance Matching

  • Connection Type: Pre-wired multi-core cable tail / internal terminal block

  • Tapping Selection: Wiring connections for corresponding wattage settings (10W / 5W / 2.5W / COM)

Controls & Adjustment

  • Hardware Controls: Transformer wattage selection via color-coded input leads/terminals

  • Orientation: Fully adjustable U-shaped steel mounting bracket for vertical tilt and horizontal alignment

Enclosure & Hardware

  • Housing Material: UV-stabilized weatherproof ABS plastic (white finish)

  • Front Protection: Perforated steel front grille

  • IP Rating: IPX5 weatherproof protection rating against dust and low-pressure water jets

  • Mounting Hardware: Heavy-duty adjustable steel mounting U-bracket

  • Application Modes: Indoor and outdoor public address, voice paging, and background music projection in sports stadiums, train platforms, car parks, shopping centers, and industrial facilities

Physical Specifications

  • Dimensions (Diameter x Length): 135 x 220 mm (5.3" x 8.7")

  • Weight: 1.55 kg (3.4 lbs)

Accessories Included

  • Adjustable Steel Mounting U-Bracket

  • Operating Instructions Manual
