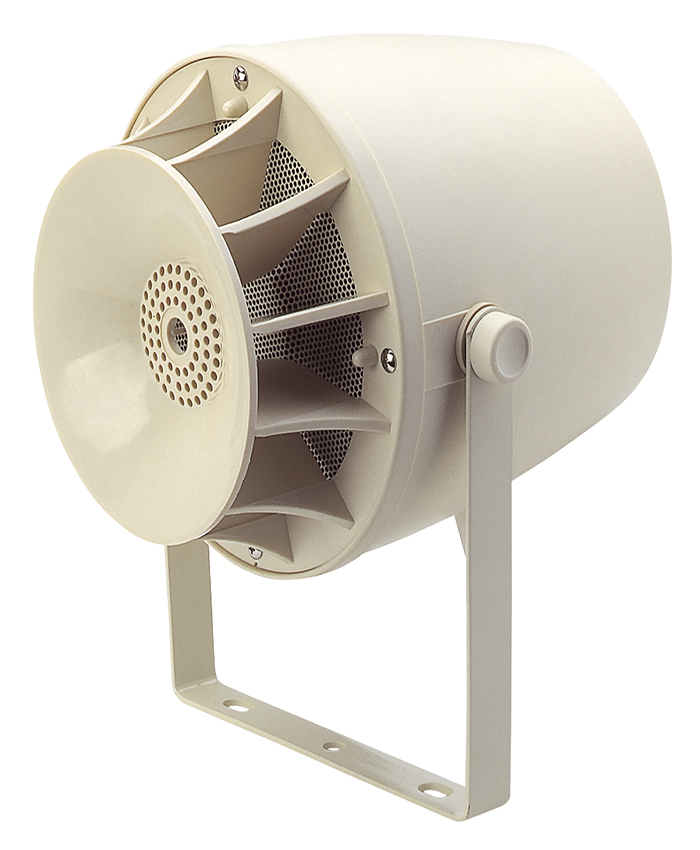

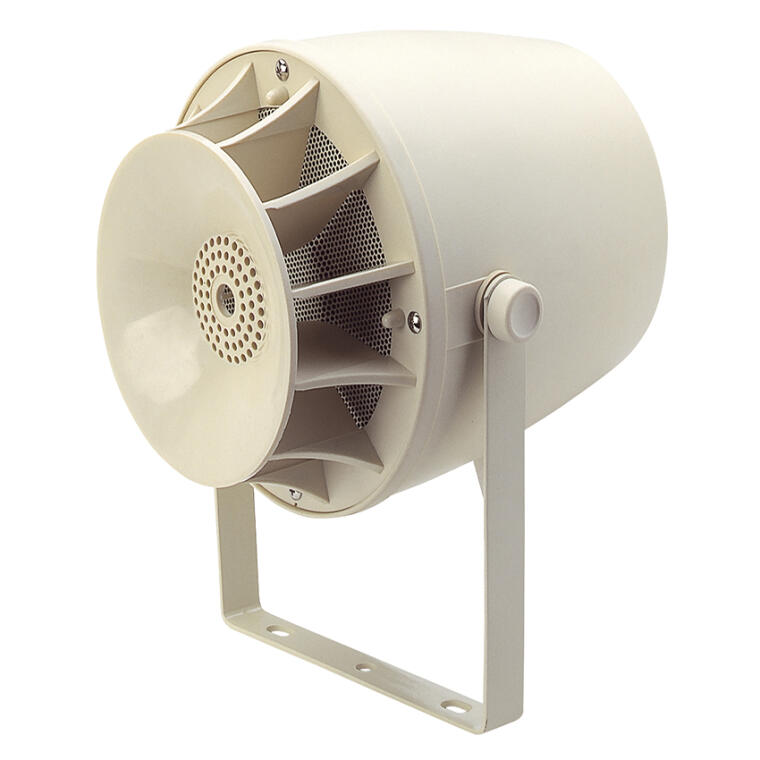

Eagle A180D

Eagle A180D 100V Line Bidirectional Sound Projector Speaker – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Weatherproof 100V line bidirectional sound projector speaker (double-sided output)

• Power Rating: 20 W RMS / 30 W Peak (10 W per speaker cone face)

• 100V Power Tappings: 20 W, 10 W, 5 W (selectable via multi-core cable leads / internal transformer connections)

• Low Impedance Mode: 8 Ω direct bypass option

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

• Transducer Type: Dual 5" (130 mm) full-range drivers mounted back-to-back

• Frequency Response: 120 – 16,000 Hz

• Sensitivity / SPL: 91 dB (1W/1m)

• Max SPL: 104 dB @ 1m

• Dispersion: Dual opposing 180° bidirectional beam projection (ideal for corridors and walkways)

Connectivity & Impedance Matching

• Connection Type: Pre-wired multi-core cable tail / internal terminal block

• Tapping Selection: Wiring connections for corresponding wattage settings (20W / 10W / 5W / COM)

Controls & Adjustment

• Hardware Controls: Transformer wattage selection via color-coded input leads/terminals

• Orientation: Fully adjustable U-shaped steel mounting bracket for wall or ceiling alignment along corridors

Enclosure & Hardware

• Housing Material: UV-stabilized weatherproof ABS plastic (white finish)

• Front Protection: Dual perforated aluminum front grilles (front and rear)

• IP Rating: IPX5 weatherproof protection rating against rain and dust ingress

• Mounting Hardware: Heavy-duty adjustable steel mounting U-bracket

• Application Modes: Bidirectional voice paging and background music coverage in long corridors, hospital hallways, school passages, railway platforms, shopping arcades, and outdoor walkways

Physical Specifications

• Dimensions (Diameter x Length): 140 x 210 mm (5.5" x 8.3")

• Weight: 1.95 kg (4.3 lbs)

Accessories Included

• Adjustable Steel Mounting U-Bracket

• Operating Instructions Manual
