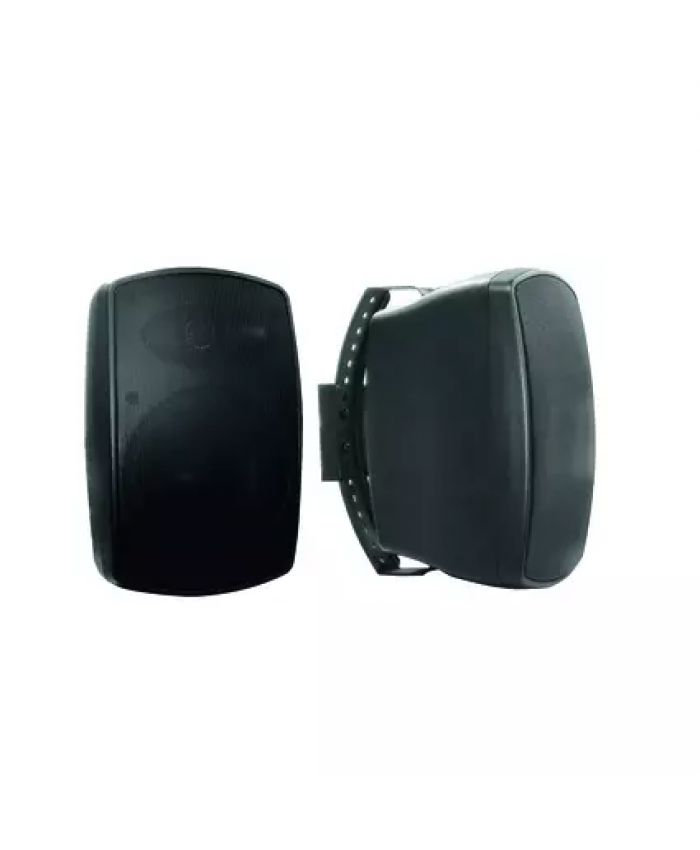

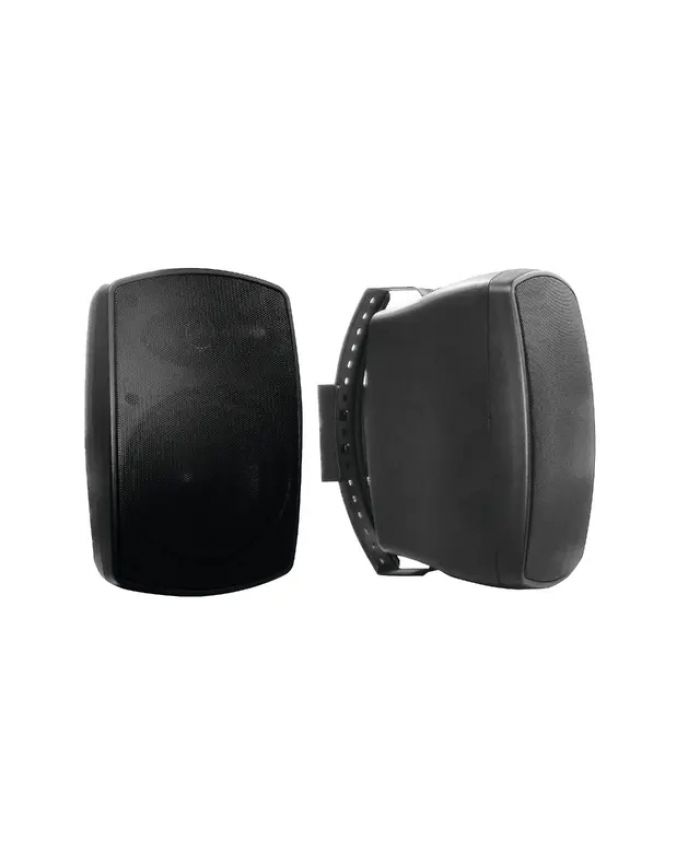

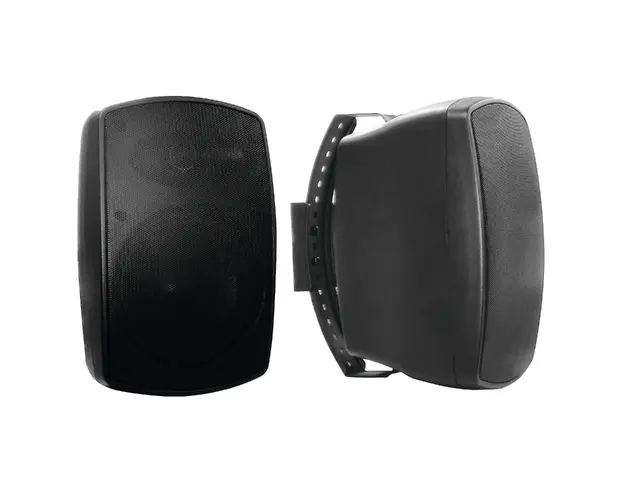

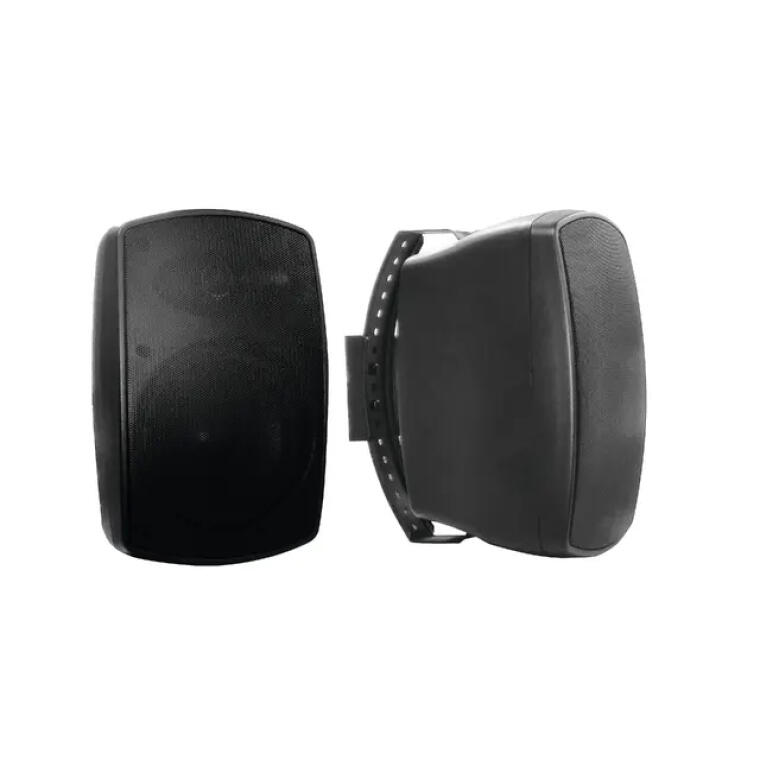

Omnitronic OD-5T Wall Speaker 100V black
€79.00
incl. VAT
In stock
Interested in this product?
Overview
Weather-proof wall speaker (IP65) with 5,25" woofers and 40 W RMS
- 2-way system with 13.5 cm woofer (5.25") and 1.3 cm tweeter (0.5")
- Durable plastic cabinet with metal grille and cover for the connectors
- Power selector switch with 8 ohms operating position
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- Black aluminum grille
- Suitable for outdoor use IP65
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
Omnitronic OD-5T Wall Speaker 100V Black – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Passive 2-way wall-mount installation speaker with integrated 100V line transformer
-
Power Rating: 30 W RMS / 60 W Peak
-
100V Power Tappings: 30 W, 15 W, 7.5 W (selectable via rear rotary switch)
-
Low Impedance Mode: 8 Ω direct connection bypass option
-
Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems
Audio Performance & Transducers
-
Low Frequency Driver: 5.25" (133 mm) woofer with polypropylene cone and rubber surround
-
High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter
-
Frequency Response: 85 – 20,000 Hz
-
Sensitivity: 89 dB (1W/1m)
-
Max SPL: 104 dB @ 1m
-
Dispersion Angle: 100° x 80° (H x V) broad coverage pattern
Connectivity & Impedance Matching
-

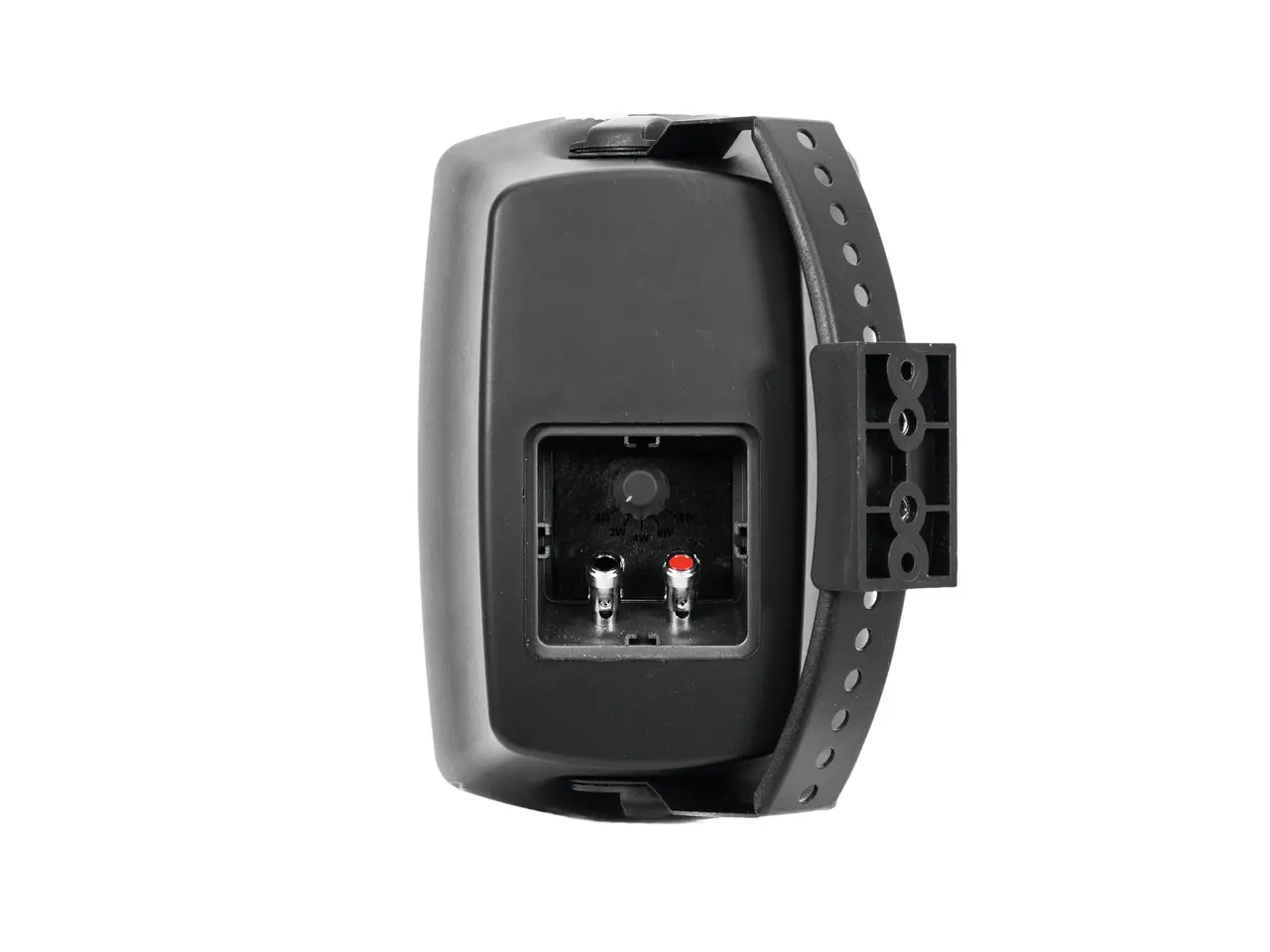

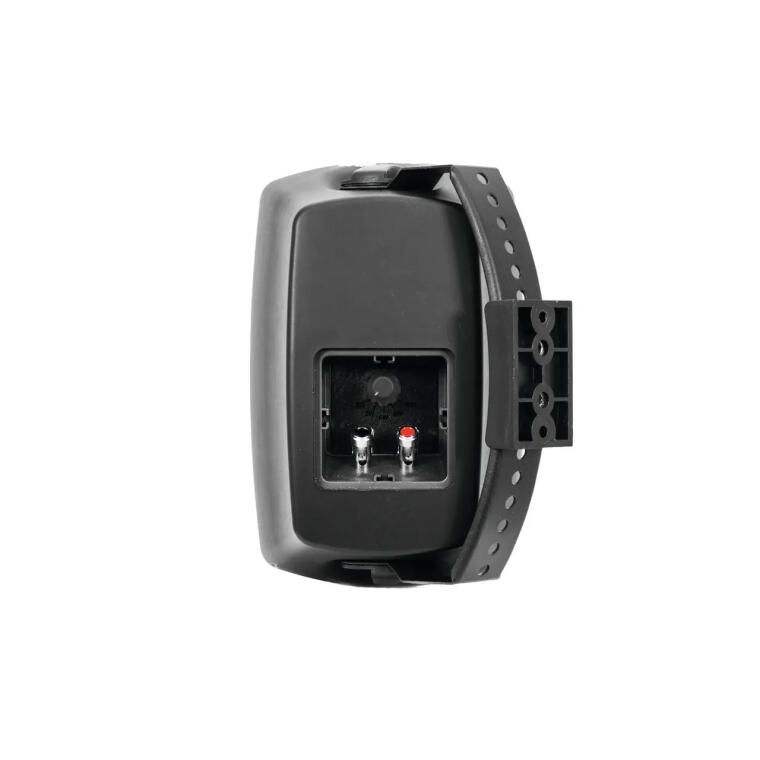

Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections
-
Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (30W / 15W / 7.5W / 8 Ω)
Controls & Adjustment
-
Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass
-
Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment
Enclosure & Hardware
-
Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)
-
Front Protection: Perforated steel front grille (black finish)
-
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
-
Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included
-
Application Modes: Background music, voice announcements, and commercial sound reinforcement in bars, lounges, restaurants, retail stores, fitness centers, and covered outdoor patios
Physical Specifications
-
Dimensions (H x W x D): 255 x 180 x 150 mm (10.0" x 7.1" x 5.9")
-
Weight: 2.45 kg (5.4 lbs)
Accessories Included
-
Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware
-
Operating Instructions Manual
