Eagle P626M

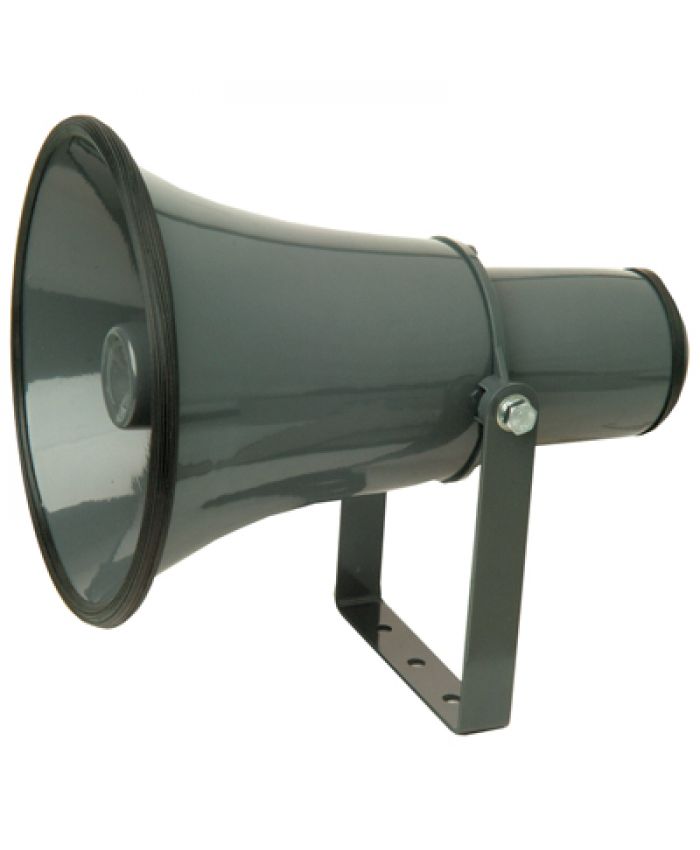

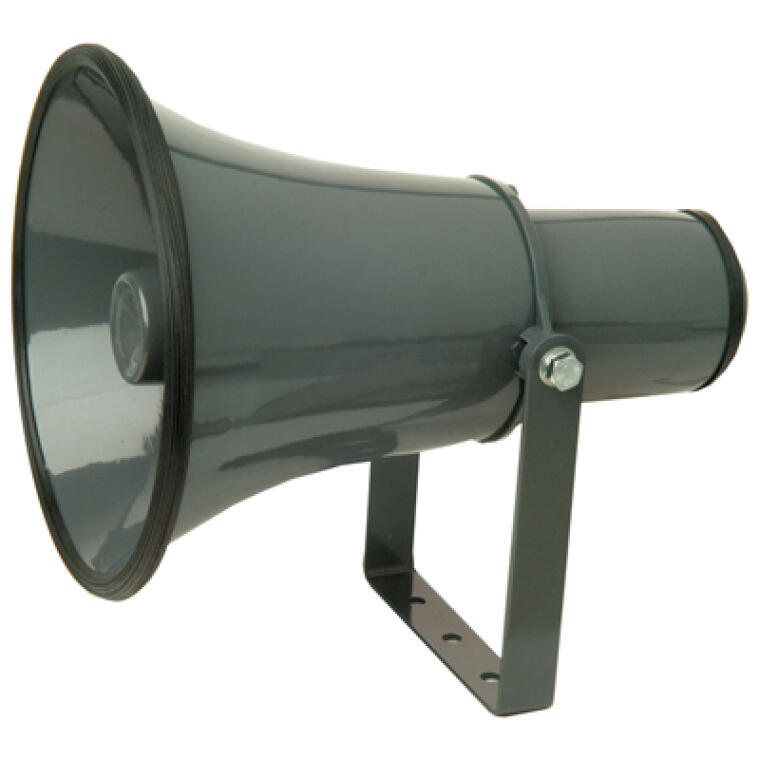

Eagle P626M 100V Line Horn Speaker – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Round public address (PA) horn speaker with internal 100V line transformer

• Power Rating: 15 W RMS / 40 W Peak

• 100V Power Tappings: 15 W, 10 W, 7.5 W, 5 W (selectable via internal screw terminal strip)

• Operating Voltage: 100V Line PA systems

Audio Performance & Transducers

• Transducer Type: Compression driver with re-entrant round horn flare

• Frequency Response: 350 – 13,000 Hz

• Sensitivity: 97 dB (1W/1m)

• Max SPL: 107 dB @ 1m

• Dispersion: Directional circular projection horn design

Connectivity & Impedance Matching

• Connection Type: Screw terminal connections under protective rear cover cap

• Tapping Selection: Cable connection to corresponding wattage terminal posts (15W / 10W / 7.5W / 5W / COM)

Controls & Adjustment

• Hardware Controls: Transformer power selection terminals under rear cover

• Orientation: Fully adjustable steel mounting bracket for vertical and horizontal angle alignment

Enclosure & Hardware

• Flare Material: High-impact weather-resistant ABS plastic (grey finish)

• Mounting Hardware: Heavy-duty adjustable metal U-bracket for wall or ceiling mounting

• Environmental Protection: Weatherproof design suitable for outdoor and indoor public address applications

• Application Modes: Voice paging, public address, emergency alert, and background noise projection in sports grounds, car parks, warehouses, factories, and commercial perimeter installations

Physical Specifications

• Dimensions (Diameter x Depth): 205 x 180 mm (8.1" x 7.1")

• Weight: 1.4 kg (3.1 lbs)

Accessories Included

• Adjustable Steel Mounting U-Bracket

• Rear Cover Protective Cap
