Omnitronic OD-4T Black

€119.00 incl. VAT

In stock

Interested in this product?

Call us

Overview

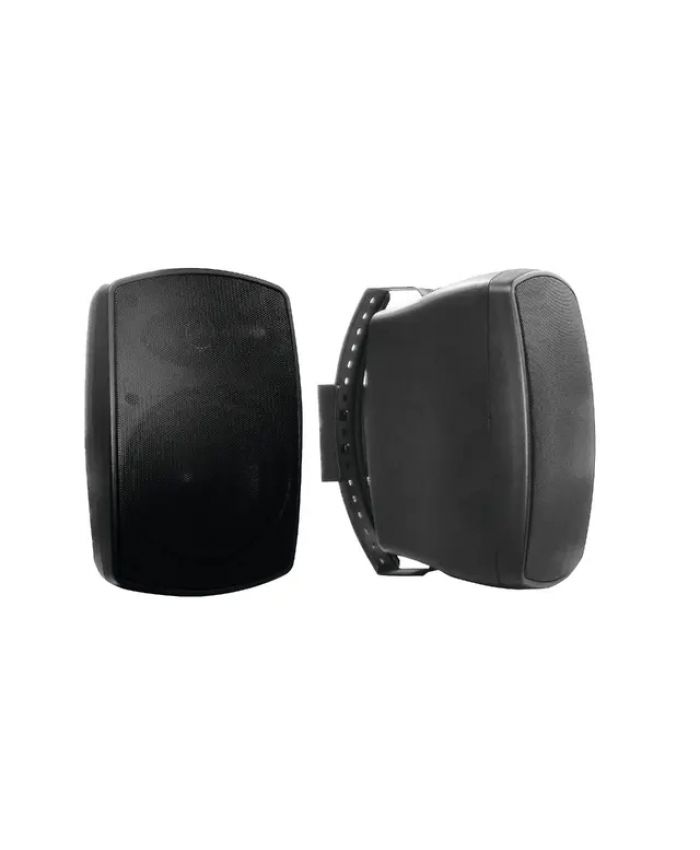

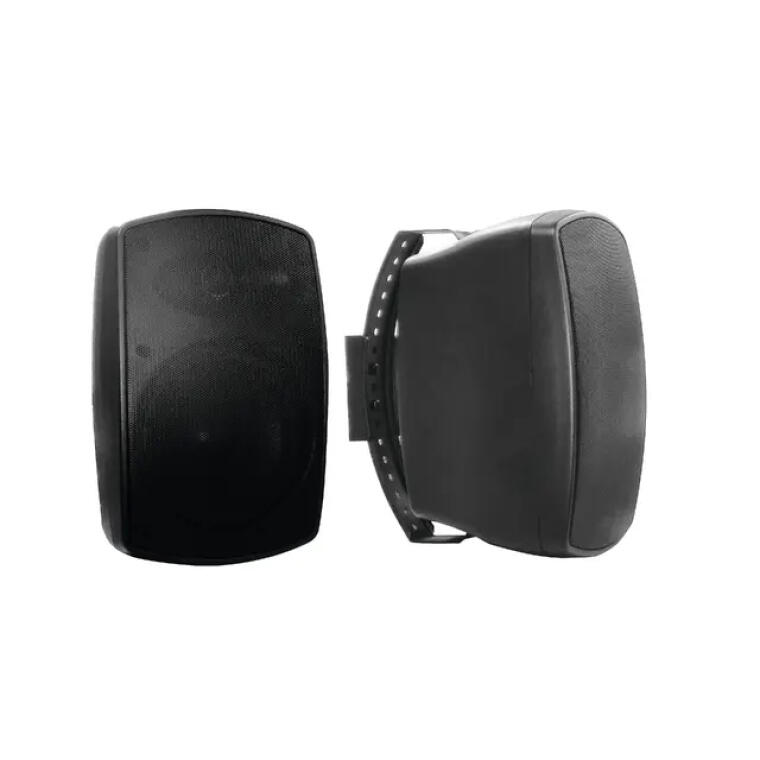

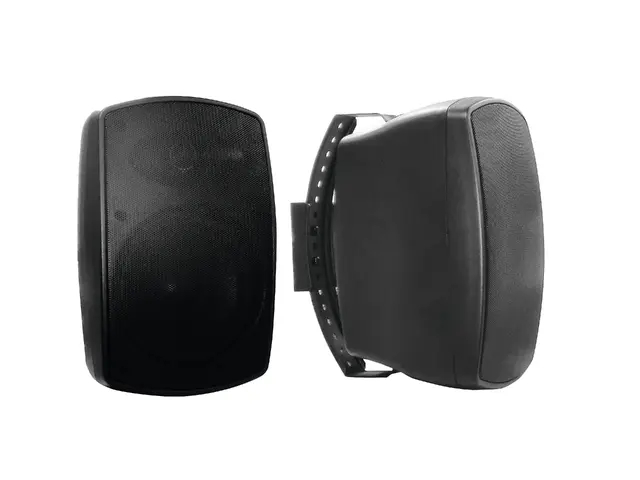

Omnitronic OD-4T Wall Speaker 100V pair

Weather-proof wall speaker pair (IP65) with 4" woofers and 30 W RMS

2-way system with 10 cm woofer (4") and 1.3 cm tweeter (0.5")

Durable plastic cabinet with metal grille and cover for the connectors

Power selector switch with 8 ohms operating position

With panning and tilting mounting bracket for ceiling or wall installation in most varying angles

Black aluminum grille

Suitable for outdoor use IP65

2 pieces per set

For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures

Omnitronic OD-4T Black 100V Line Installation Speaker – Technical Specifications & Setup Guide

System & Power Handling

System Type: Compact passive 2-way wall-mount installation speaker with integrated 100V line transformer
Power Rating: 15 W RMS / 30 W Peak
100V Power Tappings: 15 W, 7.5 W, 3.75 W (selectable via rear rotary switch)
Low Impedance Mode: 8 Ω direct connection bypass option
Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

Low Frequency Driver: 4" (100 mm) woofer with polypropylene cone and rubber surround
High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter
Frequency Response: 100 – 20,000 Hz
Sensitivity: 87 dB (1W/1m)
Max SPL: 98 dB @ 1m
Dispersion Angle: 110° x 90° (H x V) broad coverage pattern

Connectivity & Impedance Matching

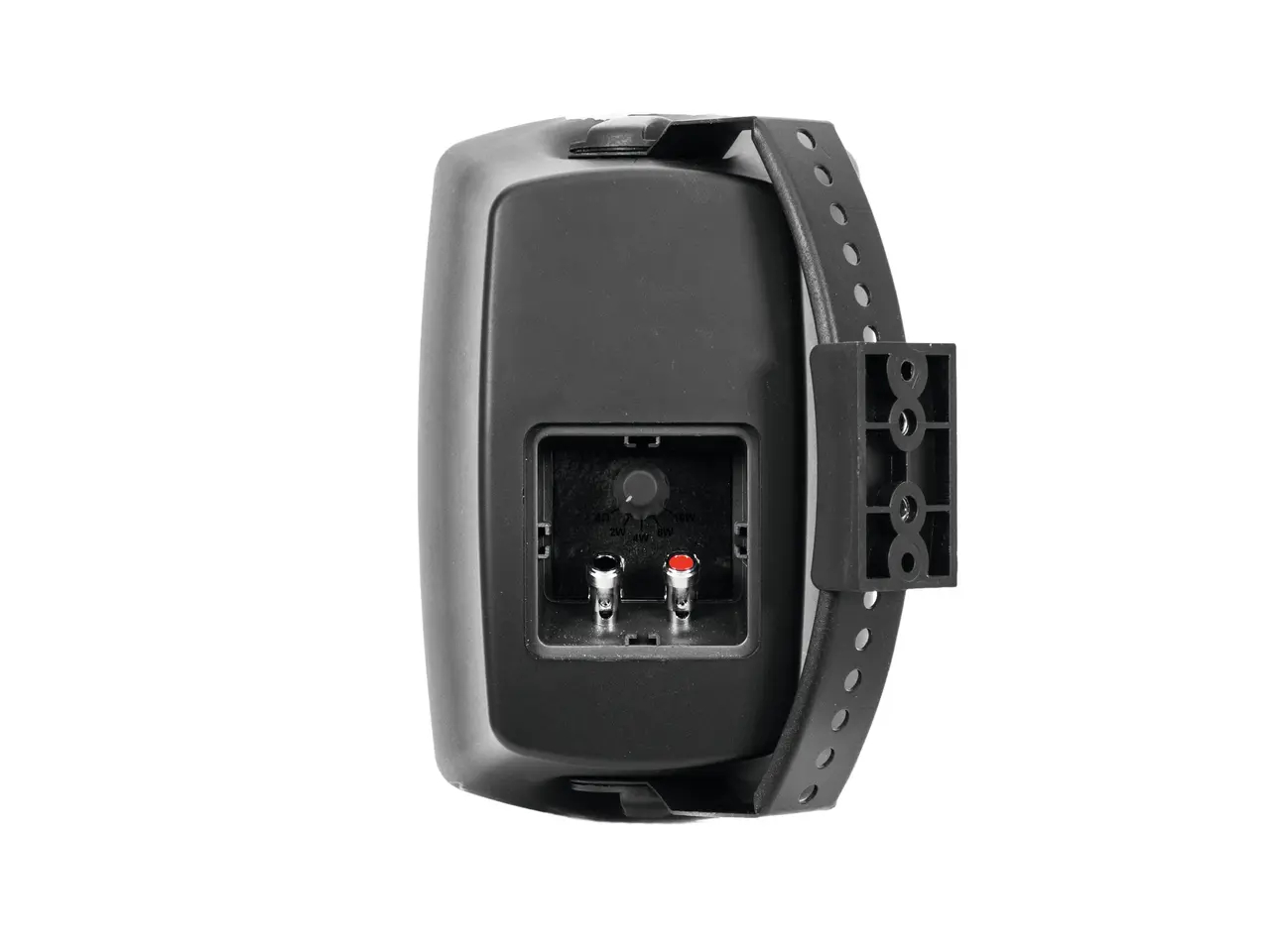

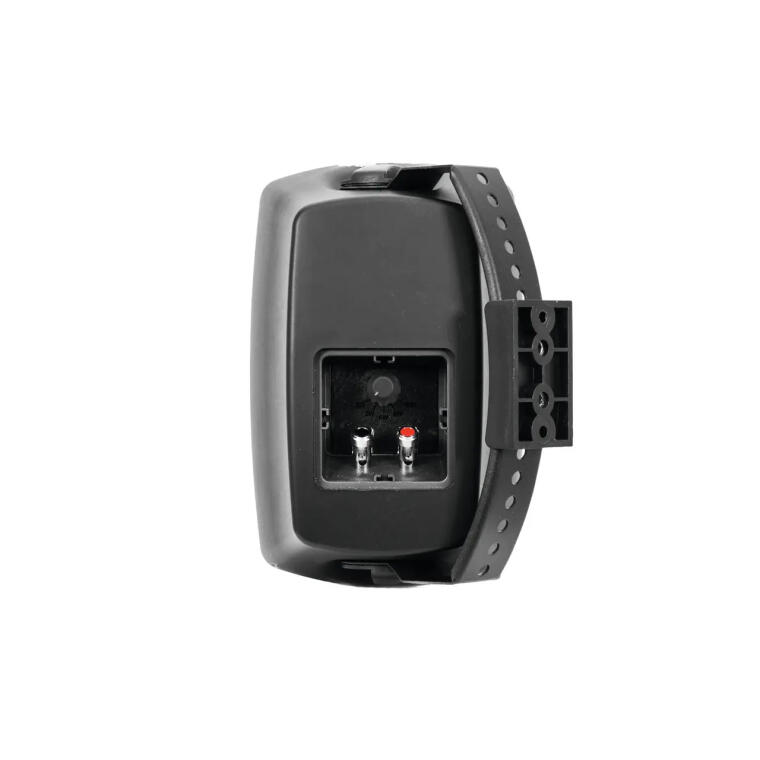

Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections
Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (15W / 7.5W / 3.75W / 8 Ω)

Controls & Adjustment

Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass
Mounting Alignment: Includes mounting bracket for vertical and horizontal pan/tilt adjustment

Enclosure & Hardware

Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)
Front Protection: Perforated steel front grille (black finish)
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
Mounting Hardware: Adjustable wall/ceiling mounting bracket included
Application Modes: Background music, voice announcements, and commercial audio in restaurants, bars, retail stores, fitness centers, offices, and covered outdoor terraces

Physical Specifications

Dimensions (H x W x D): 215 x 150 x 130 mm (8.5" x 5.9" x 5.1")
Weight: 1.8 kg (3.97 lbs)

Accessories Included

Adjustable Wall/Ceiling Mounting Bracket & Hardware
Operating Instructions Manual

Omnitronic OD-4T Black

Overview

Weather-proof wall speaker pair (IP65) with 4" woofers and 30 W RMS

Omnitronic OD-4T Black 100V Line Installation Speaker – Technical Specifications & Setup Guide

System & Power Handling

System Type: Compact passive 2-way wall-mount installation speaker with integrated 100V line transformer

Power Rating: 15 W RMS / 30 W Peak

100V Power Tappings: 15 W, 7.5 W, 3.75 W (selectable via rear rotary switch)

Low Impedance Mode: 8 Ω direct connection bypass option

Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

Low Frequency Driver: 4" (100 mm) woofer with polypropylene cone and rubber surround

High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter

Frequency Response: 100 – 20,000 Hz

Sensitivity: 87 dB (1W/1m)

Max SPL: 98 dB @ 1m

Dispersion Angle: 110° x 90° (H x V) broad coverage pattern

Connectivity & Impedance Matching

Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections

Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (15W / 7.5W / 3.75W / 8 Ω)

Controls & Adjustment

Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass

Mounting Alignment: Includes mounting bracket for vertical and horizontal pan/tilt adjustment

Enclosure & Hardware

Cabinet Material: Weather-resistant ABS plastic enclosure (black finish)

Front Protection: Perforated steel front grille (black finish)

Environmental Protection: IP44 rated for indoor and sheltered outdoor installations

Mounting Hardware: Adjustable wall/ceiling mounting bracket included

Application Modes: Background music, voice announcements, and commercial audio in restaurants, bars, retail stores, fitness centers, offices, and covered outdoor terraces

Physical Specifications

Dimensions (H x W x D): 215 x 150 x 130 mm (8.5" x 5.9" x 5.1")

Weight: 1.8 kg (3.97 lbs)

Accessories Included

Adjustable Wall/Ceiling Mounting Bracket & Hardware

Operating Instructions Manual
