Eagle A180F

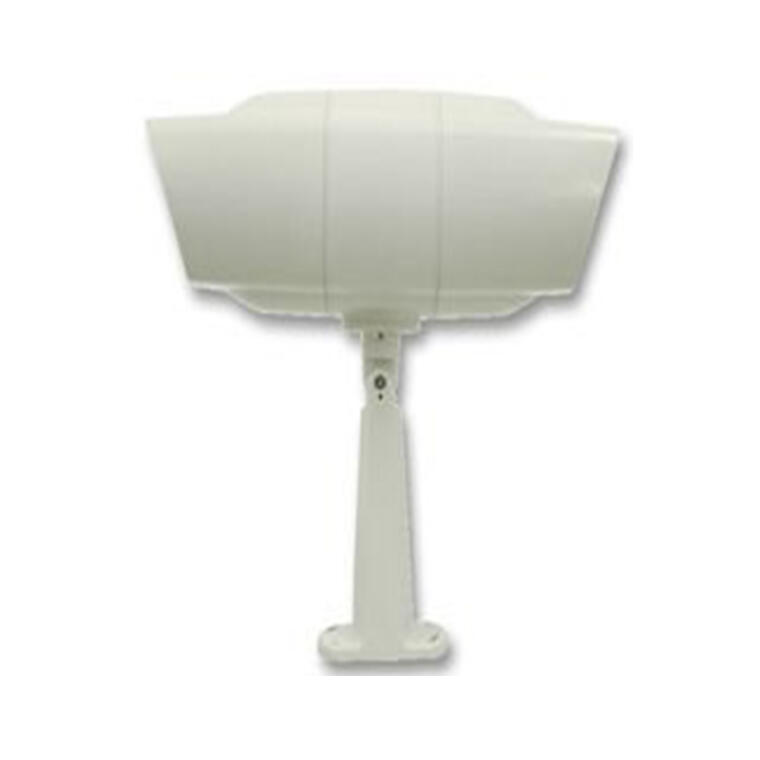

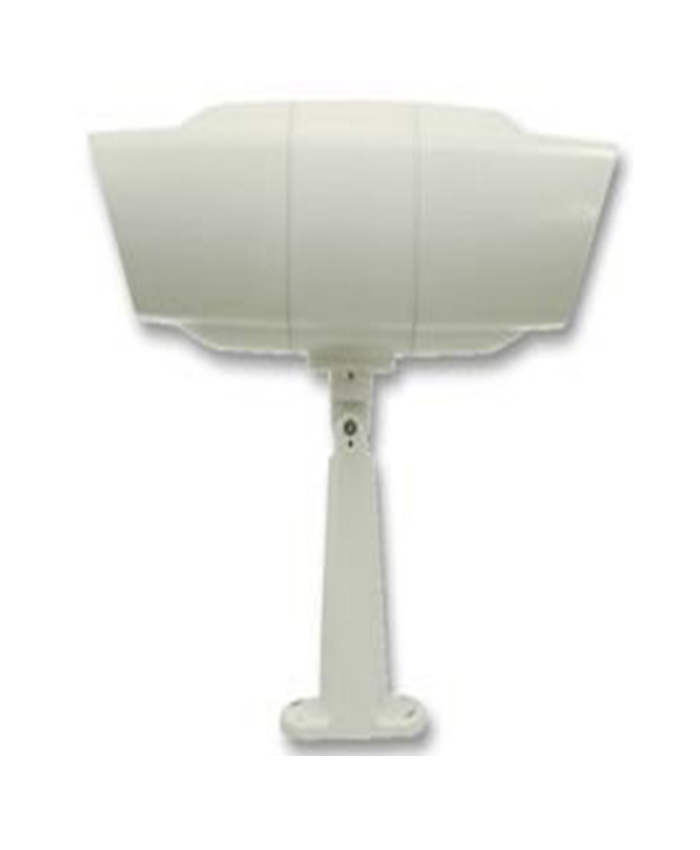

Eagle A180F 100V Line Flush-Mount Ceiling Speaker – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Compact flush-mount public address (PA) ceiling speaker with internal 100V line transformer

• Power Rating: 6 W RMS / 10 W Peak

• 100V Power Tappings: 6 W, 3 W, 1.5 W (selectable via internal transformer wiring leads)

• Low Impedance Mode: 8 Ω direct connection option

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

• Transducer Type: 5" (130 mm) full-range paper cone driver with dual-cone high-frequency whizzer

• Frequency Response: 100 – 15,000 Hz

• Sensitivity / SPL: 90 dB (1W/1m)

• Max SPL: 98 dB @ 1m

• Dispersion Angle: 120° conical broad coverage

Connectivity & Impedance Matching

• Connection Type: Screw terminal block on transformer bracket / color-coded lead wires

• Tapping Selection: Connection to corresponding wattage terminals (6W / 3W / 1.5W / COM)

Controls & Adjustment

• Hardware Controls: Transformer wattage setting selected via primary wiring connections

• Mounting Mechanism: Quick-fit spring-loaded metal torsion clamps for toolless ceiling cutout installation

Enclosure & Hardware

• Housing Material: ABS plastic chassis ring with lightweight steel rear protection housing

• Front Protection: Fine perforated metal front grille (white finish)

• Installation Cutout: Ø 165 mm ceiling cutout diameter

• Application Modes: Discrete flush ceiling background music, voice paging, and public address in offices, retail stores, corridors, reception areas, and hotel lobbies

Physical Specifications

• Dimensions (Diameter x Depth): 190 x 75 mm (7.5" x 3.0")

• Cutout Diameter: Ø 165 mm (6.5")

• Mounting Depth: 70 mm (2.8")

• Weight: 0.85 kg (1.87 lbs)

Accessories Included

• Spring-Loaded Ceiling Mounting Clamps (Pre-attached)

• Installation Cutout Template

• Operating Instructions Manual
