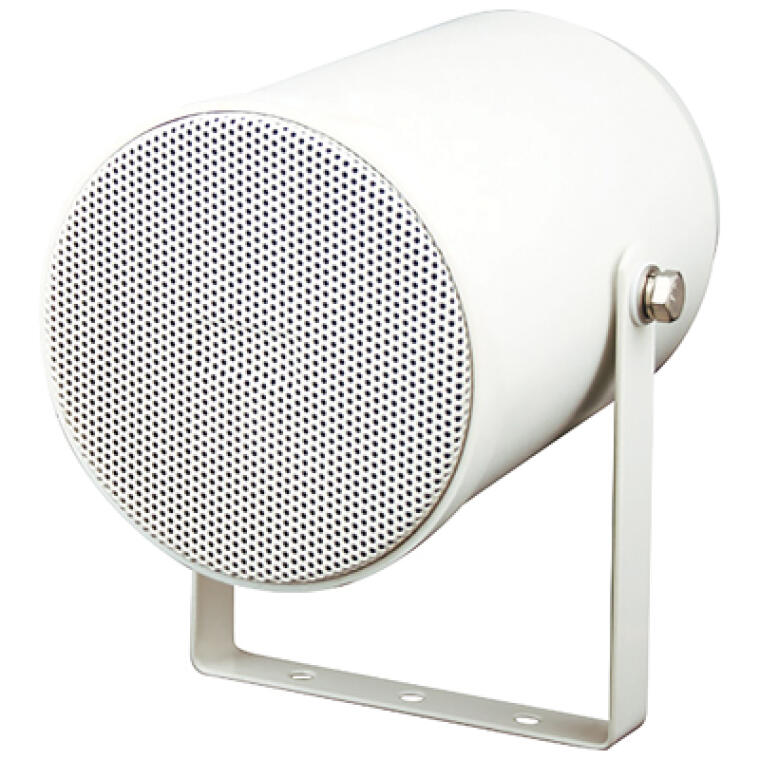

Eagle A180GA

Eagle A180GA 100V Line Outdoor Sound Projector Speaker – Technical Specifications & Setup Guide

System & Power Handling

• System Type: High-output weatherproof 100V line directional sound projector speaker

• Power Rating: 20 W RMS / 30 W Peak

• 100V Power Tappings: 20 W, 10 W, 5 W (selectable via multi-core cable leads / internal transformer connections)

• Low Impedance Mode: 8 Ω direct bypass option

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

• Transducer Type: 6.5" (165 mm) full-range high-efficiency cone driver

• Frequency Response: 110 – 18,000 Hz

• Sensitivity / SPL: 92 dB (1W/1m)

• Max SPL: 105 dB @ 1m

• Dispersion: Wide-angle directional audio projection with controlled beamwidth

Connectivity & Impedance Matching

• Connection Type: Pre-wired multi-core cable tail / internal terminal strip under protective cover cap

• Tapping Selection: Wiring connections for corresponding wattage settings (20W / 10W / 5W / COM)

Controls & Adjustment

• Hardware Controls: Transformer wattage selection via color-coded input leads/terminals

• Orientation: Fully adjustable U-shaped steel mounting bracket for precise vertical tilt and horizontal positioning

Enclosure & Hardware

• Housing Material: UV-stabilized impact-resistant ABS plastic (white finish)

• Front Protection: Perforated powder-coated aluminum front grille

• IP Rating: IPX5 weatherproof rating for outdoor dust and rain resistance

• Mounting Hardware: Heavy-duty adjustable steel mounting U-bracket with locking bolts

• Application Modes: Long-throw public address, voice paging, and background music in sports facilities, railway platforms, car parks, industrial plants, and outdoor retail walkways

Physical Specifications

• Dimensions (Diameter x Length): 180 x 250 mm (7.1" x 9.8")

• Weight: 2.1 kg (4.6 lbs)

Accessories Included

• Adjustable Steel Mounting U-Bracket

• Cable Gland & Protective Rear Cap

• Operating Instructions Manual
