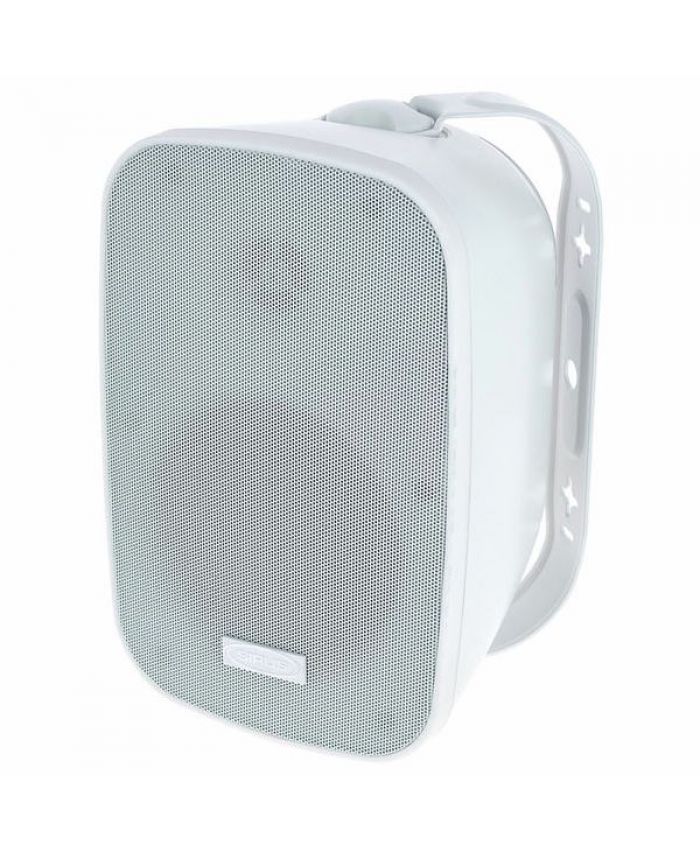

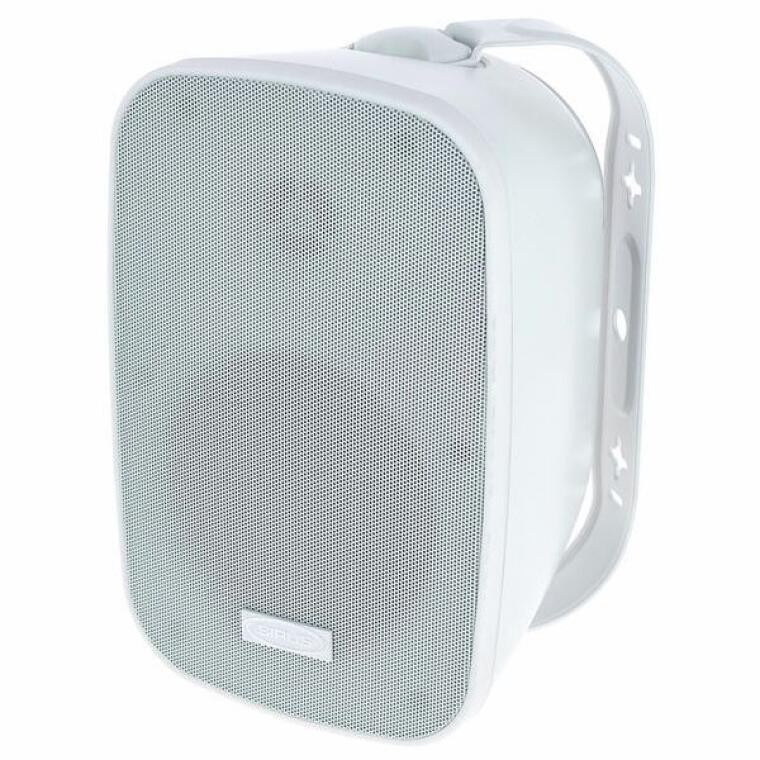

Sirus Reflect 5

Sirus Reflect 5 – Technical Specifications & Setup Guide

System & Power Handling

• System Type: Passive 2-way compact wall-mount installation loudspeaker

• Power Handling: 40 W RMS / 80 W Program / 160 W Peak

• Impedance: 8 Ω (direct low-impedance mode) / 100V line transformer option

• 100V Power Tappings: 30 W, 15 W, 7.5 W, 3.75 W (selectable via rear rotary switch)

• Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems

Audio Performance & Transducers

• Low Frequency Driver: 5.25" (133 mm) woofer with polypropylene cone and rubber surround

• High Frequency Driver: 0.75" (19 mm) silk dome tweeter

• Frequency Response: 75 – 20,000 Hz (-10 dB) / 85 – 18,000 Hz (±3 dB)

• Sensitivity: 88 dB (1W/1m)

• Max SPL: 104 dB @ 1m

• Dispersion Angle: 100° x 80° (H x V)

Connectivity & Impedance Matching

• Connection Type: Screw terminal block / Euroblock (Phoenix) connectors (In / Thru for easy daisy-chaining)

• Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V/70V line transformer settings

Controls & Adjustment

• Hardware Controls: Rear rotary selector for power tapping (30W / 15W / 7.5W / 3.75W / 8 Ω bypass)

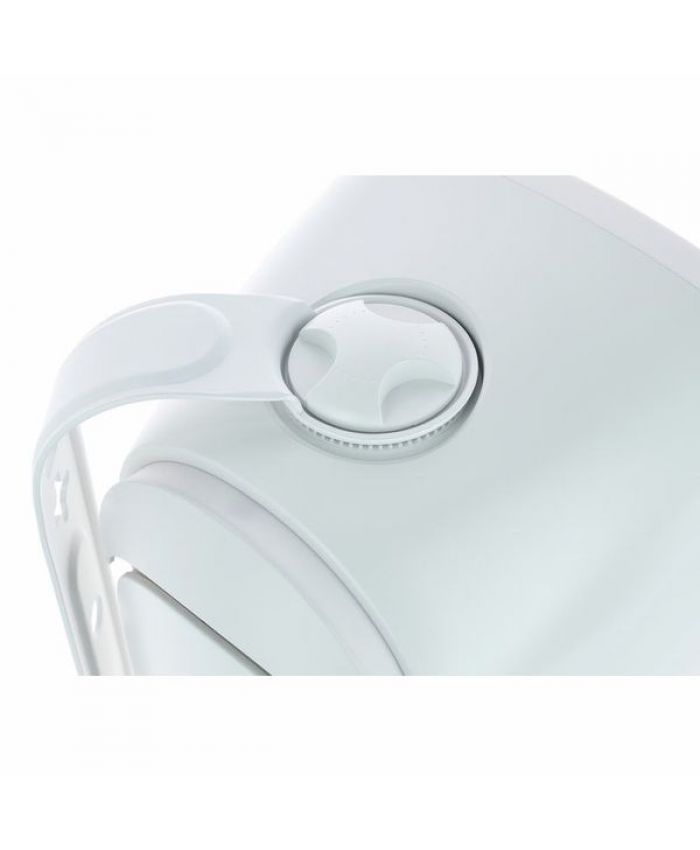

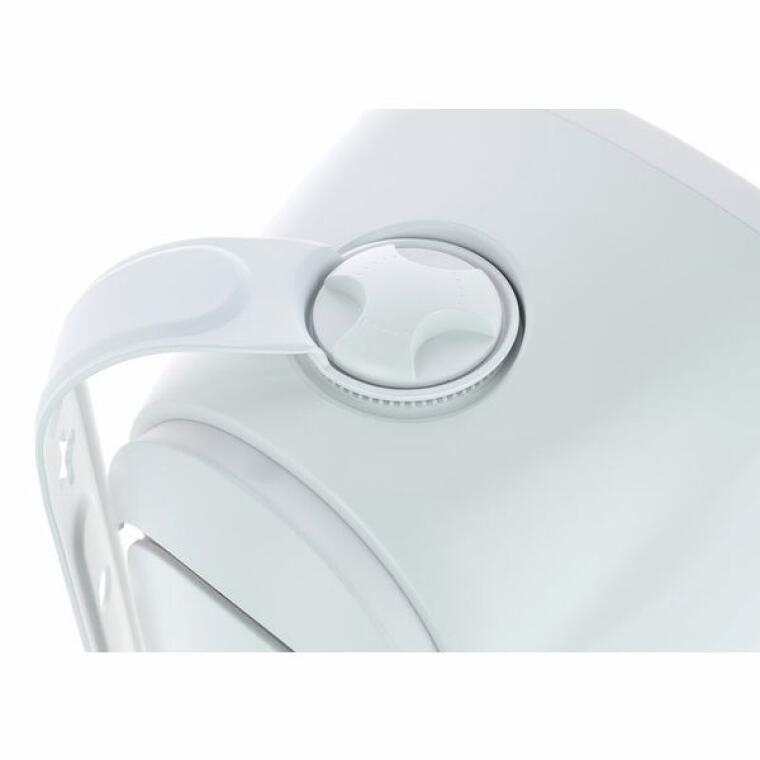

• Mounting Alignment: Ball-joint wall bracket allowing broad horizontal swivel and vertical tilt positioning

Enclosure & Hardware

• Cabinet Material: High-impact ABS plastic housing (available in black or white finish)

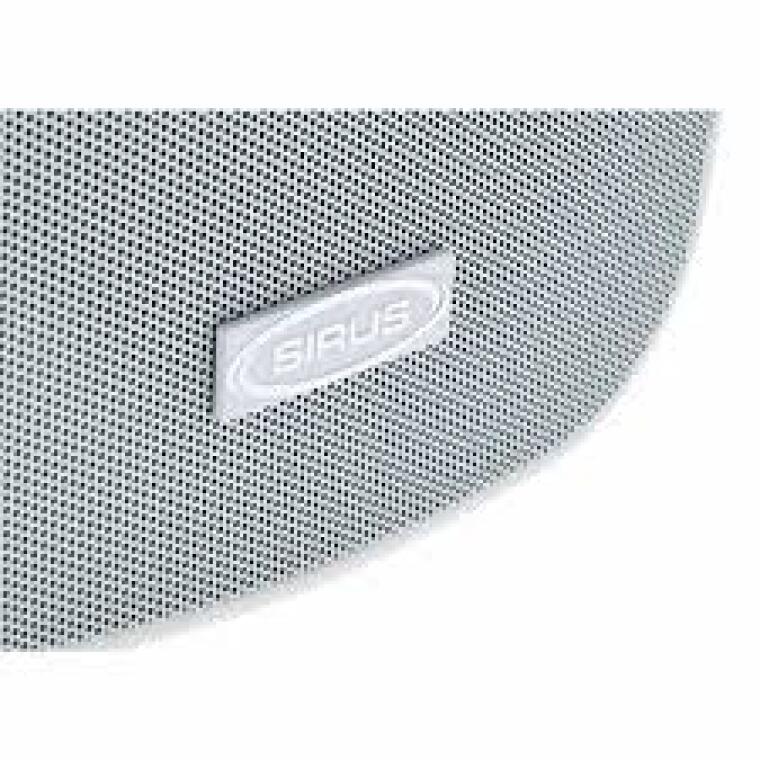

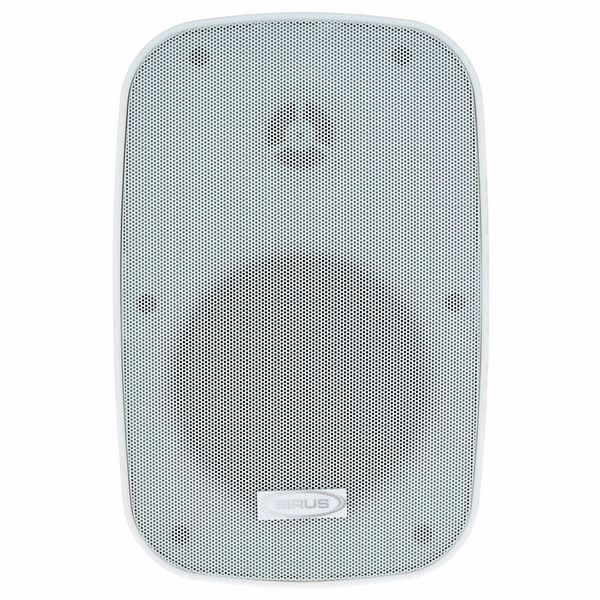

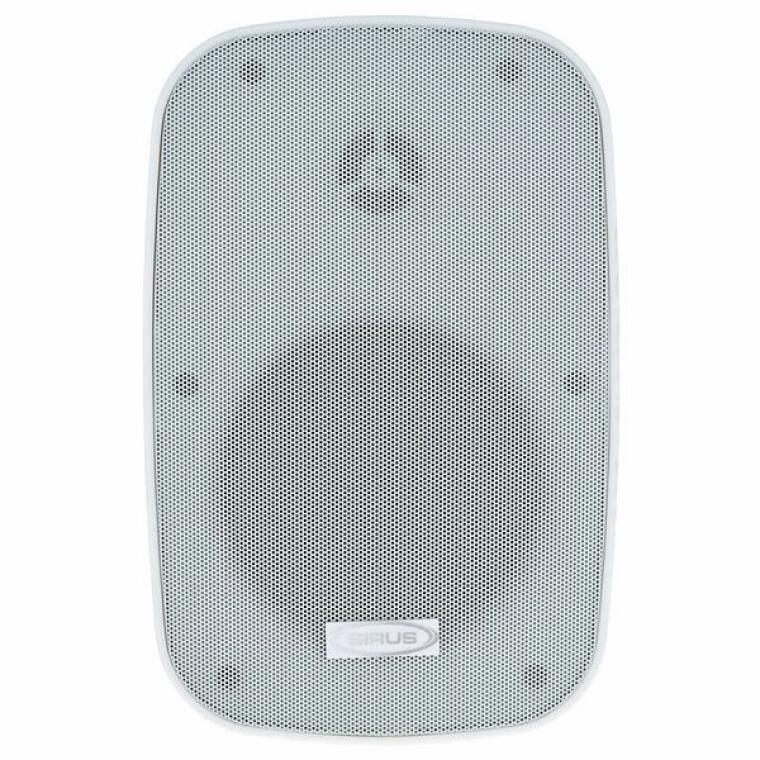

• Front Protection: Powder-coated steel front grille

• Environmental Protection: IP54 rated for indoor and sheltered outdoor installations

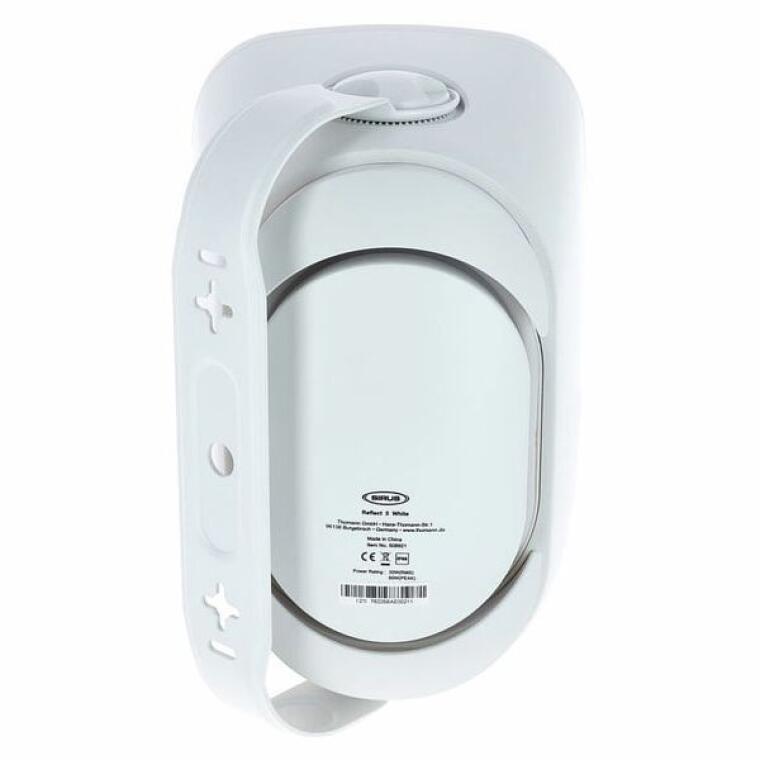

• Mounting Hardware: Heavy-duty adjustable wall-mount ball-joint bracket included

• Application Modes: Background music, commercial sound reinforcement, and voice announcements in restaurants, bars, retail stores, conference rooms, and outdoor patios

Physical Specifications

• Dimensions (H x W x D): 245 x 165 x 160 mm (9.6" x 6.5" x 6.3")

• Weight: 2.8 kg (6.2 lbs)

Accessories Included

• Ball-Joint Wall Mounting Bracket & Hardware

• Euroblock Terminal Connector Plug

• Operating Instructions Manual
