Omnitronic OD-6T White
Price on request
In stock
Interested in this product?
Overview

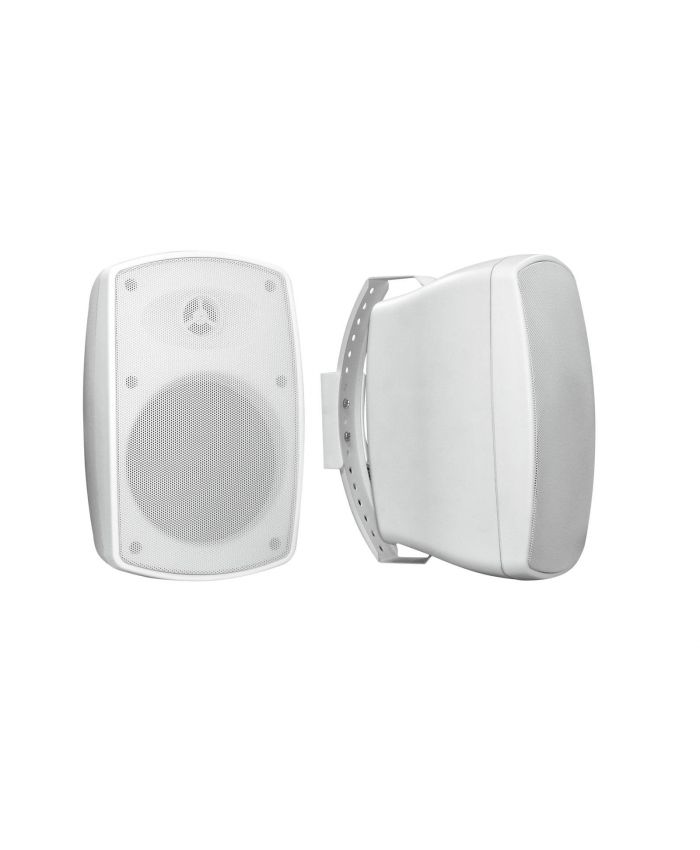

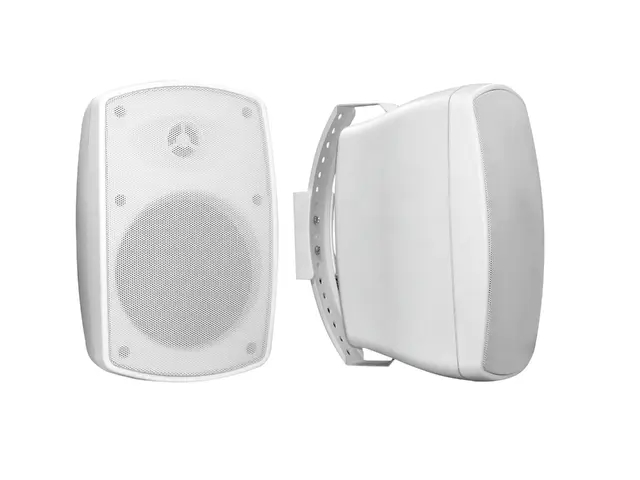

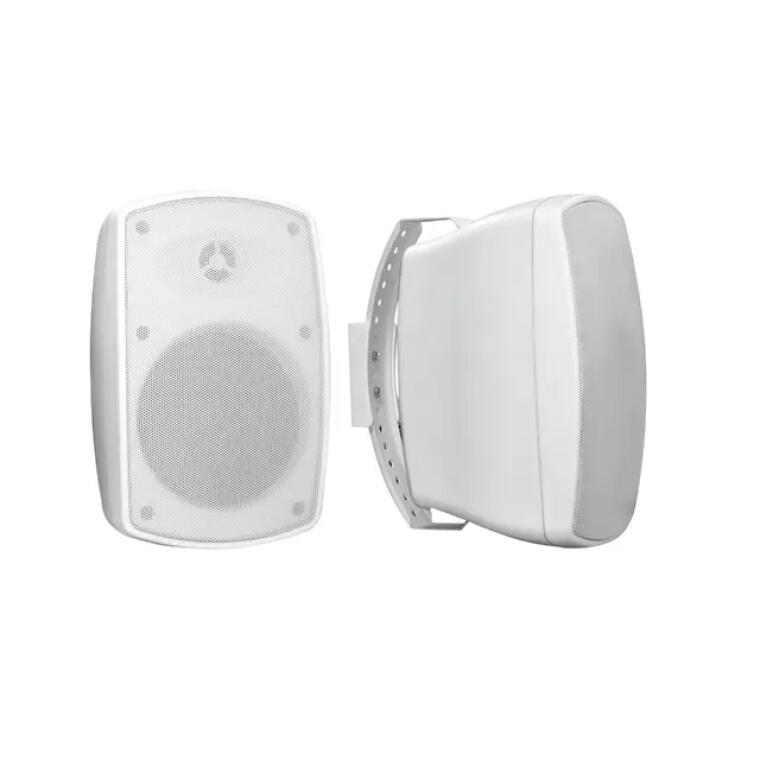

Weatherproof wall speaker pair (IP65) with 6.5" woofers and 32 W RMS
Omnitronic OD-6T
Weatherproof wall speaker pair
The 100 V sound reinforcement speakers OD-6T by OMNITRONIC convince by their very good sound image and are optimally suited for your indoor and outdoor use.
The 2-way system is equipped with a 16.5 cm woofer and a 2.5 cm dome tweeter with silk membrane. The wall-mounted speaker pair features a 100 V transformer with 4 power taps and a power switch with 8 ohm operating position.

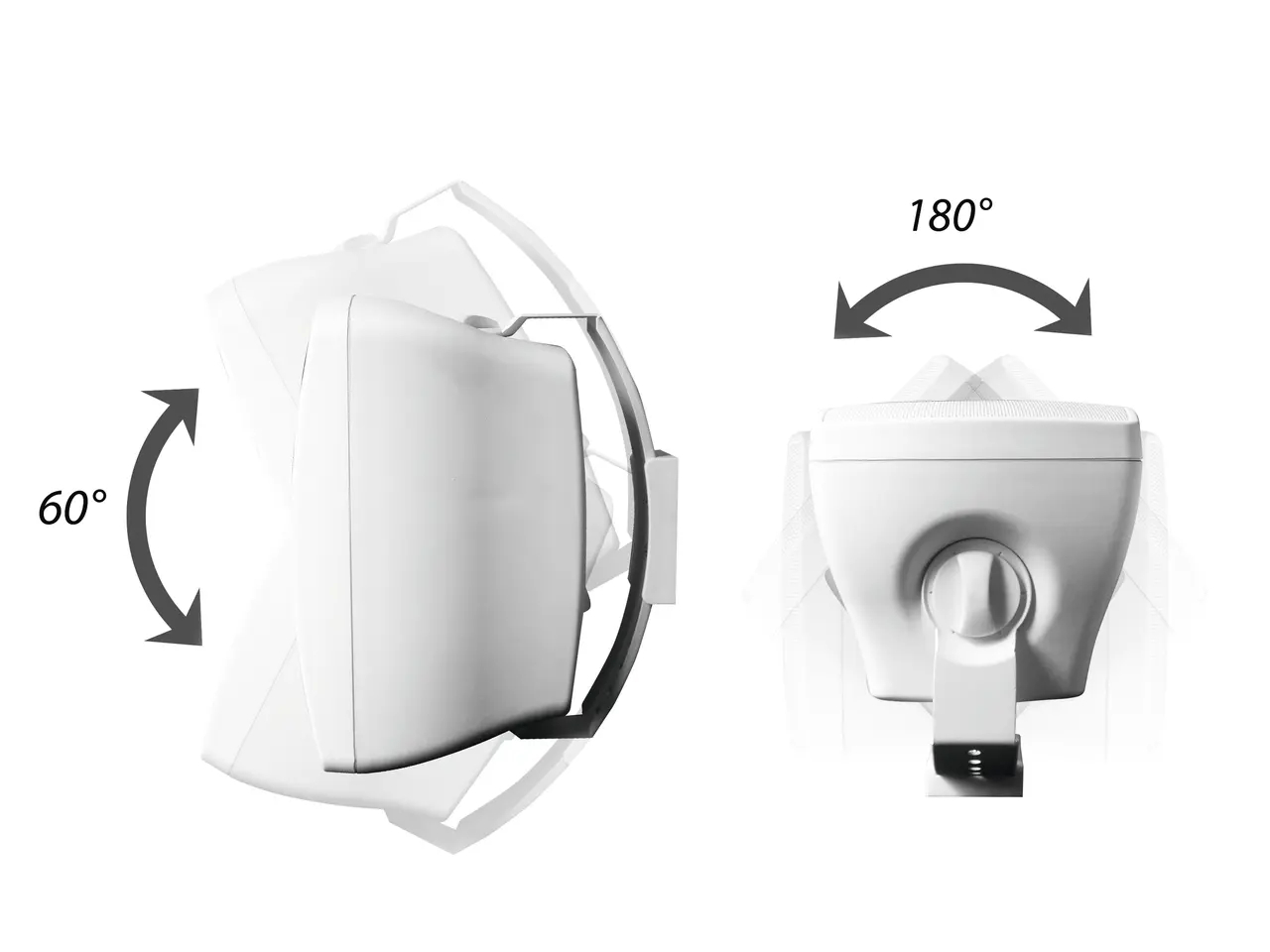

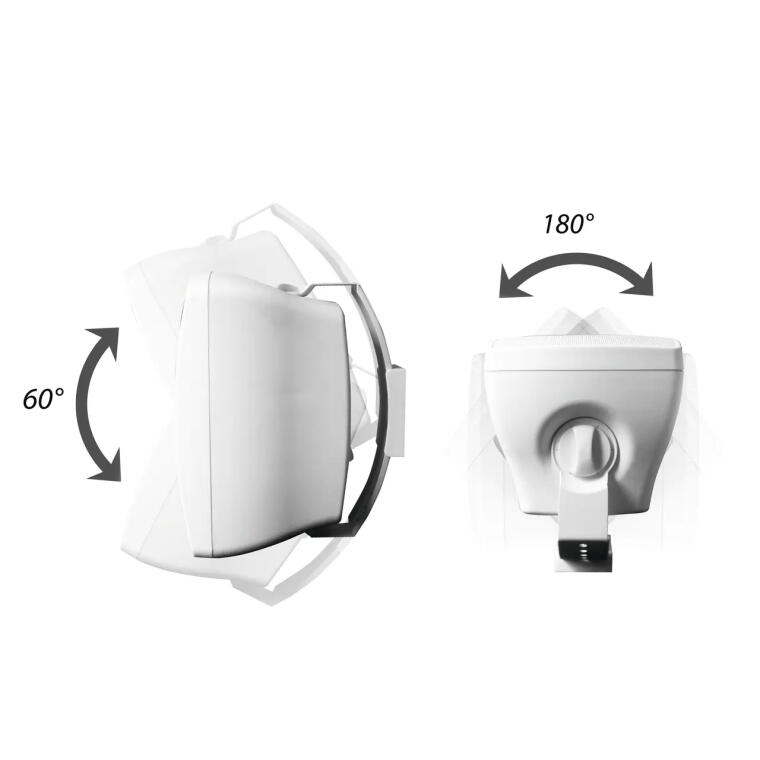

The swivel and tilt mounting bracket allows you to mount the OD-6T speaker cabinets to the wall or ceiling at any angle.
The weatherproof (IP65) plastic housing with metal grid also has a cover over the connections.
The 100 V sound reinforcement speakers OD-6T by OMNITRONIC convince by their very good sound image and are optimally suited for your indoor and outdoor use.
The 2-way system is equipped with a 16.5 cm woofer and a 2.5 cm dome tweeter with silk membrane. The wall-mounted speaker pair features a 100 V transformer with 4 power taps and a power switch with 8 ohm operating position.
The swivel and tilt mounting bracket allows you to mount the OD-6T speaker cabinets to the wall or ceiling at any angle.
The weatherproof (IP65) plastic housing with metal grid also has a cover over the connections.
Weather-proof wall speaker pair (IP65) with 6.5" woofers and 50 W RMS
- 2-way system with 16.5 cm woofer (6.5") and 2.5 cm silk dome tweeter (1")
- Durable plastic cabinet with metal grille and cover for the connectors
- Power selector switch with 8 ohms operating position
- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- White aluminum grille
- Suitable for outdoor use IP65
- 2 pieces per set
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
Omnitronic OD-6T Wall Speaker 100V White – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Passive 2-way wall-mount installation speaker with integrated 100V line transformer
-
Power Rating: 40 W RMS / 80 W Peak
-
100V Power Tappings: 40 W, 20 W, 10 W (selectable via rear rotary switch)
-
Low Impedance Mode: 8 Ω direct connection bypass option
-
Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems
Audio Performance & Transducers
-
Low Frequency Driver: 6.5" (165 mm) woofer with polypropylene cone and rubber surround
-
High Frequency Driver: 0.75" (19 mm) dome tweeter
-
Frequency Response: 70 – 20,000 Hz
-
Sensitivity: 90 dB (1W/1m)
-
Max SPL: 106 dB @ 1m
-
Dispersion Angle: 90° x 60° (H x V) broad coverage pattern
Connectivity & Impedance Matching
-
Connection Type: Screw terminal block / spring-clamp terminals for quick speaker wire connections
-
Switchable Selection: Rear-panel rotary tap switch for 8 Ω bypass and 100V line transformer wattage settings (40W / 20W / 10W / 8 Ω)
Controls & Adjustment
-
Hardware Controls: Rear-panel rotary selector for power tapping and impedance bypass
-
Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment
Enclosure & Hardware
-
Cabinet Material: Weather-resistant ABS plastic enclosure (white finish)
-
Front Protection: Perforated steel front grille (white finish)
-
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
-
Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included
-
Application Modes: Foreground and background music, voice announcements, and commercial sound reinforcement in larger venues, restaurants, retail halls, function rooms, and covered outdoor spaces
Physical Specifications
-
Dimensions (H x W x D): 285 x 205 x 180 mm (11.2" x 8.1" x 7.1")
-
Weight: 3.2 kg (7.05 lbs)
Accessories Included
-
Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware
-
Operating Instructions Manual
