Omnitronic OD-5 White
Price on request
In stock
Interested in this product?
Overview

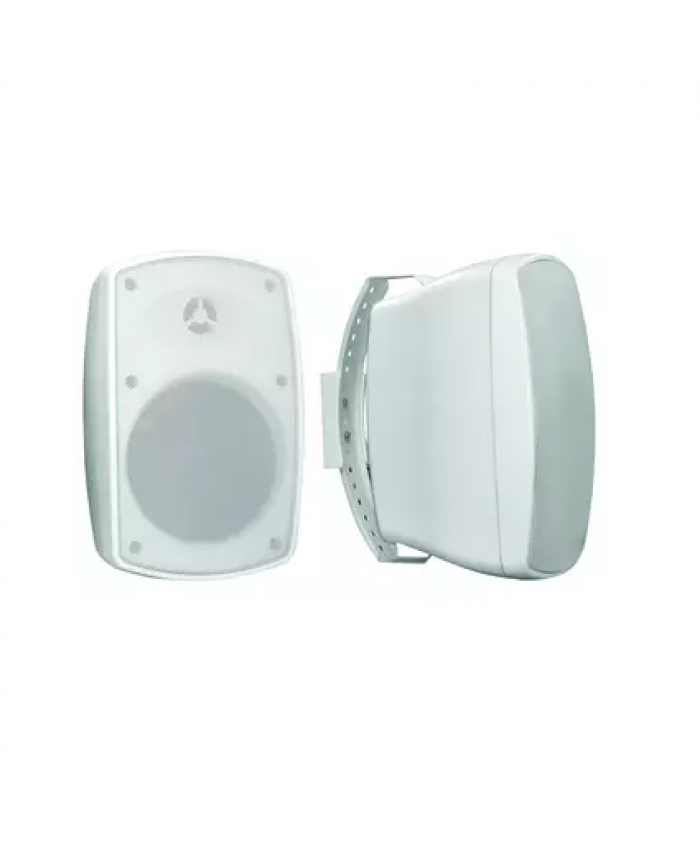

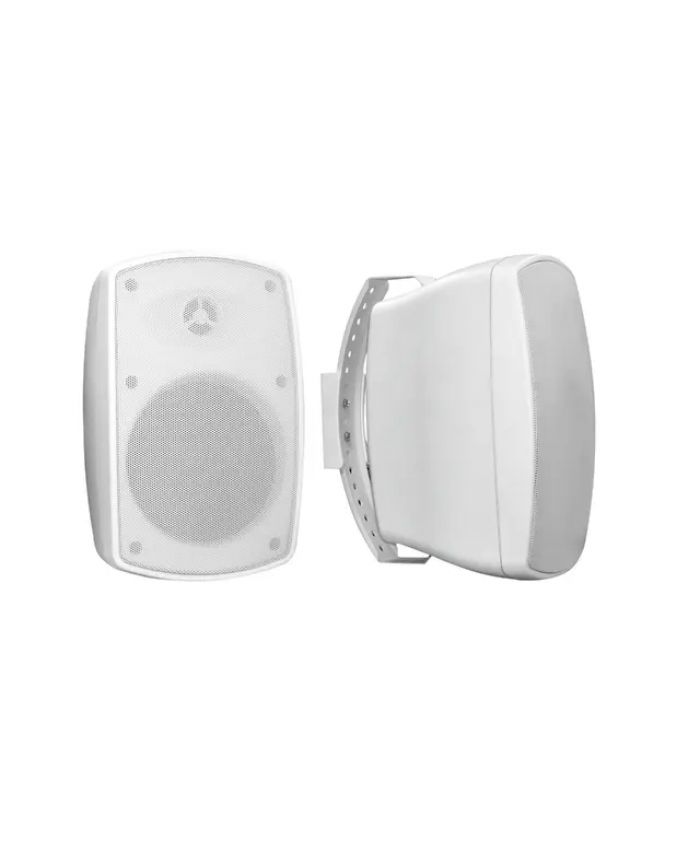

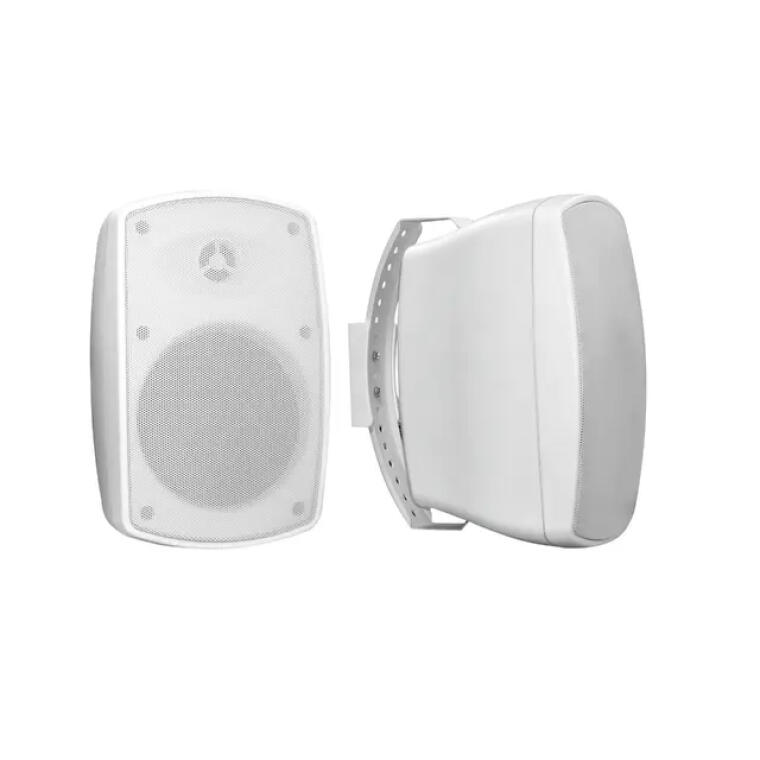

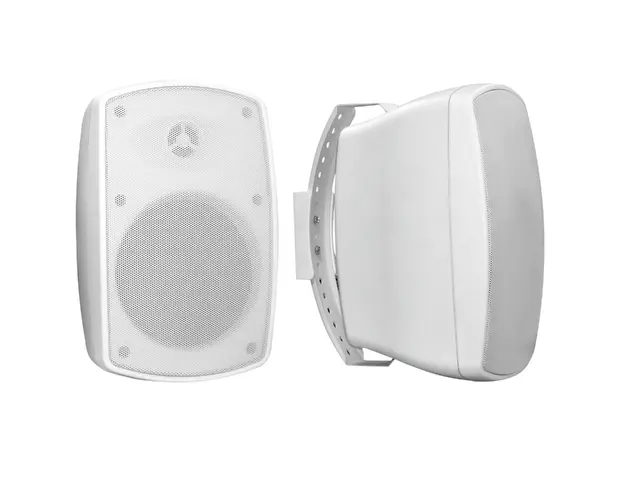

OMNITRONIC OD-5 Wall Speaker 8Ohms white
weather-proof speaker with mount, 5,25" woofer, 0,5" tweeter, 40 W RMS
- 8-ohm PA speaker system for general applications
- 2-way system with 13.5 cm woofer (5.25") and 1.3 cm tweeter (0.5")

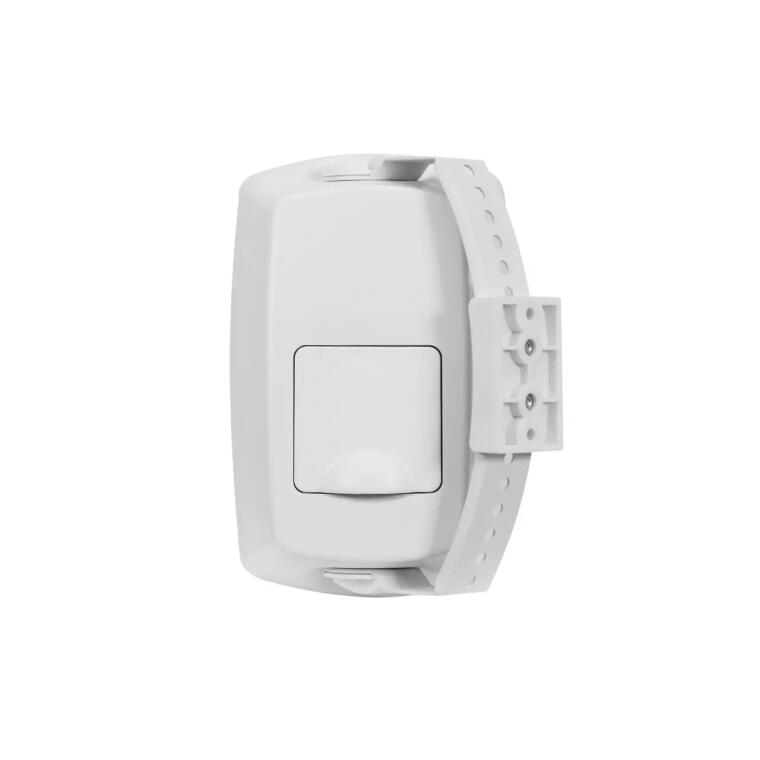

- Durable plastic cabinet with metal grille and cover for the connectors

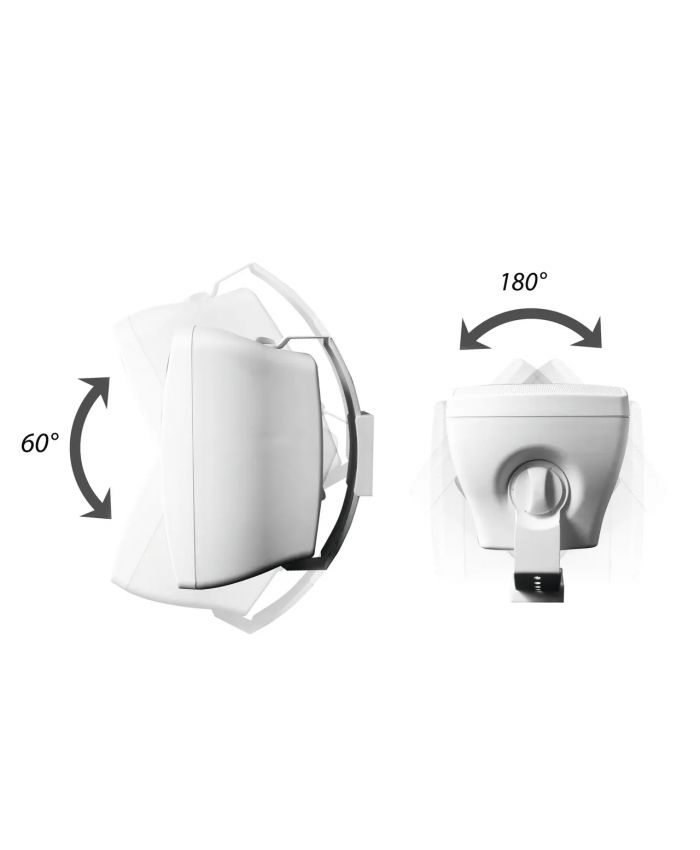

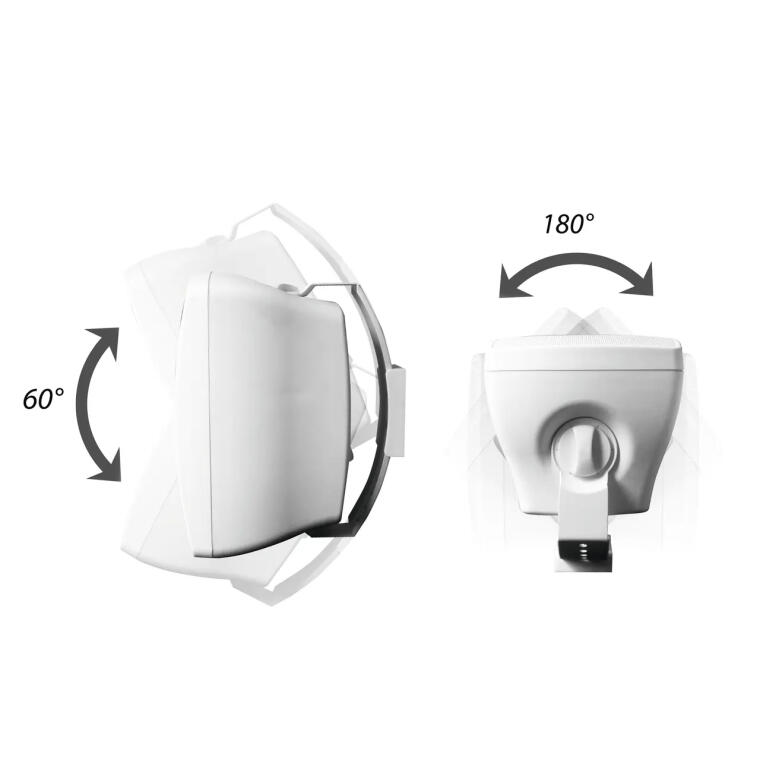

- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- Suitable for outdoor use IP65
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
Omnitronic OD-5 Wall Speaker 8Ohms White – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Passive 2-way wall-mount installation speaker (Low-Impedance only)
-
Power Rating: 30 W RMS / 60 W Peak
-
Impedance: 8 Ω direct connection
-
Operating Voltage: Low-impedance audio amplifiers (4–8 Ω compatible)
Audio Performance & Transducers
-
Low Frequency Driver: 5.25" (133 mm) woofer with polypropylene cone and rubber surround
-
High Frequency Driver: 0.5" (13 mm) Mylar dome tweeter
-
Frequency Response: 85 – 20,000 Hz
-
Sensitivity: 89 dB (1W/1m)
-
Max SPL: 104 dB @ 1m
-
Dispersion Angle: 100° x 80° (H x V) broad coverage pattern
Connectivity & Impedance Matching
-

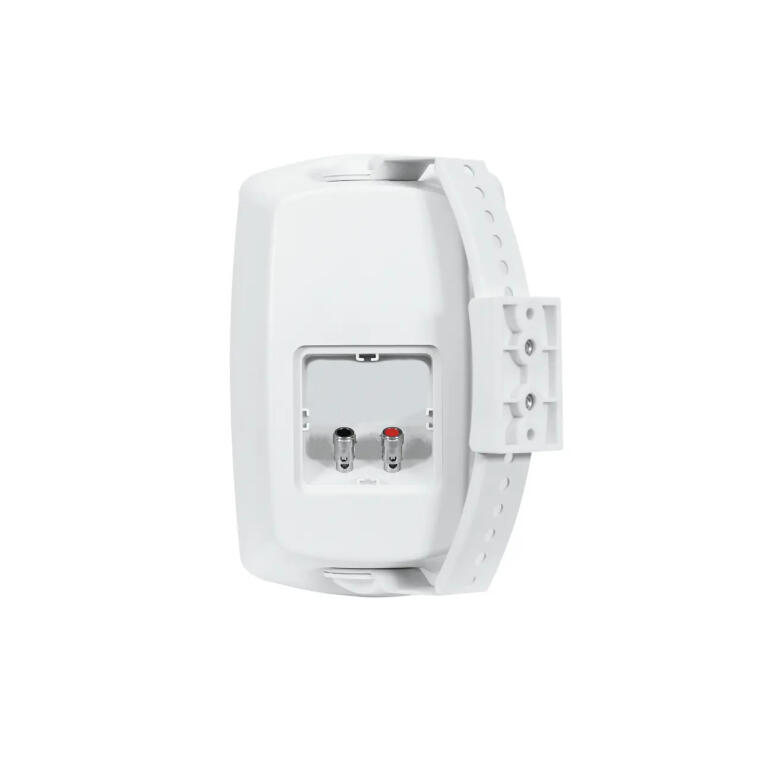

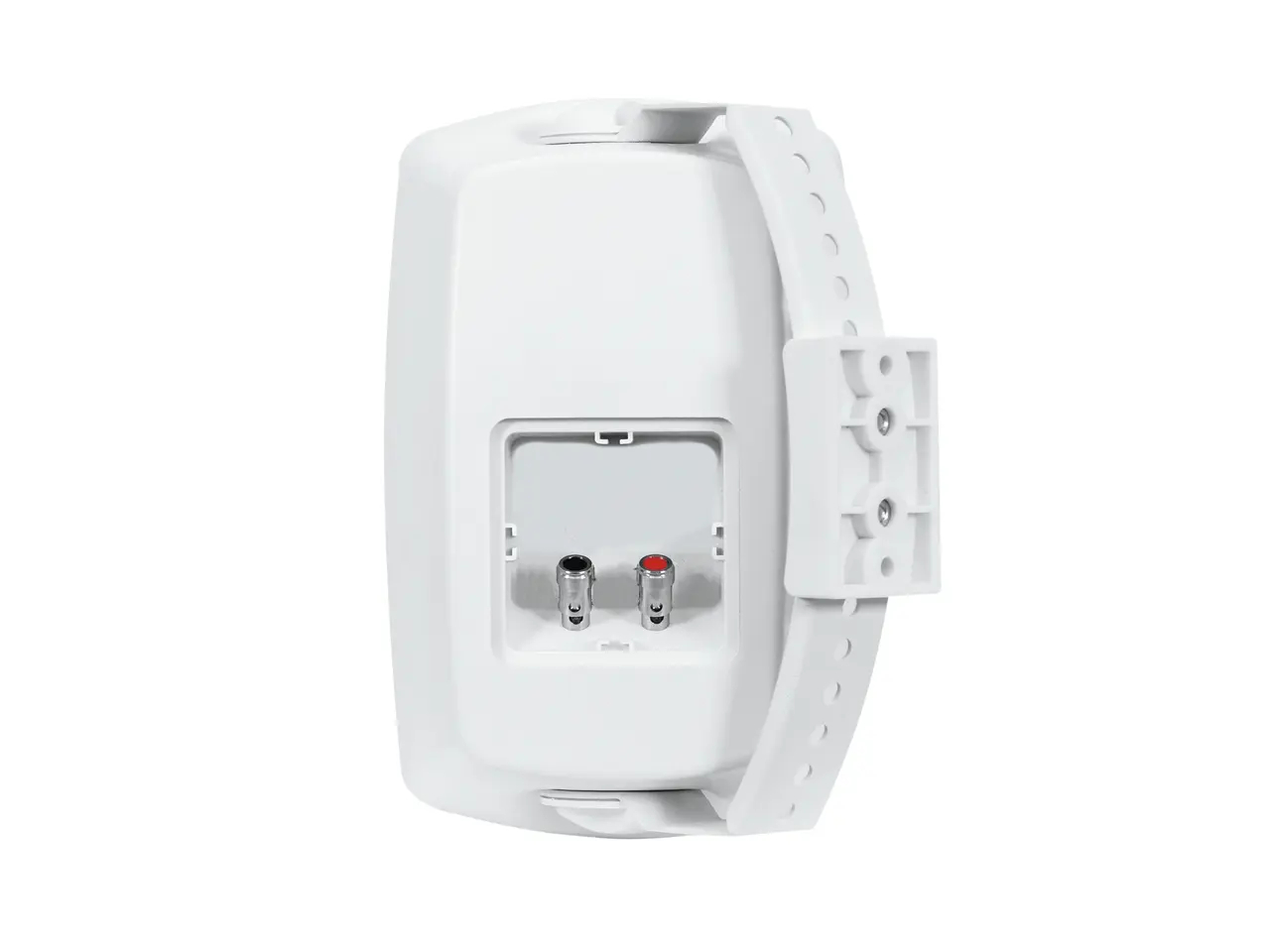

Connection Type: Spring-clamp terminal block for quick raw speaker wire connections
-
Impedance Matching: Fixed 8 Ω low-impedance connection (no 70V/100V line transformer)
Controls & Adjustment
-
Hardware Controls: None (direct 8 Ω low-impedance input)
-

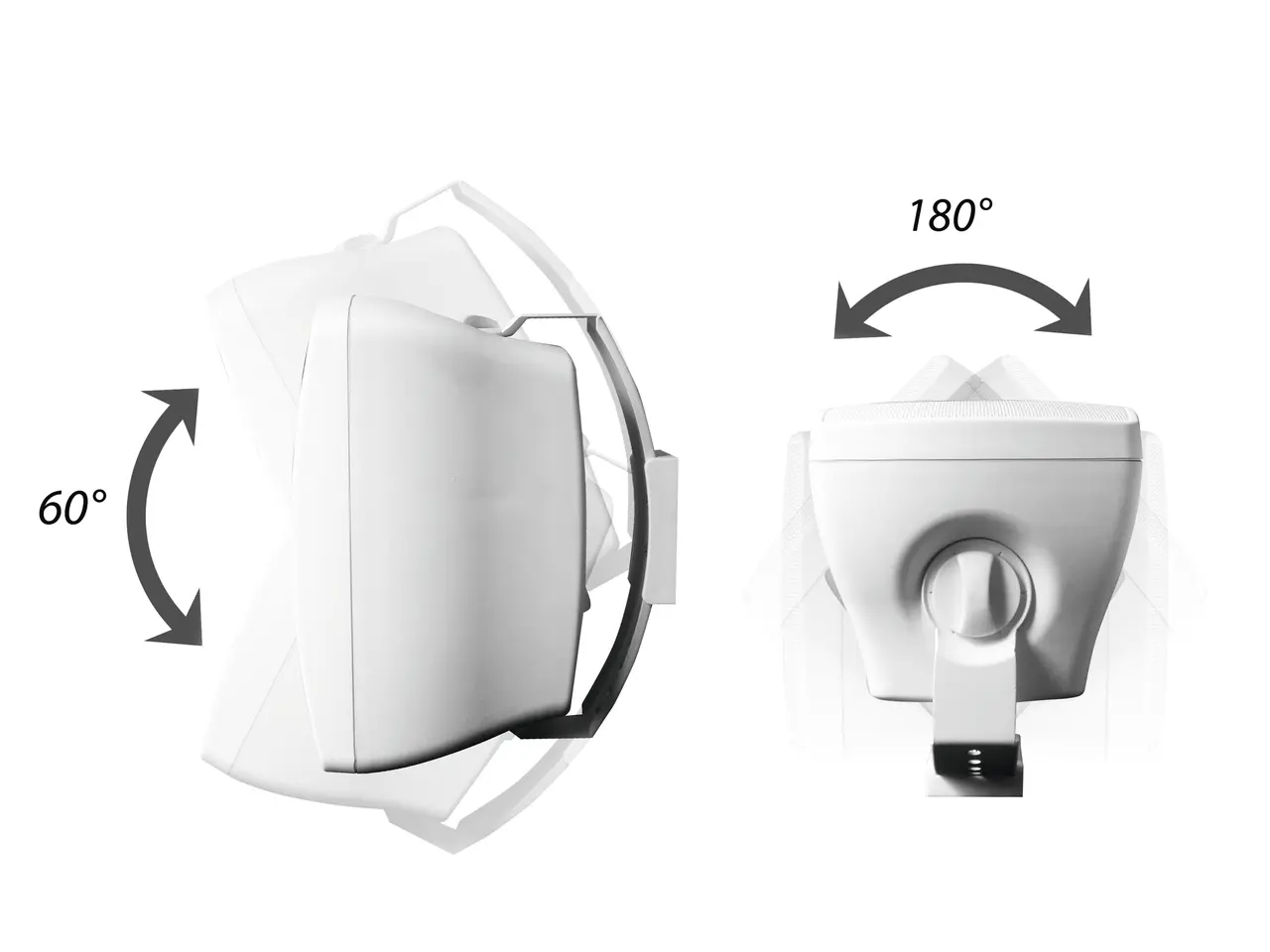

Mounting Alignment: Includes mounting bracket for vertical tilt and horizontal swivel alignment
Enclosure & Hardware
-
Cabinet Material: Weather-resistant ABS plastic enclosure (white finish)
-
Front Protection: Perforated steel front grille (white finish)
-
Environmental Protection: IP44 rated for indoor and sheltered outdoor installations
-

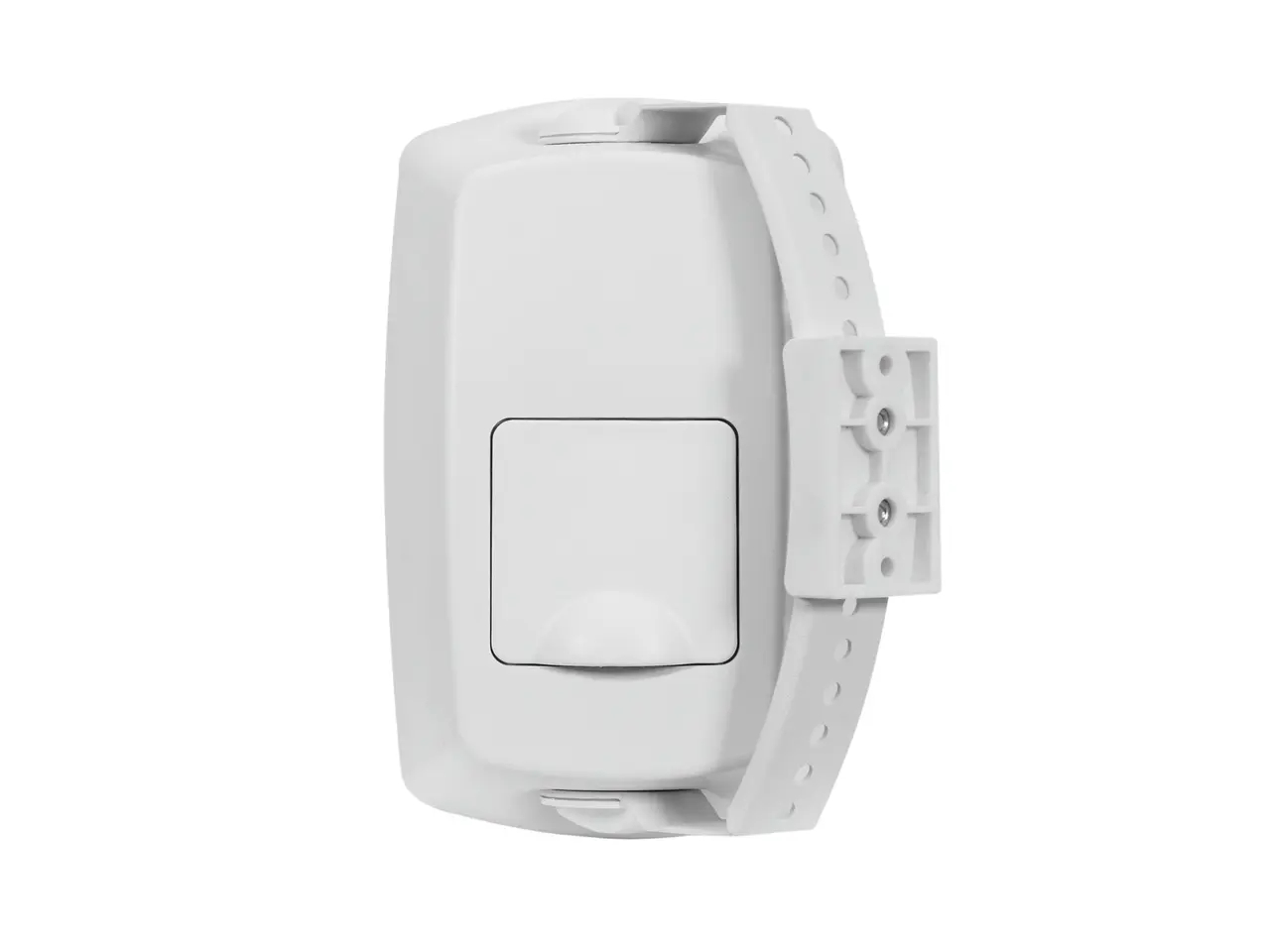

Mounting Hardware: Heavy-duty adjustable wall/ceiling mounting bracket included
-
Application Modes: Low-impedance stereo or multi-zone background music systems in cafes, retail shops, boutique venues, fitness studios, and covered outdoor spaces
Physical Specifications
-
Dimensions (H x W x D): 255 x 180 x 150 mm (10.0" x 7.1" x 5.9")
-
Weight: 1.95 kg (4.3 lbs)
Accessories Included
-
Heavy-Duty Adjustable Wall/Ceiling Mounting Bracket & Hardware
-
Operating Instructions Manual
