Eagle A180BH
Price on request
In stock
Interested in this product?
Overview

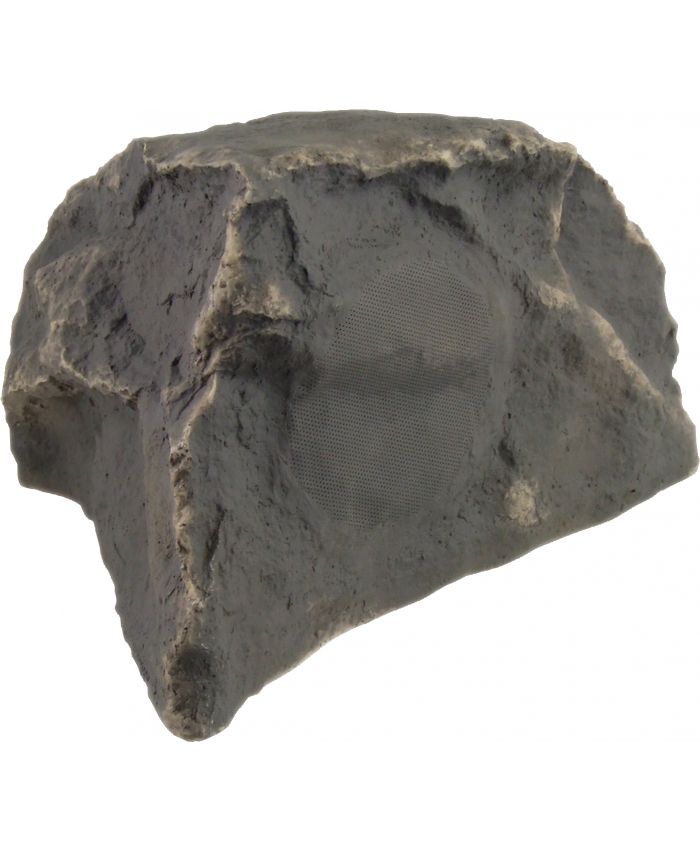

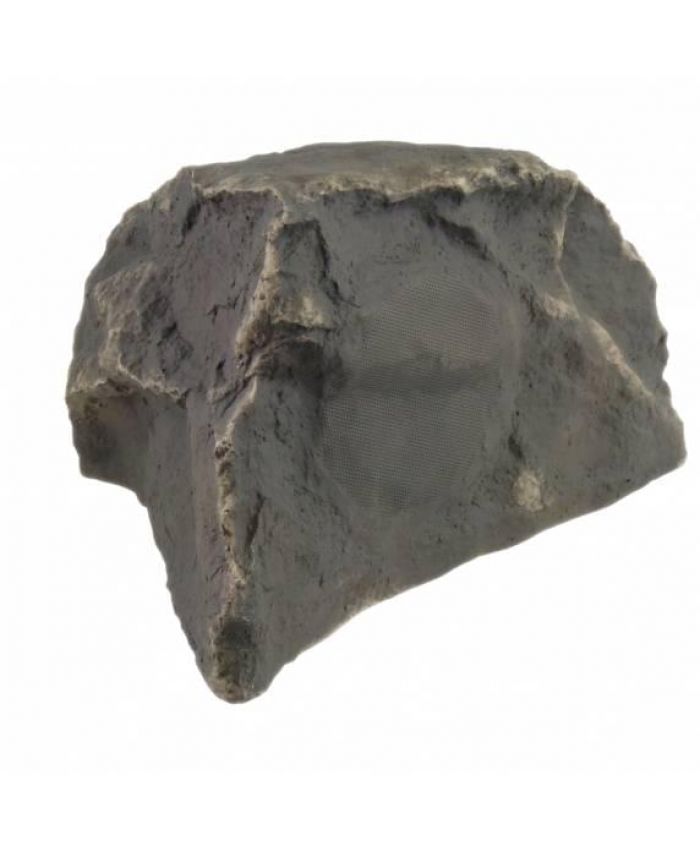

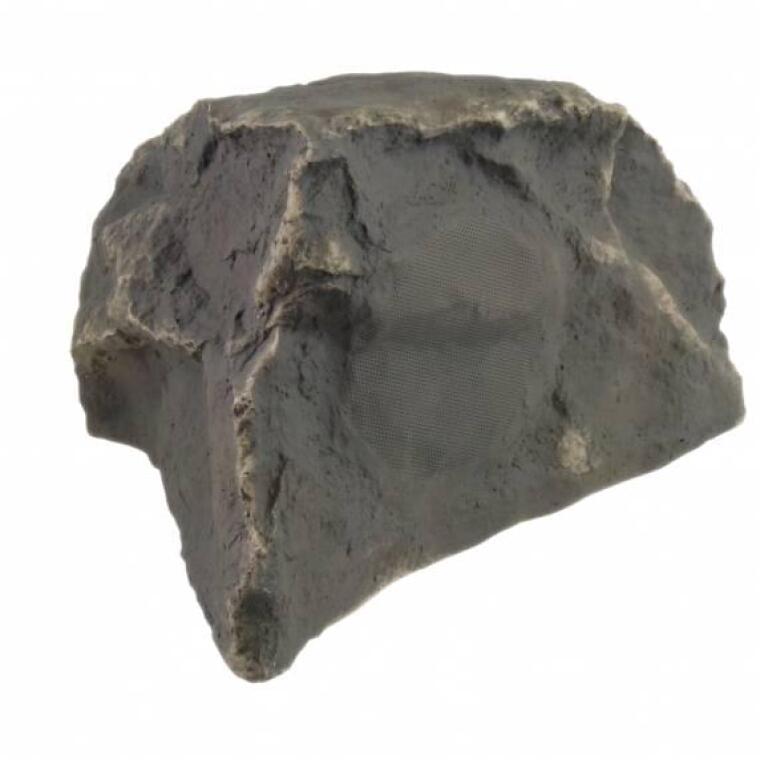

Eagle Outdoor Garden Speaker Slate Rock 120W 8 Ohm
Eagle A180BH
These Slate style 2-way with 8 inch driver and 1 inch tweeter, weatherproof rock speakers are manufactured from high tech plastics, rubber and other materials that have been extensively tested for durability and are weatherproof against rain, snow, etc and have a high-quality sound due to a 5-inch rubber surround dual cone driver. The Outdoor Rock Speaker is constructed from high grade UV stable composite materials and so realistic that they will blend into any garden surround. Relax in a lawn chair or tend your garden while enjoying your favourite tunes in the fresh air this speaker will give many years of enjoyment even in the harshest environments
Eagle A180BH 100V Line High-Output Outdoor Sound Projector Speaker – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Heavy-duty weatherproof 100V line directional sound projector speaker
-
Power Rating: 20 W RMS / 30 W Peak
-
100V Power Tappings: 20 W, 10 W, 5 W (selectable via internal multi-tap transformer wiring)
-
Low Impedance Mode: 8 Ω direct bypass option
-
Operating Voltage: 100V Line PA systems or 8 Ω low-impedance systems
Audio Performance & Transducers
-
Transducer Type: 5.25" (133 mm) high-output full-range driver with treated moisture-resistant cone
-
Frequency Response: 100 – 17,000 Hz
-
Sensitivity / SPL: 92 dB (1W/1m)
-
Max SPL: 105 dB @ 1m
-
Dispersion Angle: 90° conical directional audio projection for medium-to-long throw acoustics
Connectivity & Impedance Matching
-
Connection Type: Pre-wired multi-core cable tail through sealed cable gland / internal terminal block
-
Tapping Selection: Wiring connections for corresponding wattage settings (20W / 10W / 5W / COM)
Controls & Adjustment
-
Hardware Controls: Transformer wattage selection via color-coded input leads/terminals
-
Orientation: Heavy-duty adjustable U-shaped steel mounting bracket for vertical tilt and horizontal alignment
Enclosure & Hardware
-
Housing Material: High-impact UV-stabilized ABS plastic enclosure (white finish)
-
Front Protection: Heavy-duty powder-coated perforated aluminum front grille
-
IP Rating: IPX6 certified weatherproof protection against heavy rain, dust, and harsh outdoor elements
-
Mounting Hardware: Stainless steel adjustable U-bracket with security locking bolts
-
Application Modes: Public address, voice paging, and background music in medium-to-large commercial venues, transit platforms, car parks, outdoor retail passages, and industrial complexes
Physical Specifications
-
Dimensions (Diameter x Length): 140 x 230 mm (5.5" x 9.1")
-
Weight: 2.15 kg (4.7 lbs)
Accessories Included
-
Adjustable Stainless Steel Mounting U-Bracket
-
Waterproof Cable Gland Assembly
-
Operating Instructions Manual
