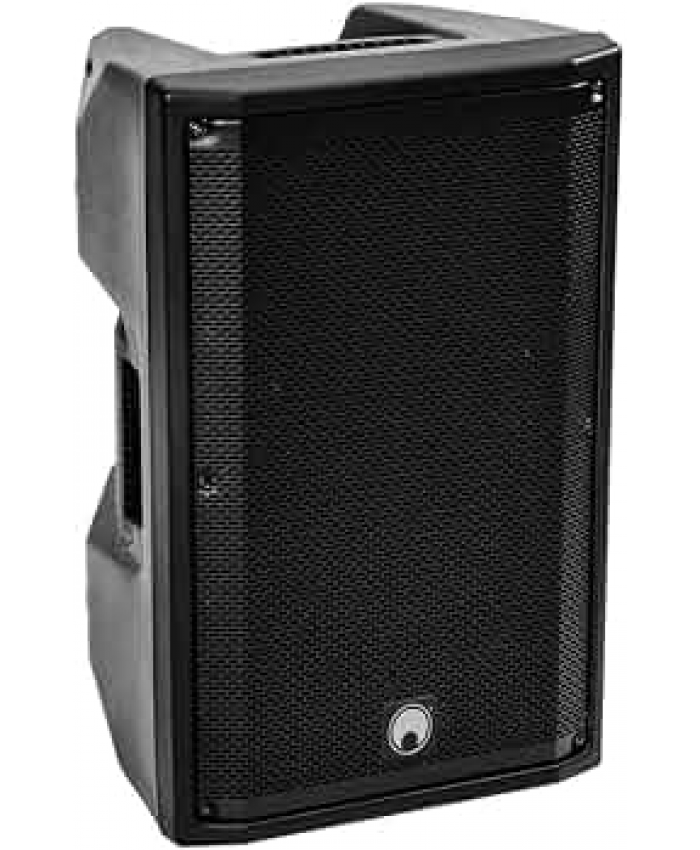

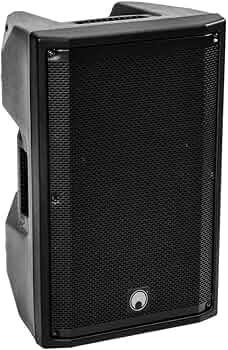

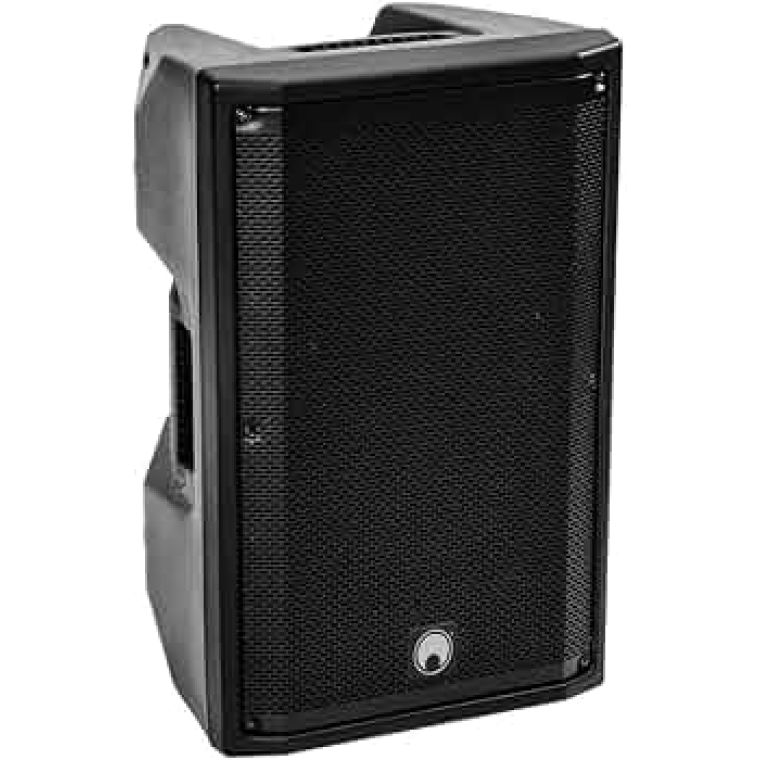

Omnitronic XKB-212A
€365.00
incl. VAT
In stock
Interested in this product?
Overview
OMNITRONIC XKB-212A 2-way Speaker, active, DSP
- Active PA speaker system for touring applications and permanent installations
- DSP-controlled biamp amplifier (LF class D, HF class A/B)
- 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
- Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
- 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Digital signal processor
- DSP presets: LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
- Control via Bluetooth
- LCD display
- Black metal grille with acoustic foam
- 3 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; rental; sports centres/gyms; mobile djs / entertainer
Omnitronic XKB-212A – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Active 2-way bass-reflex PA speaker system with DSP
-
Power Rating: 300 W RMS (LF 250 W Class-D + HF 50 W Class-AB)
-
Program Power: 600 W Peak
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: Max. 400 W
Audio Performance & Transducers
-
Low Frequency Driver: 12" (30 cm) woofer with 2" voice coil
-
High Frequency Driver: 1" (2.5 cm) compression driver with 1.35" voice coil
-
Frequency Range: 50 – 20,000 Hz
-
Max SPL: 121 dB
-
Dispersion Angle: 90° x 60° (H x V)
-
Signal Processing: DSP with 4 selectable sound presets (LIVE, MUSIC, SPEECH, DJ/CLUB)
Connectivity & Signal Routing
-
Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)
-
Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack / RCA pair
-
Wireless Connectivity: Integrated Bluetooth audio receiver for wireless streaming
-
Line Output: 1 x XLR line output (Mix Out) for daisy-chaining additional active systems

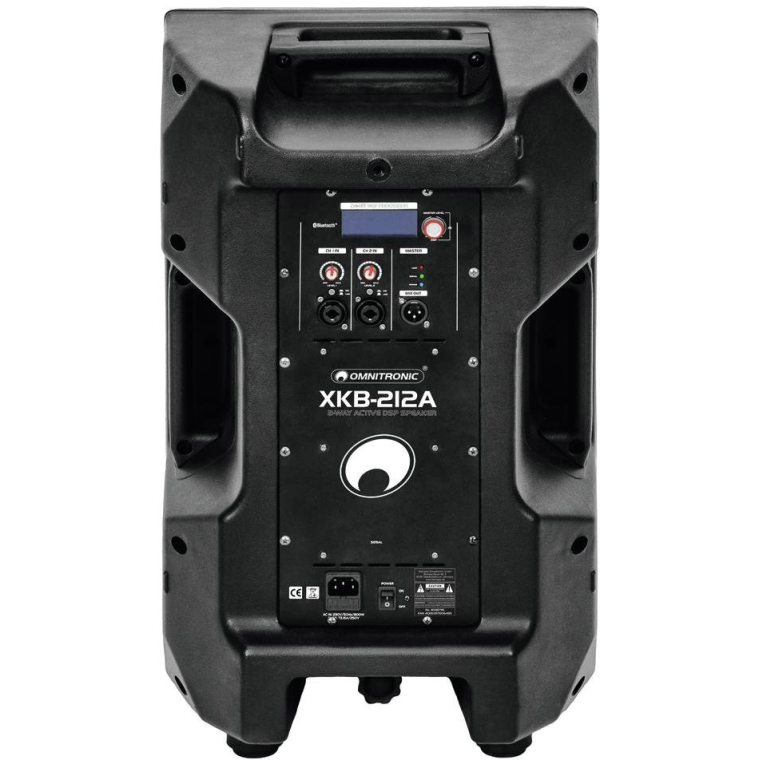

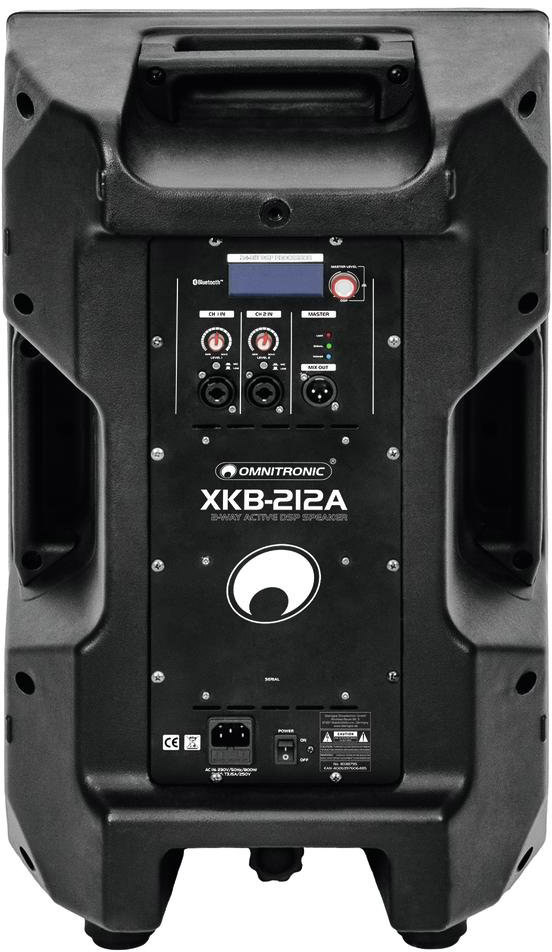

Controls & Indicators
-
Control Elements: Master Volume control, DSP Preset Selector, Channel 1 & 2 Gain controls, Line/Mic switches
-
Indicators: DSP mode LEDs, Power status LED, Signal/Limit LED
Enclosure & Hardware
-
Cabinet Material: High-impact ABS plastic chassis (black)
-
Front Protection: Heavy-duty black metal grille with acoustic foam
-
Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket, M10 rigging points for hanging installation
-
Handles: 3 x Ergonomic carrying handles (top and dual side)
-
Application Modes: Main PA speaker (upright/pole-mounted), stage monitor (angled cabinet side)
Physical Specifications
-
Dimensions (W x D x H): 380 x 365 x 610 mm (15.0" x 14.4" x 24.0")
-
Weight: 13.8 kg (30.4 lbs)
Accessories Included
-
Mains Power Cable
-
Operating Instructions Manual
