Omnitronic WAMS-65BT

€189.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

Wireless PA System with cordless mic

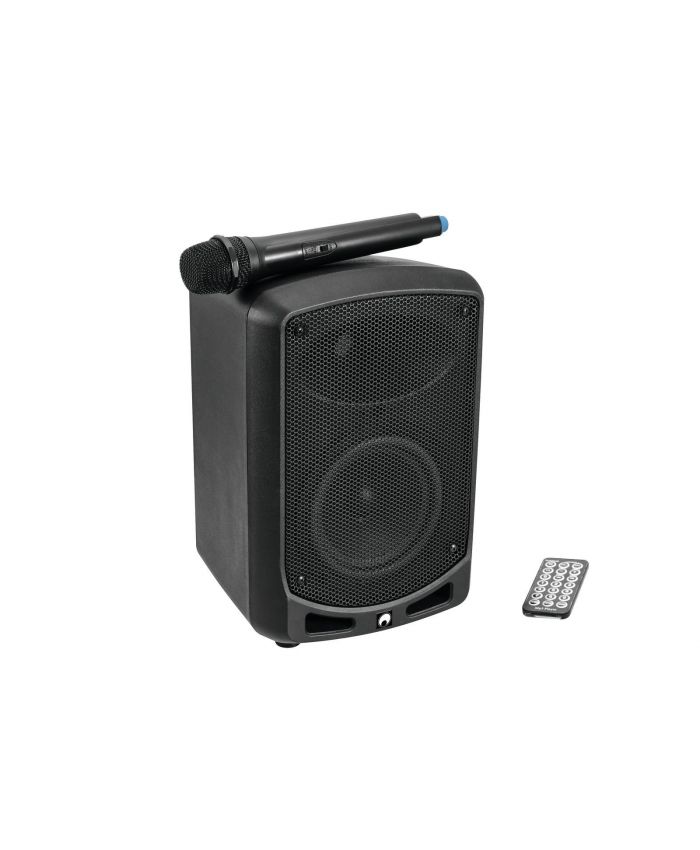

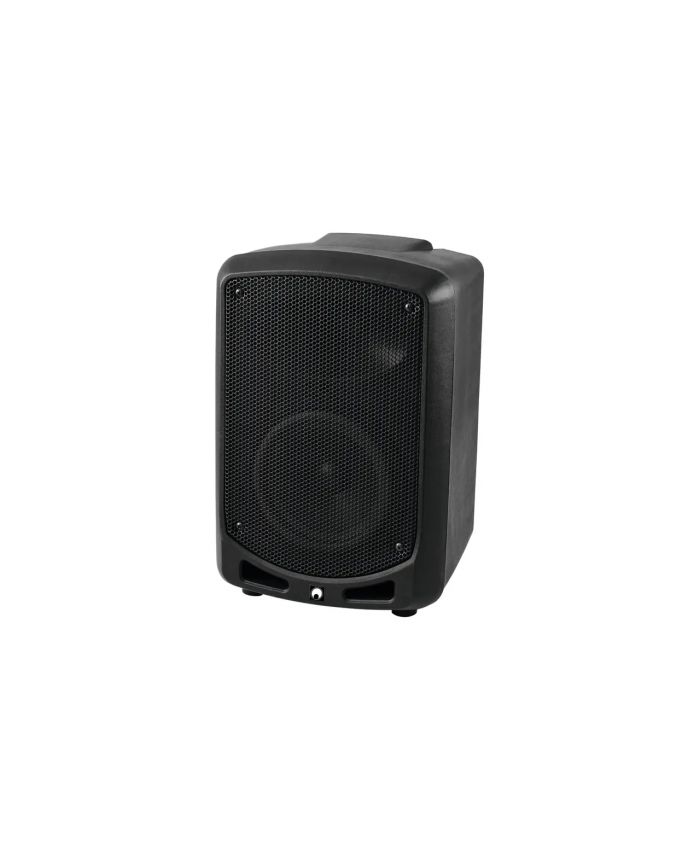

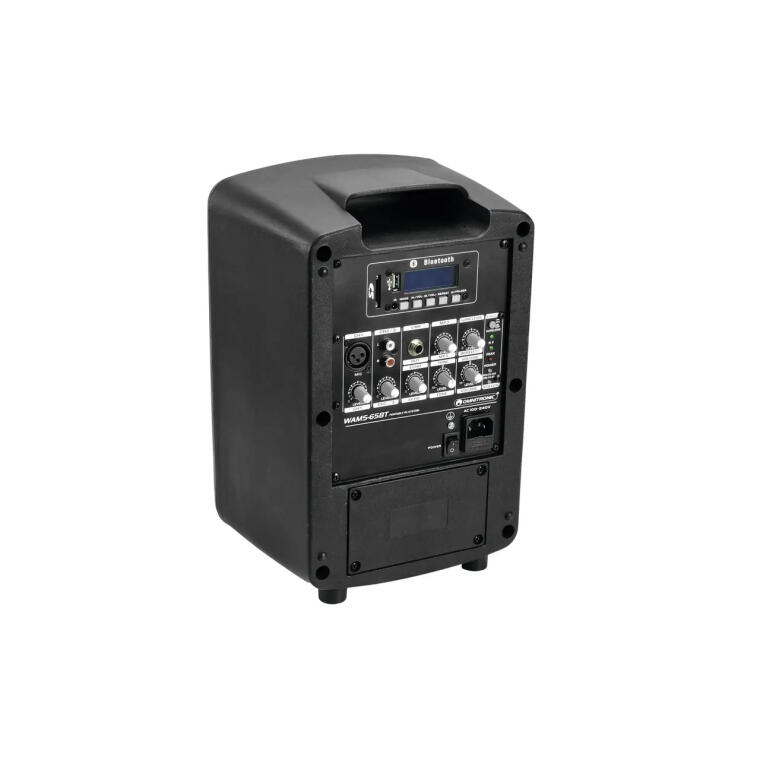

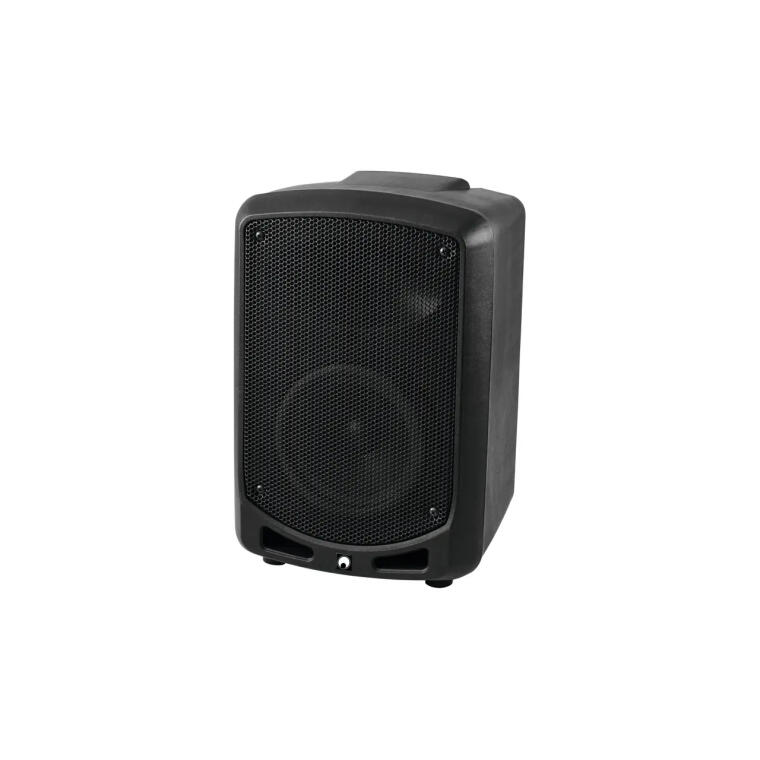

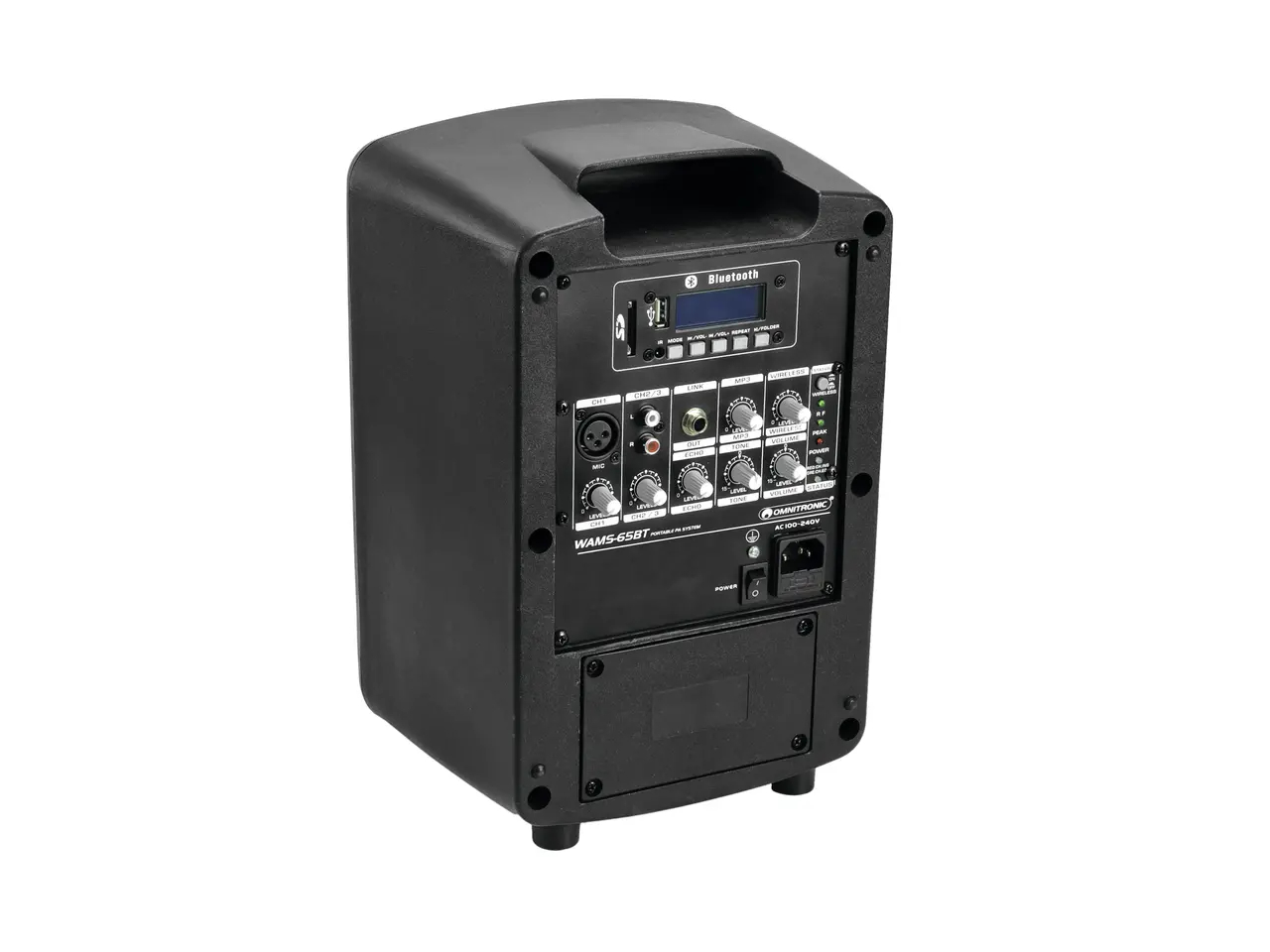

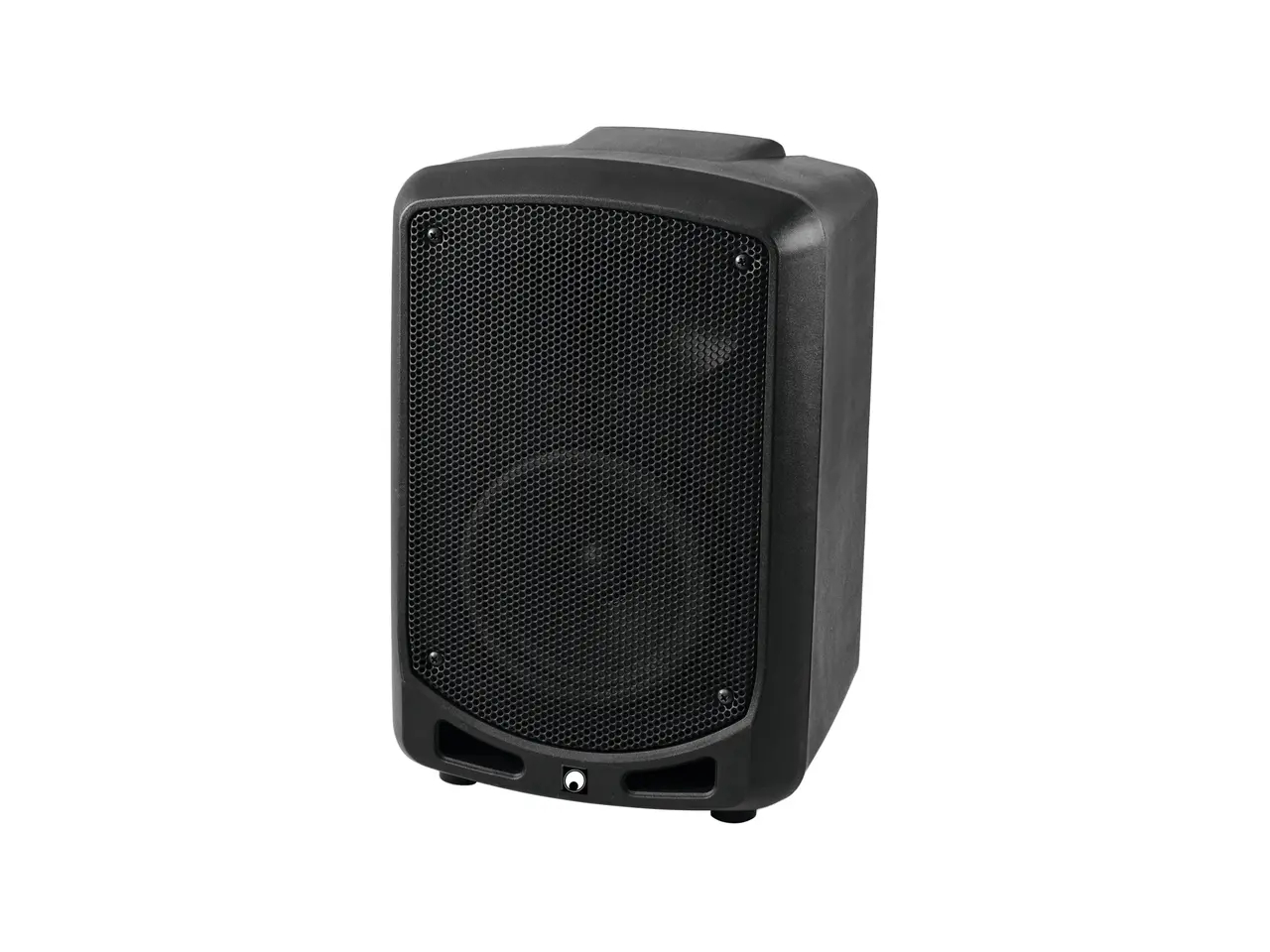

Omnitronic WAMS-65BT

  • Portable all-in-one PA system with 40 watts output power
  • 4-channel power mixer
  • 2-way bass-reflex system
  • SD card slot and USB port
  • 1 microphone input (XLR) with adjustable reverb effect
  • UHF receiver unit and matching wireless microphone
  • Power-efficient and battery-saving class D amplifier
  • Tone control and master control
  • UHF 863 - 865 MHz License-free and approved in Europe
  • For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
  • Black metal grille
  • Rugged carrying handle
  • Integrated automatic charging of the battery
  • The device is cooled by passive convection cooling

battery pack

  • Battery pack must be ordered separately
  • Battery operation up to 4h
  • Cordless, flexible and versatile

audio player

  • Control via Bluetooth; IR remote control
  • 4 digit 7-segment LED display
  • 2.4 GHz license-free worldwide
  • Bluetooth: operating range up to 10m

microphone

  • Polar pattern: Cardioid
  • Operating range up to 30m

remote control

  • Operating range up to 10m

Omnitronic WAMS-65BT – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Portable active 2-way PA speaker system with internal rechargeable battery

  • Power Output: 40 W RMS / 80 W Peak (Class-D amplification)

  • Power Supply: 100–240 V AC, 50/60 Hz or internal battery operation

  • Battery Type: Built-in 12 V DC / 2.6 Ah Lithium-ion rechargeable battery

  • Battery Operating Time: Up to 4–6 hours (depending on volume level)

  • Charging Time: Approx. 3–4 hours (integrated smart charging circuit)

Audio Performance & Transducers

  • Low Frequency Driver: 6.5" (16.5 cm) woofer

  • High Frequency Driver: 1" (2.5 cm) compression tweeter

  • Frequency Range: 60 – 18,000 Hz

  • Sound Pressure Level (SPL): Max 110 dB

Connectivity & Media Playback

  • Bluetooth Module: Integrated Bluetooth wireless audio streaming (v5.0, up to 10 m range)

  • Media Player: Built-in USB player and SD/MMC card slot (MP3 playback support)

  • Wireless Receiver: Built-in 863–865 MHz UHF wireless receiver (compatible with optional WAMS series wireless microphone)

  • Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack

  • Microphone / Line Inputs: 1 x Combo XLR / 6.3 mm (1/4") Jack input with dedicated volume control

  • Signal Output: 1 x 6.3 mm (1/4") Line output for daisy-chaining to additional active systems

Controls & Indicators

  • Tone & Mixing Controls: Master Volume, Channel 1 Mic/Line Volume, Media/Aux Volume, 2-Band EQ (Bass & Treble)

  • Display & LED Indicators: LED display for track status, Power LED, Battery level indicator LEDs (Charging / Low / Full)

Enclosure & Hardware

  • Cabinet Material: Lightweight, high-impact ABS plastic chassis (black)

  • Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod mounting

  • Carrying Handles: Integrated top carrying handle for effortless transport

  • Application Modes: Desktop PA, tripod-mounted main speaker, or floor monitor

Physical Specifications

  • Dimensions (W x D x H): 220 x 250 x 360 mm (8.7" x 9.8" x 14.2")

  • Weight: 4.4 kg (9.7 lbs)

Accessories Included

  • AC Power Cord / Charger Adapter

  • Operating Instructions Manual
