Omnitronic VFM-215AP – Technical Specifications & Setup Guide

System & Power Handling

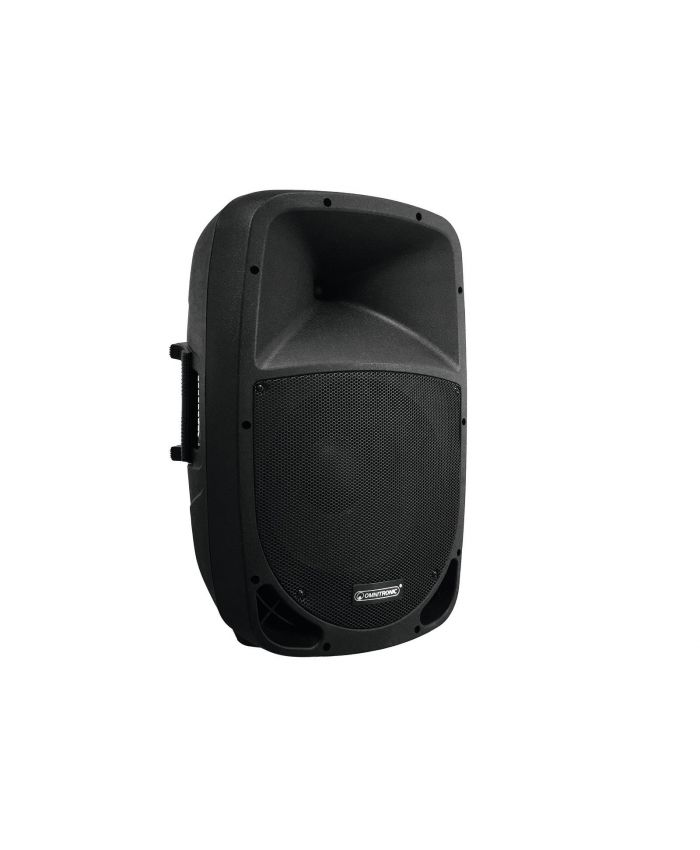

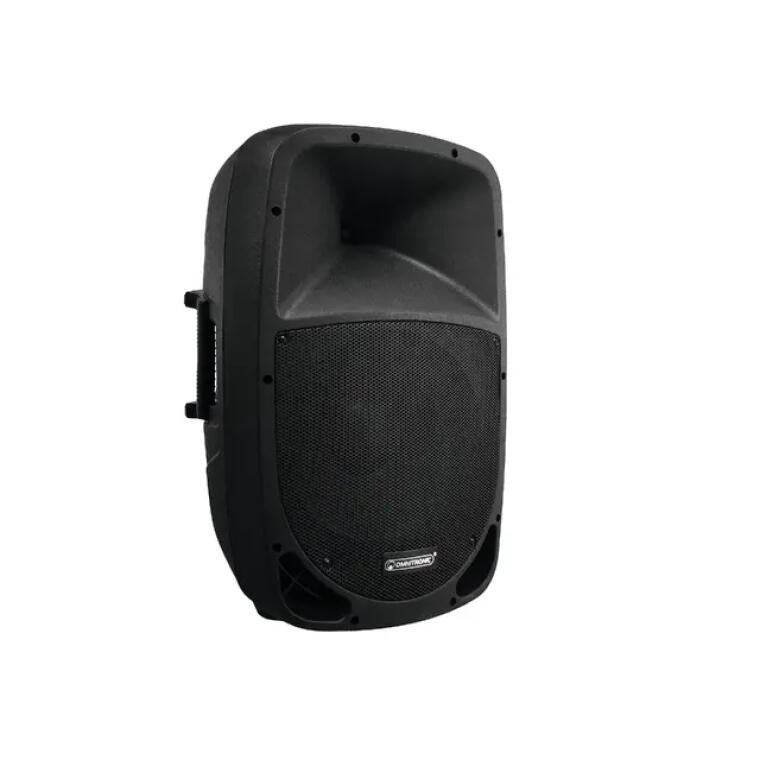

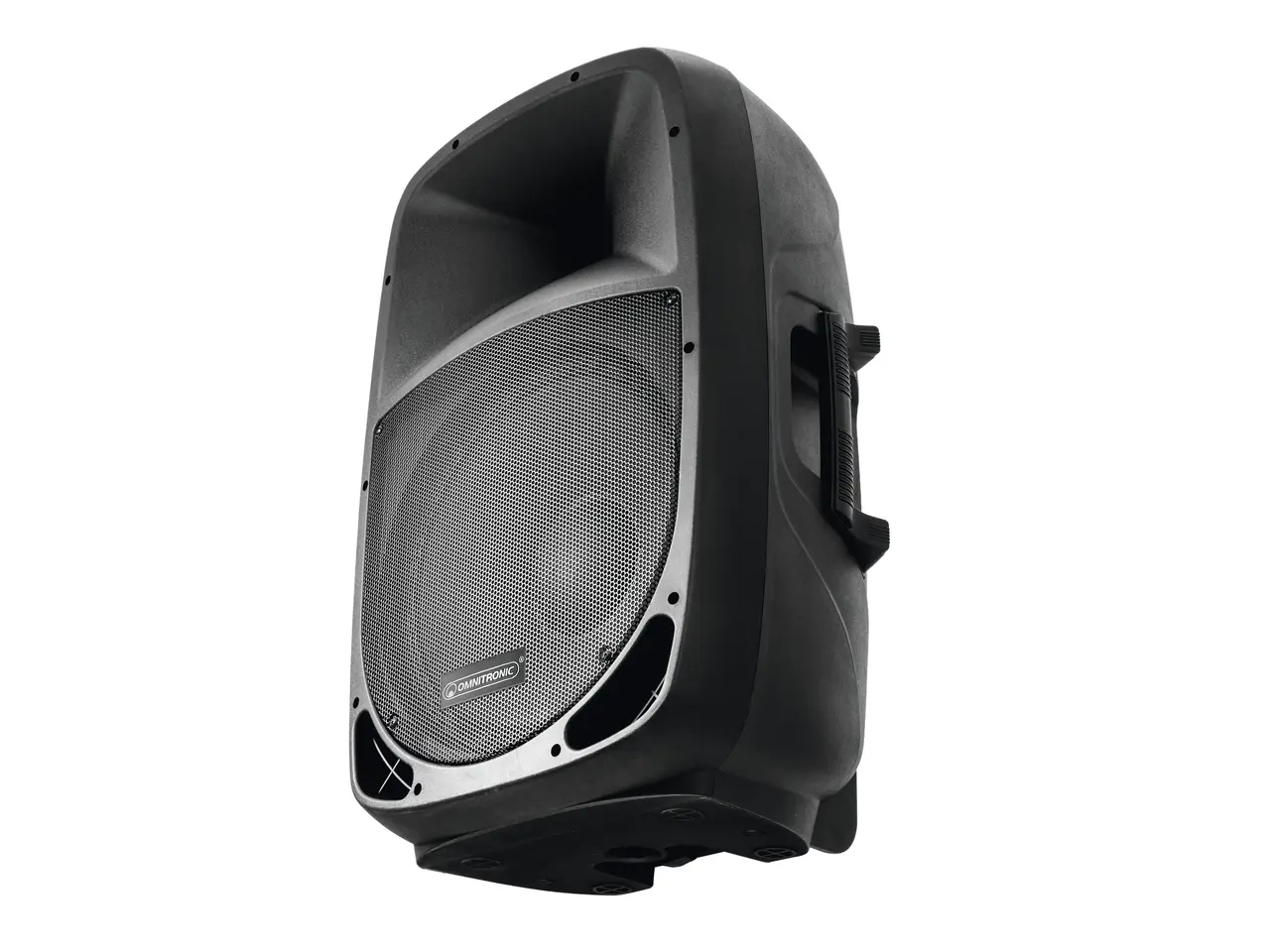

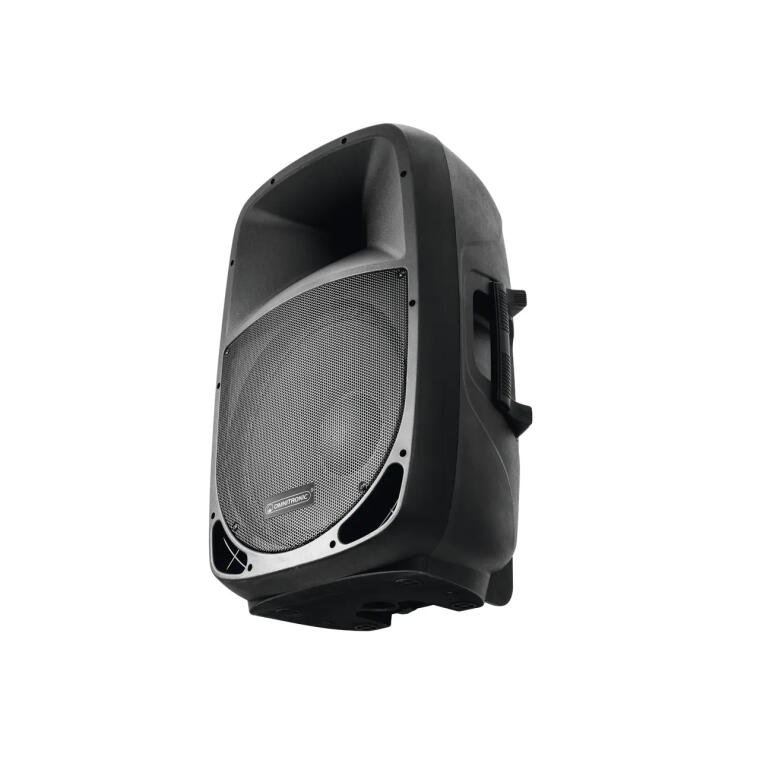

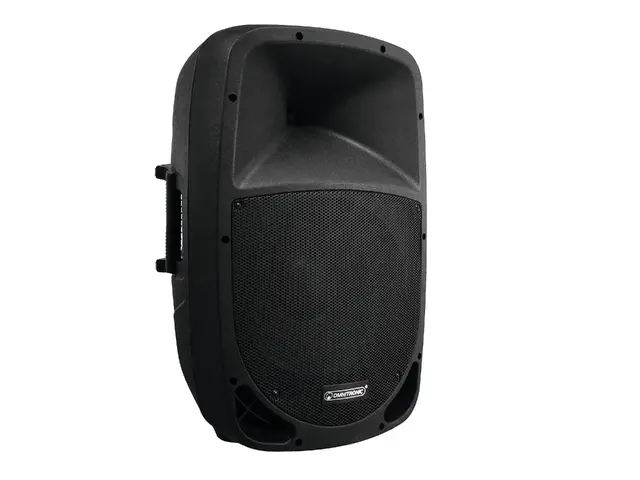

• System Type: Active 2-way bass-reflex PA speaker system

• Amplifier Output: 150 W RMS / 300 W Peak (Class-AB amplification)

• Power Supply: 230 V AC, 50 Hz

• Power Consumption: Max. 190 W

Audio Performance & Transducers

• Low Frequency Driver: 15" (38 cm) woofer with 2.5" voice coil

• High Frequency Driver: 1" (2.5 cm) compression tweeter

• Frequency Range: 45 – 18,000 Hz

• Sensitivity: 96 dB (1W/1m)

• Max SPL: 116 dB

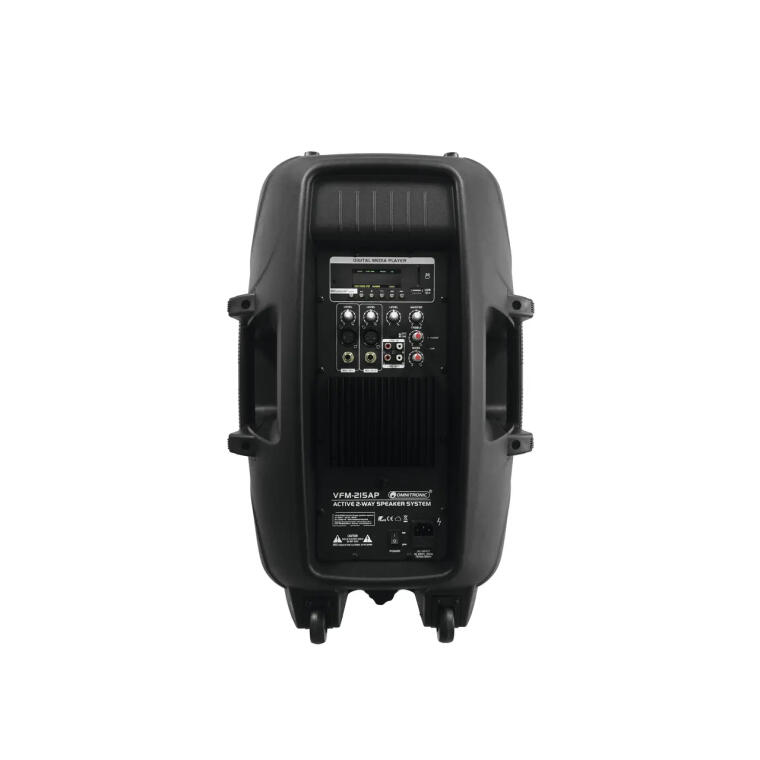

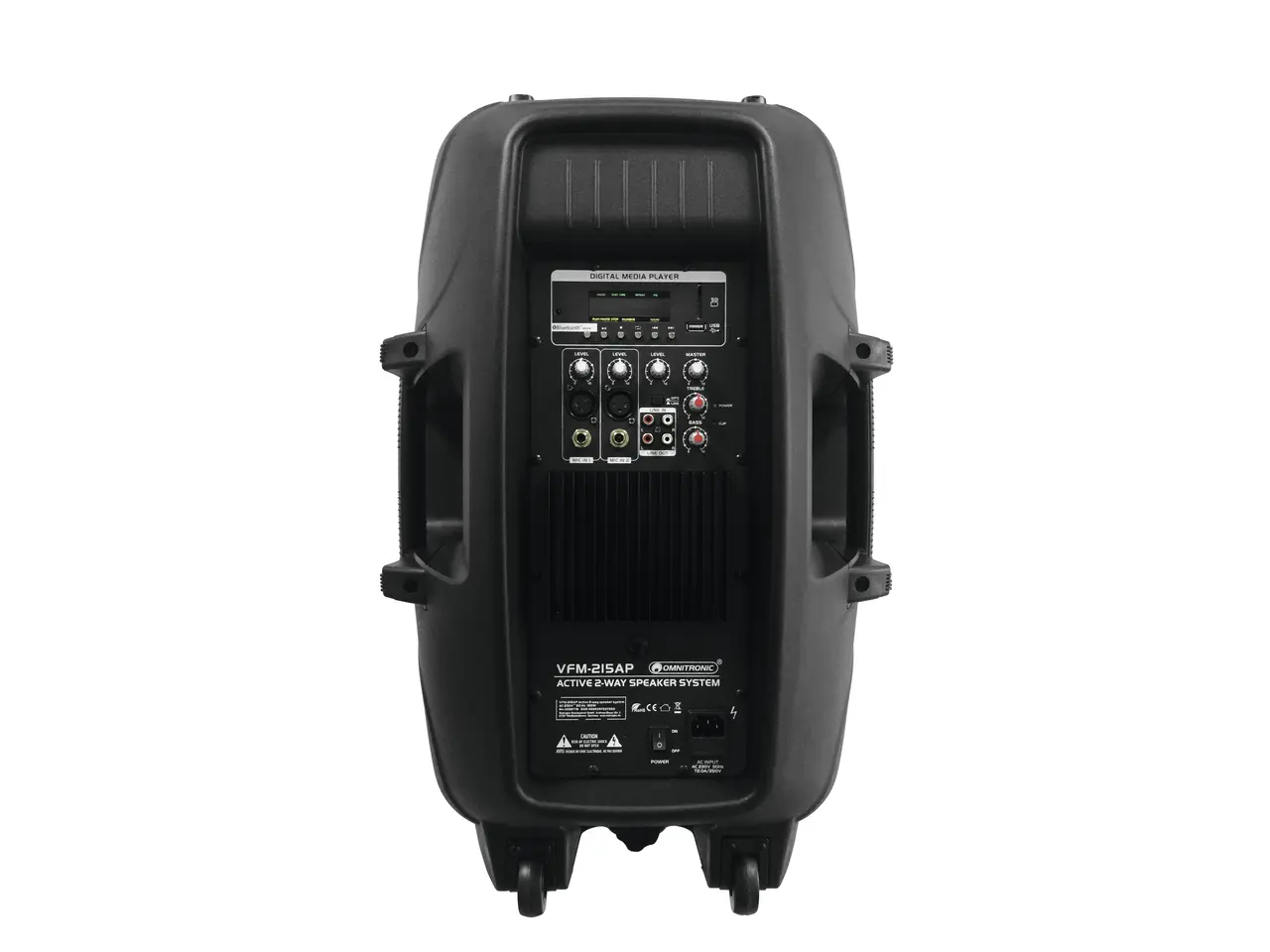

Connectivity & Media Playback

• Bluetooth Module: Integrated Bluetooth receiver for wireless audio streaming

• Digital Media Player: Built-in USB drive and SD card slot with blue backlit LCD display (MP3 playback support)

• Microphone Input: 1 x XLR / 6.3 mm (1/4") Jack input with dedicated level control

• Line Input: 1 x Stereo RCA pair / 3.5 mm stereo Aux jack with dedicated level control

• Line Output: 1 x XLR line output for daisy-chaining additional active speakers

Controls & Indicators

• Tone & Mixing Controls: Master Volume, Mic Volume, Line/Media Volume, 2-Band EQ (High & Low tone controls)

• Media Controls: Play/Pause, Stop, Repeat, Mode Selector, Track Skip Forward/Back

• Indicators: Power status LED, Limit/Clip LED

Enclosure & Hardware

• Cabinet Material: Lightweight, high-impact ABS plastic enclosure (black)

• Front Protection: Heavy-duty steel front grille

• Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket

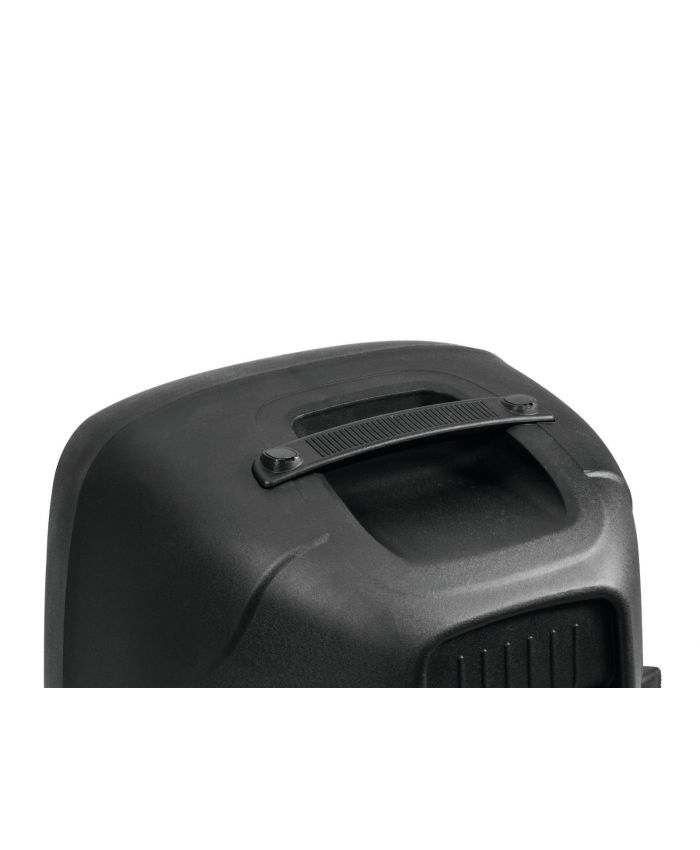

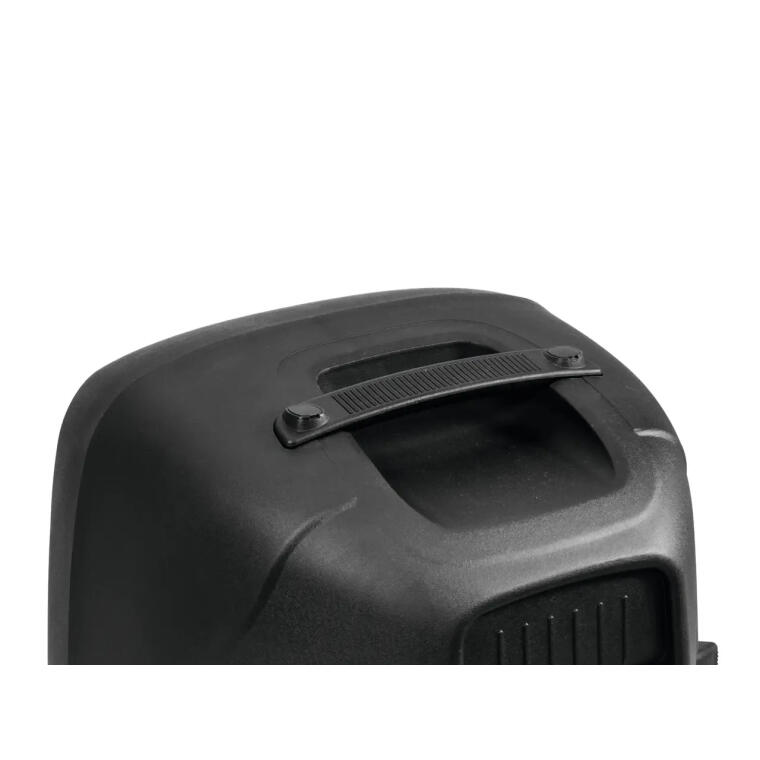

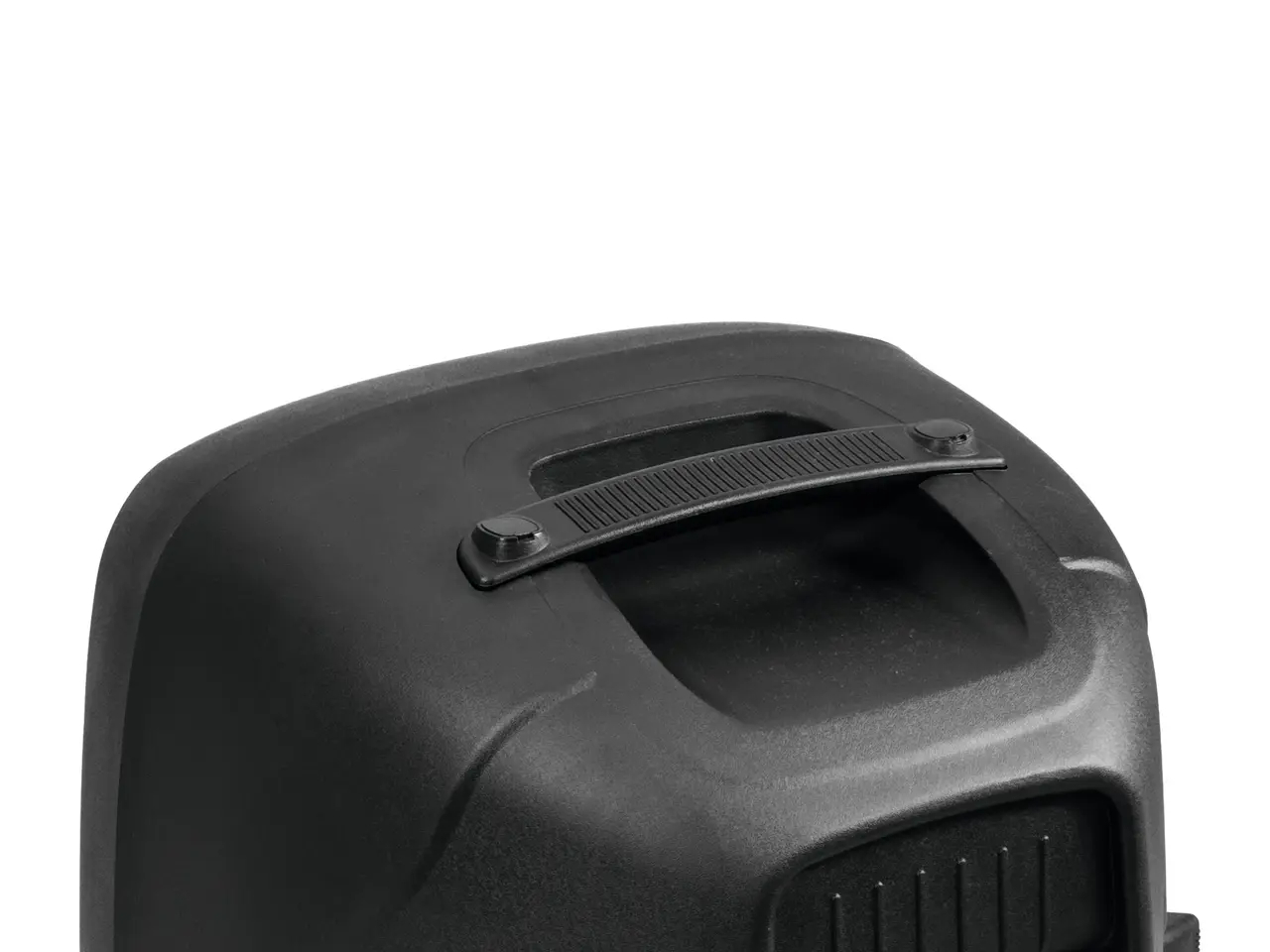

• Carrying Handles: Integrated top carrying handle and side handles

• Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet side)

Physical Specifications

• Dimensions (W x D x H): 480 x 395 x 740 mm (18.9" x 15.6" x 29.1")

• Weight: 13.2 kg (29.1 lbs)

Accessories Included

• Mains Power Cable

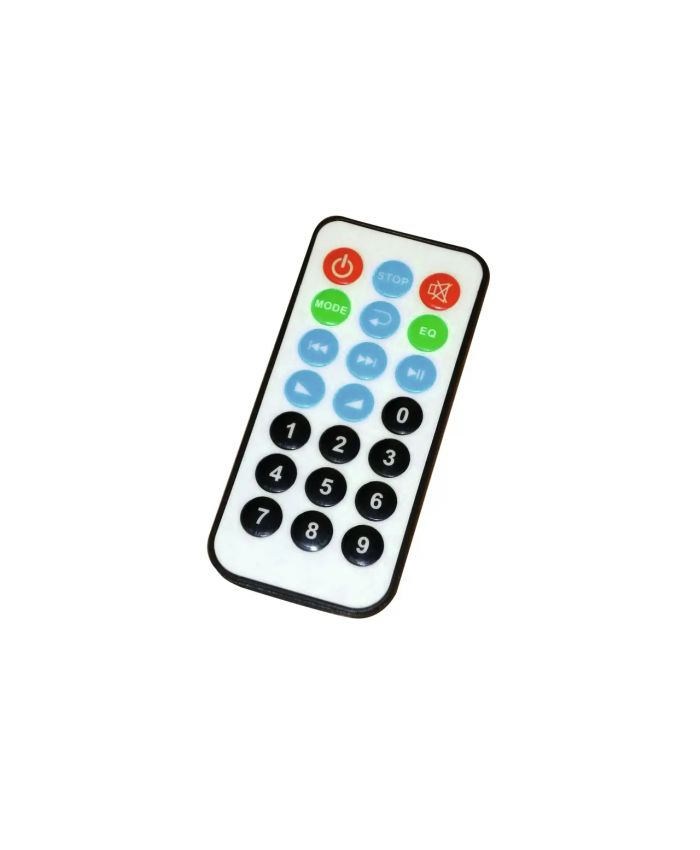

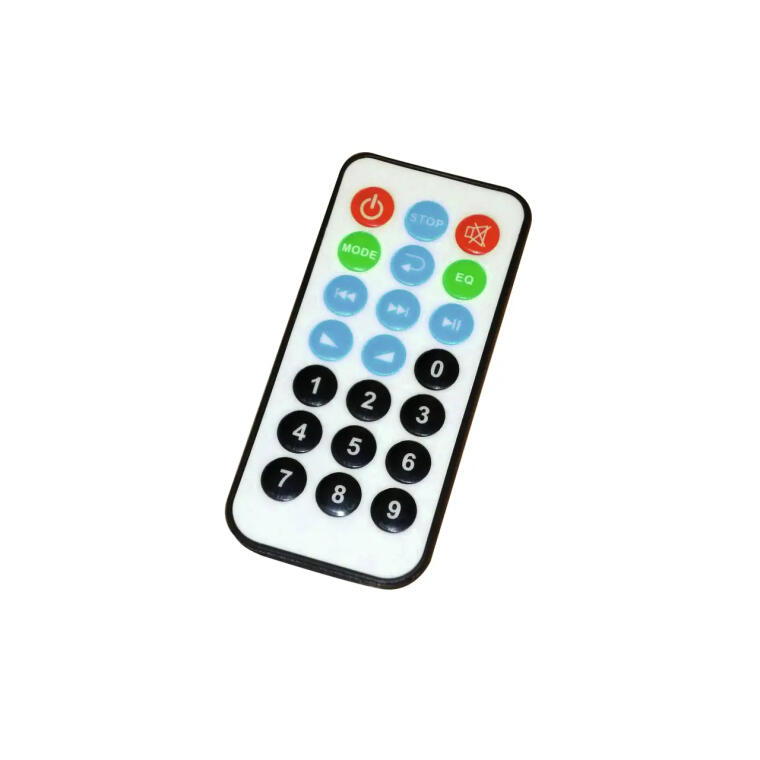

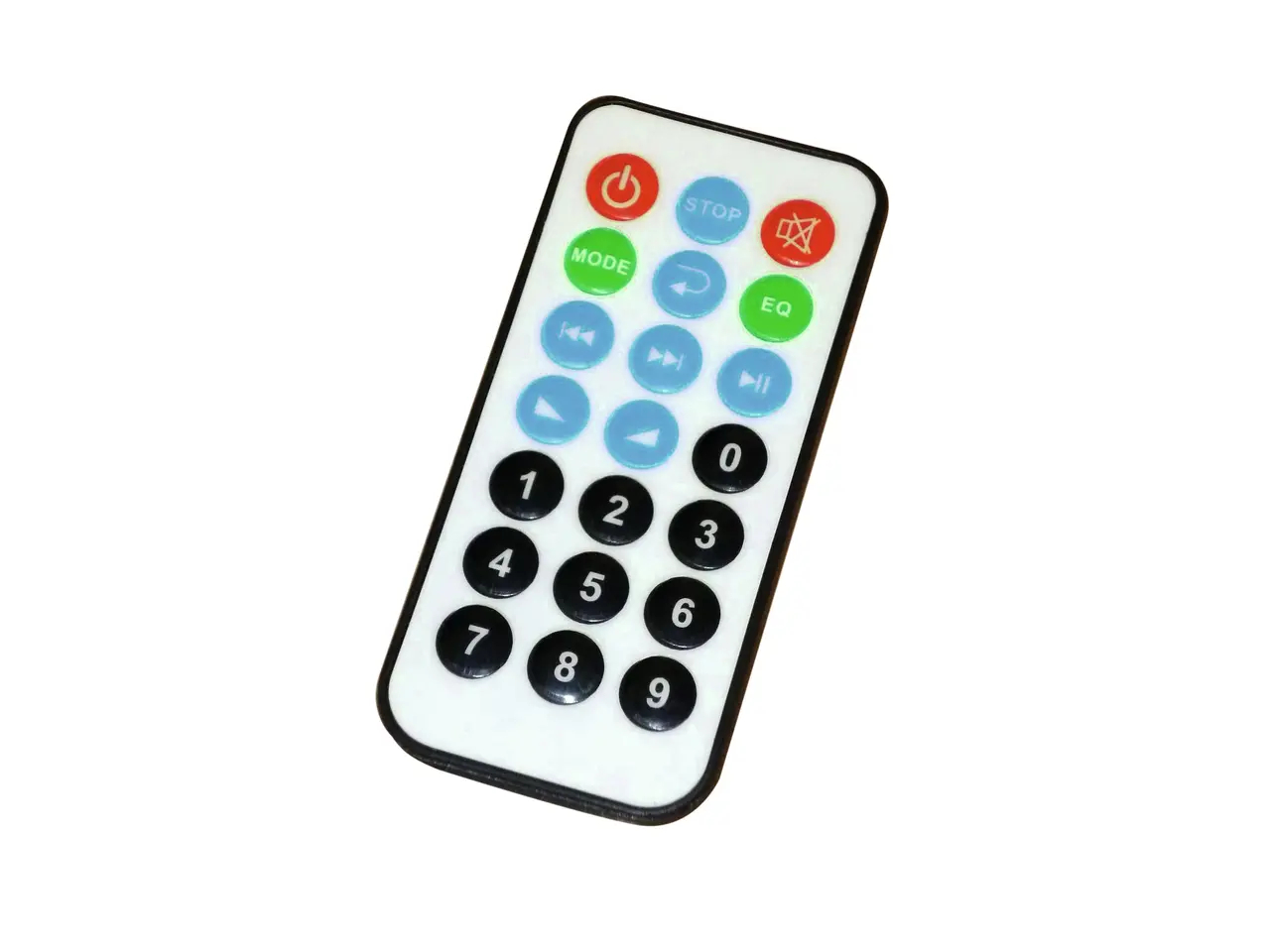

• IR Remote Control Unit

• Operating Instructions Manual
