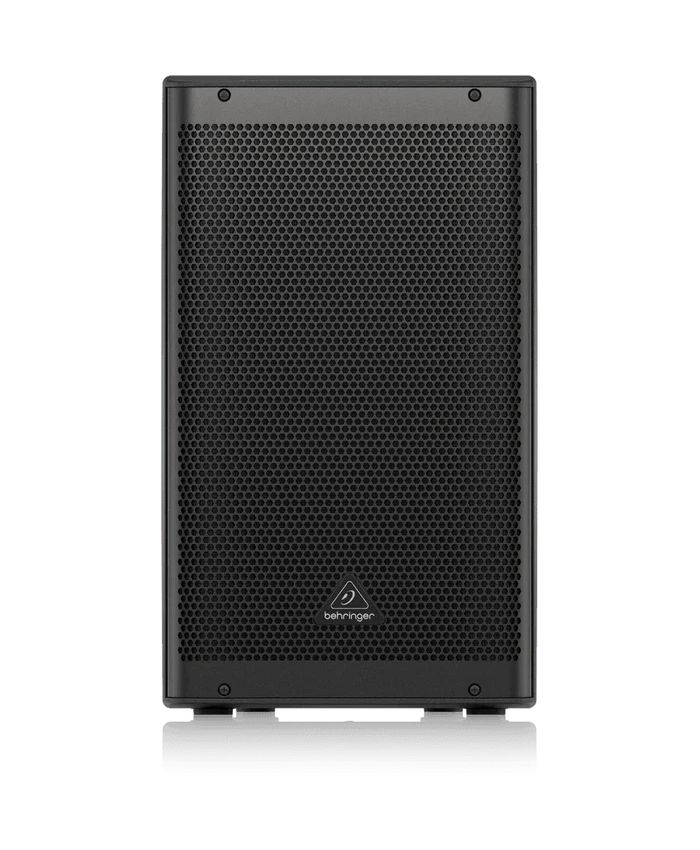

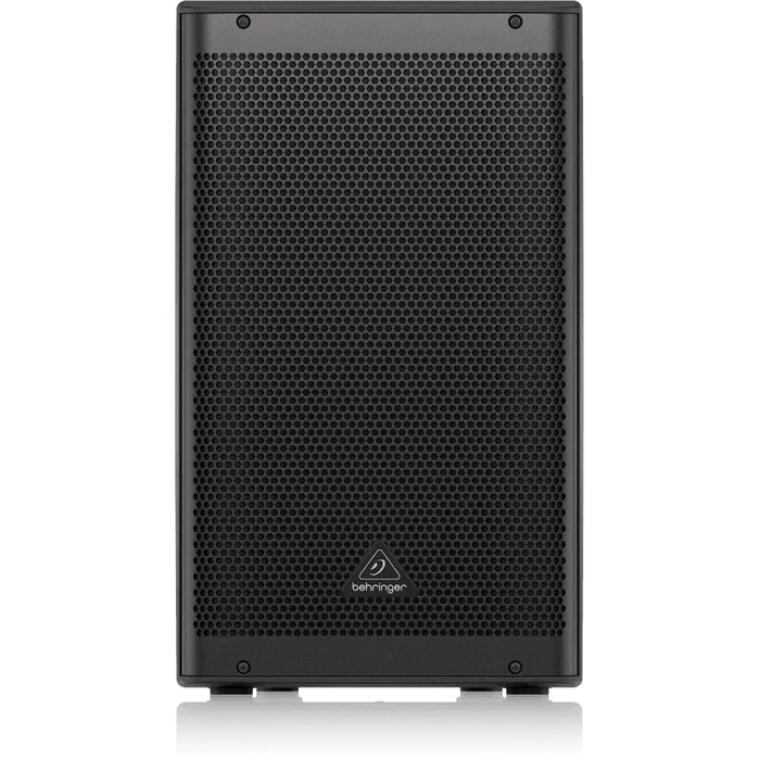

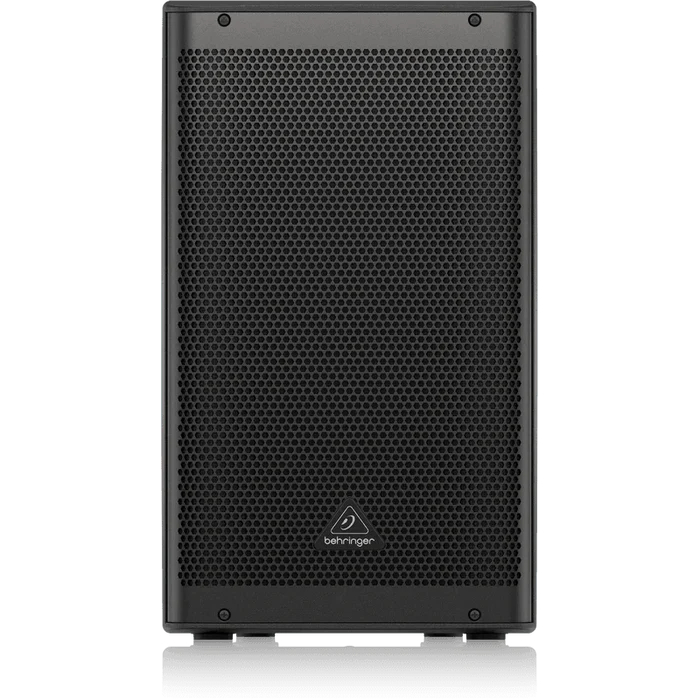

behringer dr112 dsp 1200w 12 powered speaker musicmajlis 1

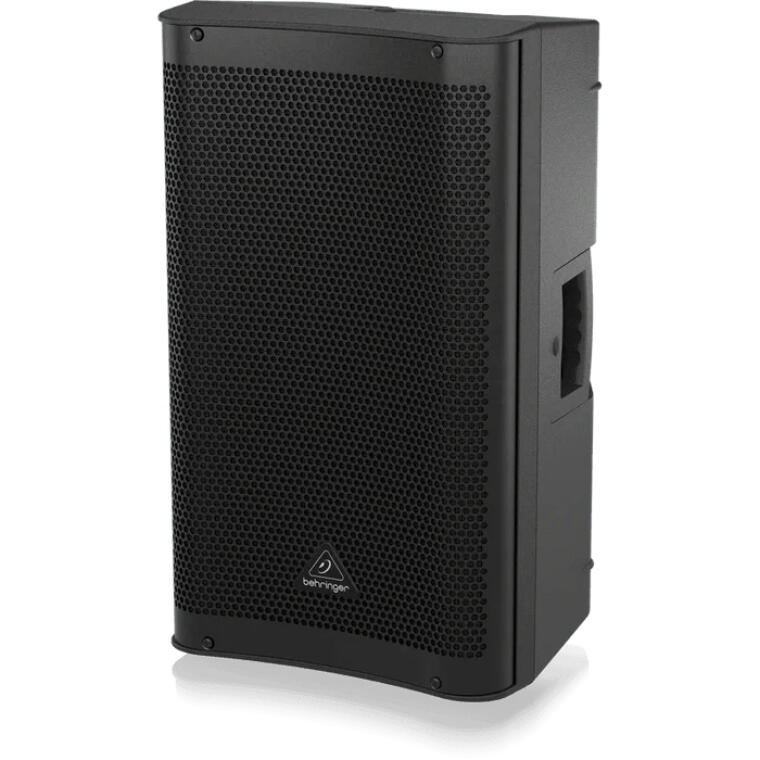

behringer dr112 dsp 1200w 12 powered speaker musicmajlis 3

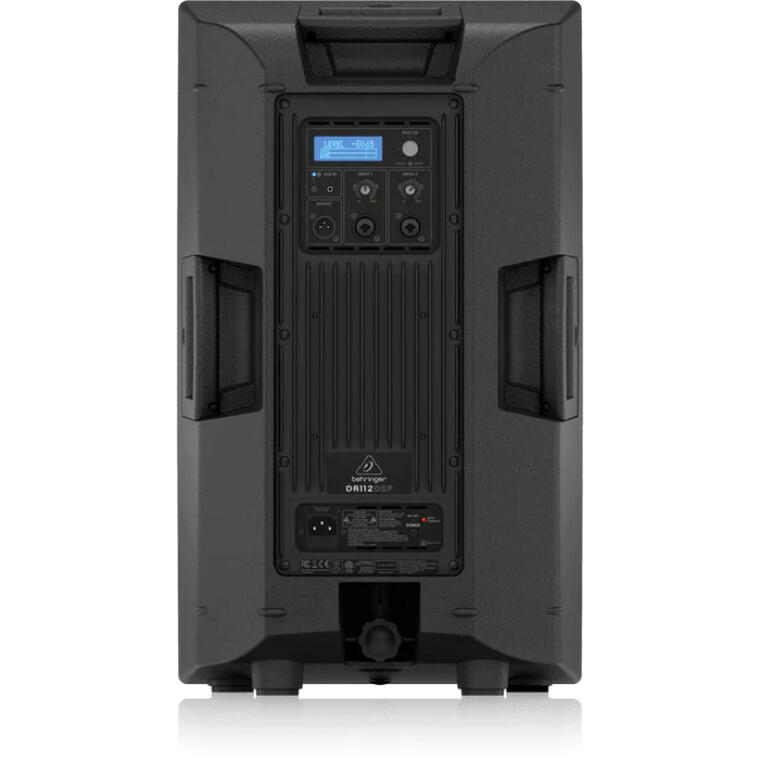

behringer dr112 dsp 1200w 12 powered speaker musicmajlis 2

DR112DSP

Price on request
In stock
Interested in this product?
Call us

Overview

DR112DSP

Active 1,200 Watt 12" PA Speaker System with DSP and 2-Channel Mixer

DR112DSP

DR112DSP is a versatile active 1,200-watt 12" PA speaker system with DSP and 2-Channel Mixer. This High-Powered 1,200-Watt 2-way PA sound reinforcement speaker system is great for both live and playback applications. This ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels.

DSP and Mixer Functions

The product is designed to contain a dedicated DSP function for EQ, system control and speaker protection and Built-in Bluetooth * receiver. 2-channel mixer with individual Mic/Line inputs and level controls is also included.

Powerful Amplifier and Driver

DR112DSP comes with revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super lightweight design for the everyday user. Extremely powerful 12'' long-excursion driver provides incredibly deep bass and acoustic power.

Behringer DR112DSP – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Active 2-way bass-reflex PA speaker system with DSP and Bluetooth

  • Amplifier Power: 1200 W Peak (LF Class-D + HF Class-AB)

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: Max. 105 W

  • Protection Circuitry: Dual independent HF/LF limiters, short-circuit, open-circuit, thermal protection, and auto-standby

Audio Performance & Transducers

  • Low Frequency Driver: 12" (305 mm) long-excursion woofer

  • High Frequency Driver: 1.35" (34.4 mm) aluminum diaphragm compression driver

  • Frequency Response: 50 – 19,000 Hz (±3 dB)

  • Max SPL: 134 dB

  • Dispersion Angle: 90° x 60° (H x V)

  • Signal Processing: 24-bit DSP engine with 4 sound application presets (MUSIC, DJ, LIVE, SPEECH)

Connectivity & Media Playback

  • Line/Mic Inputs: 2 x Combo XLR / 6.3 mm (1/4") TRS jack inputs (servo-balanced)

  • Auxiliary Input: 1 x 3.5 mm (1/8") TRS stereo Aux mini-jack (stereo sum to mono)

  • Wireless Connectivity: Integrated Bluetooth v4.2 receiver for audio streaming (A2DP 1.2 profile, ~15 m range)

  • Line Output: 1 x XLR balanced Mix/Link output for system expansion

Controls & Indicators

  • Hardware Controls: Master Volume / DSP push-to-select rotary encoder, 2 x Channel Gain knobs, Bluetooth pairing button

  • Advanced DSP Settings: 3-band EQ (±12 dB @ 80 Hz, 2.5 kHz, 12 kHz), Switchable Low-Cut filter (OFF, 80 Hz, 100 Hz, 120 Hz, 150 Hz), Signal Alignment Delay, DSP display/settings lockout

  • Display & Indicators: 128 x 32 backlit amber LCD screen, selectable front panel LED (ON / OFF / LIMIT mode)

Enclosure & Hardware

  • Cabinet Material: Lightweight, high-impact composite enclosure (black)

  • Front Protection: Heavy-duty steel grille

  • Mounting / Suspension: Integrated Ø 35 mm dual-angle pole mount socket

  • Carrying Handles: Integrated ergonomic side/top carrying handles

  • Application Modes: Stand/pole-mounted main PA system or 45° angled stage monitor

Physical Specifications

  • Dimensions (H x W x D): 602 x 359 x 359 mm (23.7" x 14.1" x 14.1")

  • Weight: 17.2 kg (37.9 lbs)

Accessories Included

  • IEC Mains Power Cable

  • Quick Start Guide
