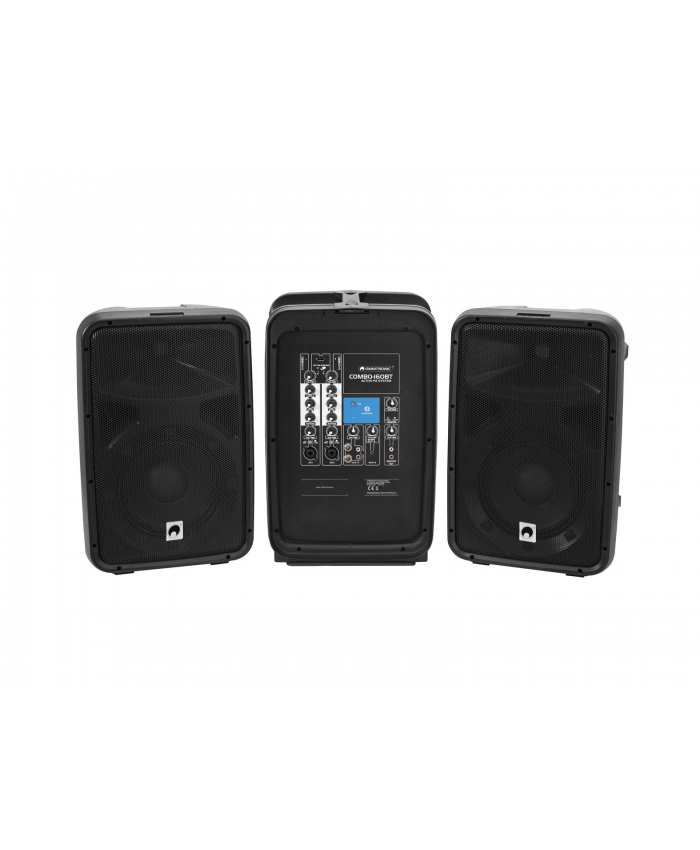

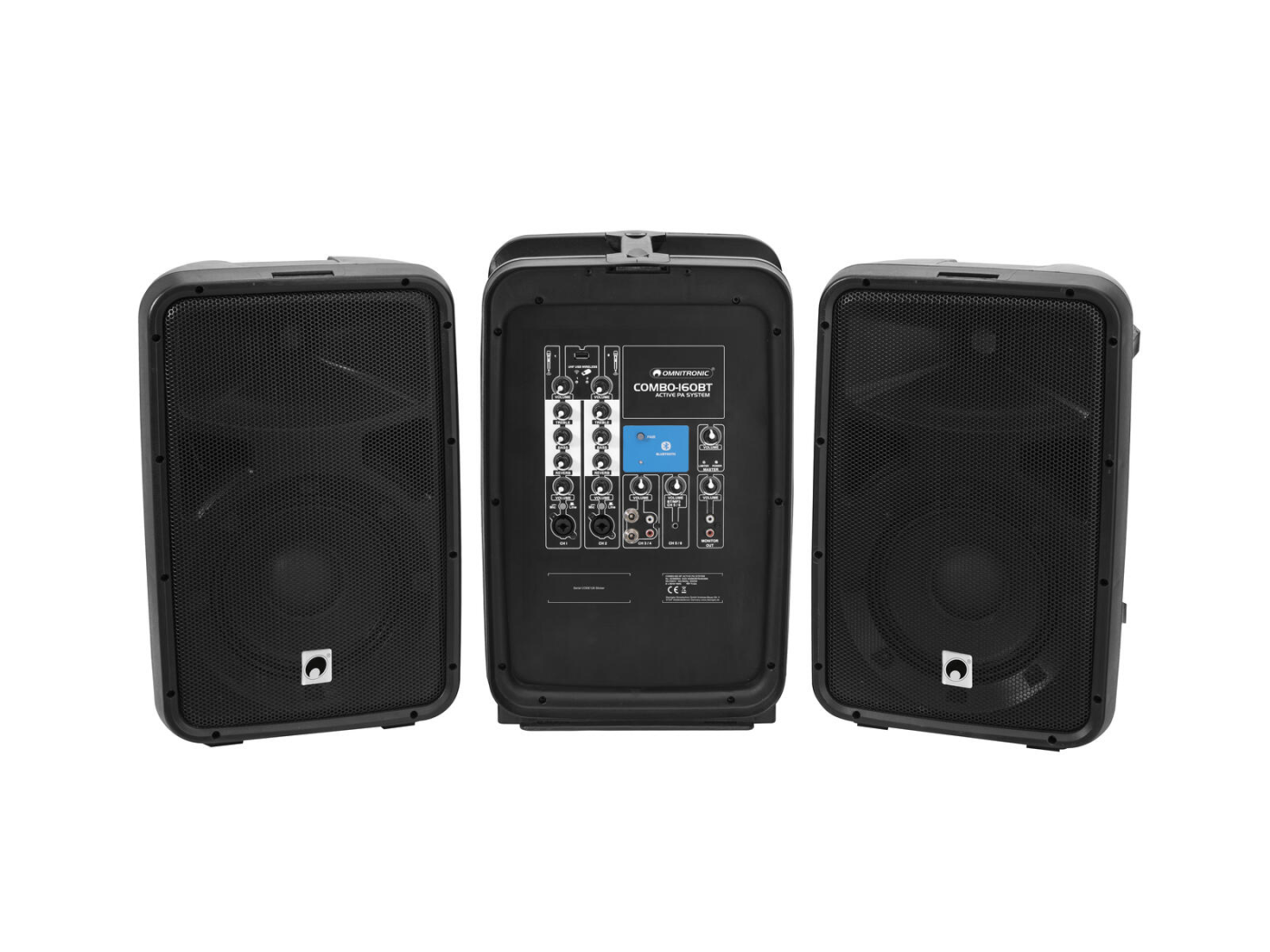

Omnitronic COMBO-160BT Active PA System

Omnitronic COMBO-160BT Active PA System – Technical Specifications & Setup Guide

System & Power Handling

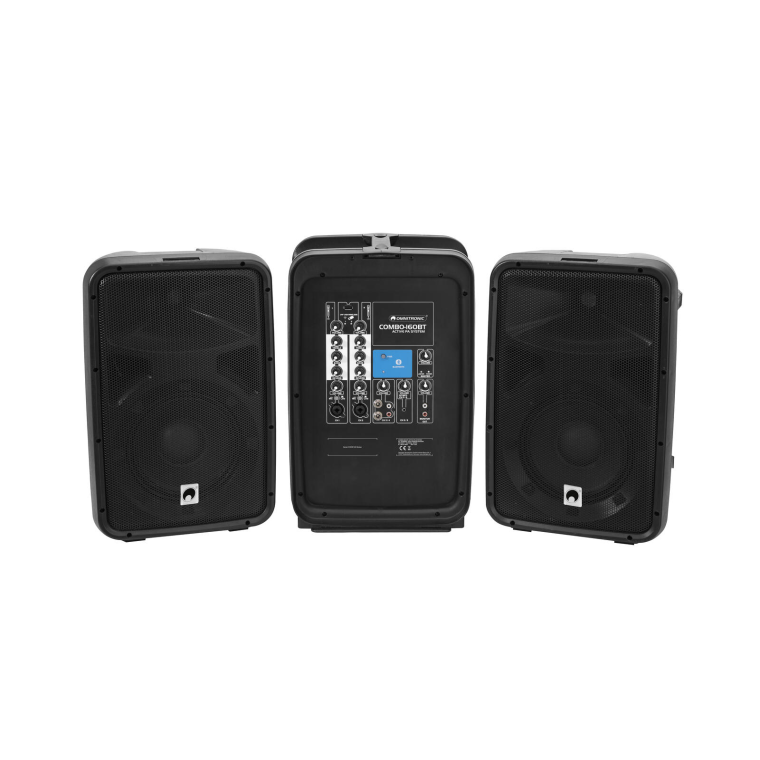

• System Type: Portable all-in-one active PA system with detachable 6-channel power mixer

• Amplifier Output: 2 x 80 W RMS (160 W RMS total) / Class-D amplification

• Program Power: 320 W Peak total

• Power Supply: 115/230 V AC, 50/60 Hz (switchable)

• Power Consumption: Max. 200 W

Audio Performance & Transducers

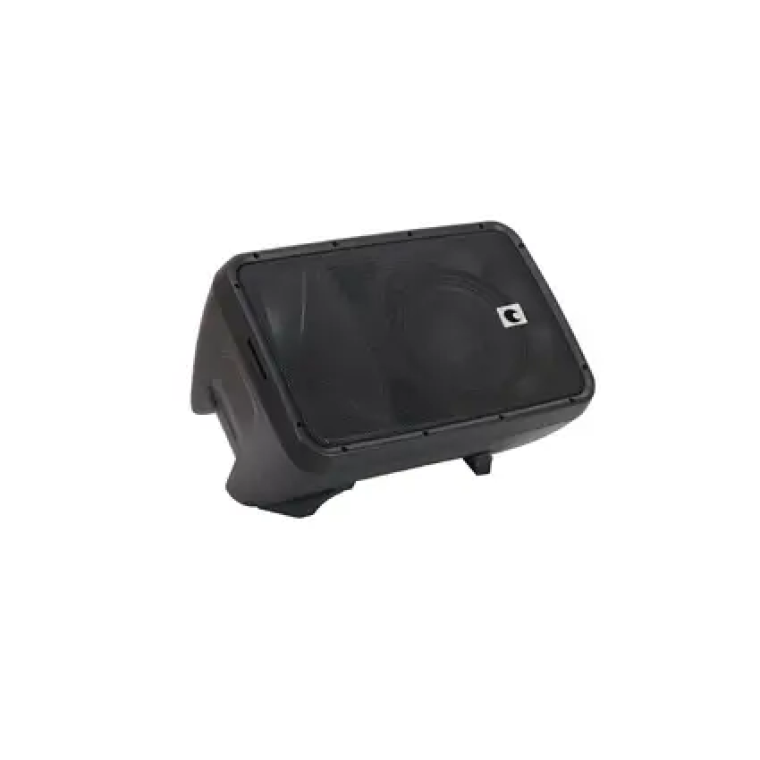

• Satellite Configuration: 2 x 2-way full-range bass-reflex speaker cabinets

• Low Frequency Driver (per cabinet): 8" (20 cm) woofer

• High Frequency Driver (per cabinet): 1" (2.5 cm) tweeter / compression horn

• System Type: Dual-cabinet stereo PA system

• Signal Processing: Master section limiter circuit with visual CLIP indication

Connectivity & Media Playback

• Bluetooth Module: Built-in Bluetooth receiver (2.4 GHz) for wireless audio streaming (approx. 10 m range)

• Mono Inputs: 2 x Mic/Line combo inputs (XLR / 6.3 mm Jack) with 2-band EQ and digital reverb control

• Stereo Line Input: 1 x Stereo Line input (6.3 mm Jack / RCA)

• Stereo Aux Input: 1 x 3.5 mm mini-jack input for wired auxiliary playback devices

• Wireless Mic Expansion: 1 x USB Type-A port for connecting optional UWM-2HH dual wireless microphone receiver dongle

• Outputs: 1 x Stereo Monitor Output (RCA pair with level control), 2 x 6.3 mm Jack speaker outputs (L/R)

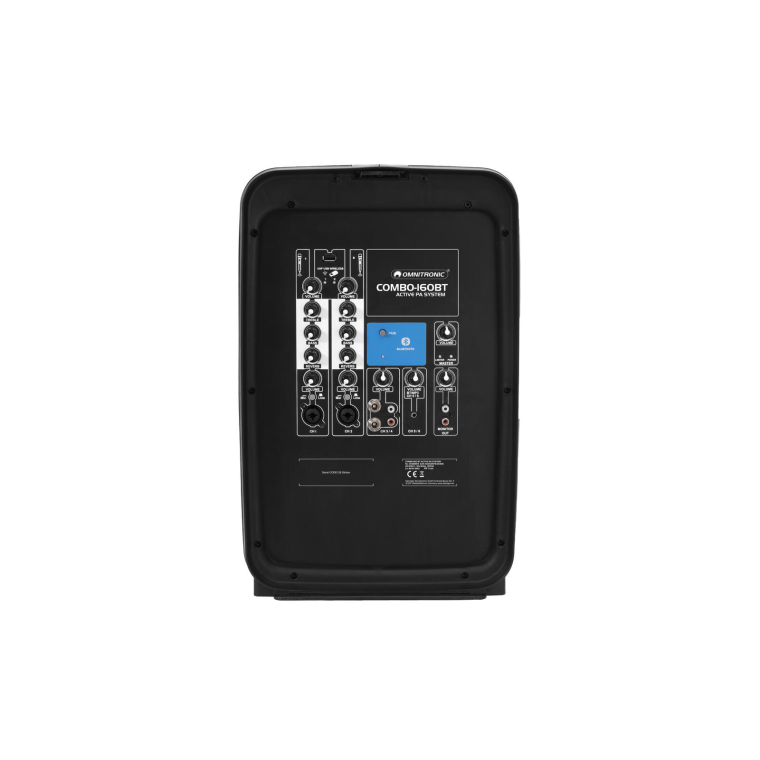

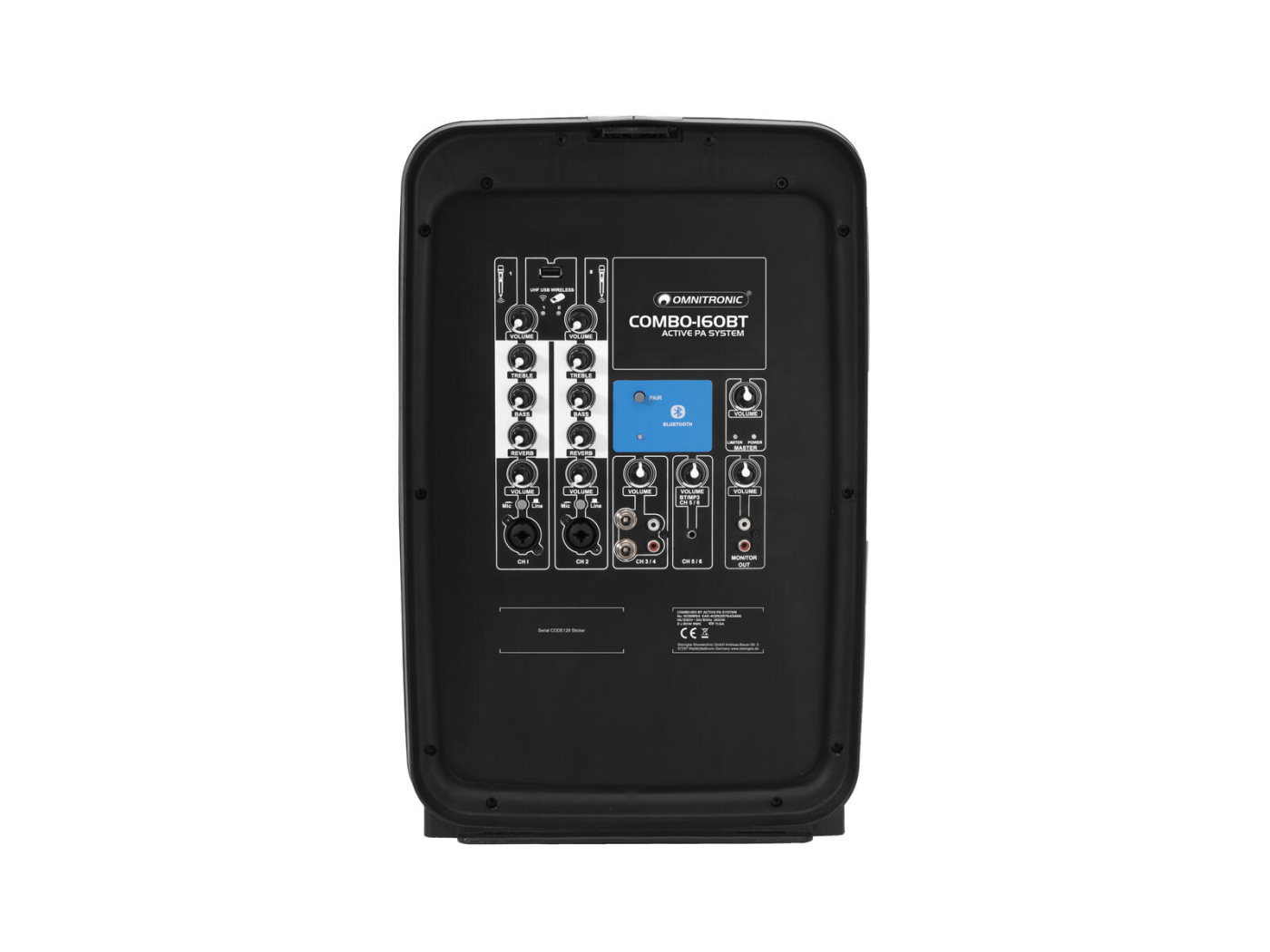

Controls & Indicators

• Channel Controls: Channel 1–4 Volume controls, 2-band EQ (High/Low) and Reverb FX level on Mic channels

• Master Controls: Master Volume control, Monitor Volume control, Reverb time/depth control

• Indicators: Power status LED, Limiter/Clip LED indicator

Enclosure & Hardware

• Cabinet Material: High-impact plastic / ABS luggage-style lock-together chassis

• Front Protection: Heavy-duty metal front grilles on satellite speakers

• Mounting / Suspension: Integrated Ø 35 mm pole mount sockets on both satellite enclosures

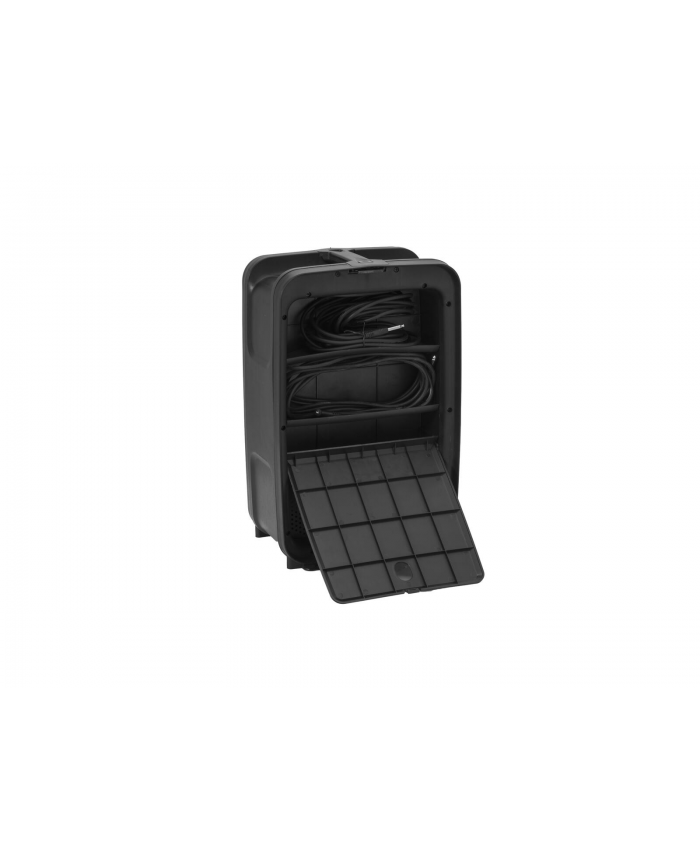

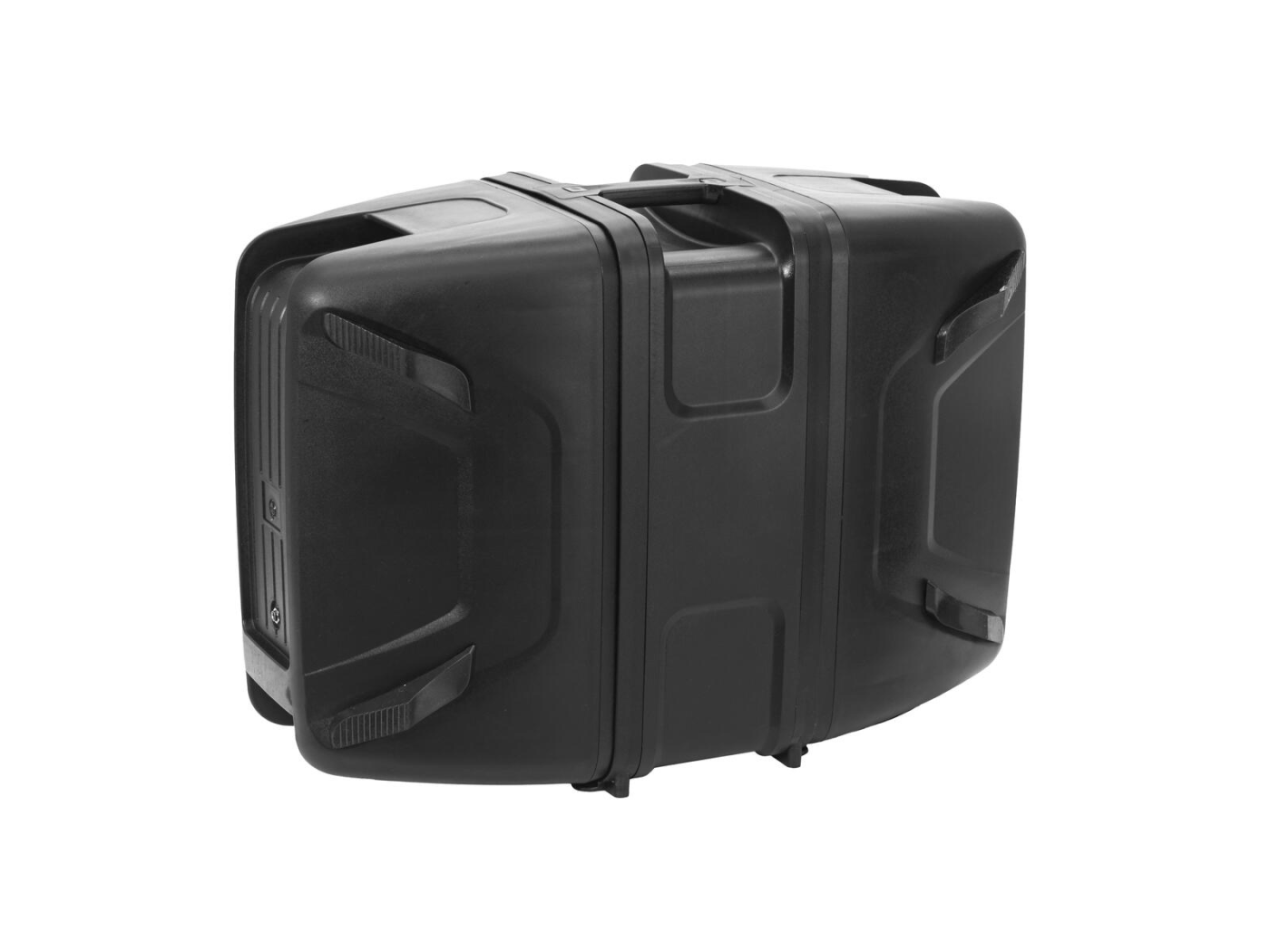

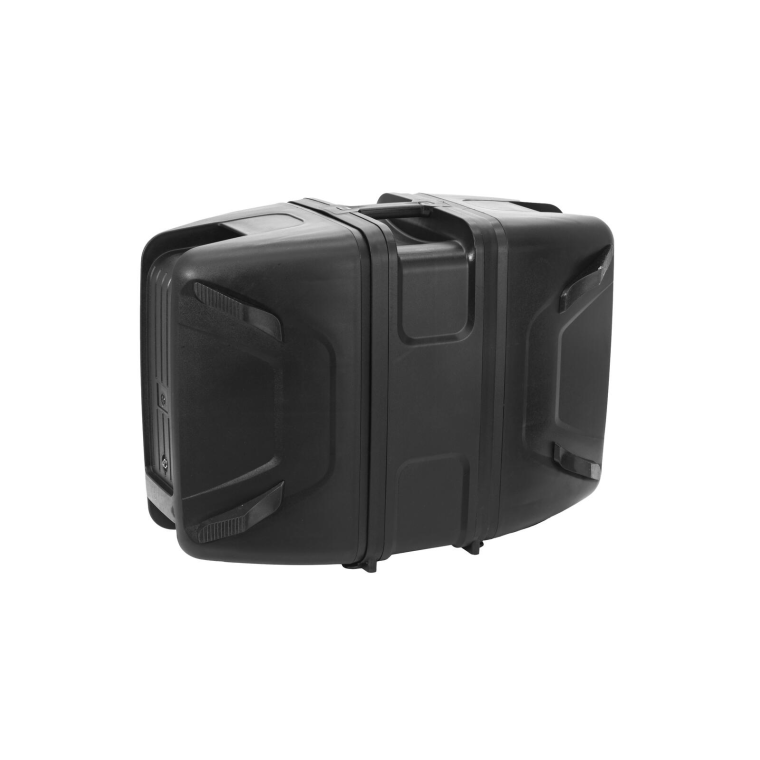

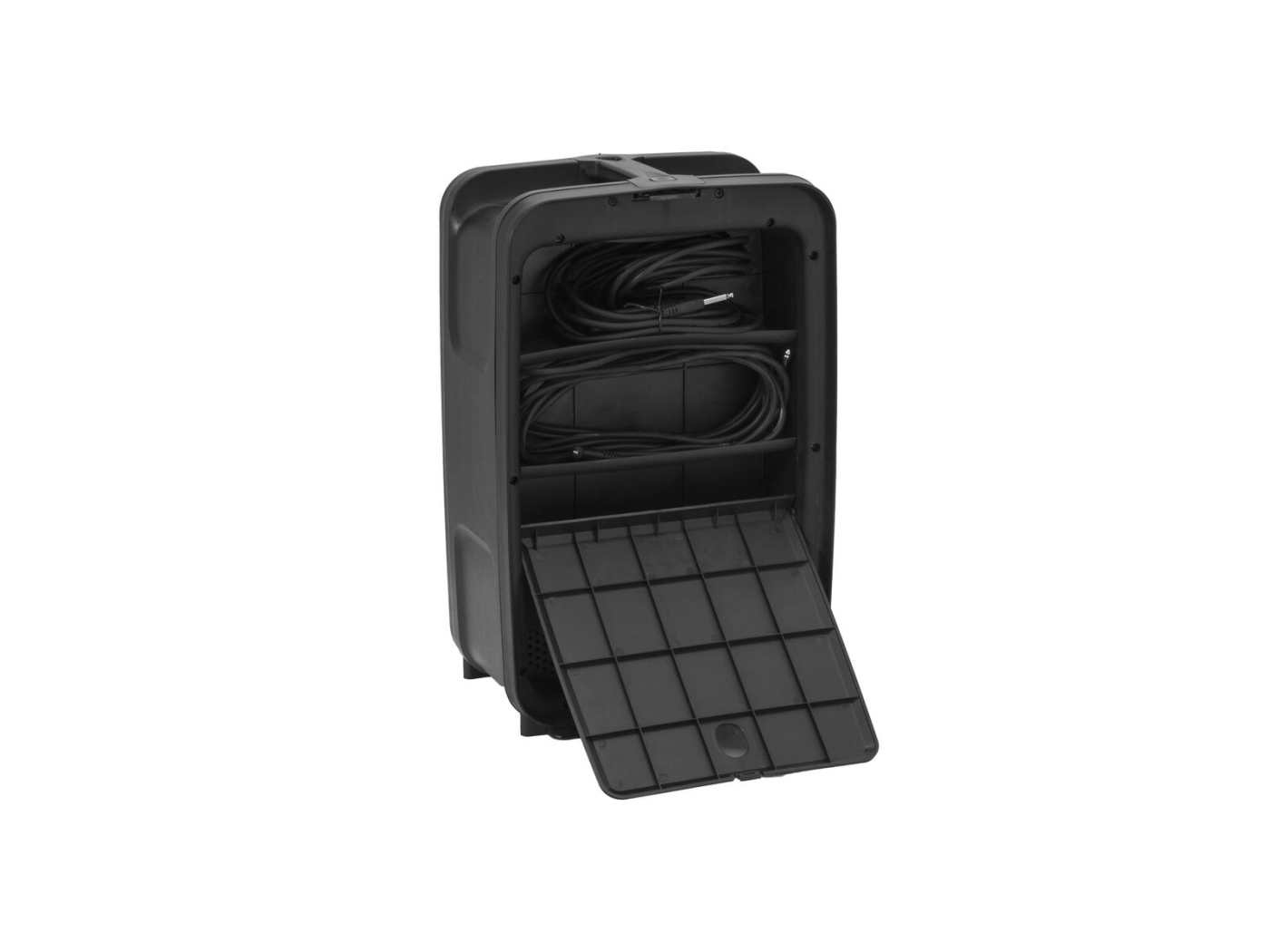

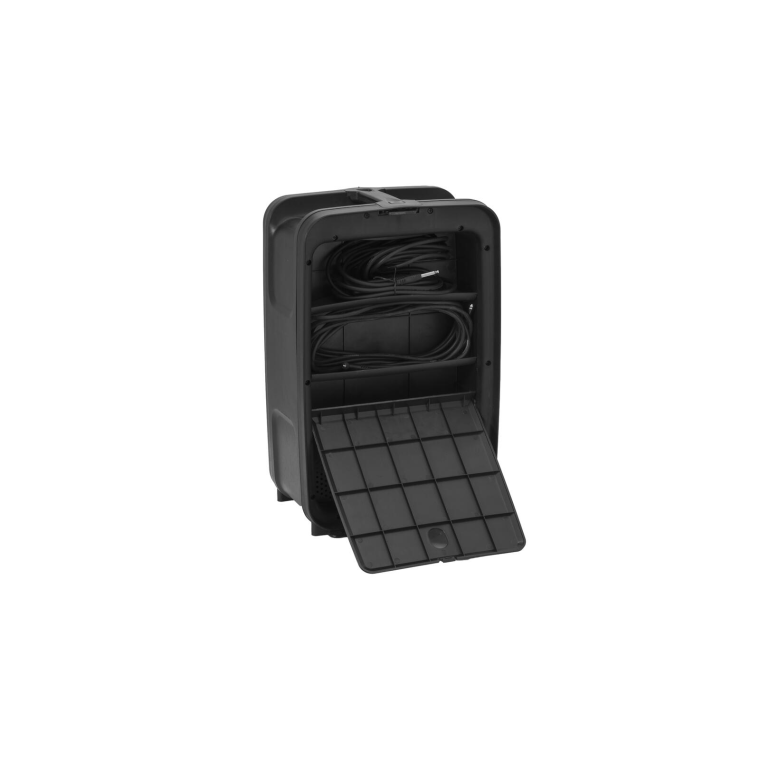

• Transport & Storage: Interlocking unit design with top carrying handle; integrated storage compartment in one speaker cabinet for cables and accessories

• Application Modes: Mobile live performances, DJ setups, presentations, fitness classes, and solo entertainer applications

Physical Specifications

• System Dimensions Combined (W x D x H): 670 x 310 x 460 mm (26.4" x 12.2" x 18.1")

• Satellite Speaker Dimensions (W x D x H): 300 x 260 x 460 mm each

• Total System Weight: 16.5 kg (36.4 lbs)

Accessories Included

• Detachable 6-Channel Power Mixer Unit

• 2 x 6.3 mm Jack-to-Jack Speaker Interconnect Cables

• Mains Power Cable

• Operating Instructions Manual
