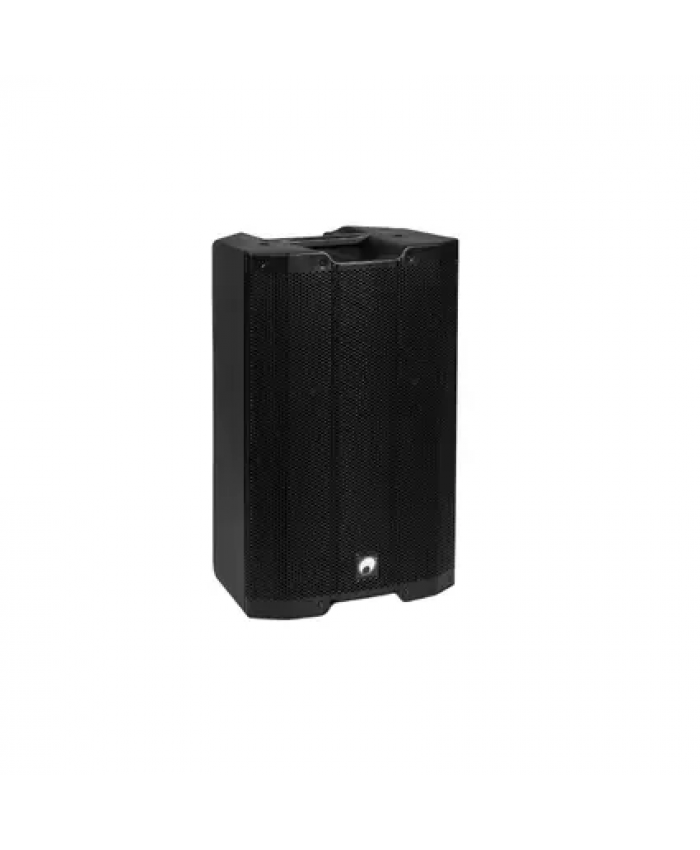

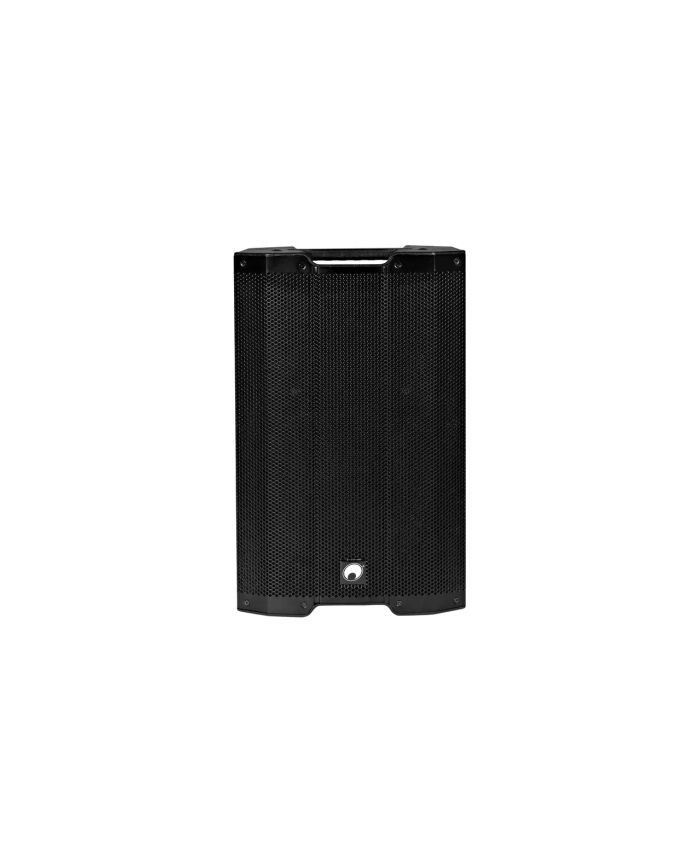

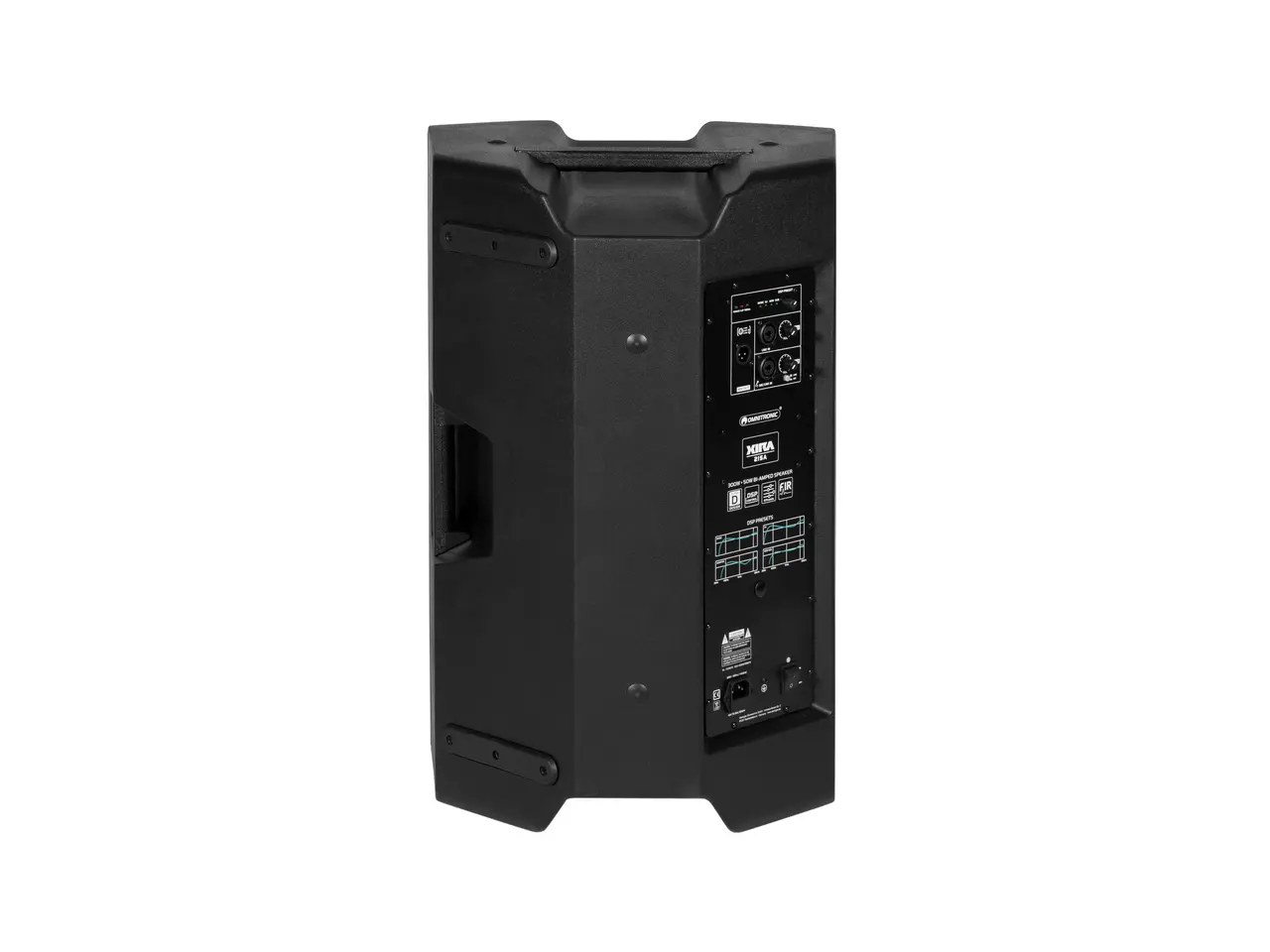

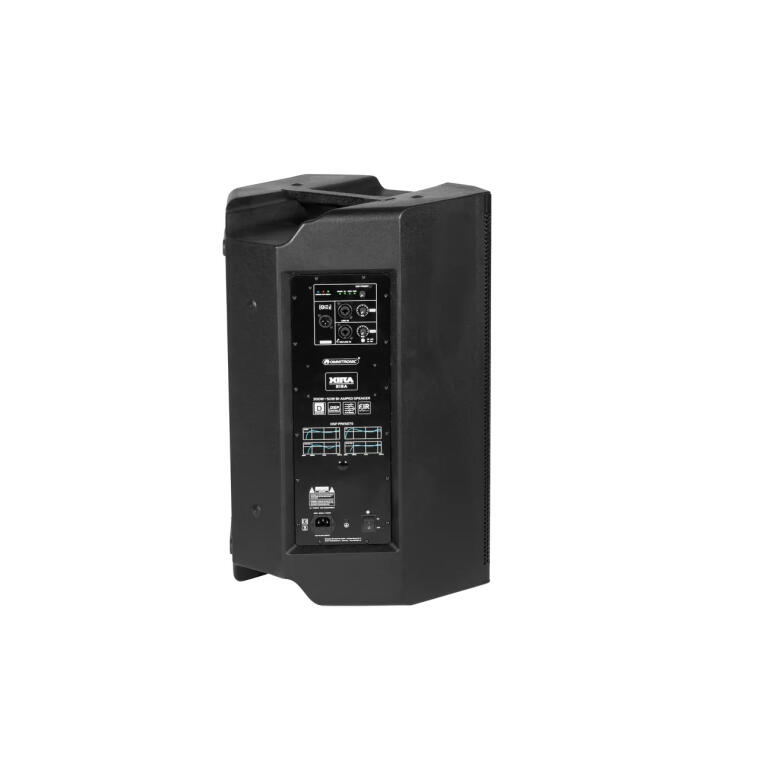

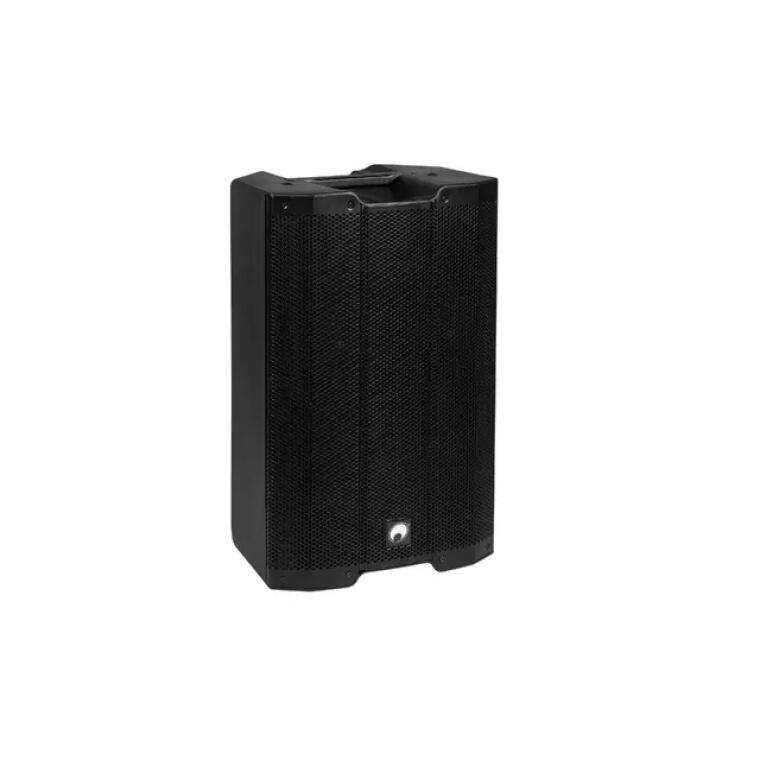

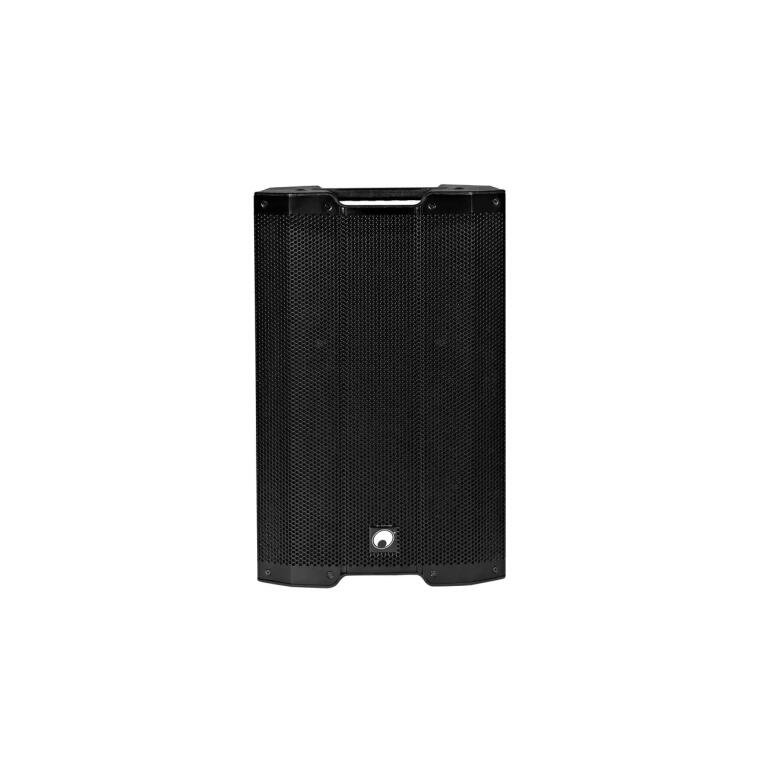

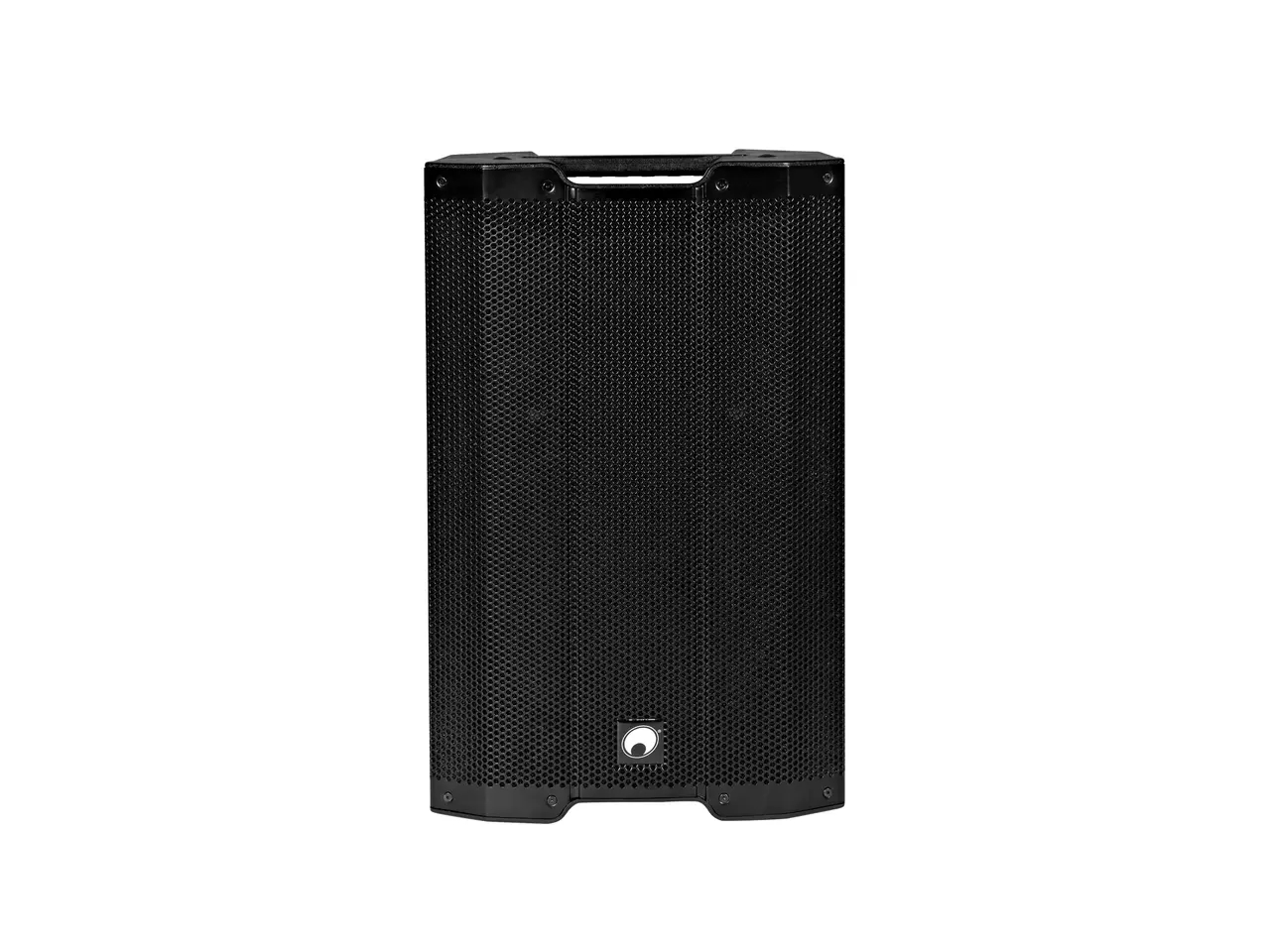

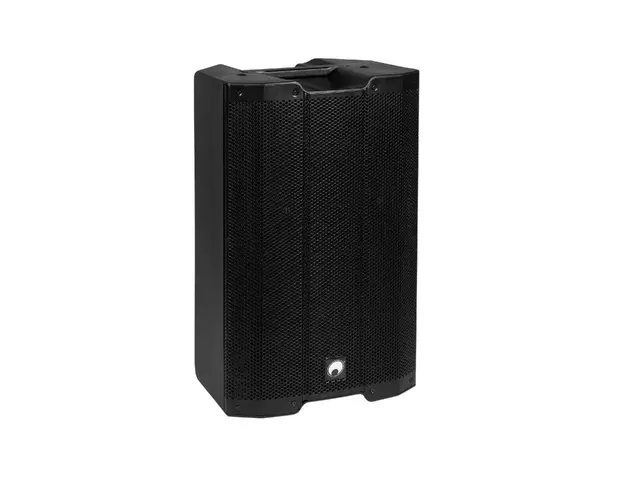

Omnitronic XIRA-215A

€449.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

Active speaker with 15" woofer, 1,35" driver, 300 W RMS LF, 50 W RMS HF

  • Active 15/2 full range system for mobile live and DJ applications
  • DSP-controlled biamp amplifier (class D)
  • 2-way bassreflex enclosure with 38 cm woofer and 3.5 cm titanium driver

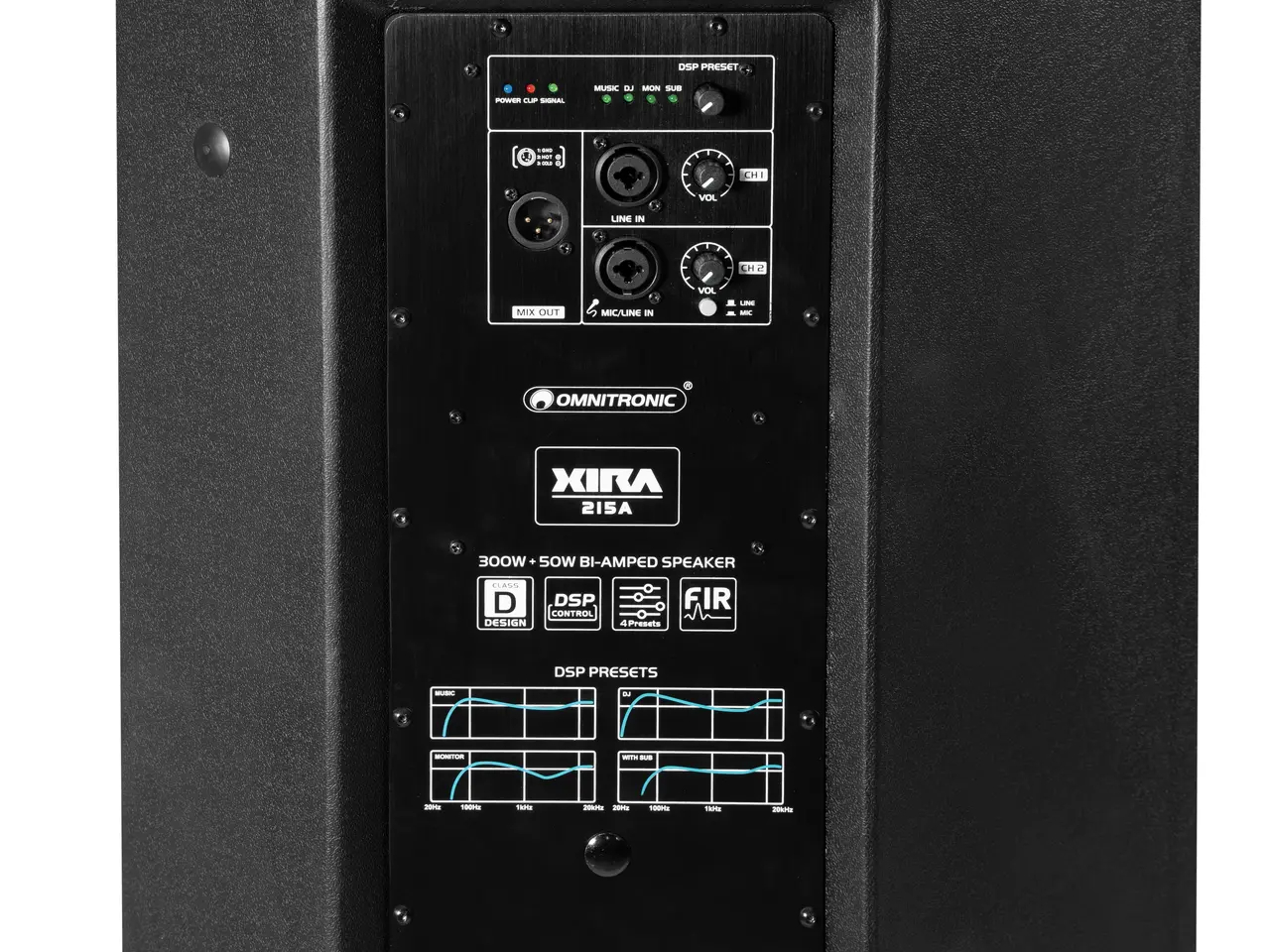

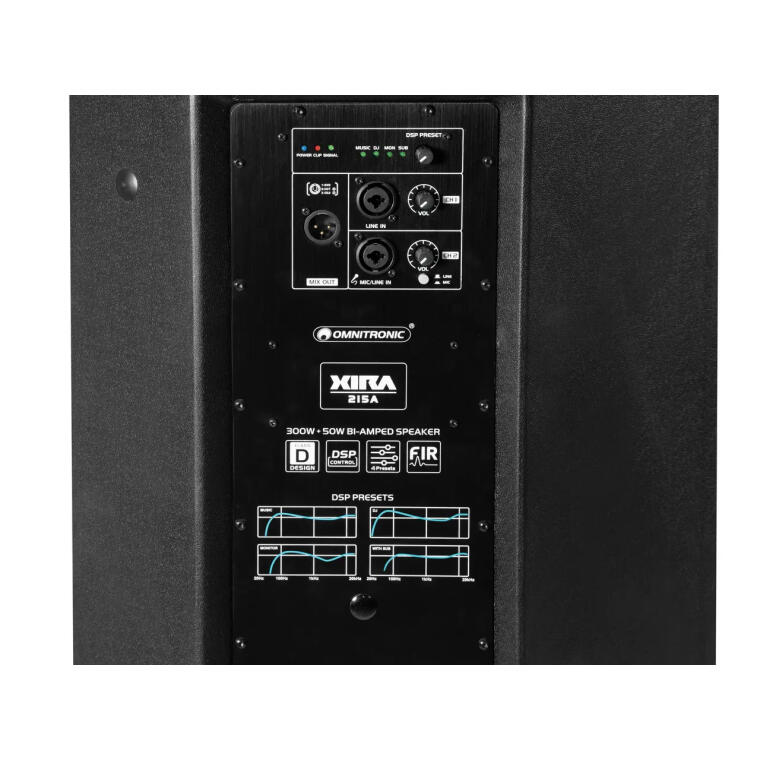

  • Line input (XLR/6.3 mm jack) with separate level control
  • Mic/line input (XLR/6.3 mm jack) with separate level control
  • Mixed output for linking further active speaker systems
  • Digital signal processor FIR Filter
  • Dual flange
  • Black metal grille
  • 2 Rugged carrying handles
  • Application possibility: Standing; monitoring; on stand
  • DSP presets: MUSIC; DJ; MONITOR; SUB
  • For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; rental

Omnitronic XIRA-215A – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Active 2-way bass-reflex PA speaker system with DSP

  • Power Rating: 400 W RMS (LF 350 W Class-D + HF 50 W Class-AB)

  • Program Power: 800 W Peak

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: Max. 500 W

Audio Performance & Transducers

  • Low Frequency Driver: 15" (38 cm) woofer with 3" voice coil

  • High Frequency Driver: 1" (2.5 cm) compression driver with 1.75" voice coil

  • Frequency Range: 45 – 20,000 Hz

  • Max SPL: 125 dB

  • Dispersion Angle: 90° x 60° (H x V), rotatable horn

  • Signal Processing: Digital Signal Processor with selectable application profiles (LIVE, MUSIC, SPEECH, DJ) and low-cut crossover filters

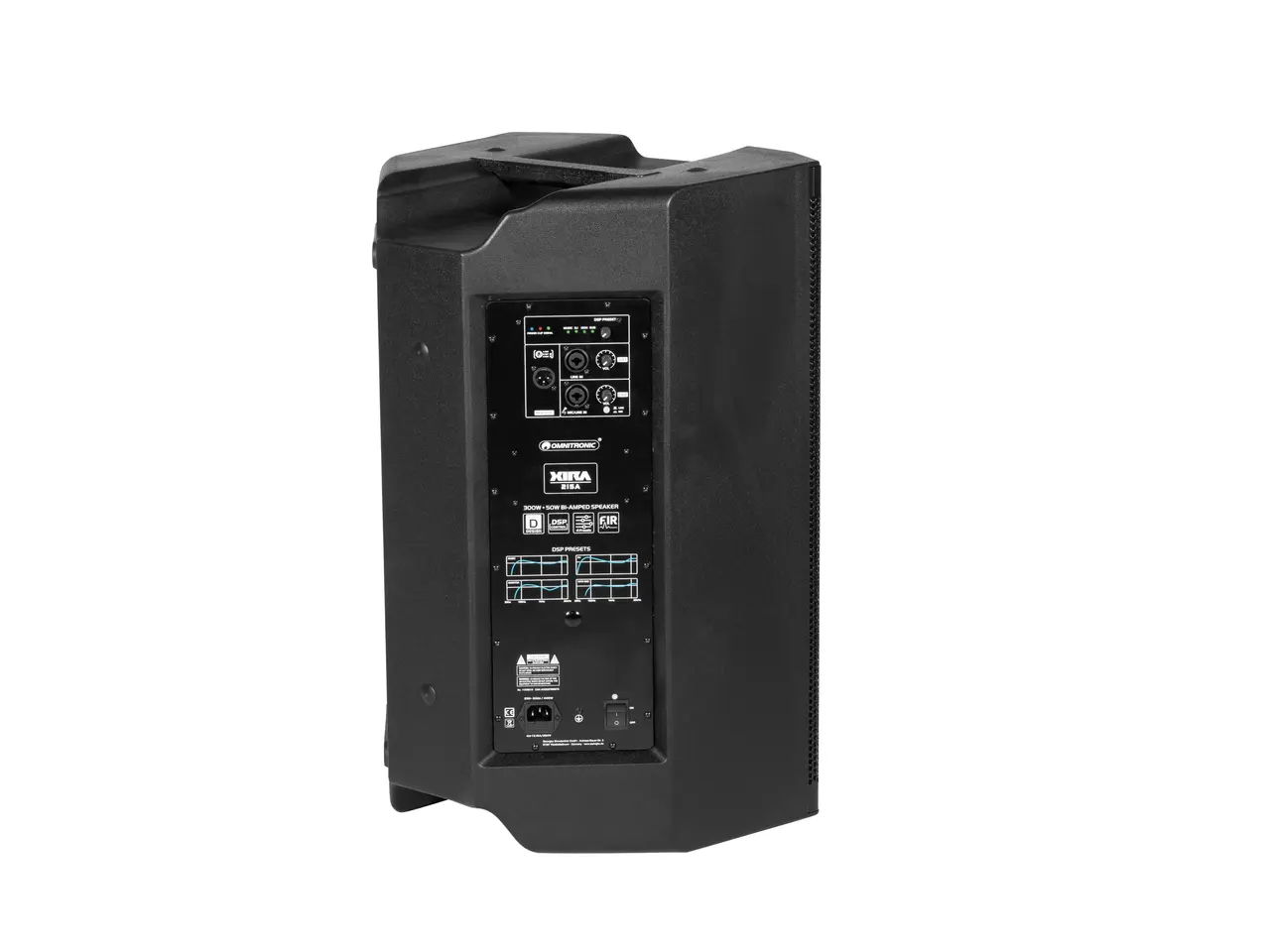

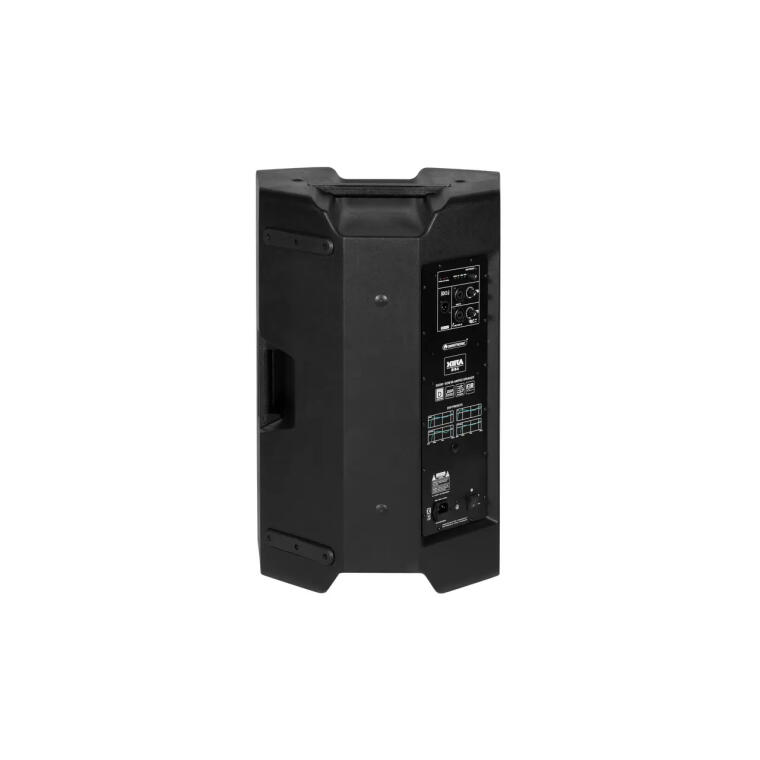

Connectivity & Signal Routing

  • Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)

  • Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack / Stereo RCA pair

  • Wireless Connectivity: Integrated Bluetooth audio receiver for wireless music streaming

  • Line Output: 1 x XLR line output (Mix Out) for linking additional active systems or subwoofers

Controls & Indicators

  • Control Elements: Master Volume encoder with push-to-select DSP menu access, Channel 1 & 2 Gain controls, Line/Mic level switches

  • Display & Indicators: LCD menu display screen, Power status LED, Signal LED, Limit/Clip LED

Enclosure & Hardware

  • Cabinet Material: High-impact ABS plastic chassis (black)

  • Front Protection: Heavy-duty powder-coated steel front grille with interior acoustic foam

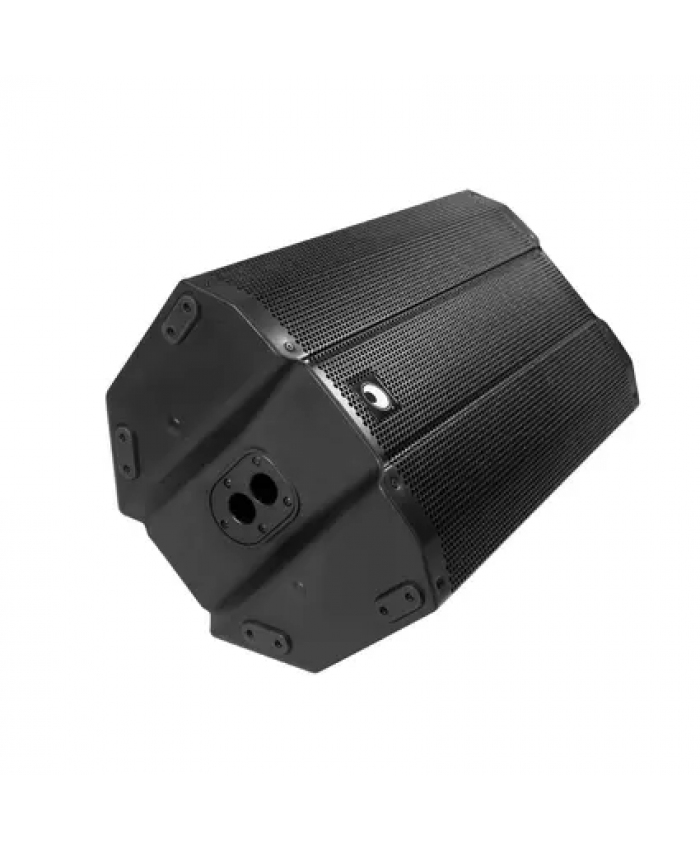

  • Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket (0° / 7° tilt), M10 rigging points for suspended installation

  • Handles: 3 x Ergonomic recessed carrying handles (top and dual side)

  • Application Modes: Main PA enclosure (upright or stand-mounted), stage monitor (angled cabinet side)

Physical Specifications

  • Dimensions (W x D x H): 450 x 385 x 710 mm (17.7" x 15.2" x 28.0")

  • Weight: 18.5 kg (40.8 lbs)

Accessories Included

  • Mains Power Cable

  • Operating Instructions Manual
