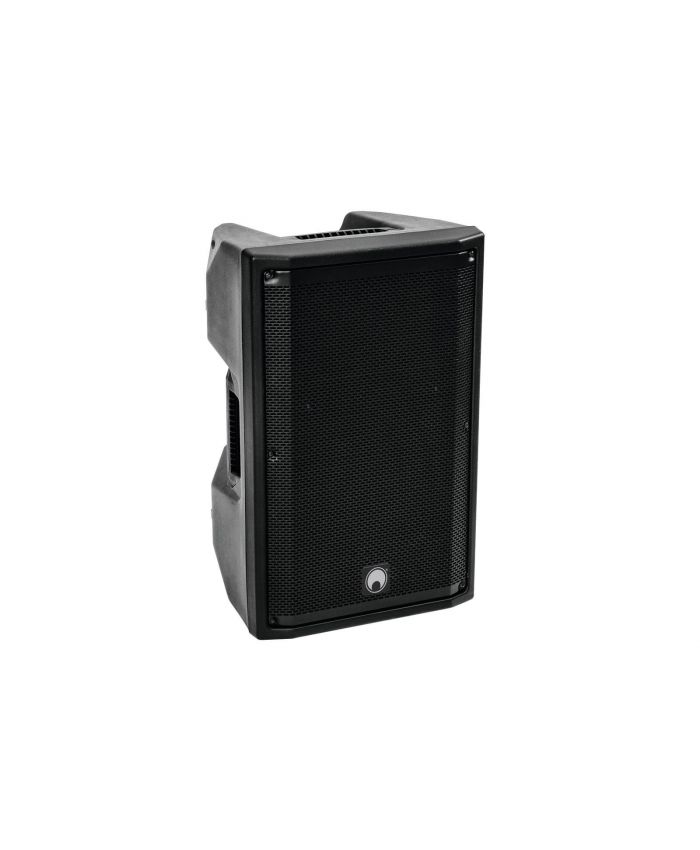

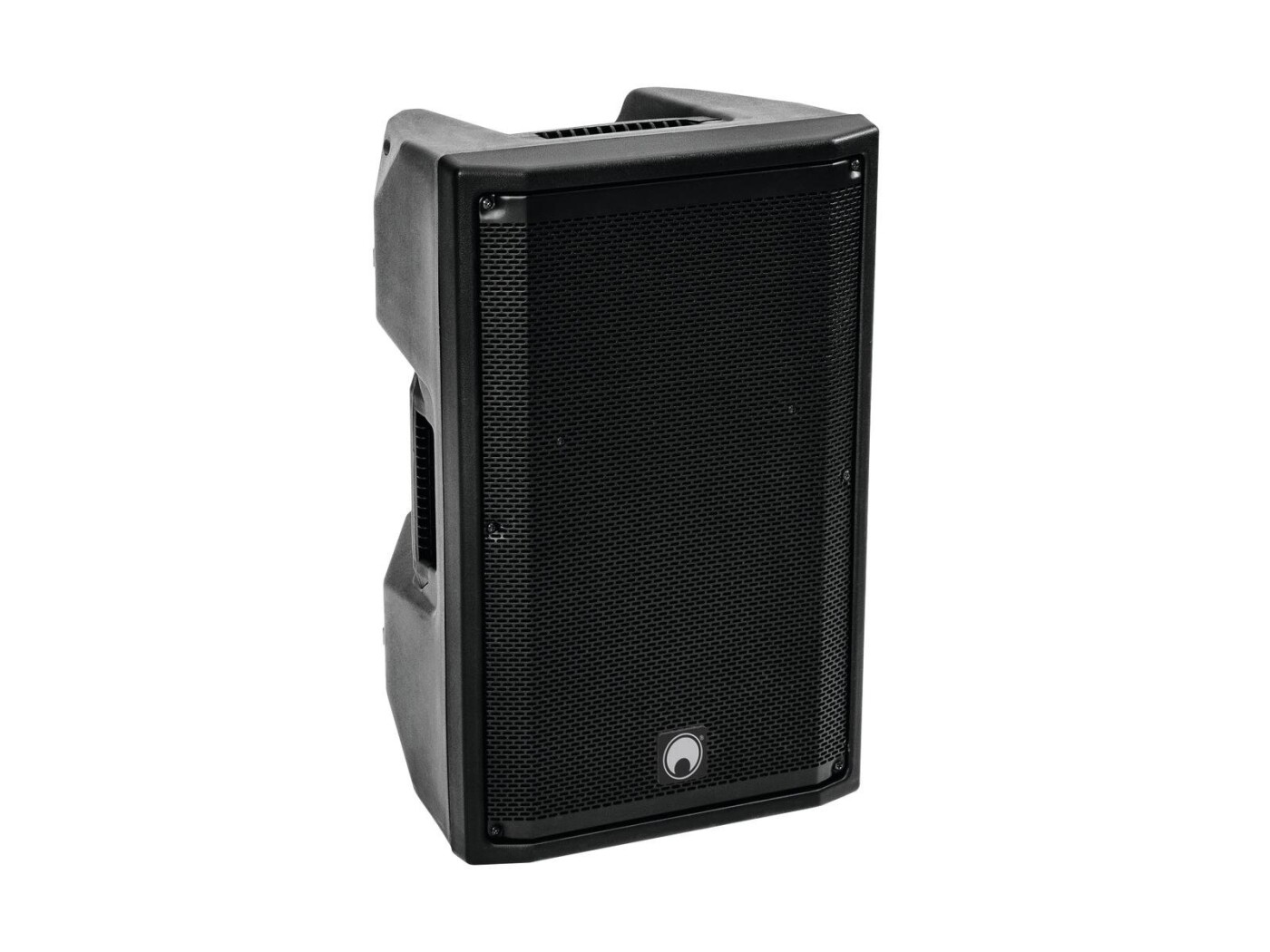

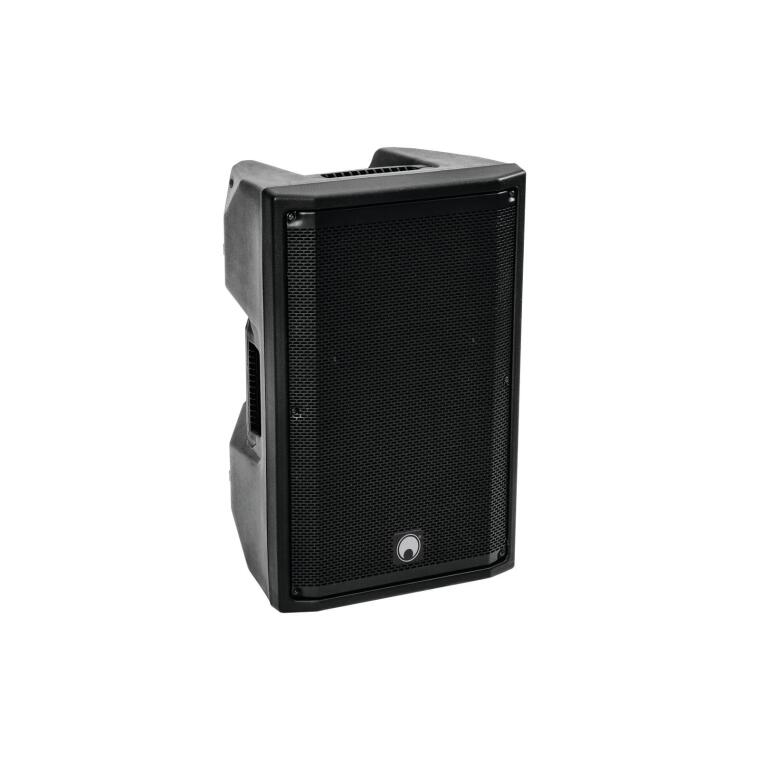

Omnitronic XKB-215A
€415.00
incl. VAT
In stock
Interested in this product?
Overview
Active speaker and 15" woofer, 1.75" driver, 60 W RMS HF, 300 W RMS LF
XKB-215A
- Active 15/2 full range system for mobile live and DJ applications
- DSP-controlled biamp amplifier (LF class D, HF class A/B)
- 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
- Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
- 2-way bass-reflex enclosure with 38 cm woofer and 4 cm titanium driver
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Control via Bluetooth
- LCD display
- Black metal grille with acoustic foam
- 3 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- Digital signal processor
- DSP presets: LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
- For application areas such as: Mobile use; rental; sports centres/gyms; mobile djs / entertainer
Omnitronic XKB-215A – Technical Specifications & Setup Guide
System & Power Handling
-
System Type: Active 2-way bass-reflex PA speaker system with DSP
-
Power Rating: 350 W RMS (LF 300 W Class-D + HF 50 W Class-AB)
-
Program Power: 700 W Peak
-
Power Supply: 230 V AC, 50 Hz
-
Power Consumption: Max. 450 W
Audio Performance & Transducers
-
Low Frequency Driver: 15" (38 cm) woofer with 2.5" voice coil
-
High Frequency Driver: 1" (2.5 cm) compression driver with 1.35" voice coil
-
Frequency Range: 45 – 20,000 Hz
-
Max SPL: 123 dB
-
Dispersion Angle: 90° x 60° (H x V)
-
Signal Processing: DSP with 4 selectable sound presets (LIVE, MUSIC, SPEECH, DJ/CLUB)

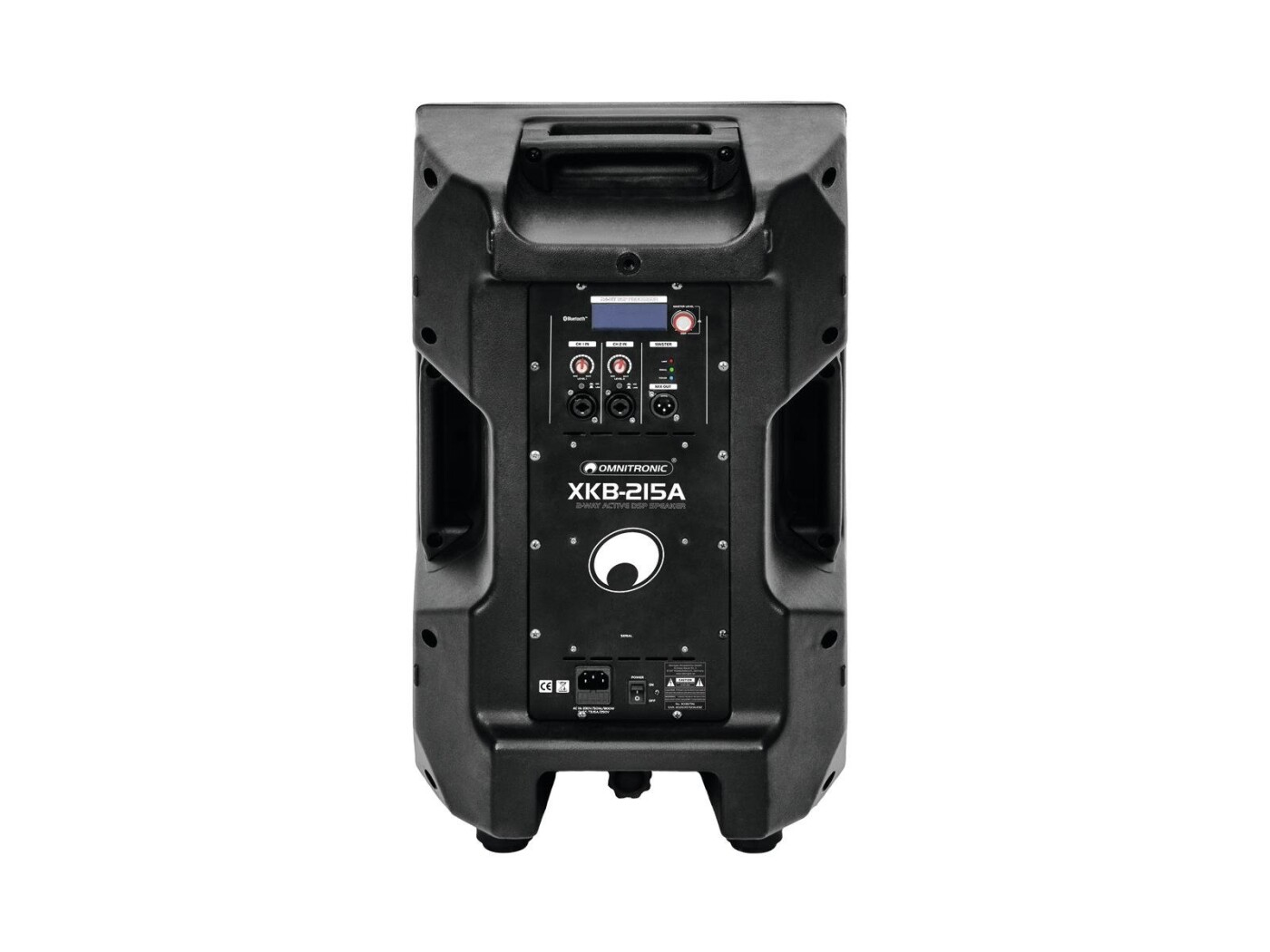

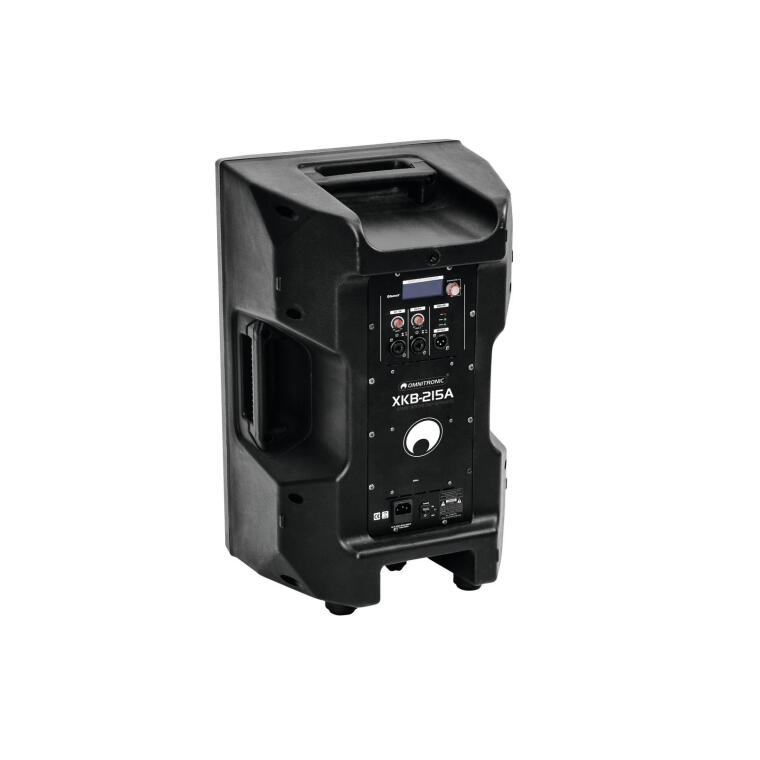

Connectivity & Signal Routing
-
Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)
-
Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack / RCA pair
-
Wireless Connectivity: Integrated Bluetooth audio receiver for wireless streaming
-
Line Output: 1 x XLR line output (Mix Out) for daisy-chaining additional active systems

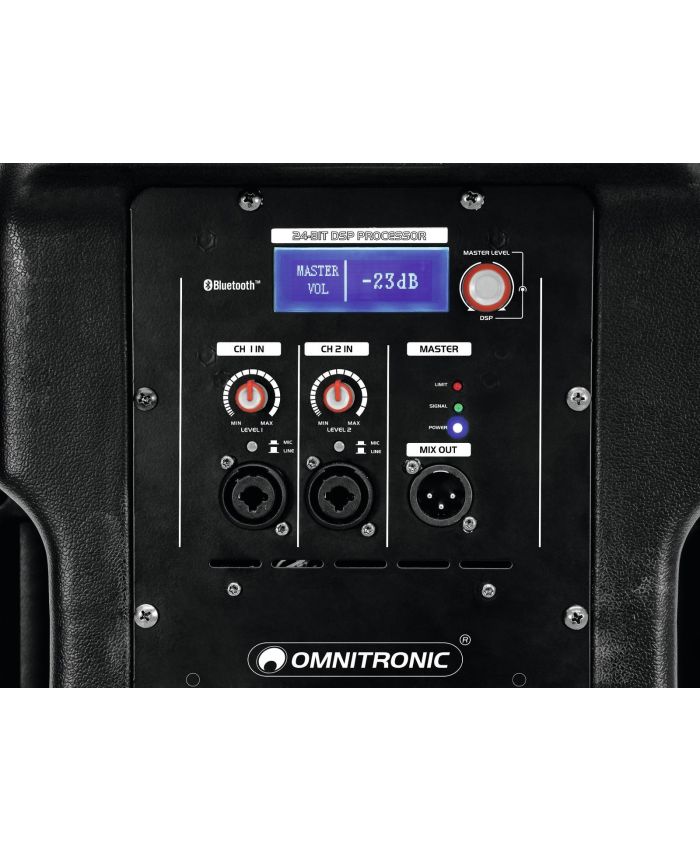

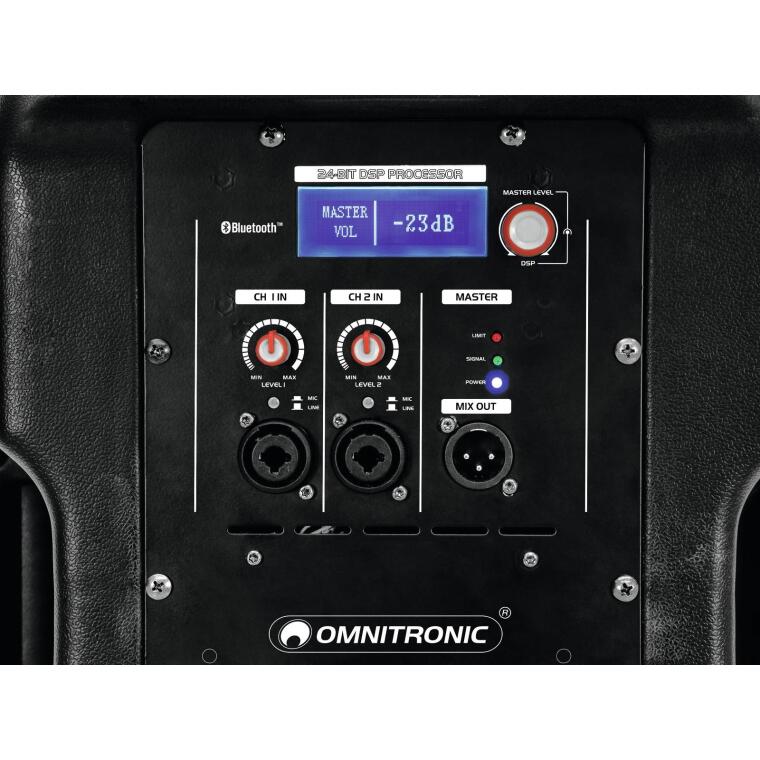

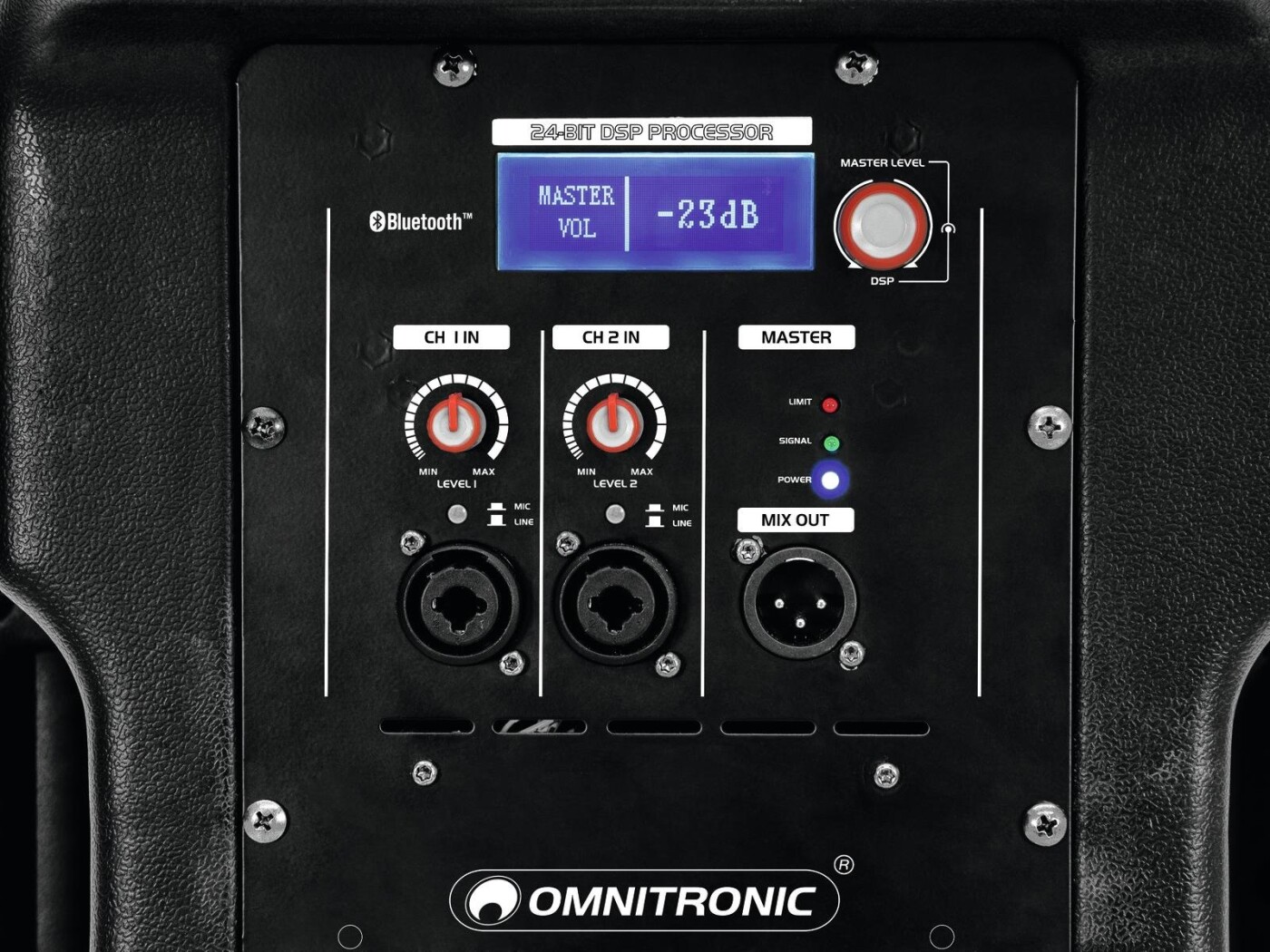

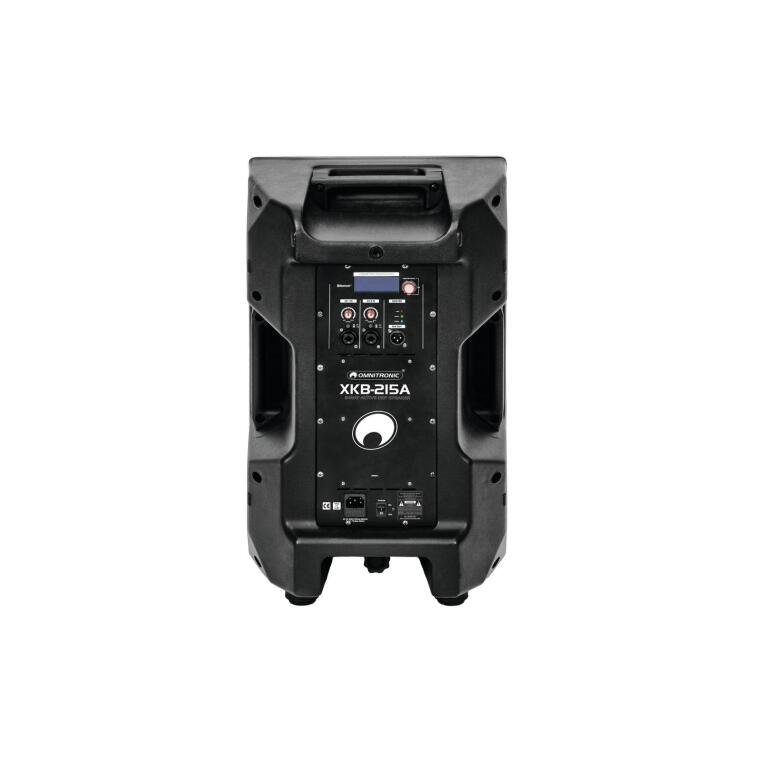

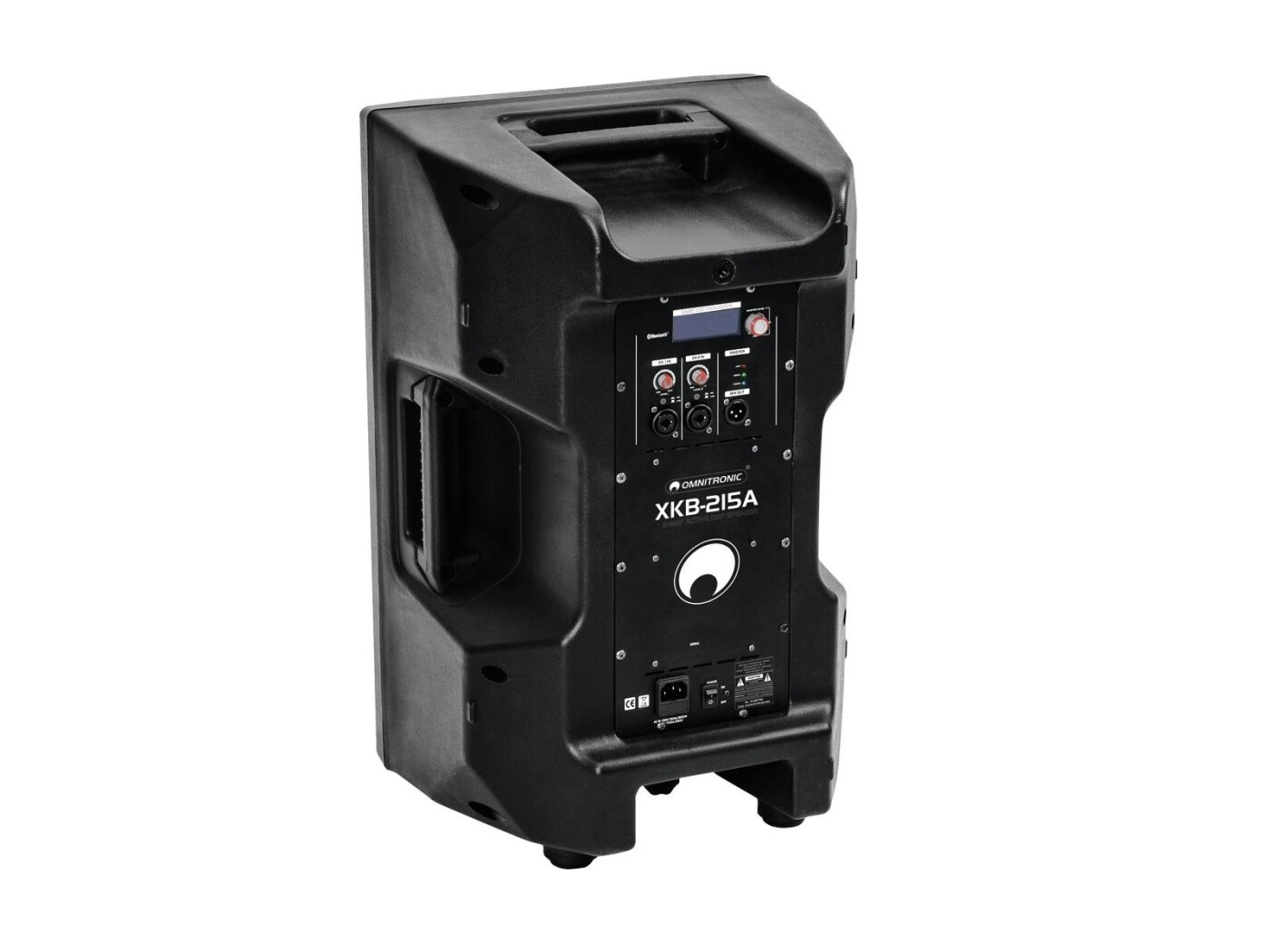

Controls & Indicators
-
Control Elements: Master Volume control, DSP Preset Selector, Channel 1 & 2 Gain controls, Line/Mic switches
-
Indicators: DSP mode LEDs, Power status LED, Signal/Limit LED
Enclosure & Hardware
-
Cabinet Material: High-impact ABS plastic chassis (black)
-

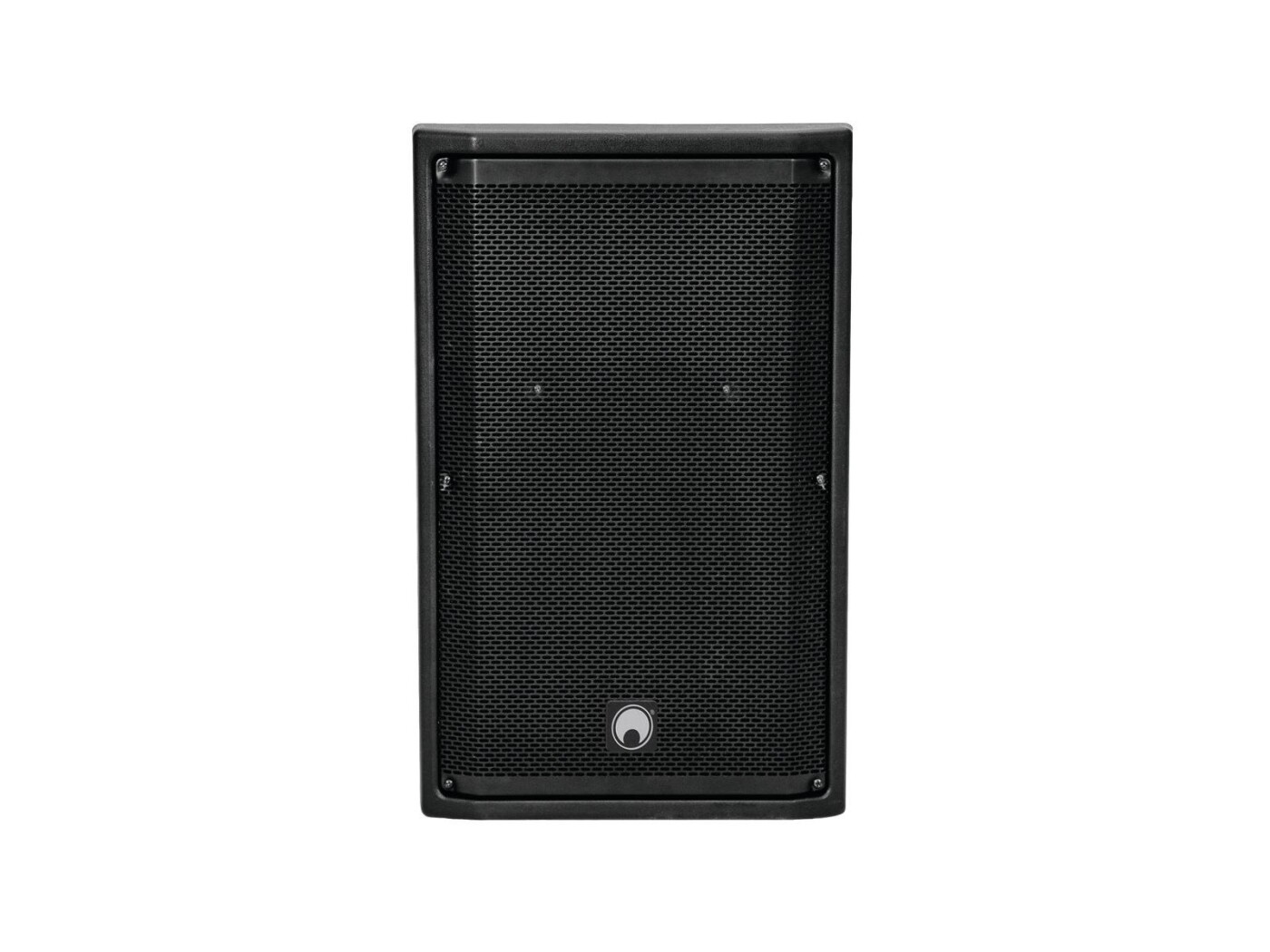

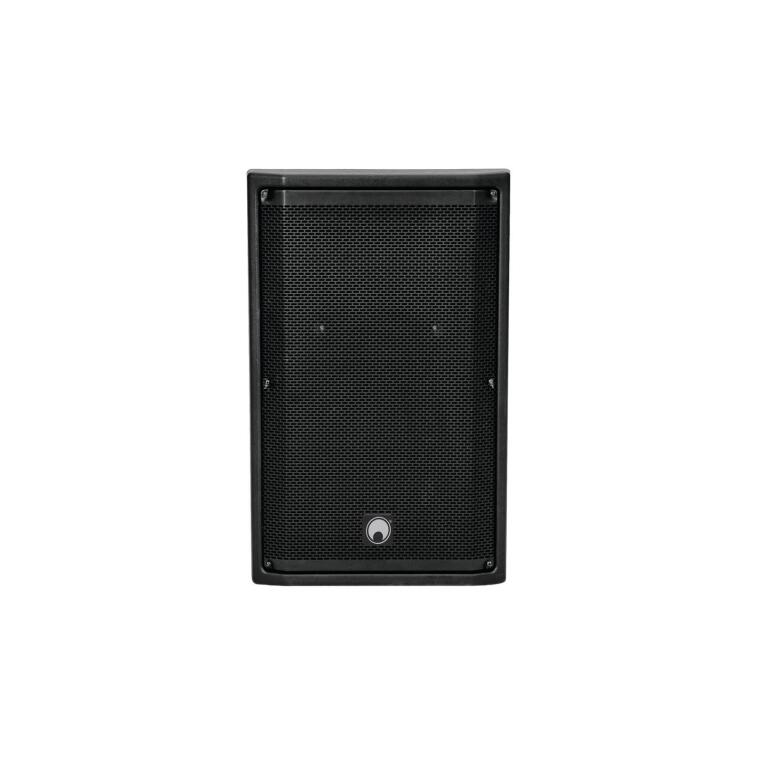

Front Protection: Heavy-duty black metal grille with acoustic foam
-
Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket, M10 rigging points for hanging installation
-
Handles: 3 x Ergonomic carrying handles (top and dual side)
-
Application Modes: Main PA speaker (upright/pole-mounted), stage monitor (angled cabinet side)
Physical Specifications
-
Dimensions (W x D x H): 450 x 380 x 700 mm (17.7" x 15.0" x 27.6")
-
Weight: 17.2 kg (37.9 lbs)
Accessories Included
-
Mains Power Cable
-
Operating Instructions Manual
