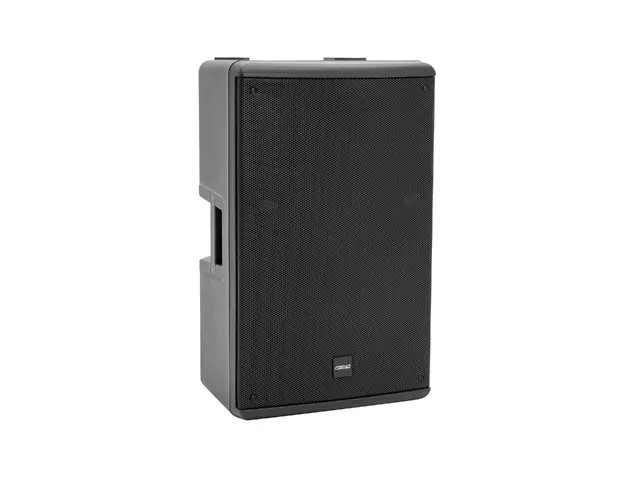

11041181a

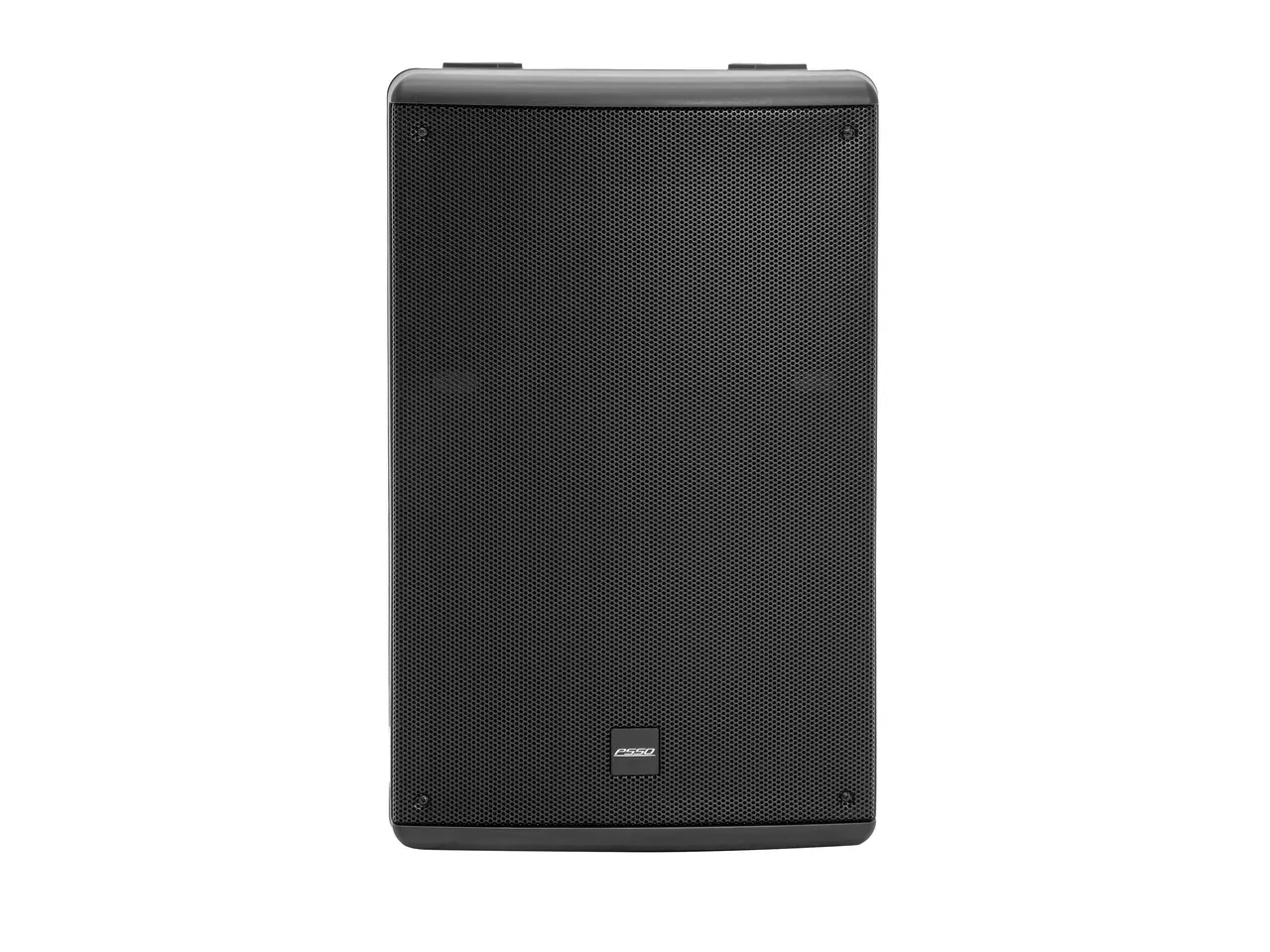

11041181b
11041181c
11041181d
11041181e

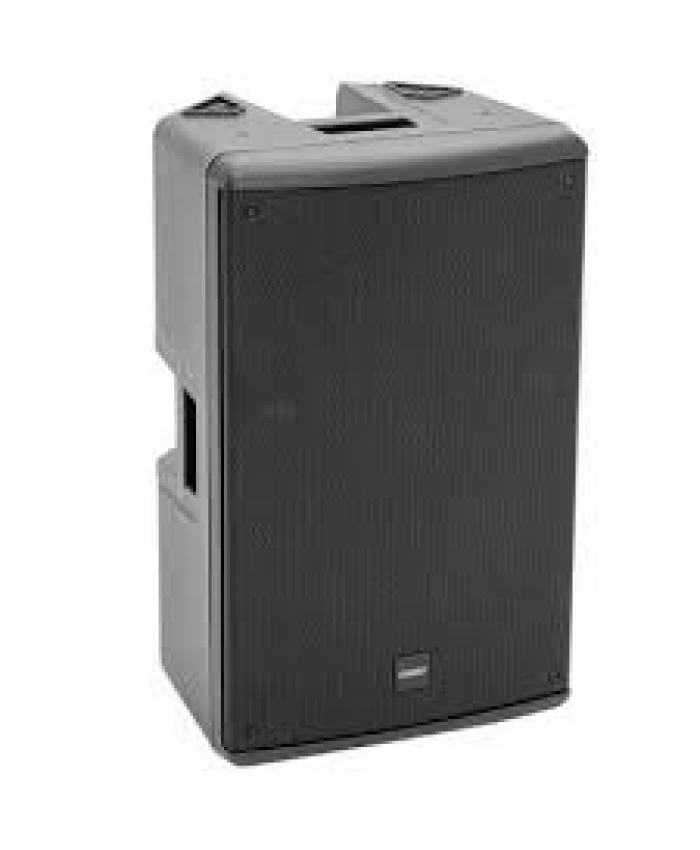

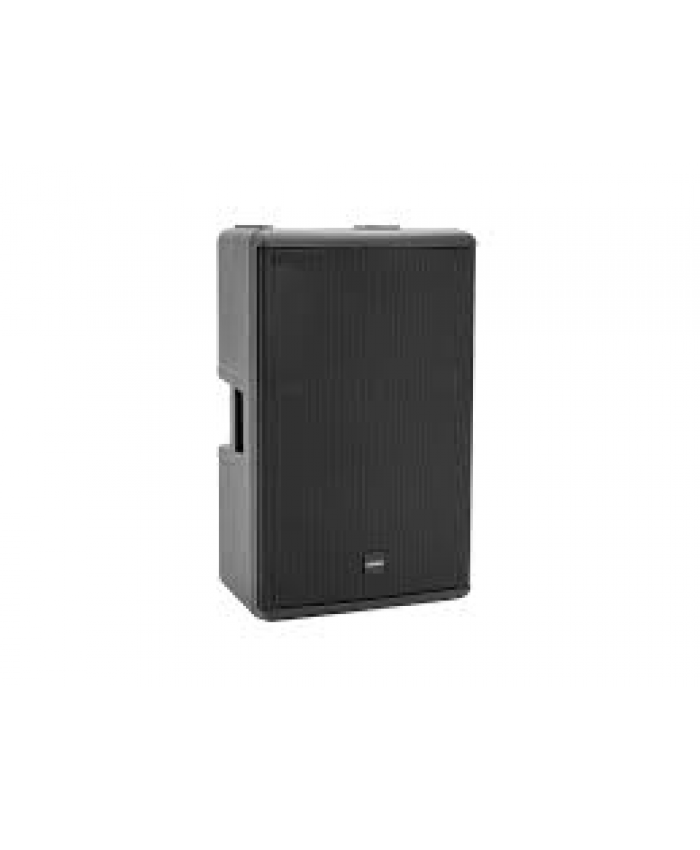

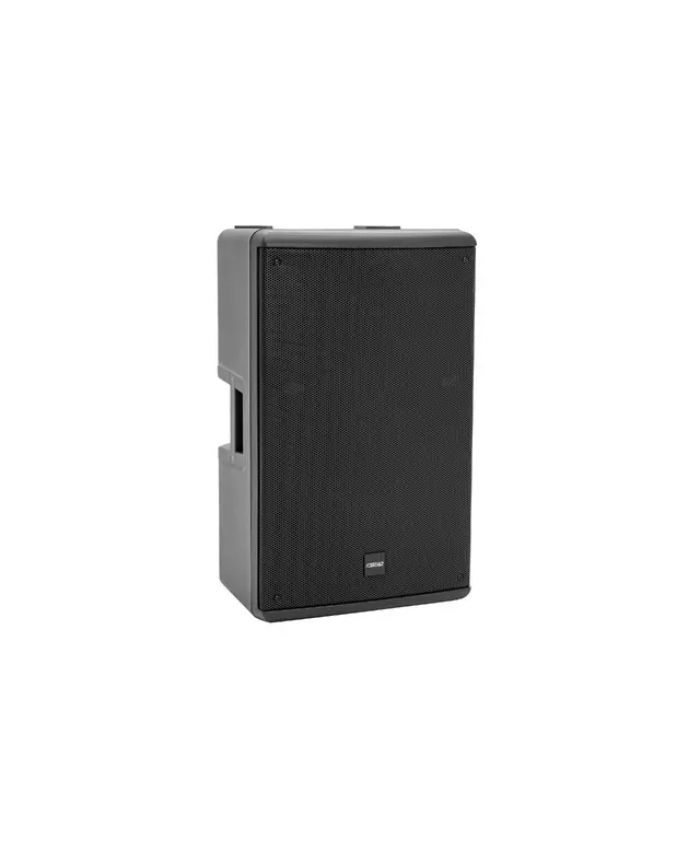

PSSO KX-P215A

Price on request
Out of stock
Interested in this product?
Call us

Overview

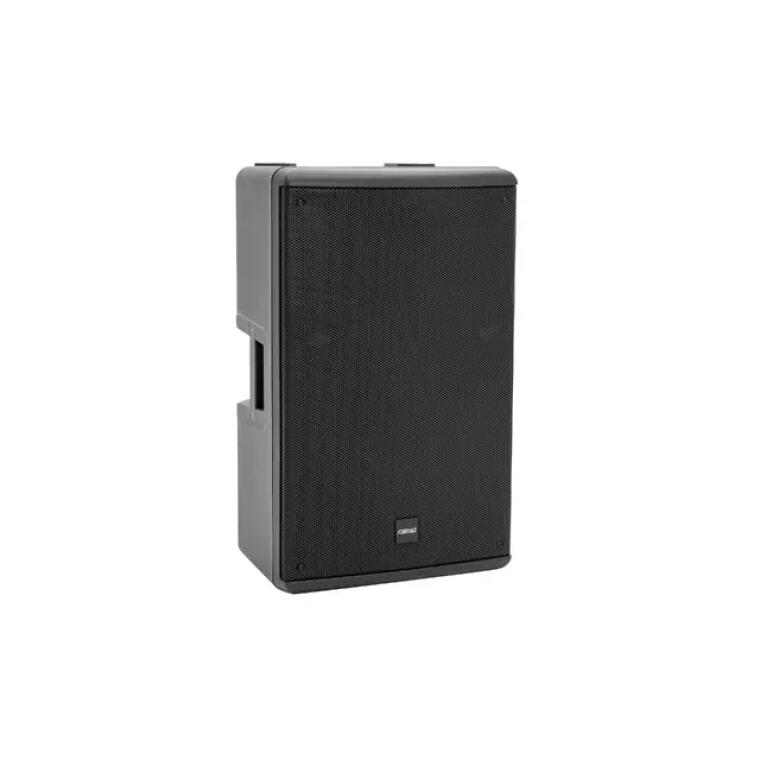

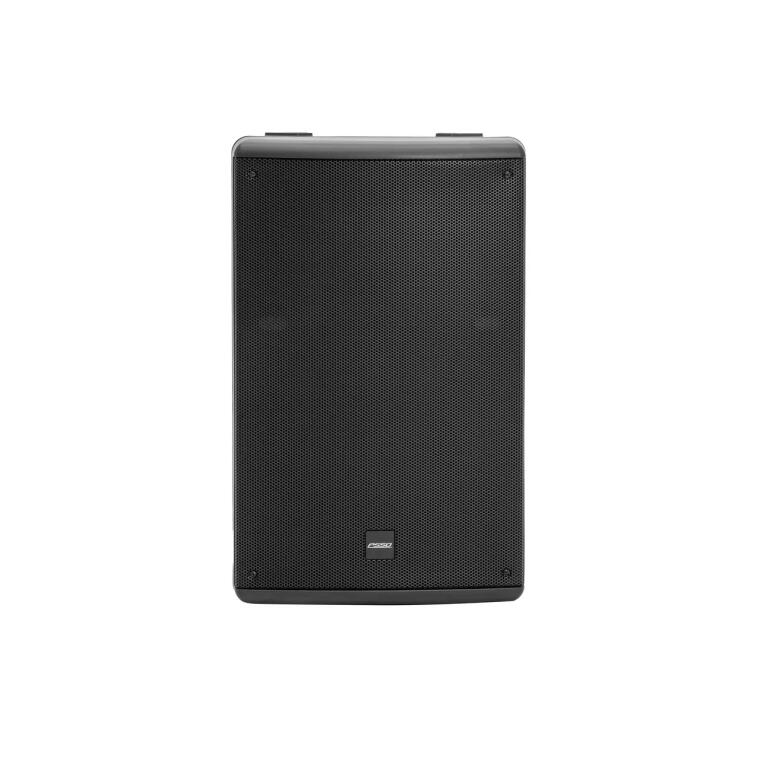

PSSO KX-P215A 2-way Speaker, active, DSP

Active speaker with 15" woofer, 1" driver, 700 W RMS,

  • Active PA speaker system for touring applications and permanent installations
  • Versatile setup options with the KX subwoofer and specially tuned presets
  • High-quality and sturdy PP cabinet with internal bracing, qualified for suspension
  • DSP-controlled biamp amplifier (class D)
  • 2-way bass-reflex system
  • Line input (XLR/6.3 mm jack) with separate level control
  • Mic/line input (XLR/6.3 mm jack) with separate level control
  • Mixed output for linking further active speaker systems
  • Digital signal processor FIR Filter
  • DSP presets: LIVE; MONITOR; MUSIC; SPEECH; SUB; FLAT
  • The device is cooled by passive convection cooling
  • With rigging points
  • Black metal grille with acoustic foam
  • 3 Rugged carrying handles

PSSO KX-P215A 2-way Speaker, Active, DSP – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Active 2-way bass-reflex multifunction PA speaker system with DSP

  • Power Rating: 500 W RMS (LF: 400 W Class-D + HF: 100 W Class-D)

  • Program Power: 1000 W Peak

  • Power Supply: 100–240 V AC, 50/60 Hz (PowerCon input/output)

  • Power Consumption: Max. 600 W

Audio Performance & Transducers

  • Low Frequency Driver: 15" (38 cm) custom woofer with 3" voice coil

  • High Frequency Driver: 1.4" (3.5 cm) compression driver with 2.5" voice coil

  • Frequency Range: 45 – 20,000 Hz

  • Max SPL: 129 dB

  • Dispersion Angle: 80° x 50° (H x V), rotatable horn

  • Signal Processing: 24-bit / 48 kHz DSP with selectable presets (e.g., DJ, LIVE, MONITOR, FLAT) and custom EQ adjustments

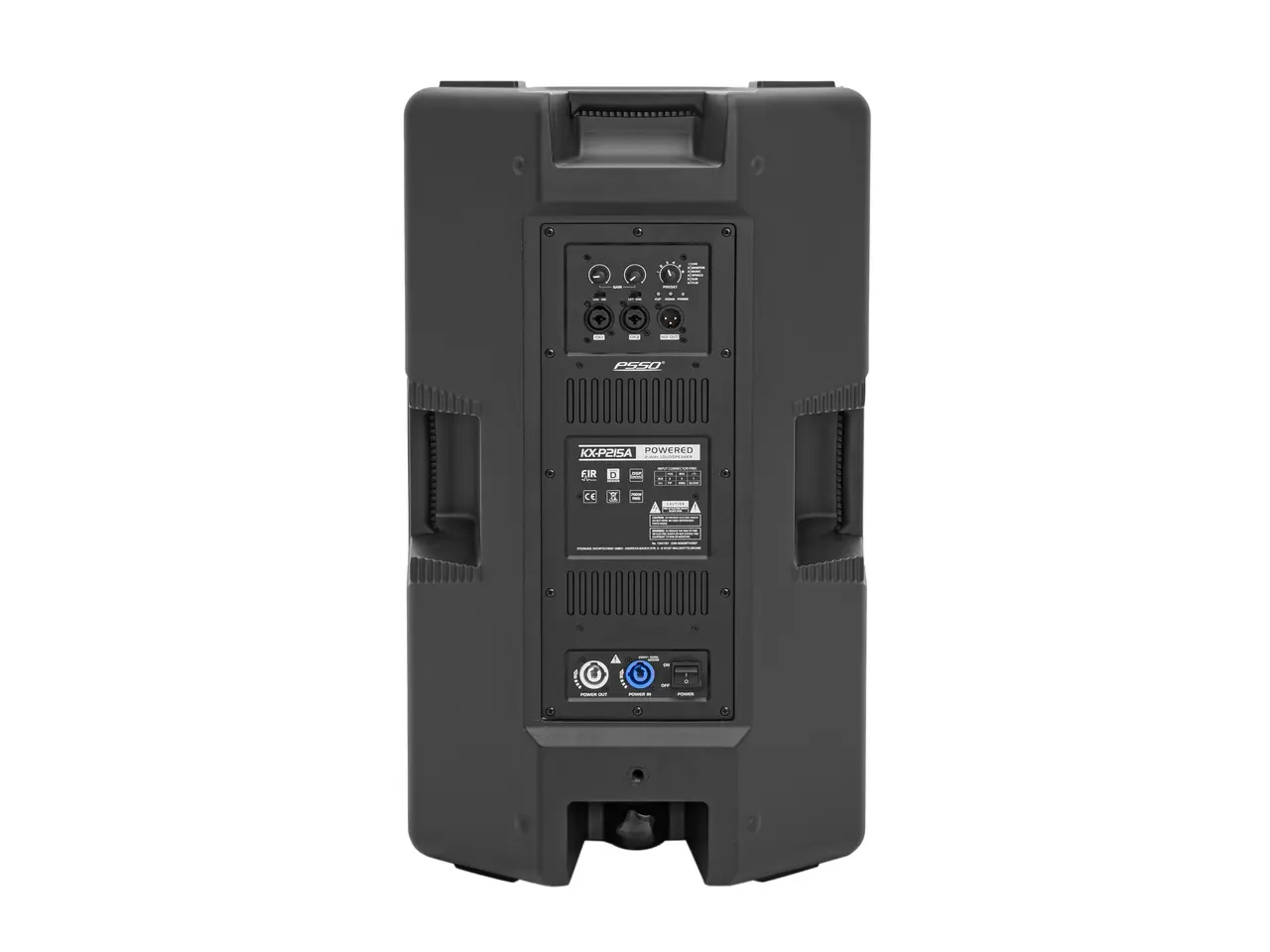

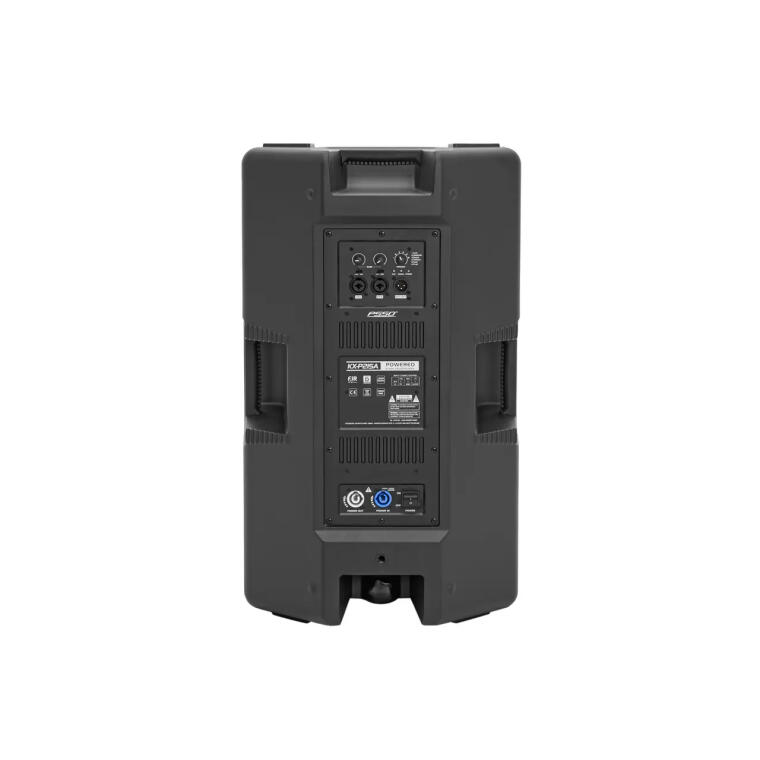

Connectivity & Signal Routing

  • Inputs: 2 x Combo XLR / 6.3 mm (1/4") Jack inputs (Line/Mic switchable)

  • Auxiliary Input: 1 x 3.5 mm stereo Aux mini-jack

  • Line Output: 1 x XLR mixed output (Mix Out) for daisy-chaining to additional active speakers/subwoofers

  • Power Link: 1 x Neutrik PowerCon output link

Controls & Indicators

  • DSP Interface: Multi-function rotary encoder / push button with LCD display panel for menu navigation

  • Control Elements: Channel 1 Gain, Channel 2 Gain, Master Volume / Preset Selector, Line/Mic selector switches

  • Indicators: LCD status screen, Power LED, Limit/Clip LED, Signal LED

Enclosure & Hardware

  • Cabinet Material: High-grade multiplex birch plywood enclosure with durable black polyurea coating

  • Front Protection: Heavy-duty powder-coated steel grille with acoustic foam backing

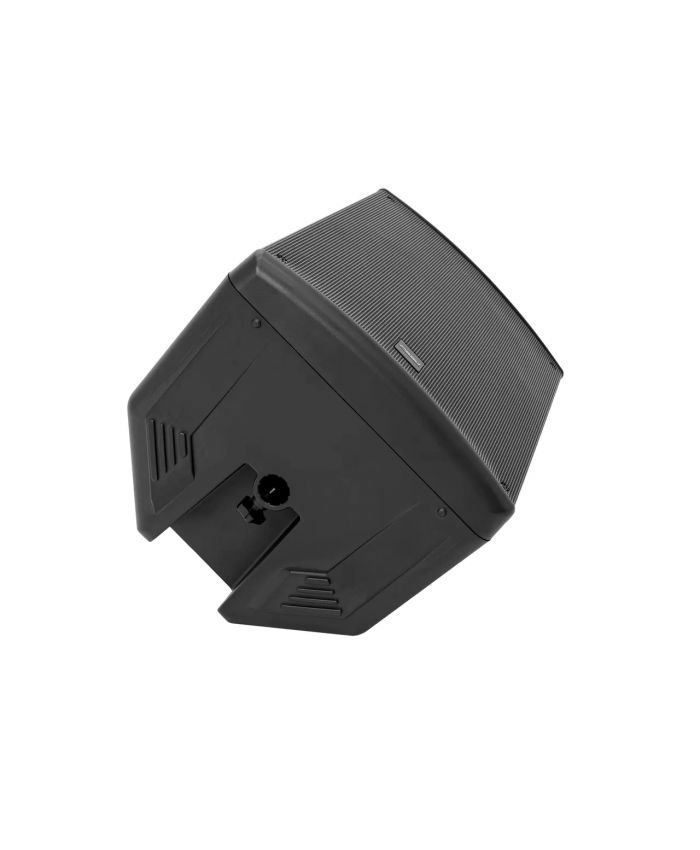

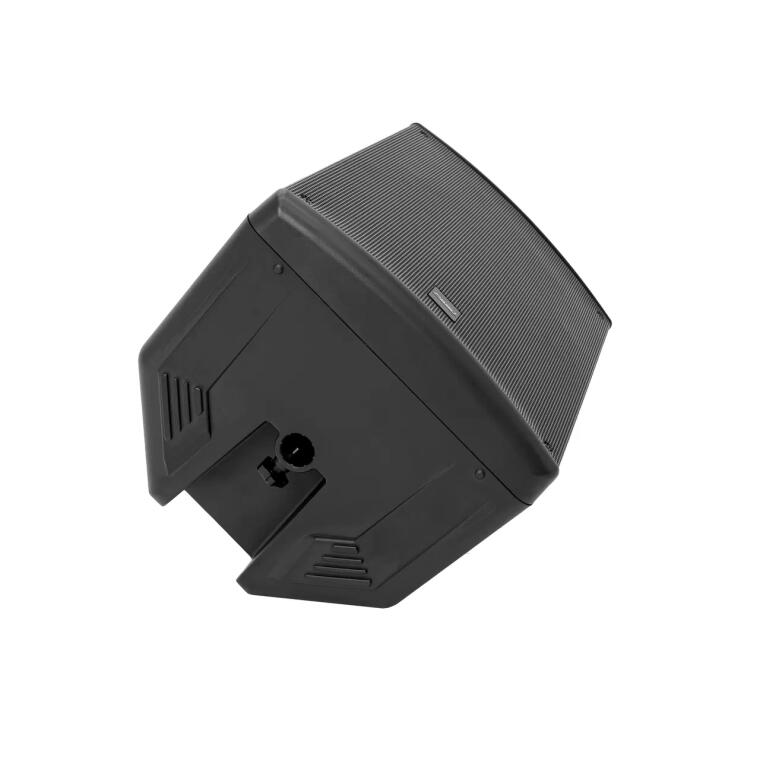

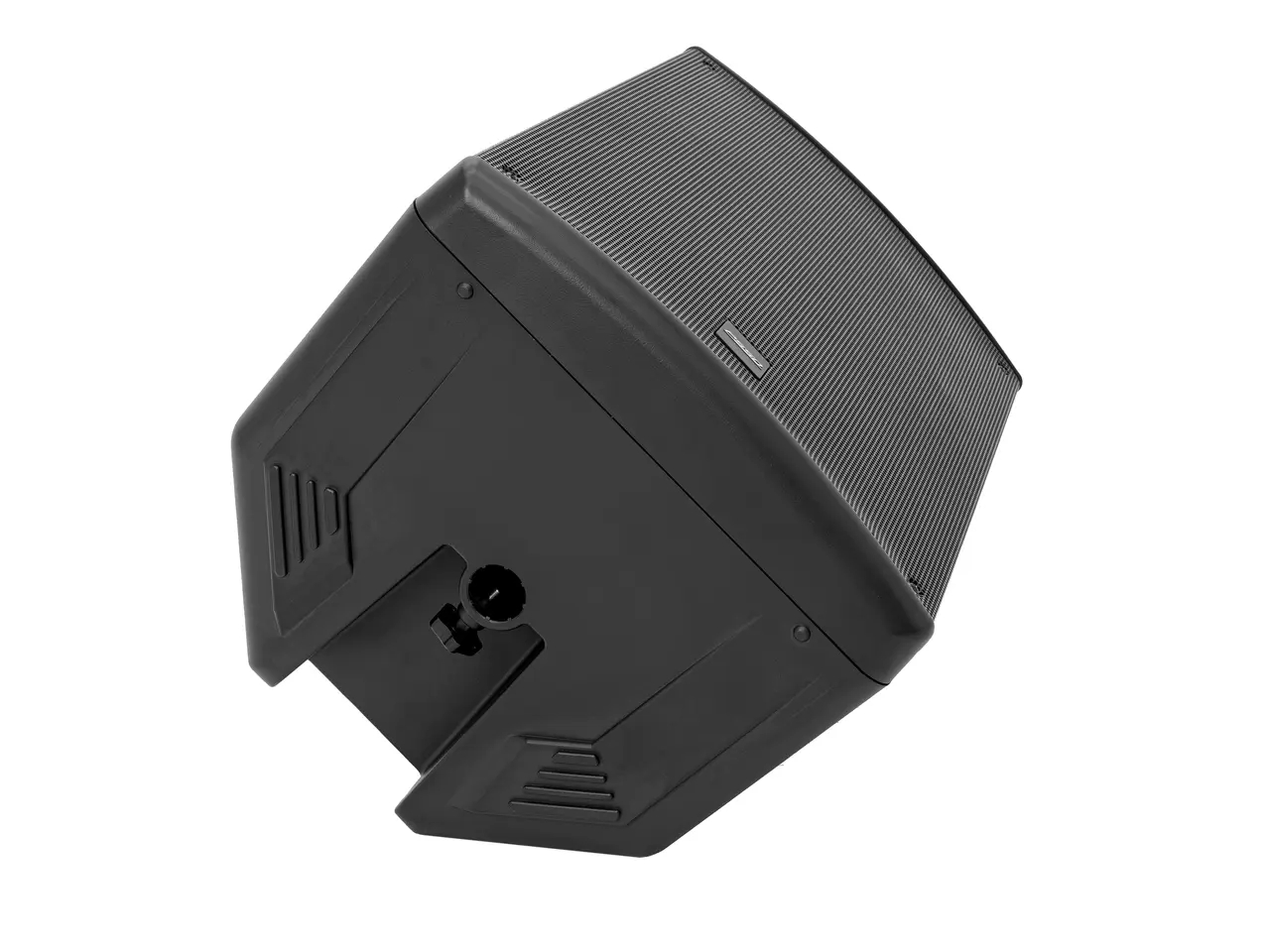

  • Mounting / Suspension: Integrated Ø 35 mm dual-tilt pole socket, M10 rigging points for flown installation

  • Handles: 2 x Ergonomic recessed carrying handles

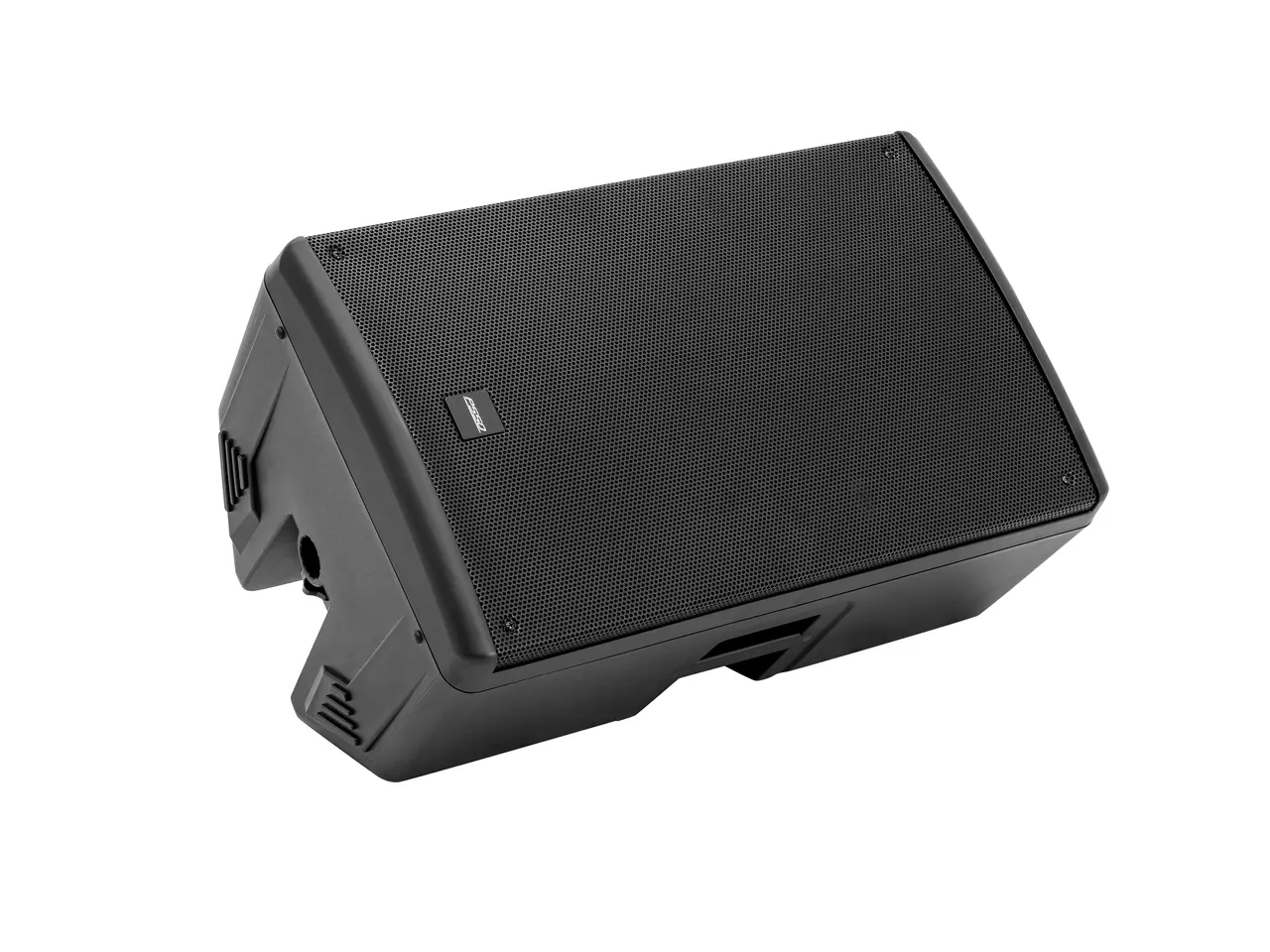

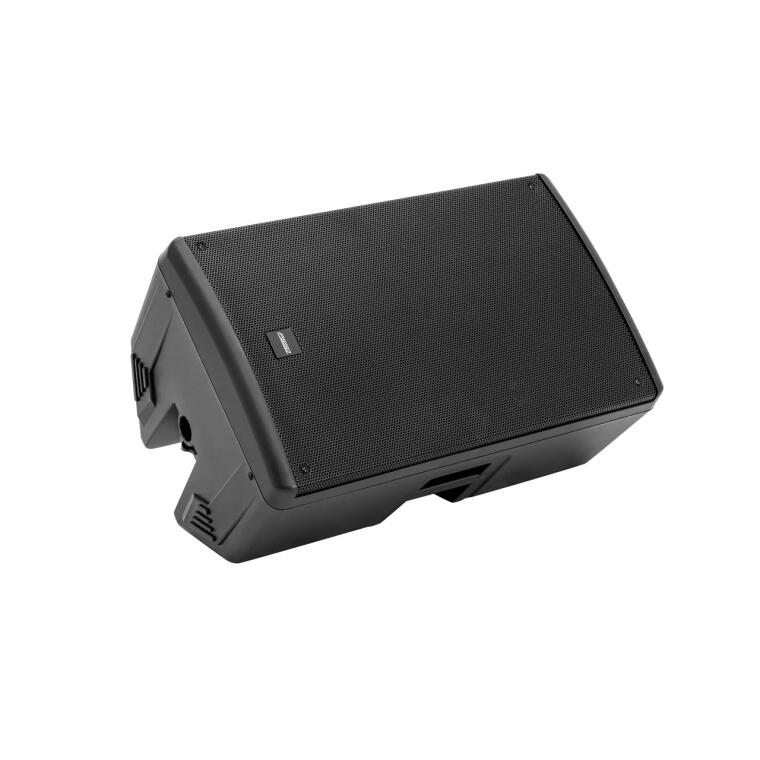

  • Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (50° angled cabinet side)

Physical Specifications

  • Dimensions (W x D x H): 445 x 440 x 740 mm (17.5" x 17.3" x 29.1")

  • Weight: 23.8 kg (52.5 lbs)

Accessories Included

  • PowerCon Mains Cable

  • Operating Instructions Manual
