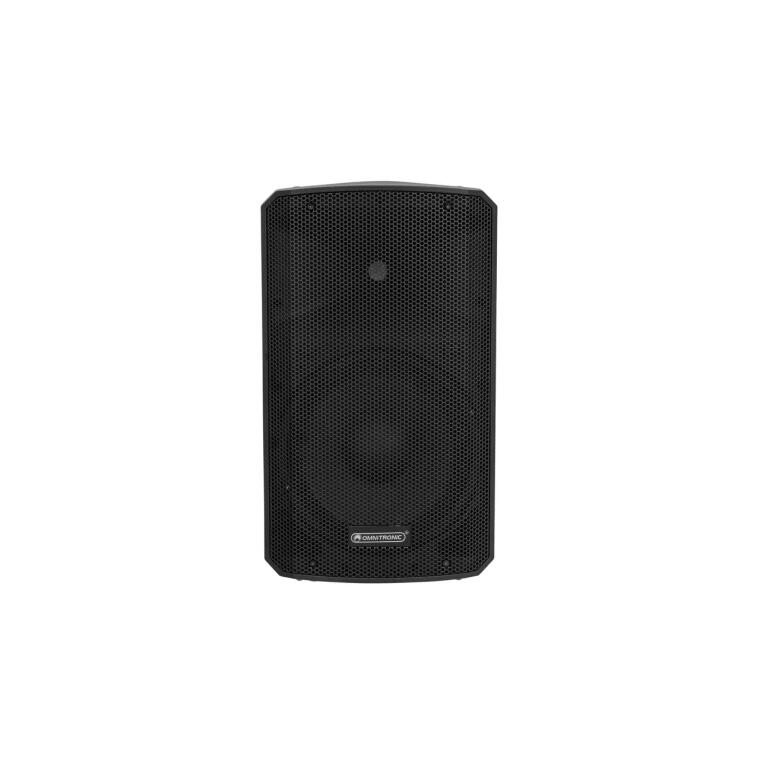

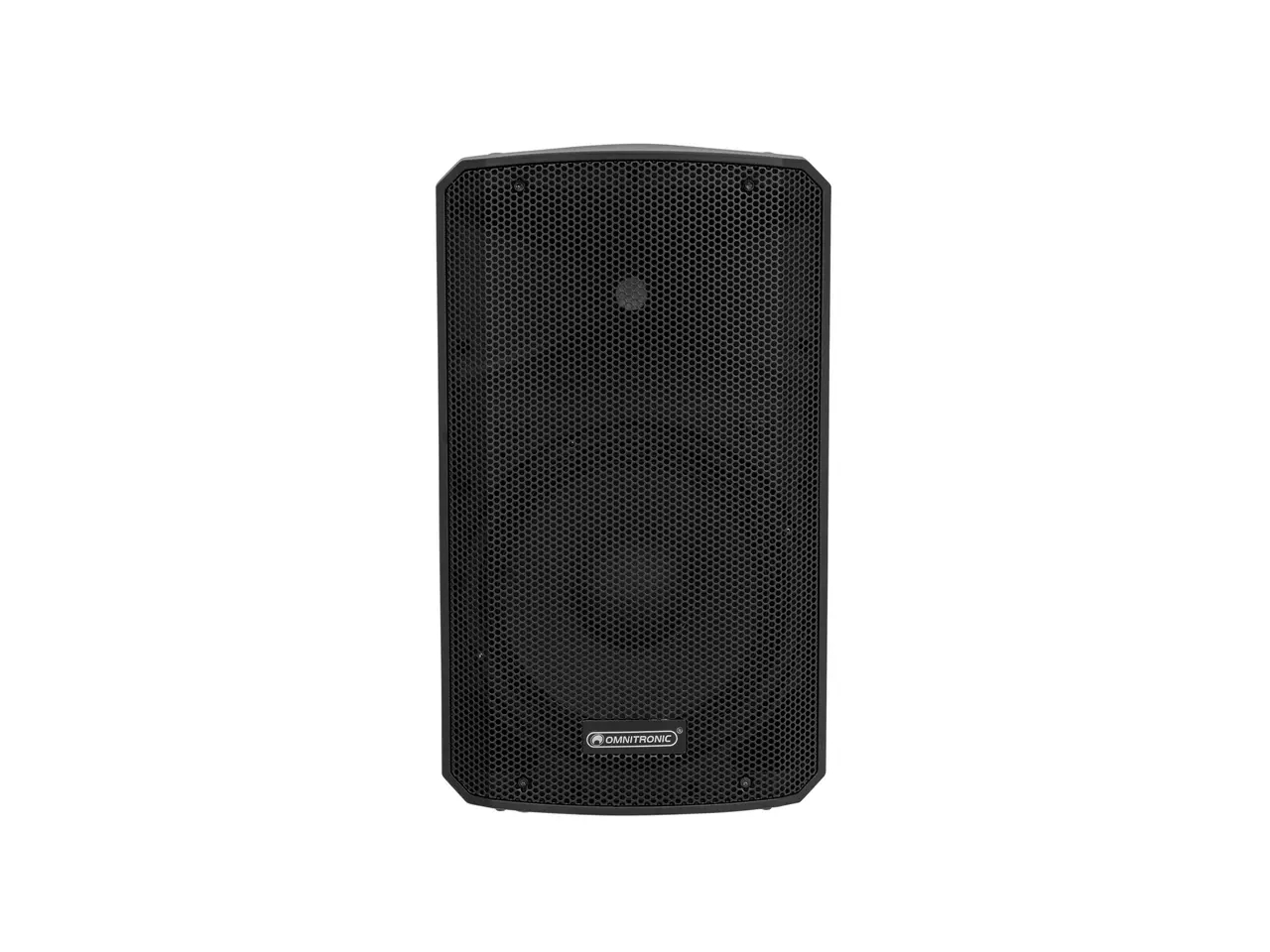

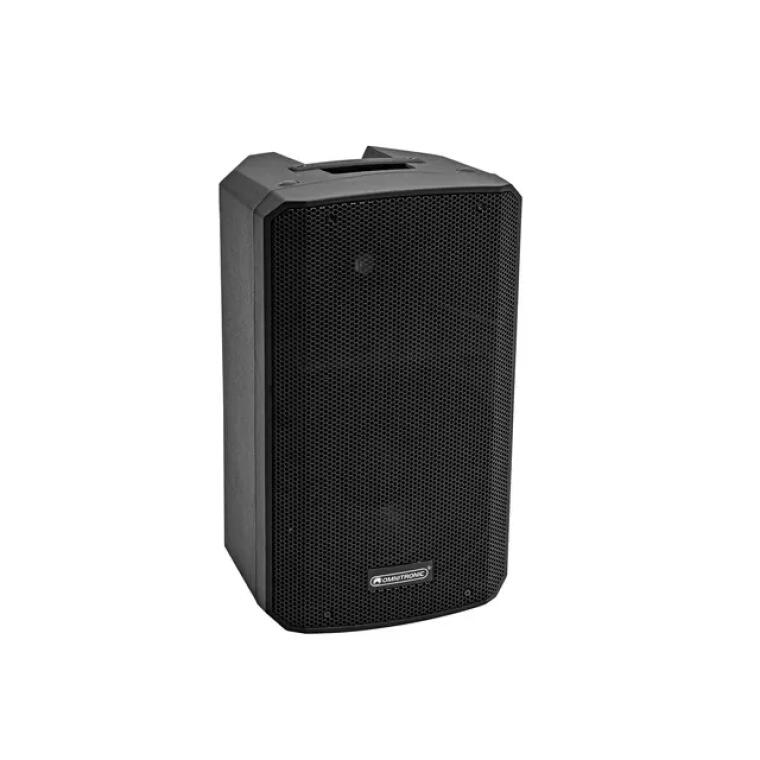

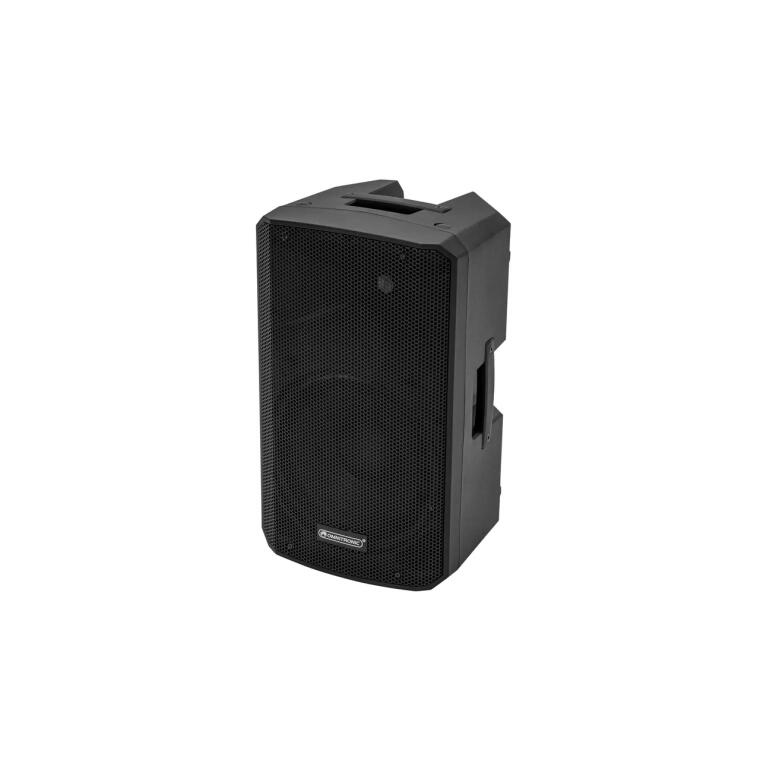

Omnitronic VFM-210AP MK2

Price on request
In stock
Interested in this product?
Call us

Overview

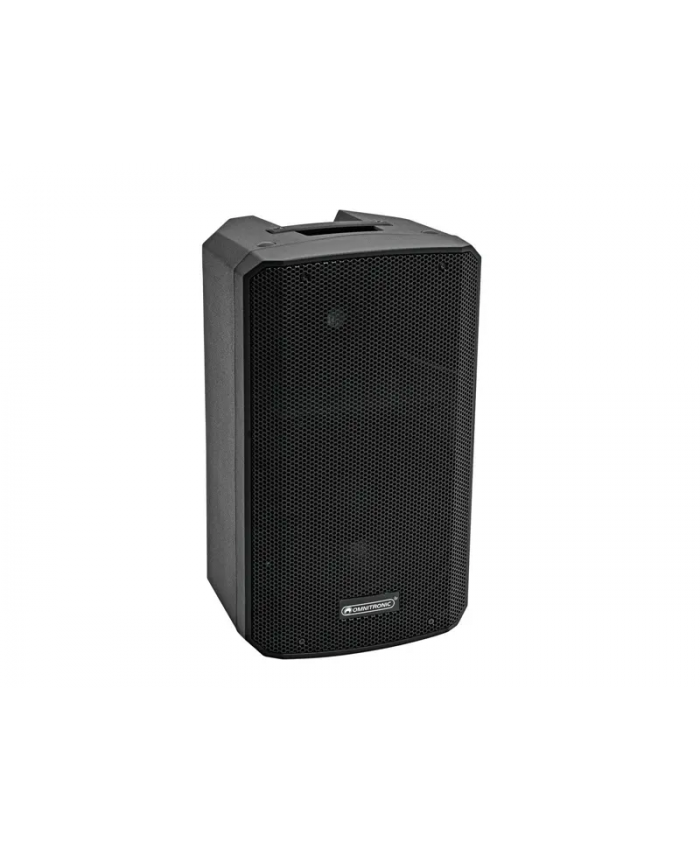

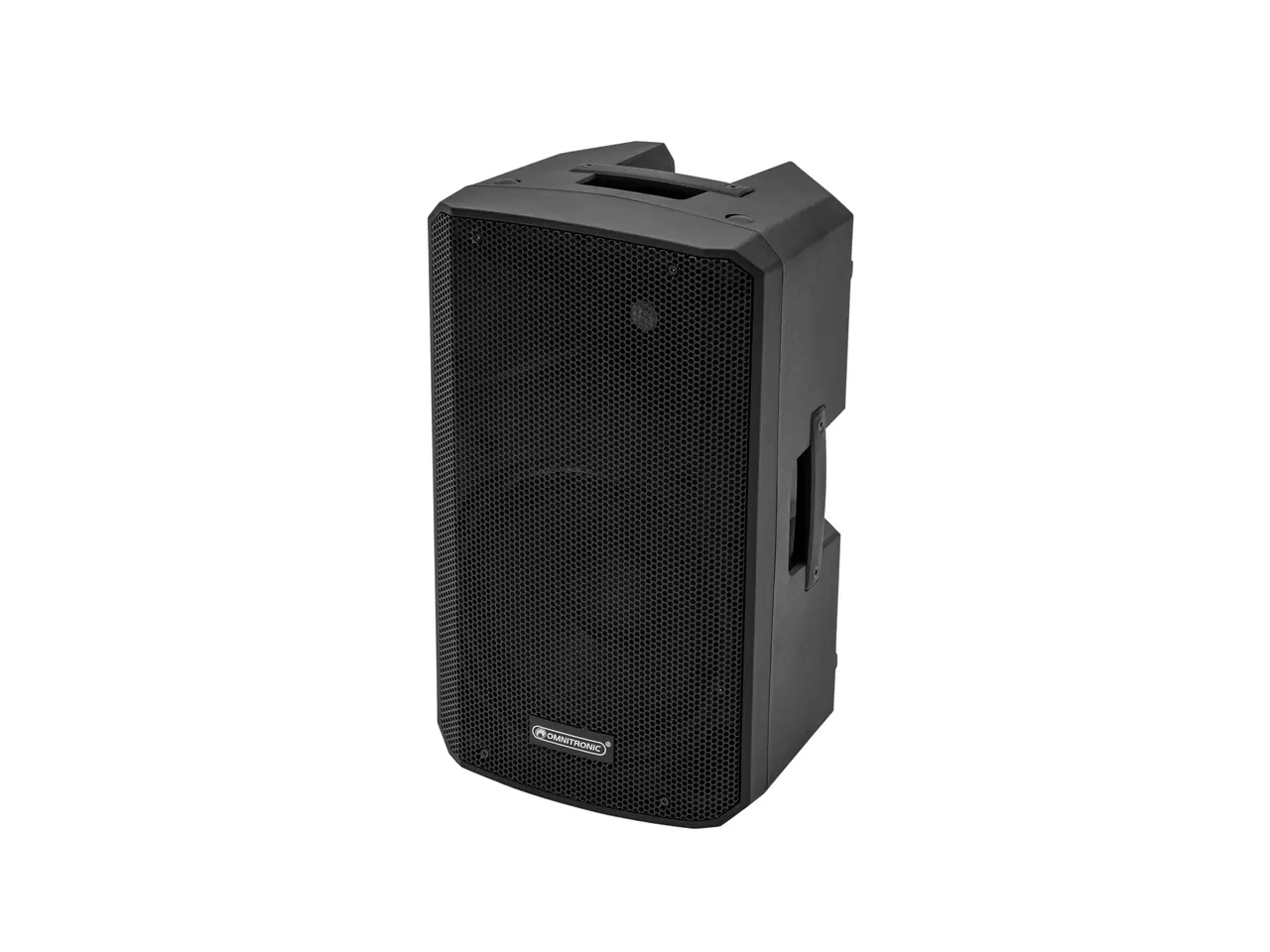

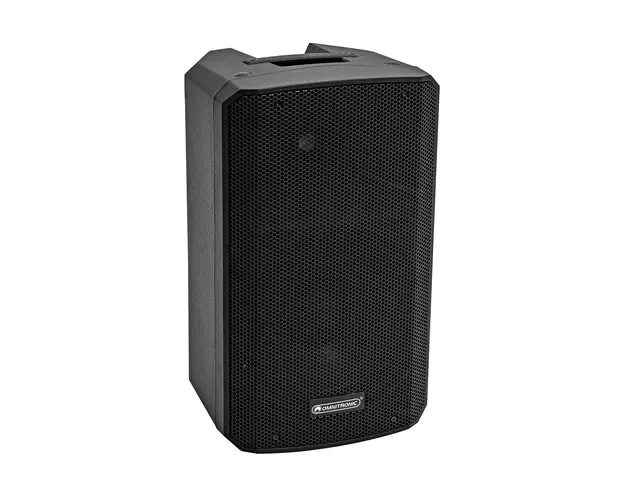

OMNITRONIC VFM-210AP MK2 2-way Speaker active TWS

Active 2-way speaker system (10") with 90 W RMS for PA and DJ applications with audio player and Bluetooth

  • 2-way bass-reflex enclosure with 25 cm woofer and 2.5 cm compression driver
  • Class A/B circuitry: optimum sound and power at low weight and compact dimensions
  • Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
  • SD card slot and USB port
  • 1 mic/line combo input (XLR/jack) with level control
  • Line input, RCA
  • 3.5 mm AUX input
  • Mixed output for linking further active speaker systems
  • Master control with 2-band EQ
  • Control via IR remote control; Bluetooth
  • Black metal grille
  • 2 Rugged carrying handles
  • For application areas such as: Mobile djs / entertainer
  • Application possibility: Standing; monitoring; on stand



Omnitronic VFM-210AP MK2 – Technical Specifications & Setup Guide

System & Power Handling

  • System Type: Active 2-way bass-reflex PA speaker system

  • Amplifier Output: 80 W RMS / 160 W Peak (Class-AB amplification)

  • Power Supply: 230 V AC, 50 Hz

  • Power Consumption: Max. 120 W

Audio Performance & Transducers

  • Low Frequency Driver: 10" (25 cm) woofer with 1.5" voice coil

  • High Frequency Driver: 1" (2.5 cm) compression tweeter

  • Frequency Range: 60 – 18,000 Hz

  • Sensitivity: 93 dB (1W/1m)

  • Max SPL: 113 dB

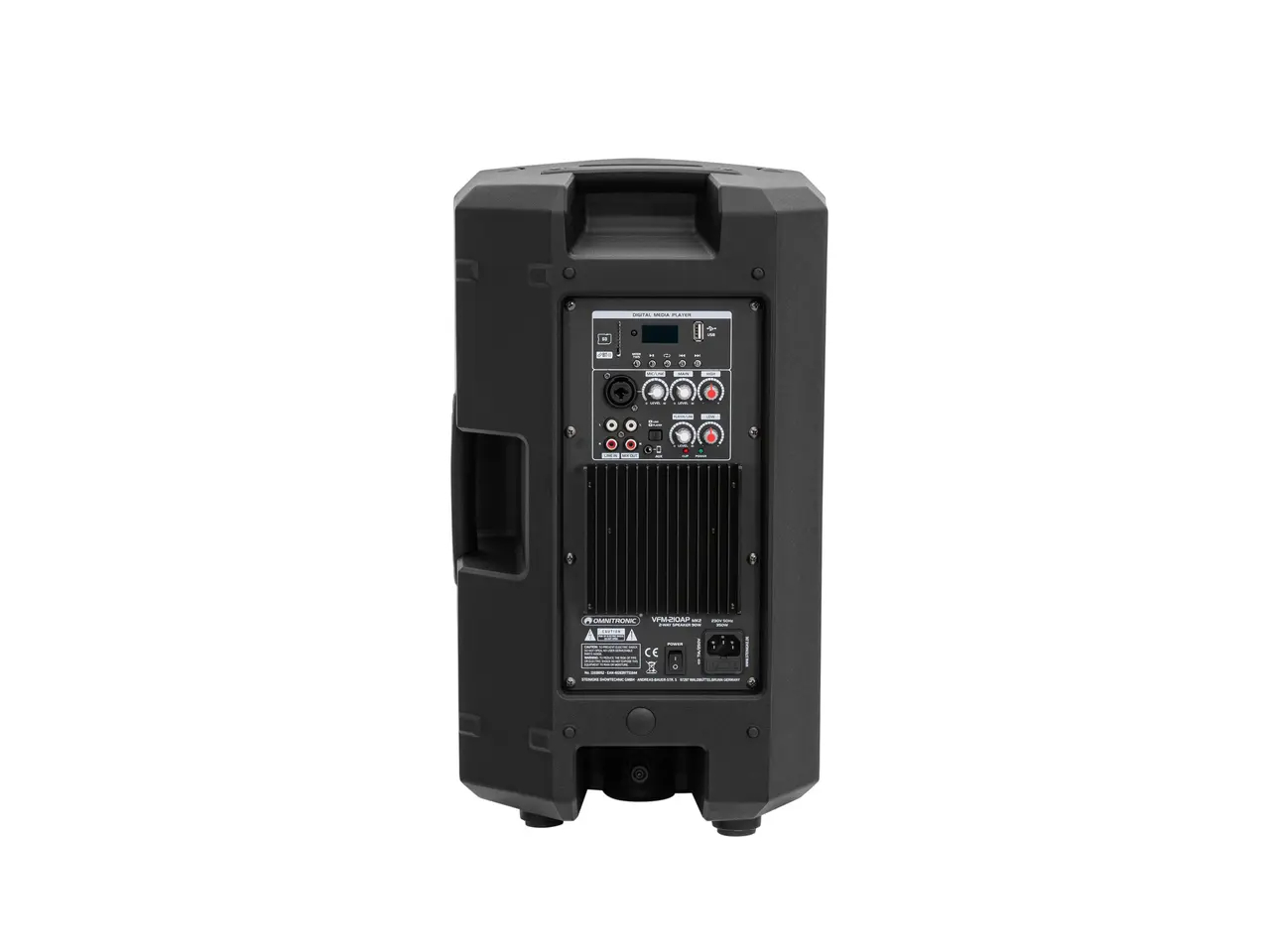

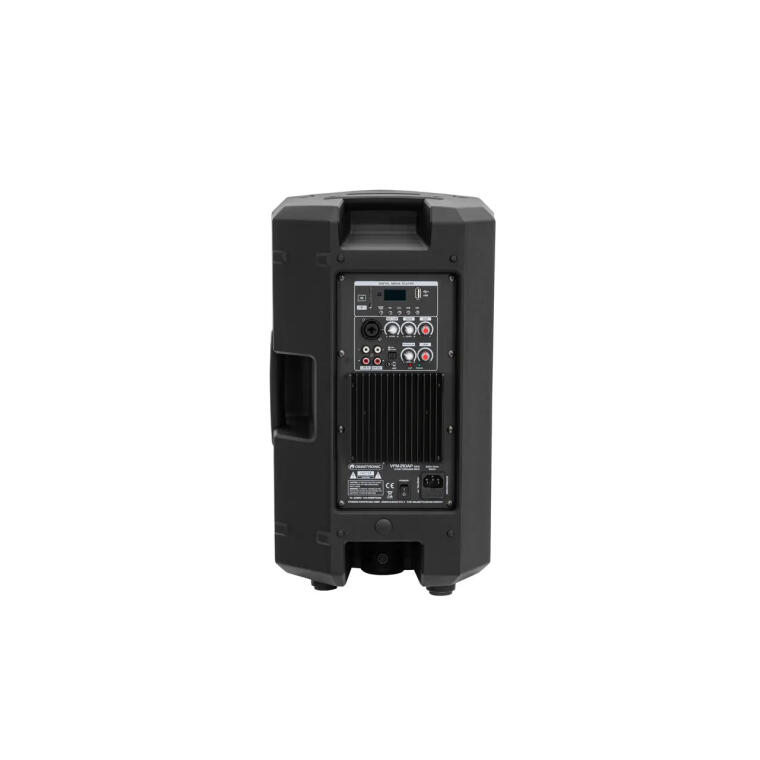

Connectivity & Media Playback

  • Bluetooth Module: Integrated Bluetooth receiver for wireless audio streaming

  • Digital Media Player: Built-in USB drive and SD card slot with backlit LCD display (MP3 / WMA playback support)

  • Microphone Input: 1 x XLR / 6.3 mm (1/4") Jack combo input with dedicated level control

  • Line Input: 1 x Stereo RCA pair / 3.5 mm stereo Aux jack with dedicated level control

  • Line Output: 1 x XLR line output for daisy-chaining additional active speakers

Controls & Indicators

  • Tone & Mixing Controls: Master Volume, Mic Volume, Line/Media Volume, 2-Band EQ (High & Low tone controls)

  • Media Controls: Play/Pause, Stop, Repeat, Mode Selector, Track Skip Forward/Back

  • Indicators: Power status LED, Limit/Clip LED

Enclosure & Hardware

  • Cabinet Material: High-impact ABS plastic chassis (black)

  • Front Protection: Heavy-duty black metal front grille

  • Mounting / Suspension: Integrated Ø 35 mm stand flange for tripod socket

  • Carrying Handles: Integrated top carrying handle

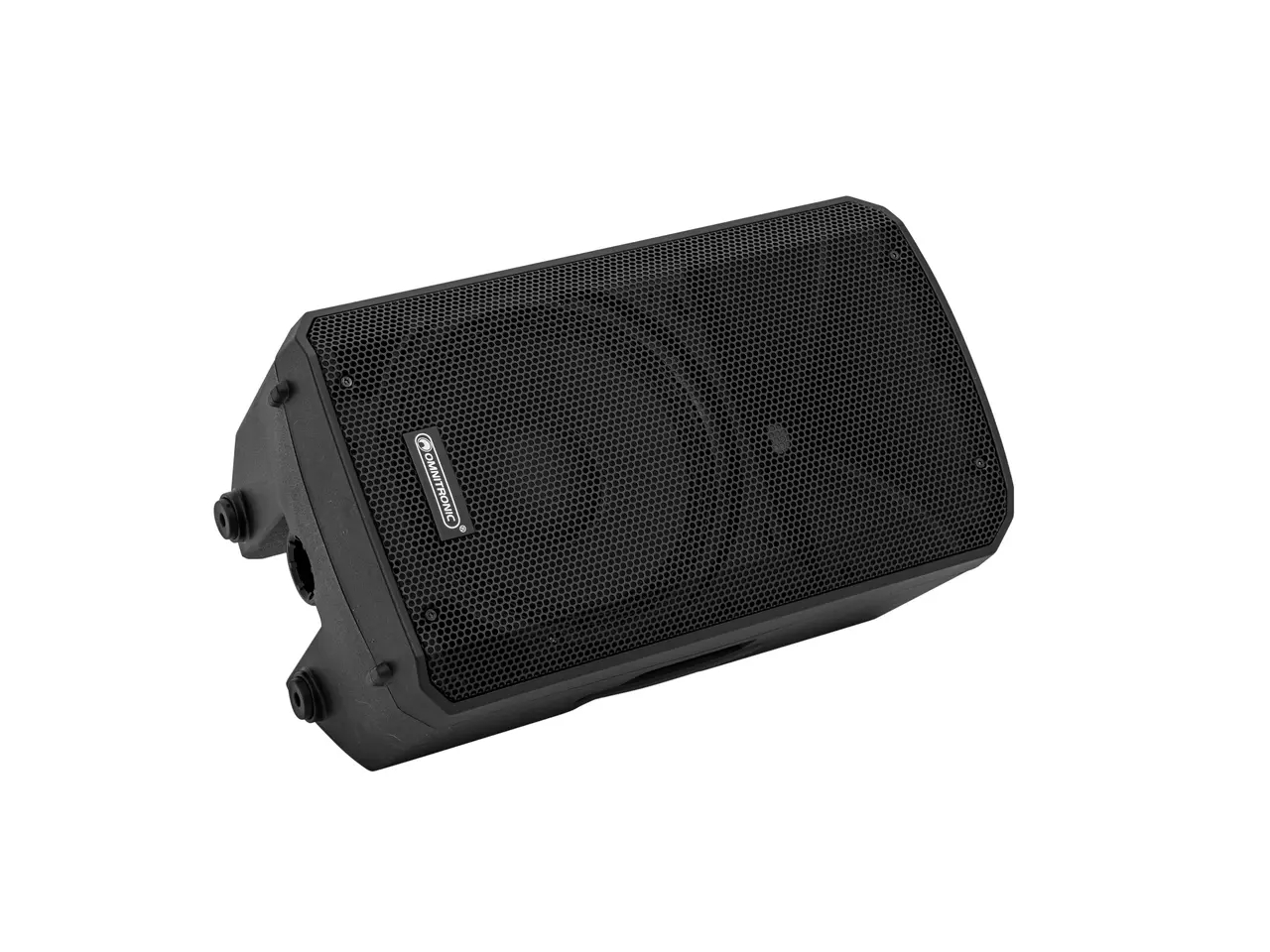

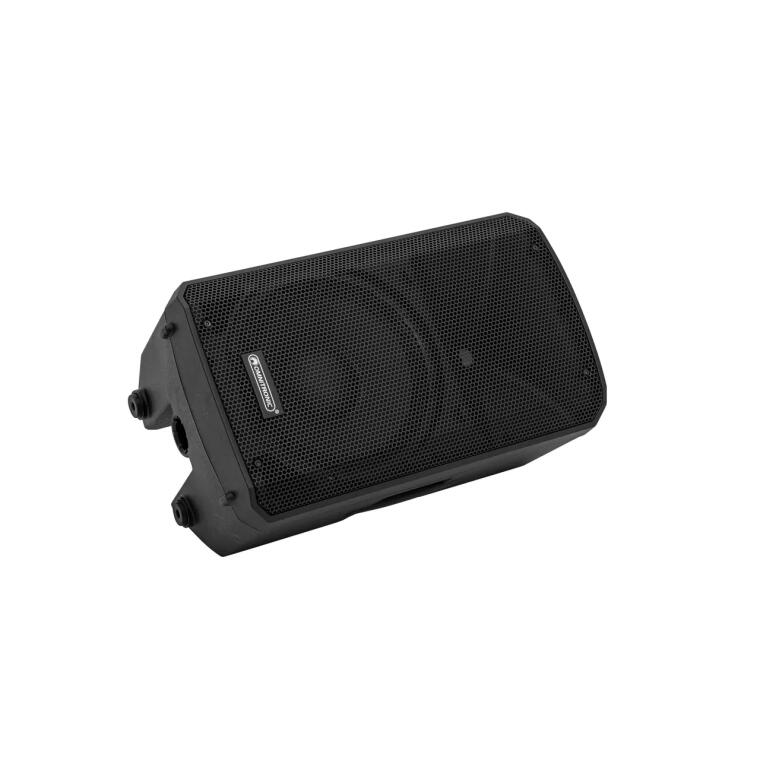

  • Application Modes: Main PA speaker (upright or pole-mounted), floor monitor (angled cabinet side)

Physical Specifications

  • Dimensions (W x D x H): 320 x 270 x 480 mm (12.6" x 10.6" x 18.9")

  • Weight: 6.7 kg (14.8 lbs)

Accessories Included

  • Mains Power Cable

  • IR Remote Control Unit

  • Operating Instructions Manual
