Q1202USB P0ALQ Top XL

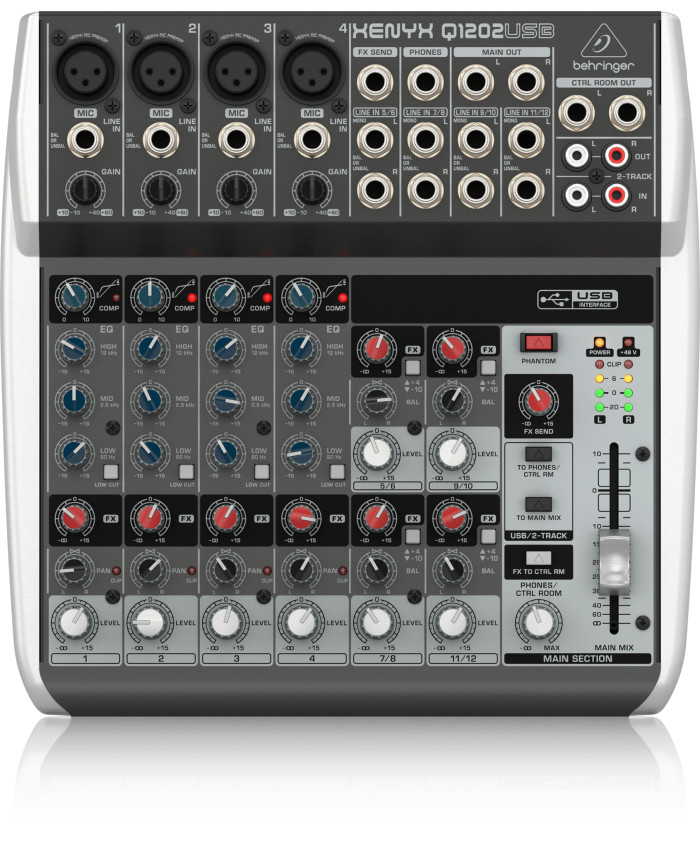

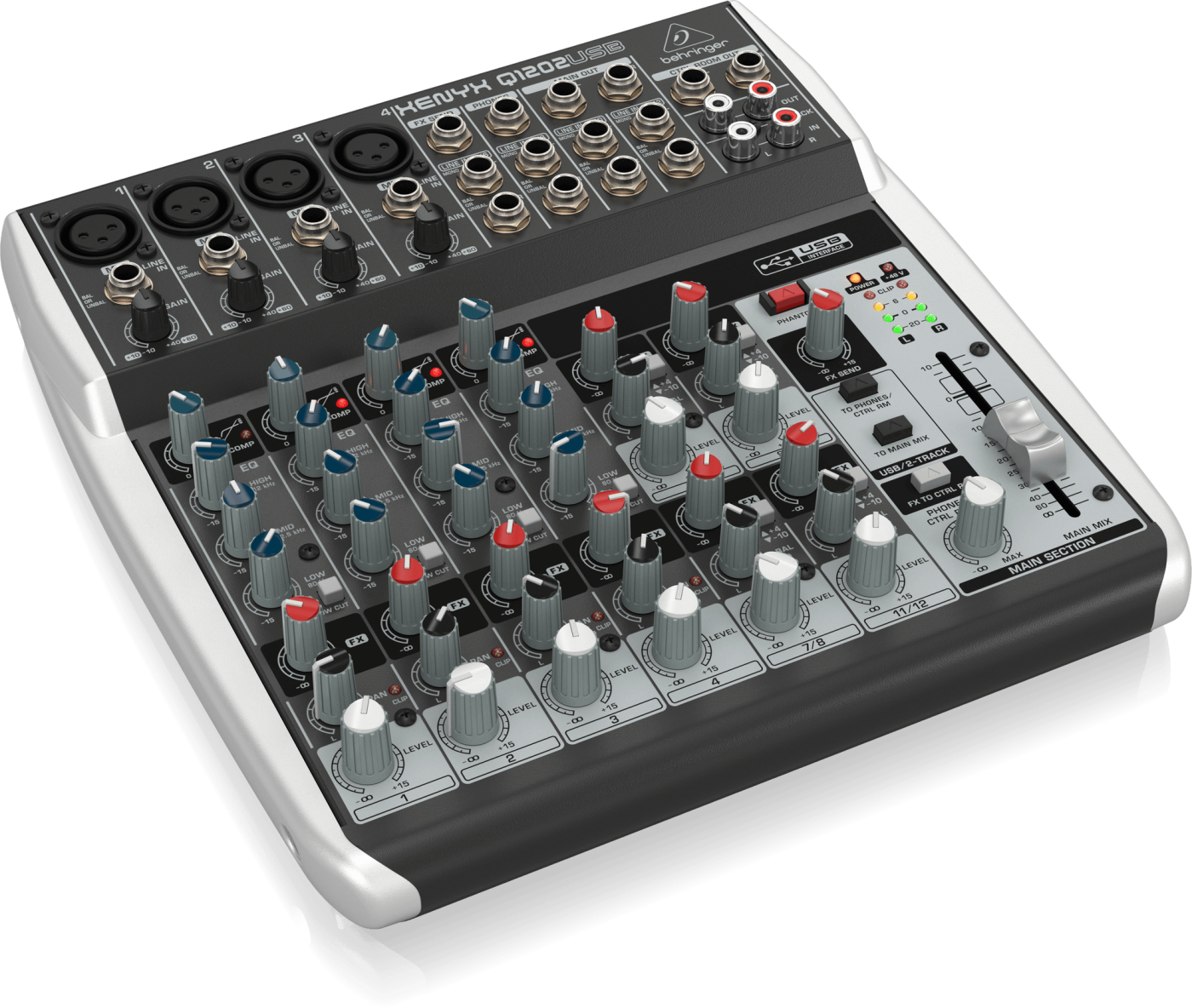

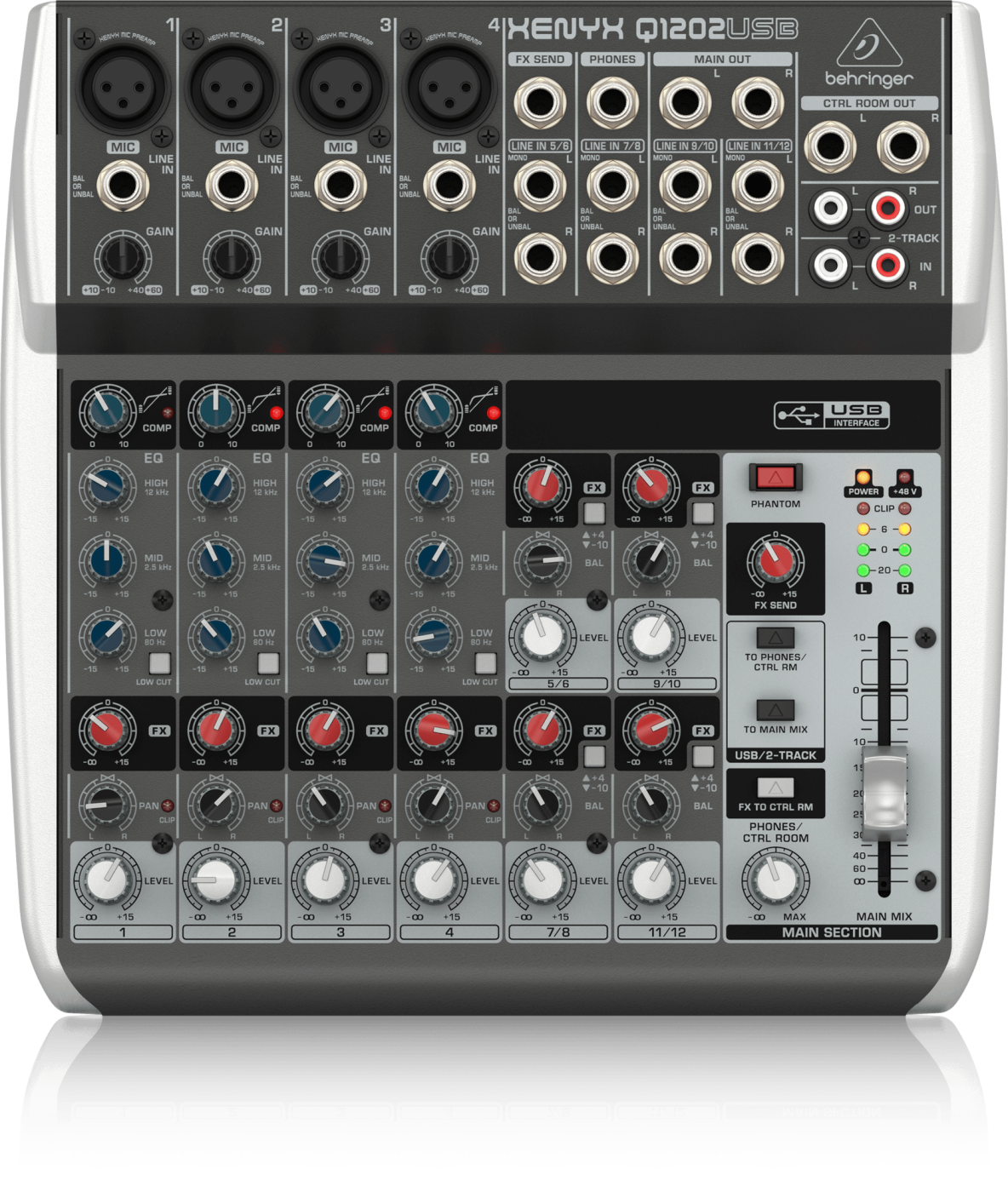

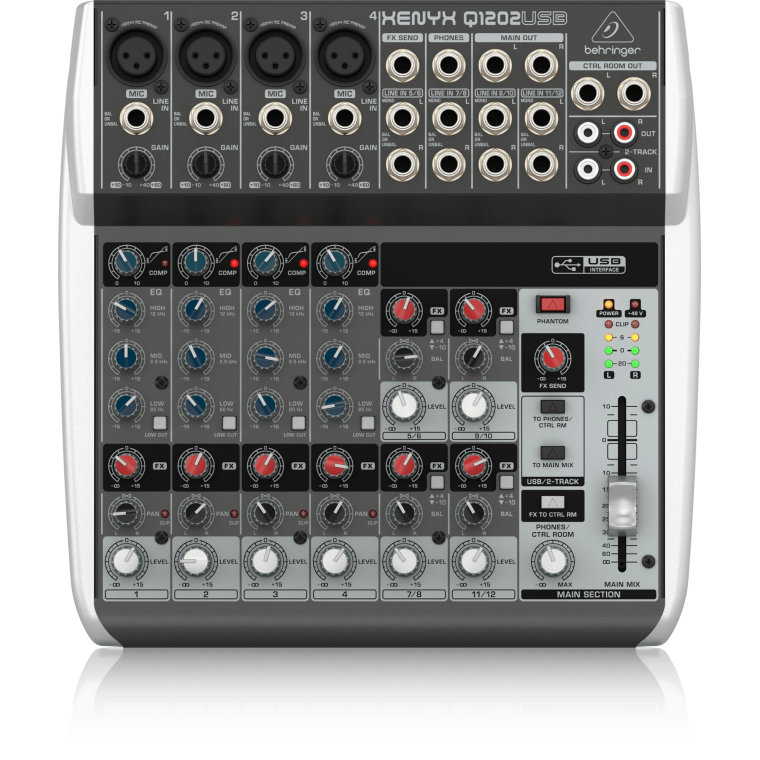

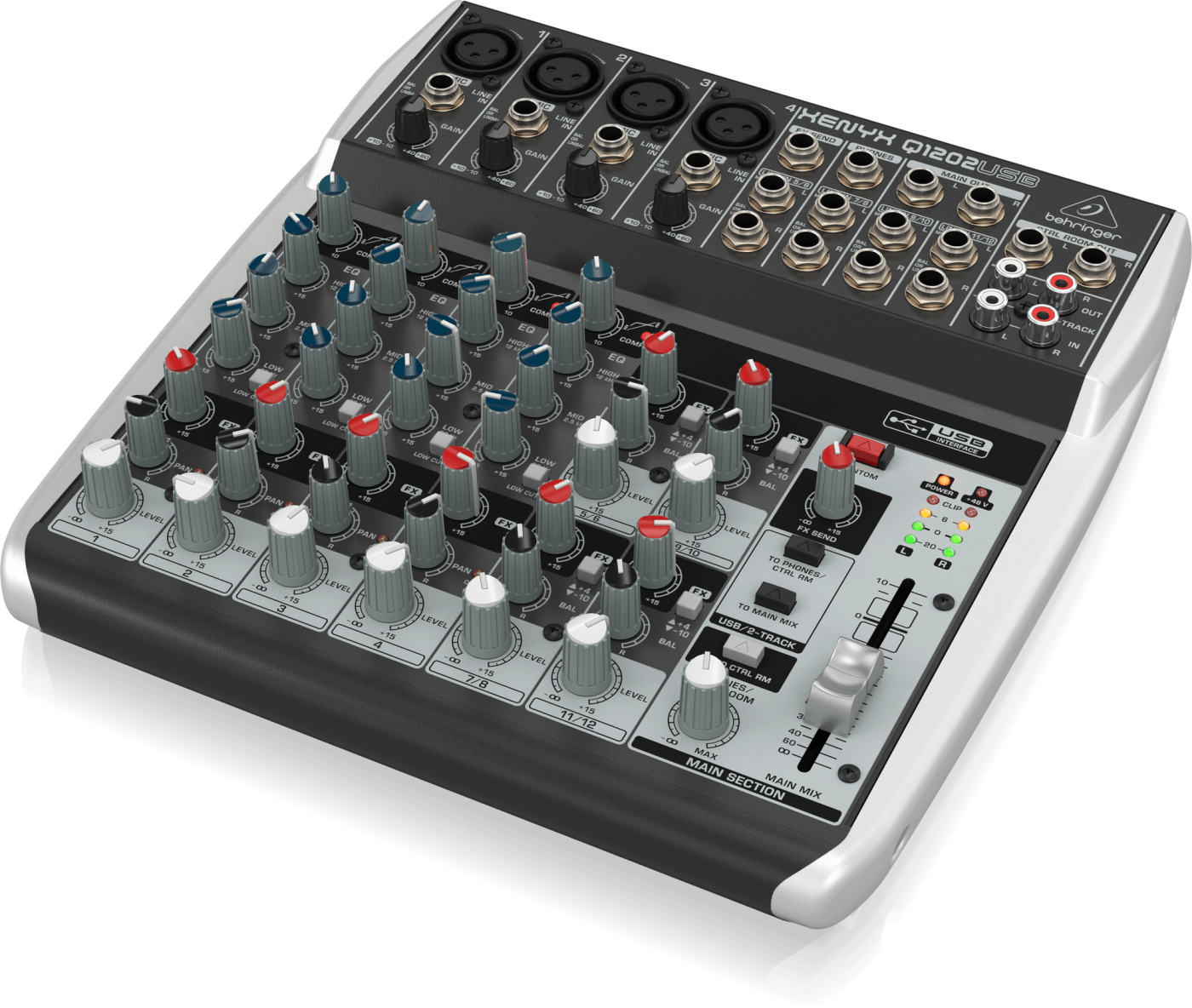

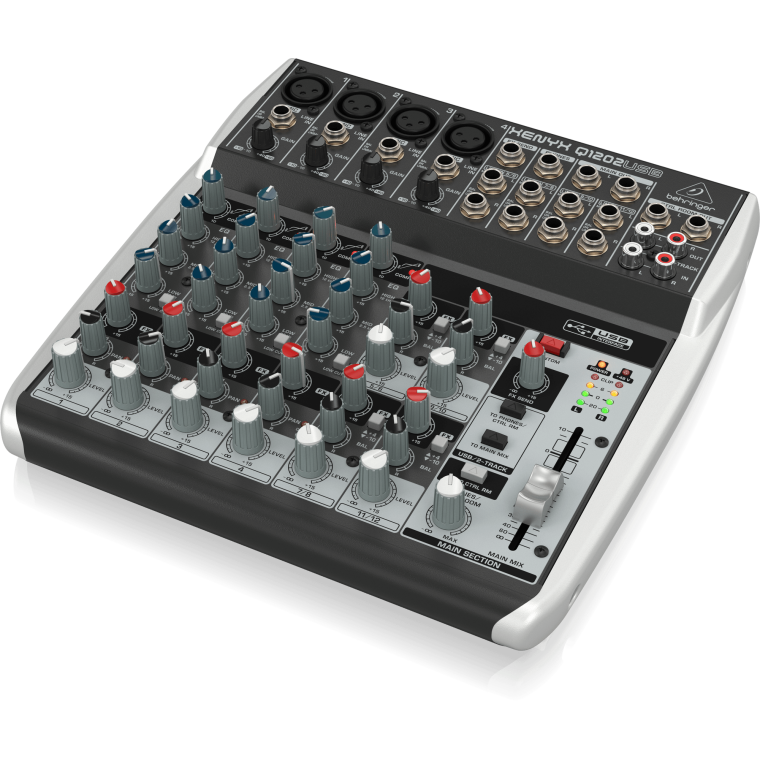

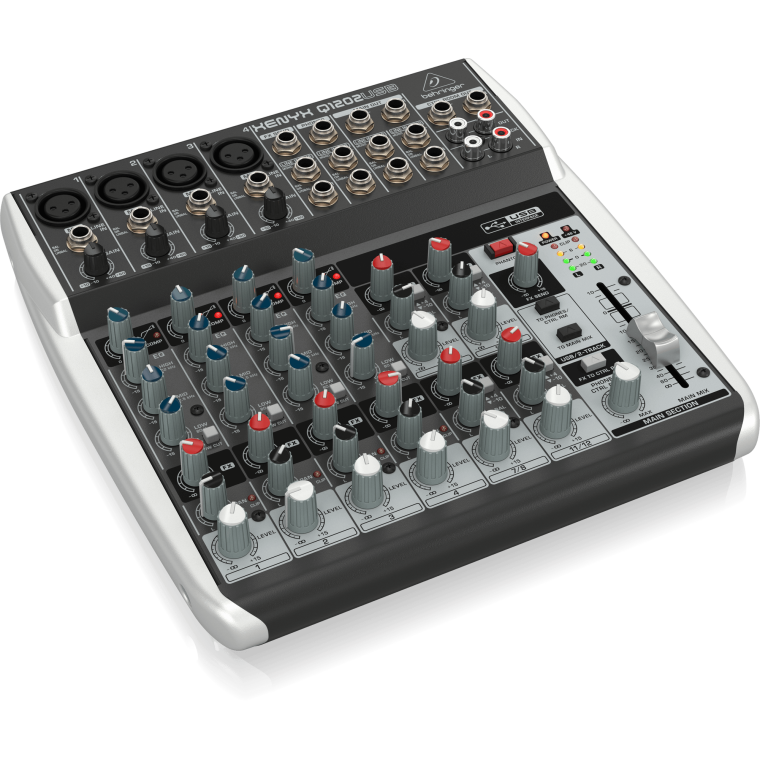

Behringer Q1202USB

Price on request
Out of stock
Interested in this product?
Call us

Overview

Premium 12-Input 2-Bus Mixer with XENYX Mic Preamps and Compressors, British EQ and USB/Audio Interface

Behringer Q1202UB

The compact Q1202USB mixer allows you to effortlessly achieve premium- quality sound, thanks to its 4 onboard studio-grade XENYX Mic Preamps and ultra-musical “British” channel EQs. And our easy-to-use “one-knob” compressors provide total dynamic control for the ultimate in punch and clarity, while respecting all the power and emotion you pack into every note. Add to this, the sweet forgiveness of our British-style EQs and and +48 V Phantom Power for use with studio- grade condenser microphones – and the Q1202USB becomes an incredibly versatile mixer for your live performances. But the XENYX Q1202USB isn’t just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with its built-in USB/audio interface, the Q1202USB mixer comes with all the recording and editing software needed to turn your computer system into your own personal high-performance home recording studio.

Behringer XENYX Q1202USB 12-Input Mixer with USB Audio Interface – Technical Specifications

Power Supply & Consumption

  • Power Supply: External Power Supply Unit, 230 V AC, 50 Hz (EU) / 120 V AC, 60 Hz (US)

  • Power Consumption: 25 W

  • Mains Connection: 3-pin dedicated power connector socket

Audio Performance

  • Frequency Range: 10 – 160,000 Hz (+0 dB / -1 dB)

  • S/N Ratio: 110 dB A-weighted (0 dBu In @ +22 dB gain)

  • THD+N: 0.005% A-weighted

  • Equivalent Input Noise (Mic): -130 dB (150 Ω source)

  • Compressors: 4 studio-grade "one-knob" compressors with control LEDs on mono mic channels 1–4

  • Channel Equalizer: 3-band graphic British EQ (80 Hz Low, 2.5 kHz Mid, 12 kHz High, ±15 dB) on mono channels; 3-band EQ on stereo channels

  • Phantom Power: +48 V DC phantom power (switchable for condenser microphones)

Connectivity & Media Playback

  • Integrated Audio Interface: Stereo USB audio interface (16-bit, 48 kHz sampling rate) for direct recording and playback via PC or Mac

  • USB Compatibility: Class-compliant USB 2.0 Type-B connector (no special driver installation required for basic operation)

  • Audio Routing: 2-Track / USB inputs assignable to Main Mix or Control Room/Phones outputs

Controls & Indicators

  • Control Elements: Mic Gain knobs, 1-knob Compressors (Ch 1–4), 3-band EQ knobs, FX Send knobs, Pan/Balance controls, Channel level rotary/slide controls, Main Mix fader, Control Room / Phones level knob, 2-Track / USB routing switches, Phantom Power switch

  • Indicators: Power status LED, +48V Phantom Power LED, Compressor active LEDs, Peak/Clip LEDs on mono channels, 4-segment stereo LED output level meter

Inputs & Outputs

  • Inputs:

    • Microphone Inputs: 4 x 3-pin XLR (balanced with XENYX preamps)

    • Mono Line Inputs: 4 x 6.35 mm (1/4") TRS jacks (balanced)

    • Stereo Line Inputs: 4 x Pairs of 6.35 mm (1/4") TRS jacks (Line 5/6, 7/8, 9/10, 11/12)

    • 2-Track Input: 1 x Stereo RCA pair

  • Outputs:

    • Main Output: 2 x 6.35 mm (1/4") TRS jacks (Main Out L/R, balanced)

    • Control Room / Phones Output: 2 x 6.35 mm (1/4") TRS jacks / 1 x Stereo 6.35 mm (1/4") TRS jack

    • FX Send Output: 1 x 6.35 mm (1/4") TRS jack

    • 2-Track Output: 1 x Stereo RCA pair

Physical Specifications

  • Housing Design: Rugged desktop steel chassis with impact-resistant side bumpers

  • Rack Mounting: N/A (Desktop compact format)

  • Dimensions (W x D x H): 250 x 248 x 50 mm

  • Weight: 2.20 kg

Accessories Included

  • External Power Supply Adapter, USB Type-A to Type-B Cable, Quick Start Guide
