Behringer 1204USB

Price on request
Out of stock
Interested in this product?
Call us

Overview

Small live-performance mixer

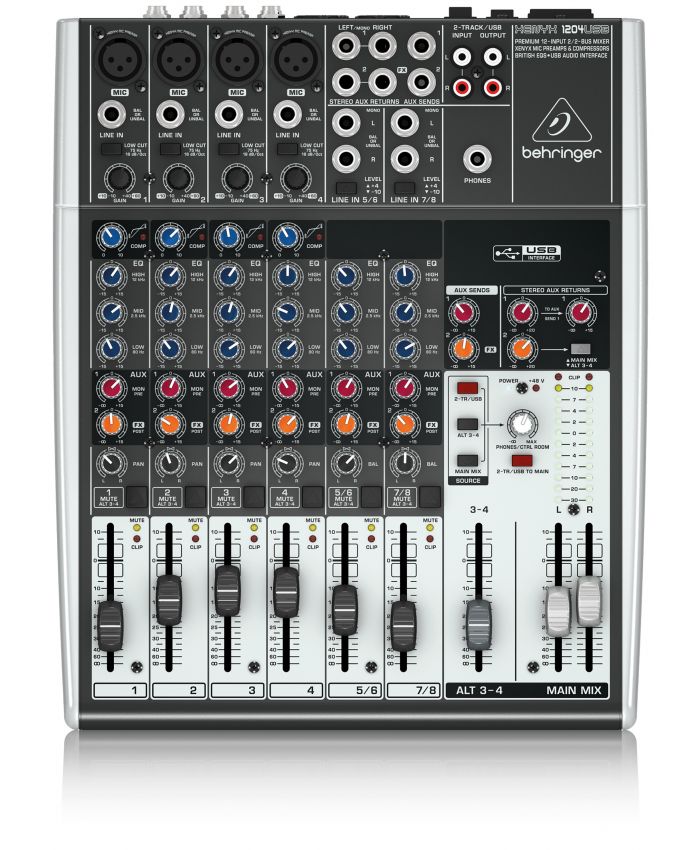

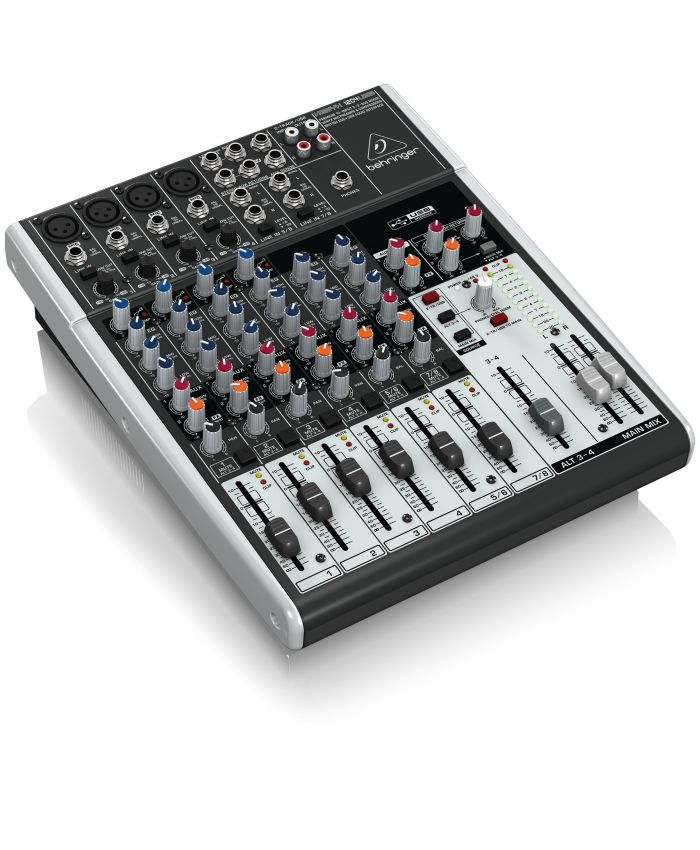

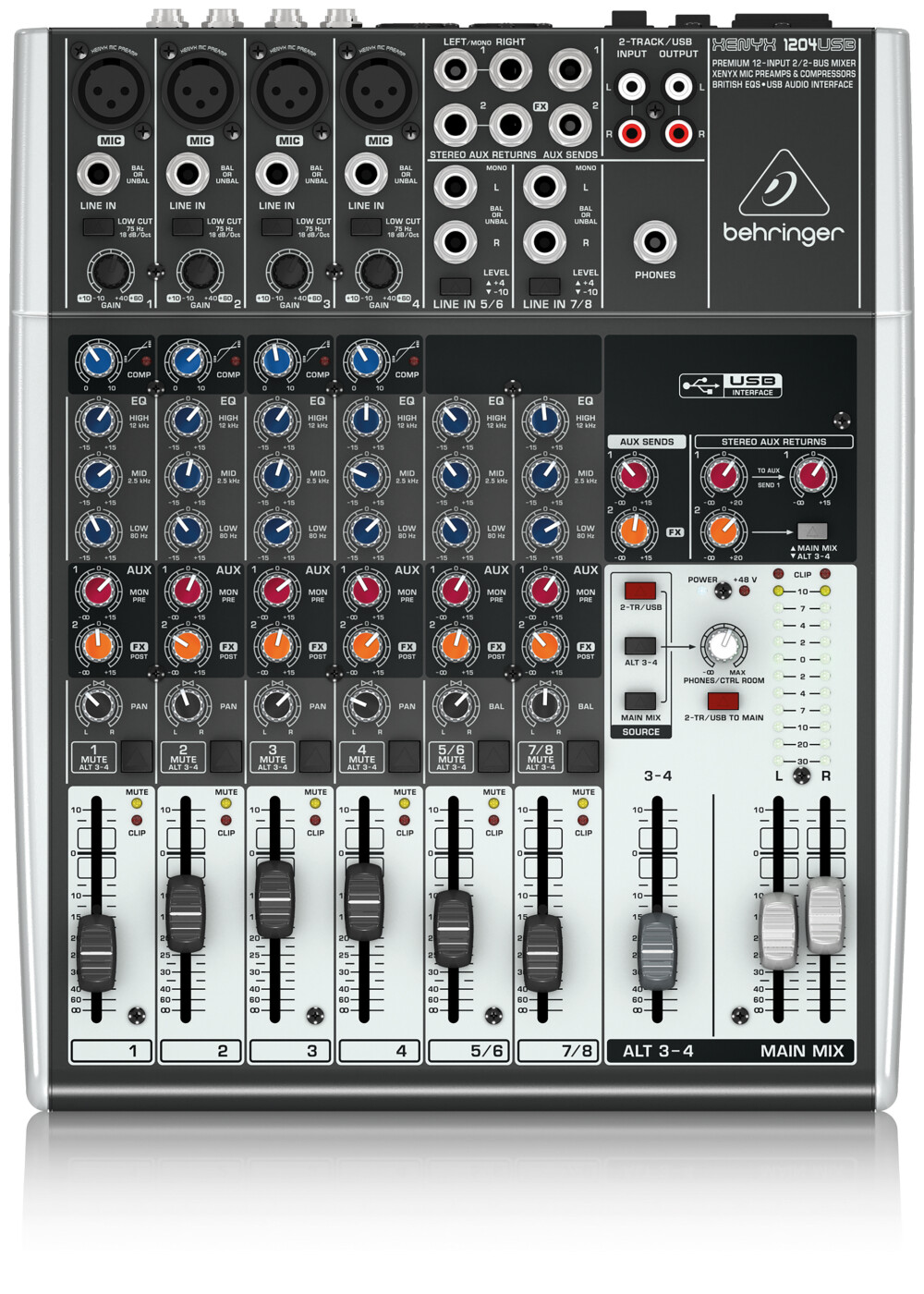

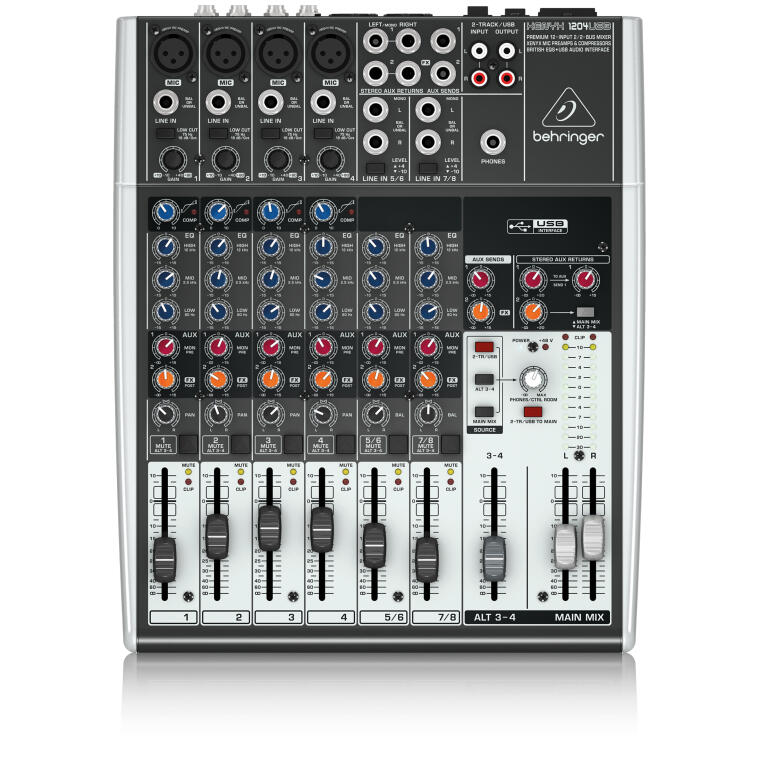

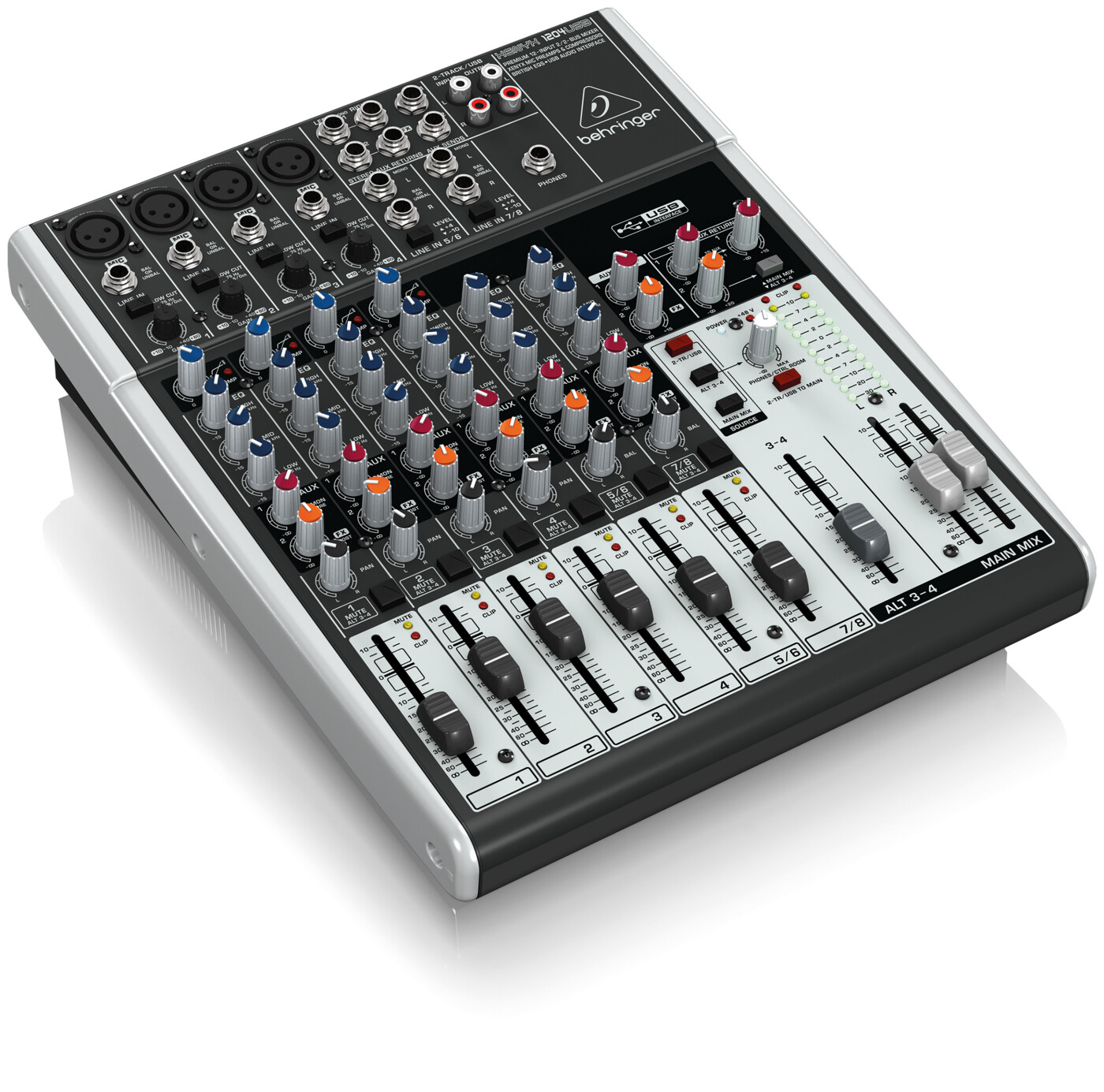

Behringer XENYX 1204USB

Perfect for a small live-performance mixer, as well as home-based recording setup, the 1204USB provides four mono channels with premium XENYX mic preamps, neo-classic 3 band British style EQ and two stereo input channels. Far from being a 'bare-bones' mixer, all mono channels feature our 'one knob' studio grade compressor and two Aux Sends (one each pre- and post-fader). Two stereo Aux Returns are included for use with external FX modules. The built-in USB audio interface provides bi-directional transfer of signals between the mixer and computer.

Behringer XENYX 1204USB 12-Input Mixer with USB Audio Interface – Technical Specifications

Power Supply & Consumption

  • Power Supply: Internal switch-mode power supply, 100–240 V AC, 50/60 Hz

  • Power Consumption: 25 W

  • Mains Connection: Standard IEC C14 inlet socket with integrated fuse holder

Audio Performance

  • Frequency Range: 10 – 160,000 Hz (+0 dB / -1 dB)

  • S/N Ratio: 110 dB A-weighted (0 dBu In @ +22 dB gain)

  • THD+N: 0.005% A-weighted

  • Equivalent Input Noise (Mic): -130 dB (150 Ω source)

  • Compressors: 4 studio-grade "one-knob" compressors with control LEDs on mono mic channels 1–4

  • Channel Equalizer: 3-band graphic British EQ (80 Hz Low, 2.5 kHz Mid, 12 kHz High, ±15 dB) on mono channels; 3-band EQ on stereo channels

  • Phantom Power: +48 V DC phantom power (switchable globally for condenser microphones)

Connectivity & Media Playback

  • Integrated Audio Interface: Stereo USB audio interface (16-bit, 48 kHz sampling rate) for direct computer recording and playback

  • USB Compatibility: Class-compliant USB 2.0 Type-B port (plug-and-play for PC and Mac)

  • Submix & Routing: 2 subgroups with independent outputs, plus flexible Aux Send/Return routing options

Controls & Indicators

  • Control Elements: Mic Gain knobs, 1-knob Compressors (Ch 1–4), 3-band EQ knobs, Aux Send knobs, Pan/Balance controls, Subgroup / Main Mix assign switches, 60 mm smooth channel faders, 60 mm Subgroup faders, 60 mm Main Mix fader, Control Room / Phones level knob

  • Indicators: Power status LED, +48V Phantom Power LED, Compressor active LEDs, Peak/Clip LEDs on mono channels, 4-segment stereo LED output level meter

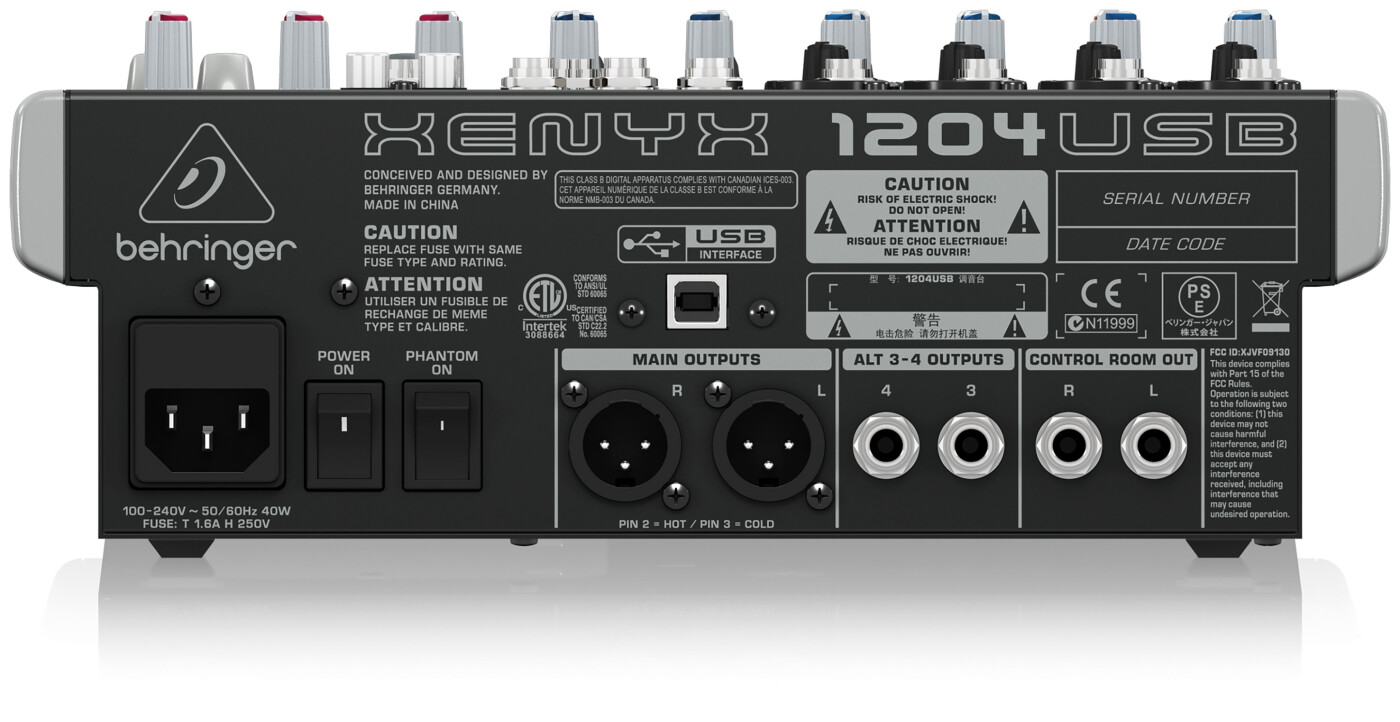

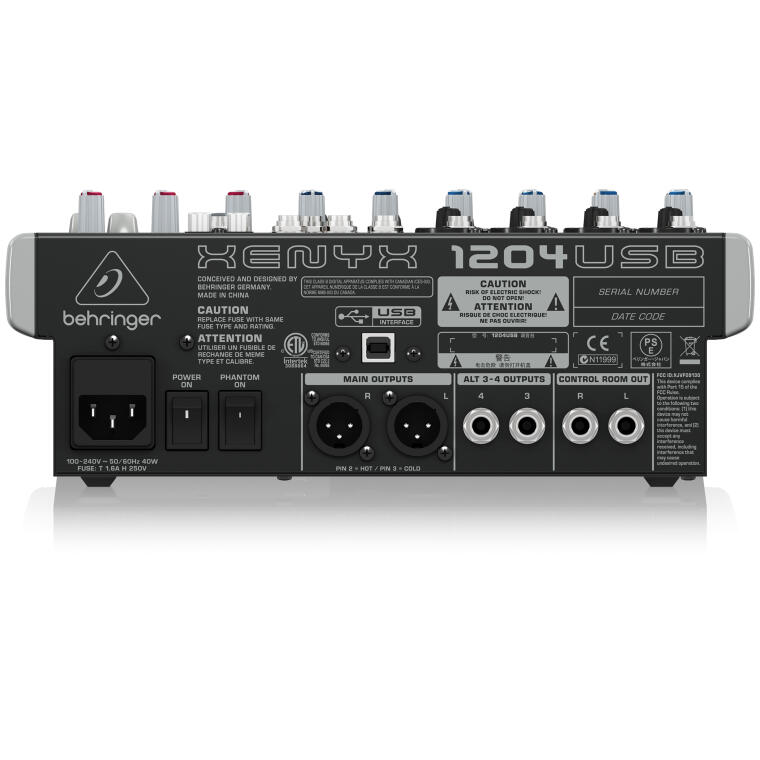

Inputs & Outputs

  • Inputs:

    • Microphone Inputs: 4 x 3-pin XLR (balanced with XENYX preamps)

    • Mono Line Inputs: 4 x 6.35 mm (1/4") TRS jacks (balanced)

    • Stereo Line Inputs: 2 x Pairs of 6.35 mm (1/4") TRS jacks (Line 5/6 and 7/8)

    • 2-Track / USB Input: 1 x Stereo RCA pair

    • Aux Returns: 2 x 6.35 mm (1/4") TRS jacks (Stereo Aux Return)

  • Outputs:

    • Main Output: 2 x XLR (Balanced Main Outputs) + 2 x 6.35 mm (1/4") TRS jacks (Alt 3-4 / Control Room)

    • Subgroup Outputs: 2 x 6.35 mm (1/4") TRS jacks (Sub Outputs 1-2)

    • Aux Send: 1 x 6.35 mm (1/4") TRS jack (FX / Mon Send)

    • Control Room / Phones Output: 1 x Stereo 6.35 mm (1/4") TRS jack

    • 2-Track Output: 1 x Stereo RCA pair

Physical Specifications

  • Housing Design: Rugged desktop steel chassis with durable powder-coated finish

  • Rack Mounting: Includes optional 19" rack-mount brackets for studio or live rack installation

  • Dimensions (W x D x H): 97 x 247 x 328 mm

  • Weight: 2.80 kg

Accessories Included

  • AC Power Cord (IEC), USB Type-A to Type-B Cable, Rack-Mount Brackets, User Manual
