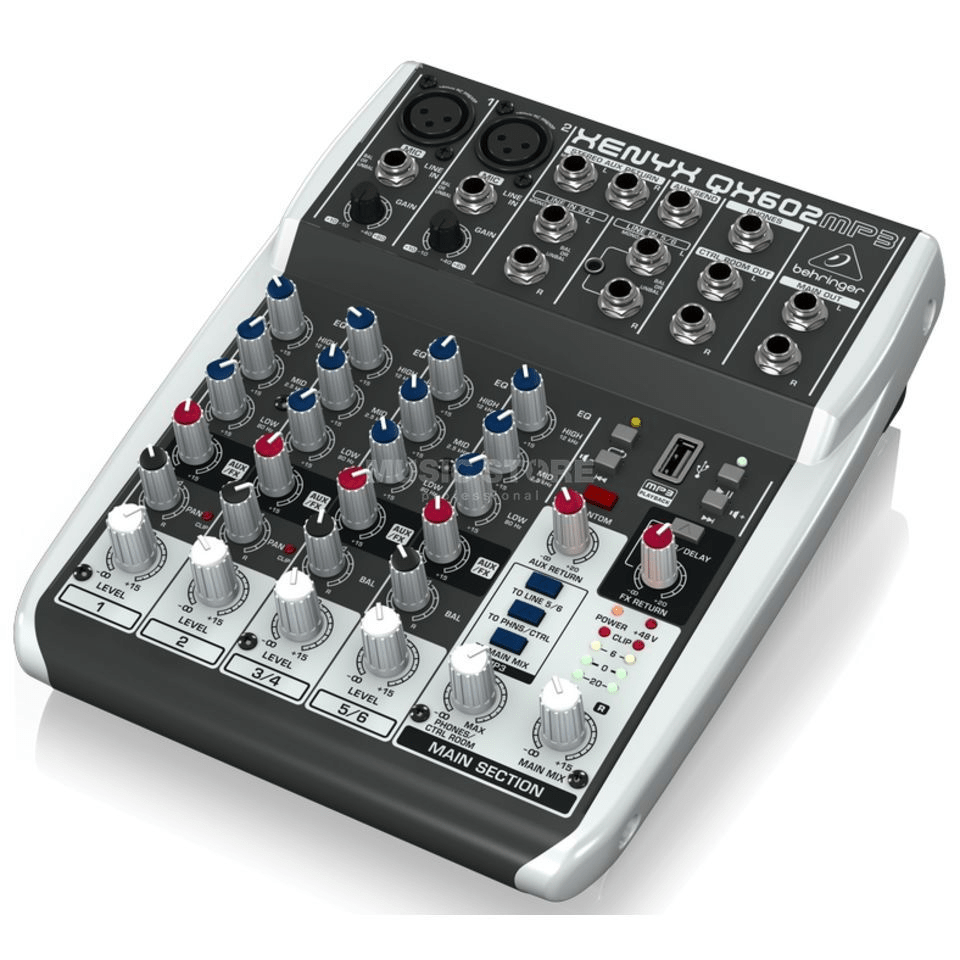

Behringer XENYX QX602MP3 6-Input Mixer with MP3 Player & FX – Technical Specifications
Power Supply & Consumption
Power Supply: 13 V DC, 1.5 A (via included external power supply unit)
Power Consumption: 15 W
Mains Connection: Dedicated multi-pin DC power inlet connector
Audio Performance
Frequency Range: 10 – 150,000 Hz (+0 dB / -1 dB)
S/N Ratio: 110 dB A-weighted (0 dBu In @ +22 dB gain)
THD+N: 0.005% A-weighted
Equivalent Input Noise (Mic): -129 dB (150 Ω source)
Channel Equalizer: 3-band graphic British EQ (80 Hz Low, 2.5 kHz Mid, 12 kHz High, ±15 dB) on Mic/Line channels
Integrated Effects: Klark Teknik 24-bit FX processor with 100 presets (Reverb, Delay, Chorus, Flanger, Pitch Shifter, and Multi-effects)
Phantom Power: +24 V DC phantom power (switchable for mic inputs)
Connectivity & Media Playback
Integrated Media Player: Built-in high-performance MP3 player for USB memory sticks
Media Interface: USB Type-A port (top panel) for direct MP3 playback
Track Controls: Dedicated 4-button transport control section (Play/Pause, Stop, Next, Previous) with random/repeat modes
Controls & Indicators
Display: Backlit LCD display for track navigation, MP3 playback info, and FX preset selection
Control Elements: Mic/Line Gain knobs, 3-band EQ knobs (Low/Mid/High), FX Send control per channel, Pan/Balance controls, Main Mix rotary fader, Phones/Control Room Level knob, MP3 Level control, Phantom Power switch
Indicators: Power status LED, Phantom Power LED, Clip LEDs on mono channels, 4-segment LED peak output level meter
Inputs & Outputs
Inputs:
Microphone Inputs: 2 x 3-pin XLR (balanced with XENYX mic preamps)
Mono/Stereo Line Inputs: 2 x 6.35 mm (1/4") TRS jacks (Line 1 & 2), 2 x Pairs of 6.35 mm (1/4") TRS jacks (Line 3/4 & Line 5/6, balanced)
Media Input: 1 x USB Type-A port
Outputs:
Main Output: 2 x 6.35 mm (1/4") TRS jacks (Main Out L/R, balanced)
Control Room / Phones Output: 2 x 6.35 mm (1/4") TRS jacks / 1 x Stereo 6.35 mm (1/4") TRS Phones jack
Auxiliary Send: 1 x 6.35 mm (1/4") TRS jack (FX Send out)
Physical Specifications
Housing Design: Compact desktop steel chassis with side bumpers
Rack Mounting: N/A (Desktop compact unit)
Dimensions (W x D x H): 195 x 230 x 75 mm
Weight: 1.40 kg
Accessories Included
External Power Supply Adapter (13V DC), Quick Start Guide
