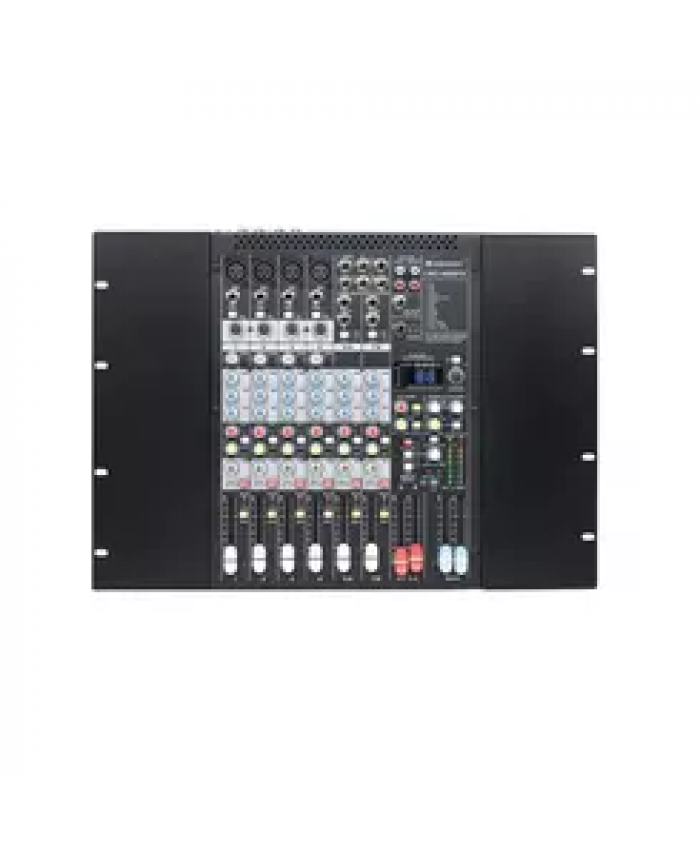

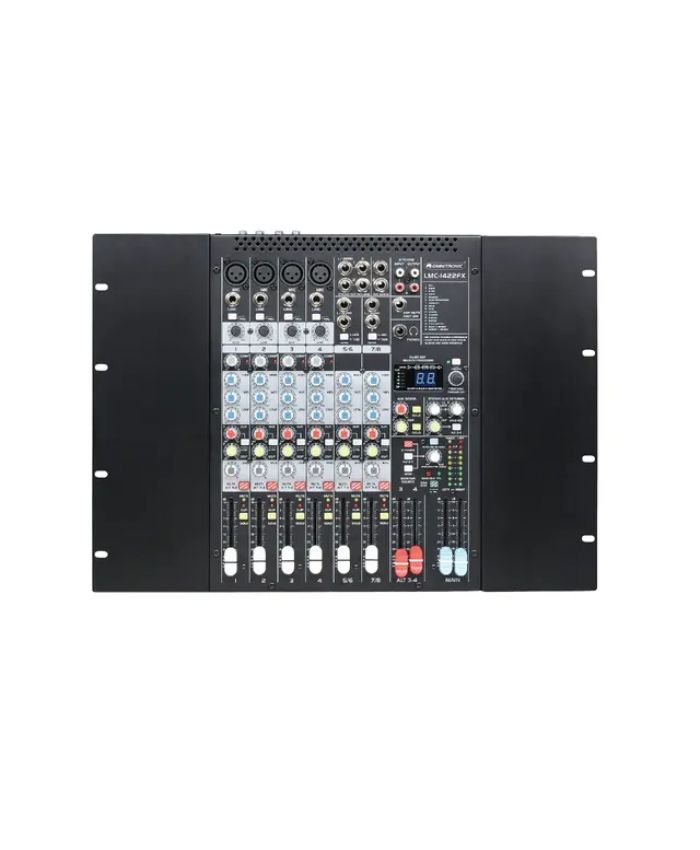

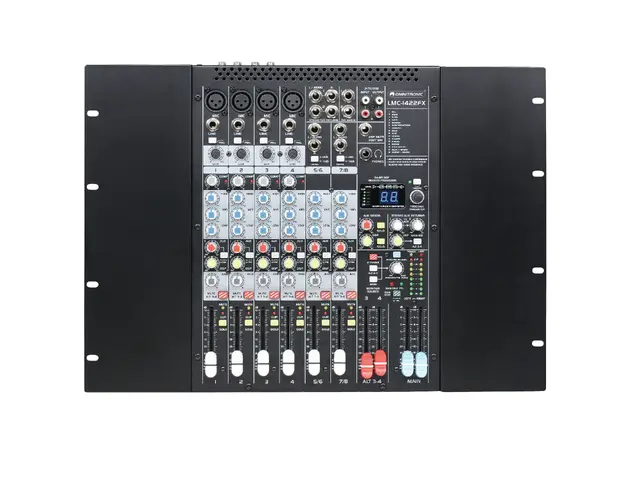

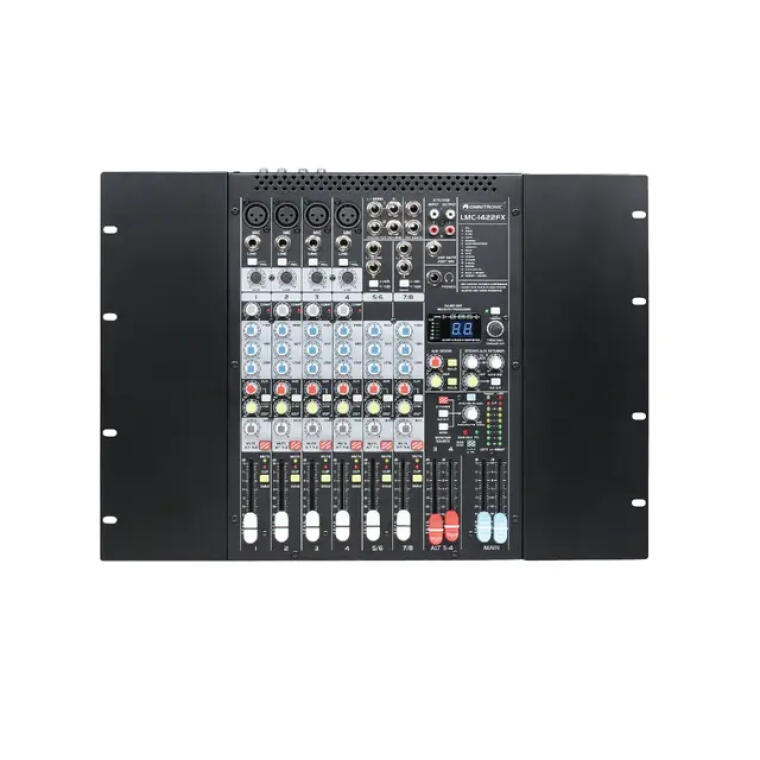

Omnitronic LMC-1422FX USB Mixing Console

€359.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

  • 4 mono input channels with gain control, 3-way EQ, low cut and pan control
  • 2 stereo input channels with 3-way EQ, level selection and balance control
  • State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
  • Exceptional British EQs for warm and musical sound
  • Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
  • 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
  • Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
  • 2 AUX sends per channel: AUX 1 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
  • ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
  • 2 stereo AUX returns with flexible routing
  • Clip LEDs and routing switches for mute and solo/PFL on all channels
  • Balanced main mix outputs with gold-plated XLR connectors
  • Control room/phones outputs with multi-input source matrix
  • CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
  • Precise 8-digit LED level meter
  • FX mute with remote control via footswitch
  • +48 V phantom power, can be switched centrally
  • Monochrome 2 digit 7-segment LED display
  • The device can be connected via USB to the PC
  • (19") 48.3 cm rack installation possible
  • For application areas such as: Clubs/dancing school; Stage; theater; concerts/FoH's; Rental

Omnitronic LMC-1422FX USB Mixing Console – Technical Specifications

Power Supply & Consumption

  • Power Supply: 100–240 V AC, 50/60 Hz

  • Power Consumption: 50 W

  • Protection Class: Protection Class I

  • Power Connection: Mains input via IEC C14 connector socket; power cord with safety plug included

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >110 dB

  • THD: <0.05% @ 1 kHz

  • Crosstalk: >89 dB

  • Channel Equalizer:

    • Mono Channels: 3-band British EQ (±15 dB @ 80 Hz Low, 2.5 kHz Mid, 12 kHz High)

    • Stereo Channels: 3-band British EQ (±15 dB @ 80 Hz Low, 500 Hz / 3 kHz Mids, 12 kHz High)

  • Low Cut Filter: 75 Hz, 18 dB/octave

  • Integrated DSP Effects: 24-bit digital signal processor with 16 editable presets (reverb, delay, chorus, etc.) and tap tempo

  • Studio Compressors: 4 x single-knob studio-grade compressors with status LEDs on mono channels

  • Phantom Power: +48 V DC (centrally switchable)

Connectivity & Media Playback

  • Integrated Audio Interface: Stereo USB audio interface (USB Type-B, 16-bit / 48 kHz sampling rate) for PC/Mac recording and playback

  • Audio Channels: 4 mono input channels (XLR/Line) and 2 stereo input channels

  • Auxiliary Routing: 2 Aux Sends per channel (Aux 1 pre/post switchable for monitoring/effects, Aux 3 post-fader for internal DSP), 2 stereo Aux Returns

  • Subgroup Bus: ALT 3-4 stereo sub-bus with independent faders and separate outputs

Controls & Indicators

  • Display: Monochrome 2-digit 7-segment LED display for effects and track selection

  • Control Elements: 60 mm smooth channel faders, rotary gain pots, 3-band EQ knobs, pan/balance controls, one-knob compressors, rotary encoder for DSP presets, Mute and Solo/PFL switches per channel, Main Mix fader, ALT 3-4 fader, Control Room / Phones volume knob

  • Indicators: 8-digit LED master output level meter, peak/clip LEDs, Mute LEDs, compressor gain reduction LED, phantom power status LED

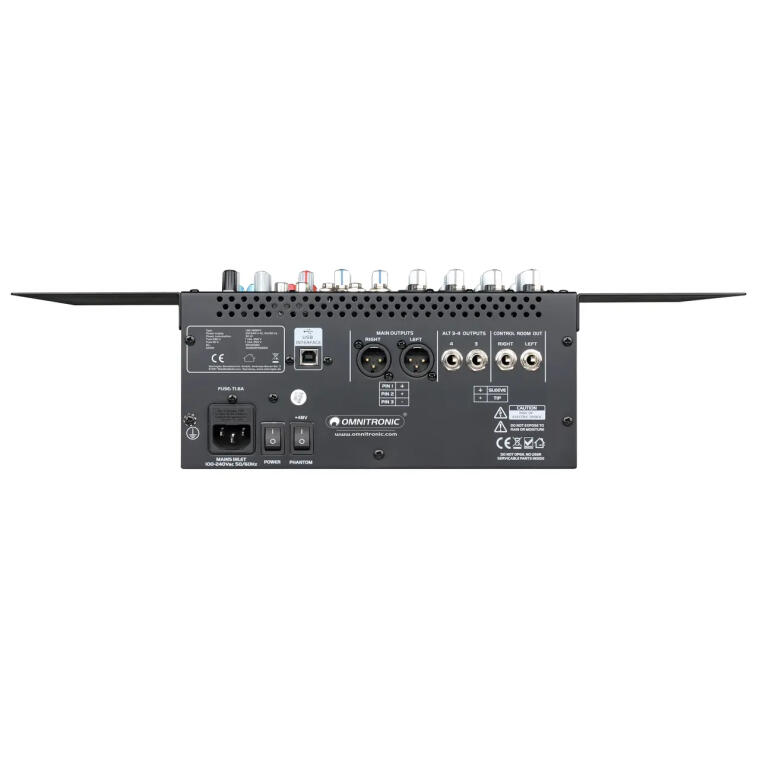

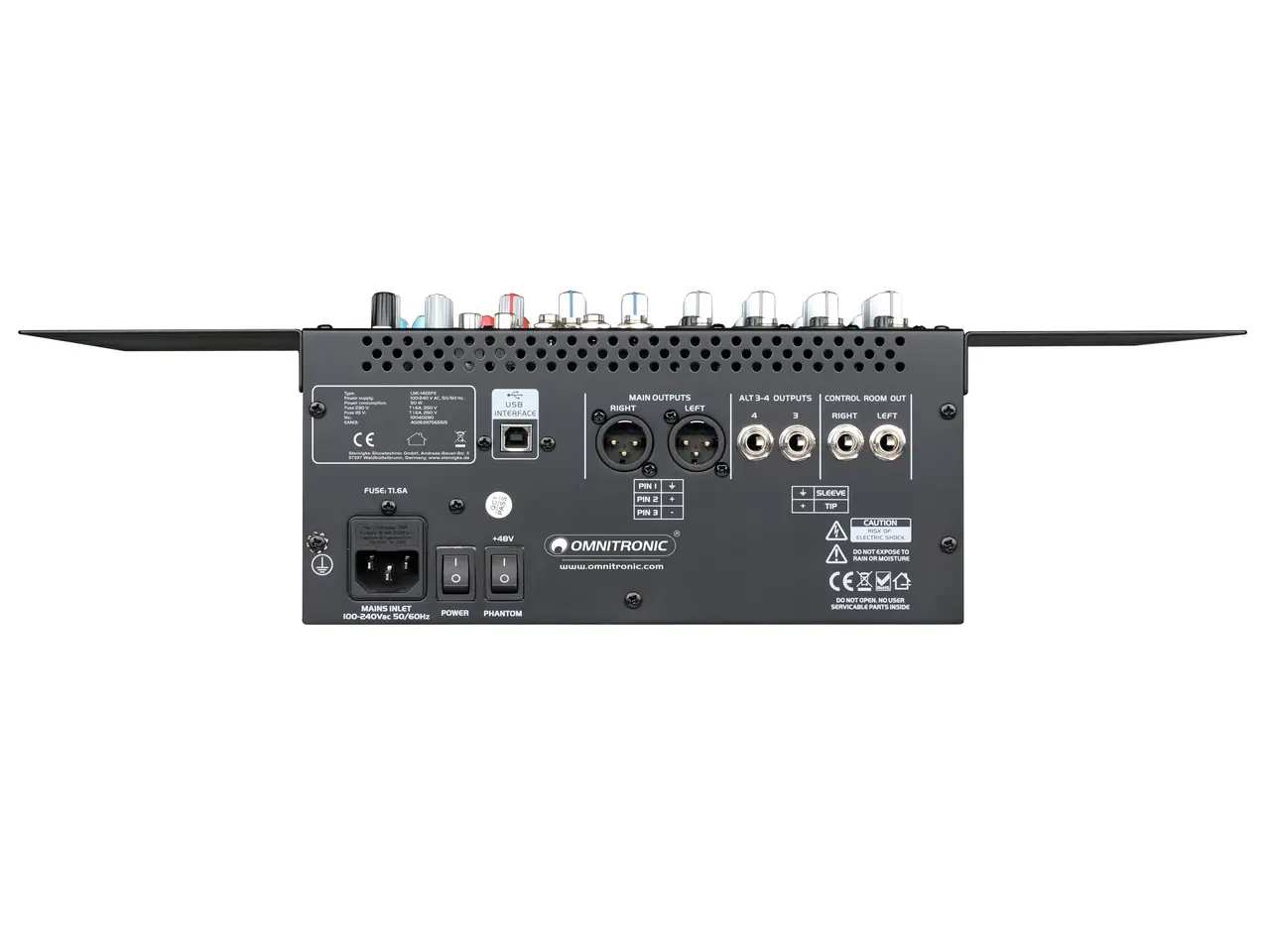

Inputs & Outputs

  • Inputs:

    • Microphone Inputs: 4 x 3-pin XLR (balanced, impedance 2.6 kΩ)

    • Mono Line Inputs: 4 x 6.35 mm (1/4") TRS/TS jacks (balanced, impedance 10 kΩ)

    • Stereo Line Inputs: 2 x Pairs of 6.35 mm (1/4") TRS jacks

    • 2-Track / Tape Input: 1 x Stereo RCA pair (impedance 10 kΩ)

    • Aux Returns: 2 x Pairs of 6.35 mm (1/4") TRS jacks (balanced, impedance 10 kΩ)

  • Outputs:

    • Main Outputs: 2 x Balanced 3-pin XLR (gold-plated, max. level +28 dBu)

    • Subgroup Outputs (ALT 3-4): 2 x 6.35 mm (1/4") mono jack sockets (unbalanced, max. level +22 dBu)

    • Control Room Outputs: 2 x 6.35 mm (1/4") mono jack sockets (unbalanced, max. level +22 dBu)

    • Aux Sends: 2 x 6.35 mm (1/4") mono jack sockets (unbalanced, max. level +22 dBu)

    • Tape / Rec Output: 1 x Stereo RCA pair (max. level +22 dBu)

    • Headphones Output: 1 x 6.35 mm (1/4") stereo jack (unbalanced, min. 8 Ω impedance, max. level +19 dBu)

    • Footswitch Jack: 1 x 6.35 mm jack for remote FX mute control

Physical Specifications

  • Housing Design: Sturdy metal desktop chassis with professional black finish

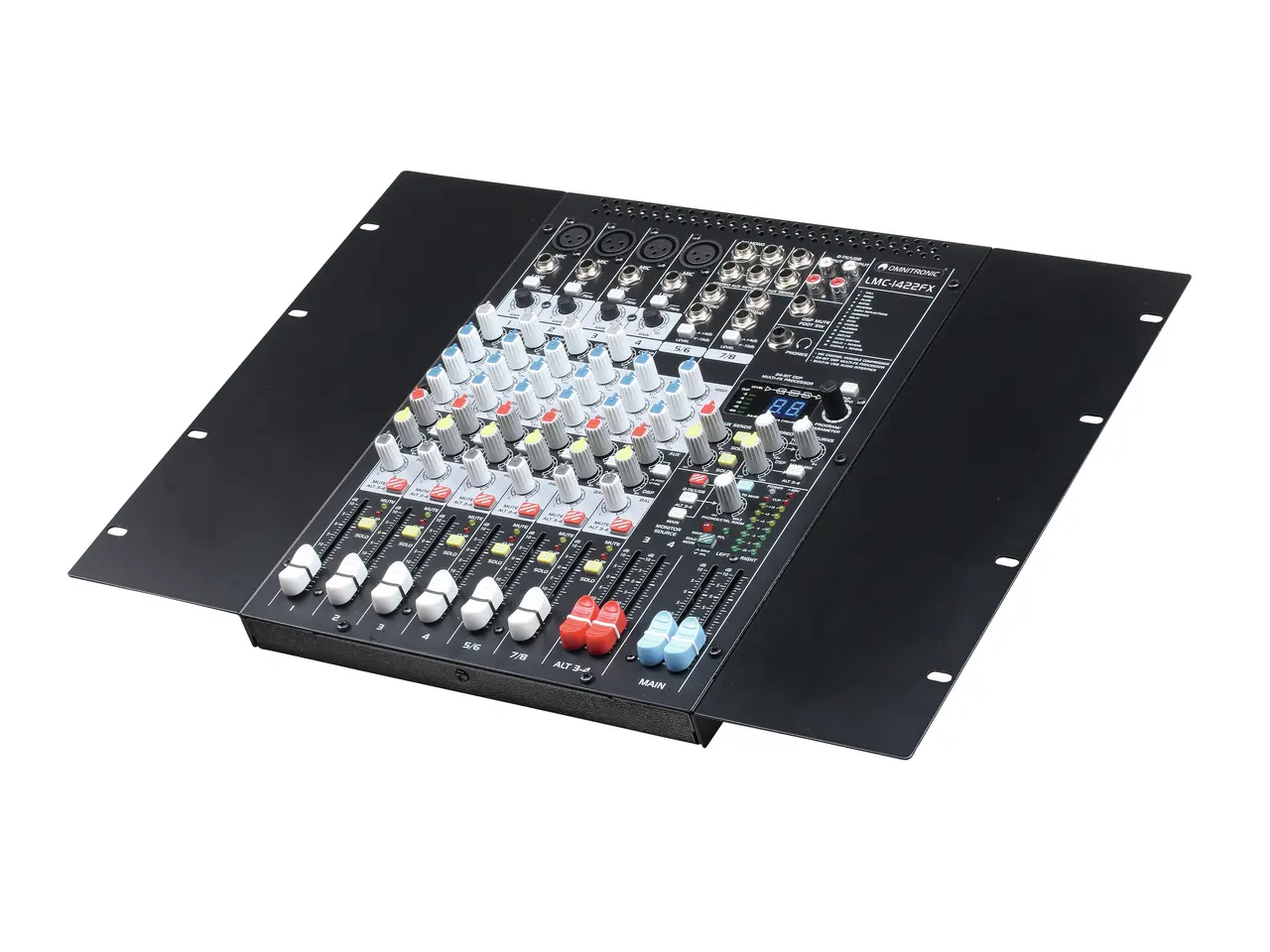

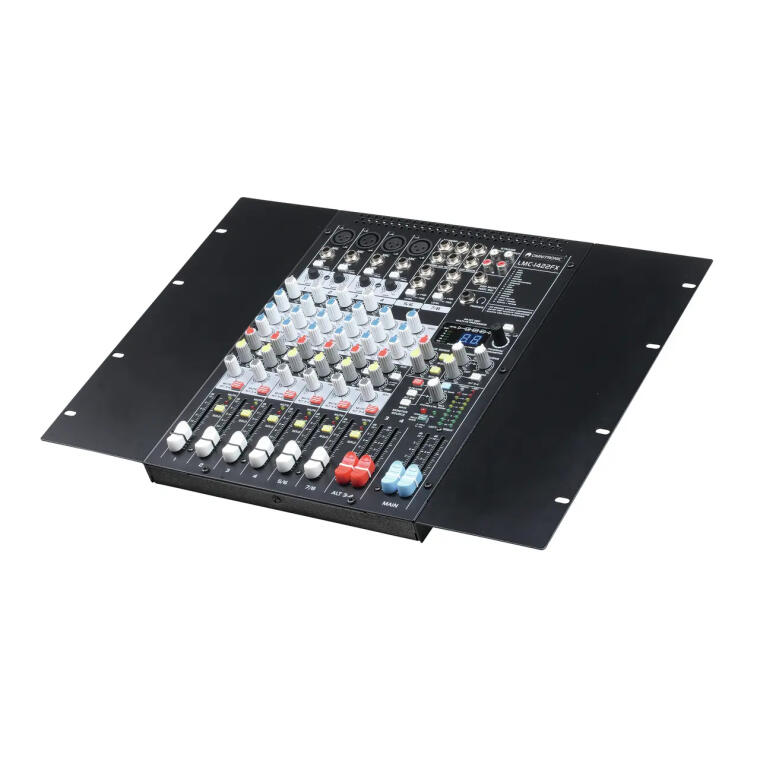

  • Rack Mounting: 19" (48.3 cm) rack-installation capable via included side rack brackets

  • Dimensions (W x D x H): 483 x 400 x 127 mm (including rack angles)

  • Weight: 4.70 kg

Accessories Included

  • IEC Power Cord, USB Cable, 2 x 19" Rack Mounting Brackets, User Manual
