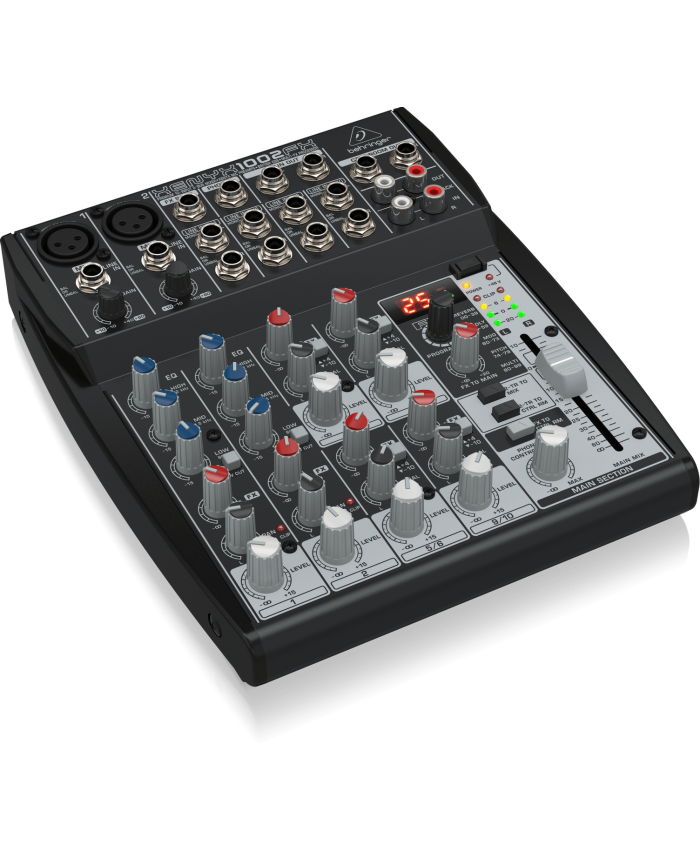

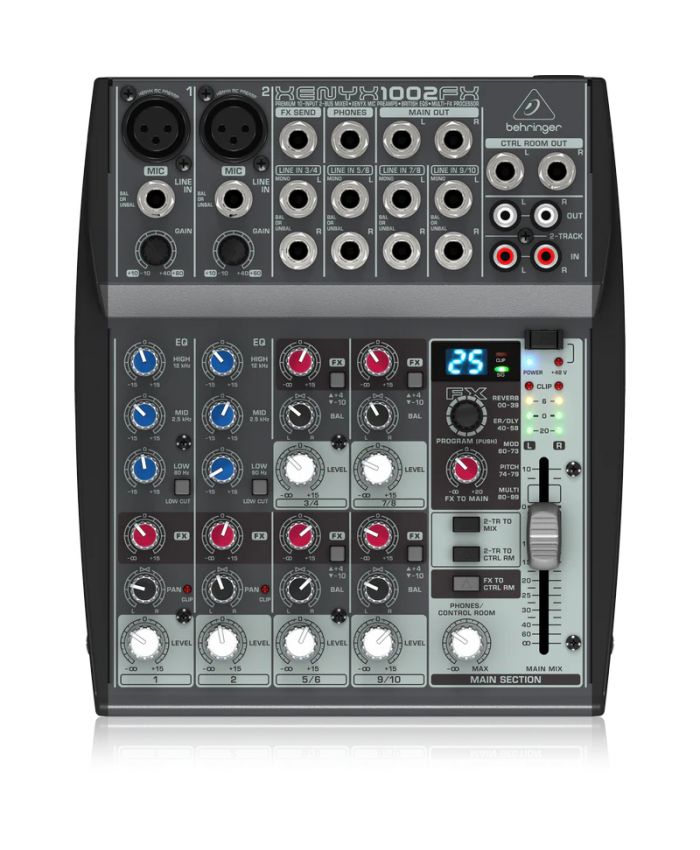

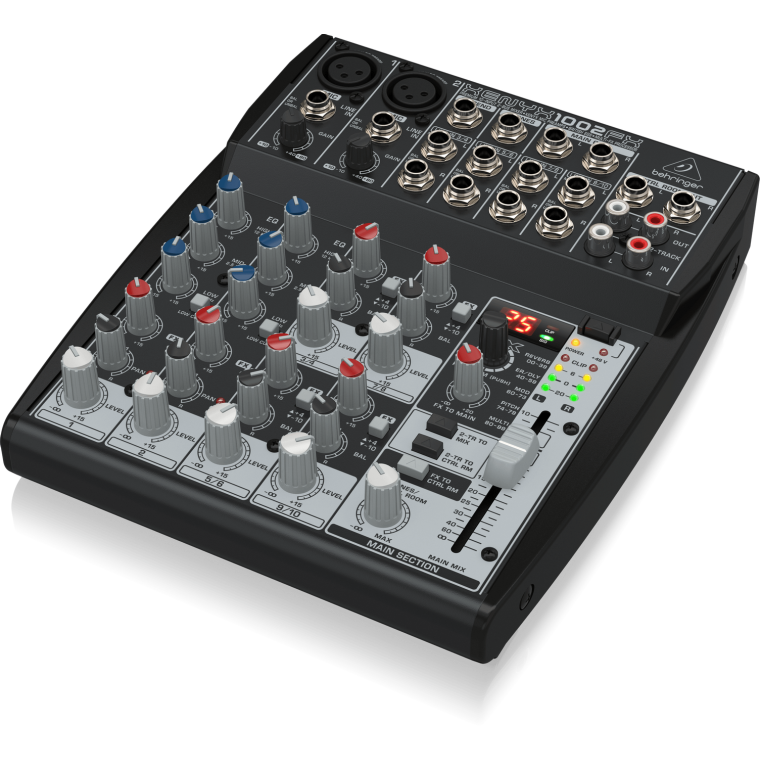

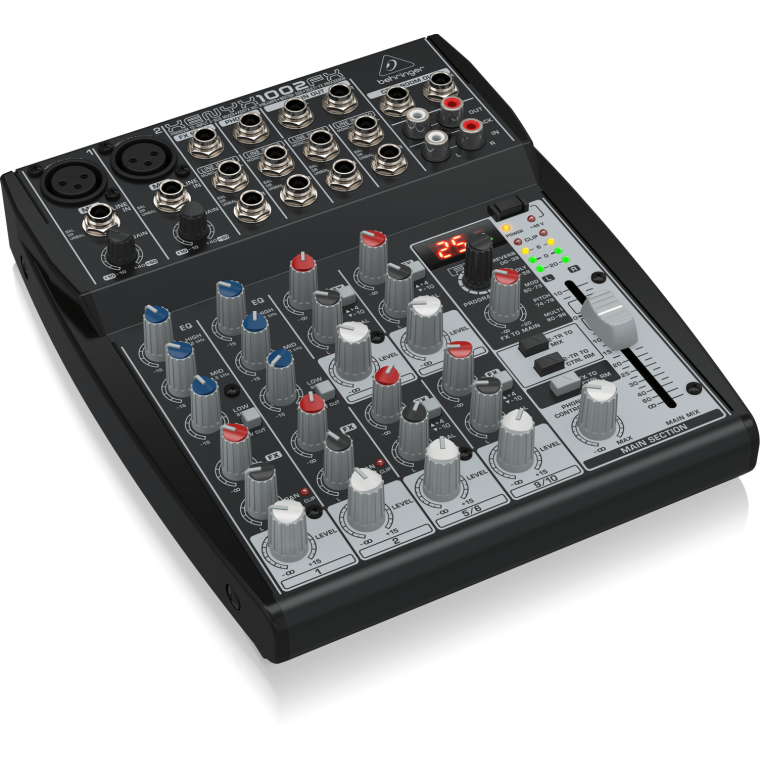

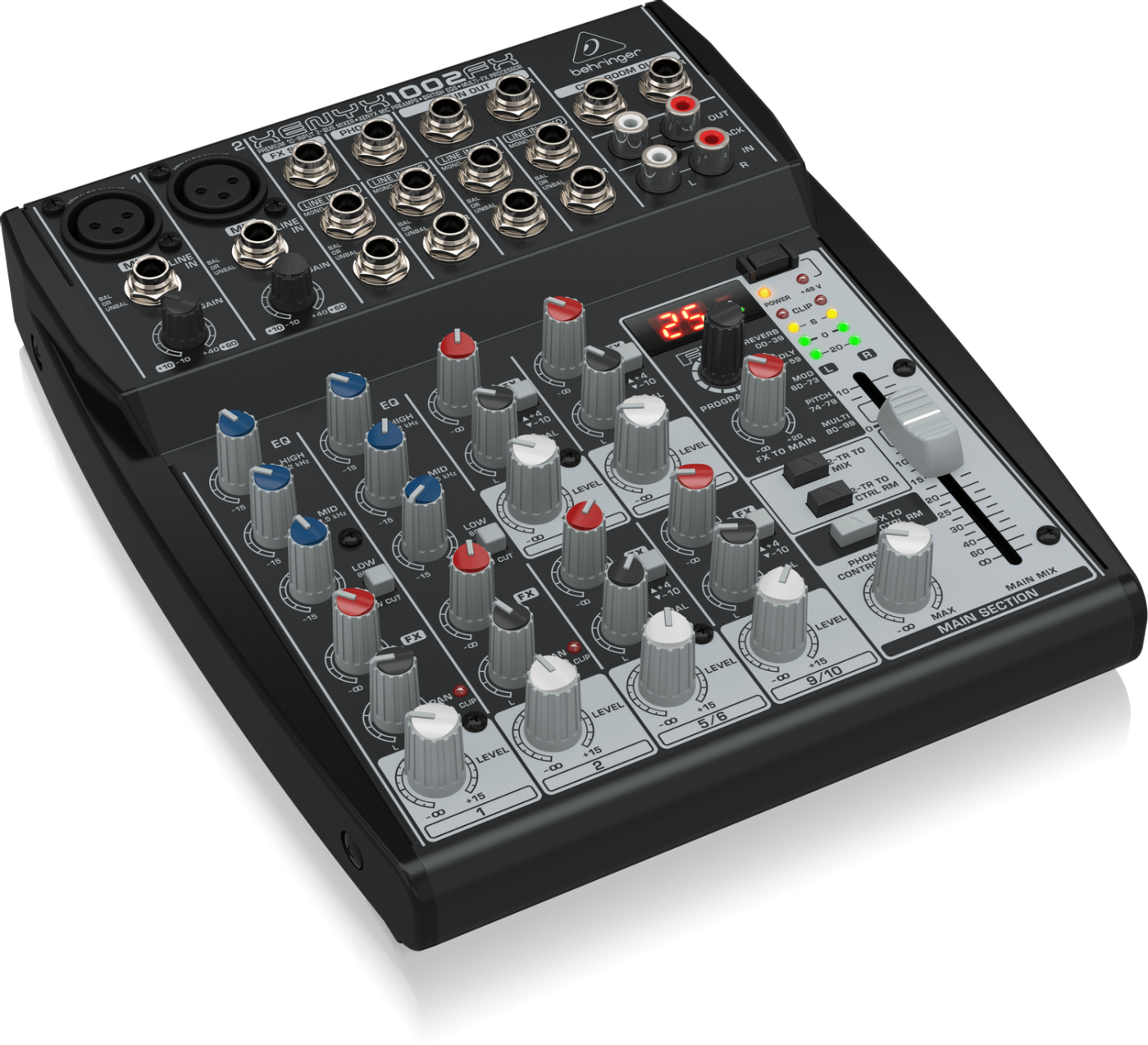

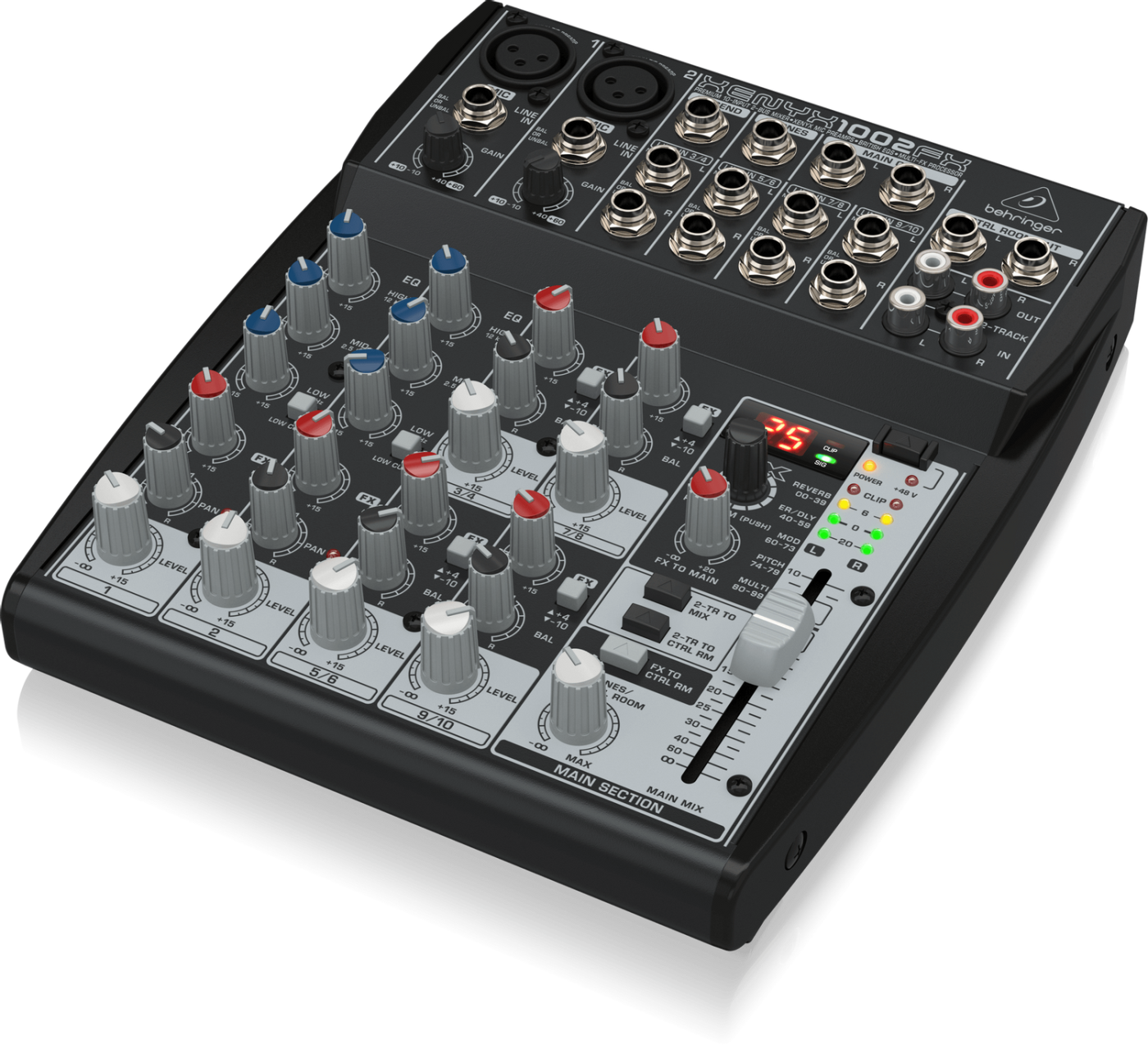

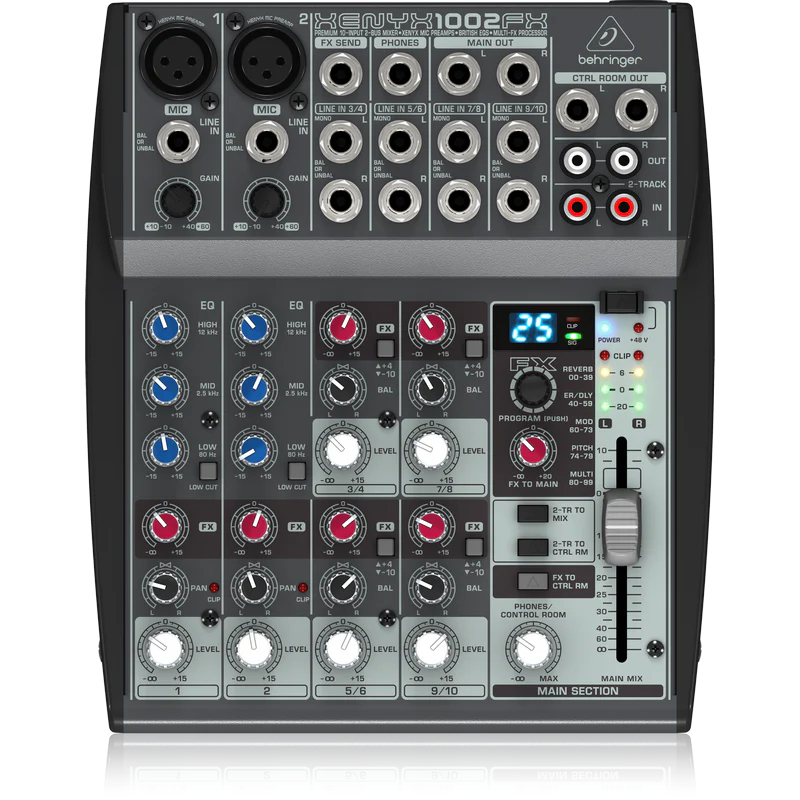

Behringer XENYX 1002FX

Behringer XENYX 1002FX 10-Input Mixer with Multi-FX Processor – Technical Specifications

Power Supply & Consumption

• Power Supply: External Power Supply Unit, 230 V AC, 50 Hz (EU) / 120 V AC, 60 Hz (US)

• Power Consumption: 17 W

• Mains Connection: 3-pin dedicated connector socket

Audio Performance

• Frequency Range: 10 – 160,000 Hz (+0 dB / -1 dB)

• S/N Ratio: 110 dB A-weighted (0 dBu In @ +22 dB gain)

• THD+N: 0.005% A-weighted

• Equivalent Input Noise (Mic): -130 dB (150 Ω source)

• Channel Equalizer: 3-band graphic British EQ (80 Hz Low, 2.5 kHz Mid, 12 kHz High, ±15 dB) on mono mic channels

• Integrated Effects: 24-bit digital FX processor with 100 presets including reverb, chorus, flanger, delay, pitch shifter, and multi-effects

• Phantom Power: +48 V DC phantom power (switchable for condenser microphones)

Connectivity & Media Playback

• Integrated Media Player: N/A (Standard analog multi-input mixer with auxiliary routing)

• Auxiliary Routing: 1 x post-fader FX send control per channel for internal or external effects processing, 1 x stereo Aux Return

Controls & Indicators

• Display: 2-digit numeric LED display for FX preset selection

• Control Elements: Gain knobs, 3-band EQ knobs, FX Send knobs, Pan/Balance controls, Rotary level faders (Channels 1–2), Slide faders (Channels 3/4 to 9/10), FX Program selector encoder, Main Mix fader, Phones/Control Room level knob, CD/Tape level knob

• Indicators: Power status LED, +48V Phantom Power LED, Clip LED on mono channels, 4-segment stereo LED peak level meter

Inputs & Outputs

• Inputs:

  • Microphone Inputs: 2 x 3-pin XLR (balanced with XENYX preamps)

  • Mono Line Inputs: 2 x 6.35 mm (1/4") TRS jacks (balanced)

  • Stereo Line Inputs: 4 x Pairs of 6.35 mm (1/4") TRS jacks (Line 3/4, 5/6, 7/8, 9/10)

  • 2-Track / CD Input: 1 x Stereo RCA pair

• Outputs:

  • Main Output: 2 x 6.35 mm (1/4") TRS jacks (Main Out L/R, balanced)

  • Control Room / Phones Output: 2 x 6.35 mm (1/4") TRS jacks / 1 x Stereo 6.35 mm (1/4") Phones jack

  • FX Send Output: 1 x 6.35 mm (1/4") TRS jack

  • 2-Track Output: 1 x Stereo RCA pair

Physical Specifications

• Housing Design: Rugged desktop steel chassis with contoured side design

• Rack Mounting: N/A (Compact desktop unit)

• Dimensions (W x D x H): 189 x 220 x 47 mm

• Weight: 2.10 kg

Accessories Included

• External Power Supply Unit, User Manual
