MX400 MICROMIX — FOUR INPUTS, ONE OUTPUT, ENDLESS UTILITY

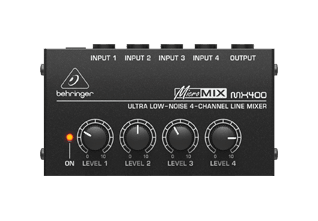

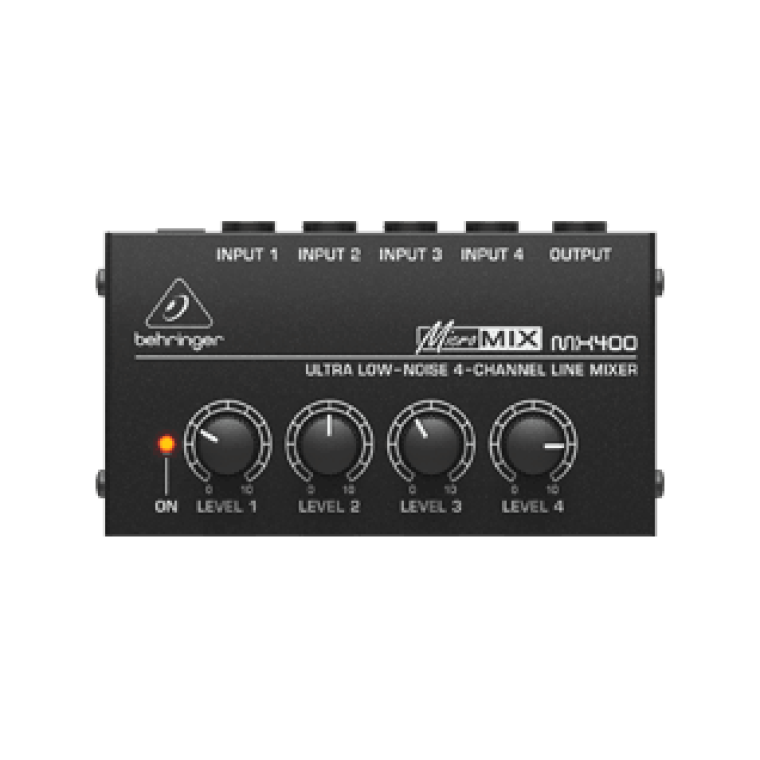

Every studio rack, every live rig, every broadcast booth eventually needs a clean utility mixer. The Behringer MICROMIX MX400 is the legendary four-channel low-noise line mixer that’s been quietly solving signal-summing problems for two decades.
Sum four headphone-monitor sources, combine drum machines for a single interface input, blend talk-mic and music for streaming — MX400 is the Swiss-army utility every audio professional ends up owning. Tiny box. Huge usefulness.
Behringer MicroMIX MX400 – Technical Specifications & Setup Guide
Power Supply & Consumption
-
Power Supply: 12 V DC, 150 mA (via included external power adapter, 100–240 V AC, 50/60 Hz)
-
Power Consumption: Approx. 2 W
-
Power Connection: Coaxial DC power input socket (inside +, outside -)
Audio Performance
-
Frequency Response: 10 Hz – 120 kHz (-3 dB)
-
S/N Ratio: 110 dB A-weighted
-
THD+N: 0.005% typ. @ +4 dBu, 1 kHz
-
Max. Input Level: +16 dBu
-
Max. Output Level: +16 dBu
-
Output Impedance: 80 Ω
Connectivity & Signal Routing
-
Audio Channels: 4 Mono Line Inputs to 1 Mono Line Output
-
Amplifier Circuitry: Active ultra-low noise 4580 operational amplifiers (provides clean signal boost unlike passive mixers)
Controls & Indicators
-
Control Elements: 4 x Independent Input Level rotary knobs (Volume controls per channel, -∞ to +12 dB gain)
-
Indicators: Power status LED
Inputs & Outputs
-
Inputs:
-
Line Inputs: 4 x 6.35 mm (1/4") TS jacks (unbalanced mono)
-
Outputs:
-
Main Output: 1 x 6.35 mm (1/4") TS jack (unbalanced mono)
Physical Specifications
-
Housing Design: Ultra-compact desktop metal enclosure
-
Dimensions (W x D x H): 103.6 x 57.2 x 46.5 mm (4.1" x 2.25" x 1.8")
-
Weight: 0.19 kg (0.42 lbs)
Accessories Included
-
12 V External DC Power Adapter, Quick Start Guide
