Omnitronic PM-222

€129.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

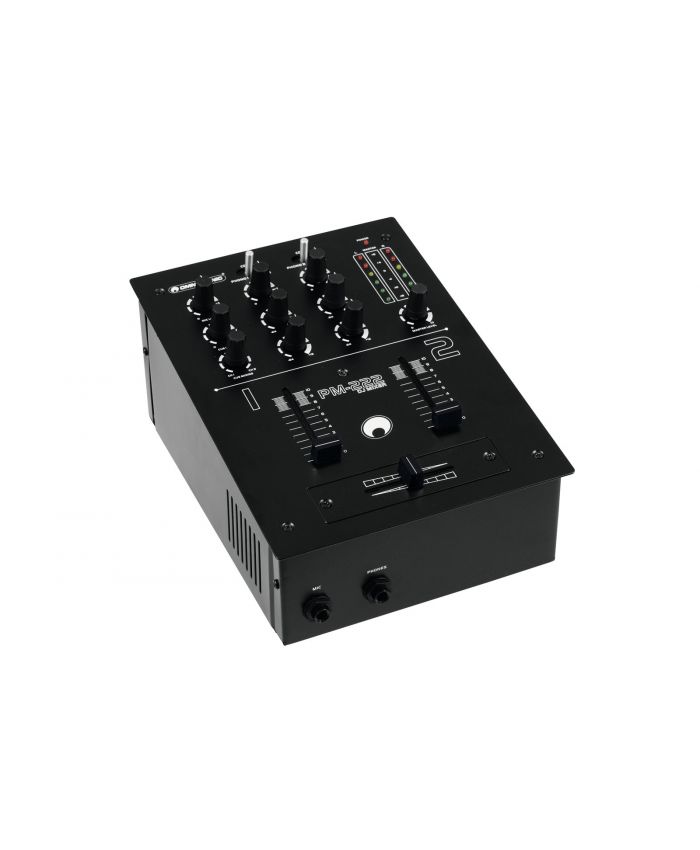

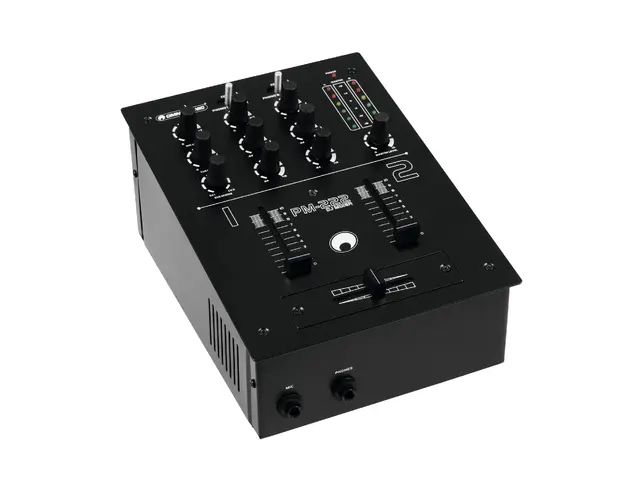

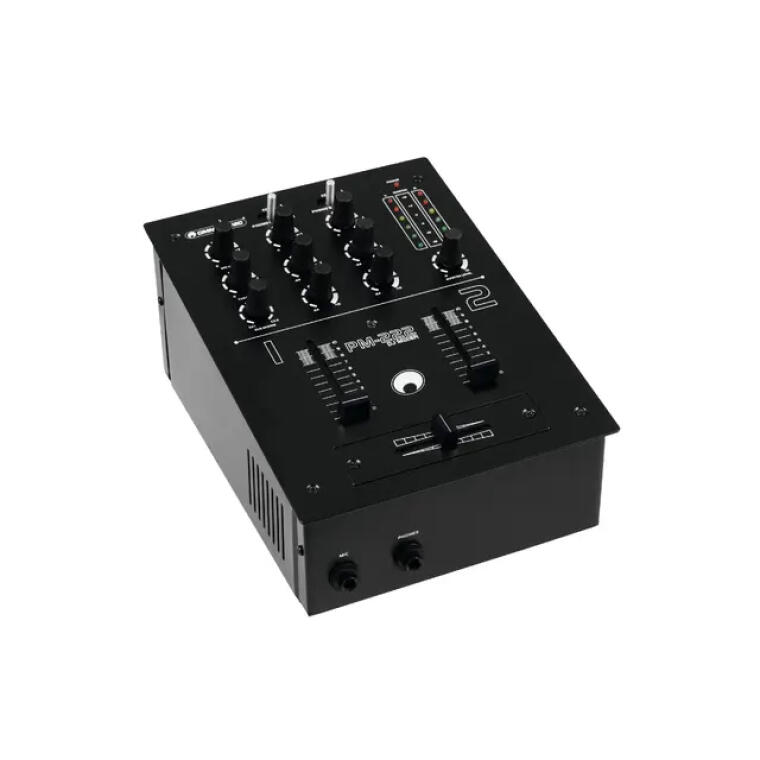

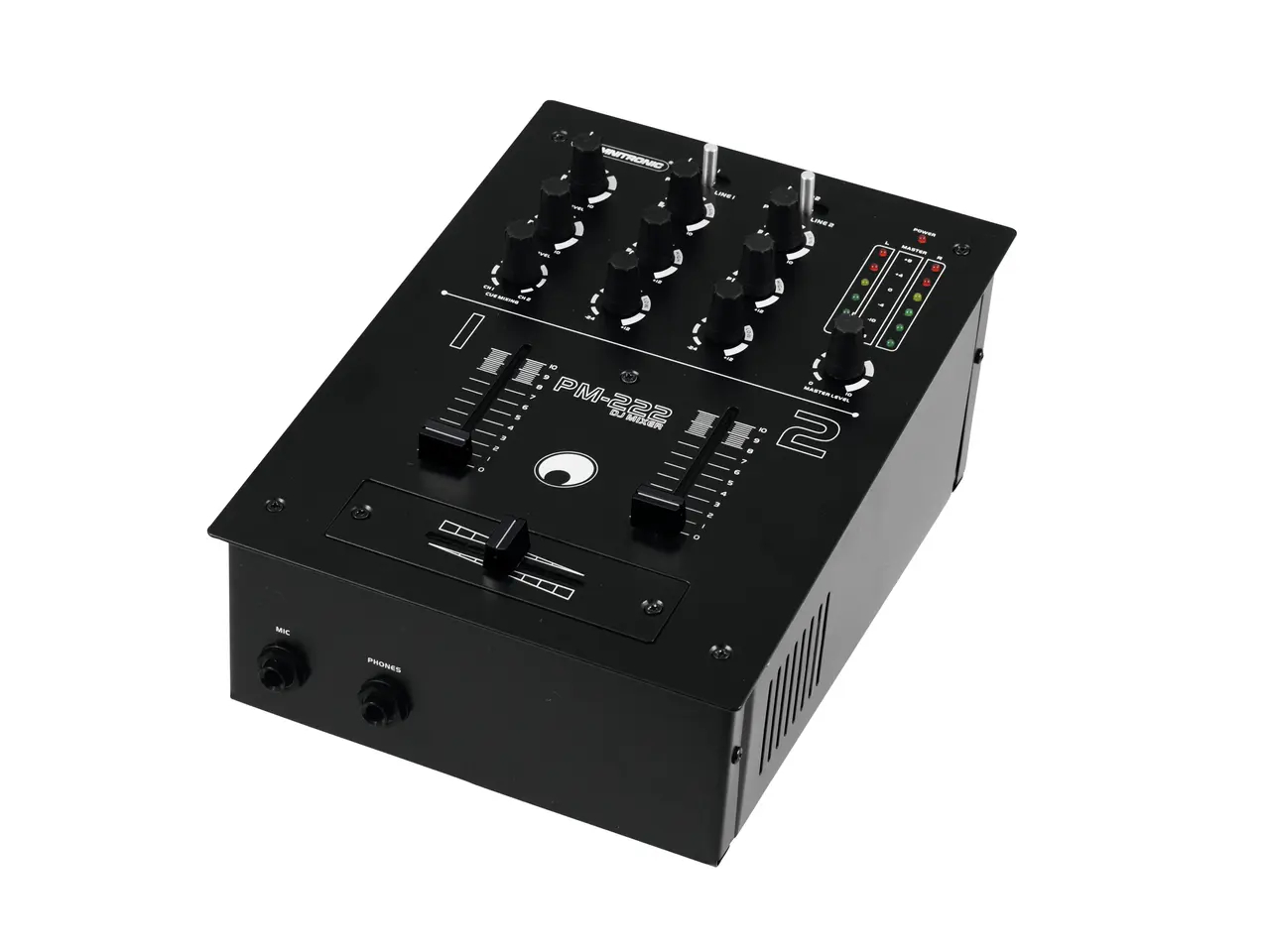

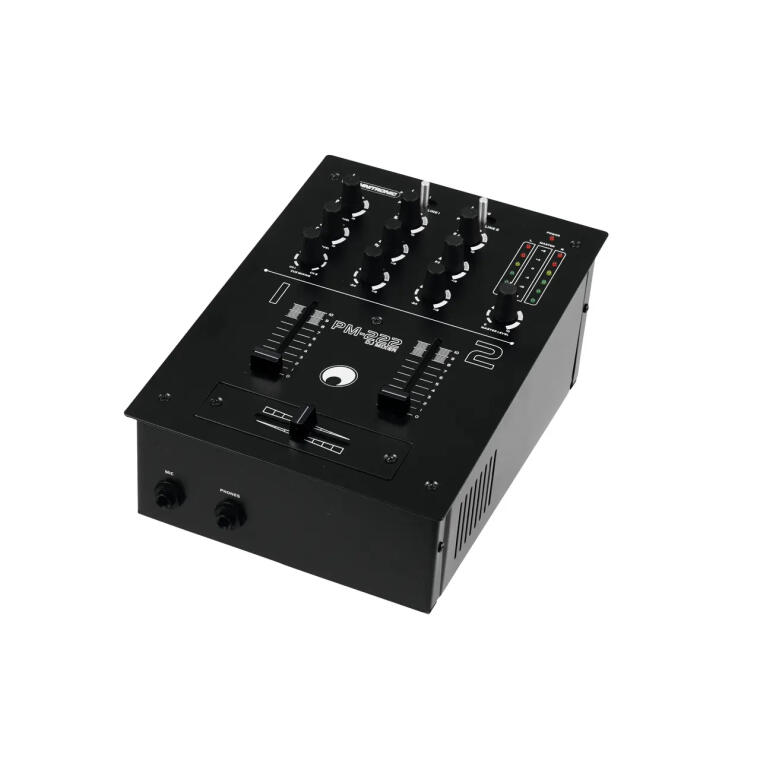

OMNITRONIC PM-222 2-Channel DJ Mixer

Omnitronic PM-222

2-channel DJ mixer

  • 2 input channels with gain control, 2-way equalizer and phono/line switching
  • DJ microphone input with separate level control
  • Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
  • Replaceable crossfader for crossfading between both channels
  • 6-digit stereo LED level meter and master level control
  • Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
  • Outputs: master and record (stereo RCA)
  • Desktop console housing

Omnitronic PM-222 2-Channel DJ Mixer – Technical Specifications

Power Supply & Consumption

  • Power Supply: 100–240 V AC, 50/60 Hz

  • Power Consumption: 30 W

  • Protection Class: Class II

  • Power Connection: Mains input via IEC C8 ("figure-8") socket; power cord with Euro plug included

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >70 dB

  • THD: <0.025% @ 1 kHz

  • Channel Equalizer: 2-band EQ per channel (-24 dB to +15 dB @ 100 Hz Low / 12 kHz High)

  • Input Impedance: 47 kΩ (Mic, Line, Phono)

  • Minimum Input Sensitivity: 3 mV RMS (Mic & Phono), 150 mV RMS (Line)

  • Maximum Output Level: Master +19 dBu (7 V RMS), Rec 2.4 V RMS

Connectivity & Media Playback

  • Integrated Media Player: N/A (Standard analog 2-channel DJ mixer)

  • Audio Channels: 2 x stereo input channels (switchable Line/Phono), 1 x mono DJ mic channel

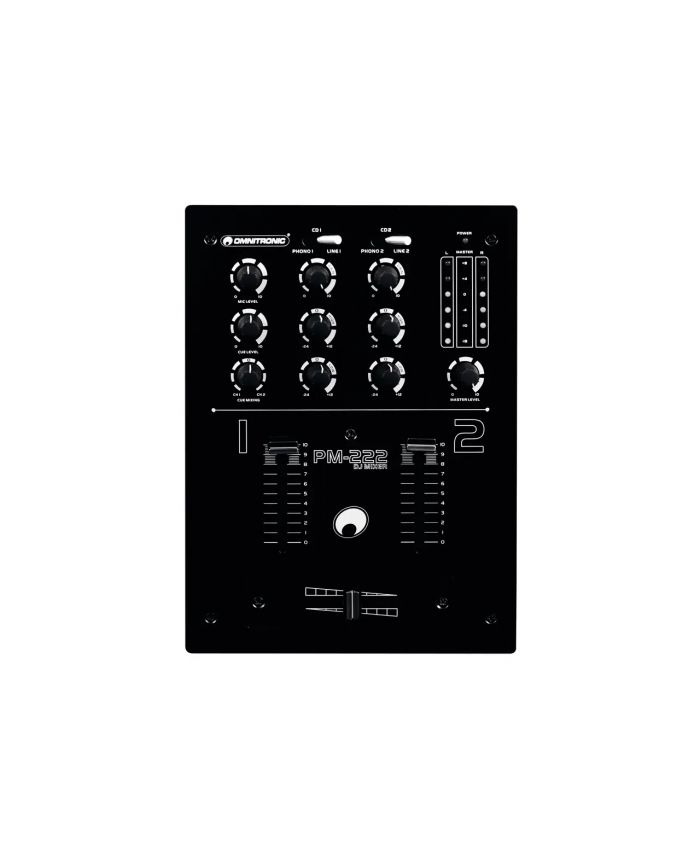

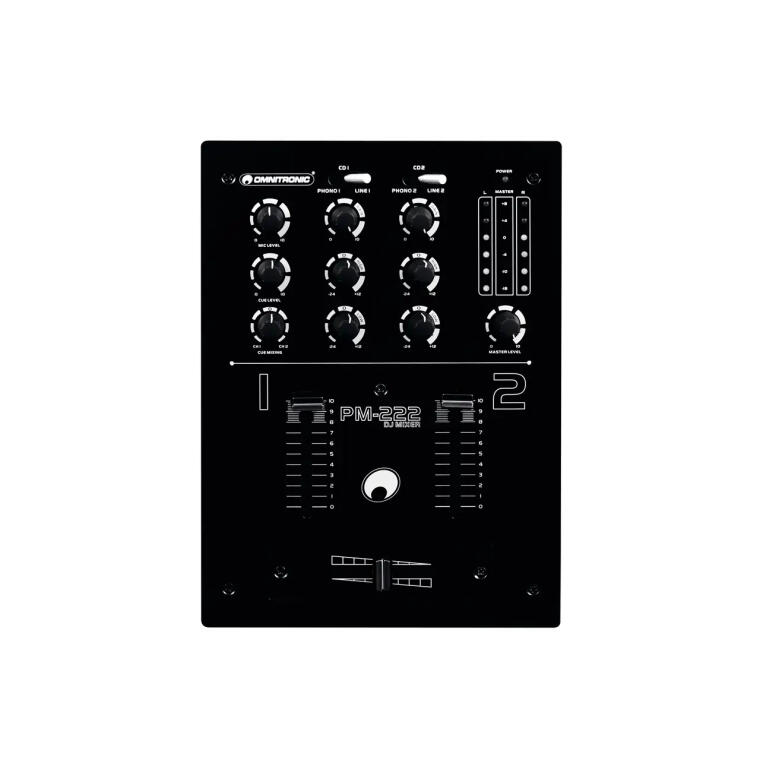

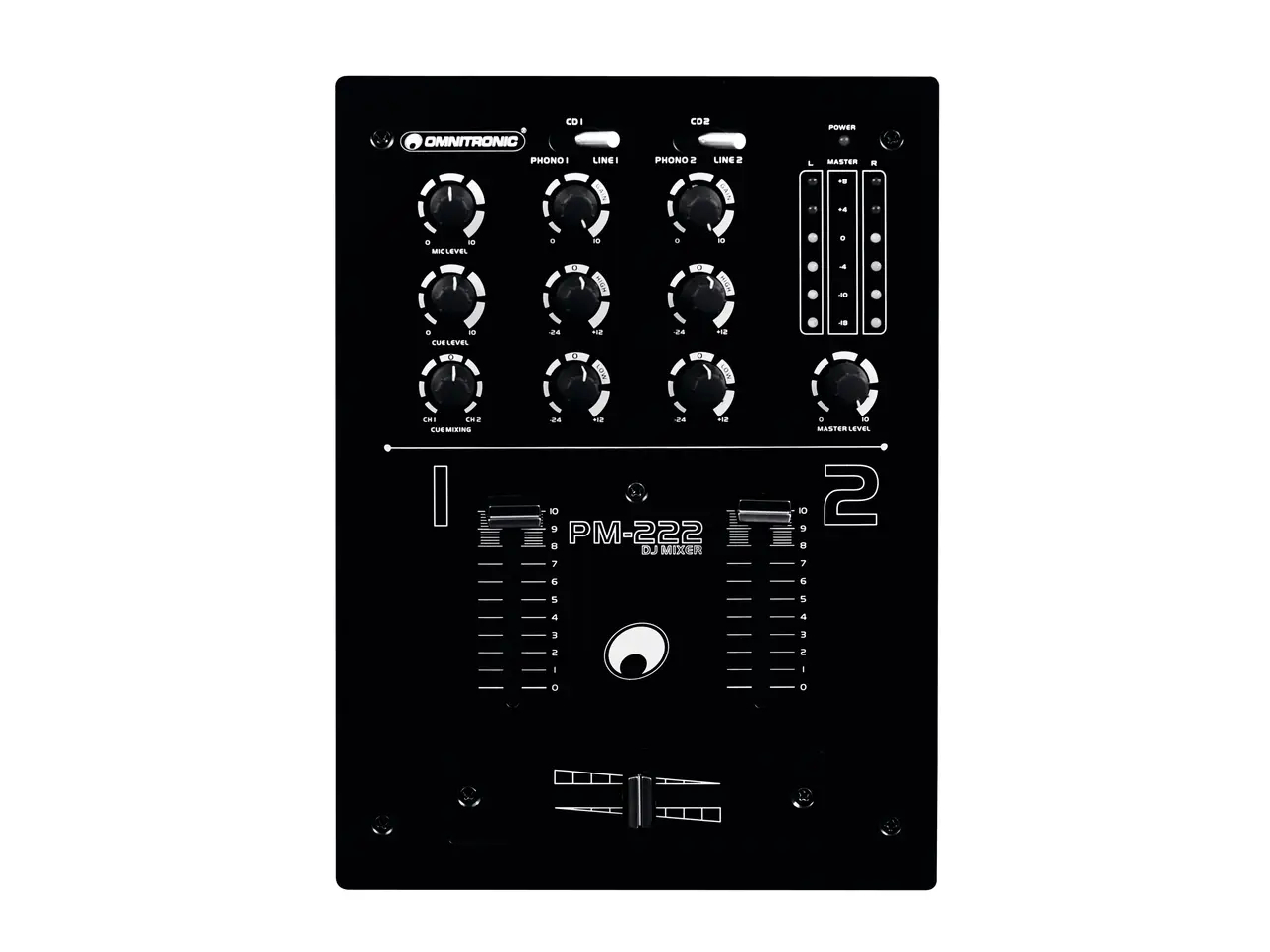

Controls & Indicators

  • Control Elements: Gain controls per channel, 2-band EQ knobs, Channel faders, Replaceable crossfader, Master Level knob, DJ Mic Volume knob, Headphones CUE Volume knob, CUE Mix control knob, Line/Phono switches

  • Indicators: Power status LED, 6-digit stereo LED master output level meter

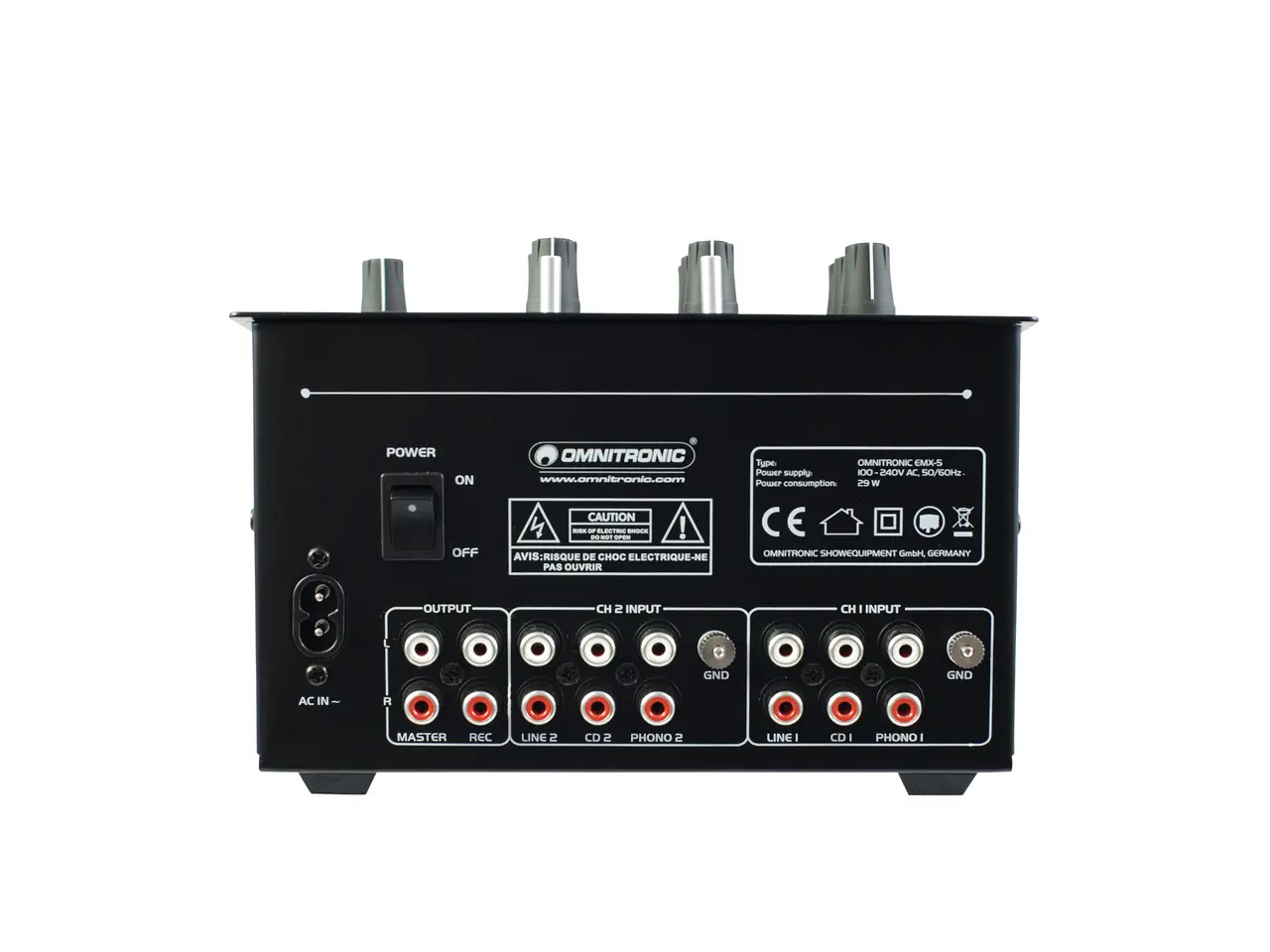

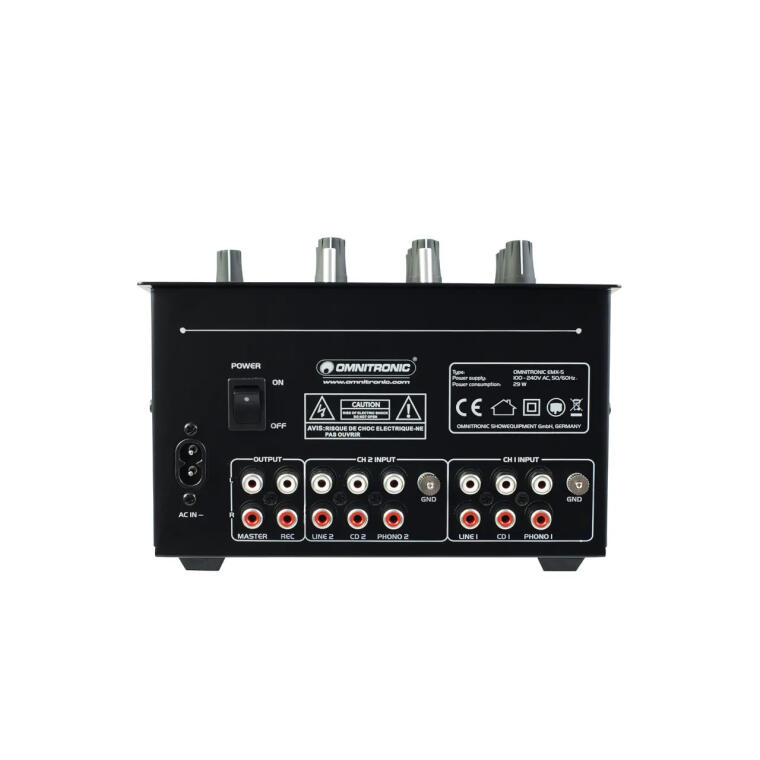

Inputs & Outputs

  • Inputs:

    • Line Inputs: 4 x Stereo RCA (Line 1 to 4)

    • Phono Inputs: 2 x Stereo RCA (Phono 1 & 2) with ground clamping screw

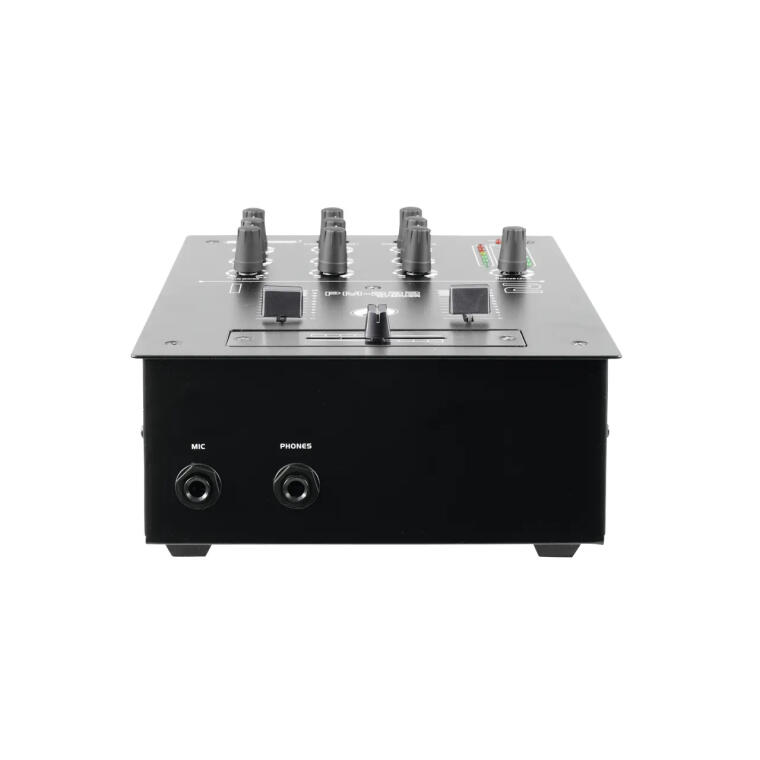

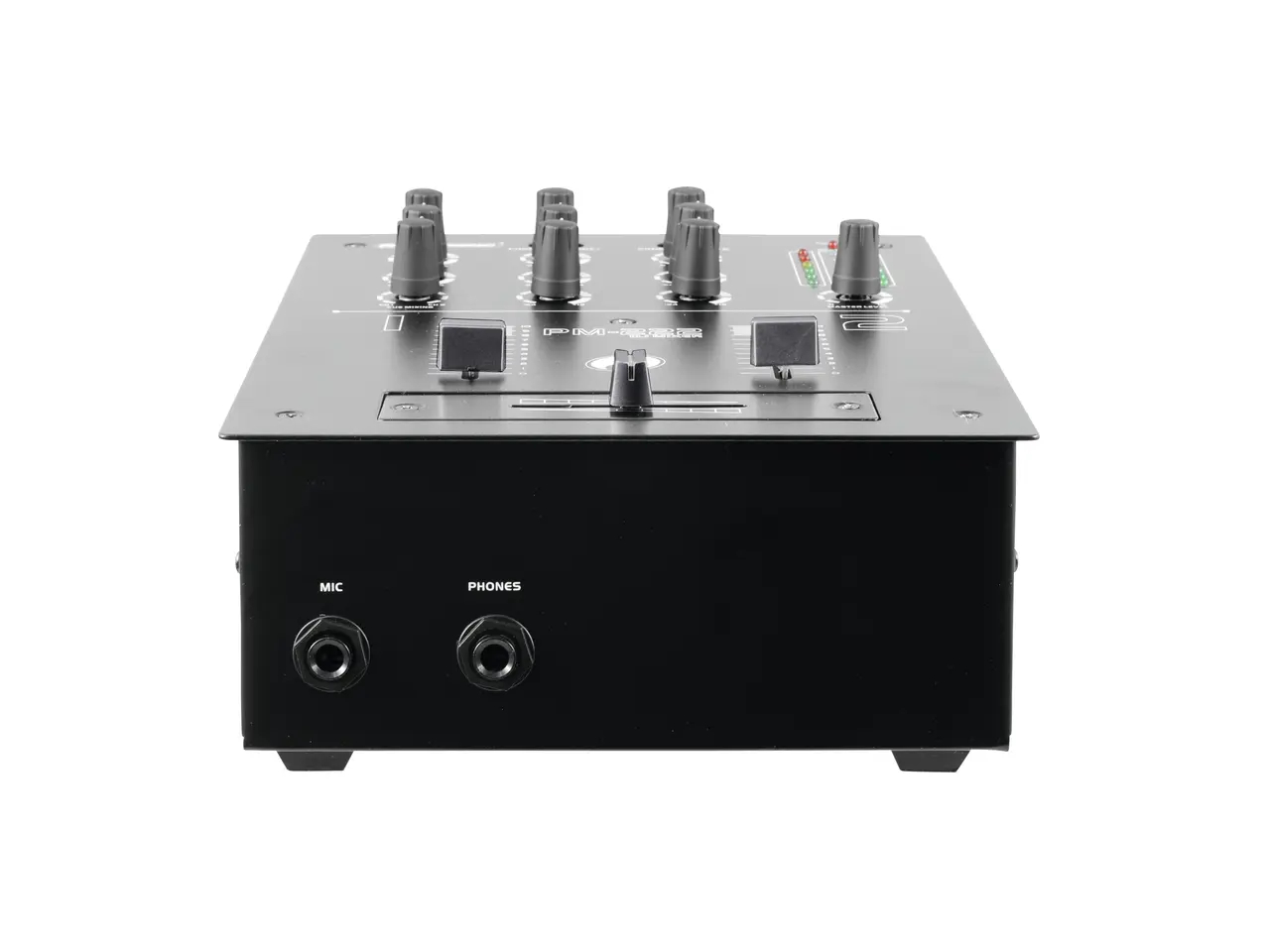

    • Microphone Input: 1 x 6.35 mm (1/4") jack (unbalanced mono)

  • Outputs:

    • Master Output: 1 x Stereo RCA

    • Record Output: 1 x Stereo RCA (Rec Out)

    • Headphones Output: 1 x 6.35 mm (1/4") stereo jack (min. 32 Ω)

Physical Specifications

  • Housing Design: Compact desktop console housing (sturdy metal chassis, black finish)

  • Rack Mounting: N/A (Desktop console format)

  • Dimensions (W x D x H): 190 x 260 x 137 mm

  • Weight: 2.00 kg

Accessories Included

  • Mains Power Cord (C8 to Euro plug), User Manual
