OMNITRONIC XO-300

SKU: No. 10355636
€155.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

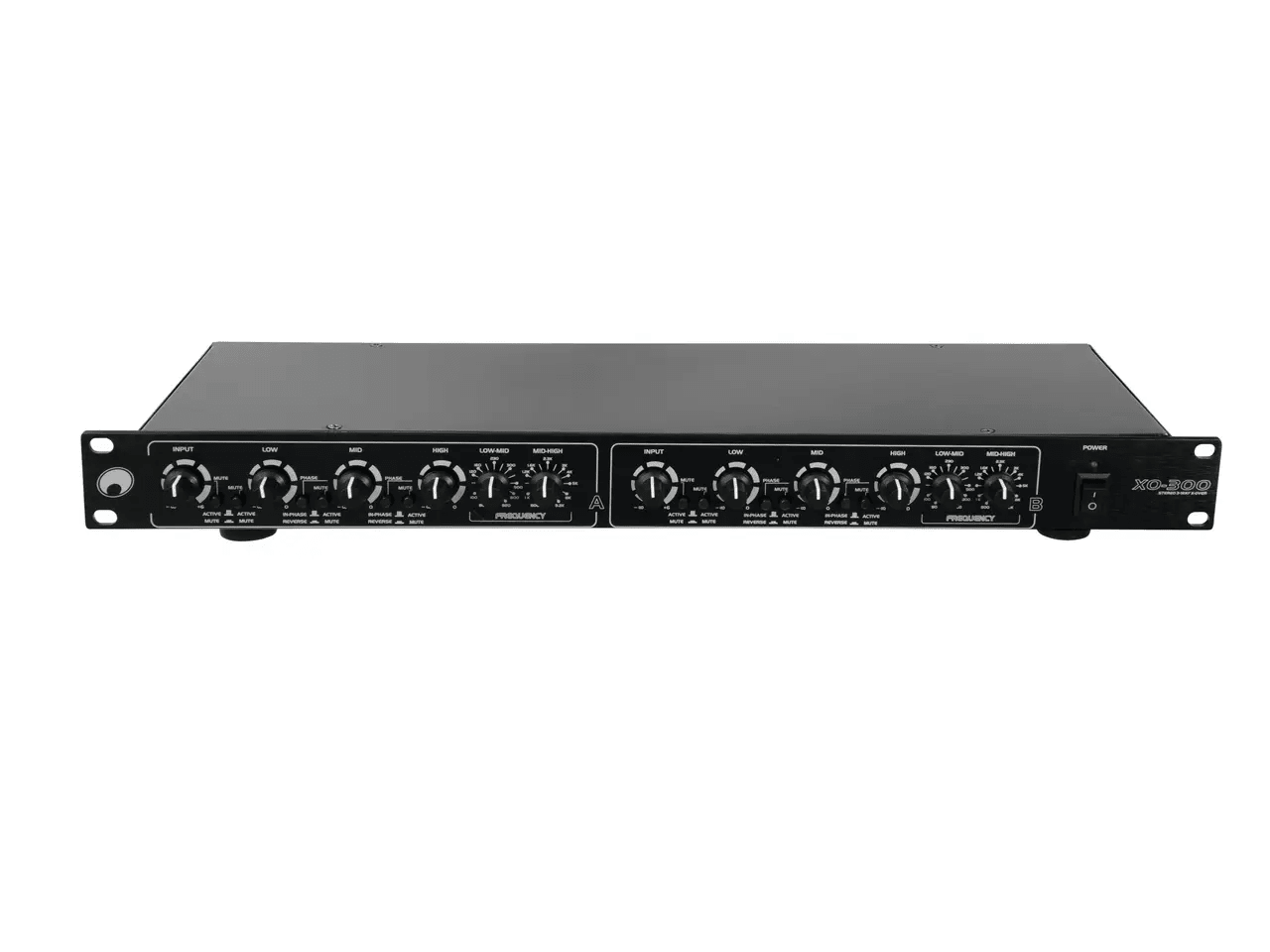

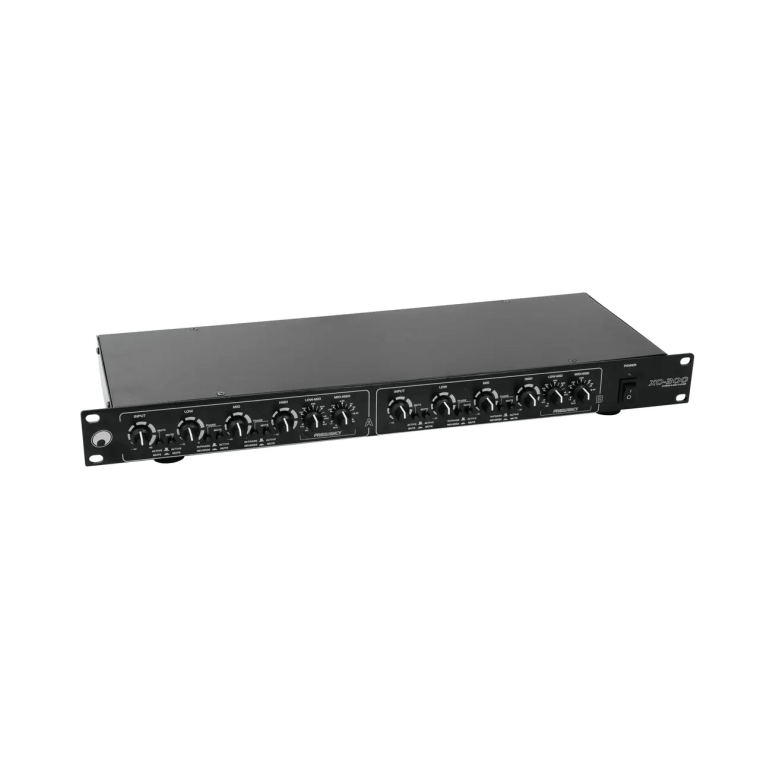

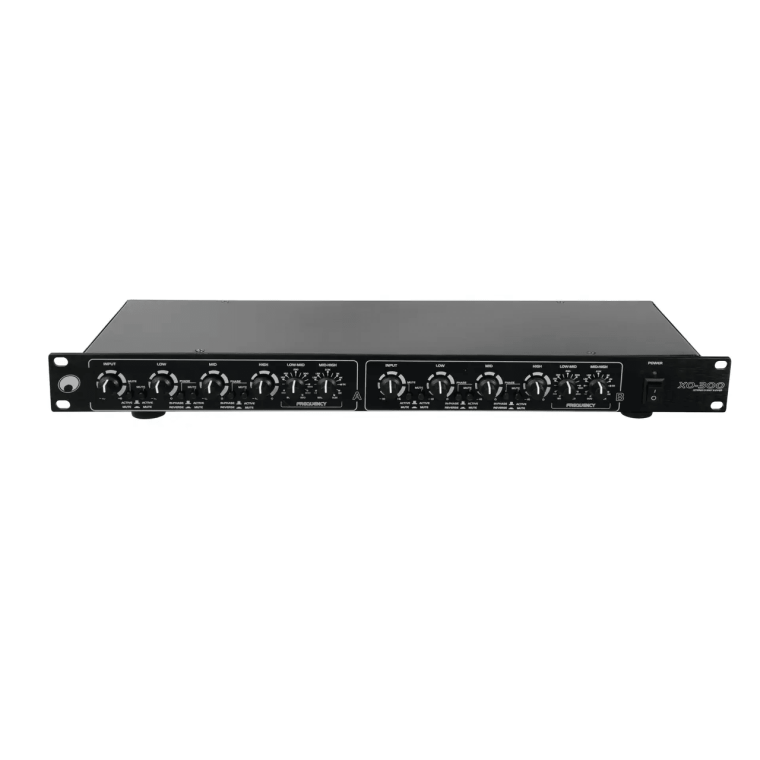

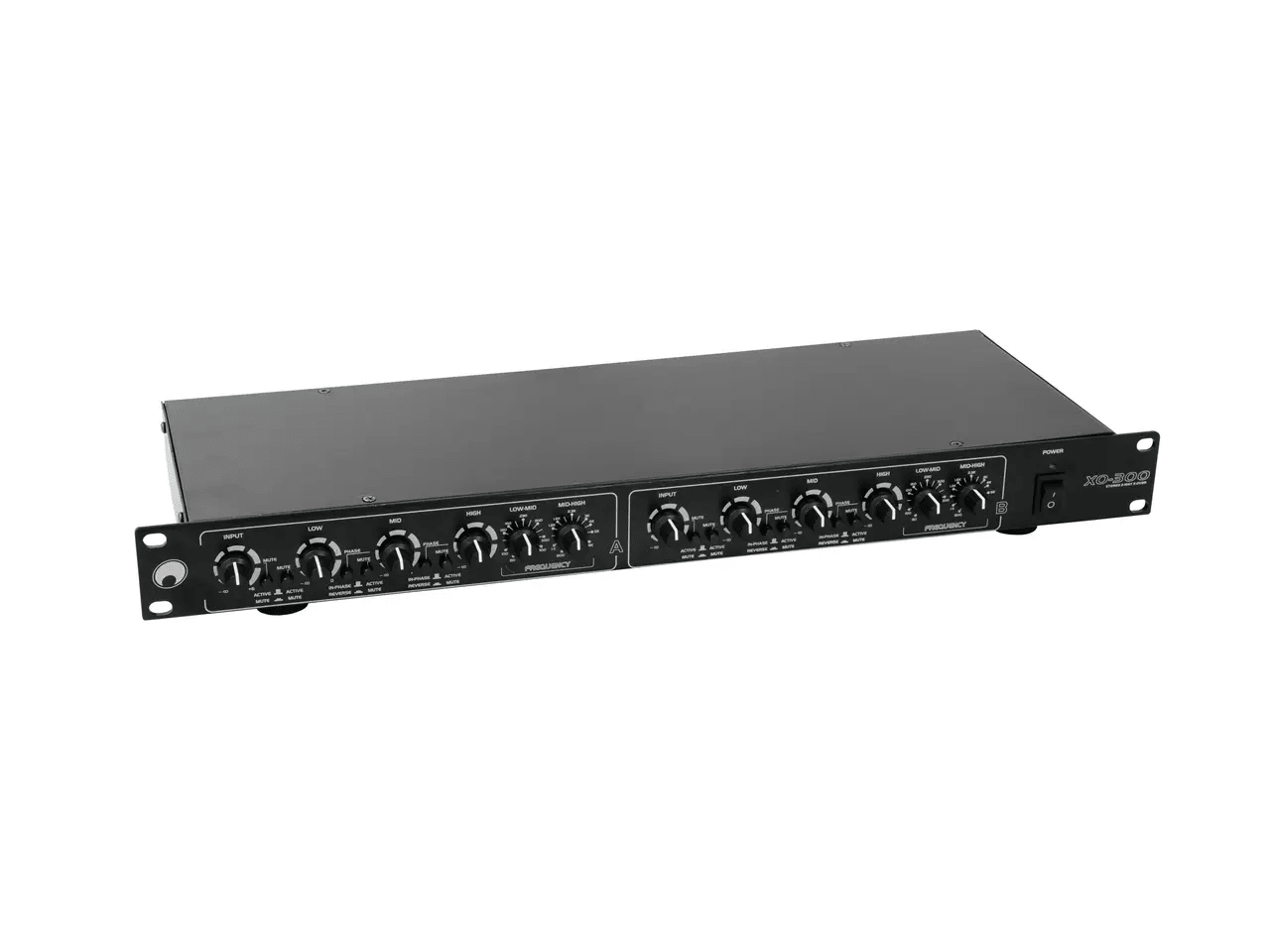

OMNITRONIC XO-300 Active Crossover

Active crossover, stereo 3-way operation

  • 3-way stereo operation
  • Variable 24 dB per octave Linkwitz-Riley filters
  • Individual output level controls for each frequency range
  • Continuously adjustable crossover frequencies low/mid and mid/high
  • Individual muting for input signal and each frequency range
  • CD horn EQ for smoother treble selectable
  • Switchable low and mid phase
  • Input level adjustable
  • Balanced XLR inputs and outputs
  • (19") 48.3 cm rack installation 1 U
  • For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room

Omnitronic XO-300 – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 230 V AC, 50 Hz (via internal power supply unit)

  • Power Consumption: 20 W

  • Power Connection: Standard IEC C14 power inlet with physical power switch on rear panel

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >91 dB

  • THD: <0.04% @ 1 kHz

  • Filter Type: Linkwitz-Riley, 24 dB/octave state-variable filters

  • Crossover Frequency Ranges:

    • Stereo 3-Way: Low/Mid (45 Hz – 960 Hz or 450 Hz – 9.6 kHz via x10 switch), Mid/High (450 Hz – 9.6 kHz)

    • Mono 4-Way: Low/Low-Mid (45 Hz – 960 Hz), Low-Mid/High-Mid (450 Hz – 9.6 kHz), High-Mid/High (450 Hz – 9.6 kHz)

  • Low-Cut Filter: 25 Hz Butterworth filter, 12 dB/octave (switchable per channel)

Connectivity & Signal Routing

  • Operating Modes:

    • 3-Way Stereo (Left/Right inputs split into Low, Mid, High outputs)

    • 4-Way Mono (Single input split into Low, Low-Mid, High-Mid, High outputs)

  • Subwoofer / Low Sum Function: Subwoofer output summing (sums L+R low frequencies into a mono subwoofer output)

Controls & Indicators

  • Control Elements:

    • Front Panel: Input Gain controls (-∞ to +6 dB), Low-Cut 25 Hz switches, Low/Mid & Mid/High Crossover frequency knobs, Output Gain controls (-∞ to +6 dB) per band, Phase Reverse switches (180°) per output, CD Horn EQ switch

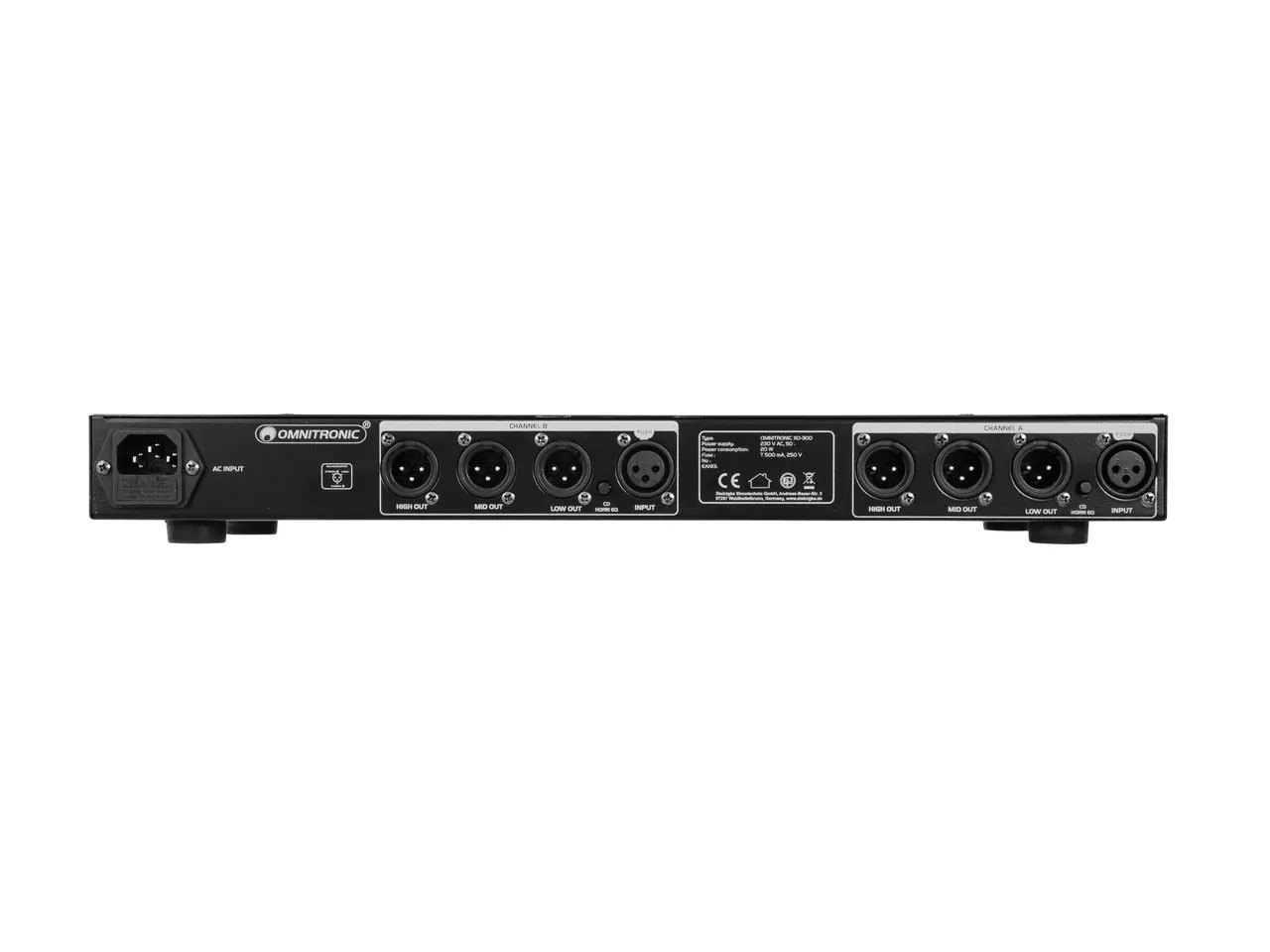

    • Rear Panel: Mode selector switches (Stereo 3-Way / Mono 4-Way), Range x10 multiplier switches

  • Indicators: Mode LEDs (Stereo 3-Way, Mono 4-Way), Active LEDs, Low-Cut LEDs, Phase Reverse LEDs

Inputs & Outputs

  • Inputs:

    • Audio Inputs: 2 x XLR (balanced, Channel 1 & Channel 2)

  • Outputs:

    • Stereo Mode Outputs: 6 x XLR (balanced - Low L/R, Mid L/R, High L/R)

    • Mono Mode Outputs: 4 x XLR (balanced - Low, Low-Mid, High-Mid, High)

    • Subwoofer Output: 1 x XLR (balanced mono low-sum output)

Physical Specifications

  • Housing Design: 19" rack-mountable 1U steel chassis

  • Dimensions (W x D x H): 483 x 175 x 44 mm (19.0" x 6.9" x 1.75")

  • Weight: 2.2 kg (4.85 lbs)

Accessories Included

  • Power Cable (IEC), User Manual
