Omnitronic EP-220PR

€179.00 incl. VAT
In stock
Interested in this product?
Call us

Overview

OMNITRONIC EP-220PR Preamplifier with MP3 Player and FM Radio

PREAMPLIFIER WITH MP3 PLAYER AND FM RADIO

Sound control made easy


You want to play music and control the sound in your restaurant, gym or shop in a simple way? Turn the Omnitronic EP-220PR preamplifier into your easy-to-use control centre!

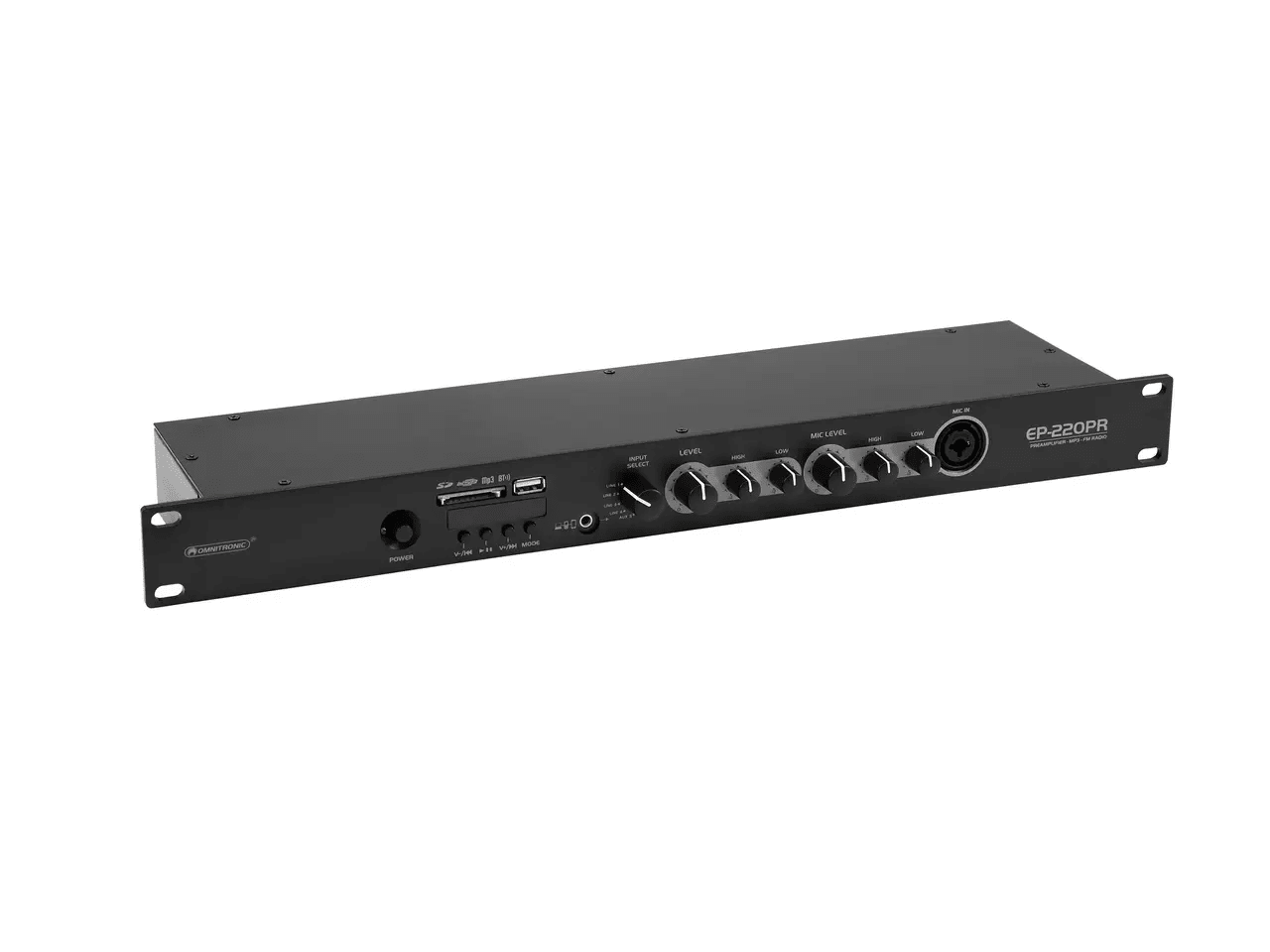

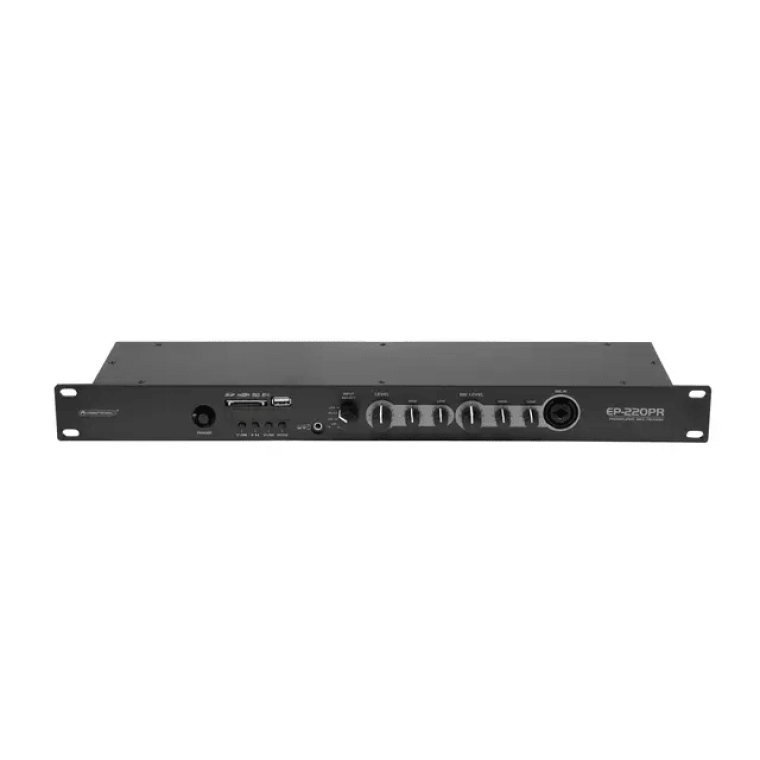

OMNITRONIC EP-220PR Front view and connections
PLAYING MUSIC
Transfer music wirelessly from your tablet, mobile phone or PC. Download MP3s from an SD card or USB stick and play them using the built-in audio player. Or simply use the 5 switchable line inputs (Cinch and 3mm jack) to play external sources. The built-in tuner allows you to receive radio stations on the FM wave.
OMNITRONIC EP-220PR close-up
EASY TO USE
You can easily control the volume, bass, and treble of the music using the controls on the front of the unit. A microphone input (XLR) is available for announcements or speeches. You can control the volume, bass, and treble of the microphone signal using the controls on the front panel.
Thanks to its sleek design, side-mounted rack rails and light weight, the EP-220PR preamp can be easily integrated into your location.

Omnitronic EP-220PR – Technical Specifications & Setup Guide

Power Supply & Consumption

  • Power Supply: 100–240 V AC, 50/60 Hz (via internal power supply unit)

  • Power Consumption: 12 W

  • Power Connection: Standard IEC C14 power inlet with physical power switch on rear panel

Audio Performance

  • Frequency Range: 20 – 20,000 Hz

  • S/N Ratio: >80 dB

  • THD: <0.1% @ 1 kHz

  • Equalizer: 2-band EQ on microphone channel (High: 10 kHz ±12 dB, Low: 100 Hz ±12 dB)

Connectivity & Media Playback

  • Integrated Media Player: Internet radio tuner, DAB+ / FM tuner, Bluetooth receiver, and USB/SD card player with blue backlit LCD display

  • Network Connectivity: Wi-Fi (802.11 b/g/n) and RJ45 Ethernet LAN port

  • Media Playback Formats: MP3, AAC, AAC+, WMA, FLAC from USB storage devices and SD/SDHC cards (up to 32 GB)

  • Bluetooth: Version 4.2 (for wireless audio streaming from mobile devices)

  • Audio Channels: 1 Mono mic channel, 2 Aux line inputs, 1 Front 3.5 mm Aux input, Integrated tuner/media player

Controls & Indicators

  • Control Elements:

    • Front Panel: Push/rotary navigation encoder, playback controls (Play/Pause, Stop, Track Skip, Preset buttons), Source select button, Volume controls for Mic, Aux 1, Aux 2, and Media Player, Mic 2-band EQ knobs, Power switch

    • Remote Control: Full IR remote control included for distance operation

  • Indicators: Graphic LCD display, Status LEDs for Power, Wi-Fi, and Mode selection

Inputs & Outputs

  • Inputs:

    • Microphone Input: 1 x Combination XLR / 6.35 mm (1/4") TRS jack (balanced, front panel)

    • Aux Line Inputs: 2 x Stereo RCA pairs (Aux 1 & Aux 2 on rear panel)

    • Front Line Input: 1 x 3.5 mm TRS stereo jack (Front Aux)

    • Antenna Connections: 1 x FM/DAB antenna jack (75 Ω), 1 x Wi-Fi antenna connector (RP-SMA)

  • Outputs:

    • Master Output: 2 x XLR (balanced, L/R) and 1 x Stereo RCA pair (unbalanced)

    • Record Output: 1 x Stereo RCA pair (Rec Out)

Physical Specifications

  • Housing Design: 19" rack-mountable 1U steel chassis

  • Dimensions (W x D x H): 483 x 250 x 44 mm (19.0" x 9.8" x 1.75")

  • Weight: 2.4 kg (5.3 lbs)

Accessories Included

  • Power Cable (IEC), IR Remote Control, FM/DAB Wire Antenna, Wi-Fi Antenna, User Manual
